501-10-1 501-10-1Seating

REMOVAL AND INSTALLATION

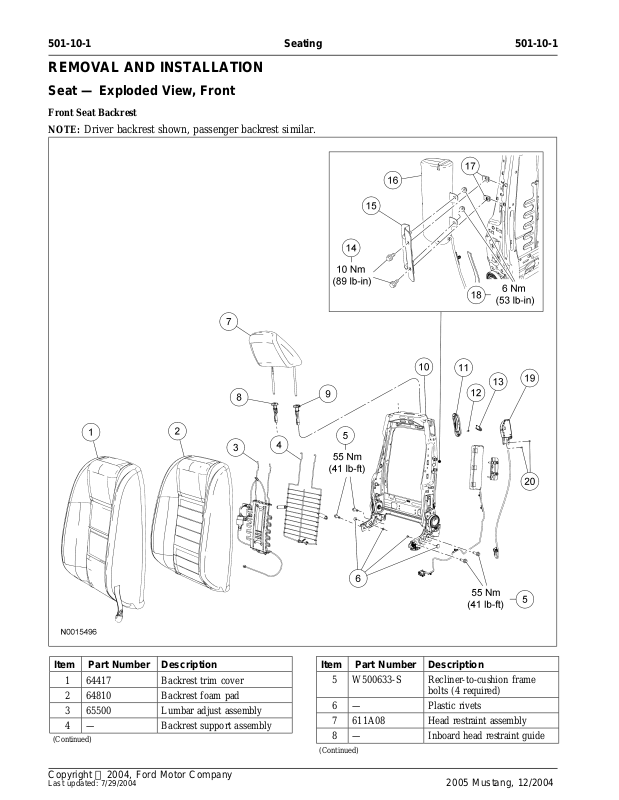

Seat — Exploded View, Front

Front Seat Backrest
NOTE:

Driver backrest shown, passenger backrest similar.

Item Part Number Description Item Part Number Description

1 64417 Backrest trim cover
2 64810 Backrest foam pad
3 65500 Lumbar adjust assembly
4 — Backrest support assembly

(Continued)

Copyright  2004, Ford Motor Company

Last updated: 7/29/2004

5 W500633-S Recliner-to-cushion frame

bolts (4 required)
6 — Plastic rivets
7 611A08 Head restraint assembly
8 — Inboard head restraint guide

(Continued)

2005 Mustang, 12/2004

501-10-2 501-10-2Seating

REMOVAL AND INSTALLATION (Continued)

Item Part Number Description Item Part Number Description

9 — Outboard head restraint guide 16 611D11 Side air bag module
10 61018 Backrest frame 17 W520822 U-nuts
11 62672 Backrest recliner release bezel 18 — Side air bag
12 — Screw
13 62762 Backrest recliner release

handle
14 N605892 Side air bag module bolts
15 611D79 Side air bag module bracket

(Continued)

Driver Power Front Seat Cushion

19 62432 Backrest recliner release
20 — Rivets

module-to-bracket nuts (part
of 611D10)

2005 Mustang, 12/2004

501-10-3 501-10-3Seating

REMOVAL AND INSTALLATION (Continued)

Item Part Number Description Item Part Number Description

1 62901 Cushion trim cover
2 — Cushion foam pad
3 — Seat control switch knob (if

equipped)

4 62622 Recline handle
5 — Recline handle clip (part of

62622)
6 — Screw
7 62187 Cushion side shield
8 14A701 Seat control switch

(Continued)

9 619A74 Lumbar control switch (if

equipped)

10 W520113-S Cushion frame-to-seat-track

nuts (4 required)
11 63101 Cushion frame
12 61701 Seat track
13 61203 Safety belt buckle
14 — Safety belt buckle bolt (part

of 61203)
15 14A699 Driver seat wire harness

2005 Mustang, 12/2004

501-10-4 501-10-4Seating

REMOVAL AND INSTALLATION (Continued)

Driver Manual Front Seat Cushion

Item Part Number Description Item Part Number Description

1 62901 Cushion trim cover
2 — Cushion foam pad
3 62768 Manual height adjust handle

center cover (if equipped)

4 61753 Manual height adjust handle

(if equipped)

5 W520113-S Cushion frame-to-seat-track

nuts (4 required)

6 62622 Recline handle

(Continued)

7 — Recline handle clip (part of

62622)
8 — Screw
9 62187 Cushion side shield

10 63101 Cushion frame
11 14A699 Driver seat wire harness
12 61701 Seat track
13 61203 Safety belt buckle
14 — Safety belt buckle bolt (part

of 61203)

2005 Mustang, 12/2004

501-10-5 501-10-5Seating

REMOVAL AND INSTALLATION (Continued)

Passenger Front Seat Cushion

Item Part Number Description Item Part Number Description

1 62900 Cushion trim cover
2 — Cushion foam pad (part of

original equipment [OE]
occupant classification sensor
(OCS)

3 — Pin-type retainers (part of OE

OCS)
4 — OE OCS
5 632A22 OCS service kit

(Continued)

6 — Screw
7 62186 Side shield
8 63100 Cushion frame
9 W520113-S Cushion frame-to-seat-track

nuts (4 required)
10 62622 Recline handle
11 — Recline handle clip (part of

62622)

(Continued)

2005 Mustang, 12/2004

501-10-6 501-10-6Seating

REMOVAL AND INSTALLATION (Continued)

Item Part Number Description

12 61203 Safety belt buckle
13 — Safety belt buckle bolt (part

of 61203)

14 618B46 Seat track

1. For additional information, refer to the
procedures in this section.
