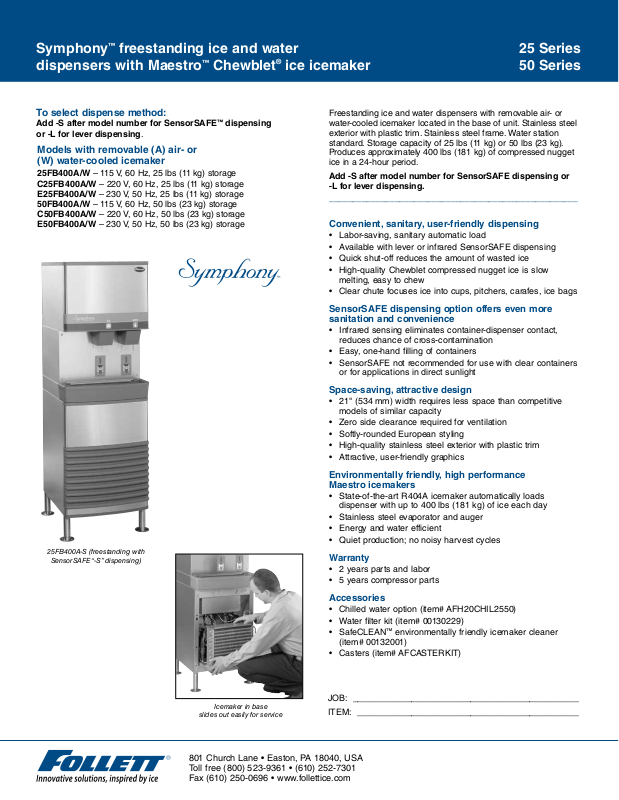

Follett 25FB400A User Manual
Symphony™ freestanding ice and water
™
dispensers with Maestro
Chewblet® ice icemaker
25 Series
50 Series
To select dispense method:
™
Add -S after model number for SensorSAFE
or -L for lever dispensing.
dispensing
Models with removable (A) air- or
(W) water-cooled icemaker
25FB400A/W – 115 V, 60 Hz, 25 lbs (11 kg) storage
C25FB400A/W – 220 V, 60 Hz, 25 lbs (11 kg) storage
E25FB400A/W – 230 V, 50 Hz, 25 lbs (11 kg) storage
50FB400A/W – 115 V, 60 Hz, 50 lbs (23 kg) storage
C50FB400A/W – 220 V, 60 Hz, 50 lbs (23 kg) storage
E50FB400A/W – 230 V, 50 Hz, 50 lbs (23 kg) storage
Freestanding ice and water dispensers with removable air- or
water-cooled icemaker located in the base of unit. Stainless steel
exterior with plastic trim. Stainless steel frame. Water station
standard. Storage capacity of 25 lbs (11 kg) or 50 lbs (23 kg).
Produces approximately 400 lbs (181 kg) of compressed nugget
ice in a 24-hour period.
Add -S after model number for SensorSAFE dispensing or
-L for lever dispensing.
_____________________________________________________
Convenient, sanitary, user-friendly dispensing
• Labor-saving, sanitary automatic load
• Available with lever or infrared SensorSAFE dispensing
• Quick shut-off reduces the amount of wasted ice
• High-quality Chewblet compressed nugget ice is slow
melting, easy to chew
• Clear chute focuses ice into cups, pitchers, carafes, ice bags
SensorSAFE dispensing option offers even more
sanitation and convenience
• Infrared sensing eliminates container-dispenser contact,
reduces chance of cross-contamination
• Easy, one-hand lling of containers
• SensorSAFE not recommended for use with clear containers
or for applications in direct sunlight
Space-saving, attractive design
• 21" (534 mm) width requires less space than competitive
models of similar capacity
• Zero side clearance required for ventilation
• Softly-rounded European styling
• High-quality stainless steel exterior with plastic trim
• Attractive, user-friendly graphics
25FB400A-S (freestanding with
SensorSAFE “-S” dispensing)
Environmentally friendly, high performance
Maestro icemakers
• State-of-the-art R404A icemaker automatically loads
dispenser with up to 400 lbs (181 kg) of ice each day
• Stainless steel evaporator and auger
• Energy and water efficient
• Quiet production; no noisy harvest cycles
Warranty
• 2 years parts and labor
• 5 years compressor parts
Accessories
• Chilled water option (item# AFH20CHIL2550)
• Water lter kit (item# 00130229)
• SafeCLEAN
(item# 00132001)
• Casters (item# AFCASTERKIT)
Icemaker in base
slides out easily for service
801 Church Lane • Easton, PA 18040, USA
Toll free (800) 523-9361 • (610) 252-7301
Fax (610) 250-0696 • www.follettice.com
JOB: ______________________________________________
ITEM: _____________________________________________
™
environmentally friendly icemaker cleaner
25 Series
F
C
50
10
60
16
70
21
80
27
90
32
60
16
510
232
482
219
454
206
424
193
394
179
70
21
454
206
435
198
417
190
385
175
354
161
80
27
397
180
389
177
380
173
347
158
313
142
90
32
335
152
329
150
323
147
297
135
270
123
100
38
273
124
270
123
266
121
247
112
227
103
lbs.
kg.
lbs.
kg.
lbs.
kg.
lbs.
kg.
lbs.
kg.
Inlet Water Temperature ˚F/˚C
Ambient Air Temperature ˚F/˚C
Air-cooled icemaker capacity/24 hrs.
Inlet Water Temperature ˚F/˚C
F
C
50
10
60
16
70
21
80
27
90
32
60
16
451
204
423
192
394
179
371
168
352
160
70
21
447
202
413
187
390
177
361
163
342
155
80
27
442
200
409
185
380
172
352
160
333
151
90
32
437
199
399
181
371
168
342
155
323
146
100
38
428
194
394
179
361
163
333
151
309
140
lbs.
kg.
lbs.
kg.
lbs.
kg.
lbs.
kg.
lbs.
kg.
Condenser Water Inlet Temperature ˚F/˚C
Water-cooled icemaker capacity/24 hrs.
21" (534 mm)
23.625" (600 mm)
50 Series
25 series
62.125"
(1578 mm)
50 series
66.125"
(1680 mm)
Symphony™ freestanding ice and water
™
dispensers with Maestro
Front View* Side View Rear View
8.625"
(219 mm)
air intake
air exhaust
3/4" FPT drain**
3/8" FPT
water inlet*
3/8" FPT
condenser inlet
location (watercooled only)
3/8" FPT
condenser drain
location (watercooled only)
3/4" MPT
icemaker
drain location
(air-cooled only)
Chewblet® ice icemaker
access panel
3/4" MPT icemaker
drain location
(water-cooled only)
7' (2.1 m) power
cord w/5-20 90°
hospital-gradeplug
(115 V models only)
31.5"
(801 mm)
15.125"
(385 mm)
10.25"
(261 mm)
* Shown with lever dispensing (-L); infrared SensorSAFE dispensing (-S) available.
** Kit provided with all 230 V, 50 Hz and 220 V, 60 Hz models to connect to BSP water ttings.
Clearances
Required for ventilation
Recommended for service
See Dispenser Detail Sheet, form# 2075, for important installation information.
Electrical
Model number Electrical connection
25FB400A/W, 50FB400A/W 115 V, 60 Hz, 1 phase 14 amps 20 amps
C25FB400A/W*, C50FB400A/W* 220 V, 60 Hz, 1 phase 6.5 amps 15 amps
E25FB400A/W*, E50FB400A/W*
It is preferred that circuit be protected by a GFCI breaker.
7 ft (2.1 m) cord and NEMA 5-20 hospital-grade plug provided with each dispenser. If local
code requires hard-wiring, separate disconnects also required.
* Cord only. Ensure wiring is in accordance with all local codes.
Approximate shipping weight 230 lbs (104 kg)
Specications Ice and water dispenser to be Follett
___25 lbs (11 kg) or ___ 50 lbs (22 kg) of storage, water station and (choose one) ___
air- or ___water-cooled icemaker in base. Dispenser frame and cabinet to be stainless steel
with plastic trim. Environmentally friendly R404A icemaker to be mounted in base and to be
removable as one unit for cleaning and maintenance. Icemaker to produce approximately
400 lbs (181 kg) per day of Chewblet compressed nugget ice at air temp. of 70 F (21 C),
water temp. of 50 F (10 C) and to be equipped with printed circuit board with diagnostics
for servicing. Dispenser to have automatic bin level control to start and stop icemaker and
separate circuitry to allow dispensing to continue with icemaker removed. Dispenser to be
equipped with 6" (153 mm) adjustable legs, anged feet and lightweight plastic top that
allows full access to the ice storage area for manual loading of back-up ice. Storage area to
be insulated with non-CFC, high density, foamed-in-place polyurethane. 7ft(2.1m) cord and
NEMA 5-20 hospital-grade plug provided (220 V/230 V models, cord only). Dispenser to be
NSF, UL and cUL listed. 230 V models also CE compliant.
Maestro, SafeCLEAN, SensorSAFE and Symphony are trademarks of Follett Corporation.
Chewblet and Follett are registered trademarks of Follett Corporation, registered in the US.
Follett reserves the right to change specications at any time without obligation. Certications may vary depending on country of origin.
22.75" (578 mm)
24.375" (620 mm)
Air-cooled Water-cooled
4” (102 mm) rear N/A
12" (305 mm) top 12" (305 mm) top
Dispenser
amperage
230 V, 50 Hz, 1 phase 6.5 amps 15 amps
®
freestanding, automatic load, with
Circuit
required
801 Church Lane • Easton, PA 18040, USA
Toll free (800) 523-9361 • (610) 252-7301
Fax (610) 250-0696 • www.follettice.com
Ice Production
Energy consumption
KWH per 100 lbs (46 kg) ice
Air-cooled 5.7
Water-cooled 5.5
† Air temp. 90 F (32 C); water temp. 70 F (21 C)
†
Heat rejection data
Model Heat rejected in BTU/hr
to air to water
Air-cooled
5000 N/A
Water-cooled 1400 3600
Water consumption
12.6 gal (48 L) of potable water usage per 100 lbs (46 kg) of ice.
© Follett Corporation
115V only115V only
230V only
Form #4020
10/10
