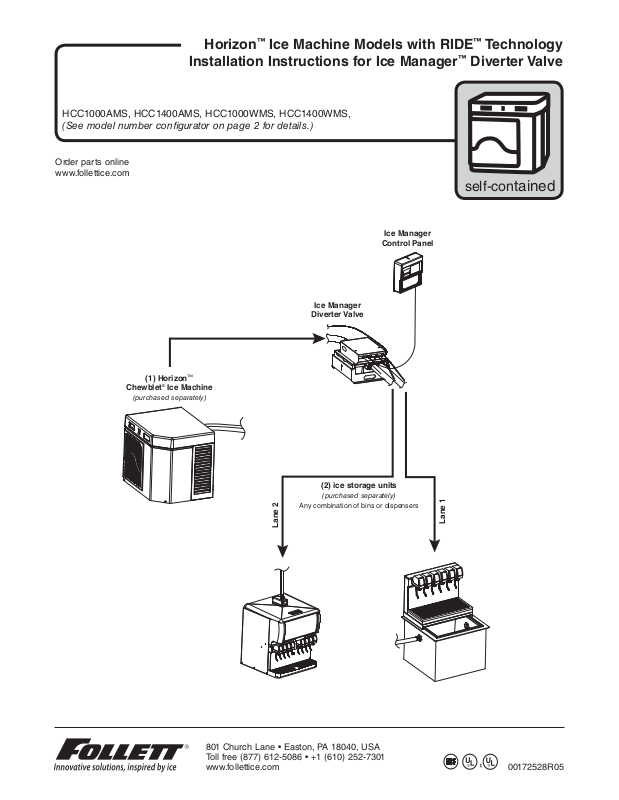

Horizon™ Ice Machine Models with RIDE™ Technology
Installation Instructions for Ice Manager™ Diverter Valve
HCC1000AMS, HCC1400AMS, HCC1000WMS, HCC1400WMS,
(See model number con gurator on page 2 for details.)
Order parts online
www.follettice.com
Ice Manager
Diverter Valve
self-contained
Ice Manager
Control Panel
(1) Horizon
Chewblet® Ice Machine
(purchased separately)
™
(2) ice storage units
(purchased separately)
Any combination of bins or dispensers
Lane 2
Lane 1
801 Church Lane • Easton, PA 18040, USA
Toll free (877) 612-5086 • +1 (610) 252-7301
www.follettice.com
00172528R05
Page 2
Chewblet® Ice Machine Model Number Configurations
A V SC 1000HC
Icemaker Voltage Series Condenser
MC Maestro
Chewblet
(400 Series)
HC Horizon
Chewblet
(1000, 1400,
1650 Series)
HM Horizon
Micro
Chewblet
C 208-230/60/1 (icemaking head)
Self-contained only.
D 115/60/1 (icemaking head)
Self-contained and remote.
If remote unit, high side is
208-230/60/1.
E 230/50/1 (icemaking head)
Self-contained only.
F 115/60/1 (icemaking head)
Remote only. High side is
208-230/60/3.
400 up to
454 lbs
(206kg)
1000 up to
1036 lbs
(471kg)
1400 up to
1450 lbs
(658kg)
1650 up to
1580 lbs
(717kg)
A Air-cooled, self-contained
W Water-cooled, self-contained
R Air-cooled, remote condensing unit
N Air-cooled, no condensing unit for
connection to parallel rack system
Application Configuration
V Vision™
H Harmony™
B Ice storage
bin
J Drop-in
M Ice Manager™
diverter valve
system
S RIDE™
(RIDE remote
ice delivery
equipment)
T Top-mount
2
self-contained ICE MANAGER
Page 3

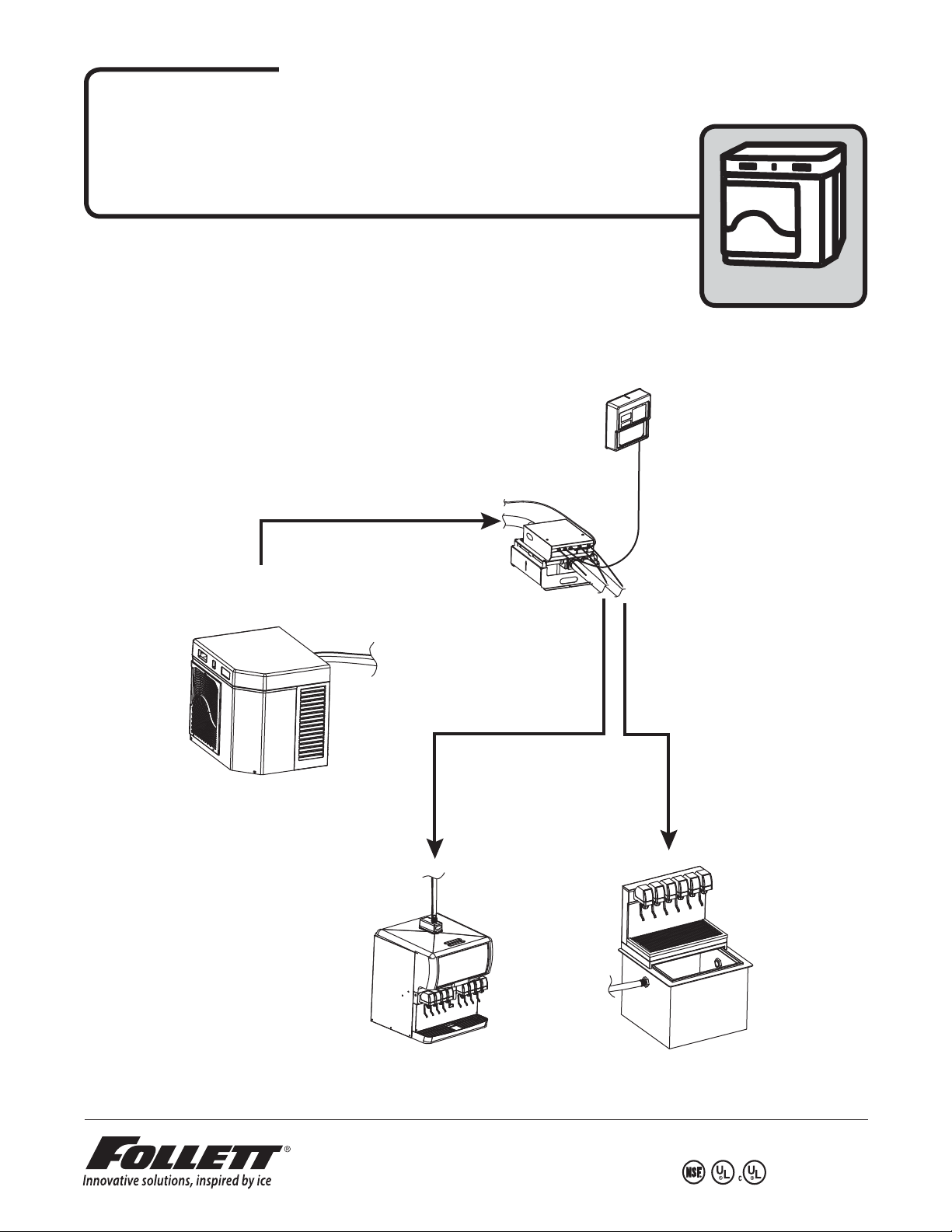

Horizon ice machine for use with Ice Manager diverter valve system
The Ice Manager diverter valve system delivers ice to two ice storage units enabling a single Follett
Horizon ice machine to meet demand for ice at two locations. The system’s sensors monitor ice levels
in each storage unit and automatically switch ice delivery to the appropriate location.
After thorough review of Ice Manager site survey, read and complete
Horizon ice machine installation sections 1 through 6.
Unpack
1
Louvered docking assembly
3
External connection
5
Site preparation
2
Ice transport tube
4
Internal connection
6
Front cover
7
For connection to Ice Manager diverter valve system
refer to Ice Manager installation guide.
ICE MANAGER self-contained
3
Page 4

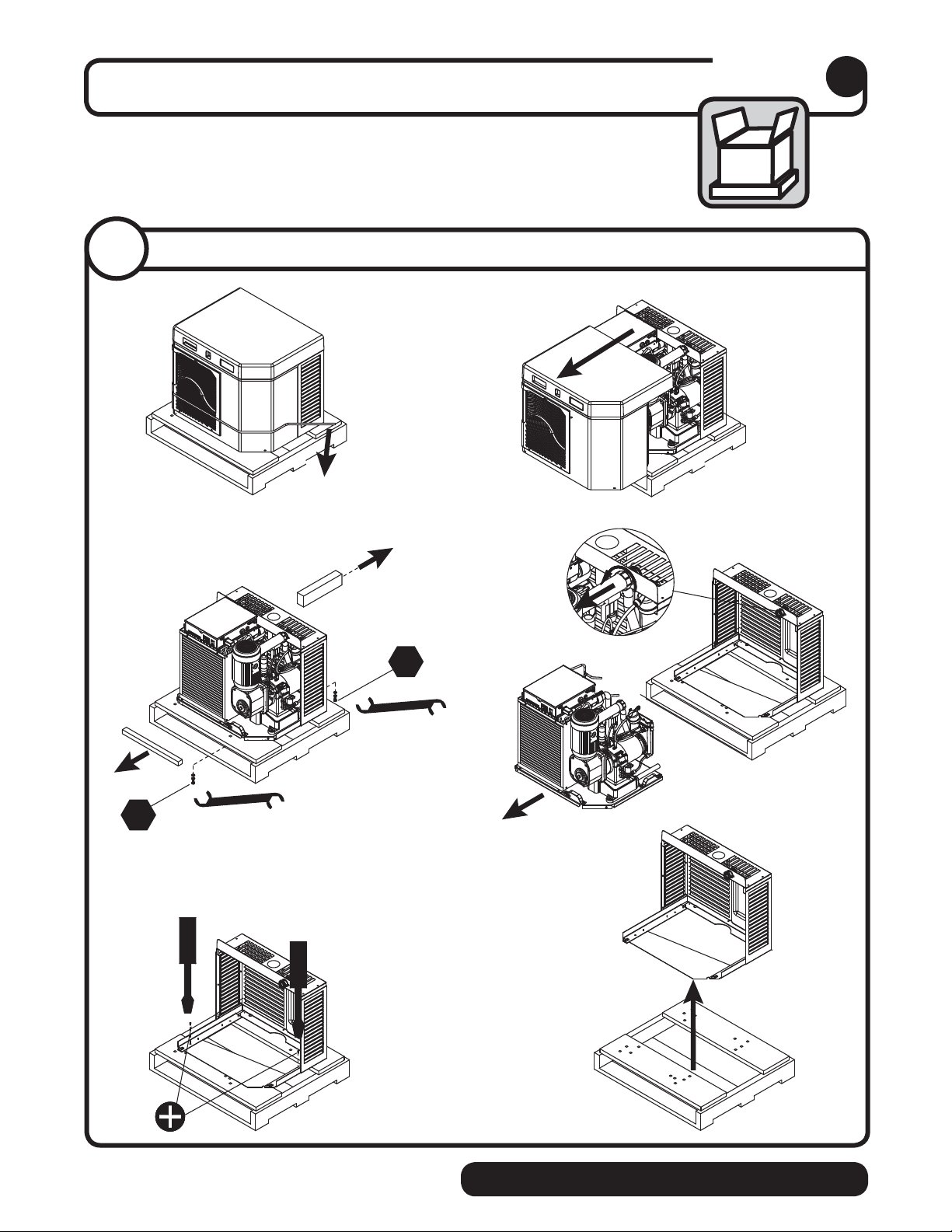

Carefully unpack and inspect the contents of your Follett ice machine.
1/2"
1/2"
➊➋
➌➍
➎➏
Unpack
1
1. 1
Unpack ice machine
4
self-contained ICE MANAGER
Page 5

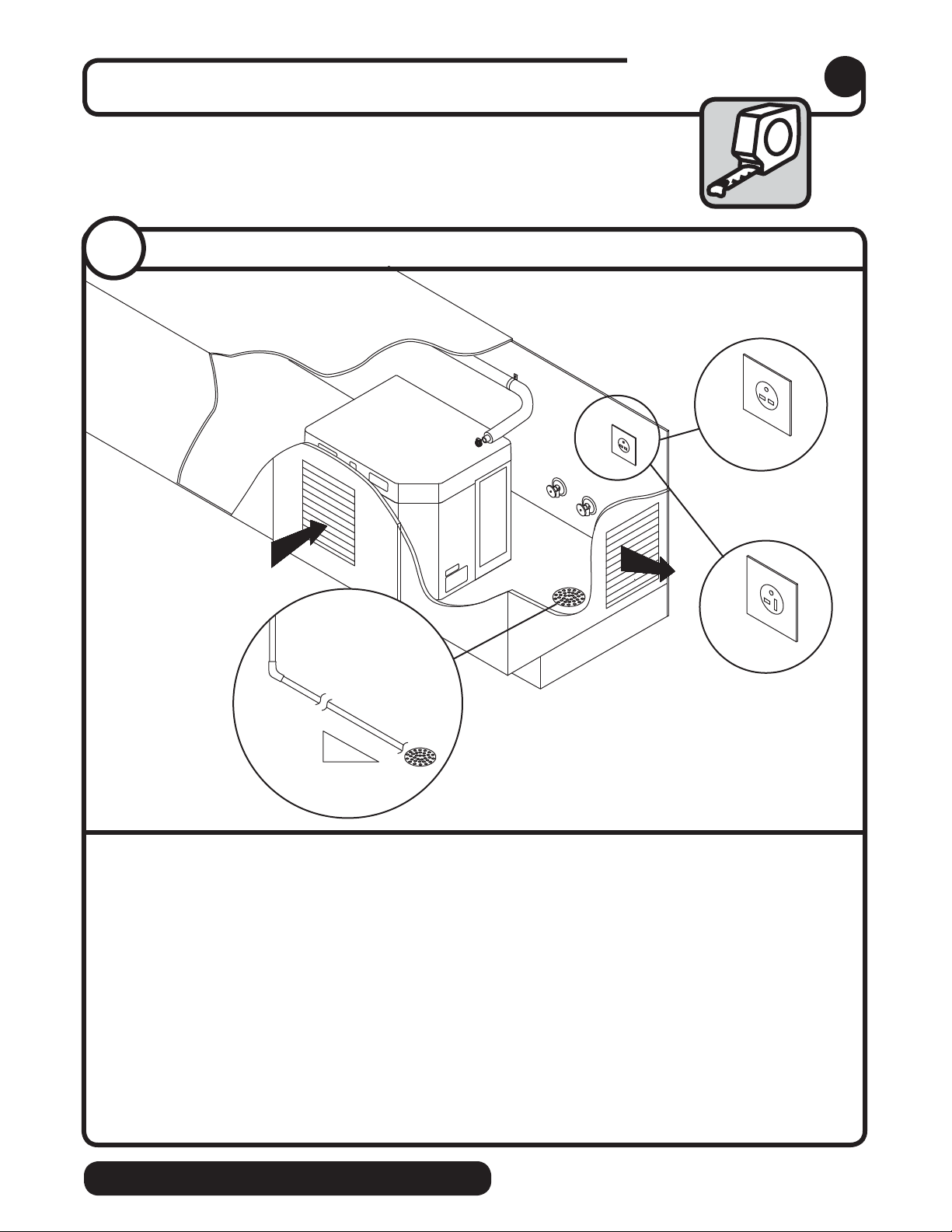

Site preparation
Prepare the installation site.
Provide drainage, water supply and electrical power to within 6 feet (2m) of ice
machine in accordance with local and national codes. Outdoor installation is
not recommended and will void warranty.
2
2.1
2.1
Installation site requirements
➋
➍
➌
➊
HCC1000A/W
NEMA
6-15
HCC1400A/W
NEMA
6-20
1/4"
Electrical
• HCC1000(A/W)MS 208-230/60/1-15 amps • HCC1400(A/W)MS 208-230/60/1-20 amps
Potable water supply
• 10-70 psi (69-483kpa)
• 45 to 90 F (7 to 32 C)
• Follett recommends the use of an in-line water ltration system (item# 00130286)
Condenser water supply for water-cooled systems
• 10 psi min.; 150 psi max. (69kpa min.; 1034kpa max.)
• 45 to 90 F (7 to 32 C)
• 1.5 gallons per minute (5.68 liters per minute)
Drain
• The drain line from the ice machine must have at least 1/4" per foot pitch (6,4mm/0,3m)
➍
➊
➋
1'
➍
➌
ICE MANAGER self-contained
5
Page 6

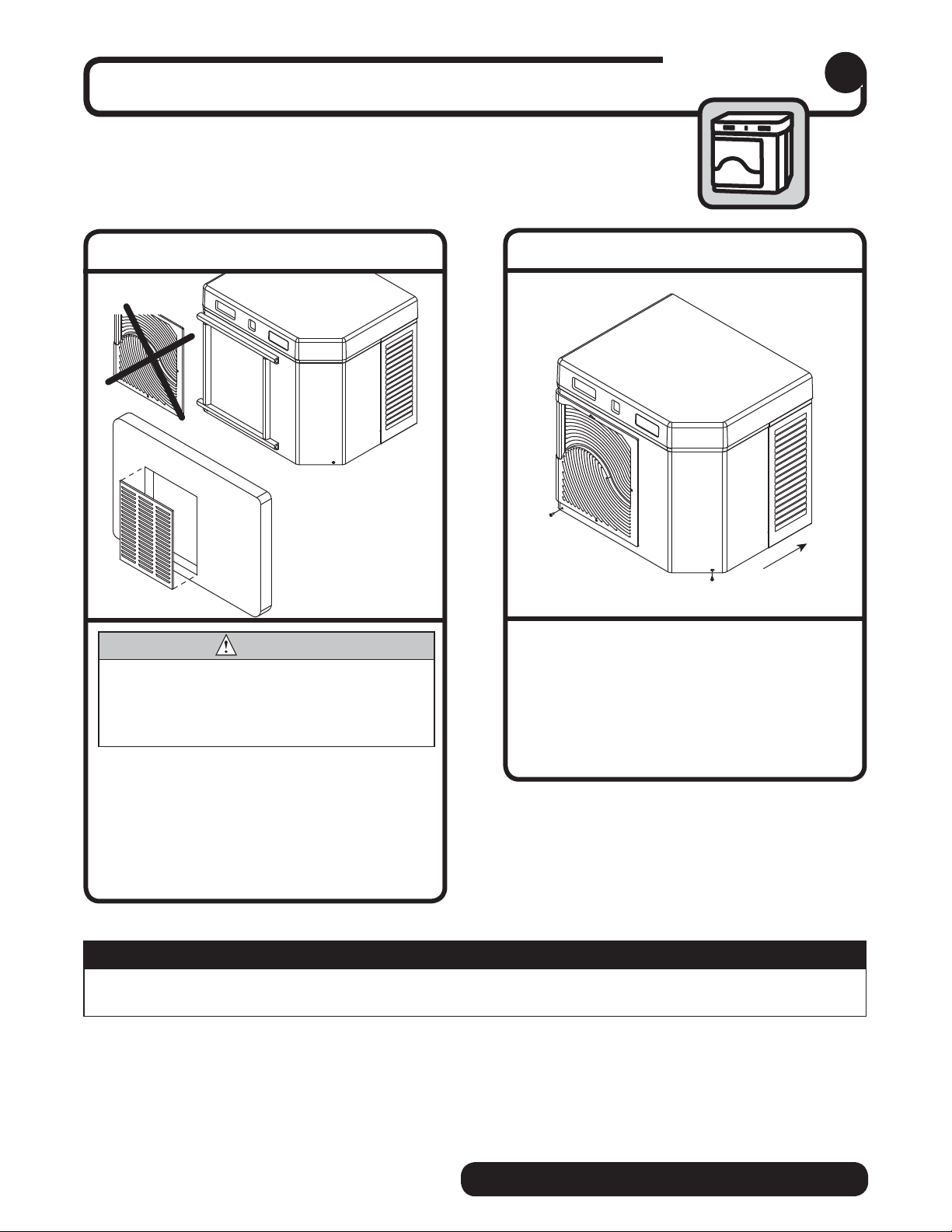

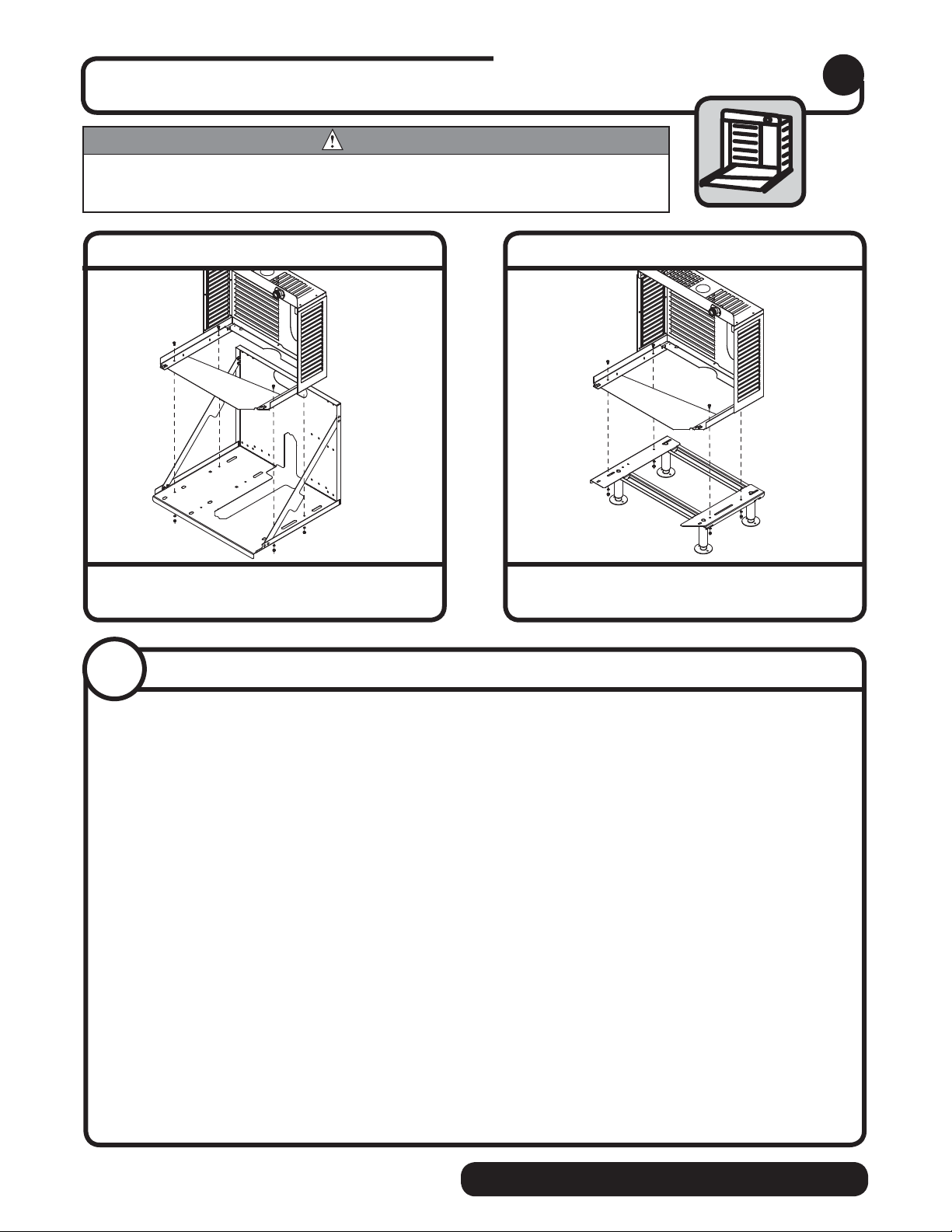

Louvered docking assembly
Install the louvered docking assembly.
WARNING
• Docking station must be secured in accordance with these instructions to ensure ice machine
stability.
• Ventilation openings in the louvered docking station should be clear of obstruction
Wall bracket accessory Machine stand accessory
3
• Mount louvered docking assembly to wall
bracket accessory
3.1
DOCKING STATION: Horizon 1000 & 1400 water- and air-cooled models
• Position and screw louvered docking assembly to the bottom of counter inside of access panel/
• The mounting surface for the louvered docking assembly must be solid.
• There must be no lip or edge that would hinder the ice machine from sliding in or out of the
INTAKE AND EXHAUST GRILLE PLACEMENT: Horizon 1000 & 1400 air-cooled models only
• Position the intake grille cut out in the access panel/door
• Left edge of cutout should be 1.75" (45mm) from the left side of the ice machine
• Bottom edge of cutout should be 1.875" (48mm) from the bottom of the ice machine
• Position supplied exhaust grille at least 18" (458mm) away from intake grille ➎.
• If not using supplied grille, air circulation requirements below must be met:
Undercounter installation requirements Horizon 1000 & 1400 series
(See detail drawing on page 7)
door 1.75" (45mm) from the front edge of the cross brace
Do not mount directly onto runners or channels.
louvered docking station
(See detail drawing on page 7)
Note: Ice machine must be aligned with cut out and inside of access panel to provide a tight
seal and prevent recirculation of hot exhaust air.
Where possible, install exhaust grille to the rear or side of the base cabinet.
1000 series: 150 sq. in (967 sq cm) intake air, 150 sq. in (967 sq. cm) exhaust air
1400 series: 175 sq. in (1129 sq. cm) intake air, 175 sq. in (1129 sq. cm) exhaust air
➋
• Mount louvered docking assembly to
machine stand accessory
➊
➌
➍
6
self-contained ICE MANAGER
Page 7

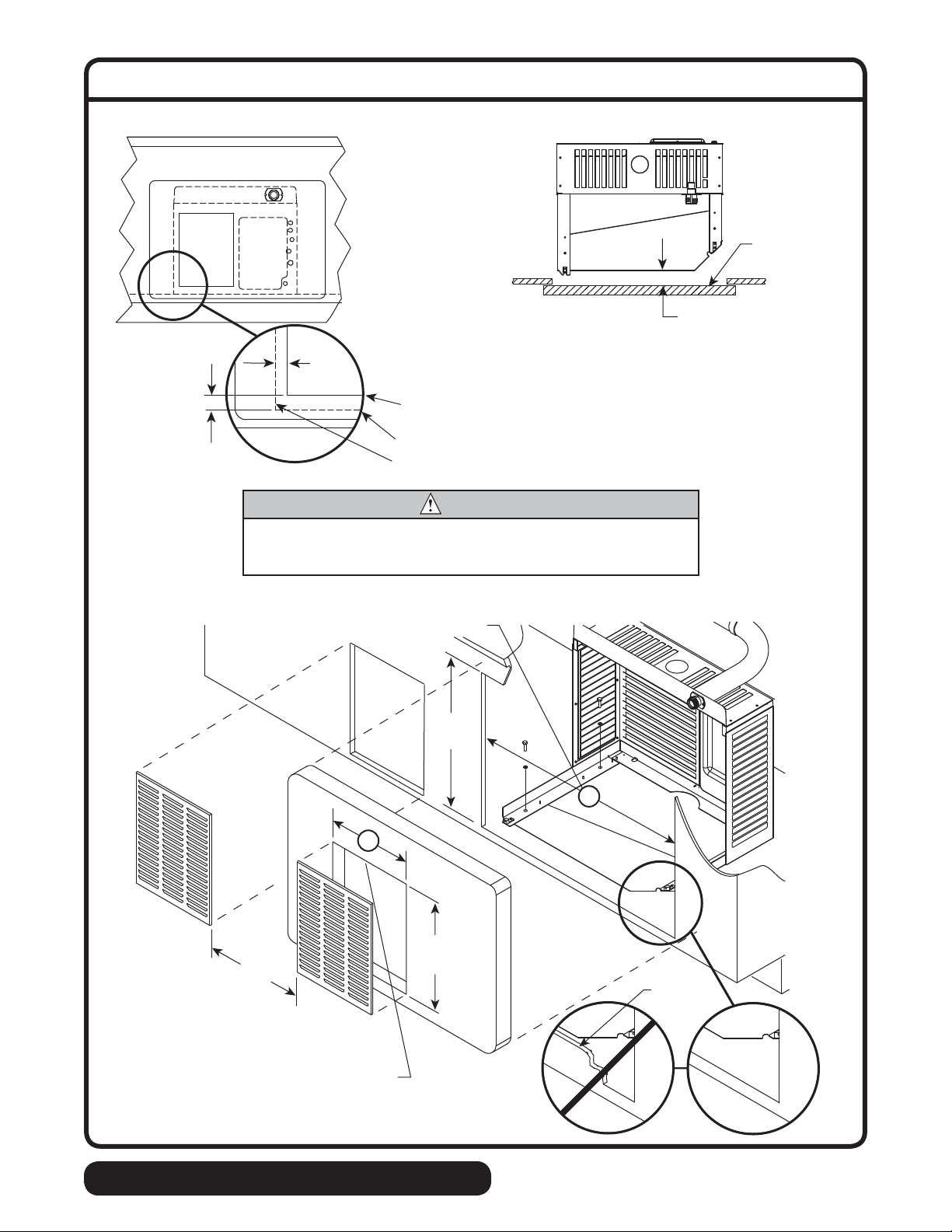

Undercounter installation detail – Horizon 1000 & 1400 series
Front View
1.875"
(48mm)
➍
Top View
CROSSBRACE
➊
➌
1.75"
(45mm)
1000 series - 12"x16" cutout (305x407mm)
1400 series - 16"x16" cutout (407x407mm)
bottom of ice machine
side of ice machine
CAUTION
• Keep ventilation openings in the appliance enclosure clear of obstruction.
• To ensure proper ventilation (if not using supplied grille) carefully review air
circulation speci cations on facing page (3.1)
Access panel/
door on counter
1.75" (45mm)
➎
18" min.
(458mm)
3D Counter View
1000 series - 28.6" min. (727mm)
1400 series - 31.6" min. (303mm)
24.5" min.
(623mm)
CROSSBRACE
16"
(407mm)
No Lip
➋
1000 series - 12" (305mm)
1400 series - 16" (407mm)
ICE MANAGER self-contained
7
Page 8

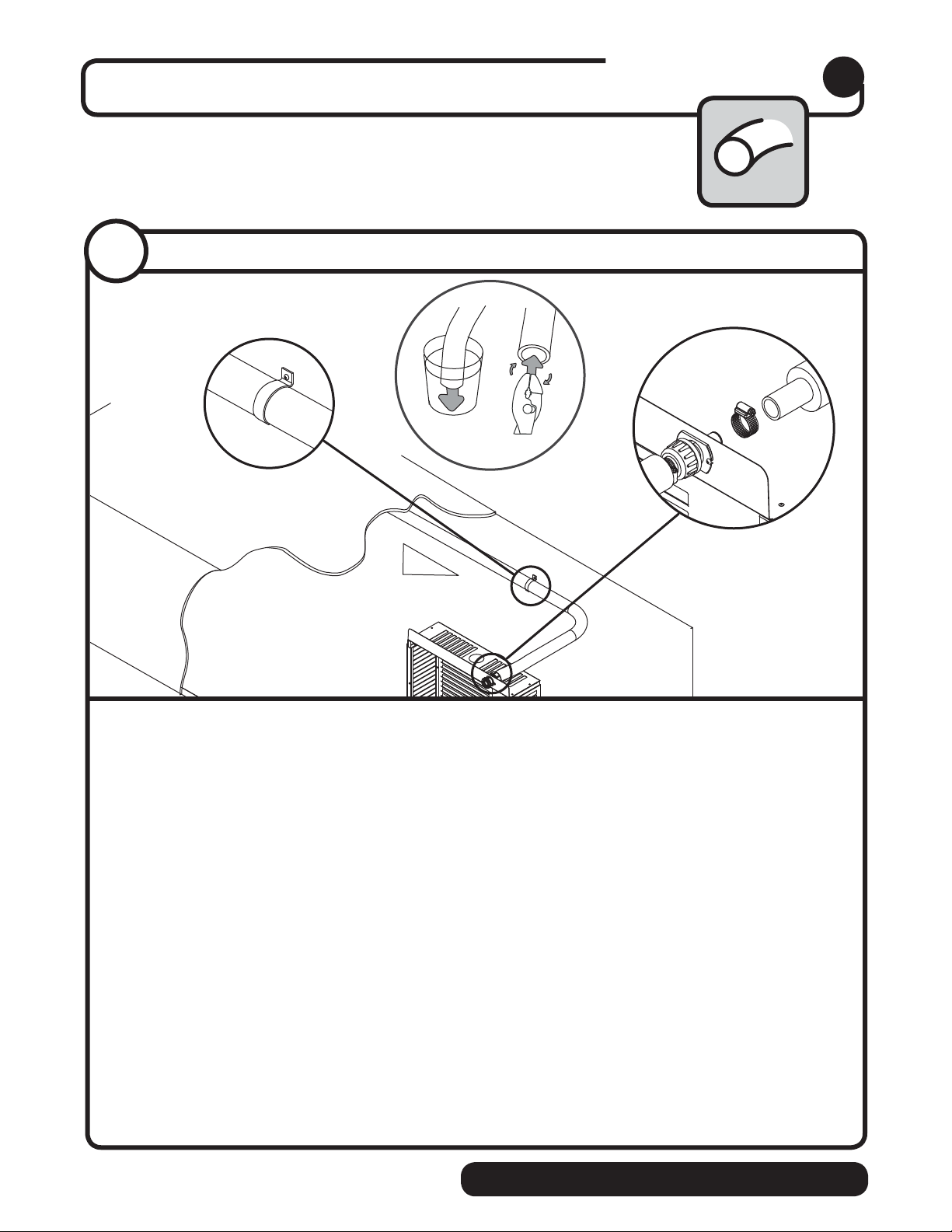

Install the ice transport tube.
Ice transport tube
4
4.1
Ice transport tube installation.
➋
1/4"
➌
Hot Water
160 F (71 C)
1'
➍
➏
➐
➎
➊
Ice transport tube tips
• Insulate entire length of ice transport tube
• Secure ice transport tube ➋ as needed to prevent dips and traps from forming.
For long tube runs see guide on page 15.
• Pitch tube at least 1/4" per foot (6,4mm/.3m)
• Ice transport tube must drain towards ice machine
Ice transport tube to Ice machine
• Be sure tube ends are square
• Heat end of transport tube in cup of 160F (71 C) hot water to soften and spread with pliers
before making connection to ease assembly
• Push ice transport tube onto ice machine nipple
• Install hose clamp
Ice transport tube to diverter valve
• See Ice Manager diverter valve instructions
8
➐
➍
➊
➌
➏
self-contained ICE MANAGER
➎
Page 9

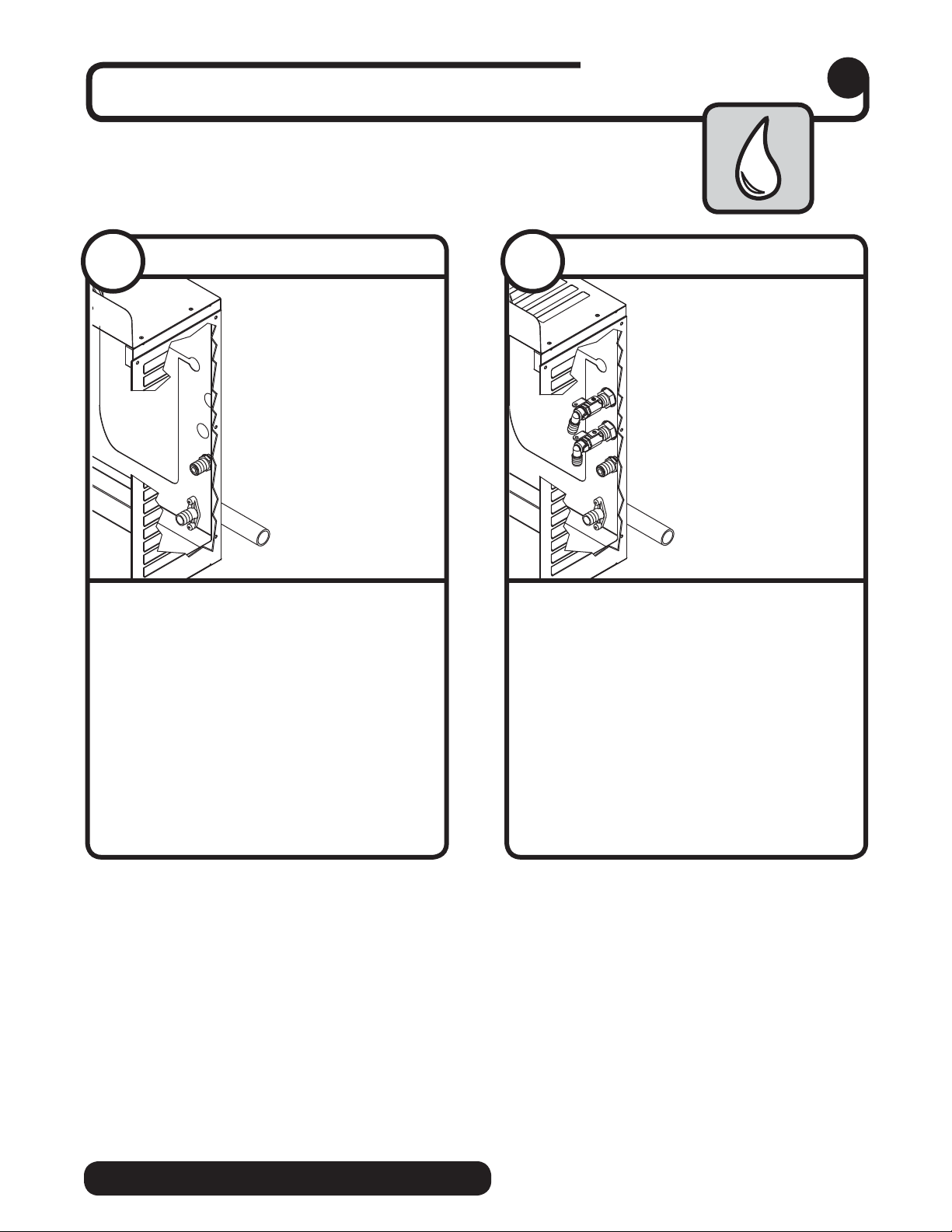

Connect utilities to louvered docking assembly.
External connections
5
5.1 5.2
Air-cooled ice machines only
➋
➊
• Remove access panel if necessary
• Install drain line
The rigid drain line from the ice machine
must have at least 1/4" per foot pitch
(6,4mm/0,3m).
• Install ice machine potable water
supply
• Replace access panel
➋
➊
.
• Remove access panel if necessary
• Install drain line
• Connect cooling water supply
• Install ice machine potable water
• Replace access panel
Water-cooled ice machines only
➌
➋
➍
➊
➊.
The rigid drain line from the ice machine
must have at least 1/4" per foot pitch.
and
➋
return
supply
➌
➍
ICE MANAGER self-contained
9
Page 10

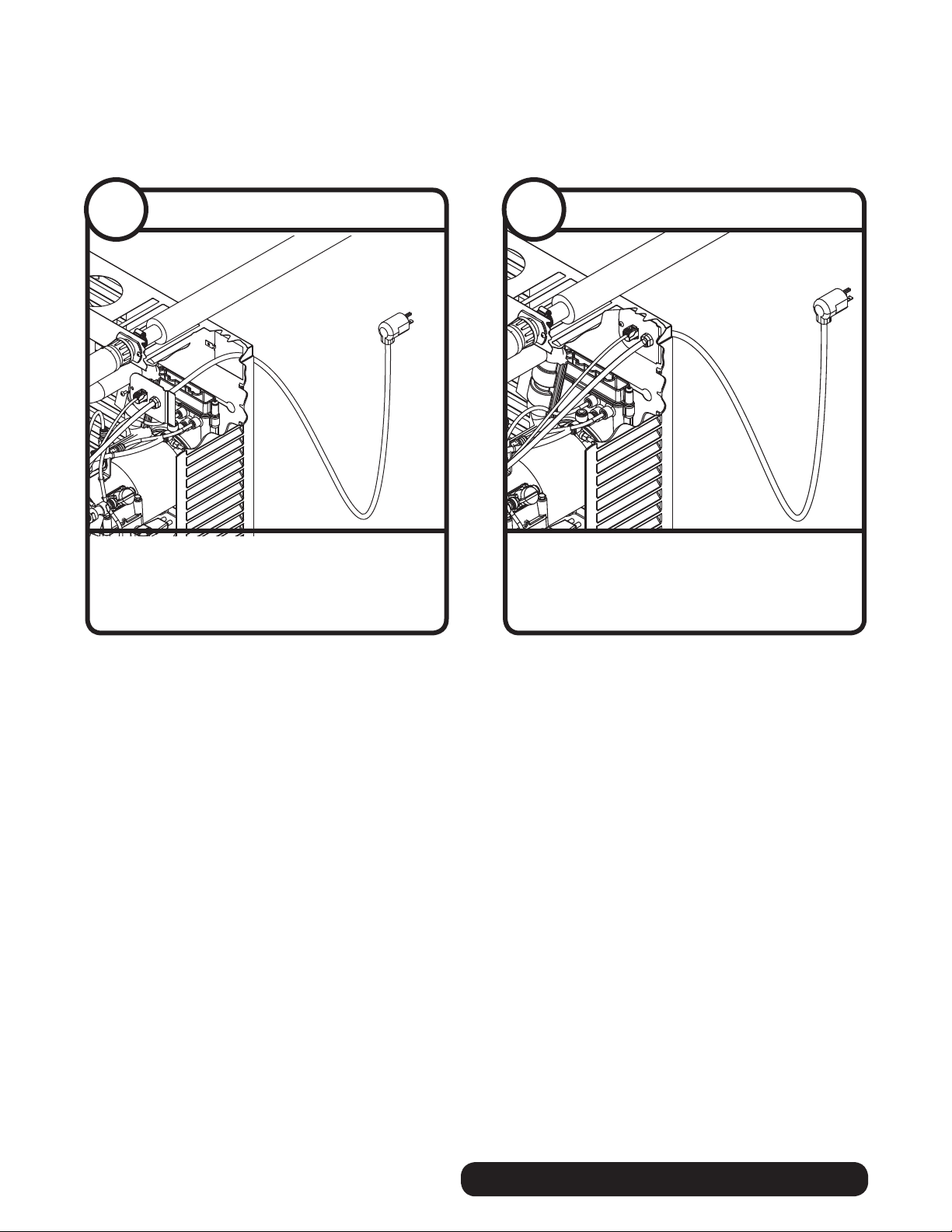

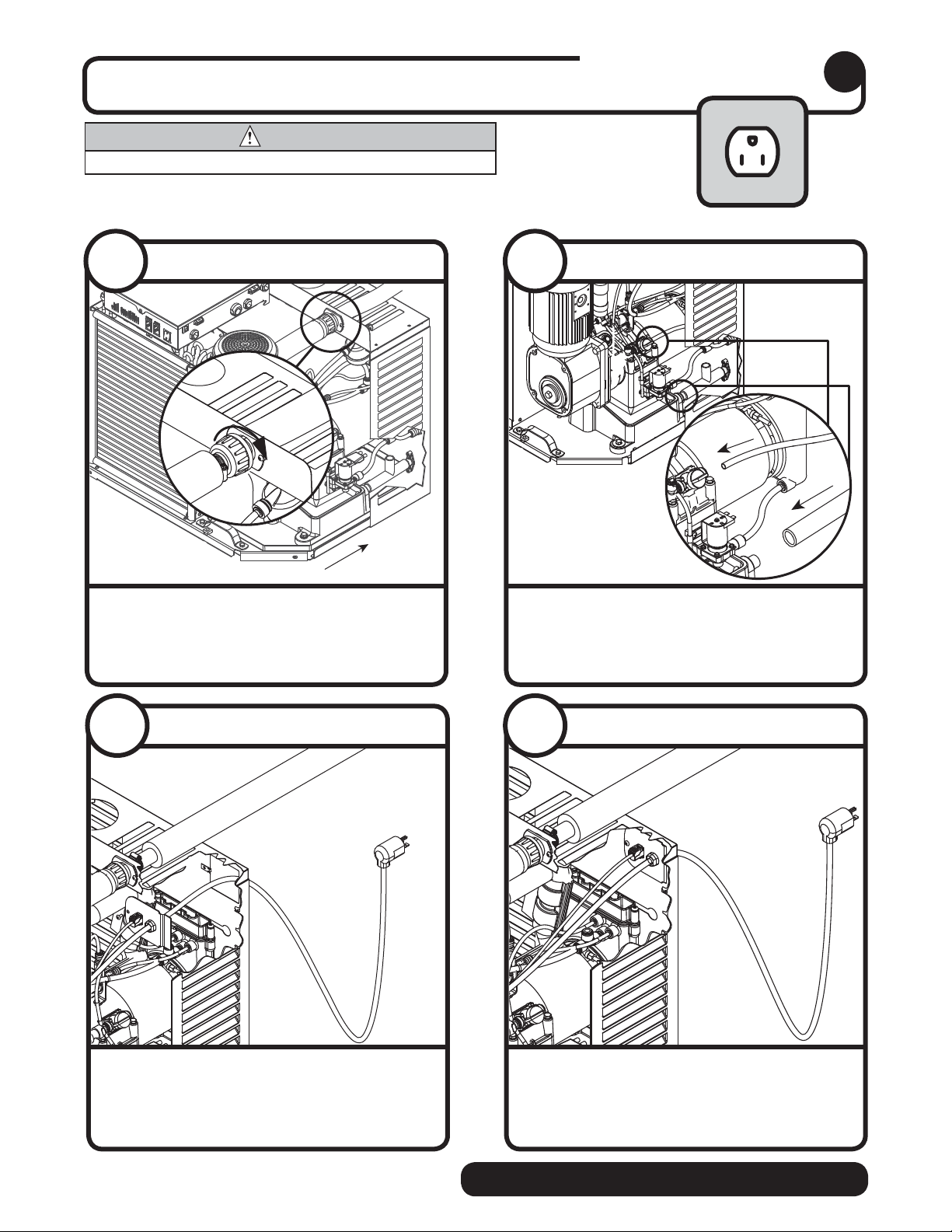

Connect louvered docking assembly to ice machine.
CAUTION
• Plug must be accessible after nal installation.
Air-cooled ice machines – follow steps 6.1 through 6.4.
Internal connections
6
6.1
Ice transport tube
➋
➊
• Slide ice machine into louvered docking
assembly
• Insert ice transport tube all the way into
coupling and tighten nut rmly
➊
➋
6.2
Potable water and drain lines
➊
• Insert potable water line into valve
• Push drain line over hose barb on
back of evaporator mount
➋
➊
➋
➋
➊
6.3
• Remove twist tie
• Carefully pass plug thru opening and plug
Power cord
into wall outlet
6.4
• Position plate into opening and secure
Power cord
with supplied screw
10
self-contained ICE MANAGER
Page 11
➋
➊

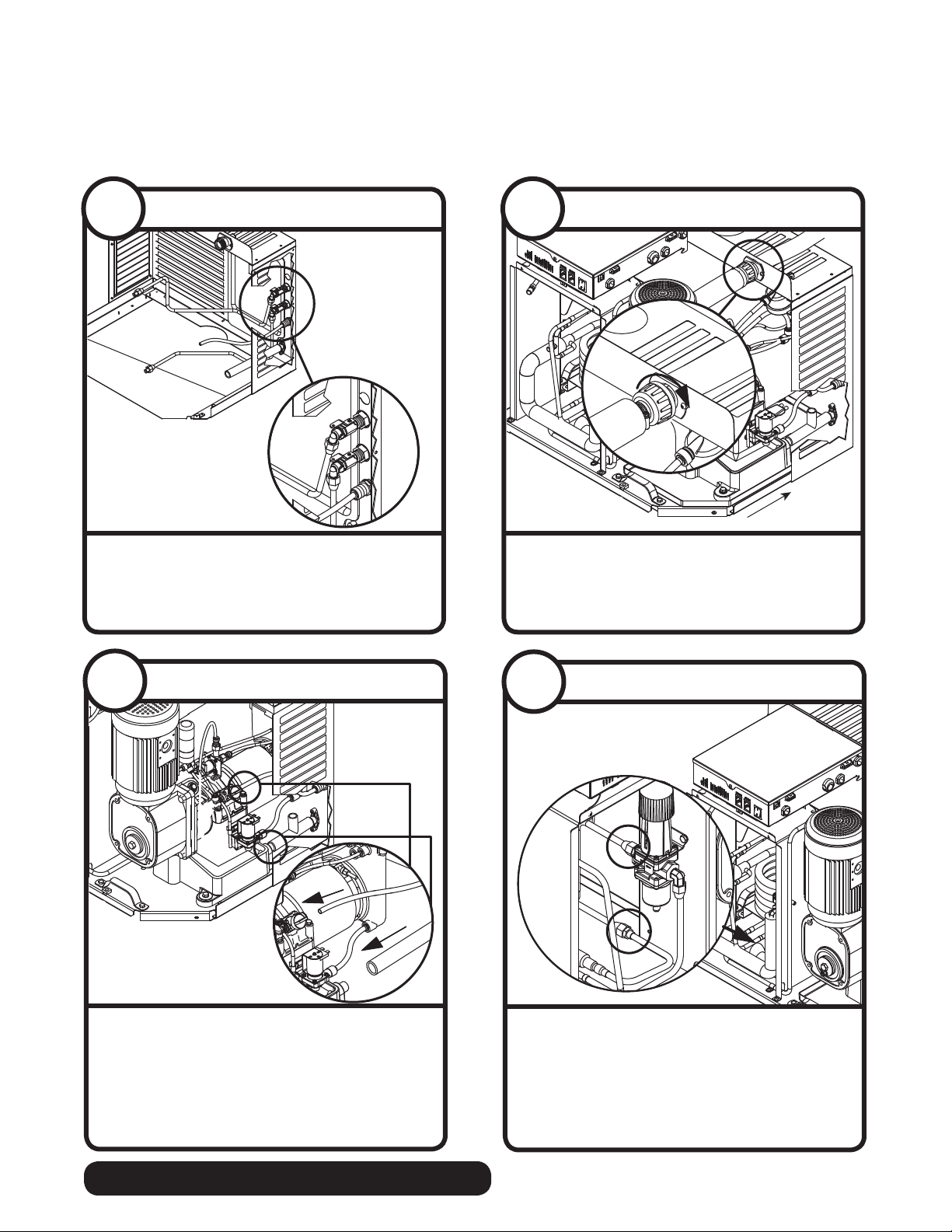

Water-cooled ice machines – follow steps 6.5 through 6.10.
6.5
• Install ice machine cooling water lines to
Cooling lines
Out
In
louvered docking assembly
6.6
Ice transport tube
➋
➊
• Slide ice machine into louvered docking
assembly
• Insert ice transport tube into coupling and
tighten nut rmly
➊
➋
6.7
Potable water and drain lines
➊
• Insert potable water line into valve
• Push drain line over hose barb on
back of evaporator mount
➋
➋
➊
➊
➋
6.8
• Connect cooling water lines to ice
• Water valve is set at the factory. DO NOT
Cooling lines and power
Adjustment will void warranty and may damage equipment.
Do not adjust.
ATTENTION INSTALLER
Valve is preset at factory.
machine
remove seal or adjust water valve
➊
➋
ICE MANAGER self-contained
11
Page 12
6.9
Power cord
6.10
Power cord
• Remove twist tie
• Carefully pass plug thru opening and plug
into wall outlet
• Position plate into opening and secure
with supplied screw
12
self-contained ICE MANAGER
Page 13
ICE MANAGER self-contained
13
Page 14
Install front cover to ice machine.
Front cover
7
Front cover installation – undercounter
➊
➋
➌
CAUTION
• Keep ventilation openings in the appliance enclosure
clear of obstruction.
• To ensure proper ventilation (if not using supplied grille)
carefully review air circulation speci cations in section
4.1
• Remove and discard plastic grille
• Apply supplied gasket material around
entire opening on skin to prevent air
recirculation
• Attach supplied metal grille to opening in
counter door (see section 4.1)
➋
➊
➌
Normal front cover installation
➋
➊
• Slide ice machine cover over machine
ensuring that tabs on back of cover
slip under louvers on back of louvered
docking assembly
• Insert and tighten two screws through
cover and into louvered docking assembly
➊
➋
14
NOTICE
Ice machine MUST be sanitized prior to operation!
Consult Operation and Service Manual provided with ice machine for sanitizing instructions.
self-contained ICE MANAGER
Page 15

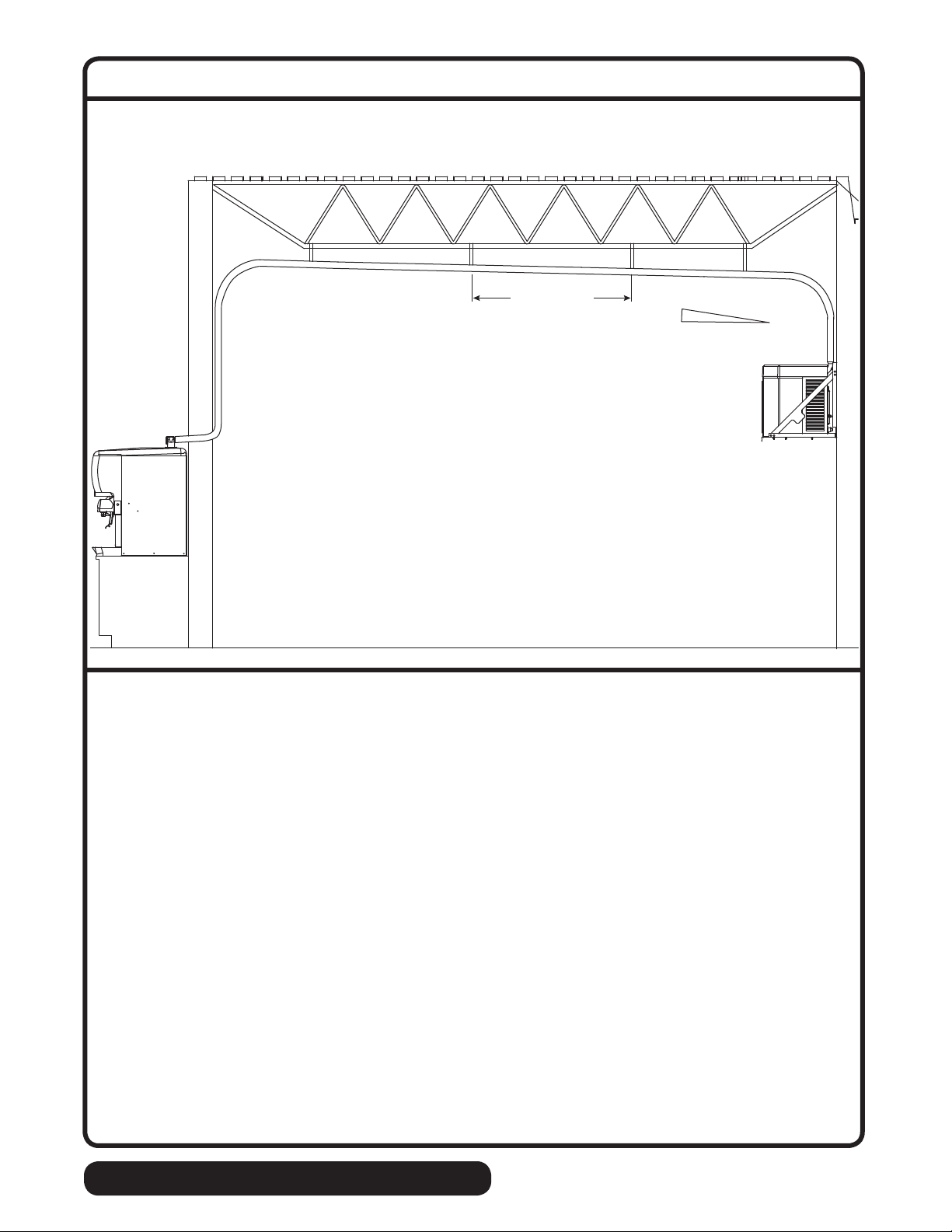

Long tube run recommendations
max. 2 ft (.6m)
➋
• Pitch ice transport tube to allow melt water to drain towards ice machine
• Secure insulated ice transport tube at least every 2 ft (.6m) to prevent dips or traps
1/4"
➊
➊
1'
➋
ICE MANAGER self-contained
15
Page 16
Horizon, Maestro, Harmony, Ice Manager, SafeCLEAN, Sani-Sponge, RIDE and Vision are trademarks of Follett Corporation.
Chewblet is a registered trademark of Follett Corporation, registered in the US.
801 Church Lane • Easton, PA 18040, USA
Toll free (877) 612-5086 • +1 (610) 252-7301
www.follettice.com
00172528R05
3/12
Loading...
