Fluke IT200 User Manual
March 2006
© 2006 Fluke Corporation. All rights reserved.
All product names are trademarks of their respective companies.
IT200
IntelliTone Pro Toner and Probe
Users Manual
LIMITED WARRANTY AND LIMITATION OF LIABILITY
Each Fluke Networks product is warranted to be free from defects in material and workmanship under normal use and service. The warranty period for the mainframe is one year and begins on the date of purchase. Parts, accessories, product repairs and services are warranted for 90 days, unless otherwise stated. Ni-Cad, Ni-MH and Li-Ion batteries, cables or other peripherals are all considered parts or accessories. The warranty extends only to the original buyer or end user customer of a Fluke Networks authorized reseller, and does not apply to
any product which, in Fluke Networks’ opinion, has been misused, abused, altered, neglected, contaminated, or damaged by accident or
abnormal conditions of operation or handling. Fluke Networks warrants that software will operate substantially in accordance with its functional specifications for 90 days and that it has been properly recorded on non-defective media. Fluke Networks does not warrant that
software will be error free or operate without interruption.
Fluke Networks authorized resellers shall extend this warranty on new and unused products to end-user customers only but have no authority to extend a greater or different warranty on behalf of Fluke Networks. Warranty support is available only if product is purchased
through a Fluke Networks authorized sales outlet or Buyer has paid the applicable international price. Fluke Networks reserves the right to
invoice Buyer for importation costs of repair/replacement parts when product purchased in one country is submitted for repair in another
country.
Fluke Networks warranty obligation is limited, at Fluke Networks option, to refund of the purchase price, free of charge repair, or replacement of a defective product which is returned to a Fluke Networks authorized service center within the warranty period.
To obtain warranty service, contact your nearest Fluke Networks authorized service center to obtain return authorization information, then
send the product to that service center, with a description of the difficulty, postage and insurance prepaid (FOB destination). Fluke Networks assumes no risk for damage in transit. Following warranty repair, the product will be returned to Buyer, transportation prepaid (FOB
destination). If Fluke Networks determines that failure was caused by neglect, misuse, contamination, alteration, accident or abnormal condition of operation or handling, or normal wear and tear of mechanical components, Fluke Networks will provide an estimate of repair costs
and obtain authorization before commencing the work. Following repair, the product will be returned to the Buyer transportation prepaid
and the Buyer will be billed for the repair and return transportation charges (FOB Shipping point).
THIS WARRANTY IS BUYER’S SOLE AND EXCLUSIVE REMEDY AND IS IN LIEU OF ALL OTHER WARRANTIES, EXPRESS OR IMPLIED, INCLUDING
BUT NOT LIMITED TO ANY IMPLIED WARRANTY OR MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. FLUKE NETWORKS
SHALL NOT BE LIABLE FOR ANY SPECIAL, INDIRECT, INCIDENTAL OR CONSEQUENTIAL DAMAGES OR LOSSES, INCLUDING LOSS OF DATA,
ARISING FROM ANY CAUSE OR THEORY.
Since some countries or states do not allow limitation of the term of an implied warranty, or exclusion or limitation of incidental or consequential damages, the limitations and exclusions of this warranty may not apply to every buyer. If any provision of this Warranty is held
invalid or unenforceable by a court or other decision-maker of competent jurisdiction, such holding will not affect the validity or enforceability of any other provision.
4/04
Fluke Networks
PO Box 777
Everett, WA 98206-0777
USA
Table of Contents
Title Page
Overview of Features....................................................................................................1
Registration...................................................................................................................3
Contacting Fluke Networks..........................................................................................3
Unpacking .....................................................................................................................4
ITK200 IntelliTone Pro Kit........................................................................................4
IT200 IntelliTone Pro Toner .....................................................................................4
IT200 IntelliTone Pro Probe .....................................................................................4
Safety Information........................................................................................................5
Battery Status................................................................................................................6
Auto Power Down ........................................................................................................6
Locating and Isolating Terminated UTP/STP Cables with the IntelliTone..................6
Isolating Individual Wire Pairs with the SmartTone Analog Function.......................9
SmartTone Positive Identification ...........................................................................9
Validating RJ11 and RJ45 Cable Maps .........................................................................10
Validating the Cable’s Shield........................................................................................12
Validating Telephone Service and Polarity..................................................................13
Validating Ethernet Service..........................................................................................14
i
IT200
Users Manual
Testing for Continuity ..................................................................................................15

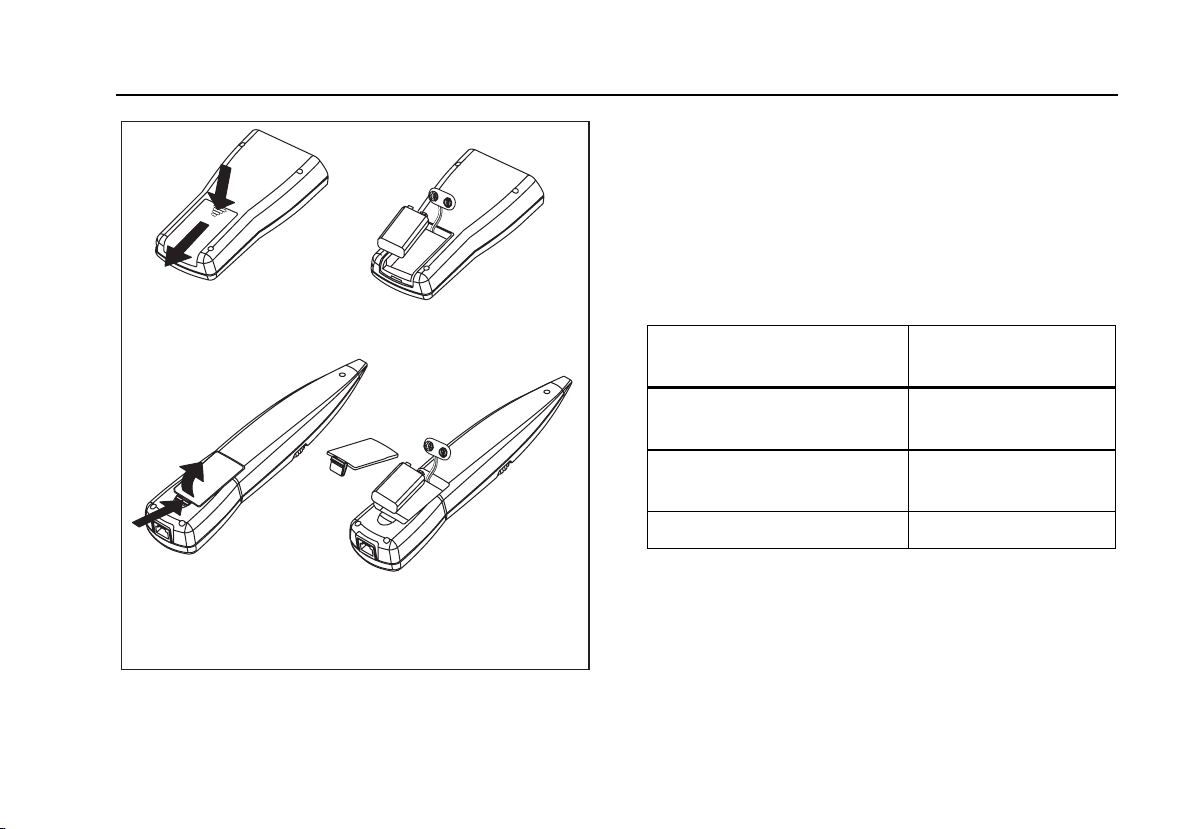

Battery Life and Replacement................................................................................. 16
Accessories ............................................................................................................... 17
Specifications................................................................................................................ 18
Environmental and Regulatory Specifications ....................................................... 18
IT200 Toner Electrical Specifications....................................................................... 19
IT200 Probe Electrical Specifications....................................................................... 19
Feature Compatibility.............................................................................................. 20
Certifications and Compliance................................................................................ 20
Dimensions............................................................................................................... 20
Weight (with battery).............................................................................................. 20
ii
IT200 IntelliTone Pro Toner
IT200 IntelliTone
Pro Probe
Overview of Features
The IT200 IntelliTone Pro toner and probe let you
locate, isolate, and validate twisted pair (UTP, Cat 5e, Cat
6), coax cables (RG6, RG59, and others for CATV/CCTV),
bare wire (such as speaker wire and security network
wire), and Cat 3 telephone cabling. The toner also lets
you validate voice and data services.
The toner and probe feature both digital and analog
toning and detection. The digital IntelliTone tone is
primarily used on data cables, and on active networks. In
these environments, the digital signal eliminates cable
misidentification due to signal bleed and radiated or
ambient noise.
The analog tone is primarily used on voice cables, and on
bare wire. The SmartTone™ analog technology will
change cadence when a pair is shorted at the far end.
This makes exact pair identification easy and precise.
The IntelliTone feature also lets you use the IT200 toner
and probe to validate and troubleshoot wiring on RJ11
and RJ45 cables.
The IT200 toner detects telephone and Ethernet service,
indicates polarity and active line numbers on voice
circuits, and indicates active pair number on Ethernet
circuits.
The IT200 toner and probe also provide standard
functions such as visual and audible signal strength
indication, digital toning/detection, SmartTone analog
toning/detection, and continuity testing.
1
IT200
Users Manual
The IntelliTone feature also lets you use the IT200 toner
and probe to validate and troubleshoot wiring on RJ11
and RJ45 cables.
The IT200 toner detects telephone and Ethernet service,
indicates polarity and active line numbers on voice circuits,
and indicates active pair number on Ethernet circuits.
The IT200 toner and probe also provide standard
functions such as visual and audible signal strength
indication, digital toning/detection, SmartTone analog
toning/detection, and continuity testing.
2
Registration
Registration
Registering your product with Fluke Networks gives you
access to valuable information on product updates,
troubleshooting tips, and other support services. To
register, fill out the online registration form on the Fluke
Networks website at www.flukenetworks.com/registration.
If you do not have Internet access, print the registration
form from the CD included with the product. Fill out the
form, then mail or fax it to the appropriate address for
your country.
Contacting Fluke Networks
For technical support, please contact us via
support@flukenetworks.com.
www.flukenetworks.com
support@flukenetworks.com
+1-425-446-4519
• Australia: 61 (2) 8850-3333 or 61 (3) 9329-0244
• Beijing: 86 (10) 6512-3435
• Brazil: 11 3044 1277
• Canada: 1-800-363-5853
• Europe: +44-(0)1923-281-300
• Hong Kong: 852 2721-3228
• Japan: 03-3434-0510
• Korea: 82 2 539-6311
• Singapore: 65 6799-5566
• Taiwan: (886) 2-227-83199
• USA: 1-800-283-5853
Visit our website for a complete list of phone numbers.
3
IT200
Users Manual
Unpacking
The IT200 products come with the accessories listed
below. If an accessory is damaged or missing, contact the
place of purchase immediately.
ITK200 IntelliTone Pro Kit
• IT200 Toner with 9V battery
• IT200 Probe with 9V battery
• 2 RJ11 to RJ11 patch cords
• 2 RJ45 to RJ45 patch cords
• Test lead set, banana jacks to alligator clips
• F connector adapter, female to female
• Quick Reference Guide
• Product Manuals CD
IT200 IntelliTone Pro Toner
• IT200 Toner with 9V battery
• 1 RJ11 to RJ11 patch cord
• 1 RJ45 to RJ45 patch cord
• Test lead set, banana jacks to alligator clips
• F connector adapter, female to female
• Quick Reference Guide
• Product Manuals CD
IT200 IntelliTone Pro Probe
• IT200 Probe with 9V battery
• Quick Reference Guide
• Product Manuals CD
4
