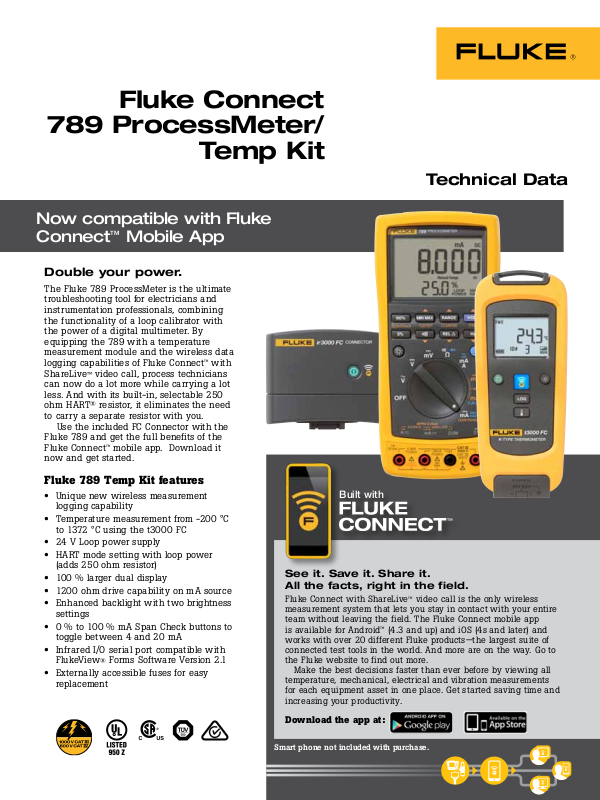

Fluke 789 Specifications

Fluke Connect

789 ProcessMeter/

Temp Kit

Now compatible with Fluke
Connect™ Mobile App

Double your power.

The Fluke 789 ProcessMeter is the ultimate
troubleshooting tool for electricians and
instrumentation professionals, combining
the functionality of a loop calibrator with
the power of a digital multimeter. By
equipping the 789 with a temperature
measurement module and the wireless data
logging capabilities of Fluke Connect
ShareLive
can now do a lot more while carrying a lot
less. And with its built-in, selectable 250
ohm HART
to carry a separate resistor with you.

Fluke 789 and get the full benefits of the
Fluke Connect
now and get started.

™ video call, process technicians

®

resistor, it eliminates the need

Use the included FC Connector with the

™

mobile app. Download it

™

with

Technical Data

Fluke 789 Temp Kit features

• Unique new wireless measurement
logging capability

• Temperature measurement from -200 °C
to 1372 °C using the t3000 FC

• 24 V Loop power supply

• HART mode setting with loop power

(adds 250 ohm resistor)

• 100 % larger dual display

• 1200 ohm drive capability on mA source

• Enhanced backlight with two brightness

settings

• 0 % to 100 % mA Span Check buttons to
toggle between 4 and 20 mA

• Infrared I/O serial port compatible with
FlukeView

• Externally accessible fuses for easy
replacement

® Forms Software Version 2.1

Built with

See it. Save it. Share it.
All the facts, right in the field.

Fluke Connect with ShareLive™ video call is the only wireless
measurement system that lets you stay in contact with your entire
team without leaving the field. The Fluke Connect mobile app
is available for Android
works with over 20 different Fluke products—the largest suite of
connected test tools in the world. And more are on the way. Go to
the Fluke website to find out more.

Make the best decisions faster than ever before by viewing all
temperature, mechanical, electrical and vibration measurements
for each equipment asset in one place. Get started saving time and
increasing your productivity.

Download the app at:

Smart phone not included with purchase.

™

(4.3 and up) and iOS (4s and later) and

These 787 features are also
included in the 789

• DMM designed to meet
1000 volt IEC 1010 CAT III
standards

• Precision 1000 V, 440 mA
true-rms digital multimeter

• Frequency measurement to
20 kHz

• Min/Max/Average/Hold/
Relative modes

• Diode test and continuity
beeper

• Simultaneous mA and % of
scale readout

• 20 mA dc current source/loop
calibrator/ simulator

• Manual step (100 %, 25 %,
Coarse, Fine) plus Auto Step
and Auto Ramp

• Externally accessible battery
for easy battery changes

Measurement function Range and resolution

V dc 400.0 mV, 4.000 V, 40.00 V, 400.0 V, 1000 V 0.1 % + 1
V ac (true-rms) 400.0 mV, 4.000 V, 40.00 V, 400.0 V, 1000 V 0.7 % + 2
mA dc 30.000 mA .05 % + 2
A dc 1.000 A (0.440 A continuous) 0.2 % + 2
A ac 1.000 A (0.440 A continuous) 1 % + 2
Resistance 400.0 Ohms, 4.000 k, 40.00 k, 400.0 k, 4.0

Frequency (0.5 Hz to 20 kHz) 199.99 Hz, 1999.9 Hz, 19.999 k Hz .005 % + 1
Diode Test 2.000 V (shows diode voltage drop) 2 % + 1
Continuity Beeps for resistance < approx. 100 ohms

Output function Range and resolution Drive capability

DC Current Output

(Internal battery operation)

DC Current Simulate
(Ext. 24 Volt loop supply)

24 V Loop Supply Minimum 24 V 250 Ohms @ 20 mA> 24 V

Current Adjustment Modes Manua l: Coarse, Fine, 25 % and 100 % step

Temperature range of 18 °C to 28 °C, for one year after calibration

General specifications

Maximum voltage applied between
any jack and ear th ground

Storage temperature -40 °C to 60 °C
Operating temperature -20 °C to 55 °C
Temperature coefficient 0.05 x (specified acc uracy) per °C (for temperatures < 18 °C or > 28 °C)
Relative humidity 95 % up to 30 °C; 75 % up to 40 °C; 45 % up to 50 °C; 35 % up to 55 °C
Vibration Random, 2 g, 5-500 Hz
Shock 1 meter drop test
Safety Designed in accordance with EN61010, ANSI/ISA S82.01-1994 and

Size (HxWxL) 50 mm x 100 mm x 203 mm (1.97 in x 3.94 in x 8.00 in)
Weight 600 g (1.3 lb)
Battery Four AA alkaline batteries
Battery life 140 hours typical (measurement), 10 hours t ypical (sourcing 12 mA)
Warranty Three years

RF connection time (binding time) may take up to 1 minute.

M, 40 M

0.000 to 20.000 mA or 4.000 to

20.000 mA (selectable at power-up)
Over-range to 24.000 mA

0.000 to 20.000 mA or 4.000 to

20.000 mA, (selectable at power-up)
Over-range to 24.000 mA

Automatic: Slow Ramp, Fast Ramp, 25 % step

1000 V rms

CAN/CSA C22.2 No. 1010..1-92 Over-voltage Category III

Best accuracy

(% of reading + LS D)

0.2 % + 1

24 V compliance,

or,

1,200 Ohms,@

20 mA

1000 Ohms, @

20 mA

Accuracy

(% of span)

.05 %

.05 %

Ordering information

Model

FLUKE-789/T3000 FC Fluke Connect
ProcessMeter/Temp Kit

Includes

789 ProcessMeter, T3000FC Wireless
K-type temperature module, FLUKE­IR3000FC Connector, TL71 Premium
Test Lead Set, AC72 Alligator Clips,
four AA alkaline batteries (installed),
users manual and quick reference
guide

Optional accessories

IR3000FC Fluke Connect Infrared
Connector

80T-I R Infrared Temperature Probe
80TK Thermocouple Module

2 Fluke Corporation Fluke Connect ProcessMeter/Temp Kit

80T-150U Universal Temperature
Probe
TL20/TL22/TL24/TL26/TL28/TL40A
Test Lead Sets

AC20/AC80 Clips
TP20 Industrial Test Probes
80i-400 AC Current Clamp*
i410 AC/DC Current Clamp**
i1010 AC/DC Current Clamp**
C25/C100 Cases
80K-6/80K-40 High Voltage Probes
85RF High Frequency Probes
PV350 Pressure Vacuum Module
FOM Fiber Optic Meter
LPAK80-4 LockPak
TPA K ToolPak Meter Hanging Kit

*Above 50 A ac
**Above 1 A dc or 20 A ac
