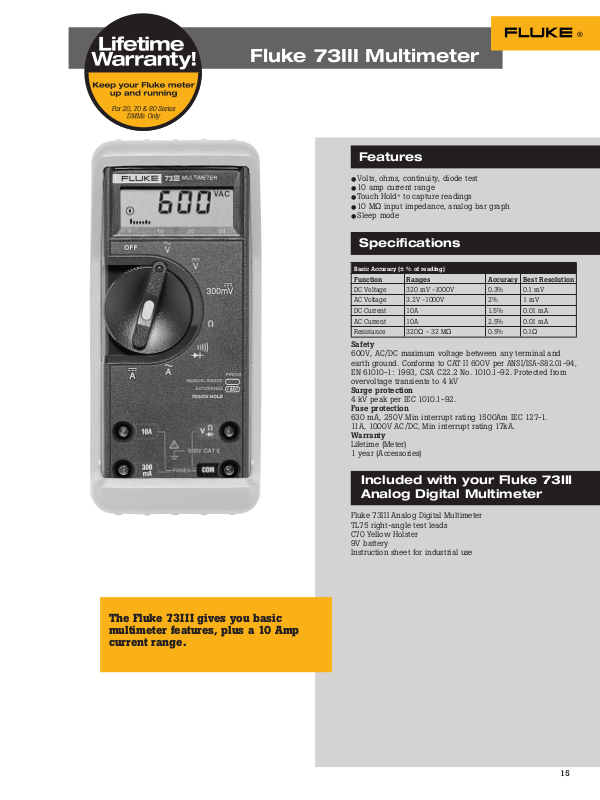

Fluke 73-3 Specifications Sheet

Fluke 73III Multimeter

Features

● Volts, ohms, continuity, diode test

● 10 amp current range

● Touch Hold

● 10 MΩ input impedance, analog bar graph

● Sleep mode

Specifications

Basic Accuracy (± % of reading)

Function Ranges Accuracy Best Resolution

DC Voltage 320 mV -1000V 0.3% 0.1 mV
AC Voltage 3.2V -1000V 2% 1 mV
DC Current 10A 1.5% 0.01 mA
AC Current 10A 2.5% 0.01 mA
Resistance 320Ω - 32 MΩ 0.5% 0.1Ω

Safety

600V, AC/DC maximum voltage between any terminal and
earth ground. Conforms to CAT II 600V per
EN 61010-1: 1993, CSA C22.2 No. 1010.1-92. Protected from
overvoltage transients to 4 kV

Surge protection

4 kV peak per IEC 1010.1-92.

Fuse protection

630 mA, 250V Min interrupt rating 1500Am IEC 127-1.
11A, 1000V AC/DC, Min interrupt rating 17kA.

Warranty

Lifetime (Meter)
1 year (Accessories)

®

to capture readings

®

ANSI/ISA-S82.01-94,

The Fluke 73III gives you basic
multimeter features, plus a 10 Amp
current range.

Included with your Fluke 73III
Analog Digital Multimeter

Fluke 73III Analog Digital Multimeter
TL75 right-angle test leads
C70 Yellow Holster
9V battery
Instruction sheet for industrial use

15
