Introduction
The 368/368 FC and 369/369 FC AC Leakage Current Clamp (the Product) is a handheld tool for
measurement of ac leakage current.

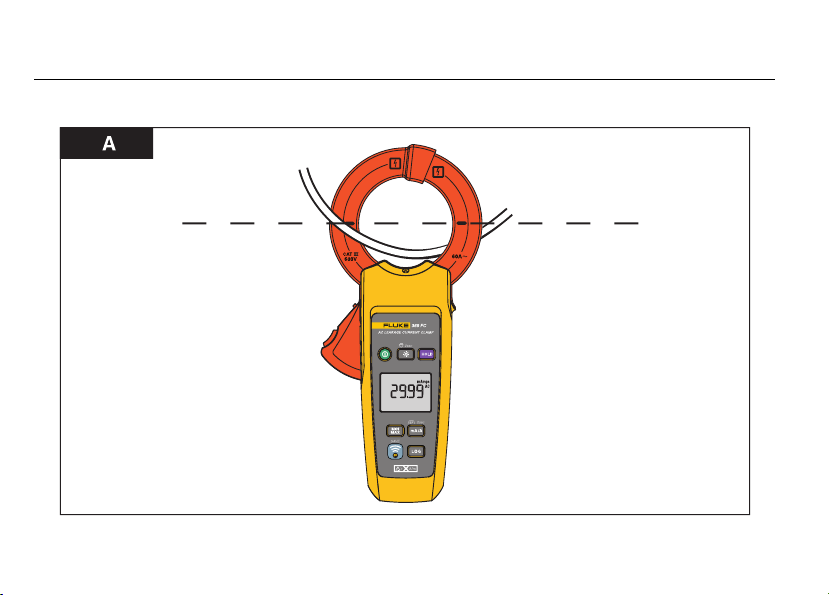

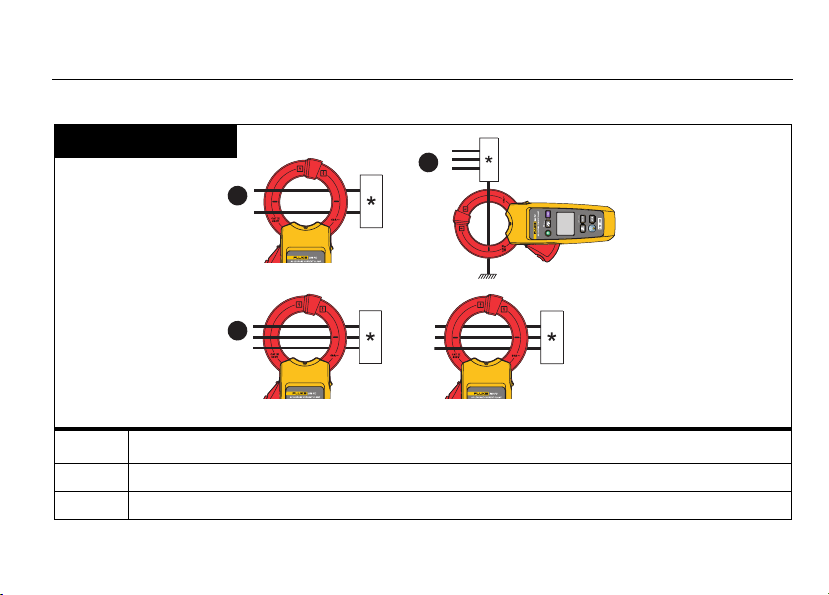

Principle of Leakage Current Measurement
Based on the electromagnetic induction principle, the Product has a ring-shape current transformer
comprised of a metal core and coil winding. The current transformer senses the magnetic field produced
by the current or by the vector sum of the currents flowing in the conductor under test. The current
transformer then produces a current proportional to the current flowing in the conductor.
See the Product Functions section near the end of this manual.
1
Page 6
368/368 FC/369/369 FC
Users Manual
How to Contact Fluke
To contact Fluke, call one of the following telephone numbers:
• Technical Support USA: 1-800-44-FLUKE (1-800-443-5853)
• Calibration/Repair USA: 1-888-99-FLUKE (1-888-993-5853)
• Canada: 1-800-36-FLUKE (1-800-363-5853)
• Europe: +31 402-675-200
• Japan: +81-3-6714-3114
• Singapore: +65-6799-5566
• China: +86-400-921-0835
• Brazil: +55-11-3530-8901
• Anywhere in the world: +1-425-446-5500
Or, visit Fluke's website at www.fluke.com
To register your product, visit http://register.fluke.com
To view, print, or download the latest manual supplement, visit http://us.fluke.com/usen/support/manuals
.
.
Safety Information
General Safety Information is in the printed Safety Information document that ships with the Product and
at www.fluke.com
2
. More specific safety information is listed where applicable.
.
Page 7
Product Overview
Ta bl e 1 and Figure 1 explain the Product features.
Table 1. Features
Item Definition
AC Leakage Current Clamp
Product Overview

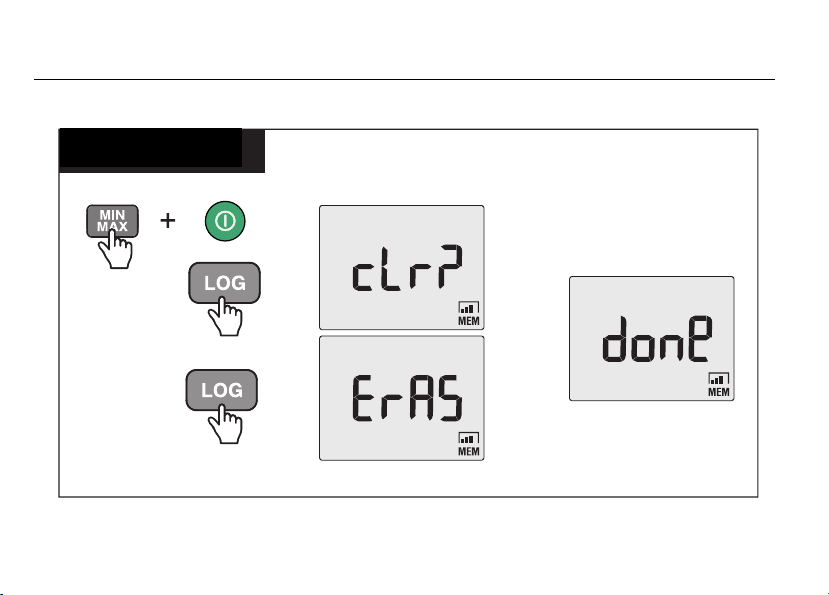

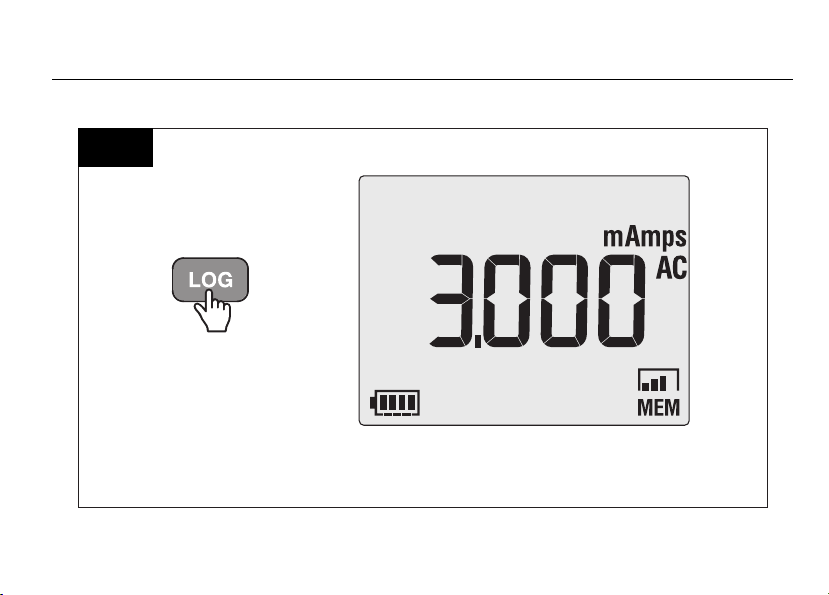

368 FC/369 FC: Log data and clear memory, see Product Functions.
Keep fingers below the Tactile Barrier.
Push to retain the measured data on the display. When pushed, shows on
the display. When pushed again, data hold is canceled and disappears.
The display shows the measured value (digital reading), unit, function, and low battery
symbol.
Push to choose the range of ac current (either mA or A). Push and hold for
2 seconds to turn on the filter.

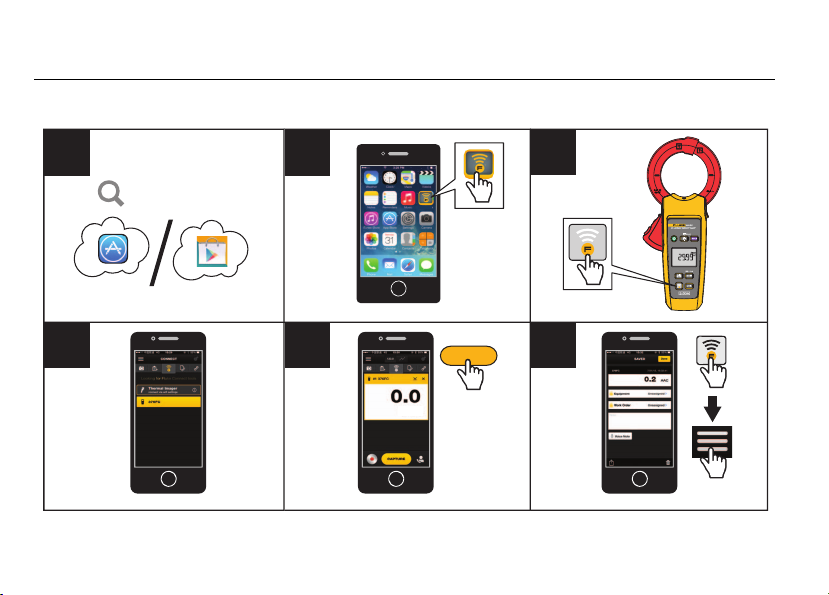

368 FC/369 FC: Turn on/turn off the Fluke Connect™ wireless connectivity to a
smartphone, see Product Functions.
3
Page 8
368/368 FC/369/369 FC
Users Manual
Table 1. Features (cont.)
Item Definition
4
Push to show the minimum, maximum, and average reading. When pushed,
shows on the display.
Push to turn on the display backlight. Push and hold for 2 seconds to turn on the

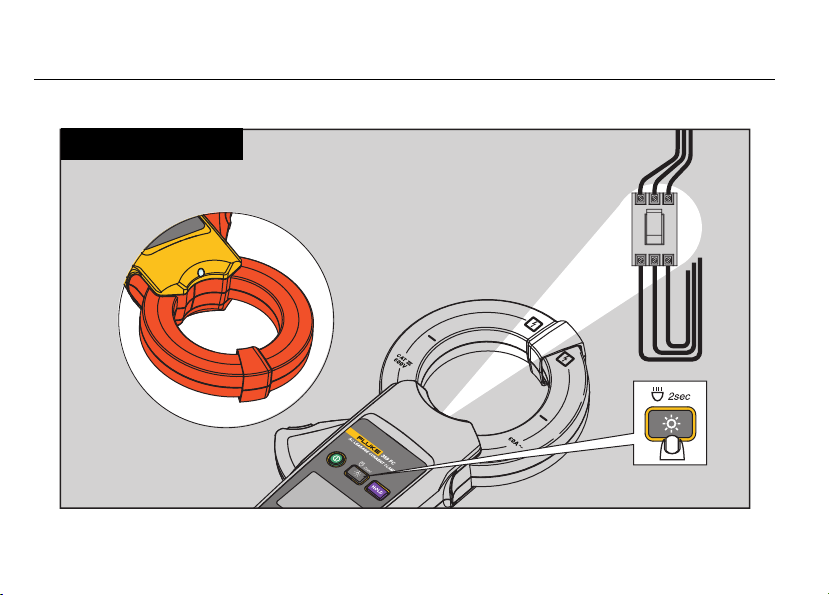

spotlight. See Spotlight.
Push to turn on or turns off the Product.
Jaw trigger
Push the jaw lock button and the trigger together to unlock the jaw.
Spotlight. See Spotlight.
Jaw

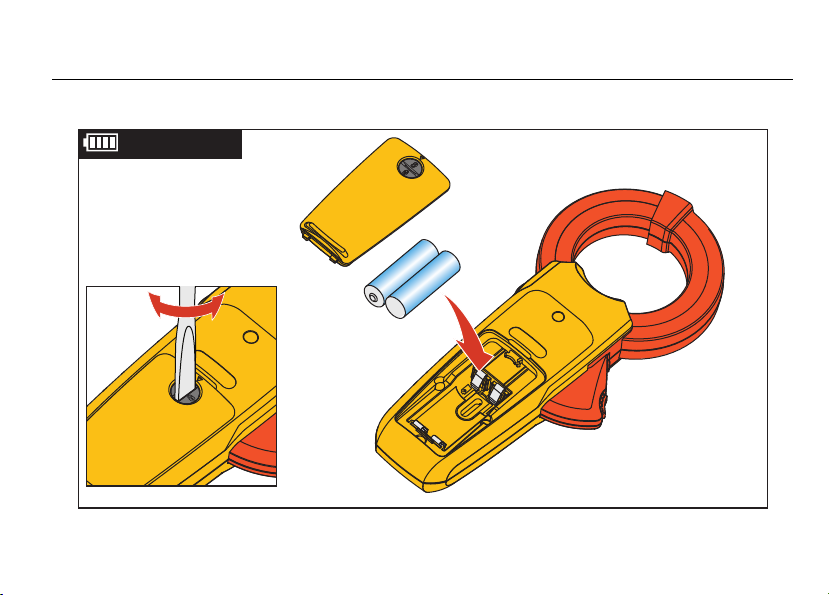

Battery Housing holds the batteries. See Batteries.
Page 9
AC Leakage Current Clamp
Product Overview

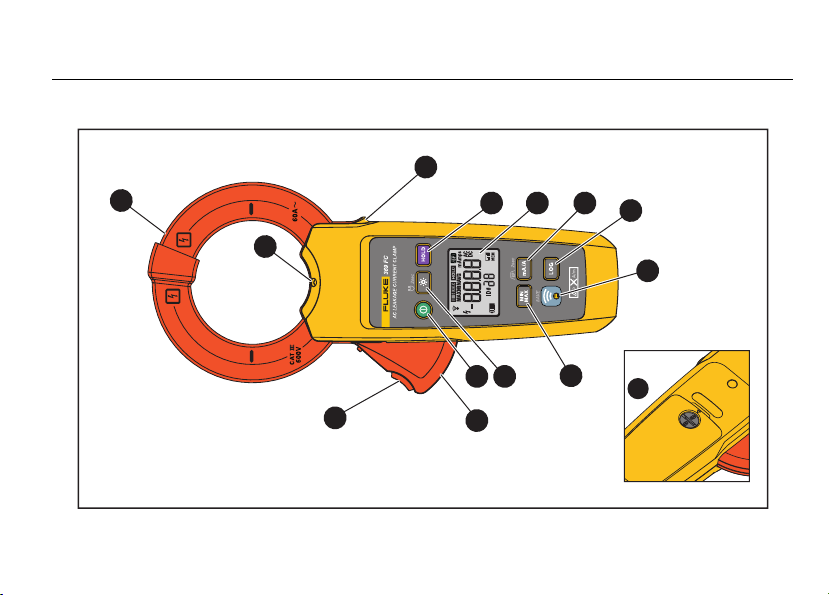

Figure 1. Product Features
1
13
12
3
2
3
4
3
4
3
5
6
8
9
9
11
10
7
14
5
Page 10
368/368 FC/369/369 FC
Users Manual
The Display
Table 2 and Figure 2 explain the Product display.
Table 2. Display
Item Definition
Battery Symbol
Main display
The Product is searching for ranges.
Fluke Connect on (368 FC and 369 FC)
Min, Max, or Avg reading is showing.
MinMax mode is active.
Hold mode is active.
Filter is active and filters signals from 40 Hz – 70 Hz.
mA AC or A AC
Remaining memory (368 FC and 369 FC)
6
Product identification number when used with Fluke Connect (368 FC and 369 FC).
Page 11

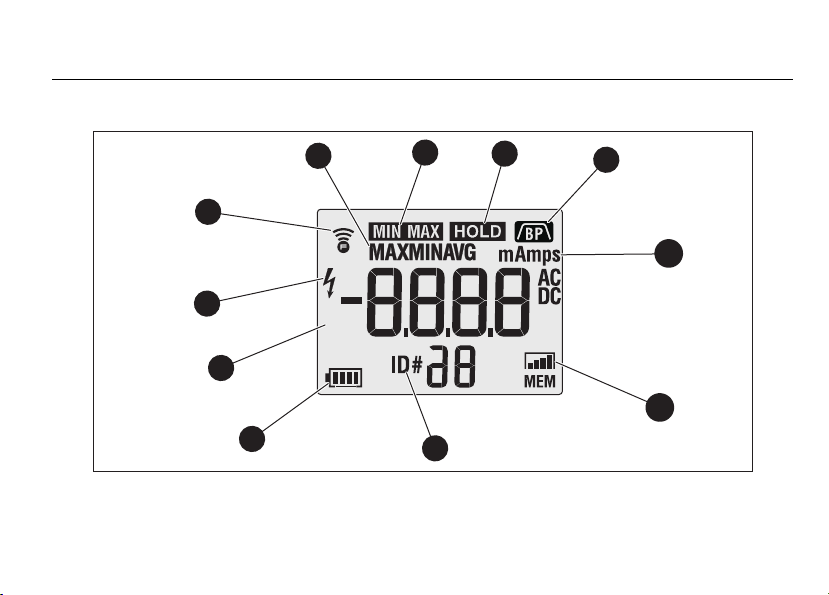

Figure 2. Display
1
2
3
6
7
8
5
4
9
11
10
AC Leakage Current Clamp
The Display
7
Page 12
368/368 FC/369/369 FC
Users Manual
Manual-Range Mode
To enable manual-range mode:
1. With the Product off, simultaneously push and .
2. Hold both buttons until the backlight illuminates (~2 s).
The Product is now in manual-range mode.
3. Push to select the range.
Clean the Product
Periodically wipe the case with a damp cloth and mild detergent.
W Caution
To avoid damaging the Product, do not use abrasives or solvents to clean the Product.
1. Inspect the jaw mating surface for cleanliness. If any foreign material is present, the jaw will not
close properly and measurement errors will result.
2. Open the jaws and clean the clamp metal ends with a lightly oiled cloth.
8
Page 13
AC Leakage Current Clamp
Maintenance
Maintenance
If the Product does not work or perform properly, use these steps to help isolate the problem:
1. Inspect the jaw mating surface for cleanliness. If any foreign material is present, the jaw will not
close properly and measurement errors will result.
2. Verify that the range on the Product is correct.
Replacement Parts
Replacement parts are listed in Table 3. To order, see How to Contact Fluke.
Table 3. Replacement Parts
Item Description Fluke Part Number
Battery 2AA IEC LR6 Alkaline 376756
Battery door assembly
English 4700598
Chinese 4739829
9
Page 14
368/368 FC/369/369 FC
Users Manual
Specifications
General
Measurement functions ........................ AC current
Display (LCD) ....................................... Digital reading: 3300 counts, LCD refresh rate 4x/s
Range selection....................................mA/A: manual selection
3 mA/30 mA/300 mA: auto selection
3 A/30 A/60 A: auto selection
Battery
Type ................................................. 2 AA IEC LR6 alkaline
Life.................................................... >150 hours without backlight and spotlight
Maximum conductor diameter .............. 368: 40 mm, 369: 61 mm
Automatic power off..............................15 minutes after the last switch operation
10
Page 15
AC Leakage Current Clamp
Dimensions
369/369 FC (W x H x D) ................... 116 mm x 257 mm x 46 mm
368/368 FC (W x H x D) ................... 101 mm x 234 mm x 46 mm
Weight
369/369 FC....................................... 600 g
368/368 FC....................................... 500 g
Electrical Specifications
Reference Conditions...........................23 ±5 °C and 80 % RH maximum
A AC Range .........................................3 mA, 30 mA, 300 mA, 3 A, 30 A, 60 A
Frequency ............................................40 Hz to 1 kHz
Crest Factor..........................................3
Specifications
11
Page 16
368/368 FC/369/369 FC
Users Manual
AC Current Measurement
Accuracy is specified for 1 year after calibration. Accuracy is given as ±(% reading + digit).
368/368 FC 369/369 FC
Range Resolution
[1]
3 mA
0.001 mA 1+5 1+5 1.5+5 1.5+5 0.002+1
Filter On
(40-70 Hz)
Filter Off
(40-1 kHz)
Filter On
(40-70 Hz)
Filter Off
(40-1 kHz)
T.C./°C Outside
18 °C to 28 °C
30 mA 0.01 mA 1+5 1+5 1.5+5 1.5+5 0.002+1
300 mA 0.1 mA 1+5 1+5 1.5+5 1.5+5 0.002+1
3 A 0.001 A 1+5 1+5 1.5+5 1.5+5 0.002+1
30 A 0.01 A 1+5 1+5 1.5+5 1.5+5 0.002+1
60 A 0.1 A 2+5 2+5 2+5 2+5 0.002+1
[1] The minimum value is 10 μA rms.
12
Page 17
AC Leakage Current Clamp
Specifications
Environmental Specifications
Operating temperature .........................-10 °C to +50 °C
Storage temperature ............................-40 °C to +60 °C
Operating humidity
(without condensation) .........................Non condensing (<10 °C)
90 % RH (10 °C to 30 °C)
75 % RH (30 °C to 40 °C)
45 % RH (40 °C to 50 °C)
Ingress Protection ................................IEC 60529: IP30 with jaw closed
Operating Altitude.................................2000 m
Storage Altitude....................................12 000 m
Electromagnetic Compatibility (EMC)
International...................................... IEC 61326-1: Industrial Electromagnetic Environment
IEC 61326-2-2, CISPR 11: Group 1, Class B
Group 1: Equipment has intentionally generated and/or uses conductively-coupled radio frequency
energy that is necessary for the internal function of the equipment itself.
13
Page 18
368/368 FC/369/369 FC
Users Manual
Class B: Equipment is suitable for use in domestic establishments and in establishments directly
connected to a low voltage power supply network which supplies buildings usedfor domestic
purposes.
Emissions that exceed the levels required by CISPR 11 can occur when the equipment is connected
to a test object.
Korea (KCC)..................................... Class A equipment (Industrial Broadcast & Communications
Class A: Equipment meets requirements for industrial electromagnetic wave equipment and the
seller or user should take notice of it. This equipment is intended for use in business environments
and not to be used in homes.
USA (FCC) ....................................... 47 CFR 15 subpart B. This product is considered an exempt
Safety Specifications
General.................................................IEC61010-1: Pollution degree 2
Measurement .......................................IEC61010-2-032: CAT III 600 V
Current Clamp for Leakage Current
Measurements......................................IEC 61557-13: Class 2, ≤30 A/m
14
Equipment)
device per clause 15.103.
Page 19
AC Leakage Current Clamp
Specifications
Wireless Radio
Radio Frequency Certification .............. FCC ID:T68-FBLE IC:6627A-FBLE
Frequency Range.................................2405 MHz to 2480 MHz
Output Power .......................................<100 mW
Radio Frequency Data .........................Go to www.fluke.com
Class A” (PN 4333628)
Operational Error for Current
Accuracy is specified for 1 year after calibration. Accuracy is given as ±(% reading).
Accuracy guaranteed for 50 Hz and 60 Hz.
Parameter Specification
Intrinsic Uncertainty IEC 61557-13 A Reference conditions 0.08 % 0.06 % 0.15 % 0.13 %
Conductor Position IEC 61557-13 E1 ±30 ° 0.08 % 0.06 % 0.15 % 0.12 %
Battery Voltage IEC 61557-13 E2 2.0 V to 3.3 V 0.08 % 0.05 % 0.15 % 0.12 %
Temperature IEC 61557-13 E3 -10 °Cto 50 °C 0.14 % 0.14 % 0.29 % 0.29 %
Distortion IEC 61557-13 E9 0.06 % 0.07 % 0.15 % 0.12 %
and search for “Radio Frequency Data for
Typical
368/368 FC 369/369 FC 368/368 FC 369/369 FC
Max
[1]
15
Page 20
368/368 FC/369/369 FC
Users Manual
Parameter Specification
Magnetic Field
Load Current
Touch Current
Frequency
Repeatability IEC 61557-13 E15 0.08 % 0.06 % 0.15 % 0.12 %
Uncertainty
[1] Confidence level: 95 %.
IEC 61557-13 E11 (15 Hz to 400 Hz)
10 A/m Class 3
30 A/m Class 2
IEC 61557-13 E12
60 A rms max (50 Hz and 60 Hz)
IEC 61557-13 E13 CAT III 600 V/ 60 Hz
IEC 61557-13 E14 40 Hz to 1 kHz
IEC 61557-13 B
10A/m Class 3
30A/m Class 2
Typical
368/368 FC 369/369 FC 368/368 FC 369/369 FC
1.58 %
4.75 %
3.60 % 5.17 % 7.67 % 10.83 %
0.94 % 0.06 % 1.61 % 0.14 %
0.15 % 0.15 % 0.30 % 0.32 %
4.74 %
7.02 %
2.07 %
6.21 %
6.47 %
9.36 %
3.54 %
10.61 %
10.06 %
15.34 %
Max
[1]
3.31 %
9.96 %
13.16 %
17.05%
16
Page 21

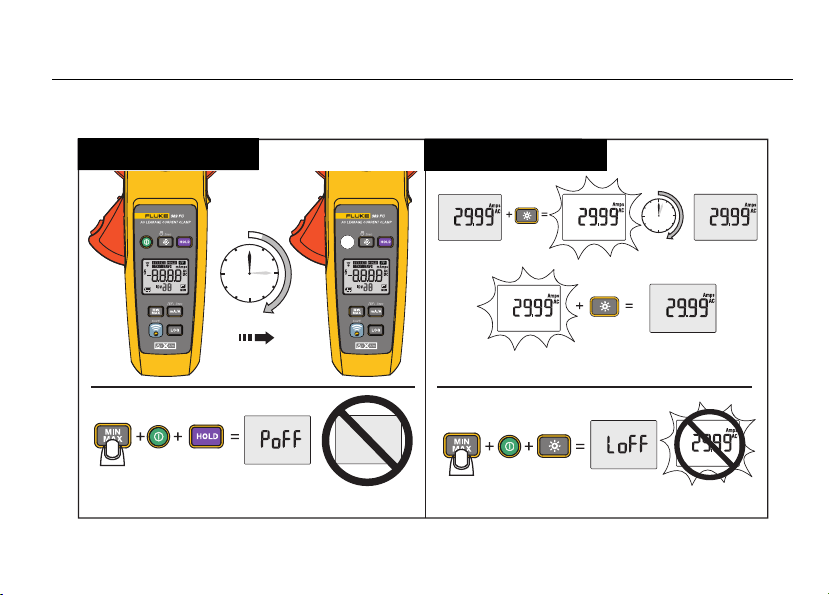

Product Functions
15 Min
2 Min
Auto Power Off Backlight
Auto Power Off
Backlight
AC Leakage Current Clamp
Product Functions
17
Page 22
368/368 FC/369/369 FC
Users Manual
18
Page 23
1
2
3
Measure
*
= Load
Measure
AC Leakage Current Clamp
Product Functions
Single-Phase Two-Wire Circuit
Single-Phase Three-Wire or Three-Phase Three-Wire Circuit
Load Current Measurement. Insert only one of the wires through the jaw.
19
Page 24
368/368 FC/369/369 FC
Spotlight
Users Manual
Spotlight
20
Page 25
A
AC Leakage Current Clamp
Product Functions
B
+
+
21
Page 26
368/368 FC/369/369 FC
Connect
CAPTURE
Fluke Connect
TM
AMP
12
3
45 6
Users Manual
Fluke Connect™ Bluetooth Connection to FC Tools
22
Page 27
Log
AC Leakage Current Clamp
Product Functions
LOG
on/off LOG
23
Page 28
368/368 FC/369/369 FC
5 sec
1
2
Clear Memory
Clear Memory
Users Manual
24
Loading...
