Fluke 2700G Specifications

2700G Series

Reference

Pressure Gauges

Features

• Precision pressure measurement from 100 kPa
(15 psi) to 70 MPa (10 000 psi)

• Accuracy to 0.02% of full scale

• Easy-to-use, rugged construction for reliable

performance

• Combine with the 700PTPK or 700HTPK pump kits
for a complete portable pressure testing solution for
up to 4 MPa (600 psi) with the PTP-1 pneumatic
pump and up to 70 MPa (10 000 psi) with the
HTP-2 hydraulic pump

• Combine with the P5510, P5513, P5514, or P5515
Comparison Test Pumps for a complete bench top
pressure calibration solution

• Test port is 1/4 NPT Male. 1/4 BSP and M20 X 1.5
adaptors are included standard

• USB communications cable and universal power
supply included standard

Technical Data

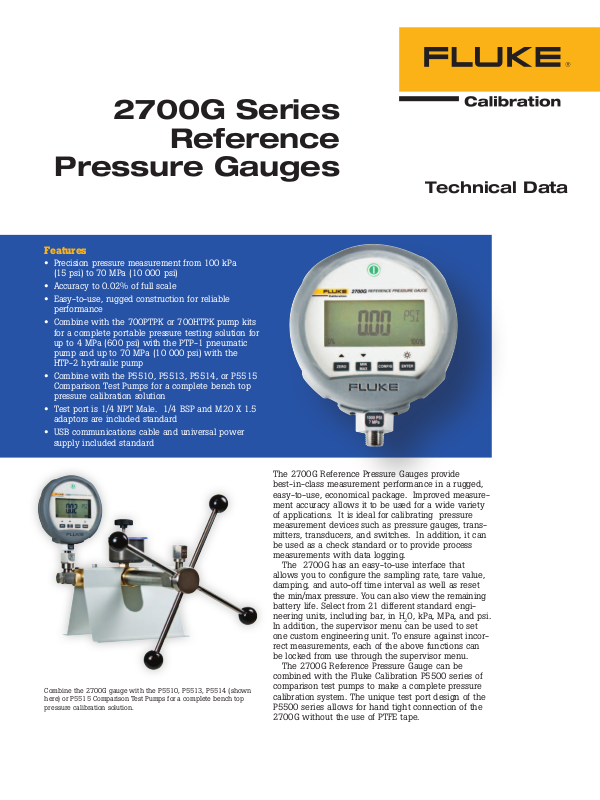

Combine the 2700G gauge with the P5510, P5513, P5514 (shown
here) or P5515 Comparison Test Pumps for a complete bench top
pressure calibration solution.

The 2700G Reference Pressure Gauges provide
best-in-class measurement performance in a rugged,
easy-to-use, economical package. Improved measure-
ment accuracy allows it to be used for a wide variety
of applications. It is ideal for calibrating pressure
measurement devices such as pressure gauges, trans­mitters, transducers, and switches. In addition, it can
be used as a check standard or to provide process
measurements with data logging.
The 2700G has an easy-to-use interface that
allows you to configure the sampling rate, tare value,
damping, and auto-off time interval as well as reset
the min/max pressure. You can also view the remaining
battery life. Select from 21 different standard engi­neering units, including bar, in H
In addition, the supervisor menu can be used to set
one custom engineering unit. To ensure against incor­rect measurements, each of the above functions can
be locked from use through the supervisor menu.
The 2700G Reference Pressure Gauge can be
combined with the Fluke Calibration P5500 series of
comparison test pumps to make a complete pressure
calibration system. The unique test port design of the
P5500 series allows for hand tight connection of the
2700G without the use of PTFE tape.

O, kPa, MPa, and psi.

2

P5510 Pneumatic Comparison Pump

• Pressure range: 0 to 2 MPa (300 psi)

• Vacuum range: 0 to 80 kPa (24 inHg)

• Built-in hand pump as pressure/vacuum source

• High-quality needle valve for fine control

P5513 Pneumatic Comparator

• Pressure range: 0 to 20 MPa (3000 psi)

• High pressure pneumatic operation

• Screw press for fine pressure adjustment

• High-quality needle valve for metering in supply

pressure

P5514 Hydraulic Comparison Pump

• Pressure range: 0 to 70 MPa (10 000 psi)

• Bench mount design

• Screw pressure for pressure generation

• Operates with a wide range of fluids (Viton seals

standard, EP seals available)

P5515 Hydraulic Comparison Pump

• Pressure range: 0 to 140 MPa (20 000 psi)

• Built-in priming pump for large volume applications

and system priming

• High-quality screw press for pressure generation
and fine control

• Clear acrylic reservoir for visibility of fluid level and
quality

• Built-in drain plug for easy removal of fluid

• Sturdy carrying case with lid

• Operational with a wide range of fluids (Viton seals

standard, EP seals available)

2 Fluke Corporation 2700G Series Reference Pressure Gauges

Model Range Resolution Uncertainty (k=2) Burst pressure Media compatibility

2700G-BG100K -15 psi to 15 psi

-100 kPa to 100 kPa

2700G-BG200K -15 to 30 psi

-100 kPa to 200 kPa

2700G-BG700K -12 psi to 100 psi

-80 kPa to 700 kPa

2700G-BG2M -12 psi to 300 psi

-80 kPa to 2 MPa

2700G-BG3.5M -12 psi to 500 psi

-80 kPa to 3.5 MPa

2700G-BG7M -12 to 1000 psi

-80 kPa to 7 MPa

2700G-G20M 0 to 3000 psi

0 to 20 MPa

2700G-G35M 0 to 5000 psi

0 to 35 MPa

2700G-G70M 0 to 10 000 psi

0 to 70 MPa

Uncertainty includes linearity, hysteresis, repeatability, resolution, reference uncertainty, 1 year long term stability, and
temperature effects from 18 to 28 °C.
For temperatures from 0 °C to 18 °C and 28 °C to 50 °C, add 0.003% FS/°C

Media compatibility:

Note 1: Any clean, dry non-corrosive gas
Note 2: Any liquids or gases compatible with 316 stainless steel
Note 3: Any non-flammable, non-toxic, non-explosive, non-oxidizing liquid or gas compatible with 316 stainless steel

0.001 psi

0.0001 bar

0.001 psi

0.0001 bar

0.01 psi

0.0001 bar

0.01 psi

0.001 bar

0.01 psi

0.001 bar

0.1 psi

0.001 bar

0.1 psi

0.01 bar

0.1 psi

0.01 bar

1 psi

0.01 bar

Positive pressure

± 0.02 % FS

Vacuum

± 0.05 % FS

45 psi

0.3 MPa

90 psi

0.6 MPa

1000 psi
7 MPa

2000 psi
14 MPa

2000 psi
14 MPa

10 000 psi
70 MPa

10 000 psi
70 MPa

10 000 psi
70 MPa

15 000 psi
100 MPa

Note 1

Note 1

Note 2

Note 2

Note 2

Note 2

Note 3

Note 3

Note 3

Mechanical specifications

Dimensions (HxWxD) 12.7 cm x 11.4 cm x 3.7 cm (5 in x 4.5 in x 1.5 in)

Pressure connection ¼ in NPT Male

Housing/weight Cast ZNAL/0.56 kg (1.22 lb)

Display 5-1/2 digits, 16.53 mm (0.65 in) high

20-segment bar graph, 0 to 100 %

Power Three AA alkaline batteries

Battery life 75 hours

3 Fluke Corporation 2700G Series Reference Pressure Gauges

Order information

Model Description

2700G-BG100K Reference Pressure Gauge, -15 to 15 psi

(-100 to 100 kPa)

2700G-BG200K Reference Pressure Gauge, -15 to 30 psi

(-100 to 200 kPa)

2700G-BG700K Reference Pressure Gauge, -12 to 100 psi

(-80 to 700 kPa)

2700G-BG2M Reference Pressure Gauge, -12 to 300 psi

(-80 kPa to 2 MPa)

2700G-BG3.5M Reference Pressure Gauge, -12 to 500 psi

(-80 kPa to 3.5 MPa)

2700G-BG7M Reference Pressure Gauge, -12 to 1000 psi

(-80 kPa to 7 MPa)

2700G-G20M Reference Pressure Gauge, 0 to 3000 psi

(0 to 20 MPa)

2700G-G35M Reference Pressure Gauge, 0 to 5000 psi

(0 to 35 MPa)

2700G-G70M Reference Pressure Gauge, 0 to 10 000 psi

(0 to 70 MPa)

P5510-2M Pneumatic Comparison Test Pump, vacuum to

300 psi (2 MPa)

P5513-20M Pneumatic Comparator, 0 to 3000 psi (20 MPa)

P5514-70M Hydraulic Comparison Pump with Viton Seals,

0 to 10 000 psi (70 MPa)

P5514-70M-EP Hydraulic Comparison Pump with EP Seals,

0 to 10 000 psi (70 MPa)

P5515-140M Hydraulic Comparison Pump with Viton Seals,

0 to 20 000 psi (140 MPa)

P5515-140M-EP Hydraulic Comparison Pump with EP Seals,

0 to 20 000 psi (140 MPa)

Fluke Calibration.

Precision, performance, confidence.

™

Items included with gauge:

• Manual on CD-ROM in 14 languages

• Calibration certificate showing traceability

• 1/4 NPT female to 1/4 BSP male adapter

• 1/4 NPT female to M20X1.5 adapter

• Universal ac power supply

• USB communication cable

Optional:

ISO 17025 accredited calibration available
(add “/C” to the model number)

4 Fluke Corporation 2700G Series Reference Pressure Gauges
