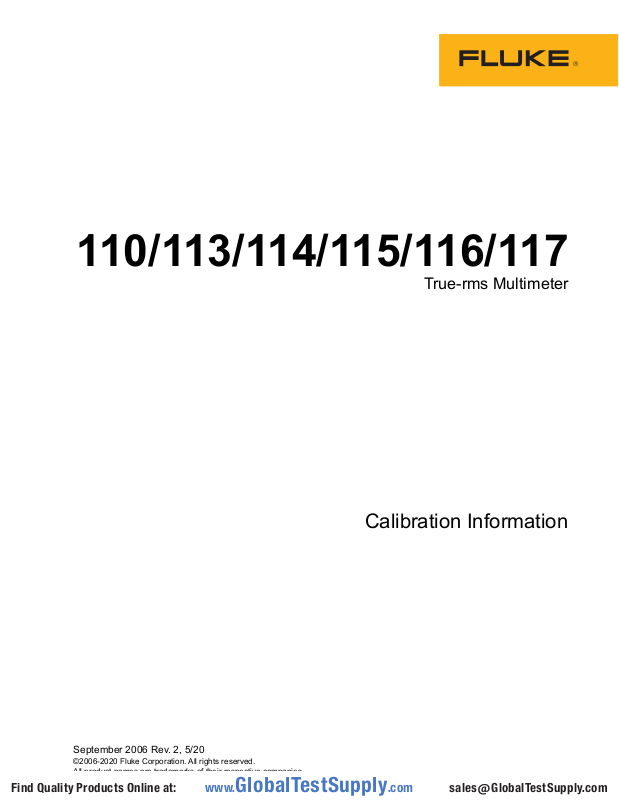

Fluke 115 CAL User manual

Download
110/113/114/115/116/117
True-rms Multimeter

Calibration Information

September 2006 Rev. 2, 5/20
©2006-2020 Fluke Corporation. All rights reserved. All product names are trademarks of their respective companies.
Specifications are subject to change without notice.
www.GlobalTestSupply.com

LIMITED WARRANTY AND LIMITATION OF LIABILITY

Each Fluke product is warranted to be free from defects in material and workmanship under normal use and service. The warranty period is three years and begins on the date of shipment. Parts, product repairs, and services are warranted for 90 days. This warranty extends only to the original buyer or end-user customer of a Fluke authorized reseller, and does not apply to fuses, disposable batteries, or to any product which, in Fluke's opinion, has been misused, altered, neglected, contaminated, or damaged by accident or abnormal conditions of operation or handling. Fluke warrants that software will operate substantially in accordance with its functional specifications for 90 days and that it has been properly recorded on non-defective media. Fluke does not warrant that software will be error free or operate without interruption.
Fluke authorized resellers shall extend this warranty on new and unused products to end-user customers only but have no authority to extend a greater or different warranty on behalf of Fluke. Warranty support is available only if product is purchased through a Fluke authorized sales outlet or Buyer has paid the applicable international price. Fluke reserves the right to invoice Buyer for importation costs of repair/replacement parts when product purchased in one country is submitted for repair in another country.
Fluke's warranty obligation is limited, at Fluke's option, to refund of the purchase price, free of charge repair, or replacement of a defective product which is returned to a Fluke authorized service center within the warranty period.
To obtain warranty service, contact your nearest Fluke authorized service center to obtain return authorization information, then send the product to that service center, with a description of the difficulty, postage and insurance prepaid (FOB Destination). Fluke assumes no risk for damage in transit. Following warranty repair, the product will be returned to Buyer, transportation prepaid (FOB Destination). If Fluke determines that failure was caused by neglect, misuse, contamination, alteration, accident, or abnormal condition of operation or handling, including overvoltage failures caused by use outside the product’s specified rating, or normal wear and tear of mechanical components, Fluke will provide an estimate of repair costs and obtain authorization before commencing the work. Following repair, the product will be returned to the Buyer transportation prepaid and the Buyer will be billed for the repair and return transportation charges (FOB Shipping Point).
THIS WARRANTY IS BUYER'S SOLE AND EXCLUSIVE REMEDY AND IS IN LIEU OF ALL OTHER WARRANTIES, EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. FLUKE SHALL NOT BE LIABLE FOR ANY SPECIAL, INDIRECT, INCIDENTAL OR CONSEQUENTIAL DAMAGES OR LOSSES, INCLUDING LOSS OF DATA, ARISING FROM ANY CAUSE OR THEORY.
Since some countries or states do not allow limitation of the term of an implied warranty, or exclusion or limitation of incidental or consequential damages, the limitations and exclusions of this warranty may not apply to every buyer. If any provision of this Warranty is held invalid or unenforceable by a court or other decision-maker of competent jurisdiction, such holding will not affect the validity or enforceability of any other provision.
11/99
www.GlobalTestSupply.com

Table of Contents

Title Page
Introduction ........................................................................................................... 1
How to Contact Fluke............................................................................................ 1
Safety Information................................................................................................. 1
Specifications........................................................................................................ 1
Maintenance ......................................................................................................... 2
Fuse Test (115, 117) ....................................................................................... 2
Battery and Fuse Replacement ....................................................................... 3
Cleaning........................................................................................................... 4
Features................................................................................................................ 5
Performance Tests................................................................................................ 6
Required Equipment ........................................................................................ 6
Display Test ..................................................................................................... 7
110/114/115/116/117 .................................................................................. 7
113 .............................................................................................................. 7
Backlight Test .................................................................................................. 7
Keypad Test..................................................................................................... 7
110/114/115/116/117 .................................................................................. 7
113 .............................................................................................................. 7
Preparing for the Performance Tests............................................................... 8
Testing Temperature (116 only) ...................................................................... 8
Testing the VoltAlert Function (117 only)......................................................... 12
Calibration Adjustment.......................................................................................... 14
Calibration Adjustment Password.................................................................... 14
Changing the Password .............................................................................. 14
Restoring the Default Password.................................................................. 15
Meter Buttons Used in the Calibration Steps................................................... 16
Calibration Adjustment Procedure ................................................................... 16
Replacement Parts ............................................................................................... 19
i
www.GlobalTestSupply.com

Introduction

XW Warning
To prevent electric shock or personal injury, do not perform the calibration verification tests or calibration procedures described in this manual unless you are qualified to do so. The information provided in this document is for the use of qualified personnel only.
This Calibration Information provides the information necessary to adjust and verify the performance of the Fluke Models 110, 113, 114, 115, 115C, 116, 116C, 117, and 117C True RMS Multimeter (the Meter or Product). When specific models are noted in this manual, the “C” version is also included. For example, when the listed model is 115, the instructions are applicable to the 115C as well.

Safety Information

General Safety Information is in the printed Safety Information document that ships with the Product and at More specific safety information is listed where applicable.

Specifications

For complete Specifications, refer to the 110/113/114/115/117 Users Manual or 116 Users Manual at
1
www.GlobalTestSupply.com
110/113/114/115/116/117
X
Calibration Information

Maintenance

Maintenance of the Meter consists of battery and fuse replacement, as well as case cleaning.

Fuse Test (115, 117)

To test the fuse:
1. Set the rotary switch to Ω.
2. Plug a test lead into the v jack and touch the probe to the 10A jack, as shown in Figure 1.
If the display shows a resistance value in the range of that shown in Figure 1, the fuse is good. If the display reads 0L, replace the fuse and test again.
If the display shows any other value, have the Meter serviced. See How to Contact Fluke earlier in this document.
Figure 1. Test the Fuse
<.5
OK
OK
2
www.GlobalTestSupply.com

Battery and Fuse Replacement

XW Warning
To prevent shock, injury, or damage to the Meter:
• Remove test leads from the Meter before opening the case or battery door.
• Use ONLY a fuse with the amperage, interrupt voltage, and speed ratings specified.
True-rms Multimeter
Maintenance
h
X
Static Awareness
Semiconductors and integrated circuits can be damaged by electrostatic discharge during handling. This notice explains how to minimize damage to these components.
1. Understand the problem.
2. Learn the guidelines for proper handling.
3. Use the proper procedures, packaging, and bench techniques.
Follow these practices to minimize damage to static sensitive parts.
h
XW Warning
To prevent electric shock or personal injury. De-energize the product and all active circuits before opening a product enclosure, touching or handling any PCBs or components
.
• Minimize handling.
• Handle static-sensitive parts by non-condu
es.
edg
• Do not slide static­sensitive compone over an
• When removing plug-in assemblies, handle by non­edges.
•
Never touch open-edge connectors except at s
y surface.
con
ductive
tatic-free work station.
ctive
nts
only
a
www.GlobalTestSupply.com
• Keep parts in the original containers until ready for use.
• Use static shielding containers for handling a transpor
• Avoid plastic, vinyl, and Styrofoam area
t.
®
in the work
.
• Ha
• Put shorting strips
nd
• Use anti-static type
•
ndle static-sensitive parts on free work station.
the e
dge of th
nector to
con
ct installed static-
prote sensitive parts.
solder extraction tools only.
Use grounded-ti soldering irons on
ly at a static-
on
e
help
p
ly.
3
110/113/114/115/116/117
Calibration Information
See Figure 2 for disassembly.
Figure 2. Disassembly
To remove the battery door for battery replacement:
1. Remove the test leads from the Meter.
2. Remove the battery door screw.
3. Use the finger recess to lift the door slightly.
4. Lift the door straight up to separate it from the case.
5. The battery fits inside the battery door, which is then inserted into the case, bottom edge first, until it ated. Do not attempt to install the battery directly into the case.
se
6. Install and tighten battery door screw.
To open the case for fuse replacement:
1. Remove the test leads from the Meter.
2. Remove the Meter from its holster.
3. Remove two screws from the case bottom.
4. Separate the case bottom from the case top.
5. Remove the fuse from its holder and replace it with an 11 A, 1000 V, FAST fuse having a minimum interrup
ating of 17 000 A. Use only Fluke PN 803293.
r
6. To re-assemble the Meter, first attach the case bottom to the case top, then install the two screws.
ert the Meter into its holster.
ins
is fully
Finally,
t

Cleaning

Wipe the case with a damp cloth and mild detergent. Dirt or moisture in the terminals can affect readings.
4
www.GlobalTestSupply.com

Features

Table 1 is a list of the features for each Meter.
True-rms Multimeter
Features
Table 1. Features
Switch
Position
OFF The Meter is turned off.    
x
Automatically selects ac or dc volts based on the sensed input with a low impedance input.
AC voltage from 0.06 V to 600 V. 
Measurement Function 110 113 114 115 116 117

e
Frequency from 5 Hz to 100 kHz. 
D
l
Ω
s
k CHEK
R Diode Test. Displays OL above 2.0 V. 
S Farads from 1 nF to 9999 μF. 
j
I
$
y
DC voltage from 0.001 V to 600 V. 
AC voltage from 6.0 to 600 mV, dc-coupled. DC voltage from 0.1 to 600 mV.
Ohms from 0.1 Ω to 40 MΩ. 
Ohms from 0.1 Ω to 60 kΩ.
Continuity beeper turns on at <20 Ω and turns off at >250 Ω.
LoZ low impedance measurement function to simultaneously test for voltage or continuity.
AC current from 0.1 A to 10 A (>10 to 20 A, 30 seconds on, 10 minutes off). >10.00 A display flashes. >20 A, OL is displayed. DC-coupled.
Frequency from 45 Hz to 5 kHz.
DC current from 0.001 A to 10 A (>10 A to 20 A, 30 seconds on, 10 minutes off). >10.00 A display flashes. >20 A, OL is displayed.
DC current from 0.1 to 600 μA. AC current from 6.0 to 600 μA. DC-coupled.
Temperature from -40 °C to 400 °C (-40 °F to 752 °F) with K-type thermocouple

   


w
Note: All ac functions and Auto-V LoZ are true-rms. AC voltage is ac-coupled. Auto-V LoZ, AC mV and
Non-contact sensing of ac voltage.
AC amps are dc-coupled.
5
www.GlobalTestSupply.com
110/113/114/115/116/117
Calibration Information

Performance Tests

XW Warning
To prevent electric shock, do not perform the performance test procedures unless the Meter is fully assembled.
The following performance tests verify the complete operation of the Meter and check the accuracy of each Meter function against its specifications. The recommended calibration interval is 12 months. If the Meter fails any part of the test, calibration adjustment and/or repair is indicated.
In the performance tests, the Meter is referred to as the device under test (DUT).
See Table 1 for a list of the features for each Meter.

Required Equipment

Table 2 is a list of the equipment required to conduct a performance test on the Meter.
Table 2. Equipment Requirements
Equipment
5522 Multi-product Calibrator (or equivalent)
Fluke 80 AK K-type Thermocouple Adapter Accessory
K-type Thermocouple, mini-plug on both ends Temperature NA
Double Banana plug VoltAlert NA
[1] For accuracy specifications, see the Users Manual for the product.
Measurement Function
DC Volts 10 mV to 600 V
DC Current 600 μA to 10 A
AC Volts 6 mV to 600 V
AC Current 600 μA to 10 A
Resistance 0 to 30 MΩ
Capacitance 9 to 900 μF
Temperature 0 °C to 400 °C
Frequency 2 V, 50 kHz
Temperature NA
Range
[1]
6
www.GlobalTestSupply.com
True-rms Multimeter
Performance Tests

Display Test

110/114/115/116/117

Push K and turn the rotary switch to the e position. Compare the display with the example in Figure 3.
Check all segments for clarity and contrast.
113
Push K and turn the rotary switch to the k CHEK position. Compare the display with the example in Figure 3. Check all segments for clarity and contrast.
Figure 3. Display Segments

Backlight Test

To test the backlight, press Q and verify that the backlight turns on.

Keypad Test

110/114/115/116/117

To test the keypad:
1. Turn the rotary switch to
2. Push each button separate
Each bu
3. To reset the Meter, turn the rotary switch to Off and then back to the On position.
113
To test the keypad:
1. Turn the Meter to Ω
2.
Push each button separate
Each bu
3. To reset, turn off the Meter, and then back to any function po
tton push should cause the Meter to beep and activate a display annunciator.
tton push should cause the Meter to beep and activate a display annunciator.
.
ly.
ly.
sition.
7
www.GlobalTestSupply.com
110/113/114/115/116/117
Calibration Information

Preparing for the Performance Tests

XW Warning
To prevent possible electric shock or personal injury:
• Do not perform the following procedures unless qualified to do so. Some procedures involv he use of high voltages.
t
• Before handling the test connections and in between tests, make sure the calibrator is
tandby mode (STBY).
s
To prepare for the performance test:
1. Make sure that you have the required equipment (see Table 2).
2. Warm up the calibrator as required by its specifications.
3. Allow the temperature of the DUT to stabilize at room temperature: 23 °C ±5 °C (73 °F ±9 °F)
4. Check the fuses and battery and replace them if necessary. See Fuse Test (115, 117) and Battery and Fuse Replacement.
To verify the accuracy of the DMM functions, do the following:
1. Connect the Calibrator to the VΩ and COM input terminals on the Meter.
2. Turn the rotary switch to the function listed in each step of Table 3 (110, 114, 115, 116, 117) or Table 4 (113).
3. Apply the input level for each step listed in Table 3 (110, 114, 115, 116, 117) or Table 4 (113).
4. Compare the reading on the Meter display with the Display Reading in Table 3 (110, 114, 115, 116, 117) or Table 4 (113).
If the display reading falls outside of the range shown, the Meter requires calibration adjustment or repair.
in
e

Testing Temperature (116 only)

Connect the K-type thermocouple to the temperature input of the Meter and temperature calibrator. To ensure an accurate measurement, the Meter and the thermocouple connector must be at the same temperature. After connecting the thermocouple to the Meter, allow the junctions to stabilize before recording the displayed reading. This can take several minutes, depending on temperature gradients.
Table 3. DMM Performance Tests: 110/114/115/116/117
[1]
Step Function Range Applied
1.
2.
3.
4.
5.
6.
Ω
Ohms
600.0 0.0
600.0 500 Ω 495.3 to 504.7
6.000 k 5 kΩ 4.954 to 5.046
60.00 k 50 kΩ 49.54 to 50.46
600.0 k 500 kΩ 495.4 to 504.6
6.000 M 5 MΩ 4.954 to 5.046
Ω 0.0 to 0.2
Display Reading
110 114 115 116 117
7.
8.
40.00 M 10 MΩ 9.48 to 10.52
40.00 M 30 MΩ 28.48 to 31.52
8
www.GlobalTestSupply.com
Table 3. DMM Performance Tests: 110/114/115/116/117 (cont.)
True-rms Multimeter
Performance Tests
Step Function Range Applied
Ω 20 Ω Beeper On
9.
10.
11.
12.
13.
14.
15.
16.
17.
18.
R
Continuity
AC Volts
e
AC Volts + Hz
600
600 Ω 250 Ω Beeper Off
6.000 V 5 V, 45 Hz 4.947 to 5.053
6.000 V 5 V, 1 Hz 4.897 to 5.103
60.00 V 50 V, 45 Hz 49.47 to 50.53
60.00 V 50 V, 1 Hz 48.97 to 51.03
600.0 V 600 V, 45 Hz 593.7 to 606.3
600.0 V 600 V, 1 Hz 587.7 to 612.3
6.000 V 2 V, 50 kHz
6.000 V 0 V -0.002 to 0.002
[1]
Display Reading
[1]
110 114 115 116 117
NA 49.93 to 50.07
19.
20.
21.
22.
23.
24.
25.
26.
27.
28.
29.
30.
6.000 V 5 V 4.973 to 5.027
DC Volts
m
AC Millivolts
DC Millivolts
Diode 2.000 V 1.9 V NA 1.881 to 1.919
Capacitance
LoZ Capacitance
60.00 V 50 V 49.73 to 50.27
600.0 V 600 V 596.8 to 603.2
600.0 V -600 V -596.8 to -603.2
600.0 mV 6 mV, 45 Hz 5.6 to 6.4
600.0 mV 600 mV, 1 kHz 587.7 to 612.3
600.0 mV 10 mV 5.6 to 6.4
600.0 mV 600 mV 587.7 to 612.3
1000 nF Open NA 0 to 2
9999 μF 900 μF NA 881 to 919
10.00 μF9 μF NA 7.18 to 10.82
9
www.GlobalTestSupply.com
110/113/114/115/116/117
Calibration Information
Table 3. DMM Performance Tests: 110/114/115/116/117 (cont.)
Step Function Range Applied
Set calibrator to standby, reconfigure leads, and program for amps output
31.
32.
33.
34.
35.
36.
37.
DC Amps
AC Amps
$
DC μAmps
$
DC μAmps
y
Temperature
10.00 A 10 A NA
6.000 A 5.0 A, 45 Hz NA
μA 600 μADC NA
600.0
μA 600 μAAC, 45 HZ NA
600.0
--- Open input NA
--- 0.0 °C NA -1.0 to 1.0 NA
--- 400 °CNA
Display Reading
[1]
110 114 115 116 117
9.87 to
10.13
4.922 to
5.078
NA
NA
593.8 to
606.2
590.7 to
609.3
0PEn
395.0 to
405.0
9.87 to
10.13
4.922 to
5.078
NA
NA
NA
NA
0.2 to 0.8,
38.
AUTO-V
39.
LoZ
40.
41.
42.
[1] If using a Fluke 9100 calibrator, the Calibrator Frequency mode must be used to obtain accurate frequency.
[2] To keep from tripping the calibrator to standby, ramp up the voltage in 50 V increments with a 5 second delay between increments.
[3] See steps 1-5 in Testing the VoltAlert Function (117 only).
[4] See steps 6-9 in Testing the VoltAlert Function (117 only).
VoltAler t
VoltAler t
--- 0.5 V, 45 Hz NA
--- 0.5 v, 0 Hz NA
--- 500 V
Hi
Lo
[2]
, 500 Hz NA
--- NA [3]
--- NA [4]
AC Annunciator On
0.2 to 0.8,
AC Annunciator On
489.7 to
510.3
NA
NA
NA
0.2 to 0.8,
AC Annunciator On
0.2 to 0.8,
AC Annunciator On
489.7 to
510.3
0.2 to 0.8,
AC Annunciator On
0.2 to 0.8,
AC Annunciator On
489.7 to
510.3
10
www.GlobalTestSupply.com
True-rms Multimeter
Performance Tests
Table 4. DMM Performance Tests: 113
Step Function Range Applied Display Reading
1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
11.
12.
13.
600.0 0.0 Ω 0.0 to 0.2 (2-Wire comp)
e
Ohms
k CHEK Continuity
k CHEK  Diode Test NA 1.9 V 1.859 to 1.941
600.0 500 Ω 495.3 to 504.7
6.000 k 5 kΩ 4.954 to 5.046
60.00 k 50 kΩ 49.54 to 50.46
NA 20 Ω Beeper On
NA 250 Ω Beeper Off
6.000 V 0.1 V 0.095 to 0.105
6.000 V 5 V 4.897 to 5.103
6.000 V -5 V -5.103 to -4.897
6.000 V 5 V, 45 Hz 4.897 to 5.103
6.000 V 5 V, 1 kHz 4.797 to 5.203
60.00 V 50 V 48.97 to 51.03
14.
k CHEK Volt s
15.
16.
17.
18.
19.
20.
21.
Capacitance
22.
[1] Manually select the range by pressing q.
[2] To keep from tripping the calibrator to standby, ramp up the voltage in 50 V increments with a five-second delay between increments.
[1]
60.00 V -50 V -51.03 to -48.97
60.00 V 50 V, 500 Hz 48.97 to 51.03
60.00 V 50 V, 1 kHz 47.97 to 52.03
600.0 V
600.0 V
600.0 V
600.0 V
1000 nF Open 0 to 2
9999 μF 900 μF 881 to 919
[2]
[2]
[2]
[2]
600 V 587.7 to 612.3
-600 V -612.3 to -587.7
600 V, 45 Hz 587.7 to 612.3
600 V, 1 kHz 575.7 to 624.3
11
www.GlobalTestSupply.com
110/113/114/115/116/117
S
T
B
Y
7
8
2
5
0
+
/
-
4
.
.
S
C
O
P
E
O
U
T
T
R
I
G
A
U
X
A
S
E
N
S
E
A
U
X
V
N
O
R
M
A
L
V
R
T
D
T R U E
R
M S
M U L
T I
M ET
E R
1 1
7
V o l
t
A l
e r t
Center Meter top on Hi terminal.
Note that LED is RED
Insert Double Banana
Calibration Information

Testing the VoltAlert Function (117 only)

Use this procedure to verify that VoltAlert functions properly.
Note
• Make sure the instrument is REMOVED from the holster before you do t.
tes
• Keep the Meter away from electrical noise sources during the tests, for
example, florescent lights, dimming lights, and motors. These types noise
source can trigger VoltAlert and invalidate the test.
• It may be necessary in steps 4 and 8 below to slightly
position for maximum
uously.
contin
Refer to Figure 4 for these steps:
signal strength to get the Meter beeper to
the
of
adjust the Meter
sound
1. Select the VoltAlert function and verify that D is off.
LE
Hiis on the display. Verify that the beeper is silent and the red
2. Connect a double banana plug to the output voltage terminals of the calibrator (Fluke 5500A or equivalent).
3. Set the calibrator output to 10 V at 60 Hz.
4. Hold the Meter so that the top is vertically and horizontally centered and contacting the banana plug
minal. Verify that the Meter beeper is on continuously and the red LED at the top of the display lights.
ter
Hi
5. Place the calibrator in standby mode and verify that the beeper is now silent and the red LED is off.
6. Press q(display should indicate
Lo range).
7. Set the calibrator output to 30 V at 60 Hz.
Figure 4. VoltAlert Test
8. Hold the Meter so that the top is vertically and horizontally centered to the banana plug Hi terminal. Verify
tha
t the Meter beeper is sounding continuously and the red LED at the top of the display lights.
9. Return the calibrator to standby mode and verify the Meter beeper is silent and the red LED is off.
12
www.GlobalTestSupply.com
True-rms Multimeter
Performance Tests
For Fluke 117 with S/N 38920290 through 42913406, use this alternate calibration procedure to verify that VoltAlert functions properly. See Figure 5.
1. Select the VoltAlert function:
a. Verify that Hi is on the displa
b
. Verify that the beeper is silent and the red LED
Connect wire (Pomona 4911A-12-2 or equivalent) to the High output voltage terminals of the calibra
2. luke 5500A or equivalent).
(F
3. Set the calibrator output to 10 V at 60 Hz
4.
Hold the Meter so that the wire contacts and runs across the top center of the unit. The wire should ru pe
rpendicular to the face of the unit (front to back of Meter, not side to side). Verify that the Meter beepe continuously and the red LED, at the top of the display, lights up
on
5.
Place the calibrator in standby mode and verify that the beeper is silent and the red LED is of Press q.
6.
Display should indicate
7.
Set the calibrator output to 30 V at 60 Hz
8.
Hold the Meter so that the wire contacts and runs across the top center of the unit. The wire should ru pe
rpendicular to the face of the unit (front to back of Meter, not side to side). Verify that the Meter beepe
on
continuously and the red LED, at the top of the display, lights up
Lo range.
y.
is off.
tor
.
.
f.
.
.
9. Return the calibrator to standby mode and verify the Meter’s beeper is silent and the red LED is off.
Figure 5. Volt Alert Test (Alternate)
n
r is
n
r is
HOLD
VoltAlert
117
MIN MAX RANGE
OFF
A
A
10 A
FUSED
1000V RMS MAX
TRUE RMS MULTIMETER
Lo / H
Hz
V
mV
A
Hz
V
COM
NORMAL AUX
V, ,
A, -SENSE,
AUX V
RTD
HI
LO
1V PK
MAX
20V PK
MAX
TC
30.000 V
OPR
60.00 Hz
SCOPE
200V PK
MAX
20V RMS MAX
TRIG OUT
20V PK
MAX
Volt
Alert
STBY
OPR EARTH
789
456
123
+
0 •
/
13
www.GlobalTestSupply.com
110/113/114/115/116/117
Calibration Information

Calibration Adjustment

The Meter features closed-case calibration adjustment using known reference sources. The Meter measures the applied reference source, calculates correction factors, and stores the correction factors in nonvolatile memory. The following sections present the features and Meter pushbutton functions available during the Calibration Adjustment Procedure. Should the Meter fail any of the performance tests, perform the Calibration Adjustment Procedure.
110/114/115/116/117
Use these steps to view the Meter calibration counter:
1. While pressing K, turn the rotary switch from OFF to Ω function. The Meter should display ZCAL.
2. Press gonce to view the calibration counter. For example, n001.
3. Turn the rotary switch to OFF.
113
1. While pressing q, turn the rotary switch from OFF to Ω function. The Meter should display ZCAL.
2. Press gonce to view the calibration counter. For example, n001.
3. Turn the rotary switch to OFF.

Calibration Adjustment Password

To start the Calibration Adjustment Procedure, the correct 4-digit password must be entered. The default password is1234. The password can be changed or reset to the default as described in following paragraphs.

Changing the Password

Use these steps to change the Meter password:
1. 110/114/115/116/117:
While pressing K, turn the rotary switch from OFF to Ω function.
113:
While pressing q, turn the rotary switch from OFF to Ω function
e Meter should display ZCAL.
Th
2. Press g once to see the calibration counter.
3. Press g again to start the password en
Th
e Meter displays ?.?.?.?
The Meter buttons indicated below represent the numbers 1 through 5 when you enter or change the password:
K = 1 M = 2 q = 3 g = 4 Q = 5
4. Press 4 buttons to enter the current password. To change the password for the first time, enter
K (1), M (2), q (3), and g (4).
5. Press qto change the password.
The Meter displays //// if the entered password is correct. If the password is not correct, the Meter emits
ouble beep, displays ?.?.?.?, and the password must be entered again.
d
6. Press the 4 buttons of the new password.
7. Press g to store the new password.
.
try.
.
Repeat step 4.
a
14
www.GlobalTestSupply.com
True-rms Multimeter
Short S7 to reset to Default password XBT1
XBT2
Calibration Adjustment

Restoring the Default Password

If the calibration password is forgotten, the default password (1234) can be manually restored:
XW Warning
To prevent electric shock or personal injury, remove the test leads and any input signal before removing the Meter’s back case.
1. Remove the Meter back case. Leave the PCA in the top case.
2. Apply 9.0 V across the battery contacts (XBT1) + and (XBT2) – on the back of the PCA. See Figure 6.
3. Turn the rotary switch from OFF to any ON position.
4. Short across the S7 CAL keypad on the back of the PCA. See Figure 6. The Meter should beep. The defaul
pas
sword is now restored.
5. Remove the 9.0 V supply and replace the Meter back case.
Figure 6. Calibration Password Reset
t
www.GlobalTestSupply.com
15
110/113/114/115/116/117
Calibration Information

Meter Buttons Used in the Calibration Steps

For the Calibration Adjustment Procedure, the Meter buttons behave as follows:
• Press and hold K to show the measured value. The measured value is not calibrated so it may
input value.
• Press and hold M to display the required input value.
•Press g to store the calibration value and advance to the next step. This button is
mode after the calibration adjustment sequence is complete.
•Press Q to toggle the backlight on and off.
This can be useful to determine why a calibration step is not accepted and to determine the input value without referring to Table 5.
This is normal.
also used to exit calibration
not match the

Calibration Adjustment Procedure

Note
If you turn off the Meter before completion of the adjustment procedure, the calibration constants do not change.
To adjust the Meter calibration:
1. 110/114/115/116/117:
While pressing K, turn the rotary switch from OFF to Ω function.
113:
While pressing q, turn the rotary switch from OFF to Ω function
Th
e Meter should display ZCAL.
2. Press g once to see the calibration counter.
3. Press g again to start the password en
e Meter displays ?.?.?.?
Th
4. Press the 4-button password.
5. Press g to go to the first calibration step. The Meter displays C01 if the password is correct. If th
assword is not correct, the Meter emits a double beep, displays ?.?.?.? and the password must be entere
p a
gain. Repeat step 4.
6. Apply the input value listed for each calibration adjustment step. For each step, select the rotary sw osition and apply the input to the terminals as indicated in Table 5 and Table 6.
p
Some adjustment steps require additional wait time after the calibrator settles, as noted in Table 5 and Table 6.
7. After each input value is applied, press g to accept the value and proceed to the next step (C002).
After you press g, wait until the step number advances before you change the calibrator source or turn the rotary switch. Some adjustment steps can take up to several seconds to execute before the next step.
If the rotary switch is not in the correct position for a given step, the meter will flash the unit annunciators until the rotary switch is put in a valid position. The keys that show the reading and required input values are not allowed until the rotary switch is correct.
If the rotary switch is not in the correct position or the measured value is not within the anticipated range of the input value, the Meter will emit a double beep and will not continue to the next step when you press g.
After the final step, the display shows End to indicate that the calibration adjustment is complete.
8. Press g to return to meter mode.
.
try.
Note
Note
.
e
itch
d
16
www.GlobalTestSupply.com
Note
Set the calibrator to Standby before you change the function switch position and after you complete adjustment of each function.
If the calibration adjustment procedure is not properly completed, the Meter will not operate correctly.
Table 5. Calibration Adjustment Steps (110/114/115/116/117)
True-rms Multimeter
Calibration Adjustment
Rotary Switch
Position
Ω
Ohms
m
Ω
Ohms
Display Reading
110/114
NA
C001
115
[1]
116
C001
[1]
117
C001
C001 C002 C002 C002
C002 C003 C003 C003
C003 C004 C004 C004
C004 C005 C005 C005
C005 C006 C006 C006
C006 C007 C007 C007
C007 C008
C008 C008
C008 C009 C009 C009
C009 C010 C010 C010
C010 C011 C011 C011
C011 C012 C012 C012
C012 C013 C013 C013
[2]
[1, 2]
Input
Terminals
no leads no leads
VΩ/+ and COM 0 V, 0 Hz
VΩ/+ and COM 300 mV, 0 Hz
VΩ/+ and COM 100 mV, 0 Hz
VΩ/+ and COM -300 mV, 0 Hz
VΩ/+ and COM 60 mV, 0 Hz
VΩ/+ and COM 600 mV, 0 Hz
VΩ/+ and COM 600 MV, 60 Hz
VΩ/+ and COM 600 Ω, 2-wire comp
VΩ/+ and COM 6 kΩ
VΩ/+ and COM 60 kΩ
VΩ/+ and COM 600 kΩ
VΩ/+ and COM 6 MΩ
Calibrator
Source Value
[3]
C013 C014 C014 C014
C014 C015
C015 C015
C015 C016 C016 C016
C016 C017 C017 C017
C017 C018 C018 C018
VΩ/+ and COM short
VΩ/+ and COM 40 MΩ
VΩ/+ and COM 6 V, 60 Hz
VΩ/+ and COM 60 V, 60 Hz
VΩ/+ and COM 600 V, 60 Hz
[3]
[3]
C018 C019 C019 C019
C019 C020 C020 C020
C020 C021
C021 C021
VΩ/+ and COM 6 V, 0 Hz
VΩ/+ and COM 60 V, 0 Hz
VΩ/+ and COM 600 V, 0Hz
17
www.GlobalTestSupply.com
110/113/114/115/116/117
Calibration Information
Table 5. Calibration Adjustment Steps (110/114/115/116/117) (cont.)
Rotary Switch
Position
110/114
Display Reading
115
[1]
116
Input
[1]
117
[1, 2]
Terminals
Calibrator
Source Value
Set calibrator to standby, reconfigure leads, and program for amps output.
NA
NA
$
DC μAmps
[1] Models listed in this column also refer to the “C” version of the model. For example, model 115 steps are valid for the 115C.
[2] Do not calibrate the 117 or 117C with a line-frequency power source nearby (for example, fluorescent light or power strip).
devices ca
[3] Wait an additional 5 seconds after calibrator has settled before pressing g.
NA NA C022 NA + and COM 600 μA, 60 Hz
NA NA
n produce errors in the VoltAlert calibration.
C022
C023
NA
NA
C022
C023
A and COM 6 A, 60 Hz
A and COM 6 A, 0 Hz
C023 NA + and COM 600 μA, 0 Hz
[3]
Table 6. Calibration Adjustment Steps (113)
Rotary Switch
Position
Calibration Steps Input Terminals Calibrator Source Value
C/01 + and COM 0 V, 0 Hz
These
C/02 + and COM 300 mV, 0 Hz
C/03 + and COM 100 mV, 0 Hz
k CHEK
mV ac/dc
Ω
Ohms
C/04 + and COM -300 mV, 0 Hz
C/05 + and COM 60 mV, 0 Hz
C/06 + and COM 600 mV, 0 Hz
C/07 + and COM 600 mV, 60 Hz
C/08 + and COM 600 e, 2-wire comp
C/09 + and COM 6 ke
C/10 + and COM 60 ke
C/11 + and COM 600 ke
C/12 + and COM 6 V, 60 Hz
k CHEK
V ac
[1] To keep from tripping the calibrator to standby, ramp up the voltage in 50 V increments with a 5 second delay between increments.
C/13 + and COM 60 V, 60 Hz
C/14 + and COM 600 V, 60 Hz
[1]
18
www.GlobalTestSupply.com
True-rms Multimeter

Replacement Parts

Replacement Parts
See Table 7 and Figure 7 for information about replaceable parts.
Table 7. Replacement Parts
Item Description Part Number QTY
LCD,FLUKE-11X,3.2V,TN,4-DIGIT,1/4-DUTY,1/3-BIAS,LEPTON 2509955 1
CONNECTOR,ELASTOMERIC,.010 IN CTR,.218 IN HIGH,.090 IN THK,2.284 IN LONG,BULK
FLUKE-117-2006,BRACKET MASK, 117
FLUKE-117-2006-06,BRACKET MASK, 117 China
FLUKE-117-2006-08,BRACKET MASK, 113 3088082 1
FLUKE-117-2006-01,BRACKET MASK, 114 2527431 1
FLUKE-117-2006-02,BRACKET MASK, 115 2527446 1
FLUKE-117-2006-04,BRACKET MASK, 115 China 2631032 1
FLUKE-117-2006-03,BRACKET MASK, 116 2527454 1
FLUKE-117-2006-05,BRACKET MASK, 116 China 2631044 1
FLUKE-117-8005,DIFFUSER, BACKLIGHT 2535203 1
FLUKE-117-2001,CASE TOP, 117 2525553 1
FLUKE-117-2001-07,CASE TOP, 110 5166573 1
2534229 1
2525608 1
2631059 1
FLUKE-117-2001-04,CASE TOP, 113 3092058 1
FLUKE-117-2001-01,CASE TOP, 114
FLUKE-117-2001-02,CASE TOP, 115
FLUKE-117-2001-03,CASE TOP, 116
FLUKE-117-2008,KNOB
FLUKE-117-7602,RSOB HOUSING ASSEMBLY
FLUKE-117-8001,KEYPAD
FLUKE-117-2009,SPRING DETENT
FLUKE-117-8009,SHIELD, TOP
FLUKE-117-8010,IC SHIELD
O-RING,NITRILE,SHORE A 70,15.6MM OD,12.0MM ID,1.8MM W
2527405 1
2527410 1
2527422 1
2525624 1
2787083 1
2526276 1
2525636 1
2571277 1
2571292 1
2535215 1
19
www.GlobalTestSupply.com
110/113/114/115/116/117
Calibration Information
Table 7. Replacement Parts (cont.)
Item Description Part Number QTY

FLUKE-117-2002,CASE BOTTOM
FLUKE-117-2002,CASE BOTTOM, 11X China
FLUKE-117-2003,BATTERY DOOR,TILT STAND
FLUKE-117-2003,BATTERY DOOR, TILT STAND, 11X China 2720617 1
SCREW,2-28,.250,PAN,PHILLIPS,STEEL,ZINCCHROMATE, PLASTITE 48 THREAD FORMING
SCREW,M3,4MM,PAN,PHILLIPS,STEEL,ZINC-CHROMATE
SCREW,5-14,.750,PAN,PHILLIPS,STEEL,BLACK CHROMATE, THD FORMING
SCREW,M3X0.5,6MM,PAN,PHILLIPS,STEEL,ZINC-BLACK CHROMATE
BATTERY,PRIMARY,MNO2-ZN,9V,505MAH,6LR61, ALKALINE, 17X26X48MM,BULK
FLUKE 12-8004,SHOCK ABSORBER 878983 1
FLUKE-117-2010,HOLSTER 2525649 1
FLUKE-117-2010,HOLSTER, 11X China 2631080 1
2525566 1
2631098 1
2720600 1
2516493 4
2032811
832246 2
2032792 1
614487 1
2 (114, 110, 116) 3 (115,117)
not shown
not shown
FUSE,11A,1000V,FAST.406INX1.5IN,BULK 803293 1 (115, 117)
110/113/114/115/117 Users Manual
16 Users Manual
1
20
www.GlobalTestSupply.com
True-rms Multimeter
6
12
10
23
20
17
21
9
7
5
8
1
3
4
2
11
15 4 PL
2 PL
13
19
14
18
22
16
Replacement Parts
Figure 7. Exploded View of Meter
21
www.GlobalTestSupply.com
Loading...
Buy Points How it Works FAQ Contact Us Questions and Suggestions Privacy Policy Cookie Policy Terms of Use
