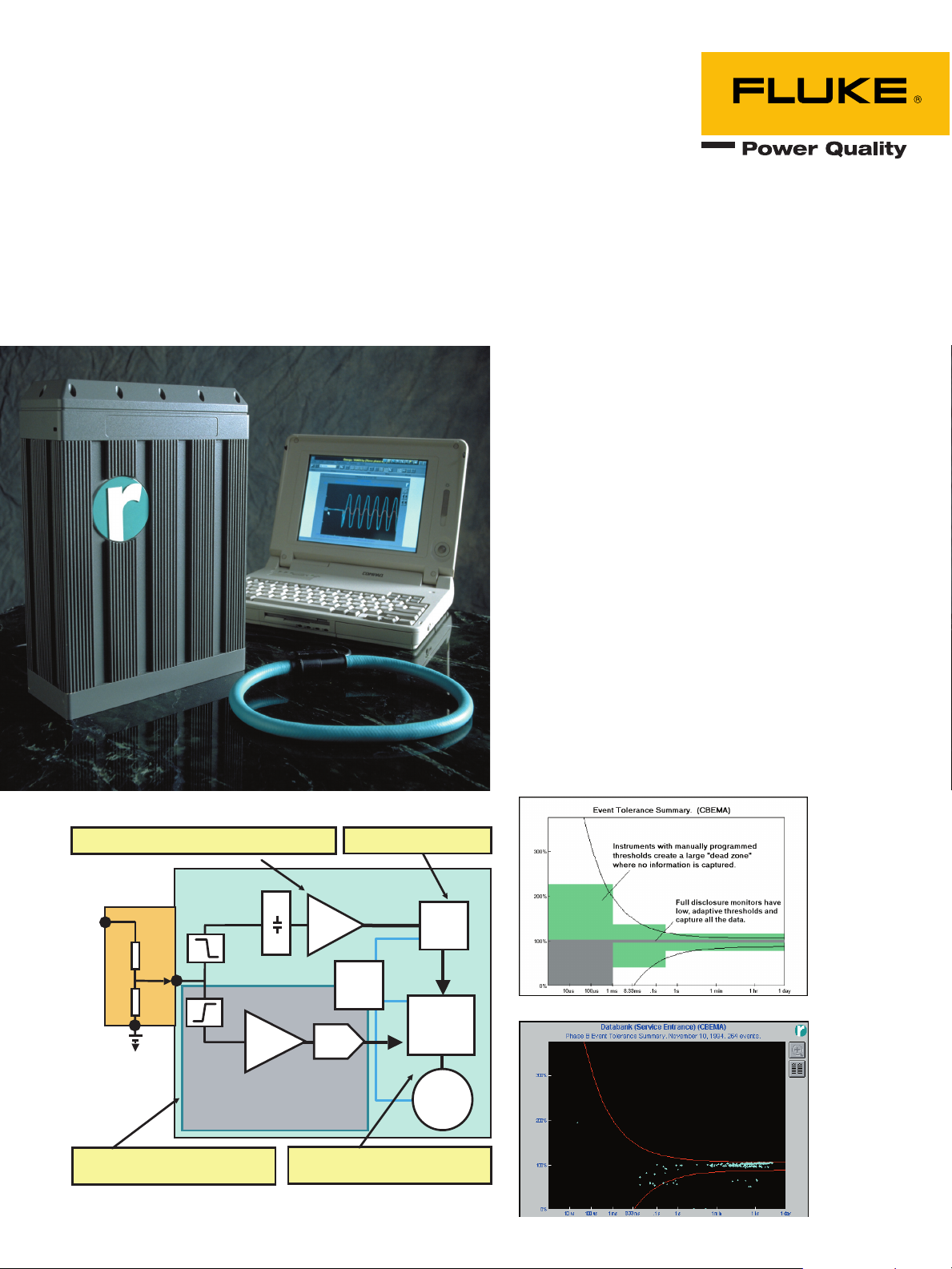

Technical Data
Every measurement, every event, on every
cycle, all the time – without thresholds
Full Disclosure Technology is part of all Fluke and RPM
three-phase power quality tools. It makes the power
recorder a unique, professional instrument that increases
your ability to maintain and troubleshoot your plant’s
power quality.
Full Disclosure Technology uses patented sampling
hardware and algorithms to record everything your
loads see.
•
The sampling system processes every cycle on all
channels, recording min/max/avg values and looking
for sags, swells, or transients.
•
The system can store 6000 events (up to 96,000 with
Multisession Option). You can see everything from subcycle events to long-term outages with clear detail.
•
Records power parameters, rms voltage, rms current,
harmonics, flicker and monitors for power quality
events — on all channels simultaneously without having to reconfigure.
•
No need to set thresholds. You won’t be disappointed
by missed events or a memory full of noise.
•
Because there are no thresholds to set, Full Disclosure
technology system records any changes in measurements, even the ones that are almost out of tolerance
Reliable Power Meters
Power Recorder
Full Disclosure™monitoring for the most
comprehensive power quality studies
Full Disclosure
technology captures thousands
of voltage events
and related current information,
without having
to set thresholds.
Full Disclosure
technology lets
you plot events
on any power
tolerance curve.
CBEMA, ITIC,
and ANSI curves
are included, or
create your own.
Voltage input
attenuator
<4 kHz
14 bit, 7.8 kHz A-to-D converter supplies data for RMS and
FFT processing
D.S.P.
486
A - D
>4 kHz
sample
& hold
impulse
logic
Hard
disk
A - D
4MB cache
Optional transient capture system uses a 10-bit
2 MS/s A-to-D converter to capture transients up
to 6400V and as fast as 500ns
DSP performs FFT
RMS and transient data are synchronized in
cache memory and stored in database on hard
drive
calculations in 10 µs
Power Recorder Architecture
2 Reliable Power Meters Power Recorder
The choice of the PQ professional
•
5 Current channels allow you to monitor neutral and
ground current in addition to phases
•
Extruded metal enclosure is designed to handle a
lifetime of use
•
Ethernet interface makes downloads fast and easy
•
Multi-session option multiplies event capture capability
to 96,000 events.
•
Power Recorders are configurable, so you can expand
their capabilities to meet your growing needs.
•
Use Report Writer software on your PC to automatically
create power quality surveys with text and graphics.
•
Polling and Alarms software allows you to configure and
monitor multiple instruments, retrieve data periodically,
and set up alarms to notify operators of events.
Real-time waveform displays show up to 9 channels
(4 voltage, 5 current) including ground and neutral current.
Real-time voltage and current meters feature phasor
diagrams to help with correct hookup.
Trend windows give you an overview of power parameters
– fast. Measurements are processed for every cycle. Min,
max and average values are plotted so you can quickly see
the worst-case.
With 1652 option, real-time meter and vector diagram
displays Watts, VA, VAR , PF and dPF.
With 1652 option, you can track demand using averaging
intervals from 5 minutes to 1 hour.
With 1653 option, you can display harmonics up to the
63rd as a spectrum or table.
With the 1658 High-speed Power Quality Option you can
capture and view transients as short as 500 ns.
