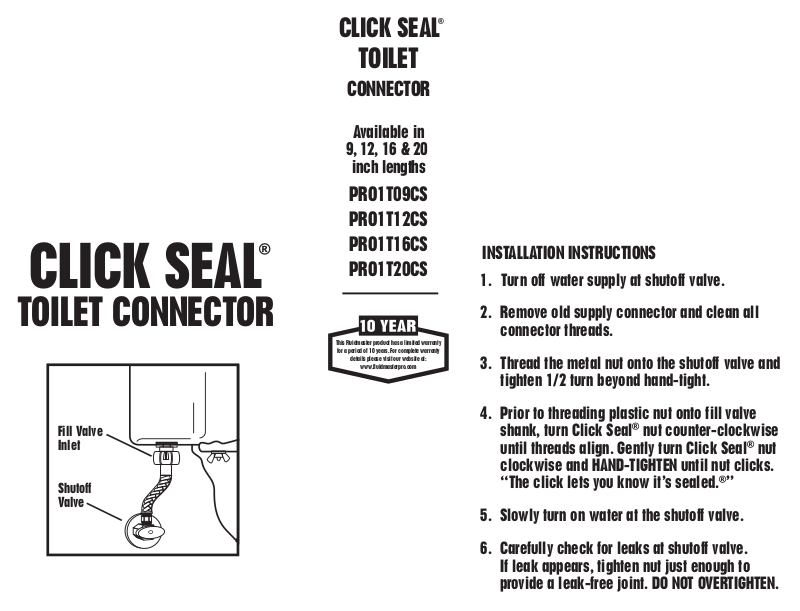

Fluidmaster PRO1T09CS, PRO1T12CS, PRO1T16CS, PRO1T20CS User Manual

CLICK SEAL

This Fluidmaster product has a limited warranty
for a period of 10 years. For complete warranty

details please visit our website at:

www.fluidmasterpro.com

TOILET CONNECTOR

CLICK SEAL

®

TOILET

CONNECTOR

Available in

9, 12, 16 & 20

inch lengths

PRO1T09CS
PRO1T12CS

®

PRO1T16CS
PRO1T20CS

INSTALLATION INSTRUCTIONS

1. Turn off water supply at shutoff valve.

2. Remove old supply connector and clean all
connector threads.

3. Thread the metal nut onto the shutoff valve and
tighten 1/2 turn beyond hand-tight.

Fill Valve
Inlet

Shutoff
Valve

4. Prior to threading plastic nut onto fill valve
shank, turn Click Seal
until threads align. Gently turn Click Seal
clockwise and HAND-TIGHTEN until nut clicks.
“The click lets you know it’s sealed.

5. Slowly turn on water at the shutoff valve.

6. Carefully check for leaks at shutoff valve.
If leak appears, tighten nut just enough to
provide a leak-free joint. DO NOT OVERTIGHTEN.

®

nut counter-clockwise

®

®

”

nut
