Flir CB-5222 User Manual
Ver. 2
April 25, 2017
IOI HD
User and
Installation
Guide
CB-5222
ii
CB-5222 User and Installation Guide
April 25, 2017
© 2017 FLIR Systems, Inc. All rights reserved worldwide. No parts of this manual, in whole or in part,
may be copied, photocopied, translated, or transmitted to any electronic medium or machine readable
form without the prior written permission of FLIR Systems, Inc.
Names and marks appearing on the products herein are either registered trademarks or trademarks
of FLIR Systems, Inc. and/or its subsidiaries. All other trademarks, trade names, or company names
referenced herein are used for identification only and are the property of their respective owners.
This product is protected by patents, design patents, patents pending, or design patents pending.
The contents of this document are subject to change.
FLIR Systems, Inc.
6769 Hollister Avenue
Goleta, California 93117
USA
Phone: 888.747.FLIR (888.747.3547)
International: +1.805.964.9797
For technical assistance, please call us at +1.888.388.3577 or visit the Service & Support page at
www.flir.com/security.
Important Instructions and Notices to the User:
Modification of this device without the express authorization of FLIR Commercial Systems, Inc. may
void the user’s authority under FCC rules to operate this device.
April 25, 2017
CB-5222 User and Installation Guide
iii
Proper Disposal of Electrical and Electronic Equipment (EEE)
The European Union (EU) has enacted Waste Electrical and Electronic
Equipment Directive 2002/96/EC (WEEE), which aims to prevent EEE waste from
arising; to encourage reuse, recycling, and recovery of EEE waste; and to
promote environmental responsibility.
In accordance with these regulations, all EEE products labeled with the “crossed
out wheeled bin” either on the product itself or in the product literature must not be
disposed of in regular rubbish bins, mixed with regular household or other commercial waste, or by
other regular municipal waste collection means. Instead, and in order to prevent possible harm to the
environment or human health, all EEE products (including any cables that came with the product)
should be responsibly discarded or recycled.
To identify a responsible disposal method nearby, please contact the local waste collection or
recycling service, the original place of purchase or product supplier, or the responsible government
authority in the area. Business users should contact their supplier or refer to their purchase contract.
Document History
Version
Date
Comment
2
April 25, 2017
Second FLIR release
iv
CB-5222 User and Installation Guide
April 25, 2017
Table of Contents
April 25, 2017
CB-5222 User and Installation Guide
v
Table of Contents
1 Document Scope and Purpose .............................................................................................. 1
2 Overview ................................................................................................................................... 7
2.1 Features .................................................................................................................... 8
2.2 Package Contents ..................................................................................................... 9
3 Introduction to the CB-5222 IP Bullet Camera .................................................................... 11
3.1 Camera Dimensions ................................................................................................ 11
3.2 Accessing Internal Parts .......................................................................................... 12
3.3 System Cable Connectors........................................................................................ 13
Alarm Input/Output Pin-out .................................................................................... 14
Power Input/Output Pin-out ................................................................................... 14
Waterproofing the Camera Cable Connectors ....................................................... 14
Connecting the Unit to the Network ....................................................................... 15
Connecting Power to the Camera ......................................................................... 15
4 System Requirements ........................................................................................................... 17
5 Installation .............................................................................................................................. 19
5.1 Setting the Camera’s Focal Length .......................................................................... 19
5.2 Outdoor Installation .................................................................................................. 19
5.3 Initial Camera Configuration ..................................................................................... 20
5.4 Mounting Instructions ............................................................................................... 22
Installing the Camera ............................................................................................ 23
6 Using the DNA Utility to Search and Access the Camera ................................................. 25
7 Configuring Communication Settings ................................................................................. 27
8 Adjusting and Framing-Up the Camera View ..................................................................... 31
9 Configuration and Operation ................................................................................................ 33
9.1 Browser-Based Viewer Introduction ......................................................................... 33
9.2 Live Screen.............................................................................................................. 35
9.3 System Tab ............................................................................................................. 38
System Settings .................................................................................................... 38
Security Screens .................................................................................................. 40
Network ................................................................................................................ 49
Events Setup ........................................................................................................ 58
Schedule .............................................................................................................. 62
File Location ......................................................................................................... 63
Maintenance ......................................................................................................... 64
Import/Export ........................................................................................................ 68
9.4 Streaming Tab ......................................................................................................... 70
Video Format ........................................................................................................ 70
Video Compression .............................................................................................. 71
Video OCX Protocol .............................................................................................. 72
Video Frame Rate................................................................................................. 73
Audio .................................................................................................................... 73
9.5 Camera Tab ............................................................................................................. 74
Exposure .............................................................................................................. 75
Table of Contents
vi
CB-5222 User and Installation Guide
April 25, 2017
Picture Adjustment ................................................................................................ 80
Advanced Picture Settings .................................................................................... 81
IR Function ........................................................................................................... 82
Miscellaneous ....................................................................................................... 83
9.6 Analytics Tab ........................................................................................................... 84
Depth ................................................................................................................... 85
Rules .................................................................................................................... 95
Responses ........................................................................................................... 97
Scheduled Actions (Sched. Actions Screen)........................................................ 101
On Screen Display .............................................................................................. 103
Firmware ............................................................................................................ 104
Backup & Restore ................................ ............................................................... 105
9.7 Log Out .................................................................................................................. 106
10 Appendices .......................................................................................................................... 107
A.1. Technical Specifications .......................................................................................... 108
A.2. Internet Security Settings ........................................................................................ 111
A.3. Install UPnP Components ....................................................................................... 113
A.4. Installing and Deleting the Web Player .................................................................... 115
A.5. Deleting Temporary Internet Files ........................................................................... 117
A.6. Mounting Accessories ............................................................................................. 118
Table of Contents
April 25, 2017
CB-5222 User and Installation Guide
vii
List of Figures
Figure 1: IOI HD Analytic Bullet IP Camera ........................................................................................... 7
Figure 2: Package Contents ................................................................................................................. 9
Figure 3: CB-5222 Dimensions (Front View) ....................................................................................... 11
Figure 4: CB-5222 Dimensions (Side View) ........................................................................................ 11
Figure 5: Sunshield ............................................................................................................................. 12
Figure 6: Camera Body Screw ............................................................................................................ 12
Figure 7: Separating the Camera Body ............................................................................................... 12
Figure 8: Desiccant ............................................................................................................................. 12
Figure 9: Reset Button ........................................................................................................................ 12
Figure 10: CB-5222 Camera Input/Output Connections....................................................................... 13
Figure 11: Camera Cables .................................................................................................................. 14
Figure 12: System Cable .................................................................................................................... 15
Figure 13: System Cable Hose and Wiring .......................................................................................... 15
Figure 14: Discovered IP Devices ....................................................................................................... 20
Figure 15: DNA Assign IP Dialog Box ................................................................................................. 21
Figure 16: Screw Holes on Mounting Base ......................................................................................... 23
Figure 17: Mounting Base Rotation Screw .......................................................................................... 23
Figure 18: Repositioning the Camera .................................................................................................. 24
Figure 19: Windows Firewall Screen ................................................................................................... 27
Figure 20: Discovered IP Devices ....................................................................................................... 27
Figure 21: DNA Assign IP – Use DHCP Dialog Box ............................................................................ 28
Figure 22: DNA Assign IP – Static IP Dialog Box ................................................................................ 28
Figure 23: Login Dialog Box ................................................................................................................ 29
Figure 24: IE Tools > Internet Options > Advanced Window ................................................................ 29
Figure 25: Mounting Bracket ............................................................................................................... 31
Figure 26: Rotating the Camera .......................................................................................................... 32
Figure 27: Browser-Based User Interface ........................................................................................... 33
Figure 28: Live Video Info Dialog Box ................................................................................................. 35
Figure 29: View Mode Pane ................................................................................................................ 35
Figure 30: System Section Tabs ......................................................................................................... 38
Figure 31: System Screen .................................................................................................................. 39
Figure 32: User Screen ....................................................................................................................... 40
Figure 33: Edit User Account Dialog Box ............................................................................................ 41
Figure 34: HTTPS Screen – Create Self-Signed Certificate ................................................................. 42
Figure 35: Create Self-Signed Certificate Dialog Box .......................................................................... 43
Figure 36: Installed Certificate Section ................................................................................................ 43
Figure 37: Certificate Properties.......................................................................................................... 44
Figure 38: HTTPS Screen – Upload Signed Certificate ....................................................................... 44
Figure 39: HTTPS Screen – Install Signed Certificate ......................................................................... 45
Figure 40: Create Certificate Request Dialog Box ............................................................................... 45
Figure 41: Created Request Subject ................................................................................................... 46
Figure 42: Certificate Request Properties Dialog Box .......................................................................... 46
Figure 43: IP Filter Screen .................................................................................................................. 47
Figure 44: IEEE 802.1X/EAP-TLS Screen ........................................................................................... 48
Figure 45: Network > Basic Screen ..................................................................................................... 49
Figure 46: QoS Screen ....................................................................................................................... 51
Figure 47: SNMP Settings Screen ...................................................................................................... 52
Figure 48: UPnP Screen ..................................................................................................................... 53
Figure 49: Direct Access to Camera with UPnP Enabled ..................................................................... 54

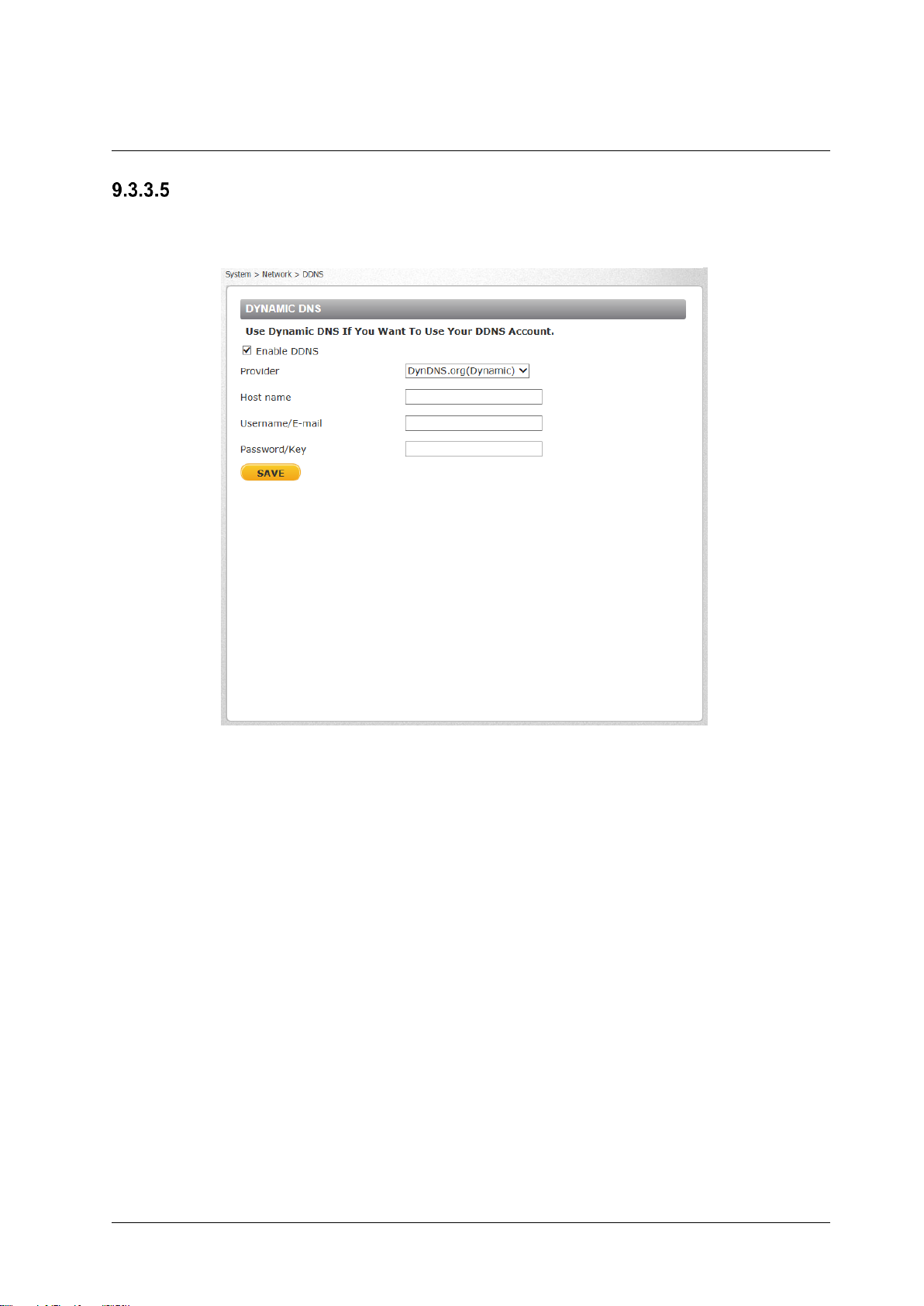

Figure 50: DDNS Screen .................................................................................................................... 55
Figure 51: Mail Screen – SMTP .......................................................................................................... 56
Figure 52: FTP Screen ....................................................................................................................... 57
Figure 53: IO Screen .......................................................................................................................... 58
Figure 54: Upload Image by FTP ........................................................................................................ 59
Figure 55: Upload Image by E-Mail ..................................................................................................... 60
Table of Contents
viii
CB-5222 User and Installation Guide
April 25, 2017
Figure 56: Network Failure Detection Screen ................................................................ ...................... 61
Figure 57: Schedule Screen ............................................................................................................... 62
Figure 58: File Location Screen .......................................................................................................... 63

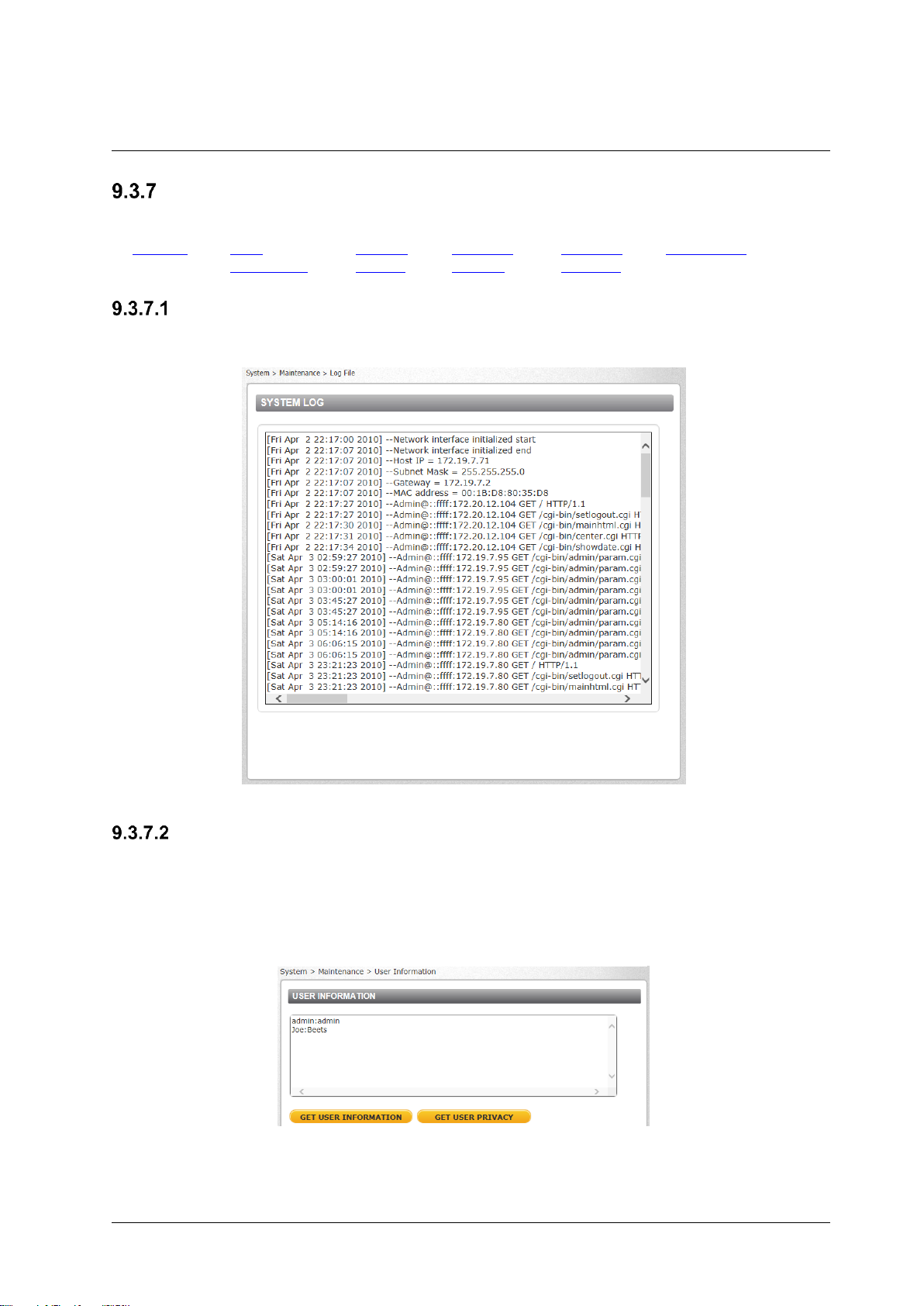

Figure 59: Log File Screen .................................................................................................................. 64
Figure 60: User Information Screen – Get User Information ................................................................ 64
Figure 61: User Information – Get User Privacy .................................................................................. 65
Figure 62: Factory Default Screen ...................................................................................................... 65
Figure 63: Partial Restore Screen ....................................................................................................... 66
Figure 64: Software Version Screen ................................................................................................... 66

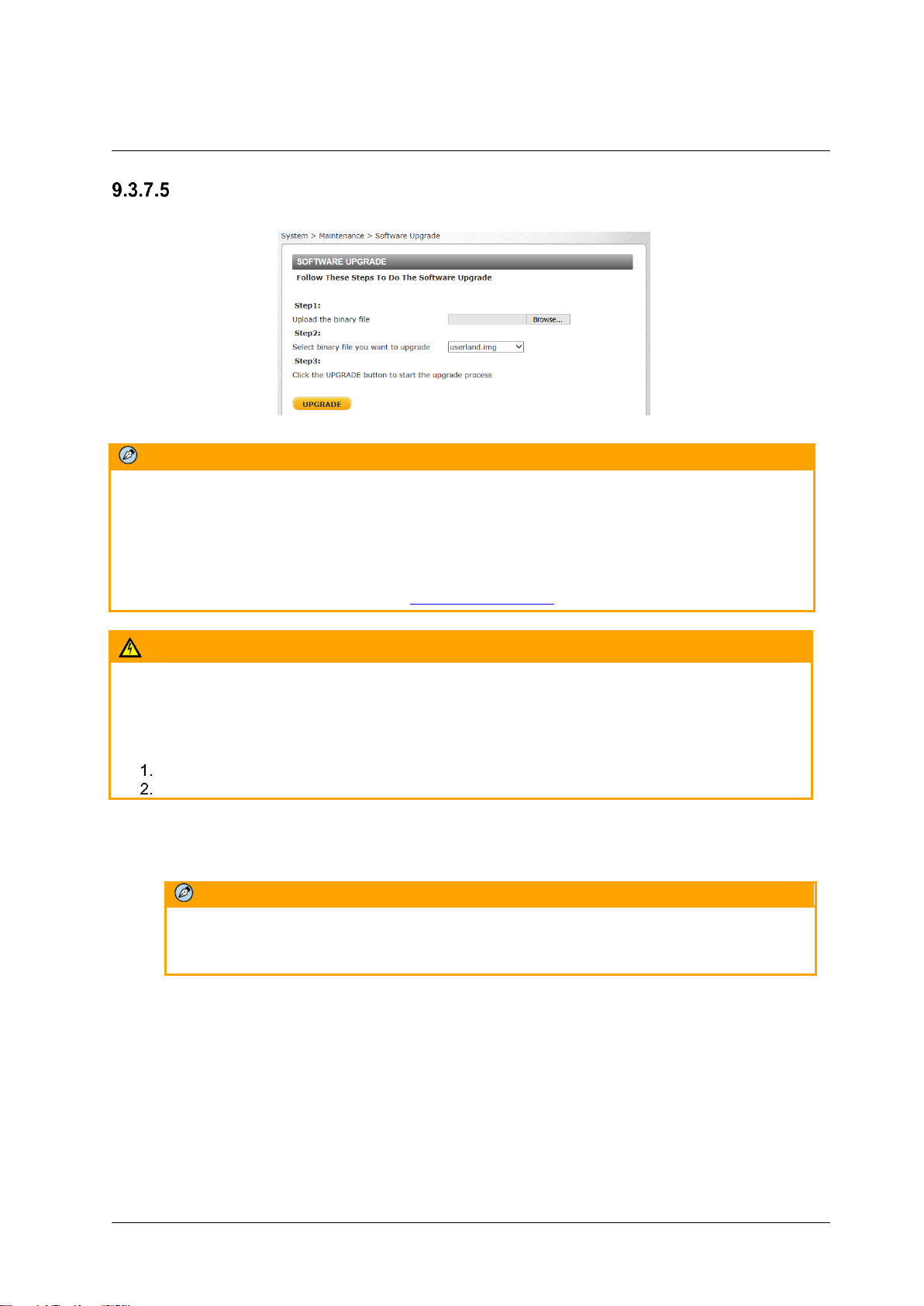

Figure 65: Software Upgrade Screen .................................................................................................. 67
Figure 66: Parameter Screen .............................................................................................................. 68
Figure 67: Import/Export Screen ......................................................................................................... 68
Figure 68: File Download Screen ........................................................................................................ 69
Figure 69: Streaming Section Tabs ..................................................................................................... 70
Figure 70: Video Compression Screen ................................................................................................ 71
Figure 71: Video OCX Protocol Screen ............................................................................................... 72
Figure 72: Video Frame Rate Screen .................................................................................................. 73
Figure 73: Audio Screen ..................................................................................................................... 73
Figure 74: Camera Section Tabs ........................................................................................................ 74
Figure 75: Exposure Screen with Shutter WDR On ............................................................................. 75
Figure 76: Multiple Shutter RSS Exposure Screen .............................................................................. 77
Figure 77: Exposure Screen with Shutter WDR Off ............................................................................. 77
Figure 78: Camera Settings Screen – Picture Adjustment ................................................................... 80
Figure 79: Advanced Picture Settings Screen with WDR On ............................................................... 81
Figure 80: Advanced Picture Settings Screen with WDR Off ............................................................... 82
Figure 81: IR Function Screen ............................................................................................................ 82
Figure 82: Misc. Screen ...................................................................................................................... 83
Figure 83: Shutter WDR On ................................................................................................................ 83
Figure 84: Shutter WDR Off ................................................................................................................ 83
Figure 85: Analytics > Manual Depth Screen ...................................................................................... 84
Figure 86: Auto Depth Screen - Auto Calibration ................................................................................. 85
Figure 87: Horizon Line ...................................................................................................................... 86
Figure 88: Analytics > Depth > Solo Setup Instructions ....................................................................... 88
Figure 89: Analytics > Depth Control Panel ......................................................................................... 90
Figure 90: Analytics > Depth > Step 1: Ground & Height Screen ......................................................... 91
Figure 91: Analytics > Depth > Step 1: Ground & Height Instructions .................................................. 91
Figure 92: Analytics > Depth > Step 2: Camera & Horizon Screen ...................................................... 92
Figure 93: Analytics > Depth > Step 2: Camera & Horizon Instructions ................................................ 92
Figure 94: Analytics > Depth > Step 3: Advanced Depth Regions Screen ............................................ 93
Figure 95: Analytics > Depth > Step 3: Advanced Depth Regions Instructions ..................................... 93
Figure 96: Analytics > Depth > Step 4: Verification Screen .................................................................. 94
Figure 97: Analytics > Depth > Step 4: Verification Instructions ........................................................... 94
Figure 98: Analytics > Rules Screen ................................................................................................... 95
Figure 99: Rules Drop-down List ......................................................................................................... 96
Figure 100: Analytics > Rules > Basic Attributes Tab .......................................................................... 96
Figure 101: Analytics > Rules > Advanced Attributes Tab ................................................................... 97
Figure 102: Analytics > Responses Screen ......................................................................................... 97
Figure 103: Responses > Triggering Event Tab .................................................................................. 98
Figure 104: Responses > Actions Tab ................................................................................................ 99
Figure 105: Responses > Actions Table ............................................................................................ 100
Figure 106: Responses > Schedule Tab ........................................................................................... 100
Figure 107: Sched. Actions > Actions Tab......................................................................................... 101
Figure 108: Responses > Actions Table ............................................................................................ 102
Figure 109: Sched. Actions > Schedule Tab ..................................................................................... 102
Figure 110: Analytics > On Screen Display Screen ........................................................................... 103
Figure 111: Analytics > Firmware Screen .......................................................................................... 104
Table of Contents
April 25, 2017
CB-5222 User and Installation Guide
ix
Figure 112: Analytics > Backup & Restore Screen ............................................................................ 105
Figure 113: Logout Message ............................................................................................................ 106
Figure 114: Command Bar Toolbar – Select Internet Options ............................................................ 111
Figure 115: Internet Options Screen ................................................................................................. 111
Figure 116: Command Bar Toolbar – Internet Options ...................................................................... 112
Figure 117: Schedule Screen................................................................ ............................................ 112
Figure 118: Quasar Player Installation Wizard .................................................................................. 115
Figure 119: Quasar Player Installation Completed ............................................................................ 115
x
CB-5222 User and Installation Guide
April 25, 2017
Document Scope and Purpose
April 25, 2017
CB-5222 User and Installation Guide
1
1 Document Scope and Purpose
The purpose of this document is to provide instructions and installation procedures for physically
connecting the CB-5222 unit. After completing the physical installation, additional setup and
configurations are required before video analysis and detection can commence.
Note:
This document is intended for use by technical users who have a basic understanding of CCTV
camera/video equipment and LAN/WAN network connections.
Remarque:
Ce document est destiné aux utilisateurs techniciens qui possèdent des connaissances de base des
équipements vidéo/caméras de télésurveillance et des connexions aux réseaux LAN/WAN.
Warning:
Installation must follow safety, standards, and electrical codes as well as the laws that apply where the
units are being installed.
Avertissement:
L'installation doit respecter les consignes de sécurité, les normes et les codes électriques, ainsi que la
législation en vigueur sur le lieu d'implantation des unités.
Disclaimer
Users of FLIR products accept full
responsibility for ensuring the suitability and
considering the role of the product detection
capabilities and their limitation as they apply
to their unique site requirements.
FLIR Systems, Inc. and its agents make no
guarantees or warranties to the suitability for
the users’ intended use. FLIR Systems, Inc.
accepts no responsibility for improper use or
incomplete security and safety measures.
Failure in part or in whole of the installer,
owner, or user in any way to follow the
prescribed procedures or to heed
WARNINGS and CAUTIONS shall absolve
FLIR and its agents from any resulting
liability.
Specifications and information in this guide
are subject to change without notice.
Avis de non-responsabilité
Il incombe aux utilisateurs des produits FLIR de
vérifier que ces produits sont adaptés et d'étudier le
rôle des capacités et limites de détection du produit
appliqués aux exigences uniques de leur site.
FLIR Systems, Inc. et ses agents ne garantissent
d'aucune façon que les produits sont adaptés à
l'usage auquel l'utilisateur les destine. FLIR
Systems, Inc. ne pourra être tenu pour responsable
en cas de mauvaise utilisation ou de mise en place
de mesures de sécurité insuffisantes.
Le non respect de tout ou partie des procédures
recommandées ou des messages
d'AVERTISSEMENT ou d'ATTENTION de la part de
l'installateur, du propriétaire ou de l'utilisateur
dégagera FLIR Systems, Inc. et ses agents de toute
responsabilité en résultant.
Les spécifications et informations contenues dans
ce guide sont sujettes à modification sans préavis.
Document Scope and Purpose
2
CB-5222 User and Installation Guide
April 25, 2017
A Warning is a precautionary message that indicates a procedure or condition where there are
potential hazards of personal injury or death.
Avertissement est un message préventif indiquant qu'une procédure ou condition présente un risque
potentiel de blessure ou de mort.
A Caution is a precautionary message that indicates a procedure or condition where there are
potential hazards of permanent damage to the equipment and or loss of data.
Attention est un message préventif indiquant qu'une procédure ou condition présente un risque
potentiel de dommages permanents pour l'équipement et/ou de perte de données.
A Note is useful information to prevent problems, help with successful installation, or to provide
additional understanding of the products and installation.
Une Remarque est une information utile permettant d'éviter certains problèmes, d'effectuer une
installation correcte ou de mieux comprendre les produits et l'installation.
A Tip is information and best practices that are useful or provide some benefit for installation and use
of FLIR products.
Un Conseil correspond à une information et aux bonnes pratiques utiles ou apportant un avantage
supplémentaire pour l'installation et l'utilisation des produits FLIR.
Document Scope and Purpose
April 25, 2017
CB-5222 User and Installation Guide
3
General Cautions and Warnings
This section contains information that indicates a
procedure or condition where there are potential
hazards.
SAVE ALL SAFETY AND OPERATING
INSTRUCTIONS FOR FUTURE USE.
Although the unit is designed and manufactured
in compliance with all applicable safety standards,
certain hazards are present during the installation
of this equipment.
To help ensure safety and to help reduce risk of
injury or damage, observe the following:
Précautions et avertissements
d'ordre général
Cette section contient des informations
indiquant qu'une procédure ou condition
présente des risques potentiels.
CONSERVEZ TOUTES LES INSTRUCTIONS
DE SÉCURITÉ ET D'UTILISATION POUR
POUVOIR VOUS Y RÉFÉRER
ULTÉRIEUREMENT.
Bien que l'unité soit conçue et fabriquée
conformément à toutes les normes de sécurité
en vigueur, l'installation de cet équipement
présente certains risques.
Afin de garantir la sécurité et de réduire les
risques de blessure ou de dommages, veuillez
respecter les consignes suivantes:
Warning:
The unit’s cover is an essential part of the product. Do not open or remove it.
Never operate the unit without the cover in place. Operating the unit without the cover poses
a risk of fire and shock hazards.
Do not disassemble the unit or remove screws. There are no user serviceable parts inside the
unit.
Only qualified trained personnel should service and repair this equipment.
Observe local codes and laws and ensure that installation and operation are in accordance
with fire, security and safety standards.
Avertissement:
Le cache de l'unité est une partie essentielle du produit. Ne les ouvrez et ne les retirez pas.
N'utilisez jamais l'unité sans que le cache soit en place. L'utilisation de l'unité sans cache
présente un risque d'incendie et de choc électrique.
Ne démontez pas l'unité et ne retirez pas ses vis. Aucune pièce se trouvant à l'intérieur de
l'unité ne nécessite un entretien par l'utilisateur.
Seul un technicien formé et qualifié est autorisé à entretenir et à réparer cet équipement.
Respectez les codes et réglementations locaux, et assurez-vous que l'installation et
l'utilisation sont conformes aux normes contre l'incendie et de sécurité.
Document Scope and Purpose
4
CB-5222 User and Installation Guide
April 25, 2017
Warning:
Do not drop the camera or subject it to physical shock.
Do not touch sensor modules with fingers. If cleaning is necessary, use a clean cloth with a
bit of ethanol and wipe it gently. If the camera will not be used for an extended period of
time, put on the lens cap to protect the sensor from dirt.
Do not aim the camera lens at strong light, such as the sun or an incandescent lamp, which
can seriously damage the camera.
Make sure that the surface of the sensor is not exposed to a laser beam, which could burn
out the sensor.
If the camera will be fixed to a ceiling, verify that the ceiling can support more than 50
newtons (50-N) of gravity, or over three times the camera’s weight.
The camera should be packed in its original packing if it is reshipped.
Caution:
To avoid damage from overheating or unit failure, assure that there is sufficient temperature
regulation to support the unit’s requirements (cooling/heating). Operating temperature should be kept
in the range -40° to 50°C (-40° to 122°F), with no more than 90% non-condensing humidity.
Attention:
Afin d'éviter tout dommage dû à une surchauffe ou toute panne de l'unité, assurez-vous que la
régulation de température est suffisante pour répondre aux exigences de l'unité
(refroidissement/chauffage). La température de fonctionnement doit être maintenue dans la plage
(-40° à 50°C/-40° à 122°F), sans condensation d'humidité supérieur à 90%.
Document Scope and Purpose
April 25, 2017
CB-5222 User and Installation Guide
5
Site Preparation
There are several requirements that should be properly addressed prior to installation at the site.
The following specifications are requirements for proper installation and operation of the unit:
Ambient Environment Conditions: Avoid positioning the unit near heaters or heating system
outputs. Avoid exposure to direct sunlight. Use proper maintenance to ensure that the unit is free
from dust, dirt, smoke, particles, chemicals, smoke, water or water condensation, and exposure
to EMI.
Accessibility: The location used should allow easy access to unit connections and cables.
Safety: Cables and electrical cords should be routed in a manner that prevents safety hazards,
such as from tripping, wire fraying, overheating, etc. Ensure that nothing rests on the unit’s
cables or power cords.
Ample Air Circulation: Leave enough space around the unit to allow free air circulation.
Cabling Considerations: Units should be placed in locations that are optimal for the type of
video cabling used between the unit and the cameras and external devices. Using a cable longer
than the manufacturer’s specifications for optimal video signal may result in degradation of color
and video parameters.
Physical Security: The unit provides threat detection for physical security systems. In order to
ensure that the unit cannot be disabled or tampered with, the system should be installed with
security measures regarding physical access by trusted and un-trusted parties.
Network Security: The unit transmits over IP to security personnel for video surveillance.
Proper network security measures should be in place to assure networks remain operating and
free from malicious interference. Install the unit on the backbone of a trusted network.
Electrostatic Safeguards: The unit and other equipment connected to it (relay outputs, alarm
inputs, racks, carpeting, etc.) shall be properly grounded to prevent electrostatic discharge.
The physical installation of the unit is the first phase of making the unit operational in a security plan. The
goal is to physically place the unit, connect it to other devices in the system, and to establish network
connectivity. When finished with the physical installation, complete the second phase of installation,
which is the setup and configuration of the unit.
6
CB-5222 User and Installation Guide
April 25, 2017
Overview
April 25, 2017
CB-5222 User and Installation Guide
7
2 Overview
The IOI HD CB-5222 bullet camera is a 2.1 megapixel, Full HD 1080p device that features built-in video
analytics. The camera includes a varifocal motorized auto-focus DC-Iris lens with True Day/Night
performance. The camera provides real-time, H.264 and MJPEG streaming video with the highest
quality image. The lightweight, weatherproof, outdoor camera is easy to install and operate and features
a compact, sophisticated and aesthetic mechanical design.
Figure 1: IOI HD Analytic Bullet IP Camera
Two models are available:
CB-5222-11 − F1.4, 3-10.5mm lens
CB-5222-21 − F1.4, 7-22mm lens
The IOI HD bullet camera delivers outstanding analytic performance. It offers enhanced detection, even
of small objects from a distance, even in scenes where there are large or multiple objects and movement
in up to 80% of the frame. The system can detect sophisticated intruders and enable the identification of
people standing upright, which reduces false alarms.
The camera’s video analytics provides alarms when it automatically detects specific events, such as
region entrance, fence trespassing, tripwire crossover, which trigger an automatic notification. You can
define the events and location in the video of the image that can be detected with user-customizable
rules, positioning criteria, responses, and scheduled actions.
Caution:
If you are using FLIR’s Latitude VMS, we recommend that you configure the camera’s settings via the
AdminCenter. This is because the camera’s web-based interface might be overwritten by Latitude
settings. Refer to the Latitude online help for information regarding configuring camera settings.
Attention:
Si vous utilisez le logiciel de gestion de vidéo Latitude de FLIR, nous vous conseillons de configurer
les paramètres de la caméra via l'AdminCenter. En effet, l'interface Internet de la caméra peut être
remplacée par les paramètres Latitude. Veuillez consulter l'aide en ligne Latitude pour de plus amples
informations sur la configuration des paramètres de la caméra.
Overview
8
CB-5222 User and Installation Guide
April 25, 2017
2.1 Features
The camera supports the following analytic functions:
Analytic relay events
Reduced false alarm rate
Increased detection distance
Unattended baggage
detection
Intrusion detection
Object removal detection
Stopped vehicle detection
Loitering detection
Camera tampering detection
Automatic depth calibration
The camera includes the following key general features:
Advanced video analytics
Superior intruder detection
Customizable rules and actions
H.264 and MJPEG compression
HTTP streaming MPEG
Progressive scan CMOS
sensor
Detection event-driven alarms
Alarm input driven events
Relay output actions on alarm
True Day/Night (IRC)
Low lux
2D/3D noise reduction
RTSP support
dWDR
True multi-shutter WDR
ONVIF-conformant
Built-in web application/
web server
SNMP v1/v2/v3 SNMP traps
Up to two E-mail SMTP alarms
(excluding analytic alarms)
FTP upload
(up to two addresses)
Upload alarm images to FTP
(excluding analytic alarms)
UPnP support
BNC analog video output
Security IP restricted access
allow/deny list
Multiple users
Group permissions
Per-user permissions
Built-in heater
Supports PoE/PoE+/
12VDC/ 24VAC
Supports hand-off to PTZ
cameras
Overview
April 25, 2017
CB-5222 User and Installation Guide
9
2.2 Package Contents
Before proceeding, check that the box contains the items listed here. If any item is missing or has
defects, do not install or operate the product. Contact your dealer for assistance.
IP Bullet Analytic Camera
Torx Wrench
1x 4-pin connector and 1x 3-pin
connector
Quick Installation Guide
CD with bundled software
and documentation
5x Philips screws
(34 x 4mm/1.345” x 0.132”) with
plastic plugs, plus 1x Torx screw
(6.65 x 2.77mm/0.263” x 0.108”)
Figure 2: Package Contents
Note:
The self-tapping screws are mainly for softer substrate/material installation such as wood. For other
installation materials such as cement ceilings, it is necessary to pre-drill and use plastic anchors
before fastening the supplied self-tapping screws into the wall.
Related Documentation
IOI HD CB-5222 Quick Installation Guide
Desiccant User Guide
DNA 2.1 User Manual
IOI HTML Edition Units User’s Guide
10
CB-5222 User and Installation Guide
April 25, 2017
Introduction to the CB-5222 IP Bullet Camera
April 25, 2017
CB-5222 User and Installation Guide
11
3 Introduction to the CB-5222 IP Bullet
Camera
This chapter provides information about the camera hardware for reference before installation. The
connectors included on the camera’s system cable are described.
Camera Dimensions
Accessing Internal Parts
System Cable Connectors
3.1 Camera Dimensions
The mechanical dimensions of the CB-5222 Analytic Bullet IP Camera are shown below.
Figure 3: CB-5222 Dimensions (Front View)
Figure 4: CB-5222 Dimensions (Side View)
Note:
The camera length is 285mm (11.1 in.) with the sunshield and fully extended mounting arm.
Introduction to the CB-5222 IP Bullet Camera
12
CB-5222 User and Installation Guide
April 25, 2017
3.2 Accessing Internal Parts
The camera housing must be opened to access the Reset button and to change desiccants.
To access the Reset button and desiccants
Using a Phillips screwdriver, unscrew the two screws on the sunshield and remove the
sunshield from the camera body.
Figure 5: Sunshield
Using the supplied Torx wrench, remove the Torx screw on the top of the camera body.
Figure 6: Camera Body Screw
Open the camera body by pulling apart both halves.
Figure 7: Separating the Camera Body
Access the Reset button or desiccants as required.
Figure 8: Desiccant
Figure 9: Reset Button
Note:
Desiccant is included inside the camera housing and must be replaced every time the housing is
opened. After desiccants are replaced, reconnect the front housing to the camera as soon as possible.
Otherwise, the desiccant will become damp and cannot be used. For instructions on removing the
desiccant, refer to the Desiccant User Guide.
To perform a hard reset to full factory defaults using the Reset button
1. Press a pointed object against the black switch on the Reset button.
2. Press the button for 30 seconds. Both LEDs on the RJ45 connector are extinguished. After one
second, the green network LED flashes once and remains lighted. The yellow activity LED
flashes as soon as it detects network activity. The unit returns to full factory defaults.
Introduction to the CB-5222 IP Bullet Camera
April 25, 2017
CB-5222 User and Installation Guide
13
3.3 System Cable Connectors
The camera is shipped with a system cable for network, power, I/O, and audio connections. The figure
below shows the various connectors included in the system cable of the camera. The connectors, pin
numbers and signal definitions are listed below.
Figure 10: CB-5222 Camera Input/Output Connections
Cable
Pin No./ Connector Type
Definition
Description
Ethernet
RJ45, Network LEDs
10/100/1000Mbps
Ethernet/PoE/PoE+
For network, Power over
Ethernet (PoE), or PoE+
connection
Audio In
3.5mm audio plug (pink)
Line in
For connecting line-level audio
input or microphone with built-in
pre-amplifier
Audio
Out
3.5mm audio plug (green)
Line out
For connecting headphone or
loudspeakers with built-in
amplifier
Video
BNC
Analog video
For video output
Power
1- Power (+)
2- Earth GND
3- Power (-)
12VDC/24VAC
3-terminal connection block
Alarm
DI - Input (+)
DI - Input (-)
Alarm input
4-terminal connection block
DO - Output (+)
DO - Output (-)
Alarm output
Introduction to the CB-5222 IP Bullet Camera
14
CB-5222 User and Installation Guide
April 25, 2017
Alarm Input/Output Pin-out
The alarm input and output connections are shown below.
Pin No.
Designation
Terminal Block
Alarm Connections
DI-
Input (-)
DI+
Input (+)
DO-
Output (-)
DO+
Output (+)
Power Input/Output Pin-out
The power input and output connections are shown below.
Pin
Symbol
Designation
Terminal Block
Power Connections
-
Negative
Ground
+
Positive
Waterproofing the Camera Cable Connectors
Follow the instructions below to waterproof the connectors for the different types of cables included in
the system cable. The cables are shown below.
System Cable
IP66 RJ45 Cable
Figure 11: Camera Cables
Introduction to the CB-5222 IP Bullet Camera
April 25, 2017
CB-5222 User and Installation Guide
15
System Cable
To waterproof the system cable
1. Connect all the required devices to the system cable.
2. Coat the joints with silicone gel. There should be no gap between the connectors and the cables.
For alarm I/O connector and power connector, make sure the side with wires attached is also
sealed with silicone gel.
Figure 12: System Cable
3. Seal the end of the rubber coating of the system cable as indicated in the figure below. Use
enough silicone gel to fill in the hose and wrap around each wire in order to properly waterproof
the cable.
Figure 13: System Cable Hose and Wiring
Connecting the Unit to the Network
A Cat 5 Ethernet cable is recommended for network connection. For best transmission quality, the cable
length should not exceed 100 meters (328 feet). Connect one end of the Ethernet cable to the RJ45
connector of the system cable and plug the other end of the cable into the network switch or PC. Check
the status of the link indicator and activity indicator LEDs. If the LEDs are unlit, check the LAN
connection.
A flashing green PWR LED indicates a 10/100/1000 Mbps full-duplex connection.
A steady green PWR LED indicates a 10/100/1000 Mbps half-duplex connection.
A flashing yellow LNK LED indicates the amount of network activity. The faster the
flashing, the greater the amount of data that is being transmitted.
Connecting Power to the Camera
The camera can be powered by Power over Ethernet (PoE), PoE+, or by an external 12VDC, 24VDC, or
24VAC adaptor (not included in the package).
If using an ext
ernal power supply, connect the power leads or three-pin power terminal block to the power
supply.
If using PoE or PoE+, make sure that a Power Sourcing Equipment (PSE) device is used in the
network.
Make sure the camera’s power cable is properly connected. All electrical work must be performed in
accordance with local regulatory requirements.
For operation at -40o to 50o C/-40° to 122°F, use an AC, DC, or PoE+ power source. For operation at
-10° to 50°C/14° to 122°F, use a PoE power source.
16
CB-5222 User and Installation Guide
April 25, 2017
System Requirements
April 25, 2017
CB-5222 User and Installation Guide
17
4 System Requirements
To access the camera via a web browser, ensure that your PC has the proper network connection and
meets system requirements as described below.
Item
Minimum System Requirement
Personal Computer
Minimum: Intel® Core™ i5-2430M @ 2.4 GHz, 4GB RAM
Recommended: Intel® Core™ i7-870 @ 2.93 GHz, 8GB RAM
Operating System
Windows XP, 7, 8, 8.1, and 10
Web Browser
Microsoft Internet Explorer 9, 10, or 11
Network Card
10BaseT (10 Mbps), 100Base-TX (100 Mbps), or 1000BaseT
(1000Mbps) operation
Viewer
ActiveX control plug-in for Microsoft IE
18
CB-5222 User and Installation Guide
April 25, 2017
Installation
April 25, 2017
CB-5222 User and Installation Guide
19
5 Installation
Follow the instructions below for outdoor installation of the camera.
Related Links
Setting the Camera’s Focal Length
Outdoor Installation
Initial Camera Configuration
Mounting Instructions
5.1 Setting the Camera’s Focal Length
Focal length determines the scene’s viewing angle, or, in other words, the dimensions of the scene which will
be generated by the camera. The trade-off for focal length is between the width of the scene and the
magnification of objects appearing in the scene. The longer the focal length is, a narrower scene will be
achieved, while the size of objects will increase. Greater size means that more pixels will be used to
represent each object, and greater level of details will be present.
In a similar manner, the shorter the focal length is, the smaller the size of each object will be, while the
captured scene will become wider.
Note:
Use a short focal length to cover a wide area and detect objects at close distances. Use a long focal
length to achieve greater detection distances while narrowing the Field of View.
After you select your lenses and see the amount of detail provided, consider your security surveillance
coverage, camera locations, and any additional needs that may be discovered. Consult your FLIR
representative if you have any questions.
5.2 Outdoor Installation
Read the instructions provided in this chapter thoroughly before installing the camera. Following are
additional considerations for outdoor installation:
For outside wiring installation, always use weatherproof equipment, such as boxes, receptacles,
connectors, etc.
For electrical wiring, use the properly rated sheathed cables for conditions to which the cable will
be exposed (for example, moisture, heat, UV, physical requirements, etc.).
Plan ahead to determine where to install infrastructure weatherproof equipment. Whenever
possible, ground components to an outdoor ground.
Use best security practices to design and maintain secured camera access, communications
infrastructure, tamper-proof outdoor boxes, etc.
All electrical work must be performed in accordance with local regulatory requirements
Installation
20
CB-5222 User and Installation Guide
April 25, 2017
5.3 Initial Camera Configuration
Caution:
If you are using Latitude, we recommend that you configure the camera’s settings via the
AdminCenter. This is because the camera’s web-based interface might be overwritten by Latitude
settings. Refer to the Latitude online help for information regarding configuring camera settings.
Attention:
Si vous utilisez Latitude, nous vous conseillons de configurer les paramètres de la caméra via
l'AdminCenter. En effet, l'interface Internet de la caméra peut être remplacée par les paramètres
Latitude. Veuillez consulter l'aide en ligne Latitude pour de plus amples informations sur la
configuration des paramètres de la camera.
To perform the initial camera configuration
1. Unpack the camera and remove the protective cover.
2. Connect one end of the network Cat 5 Ethernet cable to the RJ45 connector on the camera’s
system cable.
3. Connect the other end of the network cable to a Power Sourcing Equipment (PSE) device, such
as a switch.
4. Verify that the LEDs on the RJ45 connector illuminate green (indicating a stable network
connection) and flashing yellow (to indicate network activity).
5. Do the following:
Copy and run dna.exe (see note below) from the included CD.
Note:
DNA is a user-friendly utility that is designed to easily discover and configure FLIR
edge devices on a network. The IOI HD bullet camera is supported by DNA version
2.0.4.8 and above. For instructions how to use DNA, click here to download the DNA
User Manual from the Tools section.
Click the icon.
Select the unit requiring IP assignment.
Figure 14: Discovered IP Devices
Right-click the mouse and select the assigned IP address or click the Assign IP button
to open the DNA Assign IP dialog box.
Loading...
