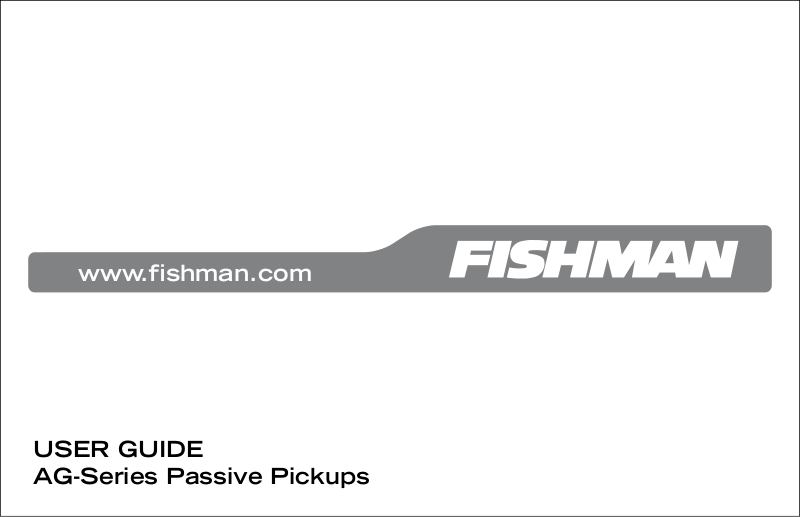

USER GUIDE
AG-Series Passive Pickups

Welcome

Thank you for making Fishman a part of your acoustic experience. We are proud

to offer you the fi nest acoustic amplifi cation products available; high-quality
professional-grade tools which empower you to sound your very best.

Troubleshooting

Installation by a qualifi ed professional is strongly recommended.

Should you have any problems, please check with your installer or refer to the
online installation guide for this product. Technical support, troubleshooting tips
and installation information can be found at http://www.fi shman.com/support/

Pickup Formats

AG-125 • .125” (3.2 mm) Width • 2.125” String Spacing

The AG-125 is suitable for most instruments with string spacings from 2.075”

(52.7 mm) to 2.175” (55.3 mm)

AGX-125 • .125” (3.2 mm) Width • 2.3125” String Spacing
The AGX-125 is suitable for most 6 and 12-string instruments with E to E string

spacings from 2.262” (57.4 mm) to 2.362” (59.9 mm)

AG-094 • .094” (2.3 mm) Width • 2.125” String Spacing
The AG-094 is suitable for most instruments with string spacings from 2.075”

(52.7 mm) to 2.175” (55.3 mm)

AGX-094 • .094” (2.3 mm) Width • 2.3125” String Spacing
The AGX-094 is suitable for most 6 and 12-string instruments with E to E string

spacings from 2.262” (57.4 mm) to 2.362” (59.9 mm)

www.fi shman.com

471-300-381 Rev A 11-07
