Fisher & Paykel WA8060P1, WL8060P1 User Manual
INSTALLATION INSTRUCTIONS
USER GUIDE
FabricSmart™ washer
WA8060P model
NZ AU SG ROW
CONTENTS
Introduction 3
Safety and warnings 4
Installation instructions 5
Before you do your first wash 11
Getting started quickly 12

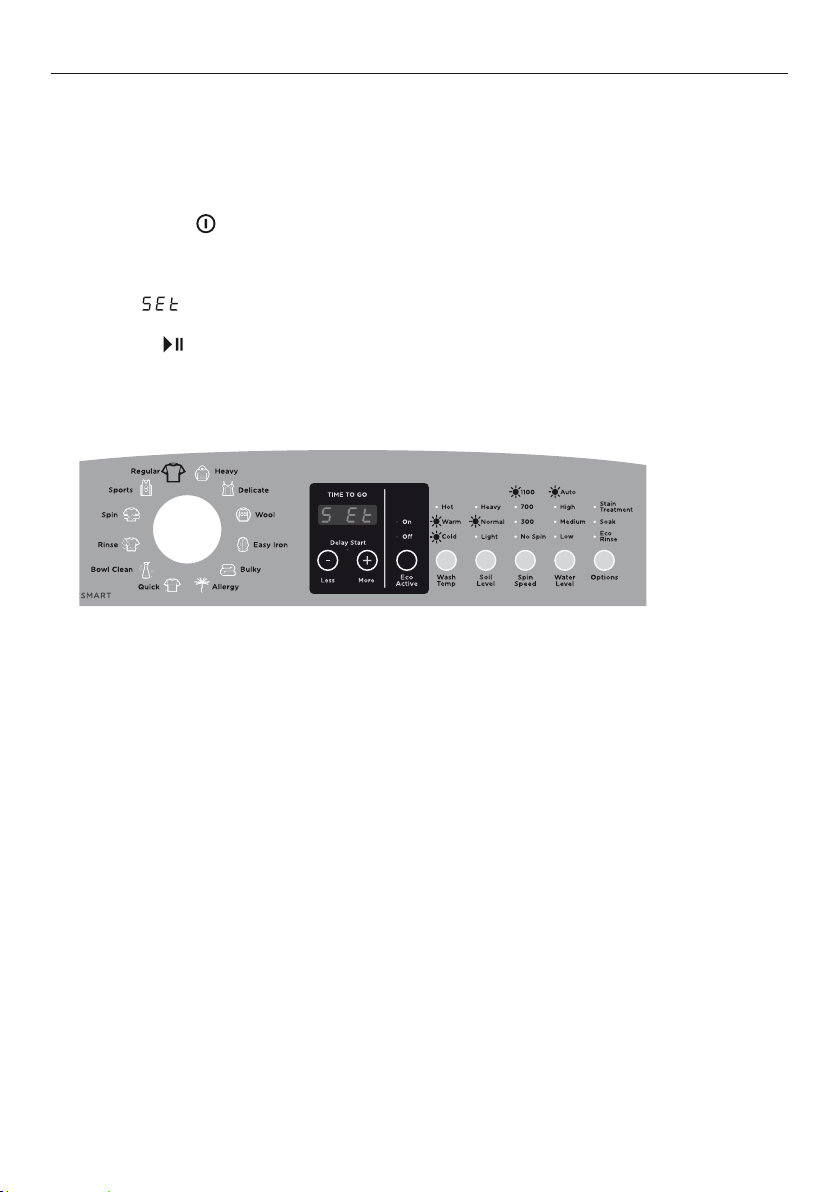

FabricSmart™ washer controls 14
FabricSmart™ washer safety features 15
Eco-Active™ wash 16

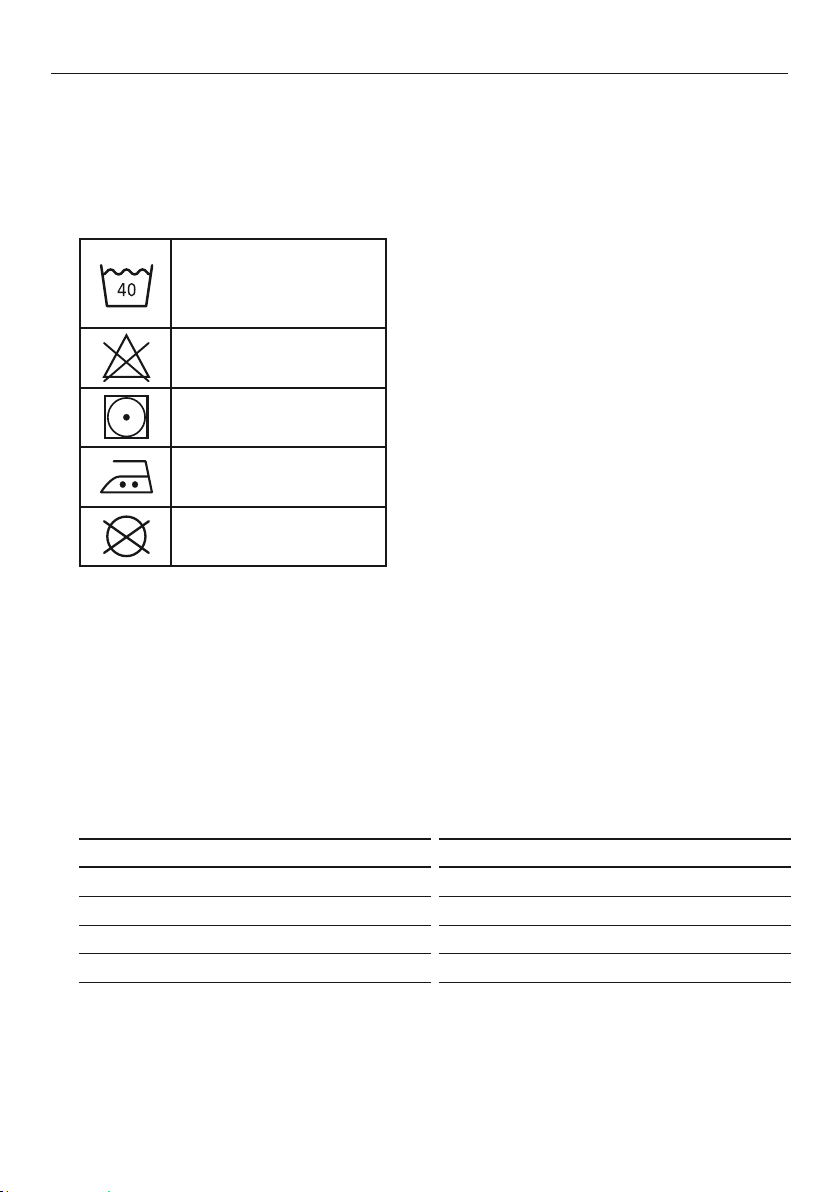

Sorting 17
Loading 18
Detergent 19
Fabric softener 20

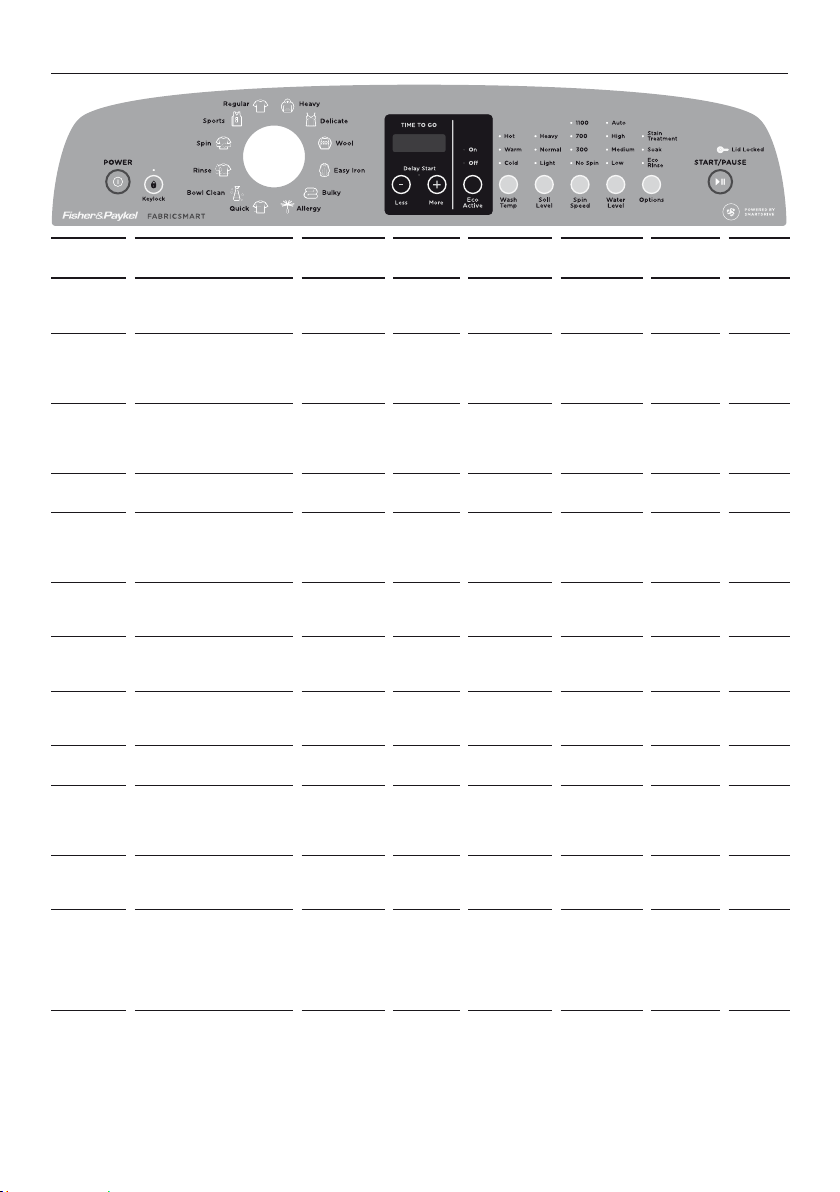

Wash cycles 21
Wash options 22
Customising wash cycles 27
Changing pre-set options 28
Caring for your washer 33
Before you call for service 35

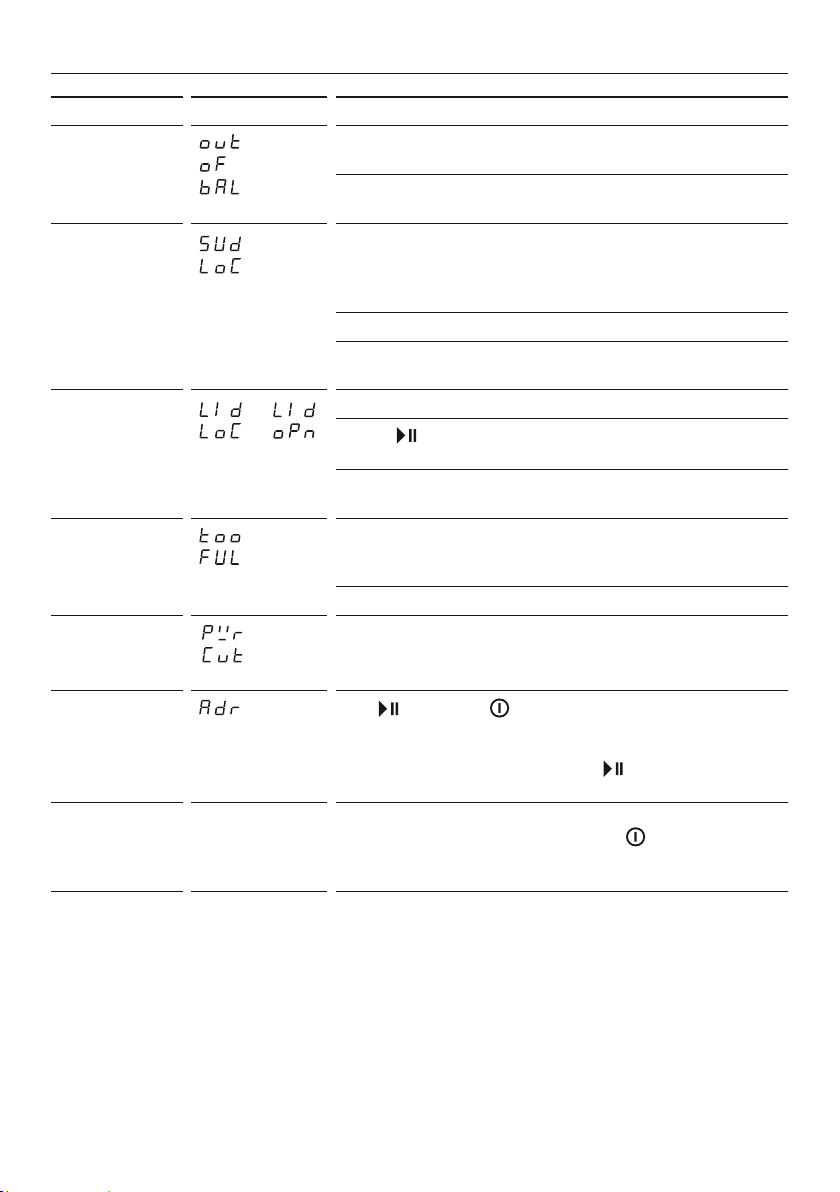

Fault codes 37
Troubleshooting 38
Manufacturer’s Warranty 42
Customer Care 44
ImpORTANT!
SAVE THESE INSTRUCTIONS
The model shown in this user guide may
not be available in all markets and are
subject to change at any time. For current
details about model and specification
availability in your country, please go to
our website www.fisherpaykel.com or
contact your local Fisher & Paykel dealer.
Registration
Register your product with us so we can
provide you with the best service possible.
To register your product visit our website:
www.fisherpaykel.com
1
INTRODUCTION
Welcome to your FabricSmart™ washer
Thank you for buying a Fisher & Paykel FabricSmart™ washer. We are proud ofthis
washer and trust it will serve you well for many years.
At Fisher & Paykel we aim to provide innovative products that are simple to use,
ergonomic and kind to the environment. Thousands of tonnes of washing and over
80years of laundry experience have been programmed into your clothes washer to
helpgive you the best possible performance.
Your FabricSmart™ washer has been designed to wash a large load, while taking up less
space in your laundry. It has numerous wash cycles and options so you can perform
every wash task with ease and spend less time in the laundry. With the ability to select
the most efficient water level for each load, your FabricSmart™ washer makes it kinder
on your wallet and the environment.
Please take the time to read these instructions carefully before you begin using your
washer. Following the advice in this user guide will ensure you get the performance
youexpect from your washer and that you get the best possible wash results.
We hope you enjoy your new washer. We have certainly enjoyed designing it for you.
3
SAFETY AND WARNINGS
!
WARNING!
Electric Shock Hazard
If you are using an extension cord or a portable electrical outlet device
(eg multi-socket outlet box), ensure that it is positioned so that it does
not come into contact with water or moisture.
Failure to do so may result in death or electrical shock.
IMPORTANT SAFETY INSTRUCTIONS
WARNING! When using this appliance always exercise basic safety precautions
including the following:
This clothes washer is not intended for use by persons (including children) with
reduced physical, sensory, or mental capabilities, or lack of experience and
knowledge, unless they are supervised or given instructions on how to use the
clothes washer by someone responsible for their safety, and they understand the
hazards involved.
The clothes washer should only be used for washing and rinsing of textiles where
this is indicated on the care label.
Keep children away from the clothes washer while it is in operation.
Children should be supervised to ensure that they do not play with the appliance.
Cleaning and user maintenance shall not be completed by children without
supervision.
The only user removable parts of the clothes washer are the inlet hoses and
agitator. No other parts are designed to be removed by anyone other than a
Fisher&Paykel Authorised Repairer.
The lid will be locked for stages of the cycle for safety reasons.
Never force open the lid.
When disposing of the clothes washer, it is recommended that the lid is taped down
to avoid children getting trapped inside, and that the electrical cable is cut off
close to the clothes washer.
Do not add gasoline, dry-cleaning solvents, or other flammable or explosive
substances to the wash water. These substances give off vapours that could ignite
or explode.
Do not wash articles that have been previously cleaned in, washed in, soaked in,
or spotted with gasoline, dry-cleaning solvents, or other flammable or explosive
substances as they give off vapours that could ignite or explode.
4
INSTALLATION INSTRUCTIONS
Product and minimum clearance dimensions
H
ABD
EA
C
F
PRODUCT DIMENSIONS mm
Overall height of product* (to highest point on console) 1045 – 1075
A
Overall width of product 600
B
Overall depth of product 600
C
Height of product to top of lid* (closed) 950 –980
D
Height of lid open* (measured from bottom of product) 1350 – 1385
E
Standpipe height min 850–1200
MINIMUM CLEARANCES
Minimum cavity width 640
F
Minimum depth clearance (including inlet hoses, drain hose and
G
bowed front)
Minimum clearance to adjacent product
H
MAXIMUM CAPACITY kg
* Includes adjustable mounted feet and the range of movement.
#
Applies either side.
#
(dryer) 20
G
WA8060P
mm
660
8.0
Note: maximum capacity may differ according to market.
5
INSTALLATION INSTRUCTIONS
Unpacking
To ensure the best performance from your new washer please follow the instructions below.
Removing the packaging
Remove the outer packaging.
1
Tilt the washer backwards and walk it off the
2
base packer one foot at a time (ensure the lid
is still taped down).
Remove the base packer from under the
3
washer by tilting the washer backwards and
pulling the packer out the front.
Remove the tape, lift the lid and remove the
4
bowl packer from the bowl.
Remove the hoses and accessories.
5
Keep the base packer and bowl packer in case
6
Tilt washer backwards to remove packer
they are required for future transit.
ImpORTANT!
Please ensure that the base packer has been removed BEFORE OPERATING
yourwasher.
Location
ImpORTANT!
Install the washer on a solid and level floor surface ensuring it has at least 20mm
clearance on each side. The washer must not be installed on any textured floor
coverings (eg carpets, rugs).
In your clothes washer you will find:
1hose guide.
2inlet hoses.
Drain hose
Carefully pull the drain hose out from the back
1
of the washer by pulling the exposed part of the
hose downward and outward.
To guide the drain hose over the tub or
2
standpipe the hose guide MUST be fitted to the
drain hose.
ImpORTANT!
To prevent siphoning the drain hose should
not extend more than 20mm from the end of
the guide. The height of the standpipe or tub
should be between 850–1200mm. The drain
hose can be trimmed to length.
Place the drain hose in the tub or standpipe. Do
3
not fit the hose to a drain spigot. Drainage must
not be airtight in order to prevent siphoning.
6
Pull hose
through
guide
Flex hose
guide apart
Standpipe 850–1200mm
Fitting the drain hose guide
(20mm)
maximum
INSTALLATION INSTRUCTIONS
Electrical connection
This appliance must be supplied with a 220–240V, 50Hz, sinusoidal, 10Aelectrical
supply.
Check the power cord for damage, making sure it is not squashed or twisted.
A damaged power cord must be replaced by a Fisher & Paykel Authorised Repairer, in
order to avoid a hazard.
The appliance must not be operated until it is repaired, as there is a risk of electric shock.
Draining
Regularly check that your standpipe or tub is free from lint or other obstructions, which
may affect how your washer works or may cause flooding.
In multi-storey apartments or any upper floor, the washer should be installed on a floor
equipped with a drain.
Draining must comply with local by-laws.
Water supply
ImpORTANT!
Your cold water should not exceed 35°C and your hot water should not exceed
65°C. Temperatures above these may cause the washer to fault or cause damage
tothewasher.
If you have an uncontrolled water heating source (eg a wet back or solar heating
system) you should fit a tempering valve. This will ensure the hot water temperature
remains within safe limits.
Contact your registered plumber to select and install the tempering valve.
Inlet water static pressure: Max.1MPa(150psi) Min.34KPa (5psi)
Inlet water flow rate at tap: Min.6litres/min
ImpORTANT!
This appliance must be installed in accordance with the installation instructions
before use.
Provide accessibility to the plug or incorporate a switch in the fixed wiring in
accordance with the wiring rules to allow disconnection of the appliance from the
supply after installation.
Do not operate this washer if it has been damaged during transport. Contact your
Fisher&Paykel dealer or Fisher&Paykel Authorised Repairer.
7
INSTALLATION INSTRUCTIONS
Inlet hoses
ImpORTANT!
WARNING: Failure to adhere to the following instructions
may result in a flood and damage to property.
New hose sets provided with the washer shall be used to
connect the washer to the water supply.
Old hose sets should not be used.
We recommend replacing the inlet hoses every 5years.
Hoses should be checked from time to time and replaced
ifany wear, cuts, bulges, kinks or leaks are found.
Connect the straight ends of the inlet hoses to the taps (thereare washers fitted in
1
both ends). Connect the red connector hose to Hot, and the white connector hose
toCold.
Connect the elbow ends of the inlet hoses to the corresponding washer inlet valves.
2
Inlet valves are marked on the back of the washer. Ensure the Hot valve is connected
to the hot tap and the Cold valve is connected to the cold tap.
H = Hot C = Cold
Cold water supply only:
If you only have a cold water supply, a blanking cap MUST be connected to the Hot
inlet valve. The cap prevents water leaking out of the hot valve. The cap is available
from your Fisher & Paykel dealer or Authorised Repairer, PartNo.388491P. This
appliance incorporates backflow protection complying with AS3500.1. No further
backflow protection is required for connection to the water supply.
Note: your washer does not have an internal heater to heat water.
Straight
(Tap) end
Inlet hose ends
(Washer) end
Elbow
Should you wish to use cold water only for all wash cycles, refer to ‘Customising wash
cycles’ on how to program your washer to remember your wash preferences.
8
INSTALLATION INSTRUCTIONS
Levelling instructions
It is IMPORTANT to level the washer to ensure good spin performance.
A spirit level is provided with your washer. Use this to level your washer, always placing it on a
clean, flat surface. The washer is level when the bubble sits in the centre, within the two lines.
Your washer is equipped with self-locking feet at the front to ensure they do not move
once you have levelled your washer. To adjust the feet, tilt the washer back and twist to
move them up or down.
Note: after levelling, the corners of the washer should be clear of the floor and the washer
must not rock in any direction.
Move the washer to its final position using the
1
top corners to manoeuvre the product into
place (do not push on the centre front of the
washer). We recommend a minimum clearance
of 20mm each side and 40mm at the rear of
the washer.
Open the lid, place the spirit level at the centre
2
front of the top deck forward of the lid lock
slot. Level the washer from side to side by
winding up or down the front feet (Fig.1).
With the lid closed, tilt the washer forward
3
away from the wall approximately 100mm
(Fig.2), the self-adjusting feet will release.
Gentlylower the washer back down.
Spirit
level
Fig.1 Levelling side to side
100 mm
Open the lid, place the spirit level at either the
4
right hand or left hand side of the top deck.
Level the washer from front to back using the
front feet only (Fig.3), winding both feet in or
out equally. Tilt the washer forward again and
lower back down (Fig.2).
Re-check the washer is level. Move the spirit
5
level around to all positions once more,
checking the washer is level in all areas. Repeat
step 4 if necessary. Check the washer does not
rock from side to side, front to back, or corner
to corner.
ImpORTANT!
Keep your spirit level for the next time you
move or reposition your washer.
If moving or transporting your washer in
the future, ensure you tape the lid down
beforehand.
Wall
Floor
Fig.2 Tilt washer forward
Spirit
level
Fig.3 Levelling from front to back
9
INSTALLATION INSTRUCTIONS
Completing your installation
Turn on the water and check all hose connections for leaks. Make sure there are no kinks
in the hoses. Check the hose connections for leaks again after 24hours.
Uncoil power cord, remove and discard the plastic pin cover, and plug into wall socket.
Connect the appliance to an earthed outlet protected by a fuse of suitable capacity.
ImpORTANT!
Do not touch or operate the washer with wet hands or with bare feet.
Installation test cycle
Your washer must be correctly installed before use. Check the installation and operation
of the washer using the following procedure:
Touch ‘Power’ to activate your washer.
1
Touch both the and ‘Options’ buttons at the same time, and hold for three seconds.
2
Touch to start the installation test cycle. The display will show and the lid will lock.
3
The washer will beep to signal the end of the installation test cycle. If there are no
4
faults found, the washer will automatically turn off at the end of the installation test
cycle. Any faults will be displayed on the screen (refer to the back of this user guide
to help identify faults). If you need further assistance, please contact a Fisher&Paykel
Authorised Repairer or our Customer Care Centre. Refer to ‘Customer Care’ section for
contact details.
Note: if there are no faults found, the washer will automatically turn off at the end of the
installation test cycle.
ACCESSORIES AND SPARE PARTS
Available from your Fisher & Paykel dealer or a Fisher & Paykel Authorised Repairer.
Blanking Cap Part No. 388491P
Hose Inlet Long (2m) Part No. 422680P
Hose Inlet Large Bore Part No. 426123P
Drain Hose Extension Part No. 425627P
Power Cord If the power cord of your clothes washer is damaged it must
be replaced by a Fisher & Paykel Authorised Repairer in
order to avoid a hazard, as it is not a standard power cord.
10
BEFORE YOU DO YOUR FIRST WASH
You owe it to yourself and your washer to have your washer installed correctly.
Before you start, it is a good idea to go through the following checklist:
Has the base space packer been removed? Refer to page 6.
1
Is the drain hose threaded through the ‘U bend’ (with no more than 20mm extended)
2
and hooked into your tub or standpipe? Refer to page 6.
Is the hot hose connected to the Hot valve marked ‘H’? Is the cold hose connected to
3
the Cold valve marked ‘C’? Refer to page 8.
Is the washer correctly levelled, feet are extended and cabinet corners are clear of the
4
floor? Refer to page 9.
Have you performed the installation test cycle? Refer to page 10.
5
FabricSmart™ washer capacity
FabricSmart™ washer offers a generous 8kg capacity. The list below outlines what is
included in a 8kg wash load (in accordance with AS/NZS2040.1:2005).
WASH LOAD 8kg
Sheets (double) 3
Bath towels 4
Tablecloths 3
Shirts 5
T-Shirts 5
Pillowcases 5
Shorts 5
Washcloths 8
Handkerchiefs 6
Note: the above load composition is indicative only. We recommend for everyday
use that you separate out your sheets and towels and wash them separately on the
‘Regular’ cycle.
11
GETTING STARTED QUICKLY
Before you start
It is important to sort your clothes, particularly separating white/light colours from dark
colours, as well as separating out sheets and towels. Refer to the ‘Sorting’ and ‘Loading’
sections.
Wash new, highly coloured and dark coloured items separately to prevent dye transfer
onto other items.
Sort lint givers and lint collectors (refer to the ‘Sorting’ section).
Close bra clasps, do up zippers and check pockets.
Place your clothes directly into the wash bowl.
Place the load evenly around the agitator (refer to ‘Sorting’ and ‘Loading’ sections).
Remove fabric softener dispenser cup.
Detergent
Follow the manufacturer’s instructions on the
detergent package.
Use the size of the load as a guide to the amount
of detergent to use (refer to the ‘Detergent’
section).

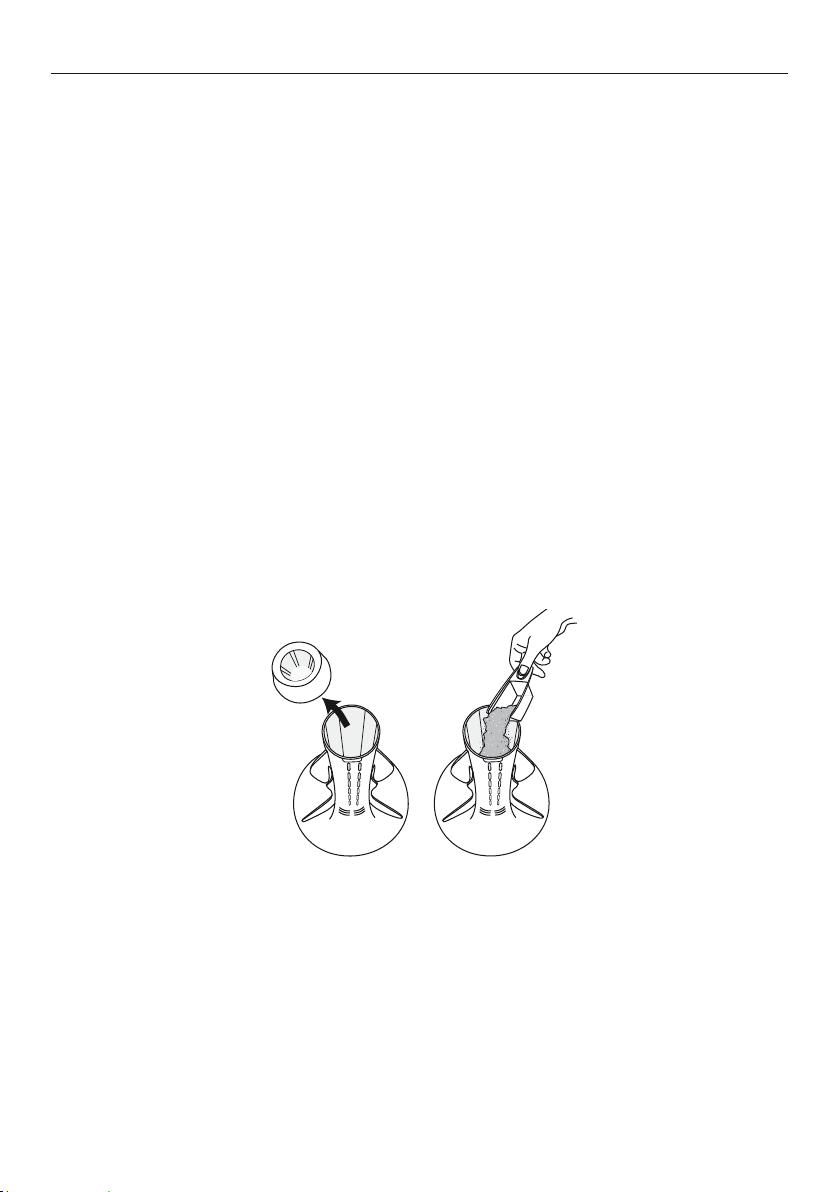

Pour the detergent down the centre of the
agitator stem.

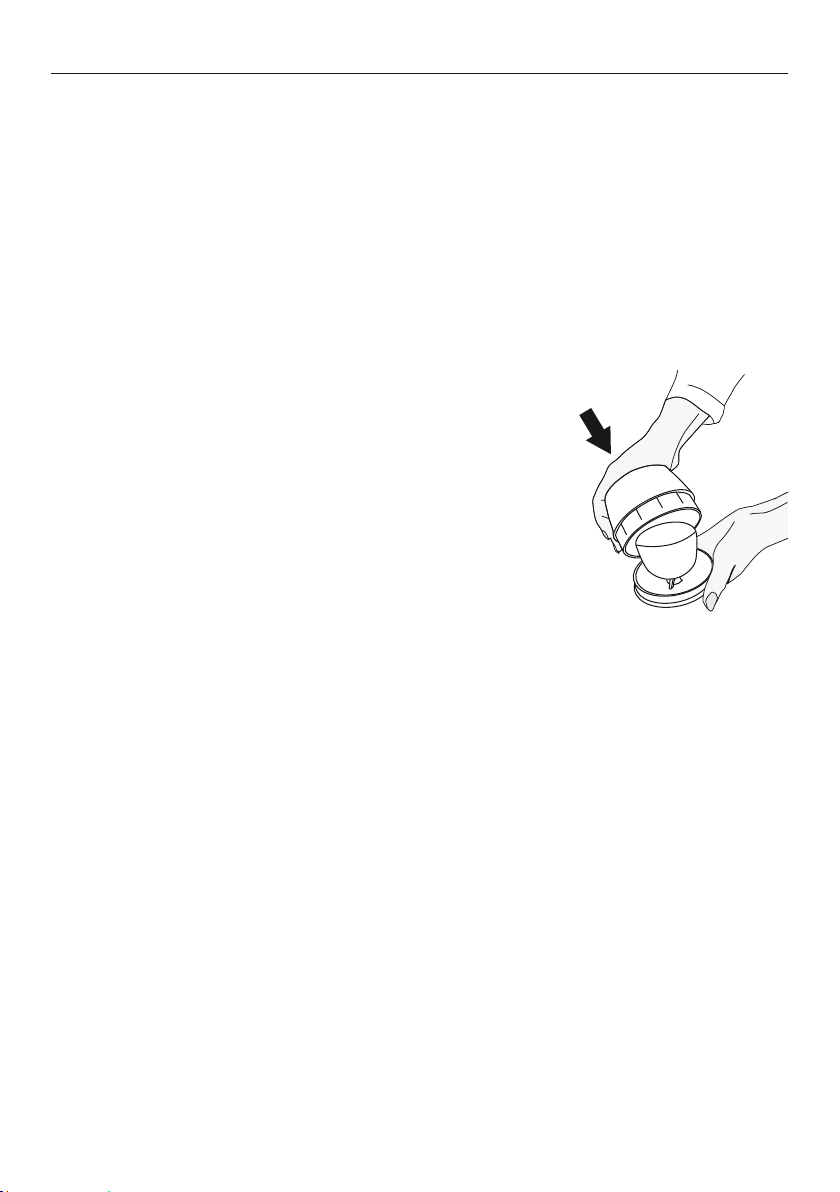

Replace the fabric softener dispenser cup (this
stops small articles falling down the centre of the
agitator).
FabricSmart™
washer control
panel
1 25
Fabric softener
If you wish to use fabric softener, place it in the fabric
softener dispenser cup on the top of the agitator (refer
to the ‘Fabric Softener’ section).
ImpORTANT!
Fabric softener must not be used if you have selected
the ‘Quick’ or ‘Bulky’ cycles or the ‘Eco Rinse’ option
(refer to the ‘Fabric softener’ section).
12
GETTING STARTED QUICKLY
Using your washer
The buttons require only a gentle touch to activate.
Touch ‘Power’ to activate your FabricSmart™ washer.
1
Select your desired wash cycle by turning the SmartTouch™ Control Dial. The wash cycle
2
icons will illuminate as you turn the dial showing which cycle is selected (refer to the
‘Wash cycles’ section).
Choose your wash options, egyou may want a ‘Warm’ wash temperature and a ‘Slow’
3
spin speed (refer to the ‘Wash options’ section).
Touch to start the cycle. The washer will start to fill with water and select the correct
4
wash action for your load.
For best fabric and colour care, remove your clothes as soon as the cycle has finished.

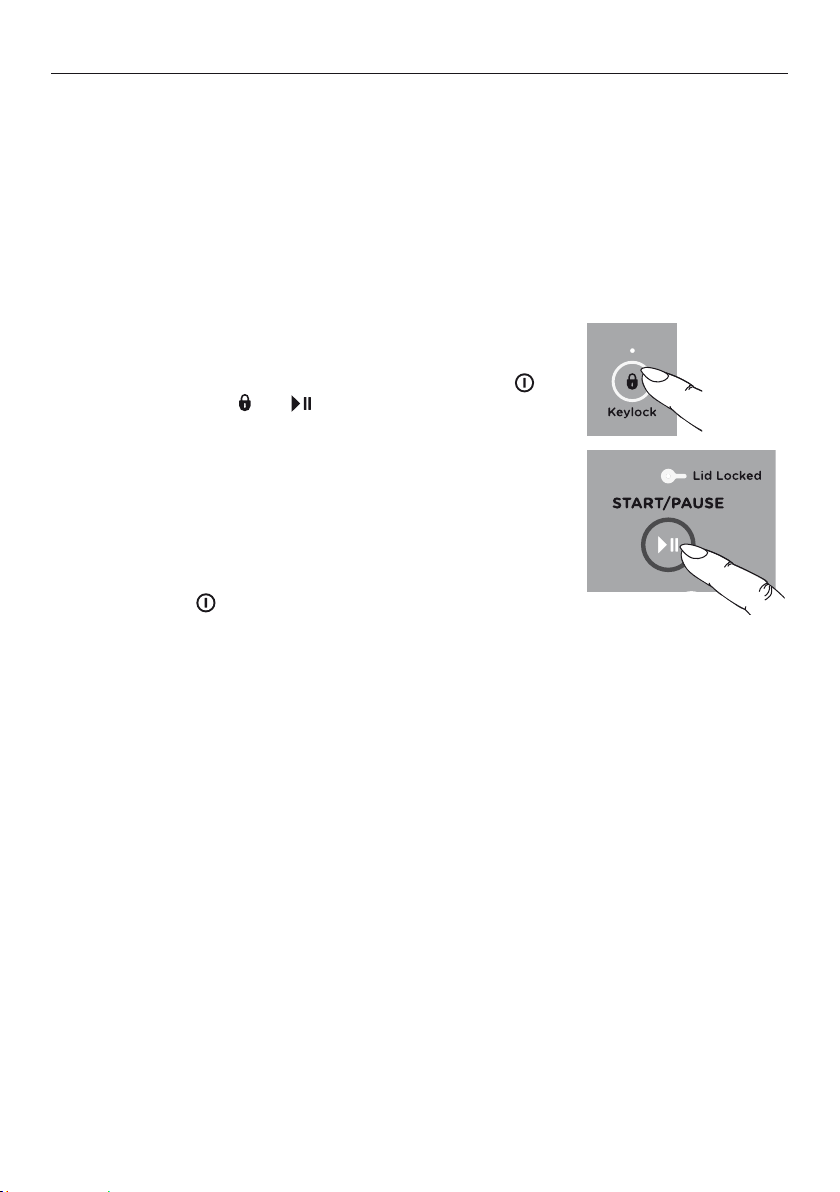

Use ‘Keylock’ mode to lock the buttons on the display, which prevents them from being
5
activated accidently by a washing basket or little fingers (refer to the ‘FabricSmart™
washer controls’ section).

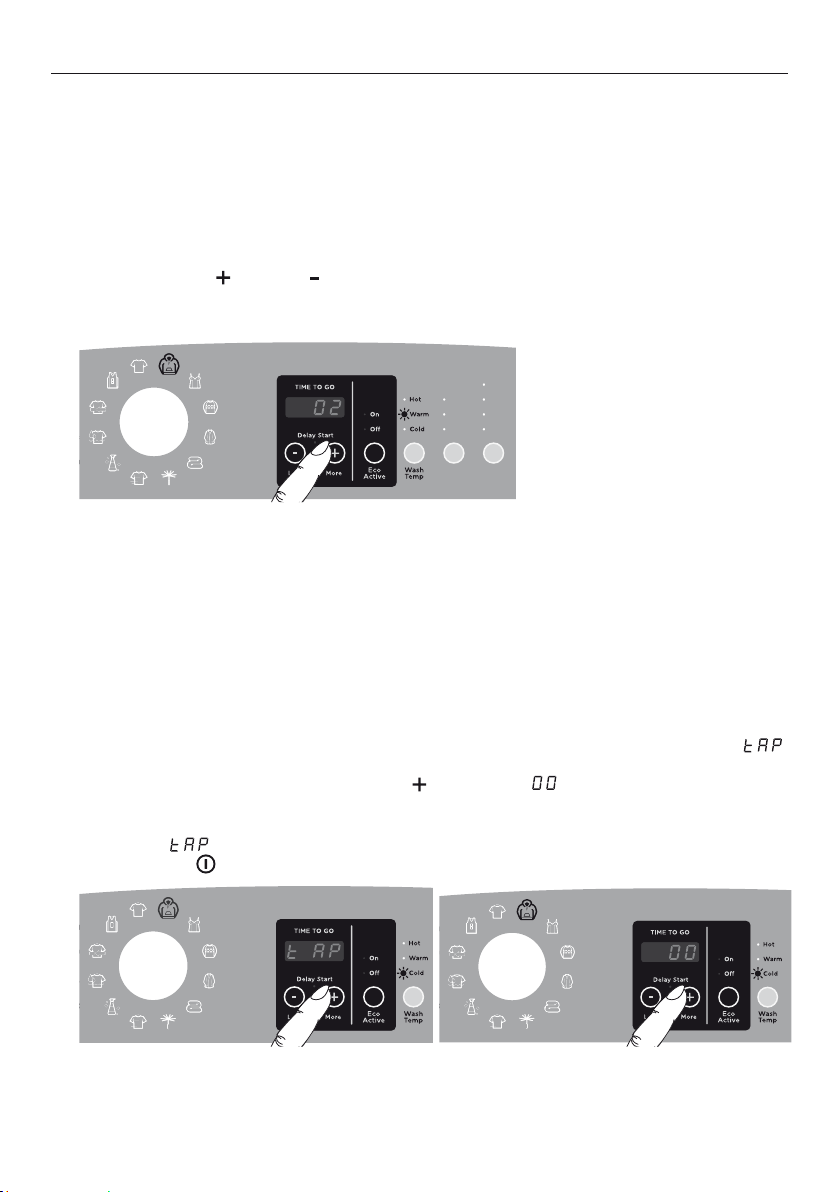

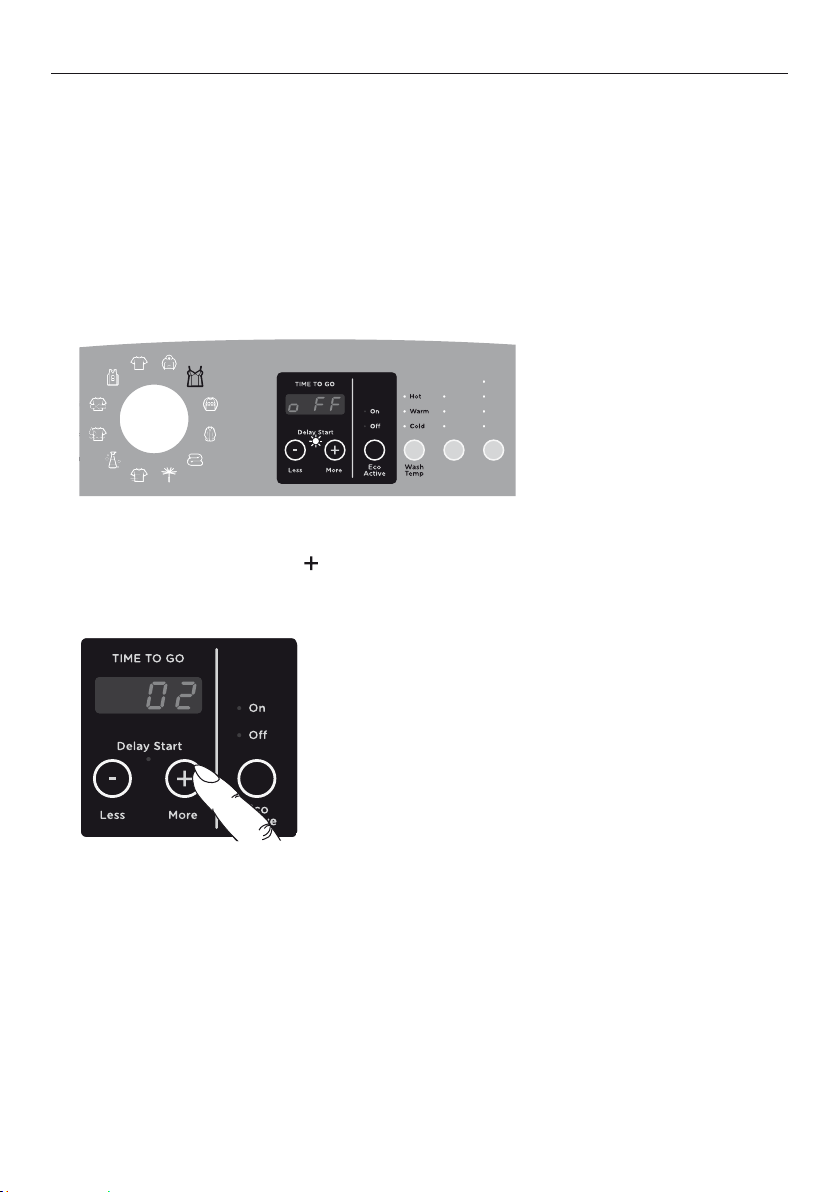

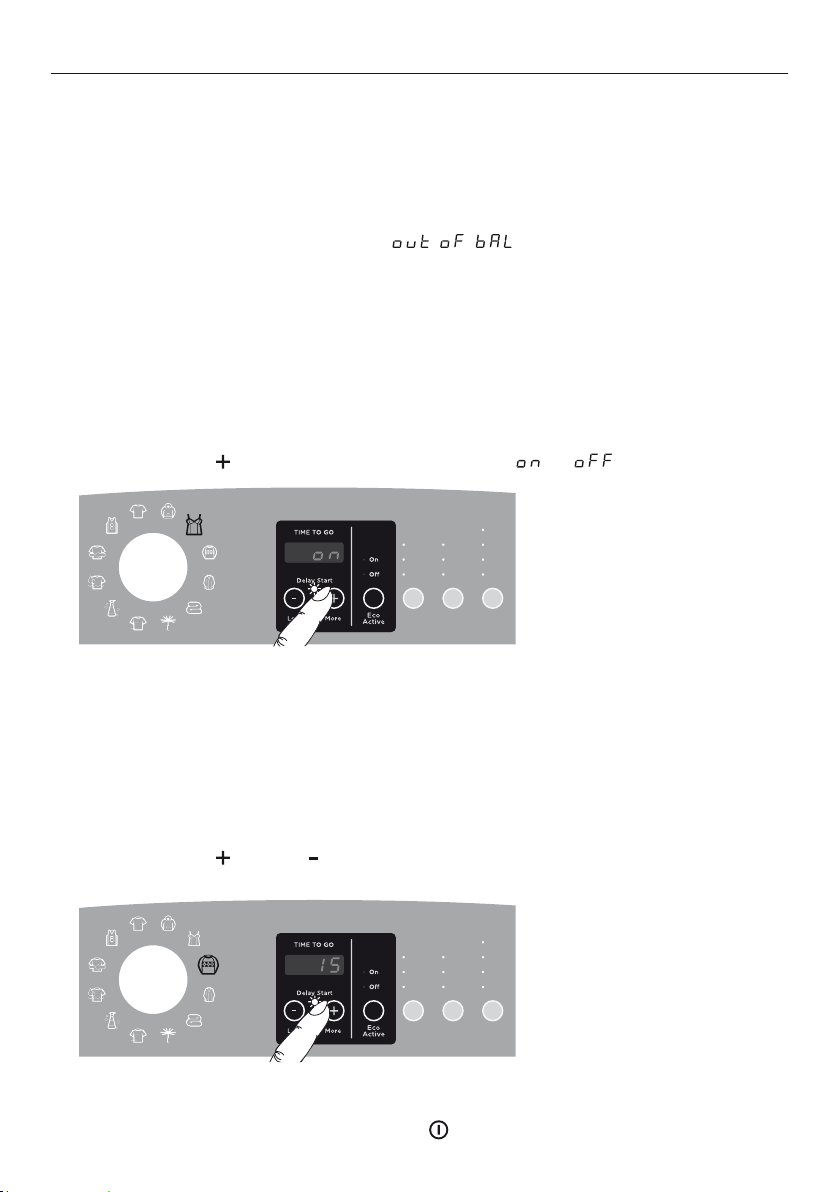

‘Delay Start’ allows you to delay the start of your wash by 5mins up to 18hours (refer
6
to the ‘Wash options’ section).
3 46
If you wish to stop your FabricSmart™ washer
Touch .
During a spray rinse or spin, there will be a slight delay while the bowl slows to a stop
and the lid is unlocked.
ImpORTANT!
Failure to follow the advice in this guide may result in damage to your garments, and
your expectations of wash performance may not be met.
13
Loading...
