Fisher & Paykel RX256DT7X1 User Manual
Side by Side Refrigerator
Installation instructions
and user guide (EN)
Refrigerador de dos puertas
Instructivo de instalación
y guía de usuario (SP)
RX256DT7X1
US
WARNING!
Electric Shock Hazard
Read and follow the IMPORTANT SAFETY INSTRUCTIONS outlined in this
User Guide before operating this appliance, pages 1 – 2.
Failure to do so can result in death, electric shock, fire or injury to persons.
English Page 1 – 32
Español Pág 33 – 68
Contents
Important Safety Instructions ............................................................................... 1–2
Installation .................................................................................................................... 3–7
Temperature Controls ................................................................................................ 8–9
Fresh Food Features.................................................................................................. 10–12
Freezer Features ......................................................................................................... 13
Ice and Water .............................................................................................................. 14–16
Water Filter ................................................................................................................... 17–19
Food Storage Tips ...................................................................................................... 20–22
Care and Cleaning .................................................................................................... 23–26
Operating Sounds ...................................................................................................... 27
Troubleshooting .......................................................................................................... 28–31
Warranty and Service ............................................................................................... 32
IMPORTANT SAFETY INSTRUCTIONS
Installer: Please leave this guide with this appliance.
Consumer: Please read and keep this Use and Care
Guide for future reference; it provides the proper use
and maintenance information.
Keep sales receipt and/or canceled check as proof of
purchase.
Call: USA TOLL FREE
1.888.9.FNP.USA (1.888.936.7872)
www.fisherpaykel.com
Have complete model and serial number identification
of your refrigerator. This is located on a data plate
inside the fresh food compartment, on the upper left
side. Record these numbers below for easy access.
Model Number _____________________________
Serial Number _____________________________
Date of Purchase ___________________________
In our continuing effort to improve the quality and
performance of our appliances, it may be necessary
to make changes to the appliance without revising
this guide.
What You Need to Know
About Safety Instructions
Warning and Important Safety Instruc tions appearing
in this guide are not meant to cover all possible
conditions and situations that may occur. Common
sense, caution and care must be exercised when
installing, maintaining or operating appliance.
Always contact the manufacturer about problems or
conditions you do not understand.
DANGER
To reduce risk of injury or death, follow basic
precautions, including the following:
Important: Child entrapment and suffocation are
not problems of the past. Junked or abandoned
refrigerators are still dangerous – even if they sit
out for “just a few days.” If you are getting rid of
your old refrigerator, please follow the instructions
below to help prevent accidents.
Before you throw away your
old refrigerator or freezer:
• Take off the doors.
• Leave the shelves in place so
children may not easily climb
inside.
• Cut off power cord plug.
This appliance is equipped with a three-prong
grounded plug for your protection against possible
electrical shock hazards. It must be plugged into
a properly grounded wall receptacle. Where a
standard two-prong wall receptacle is encountered,
it is the personal responsibility and obligation of
the customer to have it replaced with a properly
grounded three-prong wall receptacle. Do not,
under any circumstances, cut or remove the
third (ground) prong from the power cord.
Do not use an adapter plug.
Power supply cord with
three-prong grounded plug
Recognize Safety Symbols, Words,
Labels
DANGER
DANGER – Immediate hazards which WILL
result in severe personal injury or death.
WARNING
WARNING – Hazards or unsafe practices which
COULD result in severe personal injury or death.
CAUTION
CAUTION – Hazards or unsafe practices which COULD
result in minor personal injury or property damage.
1
Properly
grounded type
wall receptacle
IMPORTANT SAFETY INSTRUCTIONS
WARNING
To reduce risk of fire, electric shock, serious
injury or death when using your refrigerator,
follow basic precautions, including the following:
1. Read all instructions before using the refrigerator.
2. Observe all local codes and ordinances.
3. Be sure to follow grounding instructions.
4. Check with a qualified electrician if you are
not sure this appliance is properly grounded.
5. Do not ground to a gas line.
6. Do not ground to a cold-water pipe.
7. Refrigerator is designed to operate on a
separate 115 volt, 15 amp., 60 cycle line.
8. Do not modify plug on power cord. If plug does
not fit wall receptacle, have proper receptacle
installed by a qualified electrician.
9. Do not use a two-prong adapter, extension
cord or power strip.
10. Do not remove warning tag from power cord.
11. Do not tamper with refrigerator controls.
12. Do not service or replace any part of refrigerator
unless specifically recommended in Use and Care
Guide or published user-repair instructions.
Do not attempt service if instructions are not
under stood or if they are beyond personal skill level.
13. Always disconnect refrigerator from electrical
supply before attempting any service. Disconnect
power cord by grasping the plug, not the cord.
14. Install refrigerator according to Installation
Instructions. All connections for water, electrical
power and grounding must comply with local
codes and be made by licensed personnel when
required.
15. Keep your refrigerator in good condition. Bumping
or dropping refrigerator can damage refrigerator
or cause refrigerator to malfunction or leak.
If damage occurs, have refrigerator checked by
qualified service technician.
16. Have worn power cords and/or loose plugs
replaced by a qualified service technician.
17. Always read and follow manufacturer’s storage
and ideal environment instructions for items being
stored in refrigerator.
18. Your refrigerator should not be operated in the
presence of explosive fumes.
19. Children should not climb, hang or stand on any
part of the refrigerator.
20. Clean up spills or water leakage associated with
water installation.
SAVE THESE INSTRUCTIONS
2
INSTALLATION
Location
• Do not install refrigerator near oven, radiator or
other heat source. If not possible, shield refrigerator
with cabinet material.
• Do not install where temperature falls below 55° F
(13° C) or rises above 110° F (43° C). Mal function
may occur at this temperature.
• Refrigerator is designed for indoor household
application only.
Measuring the Opening
When installing your refrigerator, allow
1
⁄2” space behind machine compartment cover
top and
(located in the rear) for proper air circulation. If the
refrigerator is placed with the door hinge side against
a wall, you may want to allow additional space so the
door can be opened wider.
Subflooring or floor coverings (i.e. carpet, tile, wood
floors, rugs) may make your opening smaller than
anticipated.
Some clearance may be gained by using the leveling
procedure under Leveling, page 5.
Important: If refrigerator is to be installed into a
recess where the top of the refrigerator is completely
covered, use dimensions from floor to top of hinge cap
to verify proper clearance.
1
⁄2” space at
• Use an appliance dolly when moving refrigerator.
ALWAYS truck refrigerator from its side or back–
NEVER from its front.
• Protect outside finish of refrigerator during transport
by wrapping cabinet in blankets or inserting padding
between the refrigerator and dolly.
• Secure refrigerator to dolly firmly with straps or
bungee cords. Thread straps through handles when
possible. Do not over-tighten. Over- tightening
restraints may dent or damage outside finish.
Transporting Your Refrigerator
• NEVER transport refrigerator on its side. If an
upright position is not possible, lay refrigerator
on its back. Allow refrigerator to sit upright for
approximately 30 minutes before plugging it in
to assure oil returns to the compressor. Plugging
refrigerator in immediately may cause damage to
internal parts.
3
INSTALLATION
Door and Hinge Removal
Some installations require door removal to get
refrigerator to final location.
Materials Needed:
• Phillips screwdriver
3
•
⁄8” hex head driver
WARNING
To avoid severe personal injury or death,
observe the following:
• Disconnect power to refrigerator before removing
doors. Connect power only after replacing doors.
• Green ground wire must be attached to top hinge
while performing door removal and replacement.
• Tape decorative panels (select models) securely
into place before removing door handles.
CAUTION
To avoid property damage, observe the
following:
• Protect vinyl or other flooring with cardboard,
rugs or other protective material, prior to moving
refrigerator.
• Do not adjust refrigerator to be any shorter than
1
⁄2” tall (minus hinge and cap). Doing so may
68
damage underside components.
1. Unplug power cord from power source.
2. Remove toe grille (see page 5).
• Open both doors 180°, or as wide as possible.
To Disconnect the Water Line:
• Push in white collar (A) and hold.
• Pull the door-side tube from the connector (B).
To Reconnect the Water Line:
• Firmly push tube
5
⁄8” into the connector. Use
lines on the tube as a guide for full insertion.
• If tube end is
damaged, cut off
before reconnecting.
5
⁄8”
A
• If leaking occurs,
reconnect the line.
3. Close doors.
4. Remove top hinge covers by
removing Phillips screws.
5
5. Unscrew
⁄16” hex head screws from
top hinges.
6. For ice and water dispensing
models only: Detach main wire
connector harness.
• Do not remove screw
connecting green ground wire.
• To detach main wire harness,
use a flat blade tool or fingernail to press junction point
between two connectors to
release.
7. Remove top hinges along with doors.
B
Note: For refrigerators in operation, shut off water
before removing water line from the door.
8. Remove bottom hinges with a
3
⁄8” hex head driver.
Replacing the Doors
• To replace the doors, follow the steps in Door and
Hinge Removal in reverse order.
Important: If water line tube end is damaged, cut off
5
⁄8” before reconnecting.
4
INSTALLATION

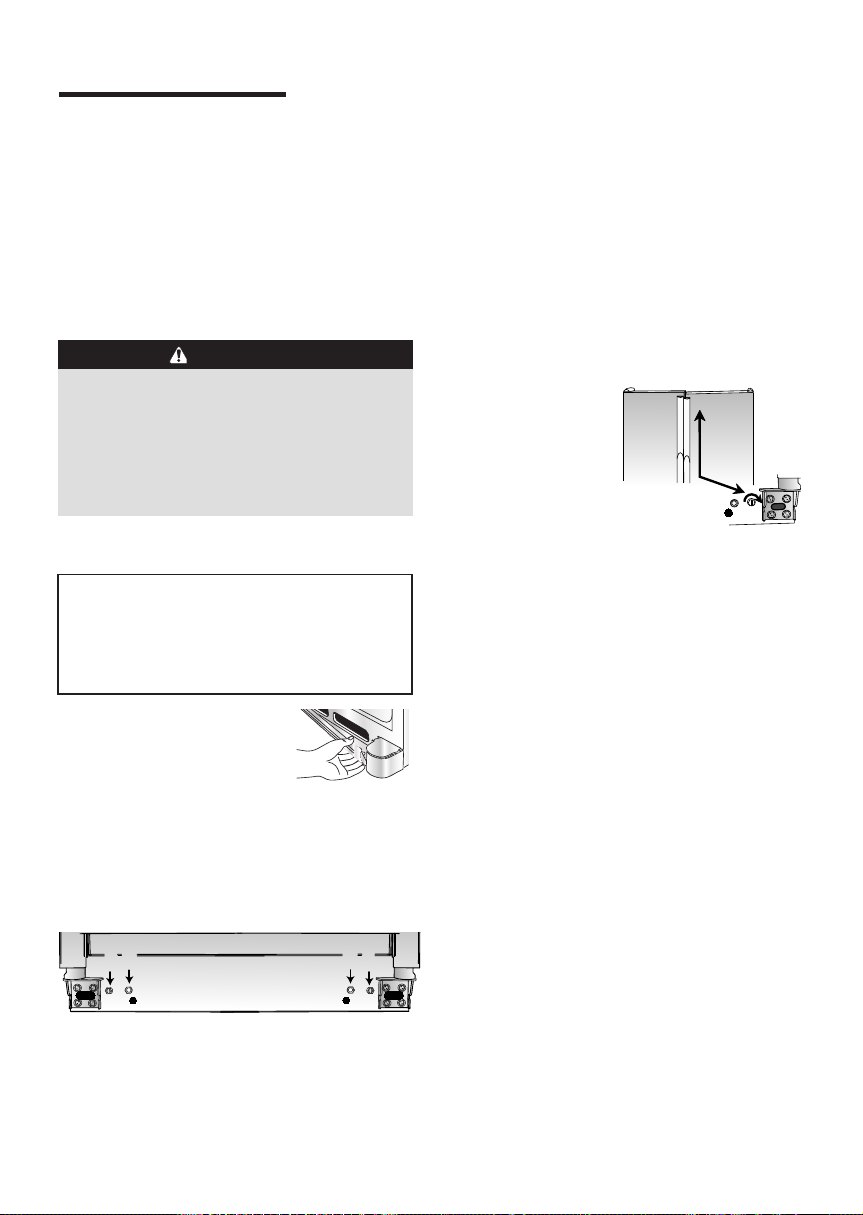

Leveling
CAUTION
To protect personal property and refrigerator
from damage, observe the following:
• Protect vinyl or other flooring with cardboard,
rugs, or other protective material.
• Do not use power tools when performing
leveling procedure.
To enhance the appearance and maintain performance,
the refrigerator should be level.
Notes:
• Complete any required door reversal, panel
installation and/or a water supply connection
before leveling.
• Some models only have adjustment screws (A).
Materials Needed
3
•
⁄8” hex head driver
• Carpenter’s level
1. Remove toe grille.
• Grasp firmly and pull
outward to unclip.
2. Using hex head driver, turn front adjustment
screws (A) clockwise to raise and counterclockwise
to lower the front of the refrigerator.
5. If required, correct rocking of refrigerator by
turning rear adjustment screw clockwise to
raise rocking corner. If doors are uneven, do the
following:
• Determine which
door needs to be
raised.
• Turn front roller
adjustment screw
(A) clockwise to
raise front corner of
door.
• If one refrigerator door has reached the limit
of its adjustment range and doors are still
not level, raise or lower the opposite door by
turning roller adjustment screw clockwise or
counterclockwise.
1
• Check with level to verify
proper door closure.
• If refrigerator is aligned and stable, replace toe
grille and hinge covers.
• Align the toe grille mounting clips with the lower
cabinet slots.
• Push the toe grille firmly until it snaps into place.
⁄4” tilt to the back for
B
A
3. Select models also have rear adjustment screws
(B). Using the hex head driver, turn each of these
adjustment screws (B) to raise or lower the rear of
the refrigerator.
4. Using the carpenter’s level, make sure front of
refrigerator is
back of refrigerator and that the refrigerator is level
from side to side.
5
1
⁄4” (6 mm) or 1⁄2 bubble higher than
B
A
INSTALLATION
Connecting the Water Supply
WARNING
To reduce risk of injury or death, follow basic
precautions, including the following:
• Read all instructions before installing ice maker.
• Do not attempt installation if instructions are not
understood or if they are beyond personal skill
level.
• Observe all local codes and ordinances.
• Do not service ice maker unless specifically
recommended in Use & Care Guide or published
user-repair instructions.
• Disconnect power to refrigerator before installing
ice maker.
• Water damage due to an improper water
connection may cause mold/mildew growth.
Clean up spills or leakage immediately.
CAUTION
To avoid property damage or possible injury,
follow basic precautions, including the
following:
• Consult a plumber to connect
tubing to household plumbing to assure
compliance with local codes and ordinances.
• Confirm water pressure to water valve is between
35 and 100 pounds per square inch, 20 pounds
per square inch without filter.
• Do not use a self-piercing, or
Both reduce water flow can become clogged over
time, and may cause leaks if repair is attempted.
• Wait two to three hours before placing refrigerator
into final position to check and correct any water
leaks. Recheck for leaks after 24 hours.
• Verify the copper tubing under the sleeve is
smooth and free from defects. Do not reuse
an old sleeve.
Materials Needed
1
•
⁄4” outer diameter flexible copper tubing
• Shut-off valve (requires a
water supply line before valve attachment)
• Adjustable wrench (2)
1
•
⁄4” hex nut driver
1
⁄4” O.D. copper
3
⁄16” saddle valve.
1
⁄4” hole to be drilled into
Notes:
• Use copper tubing only for installation. Plastic is
less durable and can cause damage.
• Add 8’ to tubing length needed to reach water
supply for creation of service loop.
1. Create service loop with
copper tubing (minimum
2’ diameter). Avoid kinks
in the copper tubing when
bending the service loop.
Do not use plastic tubing.
2. Remove plastic cap from water
valve inlet port.
3. Place brass nut (A) and sleeve (B)
on copper tube end as illustrated.
Reminder: Do not use an old
sleeve. The nut and sleeve are
provided in the Use and Care
packet.
4. Place end of copper tubing into
water valve inlet port. Shape
tubing slightly - Do not kink – so
that tubing feeds straight into inlet
port.
5. Slide brass nut over sleeve and
screw nut into inlet port.
Place adjustable wrench on nut
(1) attached to plastic waterline
and maintain position.
Using second adjustable
wrench, turn the lower nut
(2) counterclockwise and fully
tighten while holding the upper
nut in place.
Important: Do not over-tighten. Cross threading
may occur.
2’ diameter
minimum
B
A
B
A
1
2
Cont.
6
INSTALLATION
6. Pull on tubing to confirm connection is secure.
Connect tubing to frame
with water tubing clamp
(C) and turn on water
supply. Check for leaks
and correct if necessary.
Continue to observe the
water supply connection
for two to three hours
prior to moving the
refrigerator to its
permanent location.
7 . Monitor water connection for 24 hours.
Correct leaks, if necessary.
Handle Removal
Handles are installed at the factory.
C
Materials Needed:
5
• 4 mm (
To Remove:
• Remove cap-screw from handle mounting post
• Repeat the procedure on all posts to remove the
To Replace:
• Align handle with the mounting posts.
• Fully tighten all cap-screws to secure handle
⁄32” ) Allen wrench
using 4 mm (
handle.
in place.
5
⁄32” ) Allen wrench.
7
TEMPERATURE CONTROLS
Trisensor Climate Control
The control is located at the top front of the fresh
food compartment.
Initial Temperature Setting
Temperatures are preset at the factory at 38° F (3° C)
in the fresh food compartment and 0° F (-18° C) in
the freezer compartment.
Adjusting the Control
24 hours after adding food, you may decide that one
or both compartments should be colder or warmer.
If so, adjust the control as indicated in the Temperature
Control Guide below.
• The first touch of the or pads shows the
current temperature setting.
• The display will show the new setting for
approximately three seconds, and then return
to the actual temperature currently within that
compartment.
• Do not change either control more than one degree
at a time. Allow temperature to stabilize for 24 hours
before making a new temperature adjustment.
Temperature Control Guide
Refrigerator too cold
Refrigerator too warm
Freezer too cold
Freezer too warm
Turn refrigerator OFF
W
V
Set the Refrigerator control
to next higher number by
pressing the pad.
Set the Refrigerator control
to next lower number by
pressing the pad.
Set the Freezer control to
next higher number by
pressing the pad.
Set the Freezer control
to next lower number by
pressing the pad.
Press the Freezer pad
until OFF appears in the
display. Press either the
Freezer or Refrigerator
pad to turn back on.
V
W
V
W
V
W
Speed Ice
When activated, Speed Ice reduces the freezer
temperature to the optimum setting for 24 hours in
order to produce more ice. Important: When the
Speed Ice feature is in operation, the and pads
for the Freezer control will not operate.
Reset Filter
When a water filter has been installed in the
refrigerator, the yellow Order light will illuminate when
90% of the volume of water for which the filter is rated
has passed through the filter OR once 11 months have
elapsed since the filter has been installed.
The red Replace light will illuminate when the rated
volume of water has passed through the filter OR 12
months have elapsed since the filter was installed.
A new filter should be installed immediately when the
Replace light is illuminated.
After replacing the filter, press and hold the Reset
Filter pad for two seconds. The Order and Replace
lights will go off.
Vacation Mode
The Vacation Mode feature causes the freezer to
defrost less frequently, conserving energy. The
Vacation Mode indicator light will illuminate when the
feature is activated. To deactivate, press the Vacation
Mode pad again OR open either door. The indicator
light will go out.
V
W
Notes :
• Door openings will not deactivate Vacation Mode
for approximately one hour after activation.
• If vacationing for more than a few days, see the
Preparing for Vacation section, page 26.
Temp Alarm
The Temp Alarm system will alert you if the freezer
or fresh food temperatures exceed normal operating
Cont.
8
TEMPERATURE CONTROLS
temperatures due to a power outage or other event.
When activated, the Temp Alarm light will illuminate.
If the freezer or fresh food temperatures have exceeded
these limits, the display will alternately show the
current compartment temperatures and the highest
compartment temperatures reached when the power
was out. An audible alarm will sound repeatedly.
Press the Temp Alarm pad once to stop the audible
alarm. The Temp Alarm light will continue to flash
and the temperatures will alternate until the
temperatures have stabilized.
To turn off Temp Alarm, press and hold the Temp
Alarm pad for three seconds. The indicator light
will go off.
Door Alarm
The Door Alarm will alert you when one of the doors
has been left open for five continuous minutes.
When this happens, an audible alarm will sound every
few seconds until the door is closed OR press the
Door Alarm pad to deactivate the feature.
Max Cool
When activated, Max Cool causes the fresh food and
freezer temperatures to drop to the minimum settings
on the control. This cools down the refrigerator and
freezer after extended door openings or when loading
the refrigerator or freezer with warm food.
Important: When the Max Cool feature is in operation,
and pads for the refrigerator and freezer
the
controls will not operate.
To activate, press the Max Cool pad. Max Cool will
deactivate automatically after 12 hours, OR press the
Max Cool pad to deactivate the feature.
User Preferences
Access the User Preferences menu to:
• Activate or turn off Super Cool (select models)
• Change the temperature display from °F to °C
• Enable or disable audible alarms.
• Adjust the light level at which the Dispenser Auto
Light will illuminate (when this feature is activated
on the ice and water dispenser) (select models)
• Activate the Sabbath Mode
To access the User Preferences menu, press and hold
the Door Alarm pad for three seconds. When in the
User Preferences mode, a short title for the feature
will appear in the Freezer temperature display and the
feature status will appear in the Refrigerator display.
1. Use the Freezer
through the features.
2. When the desired feature is displayed, use the
Refrigerator
status.
3. When changes are complete, press the Door Alarm
pad for three seconds OR close the fresh food door.
Super Cool (CC) (select models)
When Super Cool is ON, an air-mixing fan in the fresh
food compartment is activated to improve air flow and
temperature control. To save energy, this feature may
be deactivated by choosing OFF.
Temperature Display (F_C)
Change the display to show temperatures in degrees
Fahrenheit or degrees Celsius.
Alarm (AL)
When the Alarm mode is OFF, all audible alarms will
be disabled until the feature is turned ON.
Auto Light Level Selection (LL) (select models)
This setting adjusts the light level at which the
dispenser light will illuminate when the sensor detects
that the light levels in the room are low. Setting 1 is
the darkest light level setting, setting 9 is the lightest
light level setting. Important: The Auto Light (select
models) must be activated on the ice and water
dispenser control to take advantage of this option.
Sabbath Mode (SAB)
When the Sabbath Mode is ON, all control lights and
the night light will be disabled until the feature is
turned OFF. This feature does not disable the interior
lights. Press any pad to restore the control lights.
and control to scroll
and control to change the
Warm Cabinet Surfaces
At times, the front of the refrigerator cabinet may
be warm to the touch. This is a normal occurrence
that helps prevent moisture from condensing on the
cabinet. This condition will be more noticeable when
the refrigerator is first started, during hot weather and
after excessive or lengthy door openings.
9
FRESH FOOD FEATURES
Shelves
CAUTION
To avoid personal injury or property damage,
observe the following:
• Never attempt to adjust a shelf that is loaded
with food.
• Confirm shelf is secure before placing items
on shelf.
• Handle tempered glass shelves carefully. Shelves
may break suddenly if nicked, scratched, or
exposed to sudden temperature change.
Your refrigerator has Spill-Catcher™ shelves with
a spill retainer edge. This allows for easier cleanup
and has a slide out feature.
To Remove a Shelf:
• Slightly tilt up the front and lift up the rear of the
shelf, then pull the shelf straight out.
To Lock the Shelf
Into Another
Position:
• Tilt up the front edge
of the shelf.
• Insert the hooks into
the desired frame openings and let the shelf settle
into place.
• Be sure the shelf is securely locked at the rear.
The Crisper Top serves as the lower fresh food shelf.
To Remove the Crisper Top:
• Place hand under the frame to push up the glass.
Lift glass out.
To Install:
• Repeat above instructions in reverse order.
10
FRESH FOOD FEATURES
Door Storage
Beverage Chiller
(select models)
The Beverage Chiller keeps beverages
and other items colder than the rest
of the fresh food compartment. An air
inlet directs air from the freezer into
the chiller.
Controls
The Beverage Chiller control is located
on the left side wall of the fresh
food compartment. Turn the control
clockwise for colder temperature.
To Remove Beverage Chiller:
• Unload the Beverage Chiller.
• Slide the assembly up and pull straight out.
Note: If the Beverage Chiller is installed directly
under the dairy center or a door bucket, the bucket
or dairy center will need to be removed before
removing the chiller.
To Install Beverage Chiller:
• Align one of the air inlet holes with the hole
cut-out on the door.
• Slide the assembly in and down so that the hooks
are firmly seated on the door liner.
Note: The Beverage Chiller will not operate
properly if the air intake hole is not aligned with
the control location.
Dairy Center
The Dairy Center provides con venient
door storage for spreadable items
such as butter and margarine. On
select models, this compartment
can be moved to several different
locations to accommodate storage
needs.
To Remove:
• Slide dairy center up and pull out.
To Install:
• Slide assembly in and down so that the hooks are
firmly seated on the door liner.
To Remove Dairy Door:
• Press in sides of dairy door and pull out.
To Install Dairy Door:
• Slide sides of dairy door inside dairy center until
hinge points snap into place.
Door Buckets
Door Buckets can be moved to meet individual
storage needs.
To Remove:
• Lift bucket up and pull straight out.
To Install:
• Place bucket in desired door
liner retainer, push down until
bucket stops.
11
FRESH FOOD FEATURES
Storage Drawers
Humidity-Controlled Crisper Drawers
The Crisper Drawers provide a higher humidity
environment for fresh fruit and vegetable storage.
Controls
The crisper controls regulate the amount of humidity
in the crisper drawer. Slide control toward the Fruit
setting for produce with outer skins. Slide control
toward the Vegetables setting for leafy produce.
To Remove:
• Pull drawer out to full
extension. (On select
models, press tabs
toward oneself to release
drawer from rails.) Tilt up
front of drawer and pull
straight out.
To Install:
• Insert drawer into frame rails and push back
into place.
Note: For best results, keep the crispers
tightly closed.
Temperature-Controlled Drawer
This drawer can be used for storage of meats, deli
or other miscellaneous items.
The drawer features a control that
adjusts the amount of cold air allowed
into the drawer. Set the control to
Cheese to provide a normal refrigerator temperature.
Set the control to the Meat setting when a colder
temperature is desired. Use the meat setting for
storing meats.
Accessories
Covered Storage
Bucket
The Storage Bucket has a lid and
removable egg tray. When tray is
removed, bucket will accept items
such as a standard egg carton,
ice, etc.
Wine Bottle Holder
The Wine Bottle Holder will hold a single bottle.
To install slide the upper lip of the holder along the
top side of any shelf, so the holder sits underneath
the shelf.
12
FREEZER FEATURES
Shelves and Baskets
Fixed Freezer Shelf
To Remove Clip-mounted Shelves:
• Lift shelf from the right side
wall mounting clips and pull
left side of shelf out of wall
mounting holes.
To Install Clip-mounted Shelves:
• Place left side of shelf in mounting holes and press
down into wall mounting clips.
Shelves
Shelves can be removed to meet individual storage
needs.
To Remove Shelf:
• Snap right side of shelf up from
cabinet railing and slide to right.
To Install Shelf:
• Replace shelf in left side cabinet railing. Snap shelf
into right side cabinet railing.
Baskets and Drawers
Baskets and drawers (style may vary)
slide out for easy access to items
in back.
To Remove:
• Pull out to its full extension. Lift up front of
basket and remove.
To Install:
• Slide basket or drawer into cabinet railing. Lift up
front of basket or drawer, and slide to the back of
refrigerator.
To Install:
• Slide bin into railing below ice maker until bin locks
into place. Drop ice maker arm to activate ice maker.
Important: Ice bin must be locked in place for
proper ice dispensing. Turn auger driver behind bin
counterclockwise (as shown) to properly align ice bin
with auger driver.
Door Storage
Adjustable Door Buckets
Door Buckets can be moved to meet individual storage
needs.
To Remove:
• Lift the door bucket up until it clears the
retainers on the door liner, then
pull the door bucket straight out.
To Install:
• Slide bucket in above desired door liner retainer
and push down until bucket stops.
Ice Storage Bin (select models)
The Ice Storage Bin is located below the automatic
ice maker.
To Remove:
• Raise ice maker arm to deactivate ice maker.
Lift front of bin and pull out to its full extension.
Lift up front of bin and remove.
13
ICE AND WATER
Automatic Ice Maker
Note: Energy rating guides that are posted on
the refrigerator at the time of purchase do not
include optional ice maker energy usage.
Connect the ice maker to the water supply as
instructed on pages 6-7. Proper water flow and a
level refrigerator are essential for optimal ice
maker performance.
Operating Instructions
• Confirm ice bin is in place and ice maker arm is
down.
• To check the ice level or gain access to the ice bin,
lift open the door on the ice bin.
• After freezer section reaches between 0° to 2° F
(-18° to -17° C), ice maker fills with water and
begins operating. You will have a complete harvest
of ice approximately every three hours.
• Allow approximately 3-6 hours after
installation to receive first harvest
of ice.
• Discard ice created within first 12
hours of operation to verify system
is flushed of impurities.
• Stop ice production by raising ice maker arm until
click is heard.
• Ice maker will remain in the OFF position until arm
is pushed down.
• The first one or two batches will probably contain
undersized and irregular cubes because of air in
the supply line.
• When the ice cubes are ejected it is normal for
several cubes to be joined together at the ends.
They can easily be broken apart. The ice maker
will continue to make ice until the supply of ice
cubes raises the ice maker arm, shutting the ice
maker off.
• Certain sounds may accompany the various cycles
of the ice maker. The motor may have a slight
hum, the cubes will rattle as they fall into an empty
storage pan and the water valve may click or
“buzz” occasionally.
• If the ice is not used frequently, the ice cubes will
become cloudy, shrink, stick together and taste
stale. Empty the ice storage bin periodically and
wash it in lukewarm water. Be sure to dry the bin
thoroughly before replacing it.
• Beverages and foods should not be placed in the
ice storage bin for quick chilling. These items can
block the ice maker arm, causing the ice maker to
malfunction.
• Turn OFF the ice maker by raising the ice maker arm
when the water supply is to be shut off for several
hours.
To Remove the Ice Bin:
• Pull it forward, away from the ice maker. To avoid the
ice maker dumping ice while the bin is removed, turn
the ice maker OFF by raising the sensor arm.
To Install the Ice Bin:
• Reverse the above procedure. Turn the ice maker
ON by lowering the ice maker arm.
WARNING
To avoid personal injury or property damage,
observe the following:
• Do not place fingers or hands on the automatic
ice making mechanism while the refrigerator is
plugged in. This will help protect you from possible
injury. It will also prevent interference with moving
parts of the ejector mechanism and the heating
element that releases the cubes.
• Under certain rare circumstances, ice cubes may
be discolored, usually appearing with a greenbluish hue. The cause of this unusual discoloration
can be a combination of factors such as certain
characteristics of local waters, household plumbing
and the accumulation of copper salts in an
inactive water supply line which feeds the ice
maker. Continued consumption of such discolored
ice cubes may be injurious to health. If such
discoloration is observed, discard the ice cubes and
contact your dealer to purchase and install a water
line filter.
• Water damage due to improper water connection
may cause mold/mildew growth.
• Clean up water and ice spills to avoid personal
injury and to prevent mold/mildew growth.
14
ICE AND WATER
Dispenser Features
(select models)
Dispenser Light
A light activates within the dispenser area at full
power when dispensing ice or water with the main
dispenser pad.
Dispenser Pad
The Dispenser Pad is located on the back wall of the
dispensing area. When the dispenser pad is pressed,
the selection chosen on the dispenser control panel
will dispense.
Removable Tray
The Removable Tray at the bottom of the dispenser
area is designed to collect small spills and may be
easily removed for cleaning and emptying purposes.
Important: Removable tray does not drain. Do not
allow tray to overflow. If it does, remove tray and wipe
up overflow.
Water Dispenser Operation

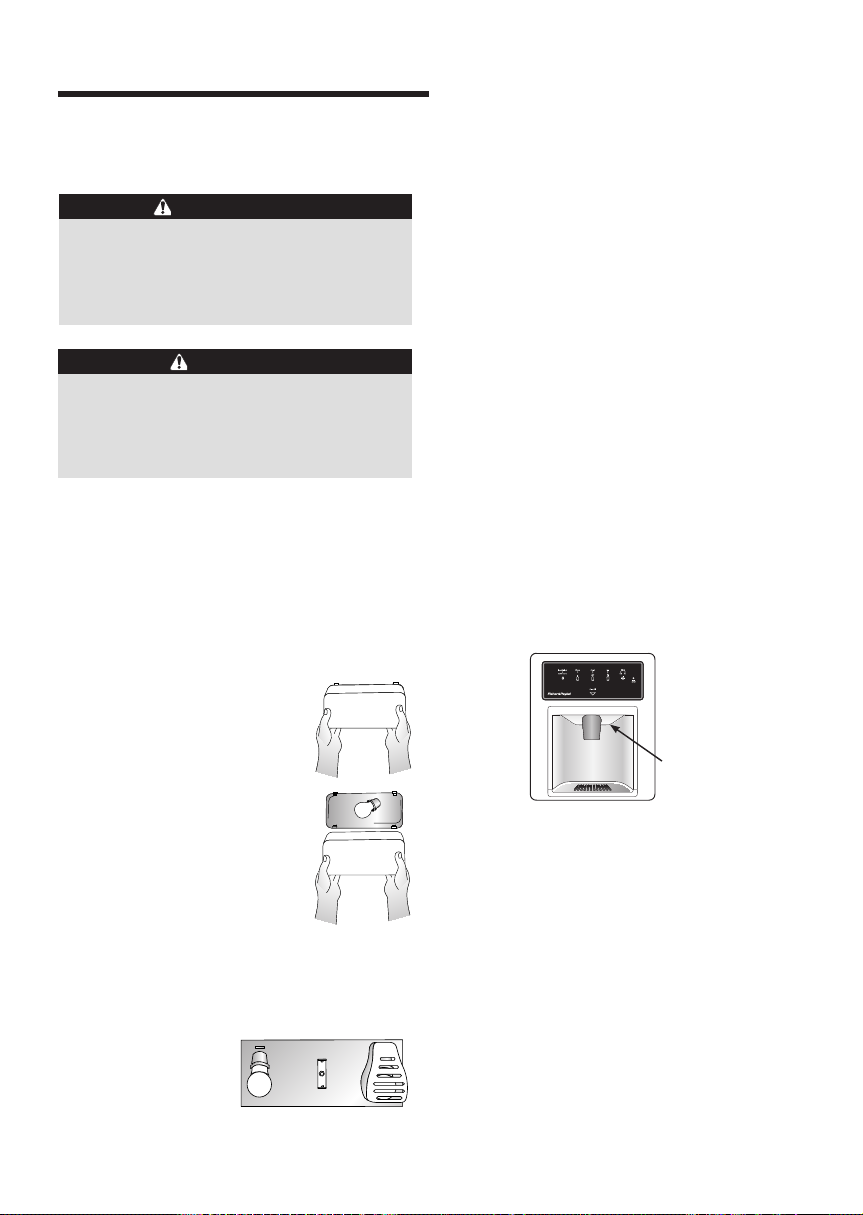

CAUTION
To avoid personal injury or property damage,
observe the following:
• Do not put fingers, hands or any foreign object
into dispenser opening.
• Do not use sharp objects to break ice.
• Do not dispense ice directly into thin glass, fine
china or delicate crystal.
15
Note: During initial use of water dispenser, there
will be a one- to two-minute delay while water tank
fills before water dispenses. Discard first 10-14
glasses of water after initially connecting refrigerator
to household water supply and after extended
periods of nonuse.
To Use Dispenser Pad:
• Choose water selection from dispenser control panel.
• Press a sturdy, wide-mouthed container against
dispenser pad. When dispensing crushed ice, hold
container as close to chute as possible to reduce
spraying.
• Release pressure on dispenser pad to stop water
dispensing. A small amount of water may continue
to dispense and collect in dispenser tray. Large spills
should be wiped dry.
Dispenser Control
Water CubeCrush
Ice Dispenser Operation
To Dispense Ice and Water:
• Select WATER, CRUSH or CUBE mode by pushing
the appropiate button on dispenser control panel.
A green light above the button indicates
mode selection.
• Press a container against the
dispenser pad. When dispensing
crushed ice, hold the container as
close to chute as possible
to reduce spraying.
Notes:
• Mode may not be changed while ice dispenser is
in operation.
• If dispenser is active for more than five minutes,
an automatic lock out sensor will shut down
power to dispenser area. See Dispenser LOCK for
unlocking information.
ICE AND WATER
Dispenser LOCK
The Dispenser LOCK prevents ice or water
from being dispensed.
To Lock Dispenser:
• Press and hold the LOCK button for three seconds.
A green indicator light above button will illuminate
when the dispenser is locked.
To Unlock Dispenser:
• Hold the LOCK button for three seconds. The green
indicator light above button will go out.
LIGHT
Press the LIGHT pad once to select the auto light
function, which activates the dispenser light at halfpower when the light sensor detects that the light
levels in room are low.
The auto indicator light will illuminate.
To Activate Light:
• Press the LIGHT pad again to turn the dispenser
light on continuously. The on indicator light will
illuminate.
To Deactivate Light:
• Press the LIGHT pad again to turn the
dispenser light off.
Lock
FRONT FILL Button
The FRONT FILL button works independently of the
dispenser controls, providing an up-front alternative to
the dispenser pad for dispensing water. This feature is
convenient for filling large items that will not fit into the
dispenser area (i.e. sport bottles, pitchers, large pans,
coffee pots).
This feature allows added convenience of dispensing ice
and water simultaneously. To use, choose your preferred
ice mode from dispenser control panel.
Press container against dispenser pad while pressing
the FRONT FILL button.
16
WATER FILTER
Water Filter Removal and
Installation
To avoid serious illness or death, do not use
refrigerator where water is unsafe or of unknown
quality without adequate disinfection before or
after use of filter.
After installing a new water filter, always
dispense water for two minutes before
removing the filter for any reason. Air trapped
in system may cause water and cartridge to
eject. Use caution when removing.
• The bypass cap does not filter water. Be sure to
have replacement cartridge available when filter
change is required.
• If water filtration system has been allowed to
freeze, replace filter cartridge.
• If system has not been used for several months,
or water has an unpleasant taste or odor, flush
system by dispensing water for two to three
minutes. If unpleasant taste or odor persists,
change filter cartridge.
Initial Installation
The water filter is located in the upper right-hand
corner of the fresh food compartment.
1. Remove blue bypass cap
and retain for later use.
2. Remove sealing label from
end of filter and insert into
filter head.
3. Rotate gently clockwise
until filter stops. Snap filter
cover closed.
4. Reduce water spurts by
flushing air from system.
Run water continuously for
two minutes through
dispenser until water runs
steady. During initial use,
allow about a one- to two-minute delay in water
dispersal to allow internal water tank to fill.
• Additional flushing may be required in some
households where water is of poor quality.
(select models)
WARNING
CAUTION
Replacing Water Filter
Important: Air trapped in system may cause
water and cartridge to eject. Use caution when
removing.
1. Turn filter counterclockwise until it releases from
filter head.
2. Drain water from filter into sink, and dispose in
normal household trash.
3. Wipe up excess water in filter cover and continue
with Initial Installation, steps 2 through 4.
The filter should be changed at least every 12 months.
Important: Condition of water and amount used
determines life span of water filter cartridge. If water
use is high, or if water is of poor quality, replacement
may need to take place more often.
To purchase a replacement water filter cartridge,
contact your dealer or call 1.888.9.FNP.USA
(1.888.936.7872)
The dispenser feature may be used without a water
filter cartridge. If you choose this option, replace filter
with blue bypass cap.
17
WATER FILTER
Standard No. 53: Health Effects
Parameter
USEPA
MCL
Influent
Challenge
Concentration
Influent
Average
Efflu ent % Reduction
Min. Required
Reduction
Average Maximum Average Minimum
Turbidity 1 NTU** 11 ± 1 NTU*** 10.7 NTU 0.31 NTU .049 NTU 97.09% 95.20% 0.5 NTU
Cysts 99.5% Reduction Minimum 50,000/L 166,500 #/L <1 #/L < 1 #/L > 99.99% >99.99% > 99.95%
Asbestos 99% Reduction
107 108 fibers/L; fibers >10
micrometers in length
155 MF/L <1 MF/L < 1 MF/L > 99.99% > 99.99% 99%
Lead at pH 6.5 0.015 mg/L 0.15 mg/L + 10% 0.153 mg/L < .001 mg/L < .001 mg/L > 99.35% > 99.29% 0.10 mg/L
Lead at pH 8.5 0.015 mg/L 0.15 mg/L + 10% 0.150 mg/L < .001 mg/L < .001 mg/L > 99.33% > 99.29% 0.10 mg/L
Mercury at pH 6.5 0.002 mg/L .006 mg/L ± 10% 0.006 mg/L 0.0003 mg/L 0.0005 mg/L 95.70% 90.91% 0.002 mg/L
Mercury at pH 8.5 0.002 mg/L .006 mg/L ± 10% 0.006 mg/L 0.0008 mg/L 0.0015 mg/L 86.22% 75.93% 0.002 mg/L
Atrazine 0.003 mg/L 0.009 mg/L + 10% 0.009 mg/L <0.002 mg/L 0.002 mg/L 76.99% 75.31% 0.003 mg/L
Benzene 0.005 mg/L 0.015 mg/L ± 10% 0.014 mg/L 0.0006 mg/L 0.0011 mg/L 95.71% 92.14% 0.005 mg/L
Carbofuran 0.04 mg/L 0.08 mg/L ± 10% 0.081 mg/L <0.001 mg/L <0.001 mg/L 98.74% 98.46% 0.04 mg/L
p-Dichlorobenzene
0.075 mg/L .225 mg/L ± 10% 0.208 mg/L < 0.0005 mg/L <0.0005 mg/L 99.76% 99.74% 0.075 mg/L
Lindane 0.0002 mg/L 0.002 mg/L + 10% 0.002 mg/L 0.000 mg/L <0.0001 mg/L 98.72% 96.50% 0.0002 mg/L
Toxaphene 0.003 mg/L 0.015 ± 10% 0.015 mg/L <0.001 mg/L <0.001 mg/L 92.97% 91.67% 0.003 mg/L
System Specification and Performance Data Sheet
Refrigerator Water Filter Cartridge Model UKF8001AXX
Specifications
Service Flow Rate (Maximum) ............................................ 0.78 GPM (2.9 L/min)
Rated Service Life UKF8001AXX-750 (Maximum) ...... 750 gallons /2838 liters
Maximum Operating Temperature .................................... 100° F / 38° C
Minimum Pressure Requirement ....................................... 35 psi / 241 kPA
Minimum Operating Temperature ..................................... 33° F/1° C
Maximum Operating Pressure ............................................ 120 psi /827 kPA
Performance Data
Parameter
Chlori ne — 2.0 mg/ L ± 10% 1.88 mg/L
T & O — – – — — — — —
Particulate** – at least 10,000 particles/ml 5,700,000 #/ml 30,583 #/ml 69,000 #/ml 99.52% 98.94% 85%
USEPA
MCL
Influent
Challenge Concentration
Standard No. 42: Aesthetic Effects
Influent
Average
Efflu ent % Reduction
Average Maximum Average Minimum
<0.05136364
mg/L
0.06 mg/L >97.26% 96.84%
1000 Apollo Road
Eagan, Minnesota 55121-2240
651.450.4913
EPA EST #35917-MN-1
100834/B
Min. Required
Reduction
50%
* Tested using a flow rate of 0.78 gpm; pressure of 60 psig; pH of 7.5 + 0.5; temp. of
68° + 5° F (20° + 3° C)
** Measurement in Particles /ml. Particles used were 0.5 - 1 microns
*** NTU - Nephelometric Turbidity Units
General Use Conditions
Read this Performance Data Sheet and compare the
capabilities of this unit with your actual water treatment
needs.
DO NOT use this product where water is
micro bio logic ally unsafe or of unknown quality without
adequate disinfection before or after the system.
System certified for cyst reduction may be used on
disinfected water that may contain filterable cysts.
USE ONLY WITH COLD WATER SUPPLY. CHECK FOR
COMPLIANCE WITH THE STATE AND LOCAL LAWS
AND REGULATIONS.
Tested and certified by NSF International against ANSI/NSF Standards 42 &
53 in models UKF8001AXX-750 for the reduction of:
Standard No. 42: Aesthetic Effects
Taste and Odor Reduction
Chlorine Taste & Odor
Mechanical Filtration Unit
Particulate Reduction Class 1
Standard No. 53: Health Effects
Chemical Reduction Unit
Lead, Atrazine, Lindane, Benzene,
Carbofuran, p-Dichlorobenzene,
Mercury & Toxaphene Reduction
Mechanical Filtration Unit
Cyst, Turbidity and Asbestos Reduction
The retractable water filtration system uses a UKF8001AXX
replacement cartridge. Timely replacement of filter cartridge
is essential for performance satisfaction from this filtration
system. Please refer to the applicable section of your Use &
Care Guide for general operation, maintenance requirements
and troubleshooting. Suggested retail price of replacement
water filter is $39.99.
This system has been tested according to ANSI/NSF 42
and 53 for reduction of the substance listed above. The
concentration of the indicated substances in water entering
the system was reduced to a concentration less than or equal
to the permissible limit for water leaving the system,
as specified in ANSI/NSF 42 and 53.
18
WATER FILTER
State of California
Department of Health Services
Water Treatment Device
Certificate Number
03 - 1583
Date Issued: September 16, 2003
Date Revised: April 22, 2004
Trademark /Model Designation Replacement Elements
UKF8001AXX750 UKF8001AXX
469006-750 46 9006
67003523-750 67003523
Manufacturer: PentaPure Inc.
The water treatment device(s) listed on this certificate have met the testing requirements pursuant to Section
116830 of the Health and Safety Code for the following health related contaminants:
Microbiological Contaminants and Turbidity Inorganic/Radiological Contaminants
Cysts Asbestos
Turbidity Lead
Mercury
Organic Contaminants
Atrazine
Lindane
Benzene
Carbofuran
p-dichlorobenzene
Toxaphene
Rated Service Capacity: 750 gal. Rated Service Flow: 0.78 gpm
Do not use where water is microbiologically unsafe or with water of unknown quality, except that systems certified for
cyst reduction may be used on disinfected waters that may contain filterable cysts.
19
Conditions of Certification:
Loading...
