Fisher & Paykel OR24SDMBGX2 User Manual
Freestanding range
OR24SDMBGX model
User guide
Cuiseur indépendant
OR24SDMBGX model
Guide d’utilisation
US CA
1
WARNING
• ALL RANGES CAN TIP
• INJURY TO PERSON COULD RESULT
• INSTALL ANTI-TIP DEVICE PACKED
WITH RANGE
• SEE INSTALLATION INSTRUCTIONS
WARNING!
NEVER use this appliance as a space heater to heat or warm the
room. Doing so may result in carbon monoxide poisoning and
overheating of the oven.
WARNING: IF THE INFORMATION IN THIS MANUAL IS NOT
FOLLOWED EXACTLY, A FIRE OR EXPLOSION MAY RESULT
CAUSING PROPERTY DAMAGE, PERSONAL INJURY, OR
DEATH.
✓ Do not store or use gasoline or other flammable vapors and liquids
in the vicinity of this or any other appliance.
✓ WHAT TO DO IF YOU SMELL GAS:
• Do not try to light any appliance.
• Do not touch any electrical switch; do not use any phone in your
building.
• lmmediately call your gas supplier from a neighbor's phone.
Follow the gas supplier's instructions.
• lf you cannot reach your gas supplier, call the fire department.
✓ Installation and service must be performed by a qualified installer,
service agency, or the gas supplier.
This appliance is designed and manufactured solely for the cooking of domestic (household)
food and in not suitable for any none domestic application and therefore should not be used
in a commercial environmement.
The appliance guarantee will be void if the appliance is used within a non domestic
environnement i.e. a semi commercial, commercial or communal environment.
2
Dear Customer,
Thank you for having purchased and given your preference to our product.
The safety precautions and recommendations reported below are for your own safety and that of others. They
will also provide a means by which to make full use of the features offered by your appliance.
Please preserve this booklet carefully. It may be useful in future, either to yourself or to others in the event that
doubts should arise relating to its operation.
This appliance must be used only for the task it has explicitly been designed for, that is for cooking foodstuffs.
Any other form of usage is to be considered as inappropriate and therefore dangerous.
The manufacturer declines all responsibility in the event of damage caused by improper, incorrect or illogical
use of the appliance.
IMPORTANT - PLEASE READ AND FOLLOW
✓ Before beginning, please read these instructions completely and carefully.
✓ Do not remove permanently affixed labels, warnings, or plates from the product. This
may void the warranty.
✓ Please observe all local and national codes and ordinances.
✓ Please ensure that this product is properly grounded.
✓ The electrical plug should always be accessible.
✓ The installer should leave these instructions with the consumer who should retain
for local inspector's use and for future reference.
Installation must conform with local codes or in the absence of codes, the National Fuel
Gas Code ANSIZ223.1 - Iatest edition. Electrical installation must be in accordance
with the National Electrical Code, ANSI/NFPA70 - latest edition and/or local codes. IN
CANADA: Installation must be in accordance with the current CAN/CGA-B149.1 National
Gas Installation Code or CAN/CGA-B149.2, Propane Installation Code and/or local codes.
Electrical installation must be in accordance with the current CSA C22.1 Canadian Electrical
Codes Part 1 and/or local codes.
INSTALLATION IN MANUFACTURED (MOBILE) HOME: The installation must conform
with the Manufactured Home Construction and Safety Standard, Title 24 CFR, Part 3280
[formerly the Federal Standard for Mobile Home Construction and Safety, Title 24, HUD
(Part 280)] or, when such standard is not applicable, the Standard for Manufactured Home
Installations, ANSI/NCSBCS A225.1, or with local codes where applicable.
INSTALLATION IN RECREATIONAL PARK TRAILERS: The installation must conform with
state or other codes or, in the absence of such codes, with the Standard for Recreational
Park Trailers, ANSI A119.5.
Installation of any gas-fired equipment should be made by a Iicensed plumber. A manual
gas shut-off valve must be installed in the gas supply line ahead of the appliance in the gas
stream for safety and ease of service.
If an external electrical source is utilized, the appliance, when installed, must be electrically grounded in accordance with local codes or, in the absence of local codes, with the
national Electrical Code, ANSI/NFPA 70.
This range is supplied with a protective film on steel and aluminium parts.
This film must be removed before installing/using the appliance.
THIS RANGE IS FOR RESIDENTIAL USE ONLY
3
USER INSTRUCTIONS
GENERAL INFORMATION
WARNING!!
1. This appliance shall not be used for space heating. This
information is based on safety considerations.
2. AlI openings in the wall behind the appliance and in the floor
under the appliance shall be sealed.
3. Keep appliance area clear and free from combustible
materials, gasoline, and other flammable vapors.
4. Do not obstruct the flow of combustion and ventilation air.
5. Disconnect the electrical supply to the appliance before
servicing.
6. When removing appliance for cleaning and/or service;
A. Shut off gas at main supply.
B. Disconnect AC power supply.
C. Disconnect gas line to the inlet pipe.
D. Carefully remove the range by pulling outward.
CAUTION: Range is heavy; use care in handling.
7.
Electrical Requirement
Electrical installation should comply with national and local
codes.
8.
Air Supply and Ventilation
The installer must refers to local/national codes.
WARNING!!
ELECTRICAL GROUNDING INSTRUCTIONS
The range must be electrically grounded in accordance
with local codes or, in the absence of local codes, with the
National Electrical Code, ANSI/NFPA No. 70-latest edition.
Installation should be made by a Iicensed electrician.
FOR PERSONAL SAFETY, THIS APPLIANCE MUST BE
PROPERLY GROUNDED.
If an external electrical source is utilized, the installation must
be electrically grounded in accordance with local codes or, in
the absence of local codes, with the national Electrical Code,
ANSI/NFPA 70.
This appliance is equipped with a three-prong grounding
plug for your protection against shock hazard and should be
plugged directly into a properly grounded socket.
Do not under any circumstances cut or remove the third
(ground) prong from the power plug.
REPLACEMENT PARTS
Only authorized replacement parts may be used in performing
service on the range. Replacement parts are available from
factory authorized parts distributors. Contact the nearest parts
distributor in your area.
9.
Gas Manifold Pressure
Natural gas - 4.0” W.C.P.
LP/Propane - 11.0” W.C.P.
10. The misuse of oven door (e.g. stepping, sitting, or leaning
on them) can result in potential hazards and/or injuries.
11. When installing or removing the range for service, a rolling
lift jack should be used. Do not push against any of the
edges of the range in an attempt to slide it into or out of
the installation. Pushing or pulling a range (rather than using
a lift jack) also increases the possibility of bending the leg
spindles or the internal coupling connectors.
4
IMPORTANT PRECAUTIONS AND RECOMMENDATIONS
After having unpacked the appliance, check to ensure that it is not damaged.
In case of doubt, do not use it and consult your supplier or a professionally qualified technician.
Packing elements (i.e. plastic bags, polystyrene foam, nails, packing straps, etc.) should not be left around within easy reach of children, as these may cause serious injuries.
The packaging material is recyclable and is marked with the recycling symbol
✓
Do not attempt to modify the technical characteristics of the appliance as this may become dangerous to use.
✓
Do not carry out cleaning or maintenance operations on the appliance without having previously disconnected it from the
electric power supply.
✓
After use, ensure that the knobs are in
✓
Do not allow children or other incapable people to use the appliance without supervision.
✓
During and after use of the range, certain parts will become very hot. Do not touch hot parts.
✓
Keep children away from the range when it is in use.
✓
This range is supplied with a protective film on steel and aluminium parts. This film must be removed before installing/using
the appliance.
✓
Fire risk! Do not store flammable material in the oven, and in the storage compartment.
✓
Make sure that electrical cables connecting other appliances in the proximity of the range cannot come into contact with the
hob or become entrapped in the oven door.
✓
Do not line the oven walls with aluminium foil. Do not place shelves, broiler pan, pans or other cooking utensils on the base
of the oven chamber.
✓
The manufacturer declines all liability for injury to persons or damage to property caused by incorrect or improper use of the
appliance.
✓
To avoid any possible hazard, the appliance must be installed by qualified personnel only. Any repairs by unqualified persons
may result in electric shock or short circuit. In order to avoid possible injuries to your body or to the appliance, do not
attempt any repairs by yourself. Such work should be carried out by qualified service personnel only.
✓
Danger of burns! The oven and cooking accessories may become very hot during operation. Make sure children are kept
out of reach and warn them accordingly. To avoid burns use kitchen clothes and gloves when handling hot parts or utensils.
✓
Stand away from the range when opening oven door. Hot air or steam which escapes can cause burns to hands, face, and/
or eyes.
✓
Never clean the range, oven and storage compartment with a high-pressure steam cleaning device, as it may provoke a
short circuit.
✓
This appliance is intended for use in your household. Never use the appliance for any other purpose!
✓
If you should decide not to use this appliance any longer (or decide to substitute an older model), before disposing of it, it
is recommended that it be made inoperative in an appropriate manner in accordance to health and environmental protection
regulations, ensuring in particular that all potentially hazardous parts be made harmless, especially in relation to children who
could play with old appliances.
Remove the door and the storage drawer before disposal to prevent entrapment.
OFF
position.
.
WARNING!
The Governor of California is required to publish a list of substances known to the state of California to cause cancer
or reproductive harm and requires businesses to warn customers of potential exposures to such substances.
WARNING!: Gas appliances contain or produce substances which can cause death or serious illness and which are
known to the State of California to cause cancer, birth defects or other reproductive harm. To reduce the risk from
substances in fuel or from fuel combustion, make sure this appliance is installed, operated, and maintained according
to the manufacturer's instructions.
IMPORTANT PRECAUTIONS AND RECOMMENDATIONS FOR USE OF ELECTRICAL
APPLIANCES
Use of any electrical appliance implies the necessity to follow a series of fundamental rules. In particular:
✓
Never touch the appliance with wet hands or feet;
✓
Do not operate the appliance barefooted;
✓
Do not allow children or disabled people to use the appliance without your supervision.
The manufacturer cannot be held responsible for any damages caused by improper, incorrect or unreasonable use of the appliance.
5
1
3
1
✑
features
WARNING - VERY IMPORTANT NOTICE
Never obstruct the slots on the backguard.
2
1
3
4
COOKING HOB
1. Auxiliary burner (A) - 3500 BTU/hr
2. Left semi-rapid burner (SR) - 6000 BTU/hr
3. Right semi-rapid burner (SR) - 6000 BTU/hr
4. Triple-ring burner (TR) - 12000 BTU/hr
Note:
- The electric gas-lighting device is incorporated into the
knobs.
- The appliance has a safety valve system fitted, the flow of
gas will be stopped if and when the flame should accidentally go out.
Fig. 1.1
CAUTION:
If the burner is accidentally extinguished, turn the gas
off at the control knob and wait at least 1 minute before
attempting to relight.
CAUTION:
Gas appliances produce heat and humidity in the environment in which they are installed.
Ensure that the cooking area is well ventilated following
national/local codes.
6

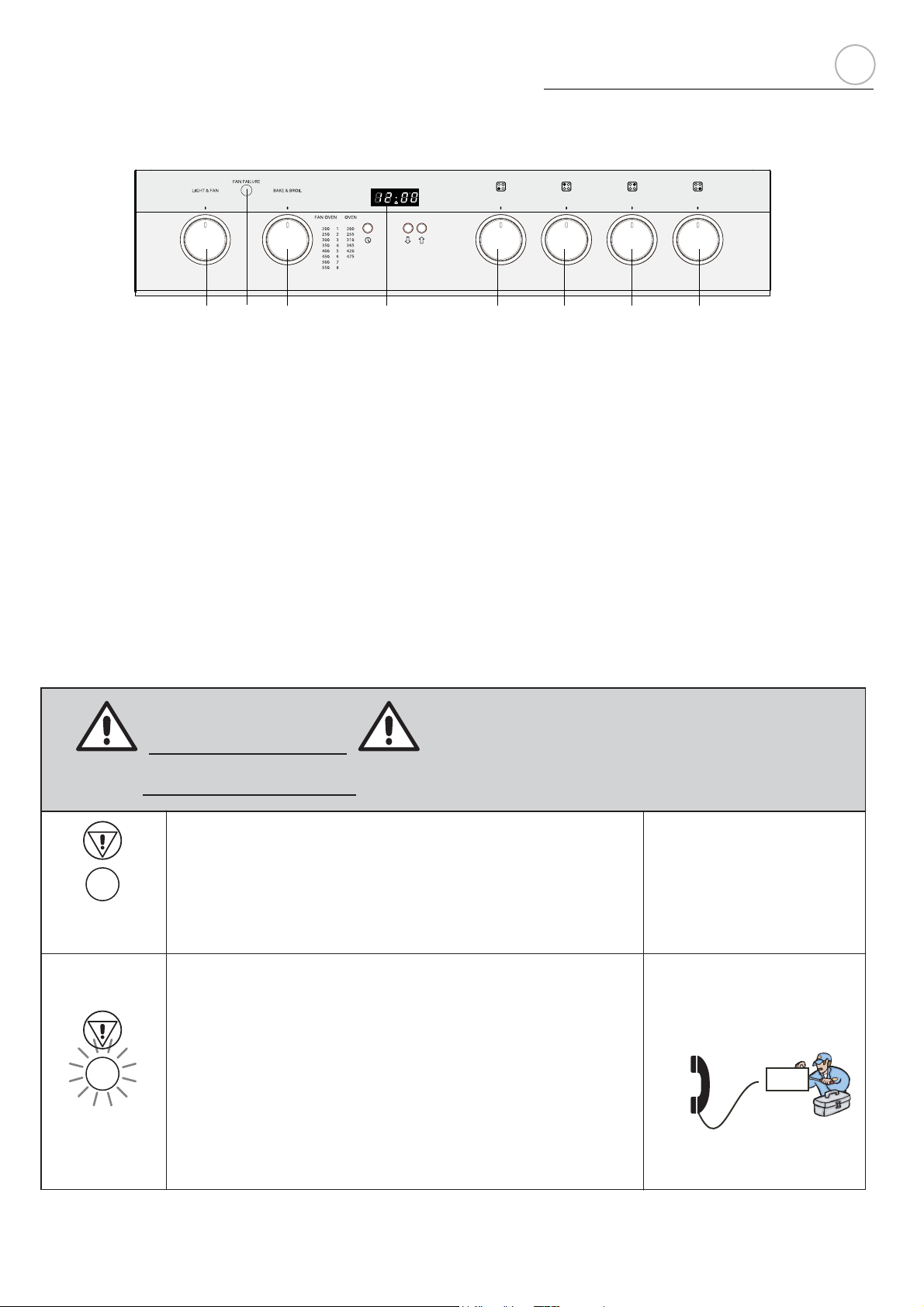

CONTROLS DESCRIPTION
43217658
530
585
1. Front left burner (1) control knob
2. Rear left burner (2) control knob
3. Rear right burner (3) control knob
4. Front right burner (4) control knob
5. Oven light & fan control knob
6. Oven and broil burner control knob
7. Electronic clock/electronic alarm
8. Cooling fan failure warning light
Fig. 1.2
1
❁
When the cooling fan failure warning light is OFF the cooling fan
motor is correctly operating.
When the cooling fan failure warning light is lighted this indicates
the malfunctioning of the cooling fan motor.
You must not use the oven.
Only the burners of the cooking hob can
be used.
Operate the cooking hob
burners and the ovens as
per instruction manual.
Contact Customer Care to
arrange for service.
SERVICE
7
2
✒
OFF

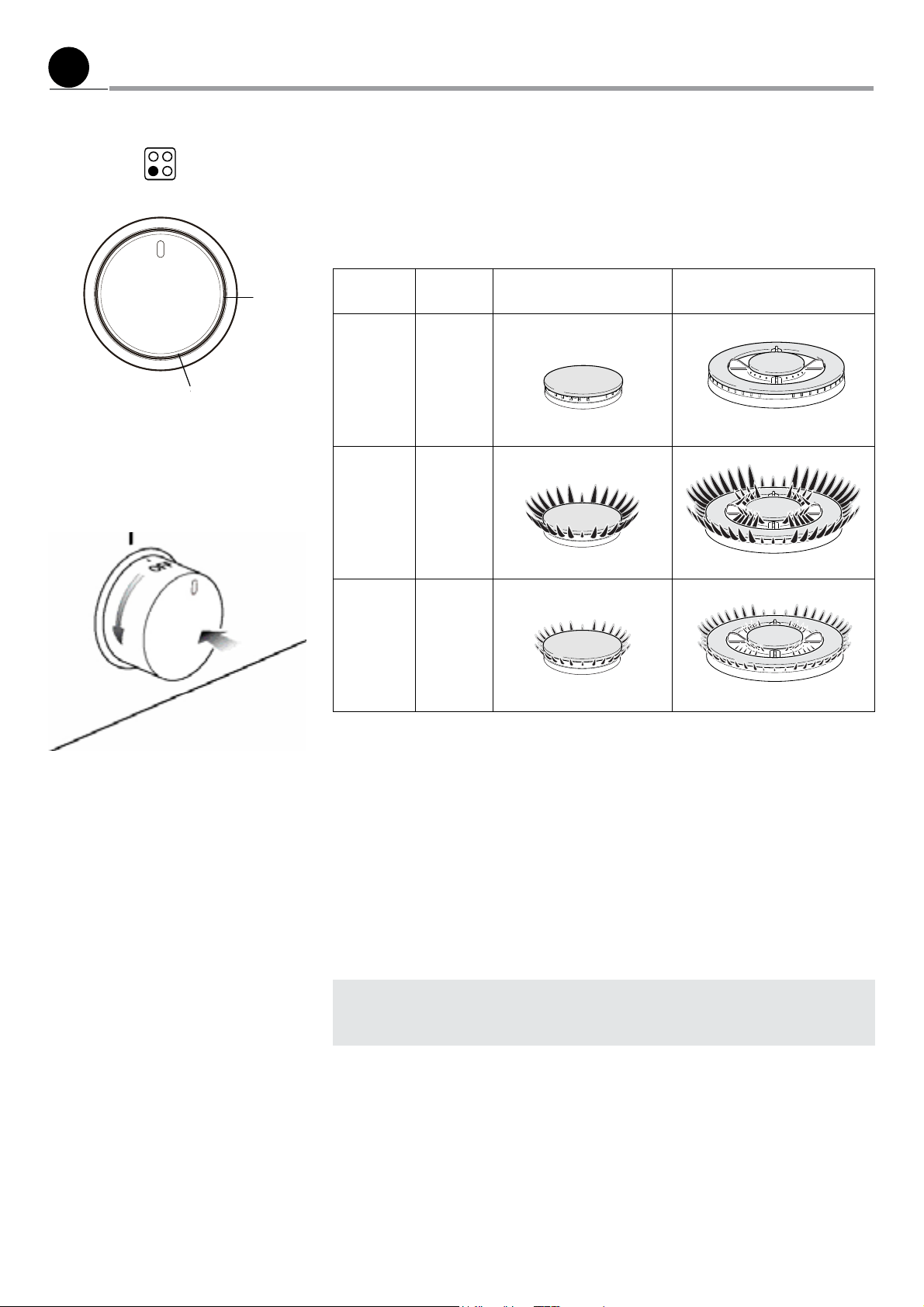

how to use the top burners
GAS BURNERS
Gas flow to the burners is adjusted by turning the knobs (illustrated in fig. 2.1) which
control the valves.
Turning the knob so that the symbols printed on itself point to the symbol printed on
the control panel achieves the following functions:
Fig. 2.1
LO
HI
Knob
position
OFF
HI
LO
Function
closed
valve
maximum
rate
minimum
rate
AUXILIARY and
SEMI-RAPID burners
TRIPLE RING burner
Fig. 2.2
The maximum aperture position permits rapid boiling of liquids, whereas the minimum
aperture position allows simmer warming of food or maintaining boiling conditions of
liquids.
To reduce the gas flow to minimum, rotate the knob further anti-clockwise to point the
indicator towards the
Other intermediate operating adjustments can be achieved by positioning the indicator
between the maximum and minimum aperture positions, and never between the
maximum aperture and
N.B. When the range is not being used, set the gas knobs to their OFF positions
and also close the gas shut-off valve placed on the main gas supply line.
LO position.
OFF positions.
8
LIGHTING GAS BURNERS FITTED WITH FLAME FAILURE
SAFETY DEVICE
In order to light the burner, you must:
2
❂
1 – Push and turn the knob in an anti-clockwise direction up to the
(maximum rate), push in and hold the knob until the flame has been lit.
The sparks produced by the lighter situated inside the relative burner will light the
flame.
In the event that the local gas supply conditions makes it difficult to light the burner
in
HI position, try again with the knob in LO position.
If there is no mains electrical supply, bring a lighted match close to the burner.
2 – Wait for about ten seconds after the gas burner has been lit before letting go the
knob (safety device activation delay).
3 – Adjust the gas valve to the desired position.
If the burner flame should go out for some reason, the safety valve will automatically
stop the gas flow.
To re-light the burner, return the knob to the closed
1 minute and then repeat the lighting procedure.
If your local gas supply makes it difficult to light the burner with the knob set to maximum, set the knob to minimum and repeat the operation.
OFF position, wait for at least
HI position
Caution!
The range becomes very hot during operation.
Keep children well out of reach.
9
❂
Make sure that the handles of
cookware do not stick out over
the edge of the range, to avoid
them being knocked over by
accident. This also makes it more
difficult for children to reach the
cooking vessels.
3
CHOICE OF BURNER (fig. 2.3)
The symbols printed on the panel above the gas knobs indicate the correspondence
between the knob and the burner.
The most suitable burner is to be chosen according to the diameter and volume capacity of the container to be warmed.
It is important that the diameter of the pots or pans suitably match the heating potential
of the burners in order not to jeopardise the efficiency of the burners, bringing about a
waste of gas fuel.
A small diameter pot or pan placed on a large burner does not necessarily mean that
boiling conditions are reached quicker.
Fig. 2.3
DIAMETERS OF PANS WHICH MAY BE USED ON THE HOB BURNERS
BURNER MINIMUM MAX.
Auxiliary 12 cm (4" 23/32 ) 14 cm (5" 1/2)
Semirapid 16 cm (6" 19/64) 24 cm (9" 7/16)
Triple-ring 26 cm (10" 3/16) 28 cm (11" 1/16)
Wok pans min 36 cm (14" 3/16) - max 40 cm (15" 3/4)
Fig. 2.4a
WRONG
CORRECT
Do not use pans with concave or convex bases (apart from wok pans used with the
special pan-support fitted)
CORRECT USE OF TRIPLE-RING BURNER (Fig.-2.4a - 2.4b)
The flat-bottomed pans are to be placed directly onto the pan-support.
When using a WOK you need to place the supplied stand in the burner to avoid any
faulty operation of the triple-ring burner (Figs.-2.4a - 2.4b).
IMPORTANT:
The special grille for wok pans (fig. 2.4b) MUST BE PLACED ONLY over the pan-rest
for the triple-ring burner.
10
Fig. 2.4b
how to use the gas oven
3
✣
GENERAL FEATURES
The gas oven is provided with:
a) Oven burner, mounted on the lower part of the oven (13000 BTU/hr).
b) Broil burner, mounted on the upper part of the oven (8500 BTU/hr).
c) Fan motor which can be used in combination with the oven burner or separately
(without heating). It is not possible to use the fan motor in combination with
the broil burner: a safety device switches off the fan motor when the gas
oven/broil control knob is turned on broil position.
d) Light that illuminates the oven to enable visually controlling the food that is
cooking.
OPERATING PRINCIPLES
Heating and cooking are obtained in the following ways:
a. by normal convection
The heat is produced by the oven burner.
c. by forced convection
The heat produced by the oven burner is distributed throughout the oven by
the fan. The hot air envelops the food in the oven, provoking a complete and
rapid cooking.
It is possible to cook several dishes simultaneously.
d. by radiation
The heat is irradiated by the infra red broil burner.
f. by ventilation (this is not a cooking function)
The food is defrosted by using the fan only without oven burner.
Attention: the range becomes
very hot during operation.
Attention: the oven door becomes
very hot during operation.
Keep children away.
WARNING:
The door is hot, use the handle.
N.B. When the range is not being
used, set the gas knobs to their
OFF positions and also close the
gas shut-off valve placed on the
main gas supply line.
VERY IMPORTANT
The oven/broil shall be used always
with the oven door closed.
USING THE OVEN FOR THE FIRST TIME
It is advised to follow these instructions:
– Furnish the interior of the oven by placing the wire racks as described at chapter
“Cleaning and maintenance”.
– Insert shelves and tray.
– Turn the oven on to the maximum temperature
grease from the oven burner. The same operation should be followed for broil
burner.
– Switch off the electrical supply, let the oven cool down, then clean the interior of
the oven with cloth soaked in water and detergent (neutral) then dry carefully.
Do not use
Broiling level
Oven cooking level
Oven cooking level
8 to eliminate possible traces of
1st STEP
2nd STEP
rd
3
STEP
th
STEP
4
11
3
❃
OFF
OVEN BURNER
It carries out normal “oven cooking”.
The gas flow to the burner is regulated by a thermostat which allow to maintain the
oven temperature constant.
The control of the temperature is assured by a thermostatic probe positioned inside
the oven.
The probe must be always kept in its housing, in a clean condition, as an incorrect position or encrustment may cause an alteration in the control of the temperature.
Fig. 3.1
OVEN THERMOSTAT
The numbers printed on the control knob (fig. 3.1) indicate the increasing oven temperature value (see temperature table near the control knob - fig. 3.1).
Left column of the temperature table refers to oven burner used in combination with
the fan motor while right column refers to oven burner used in the normal convection
mode (without fan motor).
To regulate the temperature, set the chosen number onto the control panel indicator.
The position
BROIL serves only to turn on the broil burner.
OVEN LIGHT AND FAN MOTOR
The oven light and the fan motor are controlled by a switch knob on the control panel
(fig. 3.2). To light up the oven lamp turn the knob anti-clockwise to
To operate the fan motor turn the knob clockwise to
In this setting also the oven lamp is lighted.
WARNING: The switch knob can be turned only clockwise from
position and anti-clockwise from OFF to LIGHT position.
The switch knob DO NOT TURN from
FORCE.
IMPORTANT NOTE: The fan motor can be used in combination only with the oven
burner. A safety device switches off the fan motor when the gas oven/broil control knob
is turned on
BROIL position.
LIGHT & FAN to LIGHT position. DO NOT
LIGHT & FAN position.
LIGHT position.
OFF to LIGHT & FAN
12
OFF
OK OK
NOT TURN
Fig. 3.2
IGNITION OF THE OVEN BURNER
Important!
• During ignition of the oven burner, the fan motor shall be switched off (light
and fan control knob in OFF position – Fig. 3.2).
• Do not attempt to light the oven burner during power failure.
The thermostat allows the automatic control of the temperature.
The gas delivery to the oven burner is controlled by a two way thermostatic tap (oven
and broil burners) with flame-failure device.
To light the oven burner operate as follows:
1) Open the oven door to its full extent.
WARNING: Risk of explosion! The oven door must be open during this opera-
tion.
2) Press the oven control knob right down and, keeping it pressed, turn counter-clockwise (fig. 3.3) to max position 8.
3) Release the knob and check the oven burner has lit; if not, turn the knob clockwise
back to OFF and repeat the procedure from step 2.
4) Once the oven burner has lit, close the oven door slowly and adjust the burner
according to the power required.
If the flame extinguishes for any reason, the safety valve will automatically shut off the
gas supply to the burner.
To re-light the burner, first turn the oven control knob to position
1 minute and then repeat the lighting procedure.
OFF, wait for at least
BAKE & BROIL
Fig. 3.3 Oven control knob
3
❃
Attention: the oven door becomes very hot during operation.
Keep children away.
TRADITIONAL BAKING
(OVEN BURNER WITHOUT FAN MOTOR)
Before introducing the food, preheat the oven to the desired temperature.
For a correct preheating operation, it is advisable to remove the tray from the oven and
introduce it together with the food, when the oven has reached the desired temperature.
Check the cooking time and turn off the oven 5 minutes before the theoretical time to
recuperate the stored heat.
Recommended for:
For foods which require the same cooking temperature both internally and externally,
i.e. roasts, spare ribs, meringue, etc.
13
3
❃
CONVECTION BAKING WITH VENTILATION
(OVEN BURNER WITH FAN MOTOR)
After lighting the oven burner switch on the fan motor by turning the LIGHT & FAN
control knob (fig. 3.2) on LIGHT & FAN position.
Before introducing the food, preheat the oven to the desired temperature.
For a correct preheating operation, it is advisable to remove the tray from the oven and
introduce it together with the food, when the oven has reached the desired temperature.
Check the cooking time and turn off the oven 5 minutes before the theoretical time to
recuperate the stored heat.
It is possible to cook various different foods at the same time. Fish, cakes and meat
can be cooked together without the smells and flavours mixing.
The only precautions required are the following:
- The cooking temperatures must be as close as possible with a maximum difference
of 70-80 °F (20-25 °C) between the different foods.
- Different dishes must be placed in the oven at different times according to the cooking
time required for each one. This type of cooking obviously provides a considerable
saving on time and energy.
Recommended for:
For foods of large volume and quantity which require the same internal and external
degree of cooking; for ex: rolled roasts, turkey, legs, cakes, etc.
DEFROSTING FROZEN FOODS (ONLY FAN MOTOR)
With the oven burner control knob in OFF position turn the LIGHT & FAN control knob
(fig.-3.2) on LIGHT & FAN position.
Only the fan and the oven lamp switch on. Defrosting takes place by the fan, without
heating.
Recommended for:
To rapidly defrost frozen foods; 2.2 lbs (1 kg) requires about one hour.
The defrosting times vary according to the quantity and type of foods to be defrosted.
14
3
❃
IGNITION OF THE BROIL BURNER
Important!
• The fan motor cannot be used in combination with the broil burner. A safety
device switches off the fan motor when the gas oven/broil control knob is
turned on BROIL position.
• Do not attempt to light the broil burner during power failure.
The broil burner generates the infra-red rays for broiling.
To light the broil burner operate as follow:
1) Open the oven door to the full extent.
WARNING: Risk of explosion!
operation.
2) Press the oven control knob right down and, keeping it pressed, turn clockwise
(fig. 3.5) to the BROIL position.
3) Release the knob and check the broil burner has lit; if not, turn the knob counterclockwise back to OFF and repeat the procedure from step 2.
4) Once the broil burner has lit, close the oven door slowly
If the flame extinguishes for any reason, the safety valve will automatically shut off the
gas supply to the burner.
To re-light the burner, first turn the oven control knob to position OFF, wait for at least
1 minute and then repeat the lighting procedure.
The oven door must be open during this
BAKE & BROIL
Fig. 3.5 Oven control knob
Do always broil with oven door closed.
Attention: the oven door becomes very hot during operation.
Keep children away.
15
Loading...
