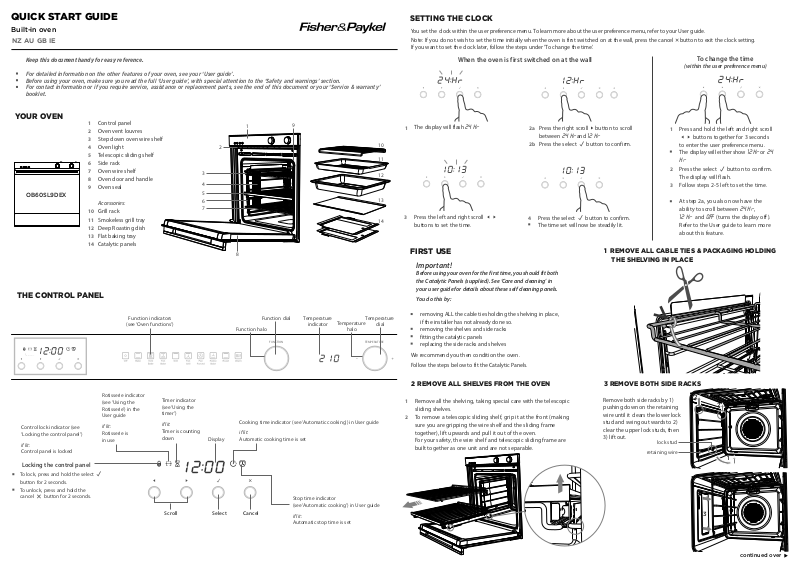

QUICK START GUIDE

Built-in oven

NZ AU GB IE

SETTING THE CLOCK

You set the clock within the user preference menu. To learn more about the user preference menu, refer to your User guide.
Note: If you do not wish to set the time initially when the oven is first switched on at the wall, press the cancel

If you want to set the clock later, follow the steps under ‘To change the time’.

button to exit the clock setting.

Keep this document handy for easy reference.

For detailed information on the other features of your oven, see your ‘User guide’.
Before using your oven, make sure you read the full ‘User guide’, with special attention to the ‘Safety and warnings’ section.
For contact information or if you require service, assistance or replacement parts, see the end of this document or your ‘Service & warranty’
booklet.

YOUR OVEN

1

OB60SL9DEX

Control panel

2

Oven vent louvres

3

Step down oven wire shelf

4

Oven light

5

Telescopic sliding shelf

6

Side rack

7

Oven wire shelf

8

Oven door and handle

9

Oven seal

Accessories:

10

Grill rack

11

Smokeless grill tray

12

Deep Roasting dish

13

Flat baking tray

14

Catalytic panels

1

2

3

4

5
6
7

8

9

THE CONTROL PANEL

10

11

12

13

14

When the oven is first switched on at the wall

The display will flash 24 Hr.

1

3

Press the left and right scroll
buttons to set the time.

2a

2b

4

FIRST USE

Important!

Before using your oven for the first time, you should fit both
the Catalytic Panels (supplied). See ‘Care and cleaning’ in
your user guide for details about these self cleaning panels.

You do this by:

Press the right scroll button to scroll
between
Press the select

Press the select

24 Hrand 12 H r

button to confirm.

button to confirm.

The time set will now be steadily lit.

1 REMOVE ALL CABLE TIES & PACKAGING HOLDING
THE SHELVING IN PLACE

To change the time

(within the user preference menu)

1

Press and hold the left and right scroll

buttons together for 3 seconds

to enter the user preference menu.
The display will either show 12 Hror 24

Hr

2

Press the select
The display will flash.

3

Follow steps 2-5 left to set the time.

At step 2a, you also now have the
ability to scroll between

12 Hr and OFF (turns the display off).

Refer to the User guide to learn more

about this feature.

button to confirm.

24 Hr,

Control lock indicator (see
‘Locking the control panel’)

if lit:
Control panel is locked

Locking the control panel

To lock, press and hold the select

button for 2 seconds.

To unlock, press and hold the

cancel button for 2 seconds.

Function indicators

(see ‘Oven func tions’)

Rotisserie indicator
(see ‘Using the
Rotisserie’) in the
User guide

if lit:
Rotisserie is
in use

Function halo

Timer indicator
(see ‘Using the
timer’)

if lit:
Timer is counting
down

Scroll Select Cancel

Display

Cooking time indicator (see ‘Automatic cooking’) in User guide

if lit:
Automatic cooking time is set

Function dial Temperature

indicator

Stop time indicator
(see ‘Automatic cooking’) in User guide

if lit:
Automatic stop time is set

Temperature

halo

Temperature

dial

ERUTAREPMETNOITCNUF

removing ALL the cable ties holding the shelving in place,
if the installer has not already done so.
removing the shelves and side racks
fitting the catalytic panels
replacing the side racks and shelves

We recommend you then condition the oven.

Follow the steps below to fit the Catalytic Panels.

2 REMOVE ALL SHELVES FROM THE OVEN

1

Remove all the shelving, taking special care with the telescopic
sliding shelves.

2

To remove a telescopic sliding shelf, grip it at the front (making
sure you are gripping the wire shelf and the sliding frame
together), lift upwards and pull it out of the oven.

For your safety, the wire shelf and telescopic sliding frame are

built together as one unit and are not separable.

3 REMOVE BOTH SIDE RACKS

Remove both side racks by 1)
pushing down on the retaining
wire until it clears the lower lock
stud and swing out wards to 2)
clear the upper lock studs, then

3) lift out.

lock stud

retaining wire

2

2

1

3

continued over

FIRST USE

7 CONDITION THE OVEN

4 FIT BOTH CATALYTIC PANELS

Place each catalytic panel flush against the side wall, noting

the position of the cutouts for the lamp and lock nuts

5 REPLACE BOTH SIDE RACKS

To replace the side racks, locate the top of the side rack into the

two upper lock studs and gently push the retaining wire back
under the lower lock stud.

1

1

lock stud

retaining wire

Catalytic panel

2

6 REPLACE SHELVING

To replace a wire shelf, check the guard rail (as shown) to make sure the shelf is the right way up. slide it horizontally back along the side racks

ensuring it is level and the stop notch is facing down.

To replace a telescopic sliding shelf, position it so that the front bar is toward you, as shown.
Check that the sliding frame is not extended.
Check the guard rail (as shown) to make sure the shelf is the right way up.
Position the shelf so that it is level and the rear shelf tag at the back of the sliding frame rests behind the side rack wire (as shown).
Then push the sliding shelf all the way to the back of the oven, until the front shelf tag drops into place behind the side rack wire.
For your safety, the wire shelves and telescopic sliding frames are built together as one unit and are not separable. This means that when placed

properly on the side racks, the slides will prevent the wire shelves from tilting when pulled towards you.
To prevent the tags from lifting off the side racks, take care to slide the shelves forward horizontally.

Guard rail

Stop Notch

Replacing a wire shelf

Rear shelf tagFront shelf tag

Replacing a telescopic sliding shelf

Front bar

Guard
rail

7 CONDITION THE OVEN

It is important to condition your oven before using it for cooking and baking. Conditioning will burn off any manufacturing residues and ensure

that you get the best results right from the start.

1

Make sure you have removed ALL the cable ties used to secure the shelving during transit.

2

Make sure you have set the clock.

3

Make sure all the shelves are fitted.

NOITCNUF NOITCNUF

ERUTAREPMET ERUTAREPMET

ERUTAREPMET

7

Leave the temperature at 200 oC
for 5 minutes.
The halo will remain white.

There will be a distinctive smell and a small amount of smoke during the conditioning process as manufacturing residue is burnt off.

8

When you have finished, turn the function dial to

Off

. The halos will go out.

NOITCNUF

This is normal, but make sure the kitchen is well ventilated during the conditioning.

Once cooled, wipe out the oven with a damp cloth and mild detergent, and dry thoroughly.

USING THE TIMER

You can use the timer at any time, even if you are not using the oven.
If the time is more than an hour, the display will count down in minutes (hr:min). If it is less than an hour, it will count down in seconds (min:sec).
You can set the timer for up to 23 hours 59 minutes.

Important!

The timer does NOT turn the oven off.

2

1

Select the timer by pressing
the right scroll

The timer indicator will appear

button once.

and the colon will flash.

Press the select
confirm.
The display will flash to indicate
the timer is ready to be set.

To modify the timer setting

1

Make sure the display shows the remaining time counting down.

2

Press the select

3

Press the scroll buttons to set a new time.

4

Press the select

button.

button to confirm.

To cancel the timer setting

1

Make sure the display shows the remaining time counting down.

2

Press the cancel button until the display shows the time of day and the timer indicator disappears.

When the set time is up

The display will show 0:00 and a tone will sound every 15 seconds.
Press any button to stop the tone sounding. The display will revert to showing the time of day.

FOR MORE INFO

For detailed information on the
other features of your oven

button to

see your ‘User guide’

3

Set the time by pressing the
scroll
Holding the buttons down

buttons.

will speed up the scrolling.

4

Press the select
confirm.
The timer will then begin to
count down.
If you want to check the time
of day, press the cancel
button once.

Press the right scroll

to scroll back to the timer.

button to

button

4

Select the Bake function.
The halo will glow white.
Each function has a preset
temperature and so the oven
will start heating at the Bake
preset temperature of 180

For warranty information

If you…

5

Set the temperature to 200 oC for 30 minutes.
While the oven is heating up, the temperature halo
will glow red and the temperature indicator will
alternately show the actual and set temperatures.

o

C.

When the oven has reached set temperature, a tone
will sound and the halo will turn white.

6

After 30 minutes is up,

select the Fan Grill

function.

have any questions or comments
need a Fisher & Paykel authorized

technician to service your product
need replacement parts or accessories
want to register your product

see your ‘Service and warranty’ booklet

see your ‘Service and warranty’ booklet or contact us

NZ toll-free, 24/7 0800 372 273
AU
GB

toll-free, 24/7 1300 650 590
toll-free, 24/7 0845 066 2200

IE toll-free, 24/7 1800 625 174
