Compact 525 Frost Free
Refrigerator / Freezer
Models
N169T N249T
Series
R
517703
MANUAL 517703 May 1997 Reprinted 13 June, 2000
PRODUCTS
Brand Fisher & Paykel, Frigidaire, Kelvinator
Voltage 220-240V 50Hz
Model Code
N169T 10334 10337 10891
N249T 10331 10346 10890
Fisher & Paykel Customer Services
PO Box 798
19 Enterprise St
Cleveland, Queensland 4163
Australia
Tel: (07) 3826 9122
Fax: (07) 3826 9164
Email: parts@fp.com.au
A.C.N 003 335 171
COPYRIGHT FISHER & PAYKEL LTD 2000 1
Fisher & Paykel Ltd
Whiteware Spare Parts
PO Box 14-148, Panmure.
80 Springs Rd, East Tamaki
New Zealand
Tel: (09) 272 0261
Fax: (09) 272 0219
Email: parts@fp.co.nz
MANUAL 517703
CONTENTS
DOOR ASSEMBLIES TOP FREEZER.....................................................................................................................................3
CABINET TOP FREEZER.........................................................................................................................................................5
FRONT CABINET ROLLER.....................................................................................................................................................7
CONTROL BOX COMPONENTS............................................................................................................................................. 9
FAN AND EVAPORATOR COMPONENTS.........................................................................................................................11
EVAPORATOR PLATE AND DEFROST HEATER.............................................................................................................13
COMPRESSOR AND BACK PANEL.....................................................................................................................................15
NOTES......................................................................................................................................................................................20
GUIDE TO USING THIS MANUAL
The model(s) and/or series covered by this manual are listed on the front cover.
The information detailed in this manual is subject to change without notice, the latest version is
indicated by the reprint date and replaces any earlier editions.
The front cover picture shows the type of product and may not necessarily be an exact image of the
models covered by the manual.
Part References
Where a Model is shown, the part is exclusive to the Model(s) stated. Common parts relating to a part
reference are applicable to all other Model(s) which use the particular item.
Kit Parts
The components shown in italics are those parts in the kit which are available also as separate items. In
addition, some parts may be supplied with this kit which are not available as separate items and are
therefore not listed in this manual.
All details relating to Technical Bulletins or Notes are shown on a dedicated page. The Technical
Bulletin Number shown relates to the bulletin version which is produced for New Zealand Service
Centres.
Parts List Key
NOT USED As a part, indicates the diagram part reference is not used in this manual.
# Beside the part number, indicates the part is no longer available.
italics Kit components shown in italics are also available separately.
* Indicates a technical bulletin or note exists for the part or part reference.
NI As a part reference, indicates the part is not illustrated on the diagram.
2
DOOR ASSEMBLIES TOP FREEZER
MANUAL 517703
3
MANUAL 517703
DOOR ASSEMBLIES TOP FREEZER
REF PART DESCRI PTION M ODEL
1 875425
2 875652
3 882348
4 818492
5 872031P
6 878472
7 875128
8 818489
818490
875128
875425
882348
875128
875425
882348
875128
PLUG PIVOT DOOR CLOSING WHITE
COVER HANDLE RECESS SOFT WHITE
PLUG DOOR END CAP SOFT WHITE
DOOR FC SOFT WH C25OT WH NOGAS
PLUG CAM DOOR CLOSING WHITE
PLUG PIVOT DOOR CLOSING WHITE
PLUG DOOR END CAP SOFT WHITE
GASK ASSY PUSHIN 525X 358 LTGR
LABEL FREEZER STORAGE GUIDE 52
PLUG CA M DOOR CLO SI NG WHIT E
DOOR PC SOFT WH C24OB WH NOGAS
PLUG CAM DOOR CLOSING WHITE
PLUG PIVOT DOOR CLOSING WHITE
PLUG DOOR END CAP SOFT WHITE
DOOR PC SOFT WH C25OT WH NOGAS
PLUG CAM DOOR CLOSING WHITE
N169T
N249T
9 872029P
872028P
10 871123
11 876253
12 874977
13 874979
14 876625
15 882734
16 881368
NI 878434
NI 878438
NI 872959
NI 479151
875425
882348
PLUG PIVOT DOOR CLOSING WHITE
PLUG DOOR END CAP SOFT WHITE
GASK ASSY PUSHIN 525X 746 LTGR
GASK ASSY PUSHIN 525X1134 LTGR
PLUG/PIN HINGE DAIRY COVER
COVER DOOR SHELF 525 MOULDED
SHELF DOOR MOULDED 525 WHITE
SHELF DOOR HSM876720 DK/GR 525
RAIL BOTTLE SUPPORT 525
DIVIDER BOTTLE RAIL WHITE
BOOKLET USE & CARE 525 C635
LE A FLE T WA RR ANT Y AUST
LE A FLE T WA RR ANT Y N EW ZE ALA N D
SMARTCARE LEAF LET&EN VE LOPE AUS
LEAFLET SMART CARE NZ
N169T
N249T
4
CABINET TO P FREEZ ER
MANUAL 517703
5
MANUAL 517703
CABINET TOP FREEZER
REF PART DESCRIPTION MODEL
1 882346
2 610312
3 882319
4 882355
5 855261
6 871504
7 874739
8 874971
9 875324
10 * 872000
872244
* 875049
11 875834
12 878219
878222
880726
COVER HINGE TOP SOFT WHITE
SCR E W MC M5 X2 0 HE X P H MS ZN P L
BRACKET TOP HI NGE ASS Y P LATE D
GASKET TOP HINGE
PLUG TAPPED HOLE WHITE
TRIM CORNER WHITE
SHELF FC T FF BASE 525
COVER CROSS RAIL SOFT 525 WH
SHELF FC FORMED N/F 525
SHELF PC WHITE 525
SHELF PC WHITE
SHELF PC PLASTIC 525
BEARING CAM DOOR 1.9MM WHITE
NAMEPLATE INSERT FRIG WH XR LC
NAMEP LAT E INS ERT KELV WH XR LC
NAMEPLATE F&P ASS
13 871880
14 876142
15 875418
16 854900
17 875405
18 871129
19 874107
20 881162
21 402015
22 402016
PIN CENTRE HINGE
TRIM SHELF PC 525 WHITE
PIN PIVOT 40MM SS
SHELF GLASS BOTTOM PC 525
PLUG BOTTOM HINGE BRACKET WH
BIN EGG/ ICE M O ULD ALL BRAN DS
TRAY ICE BASE
BIN CRISP ’T’ HSM872613 BLUE 5
FOOT SKID PLASTIC
PIN-SKID
6
FRONT C ABINET ROLLER
MANUAL 517703
7
MANUAL 517703

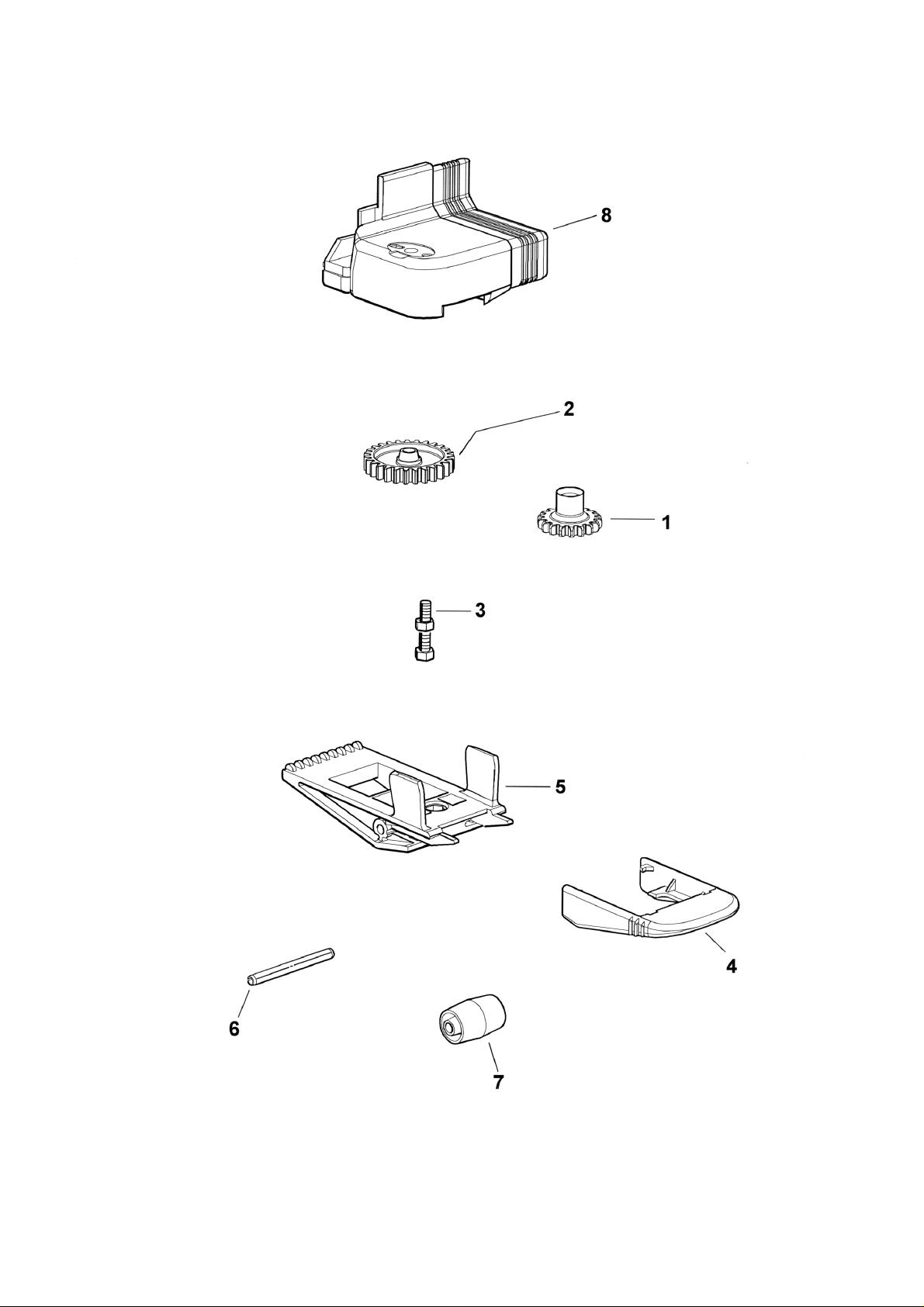

FRONT C ABINET ROLLER
REF PART DESCRIPTION MODEL
1 878452
2 878450
3 878316
4 878448
5 878446
6 878458
7 875411
8 * 878442
878443
NI 502229
875411
878316
878446
878448
878450
878452
PINION ROLLER ASSEMBLY GREY
GEAR ROLLER ASSEMBLY
SCREW M5X25 & M5 NUT
BRAKE ROLLER ASSEMBLY
CHASSIS ROLLER ASSEMBLY
ROLL PIN 4.5DIAX45 PASSIVE ZP
WHEEL FRONT ROLLER ASSY
BRACKET CORNER HINGE LEFT WHIT
MOULDING BOTTOM HINGE WHITE RH
KIT FRONT ROLLER ASSY
WHEEL FRONT ROLLER ASSY
SCREW M5X25 & M5 NUT
CHASSIS ROLLER ASSEMBLY
BRAKE ROLLER ASSEMBLY
GEAR ROLLER ASSEMBLY
PINION ROLLER ASSEMBLY GREY
878458
ROLL PIN 4.5DIAX45 PASSIVE ZP
8
CONTROL BOX COM PONENTS
MANUAL 517703
9
MANUAL 517703
CONTROL BOX COMPONENT S
REF PART DESCRI PT ION M ODEL
1 877729
2 871312P
3 872021
4 874892
5 871040
6 871302
7 855251
8 871032
9 872470
10 878563P
11 876995
12 877728
13 SP0055
14 876747
15 874794
16 876626
COVER CONTROL BOX TOP
LAMP 230V 15W SES
DUCT CONTROL BOX 525
DOOR CONTROL BOX 635
SPRING CONTROL BOX DOOR
TERMINAL NEUTRAL CONTROL BOX
CAP 4 WAY H OUS MOLEX M5559-04P
TERMINAL SPRING CONT. BOX 635
TERMINAL PHASE CONTROL BOX
CONTROL RANCO K59 P6827
CAM CONTROL BOX
CONTROL BOX BASE HSM877727 DK/
SCREW #8X20 AB PAN PHIL SS
KNOB LIGHT SWITCH WHITE 635
CLIP CONTROL ASSY KNOB
KNOB CONTR O L ASSY W HITE /DK GRE
NI 855250
NI 855252
NI 855253
NI 855246
NI 877725
873459
874794
876491
871083
871125
871896
877293
877650
877720
877723
878260
KNOB CONT ROL WHIT E
CLIP CONTROL ASSY KNOB
TRIM KNOB DK GREY-REPLACED BY 876626
PLUG 4 WAY HOUS MOLEX M5557-04
PIN CONNECTOR MOLEX M5558
SOCKET CONNECTOR MOLEX M5556
HARNESS CONTROL BOX F/F 525
PACK BUTTER COMPT (1X877724 IN
SPRING DOOR BUTTER COMP.
COVER BUTTER TRAY ALL BRANDS
LINER BUTTER COMPARTMENT HS
COVER BUTTER COMP ARTMENT
HEATER BUTTER CONDITIONER 7.0W
HARNESS BUTTER CONDITIONER PHA
KNOB CONTROL BC PRINTED LOCAL
CONTROL SLIDE POTENTIOMETER 15
10
880267
880580
TRAY BUTTER SHELF WHITE
DOOR BUTTER COMPARTMENT BLUE
FAN AND EVAPORATOR COMPONENTS
MANUAL 517703
11
MANUAL 517703
FAN AND EVAPORATOR COMPONENTS
REF PART DESCRI PTION MODEL
1 871962
2 900299
3 900230
4 873365
5 874776
6 873369
7 876771
8 878393
9 805428
871962
873002
873369
873915
875150
875151
900235
HARNESS DEFROST CONTROL 230V
HOUSING 3WAY PLUG AMP 1-480700
HOUSING 3WAY CAP AMP 1-480701EVAP ASSY 175 2 525 25 220-240
HARNESS DEFROST CONTROL 230V
TAPE FOAM 50X12X4MM
HEATER DEFROST 175X525 220-240
HARNESS EARTH
CLIP SPRING RETAINER DEF TERM
CLIP SPRING CLAMP
HOUSING 2WAY PLUG 1-480698- 0
GROM MET EVAP TUBE
HEATER DEFROST 175X525 220-240
FILTER ’P’ CATCHER DRAIN
MOTOR FAN & BRACKET ASSY 230V
FAN BLADE
10 873068
11 900101
12 900453
13 878464
14 875470
15 877733
16 875957
17 876875
18 874935
19 873066
20 871174
21 SP0207
22 878483
NI 345-040291
NI 345-040304
NI 502152
GASKET EVAP COVER NOTCHED 525
WASHER LOCK NO 10 EXT SP ZP
SCREW #10X32X9.5MM TYP 1 PAN P
COVER FAN FROST FREE
DUCT DRAIN F/F ’B’ MODELS
WASHER ’O’RING -114 SILICONE
NUT M16X1.5 NYLON
DUCT DRAIN 1075MM
BRACKET CO I L & COIL COVER SUP
COVER EVAP F/F 525
WASHER EVAP COVER
SCREW #10X75 SCREWFAST CSK PH
COVER EVAP SCREW
SOCKET CONNECTOR AMP MATE-N-LO
PIN CONNECTOR AMP MATE-N-LOK
KIT DRAIN PC STRAIGHT
12
875470
875957
877733
DUCT DRAIN F/F ’B’ MODELS
NUT M16X1.5 NYLON
WASHER ’O’RING -114 SILICONE
EVAPORATOR PLATE AND DEFR OST HEATER
MANUAL 517703
13
MANUAL 517703

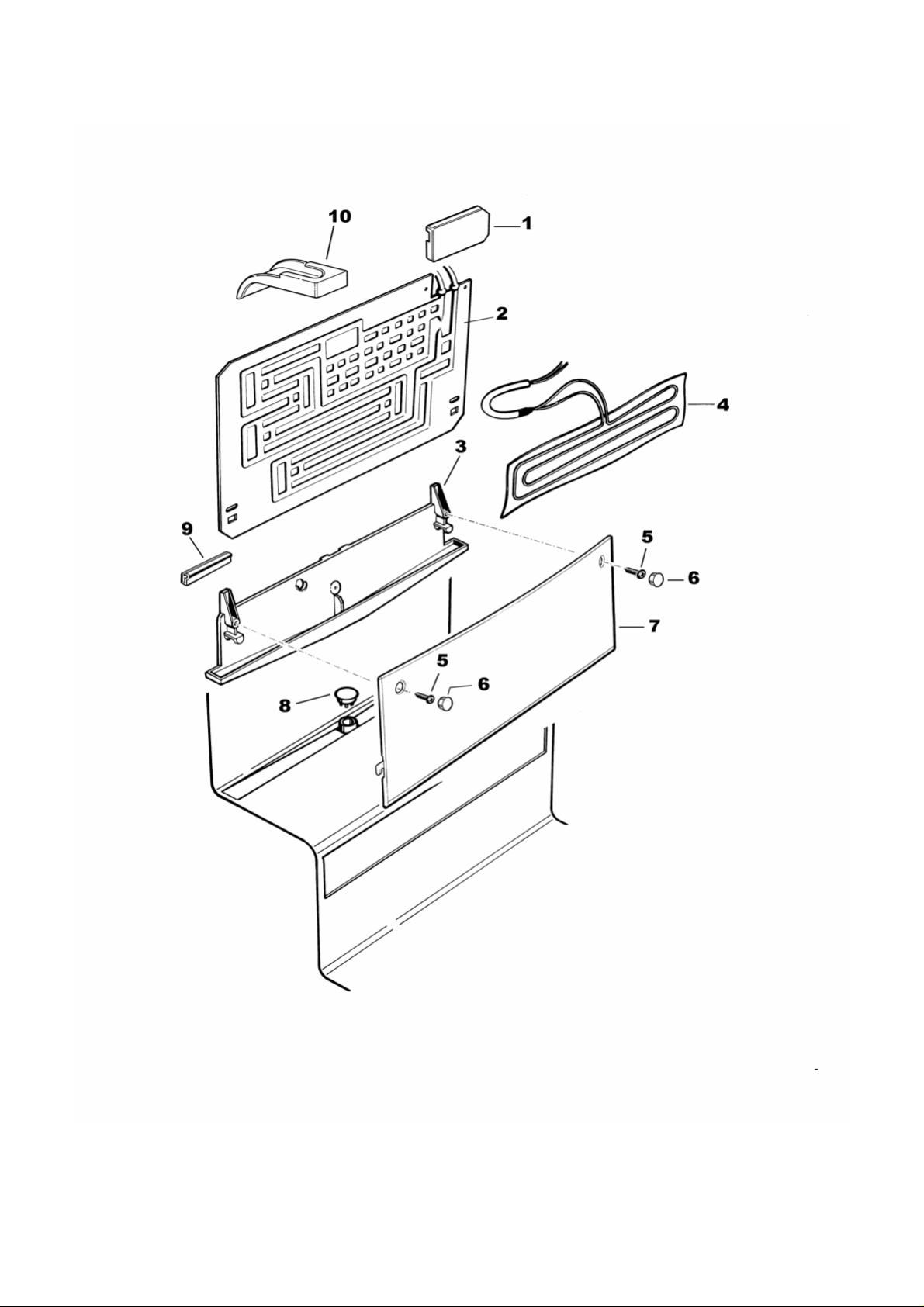

EVAPORATOR PLATE AND DEFROST HEATER
REF PART DESCRIPTION MODEL
1 851302
2 871399
3 878278
4 877319P
5 SP0059
6 876732
7 851800
NI 874777
NI 878276
COVER EVAP PLATE
DUCT WATER DEFLECTOR
EVAP PAINTED ASSY 250/120 TOP
HEATER DEFROST SLEEVED 220-240
SCREW #8X40 AB PAN PHIL SS
PLATE DEF R OST HE AT ER
COVER DRAIN TUBE MOULDED
GROMMET DUCT
RETAINER PHIAL TUBE PAINTED
14
COMPRESSOR AND BACK PANEL
MANUAL 517703
15
MANUAL 517703
COMPRESSOR AND BACK PANEL
REF PART DESCRI PTION M ODEL
1 873718
873719
2 876275
3 876653
4 SP0201P
5 209788
* 209863
6 * 209862
209988
7 209298P
* 209862
* 209863
209683
502173
855217
855218
PANEL BACK ASSY F160 C170T (HO
PANEL BACK ASSY C270 C240B (HO
COVER COMP COMPT 525 RF
TRAY WATER EVAPORATOR NOTCHED
SCREW 8X12 PAN PH NIB PKT10
COVER PROT SB SERIES 01-894080
COVER PROTECTOR 01-8983840
RELAY S-PTC MM8-711B
RELAY PTC D SERIES MM8-5DDT33M
COMP NA SD51C10WAY5 220-240V
CLAMP B 01-274460
RELAY S-PTC MM8-711B
COVER PROTECT OR 01-8983840
FILTER DRIER 12 GR DUAL BRAZED
CLAMP CORD
SCREW SOCKET CAP #4X25
N169T
N249T
8 855270
9 502173
10 872838
11 850265
12 874888
13 875116
14 SP0006
15 874338
16 900377
17 SP0351#
18 SP0008
19 816886
* 855257
20 873253P
21 805422
872838
GROMMET COMPRESSOR MOUNTING
CLIP COMPRESSOR MOUNTING
FILTER DRIER 12 GR DUAL BRAZED
GROMMET COMPRESSOR MOUNTING
PIN COMPRESSOR MOUNTING
LID TERMINAL BLOCK
BASE TERMINAL BLOCK
SCREW #8X20 AB PAN PHIL ST ZP
TERMINAL 3WAY
SCREW #8X32X8 TY T PAN PH ZP
WASHER LOCK 5MM EXT ZNPL
SCREW #6X12 AB TRUSS PH ST ZP
CORD POWER CABLE 230V 3 PIN SE
CORD POWER CABLE 230V
TIMER DEFROST PARAGON 12HR 240
HOUSING RECEPT TIMER DEFROST
22 855244
875433
23 900382#
24 878486
25 900475
16
BRACKET DEFROST TIMER MOULDED
BRACKET TIMER
SCREW ST 8X3/8 TYPE AB PAN PH ZNPL
TRAY COMP MOUNTING 525
SCREW #8X16.4MM SP PAN NIB ST
COMPRESSOR AND BACK PANEL
MANUAL 517703
17
MANUAL 517703
COMPRESSOR AND BACK PANEL
REF PART DESCRI PTION M ODEL
26 873228
27 872345
NI 815211
NI 850027
NI 876908
TRAY WATER OVERFLO W
HEATSHRINK TUBE O/FLOW TRAY
SUCT ION & CAPI LL ASSY RED TAP E
GROM MET INJE CTION M O ULDED
DUCT EXTRUDED HARNESS 650MM
18
MANUAL 517703
19
MANUAL 517703
NOTES
CA BINET TOP FREEZ ER
Technical Bulletins
872000 RF001
875049 RF001
FRONT CABINET ROLLER
Technical Bulletins
8RF95
COMPRESSOR AND BACK PANEL
Technical Bulletins
209862 RF100, RF98
209863 RF100, RF98
855257 RF100, RF98
20
Loading...
