3

Introduction

Thank you for buying a Fisher & Paykel Aerotech® oven. Now that it is installed and ready
to use, you will want to know everything about it to make sure you get excellent results
right from the start. This guide introduces you to all its features, as well as giving you a
comprehensive set of cooking charts. We recommend you read the whole guide before using
your new oven, for both safety and cooking success.

For further information, go to www.fisherpaykel.com

To change the language in the oven mode displays to French/Spanish, go to ‘How to change
the language’ in ‘USER SELECT options’.

Important!

SAVE THESE INSTRUCTIONS

Fisher & Paykel AeroTech® oven
Double model OD302 and single model OS302

4

Safety and warnings

This symbol alerts you to hazards such as fire, electrical shock, or other potential
injuries. It also warns you of things that may cause damage to your oven.

Important safety precautions

Read all the instructions before using the oven. Use the oven only for its intended purpose

as described in these instructions.

Proper installation. Be sure your appliance is properly installed and grounded by a qualified

technician.

Never use your appliance for warming or heating the room. Persons could be burned or

injured or a fire could start.

Do not leave children alone. Children should not be left alone or unattended in the area

where the appliance is in use. They should never be allowed to sit or stand on any part of the
appliance.

Wear proper apparel. Do not wear loose fitting or hanging garments when using the

appliance. They could ignite or melt if they touch an element or hot surface or you could be
burned.

User servicing: Do not repair or replace any part of the appliance unless specifically

recommended in the manual. All other servicing should be referred to a qualified technician.

Storage in or on appliance: flammable materials should not be stored in an oven or near

surface units.

Do not use water on grease fires. Smother fire or flame or use dry chemical or foam type

extinguisher.

Use only dry oven mitts or potholders. Moist or damp potholders on hot surfaces could

result in burns from steam. Do not let potholders touch hot or heating elements. Do not use
a towel or a bulky cloth for a potholder. It could catch fire.

WARNING!

Hot Surface Hazard

Accessible parts will become hot when in use.

Children should be kept away and care should be taken.

Failure to do so could result in burns and scalds.

WARNING!

To reduce the risk of fire, electrical shock, injury to persons, or damage when using the
oven, follow the ‘Important safety precautions’ listed below:

5

Use care when opening the oven door. Let hot air or steam escape before removing or

replacing food.

Do not heat unopened food containers. They can build up pressure that may cause the

container to burst and result in injury.

Always keep oven vent ducts unobstructed.

Placement of oven racks: always position oven racks (shelves) in the desired location while

oven is cool. If a rack must be removed while the oven is hot do not let the oven mitts or
potholder contact hot heating elements in the oven or the base of the oven.

Do not clean the door seal (gasket) or cavity seal or use any oven cleaning products on

them. They are essential for a good seal. Care should be taken not to rub, damage or move the
gaskets.

Do not use oven cleaners. No commercial oven cleaner or oven liner protective coating of any

kind should be used in or around any part of the oven.

Clean only the parts listed in the manual.

Before self-cleaning the oven remove broiler pan and other utensils.

Do not touch heating elements or interior surfaces of the oven. Heating elements may be

hot even though they are dark in color. Interior surfaces of an oven become hot enough to
cause burns. During and after use, do not touch, or let clothing or other flammable materials
contact heating elements or interior surfaces of the oven until they have had sufficient time to
cool. Other surfaces of the appliance may become hot enough to cause burns - among these
surfaces are the oven vent, the surface near the oven vent, and the oven door and window,
could also become hot enough to cause burns.

The California Safe Drinking Water and Toxic Enforcement Act requires businesses to warn

customers of potential exposure to substances which are known by the State of California
to cause cancer or reproductive harm. Small amounts of harmful chemicals are given off in
the oven’s self-cleaning cycle from insulation and food decomposition. Significant exposure
to these substances can cause cancer and reproductive harm. Venting with a hood or open
window, and wiping out excess food spills prior to self-cleaning the oven reduces exposure.

Do not use a steam cleaner to clean your oven.

Do not store things children might want above the oven. Children could be burned or

injured while climbing on it.

Do not operate the oven if it is damaged or not working properly.

Do not install or use a damaged appliance. If you receive a damaged product, contact your

dealer or installer immediately.

Anyone with a disability that may limit their ability to use the appliance should have a

competent person instruct them in its use. This person should be satisfied that they can then
use the appliance without danger to themselves or their surroundings.

Use only cookware approved for oven use. Follow the cookware manufacturer’s instructions.

6

1

Control panel

2

Door handle

3

Oven window

4

Upper oven

5

Lower oven (double models only)

6

Model & serial number

7

Self-clean latch

8

Door seal

9

Cavity seal

10

Broil element

11

Oven lights

12

Cooking probe socket

13

Aero® fan & concealed element

14

Lower concealed element

15

Door hinge

Location of features

The diagram below shows you what features your oven has and where they are located
(double oven model shown).

1

2

3

4

5

6

7

9

8

11

13

12

15

15

14

10

7

Setting the clock

As your oven is connected to a power supply for the first time, a tone will sound and the clock
display will light up. The clock display will show ‘0:00’ and the colon ( : ) will flash. Next, set the
clock.

Clock must be set before oven can be operated

To set the clock

The oven clock has a default 24 hour display. ‘0:00’ will be shown when the oven has been
turned on at the wall and the colon will flash.

1

While the colon is flashing, rotate the setting selector until the correct time of day is showing.

2

Press the button to adopt the time you have set or wait eight seconds and the setting

will be automatically adopted.

Refer to the ‘USER SELECT options’ for instructions on how to change the clock to display 12
hour time.

a

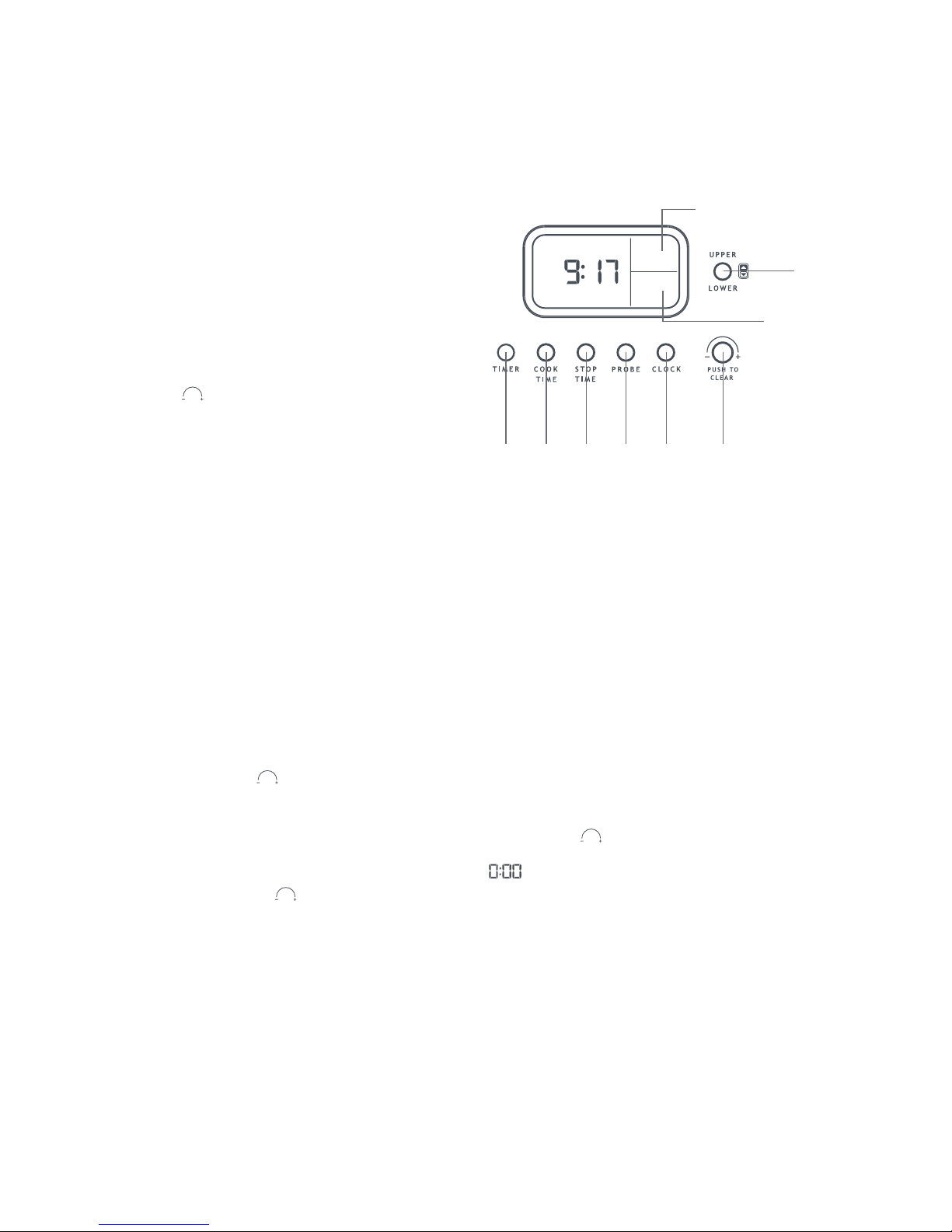

Clock display

b

CLOCK button

- allows you to set the clock.

c

PUSH TO

CLEAR

- turn this button to set the: clock/timer/
probe temperature/cook time/stop time.

Press this button to clear the display.

a

b

c

8

Oven displays

Oven mode dial & display

Turn clockwise to select your desired oven
mode. When the mode is set, the lights and
cooling fan will come on.

Temperature dial & display

Turn clockwise to select the oven temperature
you want to cook at. The default setting for the
temperature display is degrees Fahreheit. Refer
to the ‘USER SELECT options’ for instructions on
how to change the temperature display settings.

Note: for double oven models, controls on the left are for the upper cavity and controls on the
right are for the lower cavity.

Preheating your oven

Preheat your oven when using the following modes: TRUEAERO, AEROBAKE, BAKE,

AEROPASTRY and PASTRY BAKE. Preheating your oven is not required when using ROAST and
AEROBROIL.

Position shelves in the oven before preheating.

When your oven is preheating, your selected cooking temperature is displayed alternately

with the actual oven temperature. When the oven has reached the selected temperature
an audible beep will sound and the temperature display will change from orange to green
(brushed stainless steel models) or orange to blue (Iridium stainless steel models).

The AeroTech® oven is equipped with a fast preheat function. In TRUEAERO, AEROBAKE, BAKE,

AEROPASTRY and PASTRY BAKE modes it will heat to 345 ºF (175 ºC) from cold in under 10
minutes and to 425 ºF (220 ºC )in under 15 minutes.

Note: if you want to change the oven mode and/or temperature during operation, turn the
oven mode and temperature dials to OFF then wait for the temperature and mode lights to
turn off before selecting your new settings. This will reactivate the fast preheat function.

9

Oven modes

Your Fisher & Paykel AeroTech® oven has nine cooking modes plus WARM and SELF CLEAN.
These modes use different combinations of elements and the convection fan to give you
maximum flexibility when cooking.

TRUEAERO: convection fan plus fan element

TRUEAERO is a very flexible method of cooking. A concealed heating element
surrounding the fan in the rear of the oven heats air, which is then blown into
the cavity. The consistent temperature creates an ideal oven environment
giving baking which is well risen and evenly coloured. Cookies are crisp on the
outside and chewy in the middle, meat and poultry is delicously browned and
sizzling while remaining juicy and tender. Casseroles are cooked to perfection
and reheating is quick and efficient. TRUEAERO is the mode to choose for multi­shelf cooking and complete oven meals.

AEROBAKE: convection fan plus upper and lower elements

The oven fan circulates hot air from the top outer and lower concealed
elements and distributes it around the oven cavity. Food cooked using
the AEROBAKE mode tends to brown more quickly than foods cooked on
conventional modes like BAKE. AEROBAKE is great for crisping pastry in lemon
meringue pie and vegetable phyllo parcels. AEROBAKE at a low temperature
– 125 °F (50 °C) – is ideal for drying fruit, vegetables and herbs.

BAKE: upper and lower elements

Heat comes from the top outer and lower concealed elements. BAKE is the
conventional cooking mode, suitable for single shelf cooking. It is ideal for
foods that require long cooking periods or cooking at low temperatures, like
meringues and rich fruitcakes.

AEROPASTRY: convection fan plus lower element

Heat from the lower concealed element is circulated throughout the oven cavity
by the oven fan. Excellent for sweet and savory pastry foods, for moist breads
and brownies and cookies that you want extra chewy.

PASTRY BAKE: lower element

Heat comes from the lower element only. This is a traditional cooking mode
which is suitable for recipes that were developed in older ovens. For best
results, cook on only one shelf at a time. It is perfect for foods that require
delicate cooking and have a pastry base, like custard tarts, quiches and
cheesecake or anything that does not require direct heat and browning on the
top surface.

10

WARM

WARM is a constant low heat of 165 °F (75 °C). It is excellent for keeping cooked
food hot and warming plates and serving dishes. To reheat food from cold, use
TRUEAERO and change to WARM only when the food is piping hot, as this mode
will not bring cold food up to a temperature high enough to kill any harmful
bacteria.

ROAST

ROAST is a two-step program that has been developed to help you cook
delicious roasts effortlessly. Place the meat in the cold oven and the first stage
will sear the meat at a high temperature for 20 minutes to crisp and brown the
exterior. The oven then automatically drops to a lower, selected temperature for
the remainder of the cooking time, giving you a moist and juicy roast. ROAST
can be used with or without the cooking probe and is also great for cooking
vegetables.

BROIL: upper inner element

BROIL delivers intense heat from the inner region of the top element. Great
when you need to quickly broil smaller dishes, for example Crème Brulee, or
one to two portions of your usual favorites, like crispy chicken breasts or a steak.
Broil takes a minute or so to warm up and is carried out with the door closed.
Power levels are expressed as a percentage from LO (50% power) to HI (100%
power).

MAXIBROIL: upper inner and outer elements

MAXIBROIL delivers intense heat from the entire top element. It is the most
suitable mode for ‘finishing off’ many meals, for example browning the top
of potato gratin and frittata as well as cooking smaller cuts of meat. Use
MAXIBROIL to toast bread or as well as broiling your favorite chicken, fish and
steak. MAXIBROIL takes a minute or so to warm up and is carried out with the
door closed. Power levels are expressed as a percentage from LO (50% power)
to HI (100% power).

AEROBROIL: fan plus upper inner and outer elements

AEROBROIL produces food with a finish that is similar to a rotisserie. Meat,
poultry and vegetables cook beautifully; food is crisp and brown on the outside
while the inside remains moist and tender. Try using this mode with foods you
might usually fry, like meatballs. It is great for chops, cutlets and beef burgers as
well as vegetables.

11

SELF CLEAN

This oven features a pyrolytic self-cleaning cycle that takes care of the mess
and grime that is traditionally associated with oven cleaning. During self-clean
cycles the oven reaches higher temperatures than it does for cooking and this
burns off and breaks down soil and grease deposits. A smoke eliminator and
active venting system eradicates odor. The ash residue that remains can simply
be removed from the cool oven with a damp cloth or sponge.

The cooling fan

A cooling fan will come on automatically when most oven modes are used, and blow air out
below the oven door. The cooling fan may continue to run after the oven is switched off to
keep the door and control panel cool.

12

Shelf positions

Optilevel™

The Optilevel™ shelving system allows you to choose the optimum cooking level within the
oven. Placing the shelves on or between the shelf support runners provides 13 cooking
positions to choose from.

Organize the shelves prior to heating the oven. Generally, the shelf positions located in the
top of the oven are suitable for broiling. Shelves in the middle and lower region of the oven
are suitable for baking, roasting and casseroles. For more specific information on which shelf
position to use, refer to the ‘Cooking charts’.

Your oven shelves come with built-in
stop locks for your safety. This means
when inserted properly they will not
tilt when pulled towards you.

To insert shelves

Position the shelves so that the
single

^

in the center is facing
towards you, as shown, and slide the
shelf right to the back of the oven.
Shelves will feel very stable when
inserted correctly.

Shelf detail showing the single

^

facing toward you

Shelf positions with shelves at positions 5 and 10

1
2
3

4

5

6
7

8
9

10

11
12

13

13

Accessories

Three-piece broil/roast system

The three-piece broil/roast system (made up of the pan, grid and rack) is designed to prevent

hot fat and juices in the broil pan splattering throughout the oven.

All pieces can be used together as one complete unit, or in different combinations.

Glass tray (not supplied with all models)

This is made of extremely tough glass and is perfect oven-to-tableware.

The glass tray is great for all broiling and baking modes.

Wash in hot soapy water or the dishwasher. Soaking with a little dishwasher detergent will

help to remove stubborn stains.

Cookie sheets

The cookie sheets have a non-stick finish and need only a light coating of cooking spray or

greasing before use.

Their dark color absorbs heat and you may find that your favorite recipes cook more quickly

than on old shiny trays. Alternatively, you can reduce the oven temperature by approximately
60-70 °F (15-20 °C).

Allow your baking to cool for a few minutes after it comes out of the oven before removing it

from the tray using a wooden or Teflon spatula.

Always remove food before it is completely cold. In most cases wiping with a paper towel is

all that is needed to clean the trays.

Pizza stone and paddle (not supplied with all models)

Your pizza stone will allow you to cook a pizza like one cooked in an authentic pizza oven.

Using the pizza stone is a great way to cook bought, ready-made pizzas as well as home-made

ones.

If cooking frozen pizza, allow it to defrost completely before placing on the hot pizza stone.

14

Using the oven controls

In double ovens controls on the left are for the upper oven and controls on the right are for
the lower oven. Pushing the oven cavity selector button lets you toggle between the oven
cavities, for example if you are setting automatic programs.

a

TIMER button

b

COOK TIME button

c

STOP TIME button

d

PROBE button

e

CLOCK button

f

PUSH TO

CLEAR

button (rotate/press)

g

Upper oven cavity display

h

Lower oven cavity display

i

Oven cavity selector button -

press this button to toggle between

upper and lower cavity settings

g, h, and i are on double models only

Timer

The timer can be used at any time, even when the oven is not in use.

To set the timer

1

Press the TIMER button. The TIMER symbol and the colon will flash in the clock display.

2

Rotate the

PUSH TO

CLEAR

button until you have the time you need. Press the TIMER button or wait

eight seconds for the setting to be adopted and the timer will begin to count down.

3

To cancel the timer, press the

TIMER button then the

PUSH TO

CLEAR

button.

4

When the set time finishes the

TIMER symbol and will flash and the oven will beep. Press

the

TIMER or

PUSH TO

CLEAR

button to stop the beeping and clear the timer.

The timer does not turn the oven off.

g

h

f

i

decba

15

Automatic cooking

Automatic time cooking

Automatic time (delayed start) cooking will turn the oven on and off at times you have set.

To set automatic time cooking:

1

Check that the clock shows the correct time.

2

In double ovens, choose the upper or lower oven. This is important.

3

Select the oven mode and temperature.

4

Decide how long the food will take to cook, allowing time for preheating if necessary.

5

Press the

COOK

TIME

button and rotate the

PUSH TO

CLEAR

button to select this length of time. You do

not need to set a start time.

6

Press the

STOP
TIME

button, and rotate the

PUSH TO

CLEAR

button to select the time of day you want

the oven to stop cooking.

Note: you must set this stop time within eight seconds, or the cook time settings will

be automatically adopted. To cancel the cook time settings, turn the oven mode and
temperature dials to OFF, as described in ‘Cancelling automatic cooking’.

The oven mode and temperature dials will still function (as during manual operation). You can

alter these before or during cooking, and you can manually turn the oven off before the set
cook time has finished.

Before cooking starts, DELAY, AUTO and the current time will show in the clock display. The oven

mode and temperature displays will dim, and the oven light will be off.

During cooking, AUTO, COOK TIME and the remaining cook time will show in the clock display.

The oven mode and temperature displays will be bright, and the oven light will be on.

When cooking has finished, the oven will beep and turn off. The temperature and oven

displays will dim, and the oven light will go off.

COOK TIME and AUTO will flash in the clock

display.

Turn the oven mode and temperature dials to OFF. The oven light will stay on for eight

seconds, and then go off when the oven returns to manual mode.

Automatic stop cooking

You can set the oven to automatic stop cooking at any time during cooking, or when you turn

the oven on.

To set automatic stop cooking:

1

Check that the clock shows the correct time.

2

In double ovens, choose the upper or lower oven. This is important.

3

Select the oven mode and temperature.

4

Press the

STOP
TIME

button, and rotate the

PUSH TO

CLEAR

button to select the time you want the

oven to stop cooking.

16

During cooking, AUTO, COOK TIME and the remaining cook time will show in the clock display. The

oven mode and temperature displays will be bright, and the oven light will be on.

When the cook time is finished, the oven will beep and turn off. The oven and temperature

displays will dim, and the oven light will go off.

COOK TIME and AUTO will flash in the clock

display.

Turn the oven mode and temperature to OFF. The oven light will stay on for eight seconds,

and then go off when the oven returns to manual mode.

Cancelling automatic cooking

To cancel automatic time and automatic stop cooking, turn the oven mode and temperature
dials to OFF. After eight seconds, the clock display will revert to the time of day, and the oven
will return to manual mode.

Avoid using foods that will spoil while waiting for the cooking cycle to begin. Typical

food to avoid include those containing eggs and dairy products, cream soups, cooked and
uncooked meats, poultry and fish.

If cooking will not begin immediately, place only very cold or frozen food in the oven.

Most unfrozen food should never stand in the oven for more than two hours before
cooking begins.

Do not allow food to remain in the oven for more than one hour after completion of the

cooking cycle.

WARNING!

Food safety is an important consideration when using delayed cooking modes.

To avoid potential spoiling of food and sickness, take the following steps:

17

Oven operation

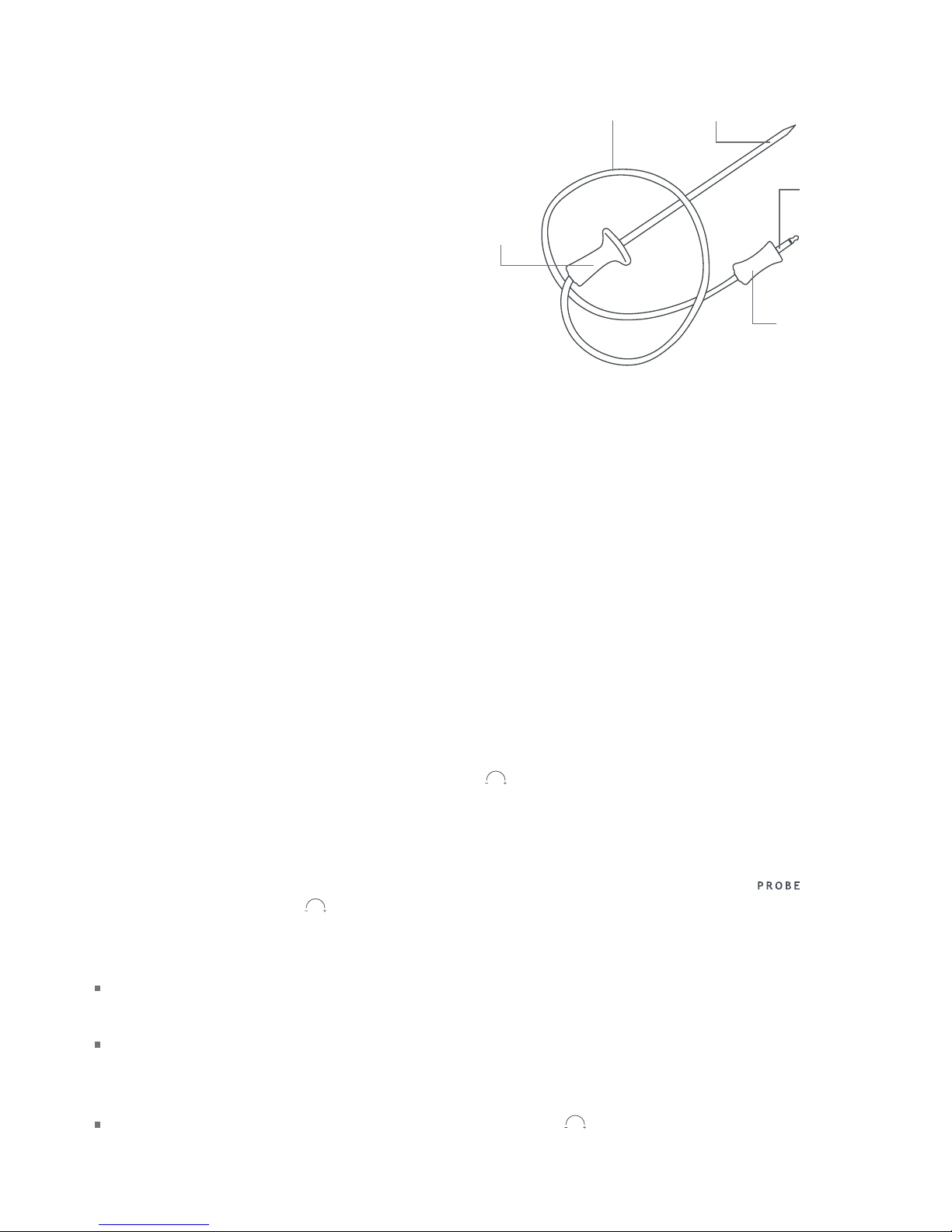

Cooking probe

Use your cooking probe to accurately judge
when your meat is perfectly cooked. The
probe can be used on TRUEAERO, AEROBAKE,
ROAST, AEROBROIL and BAKE modes.

Using the cooking probe

1

Select the oven mode and temperature and

preheat the oven if appropriate. ROAST does
not require preheating.

2

Insert as much of the metal cooking probe

as possible horizontally into the thickest part
of the fully defrosted meat. The thicker the meat,
the longer it will take to cook, so it is important
that the probe is measuring the temperature of the meat at its thickest point. Make sure the
probe does not touch bone, fat or gristle, as this will give you a false reading.

3

Place the meat on the three-piece broil/roast system.

4

When the oven has preheated (if required) to the set temperature place the broil/roast system

in the oven and insert the plug end of the cooking probe into the probe socket, using an oven
mitt if the oven is hot. The probe socket is on the left hand side of the oven, halfway down
between shelf positions three and five. Make sure the probe is pushed into the socket, then
close the oven door.

5

Select the upper or lower cavity for double oven models using the oven cavity selector button.

6

Press the PROBE button on the control panel. The pre-set temperature of 150 °F (65 °C) and

PROBE will light up in the display. If you want to select a different internal food temperature
from the preset temperature, rotate the

PUSH TO

CLEAR

button while the PROBE symbol is flashing.

For temperature guidelines, see ‘Cooking charts’.

To cancel the cooking probe

To cancel the probe setting before the set temperature has been reached press the
button then the

PUSH TO

CLEAR

button.

Tips for using the cooking probe

The display will show the actual internal temperature. To look at the set internal temperature

press

PROBE.

The oven will beep and automatically turn off when the set internal temperature has been

reached. The temperature and oven mode displays will remain on and the oven light will go
out.

Return the oven to manual mode by pressing the

PUSH TO

CLEAR

button. Turn the oven mode

dial and temperature dials to OFF.

a

M e t a l p r o b e

b

Plug

c

Handle

d

Cable

a

c

c

d

b

18

The cooking probe can be used with automatic cooking functions. If the probe reaches the

set temperature before the stop time is reached the probe will turn the oven off.

The internal temperature of the meat will continue to rise by 5-15 °F (2-8 °C) after you have

removed it from the oven so allow for this in your calculations.

Important!

Use only the cooking probe supplied with your AeroTech® oven.
Hold the cooking probe at the ‘handles’ when inserting and removing it from food and the

cooking probe socket.

Remember to remove the cooking probe from the oven before you start a self-clean cycle.
Do not store the probe in the oven.
Only use the probe with food that is fully defrosted.

Roasting

ROAST is a two-step program. It has an initial 20 minute searing stage to brown the roast and
caramelize the meat juices, then a reduction to your set temperature for the remainder of the
cooking period, producing a tender and juicy roast that is full of flavor. Little browning takes
place after the initial 20 minute searing.

Using the ROAST mode

1

Place the meat on the three-piece broil/roast system on a shelf so that the top of the roast is in

the center of the oven or lower.

2

Select ROAST using the oven mode dial. Select the temperature. When using the ROAST

mode, there is no need to preheat the oven.

Use automatic/delayed start cooking if you want your oven to automatically turn on/off. For

suggested roasting times and temperatures see ‘Cooking charts’.

Tips for a successful roast

The initial searing is too hot for ‘roasting bags’. Use TRUEAERO, AEROBAKE or BAKE if you are

using roasting or oven bags and follow the manufacturer’s guidelines.

Tender cuts should be cooked at a high temperature quickly, while tougher cuts require a

lower temperature for a longer time.

For perfect results use the meat probe to take out the guesswork.

Placing the meat on the wire broil/roast rack allows hot air to circulate around it and gives

more even browning.

Thick pieces of meat take longer to cook than thin pieces of the same weight. Meat cooks by

absorbing heat from the outer surface to the middle. The thicker the meat the longer it will
take to cook.

Roasts containing bones cook more quickly than boneless or rolled roasts due to the bone

conducting heat throughout the meat. Stuffed roasts will take longer to cook.

19

Selecting the cooking time for your roast depends on your personal preference. Meat taken

straight from the refrigerator will take longer to cook.

Poultry should always be well cooked with the juices running clear.

Roasting is a method of cooking meat that uses dry heat. Don’t add water to your roast as this

has a steaming effect.

Vegetables are excellent cooked on ROAST. Clean and cut them into large chunks, coat lightly

with oil, season and place in a single layer on the greased glass tray. Select ROAST using the
oven mode dial and 340 °F (175 °C). Place in the oven on a shelf in position eight. Cook for
35 – 45 minutes, depending on size and type of vegetable, until golden brown and tender.
Vegetables can be placed on the broiling system, around meat if they are going to take
approximately the same length of time to cook. Longer than about two hours will overcook
the vegetables so put them in the oven partway through cooking a large piece of meat. The
vegetables will brown more slowly if they have missed the initial searing stage of the ROAST
mode so allow plenty of time to cook them thoroughly, up to two hours at 320-340 °F (150­175 °C).

Broiling

Your AeroTech® oven gives you a choice of BROIL , MAXIBROIL and AEROBROIL
For many meats broiling is considered to be a healthier alternative to frying. Broiling is a
relatively quick method of cooking foods producing superior flavor and is also a great way to
cook vegetables. Carry out all broiling with the oven door completely closed.

When using AEROBROIL the upper elements are on and the hot air is circulated around the
oven by the oven fan. AEROBROIL is suitable for foods that you might normally pan fry,
barbecue or rotisserie, for larger cuts of meat and whole chickens.

Using the broil modes

1

Place food on top of the broil/roast pan, grid and rack.

2

Select the shelf position you want to broil at - see ‘Cooking charts’ for suggested shelf

positions, times and temperatures.

WARNING!

Hot Surface Hazard

Hot steam may be produced when using BROIL, MAXIBROIL, or
AEROBROIL modes.

Take care when opening the oven door and always use oven mitts or pot
holders to handle hot cooking utensils.

Failure to do so could result in burns or scalds.

20

Tips for successful broiling

Position the oven shelves before you turn the oven on.

To make cleaning the broil/roast system easier, spray the rack, grid and inside of the pan with a

light coating of non-stick cooking spray before use.

For best results allow the broil element to warm up for a minute or two before putting food in

the oven.

Use the timer to time the broiling process if desired.

Keep the oven door closed.

We recommend using the three-piece broil/roast system provided with your AeroTech® oven.

This has been specifically designed to reduce splatter and smoke. If you do use other glass or
ceramic dishes and pans, be sure that they can withstand the high temperature of the broil.

Basting lean meat, fish or chicken with a marinade or juices while broiling will add flavour and

moisture.

If turning meat halfway through the cooking time, use tongs or a spatula. Avoid piercing meat

with a knife or fork as this will allow juices to escape, making the meat less moist.

Baking

Tips for successful baking

When baking, make sure the cake tins do not touch each other or the sides of the oven.

Stagger tins across shelves if necessary and use TRUEAERO

for multi-shelf cooking. Do not

open the oven door until at least

3

/4 through the suggested cooking time.

Baking pans that are made of dark, dull metals are recommended in appliances with a

concealed lower element like the AeroTech® oven. They absorb heat and often cook and
brown food faster than reflective, shiny aluminum pans and sheets.

Important!

Do not place aluminum foil, dishes with reflective qualities or any object on the oven floor
as this will cause a heat build-up which will result in irreversible damage to the porcelain
enamel.

Multi-shelf cooking

Multi-shelf cooking is very successful using the TRUEAERO mode. The AeroTech® advanced
cooking system allows you to bake several different foods simultaneously on different levels
giving you increased flexibility - as well as saving time. TRUEAERO is well suited to batch
baking of cookies, biscuits, and muffins as well as complete oven meals. See ‘Cooking charts’
for suggested times, temperatures and shelf positions for multi-shelf cooking.

21

Dehydrating, and proofing bread

Tips for dehydrating

To obtain a high quality dried product, select only unblemished, mature fruit.

Wash fruit thoroughly and pat dry. Peel if desired. Unpeeled fruit will take longer to dry.

Remove stones, stems or pips if necessary. Place fruit on a baking tray on a shelf in the oven.

We recommend using TRUEAERO or AEROBAKE at 125 °F (50 °C).

Tips for proofing bread

Your AeroTech® oven provides an ideal sealed environment to proof bread.

Preheat the oven on BAKE at 80 °F (30 °C). When you are ready to proof the dough, turn the

temperature and mode to off and place the dough in a covered bowl on a shelf in the warm
oven. It will be the perfect temperature to proof dough and the AeroTech® oven is so well
insulated that it will stay warm for several hours.

Note: Some recipes recommend putting water or ice in the oven with the bread dough during

baking. The additional moisture improves the bread crust.

You must place the water or ice in a dish and on an oven shelf in positions 12 or 13. Do not

put it directly onto the oven floor. Placing water, ice or any dish or tray directly on the oven
floor irreversibly damages the porcelain enamel.

22

USER SELECT options

USER SELECT mode

USER SELECT mode allows you to configure some of the settings displayed on your AeroTech®
oven control panel.

How to enter USER SELECT mode

1

Be sure that the oven mode and temperature dials are off, that no automatic/delayed start
programs are operating and that the clock is displaying the correct time of day.

2

Press the then the button and hold down
together until the oven ‘beeps’ (about two seconds). The oven
mode display will show

.

Sabbath mode

This mode is designed for religious faiths that observe a ‘no work’ requirement on the
Sabbath.

When your oven is in Sabbath mode

Clock, temperature and oven mode displays will be disabled.

No tones will sound.

No error messages or temperature changes will be displayed. However, temperature can be

adjusted.

The cavity lights are on if the door is open when Sabbath mode is set. The cavity lights are

off if the door is closed when Sabbath mode is set.

How to set Sabbath mode

1

Enter the USER SELECT mode and turn the oven mode dial

clockwise until the display shows

.

2

Select the length of time you wish to stay in by rotating

the

PUSH TO

CLEAR

button. The maximum is 99 hours, in one hour

steps, and is shown in the clock display. Select a temperature.
BAKE is the only oven mode available in Sabbath mode.

3

To start Sabbath mode, press the

PUSH TO

CLEAR

button. The oven mode display will show

with no backlight. The temperature display will show

; temperatures can be adjusted but

the display will not change.

Oven mode
display

Oven mode
display

23

Tips for using Sabbath mode

In double oven models, different temperatures can be selected for upper and lower ovens

by using their temperature dials. The oven mode dial for the lower oven must be turned to a
function to activate the lower oven.

The oven can be turned off at any time during Sabbath mode by turning the oven mode and

temperature dials to OFF, but the oven will not revert to regular operation until the set time
has elapsed.

When the set time has elapsed the oven will revert to regular operation.

You can exit Sabbath mode at any time by pressing the

PUSH TO

CLEAR

button and holding it

down for five seconds.

How to change the temperature scale

1

Enter the USER SELECT mode and turn the oven mode dial

clockwise until

appears in the display.

2

Press

PUSH TO

CLEAR

to select either ‘C’

or ‘F’ in the clock display.
Selecting ‘C’ will convert the numbers shown in the temperature
display to degrees Celsius while selecting ‘F’ will show the oven
temperatures in degrees Fahrenheit.

3

Press the button to activate.

SHORT ALERT

By default, SHORT ALERT is off and the audible beep will sound continuously at the end of
automatic cooking functions until cancelled by pressing the

PUSH TO

CLEAR

button.

When SHORT ALERT is on

An audible beep will sound five times at the end of automatic cooking functions and when

the timer finishes. After five beeps, the alert will stop, then repeat every five minutes until
cancelled by pressing the

PUSH TO

CLEAR

button.

The clock display will flash continuously until cancelled.

How to activate SHORT ALERT

1

Enter the USER SELECT mode and turn the oven mode dial

clockwise until

appears in the display.

2

Press

PUSH TO

CLEAR

to select either ON or OFF in the clock display.

3

Press the button to activate.

Oven mode
display

Oven mode
display

24

How to change from 24 hour to 12 hour time display

1

Enter the USER SELECT mode and turn the oven mode dial

clockwise until

appears in the display.

2

Press

PUSH TO

CLEAR

to select either ‘24H’ or ‘12H’ in the clock

display.

3

Press the button to activate.

How to hide the time in the clock display

1

Enter the USER SELECT mode and turn the oven mode dial

clockwise until

appears in the display.

2

Press

PUSH TO

CLEAR

to select either ’ON’ or ‘OFF’ in the clock

display.

3

Selecting ’ON’ will show the time and ‘OFF’ will hide the time
in the clock display. All other functions, such as

TIMER, will

continue to be shown as normal in the clock display when the
time is hidden.

4

Press the button to activate.

How to change the language

1

Enter the USER SELECT mode and turn the oven mode dial

clockwise until

appears in the display.

2

Press

PUSH TO

CLEAR

to toggle through the different languages: US
for American English, EN for UK English, FR for Canadian French
or ES for South American Spanish.

3

Press the button to activate.

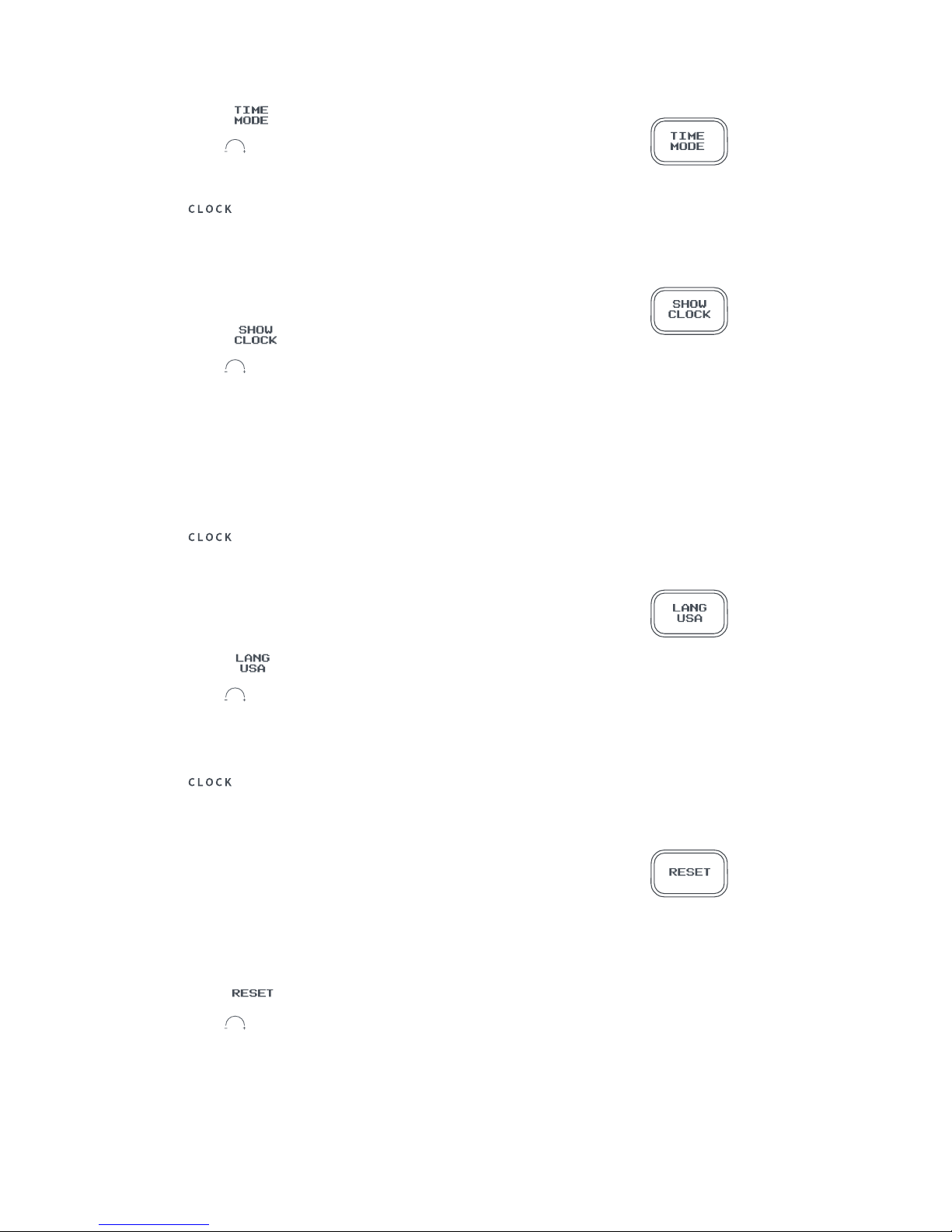

How to reset the oven

This will reset TEMP, SCALE, SHORT ALERT, TIME MODE and
SHOW CLOCK to their default settings. Sabbath mode and
language settings will remain unaffected.

1

Enter the USER SELECT mode and turn the oven mode dial

clockwise until

appears in the display.

2

Press

PUSH TO

CLEAR

to reset the oven to default settings.

3

Press the CLOCK button to exit USER SELECt mode.

Oven mode
display

Oven mode
display

Oven mode
display

Oven mode
display

25

Control panel lock

Locking the control panel disables all the buttons and dials which can be useful when
cleaning oven surfaces or preventing accidental bumps and unauthorised use. The control
panel can only be locked when the oven mode and temperature are OFF.

To lock the control panel

Press the

PUSH TO

CLEAR

button and hold down for five seconds. The LOCK symbol will appear in

the clock display. Repeat to unlock.

26

Cooking mode options

This chart will help you to match your cooking requirements to the most appropriate cooking
mode. Note:

Recommended method Alternative method.

TRUEAERO

AEROBAKE

BAKE

AEROPASTRY

PASTRY BAKE

ROAST

BROIL

MAXIBROIL

AEROBROIL

Baked products

Cookies - single tray
Cookies - multi tray
Chewy choc. chip

cookies
Slices/Squares
Chocolate cake
Fruit cake
Sponge
Muffins - single tray
Muffins - multi tray
Meringue
Bread/Rolls

Pastry

Apple pie
Quiche
Custard tart
Phyllo/Flaky/Puff/Choux

Meat, fish and poultry

Roast beef/pork/lamb
Roast chicken - whole
Roast chicken - pieces
Roast turkey
Steak/Chops/Cutlets
Fish

Family favorites

Pizza
Casserole
Lasagne
Meatloaf
Complete oven meals
Vegetables - roasted
Vegetables - baked
Vegetables - broiled

27

Cooking charts

TRUEAERO

Time (min) Temp °F Temp °C

Shelf (single/
multi)

Baked products

Cookies 13-18 350-360 175-180 8; 5 & 10
Chewy chocolate chip cookies 15-20 340-360 170-180 8; 5 & 10
Vanilla cake 30-40 340-350 170-175 12
Squares/Slices 25-30 340-360 170-180 8
Shortbread 22-30 300-310 150-155 8
Cake - butter/choc 45-55 340-350 170-175 12
Cake - fruit rich 4-5 hrs 280-300 140-150 13
Cake - fruit light 85-95 310-330 155-165 13
Muffins 10-15 390-410 200-210 8; 5 & 10
Meringues 50-60 250-270 120-130 11
Biscuits 12-15 400-425 200-220 8; 5 & 10
Bread/Rolls 25-35 380-400 195-210 8
Pizza 10-15 440-450 225-230 10
Apple pie 35-45 350-360 175-180 10

Pastry

Phyllo 15-25 375-390 190-200 8
Flaky/Puff 25-35 375-390 190-200 10
Quiche 20-30 350-375 175-190 10
Meat pie 40-50 350-375 180-190 10
Lemon meringue pie 20-30 370-375 185-190 10
Choux pastry 35-40 390-400 200-210 10
Custard tart - pastry 14-16 375-390 190-200 11

- filling 7 350-360 175-180 11

- filling cont. 20-30 310-330 155-165 11

Family Favorites

Lasagne 30-40 350-375 175-190 10
Meatloaf 80-90 350-375 175-190 8
Chicken pieces 50-60 350-375 175-190 10
Casserole 55-70 340-375 170-190 10

Vegetables

Baked 30-50 350-375 175-190 10
Roasted 30-45 375-390 190-200 9

28

AEROBAKE

Time (min) Temp °F Temp °C Shelf

Baked products

Cookies 8-12 340-350 170-175 9
Chewy chocolate chip cookies 12-18 320-330 160-165 8
Vanilla cake 30-35 340-350 170-175 11
Squares/slices 20-25 350-360 175-180 10
Shortbread 25-35 280-300 140-150 11
Cake - butter/choc 50-60 320-350 160-175 11
Cake - fruit rich 2-6 hrs 260-300 125-150 13
Cake - fruit light 2-2½ hrs 270-300 130-150 13
Sponge 20-25 320-350 160-175 8
Muffins 10-15 390-425 200-220 7
Meringues 60-70 200-225 100-110 11
Biscuits 10-12 390-425 200-220 8
Bread/rolls 15-30 390-425 200-220 8
Pizza 12-16 380-400 195-200 12
Apple pie 25-30 375-400 190-200 11

Pastry

Phyllo 15-25 375-390 190-200 9
Flaky/puff 20-30 370-390 185-200 9
Quiche 20-25 350-390 175-200 11
Meat pie 30-40 375-380 190-195 11
Lemon meringue pie 30-40 350-360 175-180 10
Choux pastry 30-35 390-400 200-210 11
Custard tart - pastry 12-15 375-390 190-200 8

- filling 7-9 350-360 175-180 8

- filling cont. 20-25 280-300 140-150 8

Family favorites

Lasagne 40-50 350-360 175-180 8
Meatloaf 55-65 350-360 175-180 8
Chicken pieces 30-40 350-375 175-190 10
Casserole 50-60 350-375 175-190 11

Vegetables

Baked 30-50 350-375 175-190 10
Roasted 30-45 375-390 190-200 9

29

BAKE

Time (min) Temp °F Temp °C Shelf

Baked products

Cookies 8-12 350-370 175-185 9
Chewy chocolate chip cookies 12-18 330-350 165-175 9
Vanilla cake 30-35 330-350 165-175 9
Squares/slices 20-30 350-375 175-190 8
Shortbread 25-35 300-320 150-160 11
Cake - butter/choc 50-60 320-360 160-180 11
Cake - fruit rich 4-6 hrs 275-300 135-150 13
Cake - fruit light 2-2½ hrs 300-320 150-160 13
Sponge 20-40 340-375 170-190 9
Muffins 10-15 390-440 200-225 8
Meringues 60-70 250-270 120-130 11
Biscuits 10-12 410-425 210-220 7
Bread/rolls 15-30 390-425 200-220 8
Pizza 12-18 390-410 200-210 12
Apple pie 25-35 390-410 200-210 11

Pastry

Phyllo 20-30 375-390 190-200 8
Flaky/puff 20-30 400-410 200-210 8
Quiche 20-30 350-390 175-200 10
Meat pie 30-40 350-390 175-200 10
Lemon meringue pie 35-40 350-375 175-200 10
Choux pastry 35-45 390-410 175-190 8
Custard tart - pastry 12-15 375-390 200-210 8

- filling 7-9 350-360 175-180 8

- filling cont. 20-25 280-300 140-150 8

Family favorites

Lasagne 40-50 350-375 175-190 9
Meatloaf 55-65 350-360 175-180 9
Chicken pieces 30-40 350-375 175-190 9
Casserole 70-90 350-360 175-180 10

Vegetables

Baked 40-50 350-375 175-190 8
Roasted 35-50 375-390 190-200 8

30

AEROPASTRY

Time (min) Temp °F Temp °C Shelf

Baked products

Cookies 8-10 340-350 170-175 9
Oat cookies 12-15 320-330 160-165 9
Squares/slices 15-20 320-350 160-175 11
Shortbread 20-25 270-280 130-140 9
Pizza 15-20 440-475 225-250 10

Pastry

Quiche 20-30 390-425 200-220 8
Meat pie 30-40 360-375 180-190 8
Lemon meringue pie 15-20 340-360 170-180 8

PASTRY BAKE

Time (min) Temp °F Temp °C Shelf

Baked products

Sugar cookies 9-11 340-350 170-175 9
Oat cookies 10-15 320-330 160-165 9
Squares/slices 15-20 320-350 160-175 11
Shortbread 20-25 280-300 140-150 9

Pastry

Quiche 20-30 390-425 200-220 8
Meat pie 30-40 360-375 180-190 8
Lemon meringue pie 15-20 340-360 170-180 8

31

MAXIBROIL
& BROIL

Time (min) Broil setting Shelf

Beef

Steaks - rare 8-10 Hi 3

Steaks - medium 10-15 Hi 4

Minced - burgers 12-15 Hi 4
Minced - meatballs 12-15 Hi 4

Lamb

Chops - medium 15-20 Hi 3
Chops - well done 20-25 Hi 3

Pork

Chops - well done 15-20 Hi 3
Ham steak 15-20 Hi 4
Bacon 4-7 Hi 3

Chicken

Boneless pieces 15-30 Hi 6

Sausages

Sausages 10-15 Hi 4

Fish

Fillets 8-12 Hi 4
Whole 15-20 Hi 4

32

AEROBROIL

Time (min) Temp °F Temp °C Shelf

Beef

Ground - burgers 15-20 425-440 220-225 4
Ground - meatballs 10-15 375-410 190-210 4

Lamb

Chops - medium 15-20 400-440 200-225 4
Chops - well done 20-25 400-440 200-225 4
Rack - medium 20-30 400-410 200-210 5

Pork

Chops - well done 20-25 375-410 190-210 4
Ham steak 15-20 425-400 220-225 4
Bacon 10-15 425-440 220-225 3

Chicken

Whole

30-35 per
1 lb/450 g

340-360 170-180 9

Boneless pieces 30-50 350-375 175-190 7

Sausages

Sausages 10-15 375-400 190-200 4

Fish

Fillets 8-12 400-425 200-220 4
Whole 15-20 400-425 200-220 4

33

Roasting meat

We recommend you use the cooking probe to accurately judge when meat is cooked to your
preference. ‘Time per pound/450 g’ is a rough guide and should only be used to estimate
when the meat will be ready. Cooking with ROAST, TRUEAERO, AEROBAKE, and AEROGRILL will
take less time than with BAKE.

Time (min per

lb/450g)

Oven Temp °F

Oven Temp °C

Probe Temp °F

Probe Temp °C

Shelf

Best Mode

Beef

Boneless roast - rare 18-32 320-340 160-170 130-140 54-60 10 ROAST

Boneless roast - medium 25-40 320-340 160-170 150-160 65-70 10 ROAST

Boneless roast - well done 30-55 320-340 160-170 165-175 74-79 10 ROAST
Prime or standing rib roast - rare 15-30 320-340 160-170 130-140 54-60 10 ROAST
Prime or standing rib roast - medium 20-35 320-340 160-170 150-160 65-70 10 ROAST
Prime or standing rib roast - well done 25-40 320-340 160-170 165-175 74-79 10 ROAST

Leg of lamb

With bone - medium 18-28 320-340 160-170 150-160 65-70 10 ROAST
With bone - well done 20-33 320-340 160-170 165-175 74-79 10 ROAST
Boneless - medium 20-35 320-340 160-170 150-160 65-70 10 ROAST
Boneless - well done 25-45 320-340 160-170 170-175 77-79 10 ROAST

Veal

Medium 20-43 320-340 160-170 150-160 65-70 10 ROAST
Well done 25-45 320-340 160-170 170-175 77-79 10 ROAST

Chicken

Whole 15-20 350-375 175-190 180 82 11 TRUEAERO

Turkey

With stuffing - well done 17-22 330-350 165-175 180 82 13 TRUEAERO
Well done 15-20 300-330 150-165 180 82 13 TRUEAERO

Pork

Boneless roast - medium 25-40 340-350 170-175 145-155 63-68 10 AEROBAKE
Boneless roast - well done 30-45 340-350 170-175 165-175 74-79 10 AEROBAKE

Venison*

Rare

7½

per
inch of
thickness

440 225 120-130 49-54 8 AEROBAKE

Medium rare

9

per inch

of thickness

440 225 130-140 54-60 8 AEROBAKE

*Brown prior to roasting on an oiled skillet or frying pan on high heat. The internal temperature of venison
rises more on standing due to the high cooking temperature, therefore the suggested probe settings are
lower than other rare or medium rare meats.

34

Cleaning

Important!

Do not use harsh/abrasive cleaning agents, waxes, pumice cleaners, polishes or commercial
oven cleaners to clean your oven.

Important!

If you choose to use a commercial stainless steel cleaner, please read the label to make
sure it does not contain chlorine compounds as these are corrosive and may damage the
appearance of your oven. Clean the stainless steel surfaces with the grain, in a horizontal
motion.

Cleaning the control panel

It may be useful to lock the oven controls prior to cleaning – see ‘Control panel lock’ in ‘User
Select options’ for details.

Brushed and Iridium stainless steel

Clean with a commercial stainless steel cleaner, see ‘Important’ above, or wipe with a clean

damp cloth and dry with a lint-free cloth.

Regular use of a stainless steel cleaner will reduce fingerprints and other marks.

Do not use abrasive cleaners on stainless steel, as they will permanently damage the surface.

Cleaning the glass door

Clean the exterior glass surface with a mild solution of detergent and warm water.

Use a glass cleaner to remove any smears or fingerprints.

Dry the glass using a soft lint-free cloth.

Note: The interior oven door glass will be cleaned during a self-clean cycle.

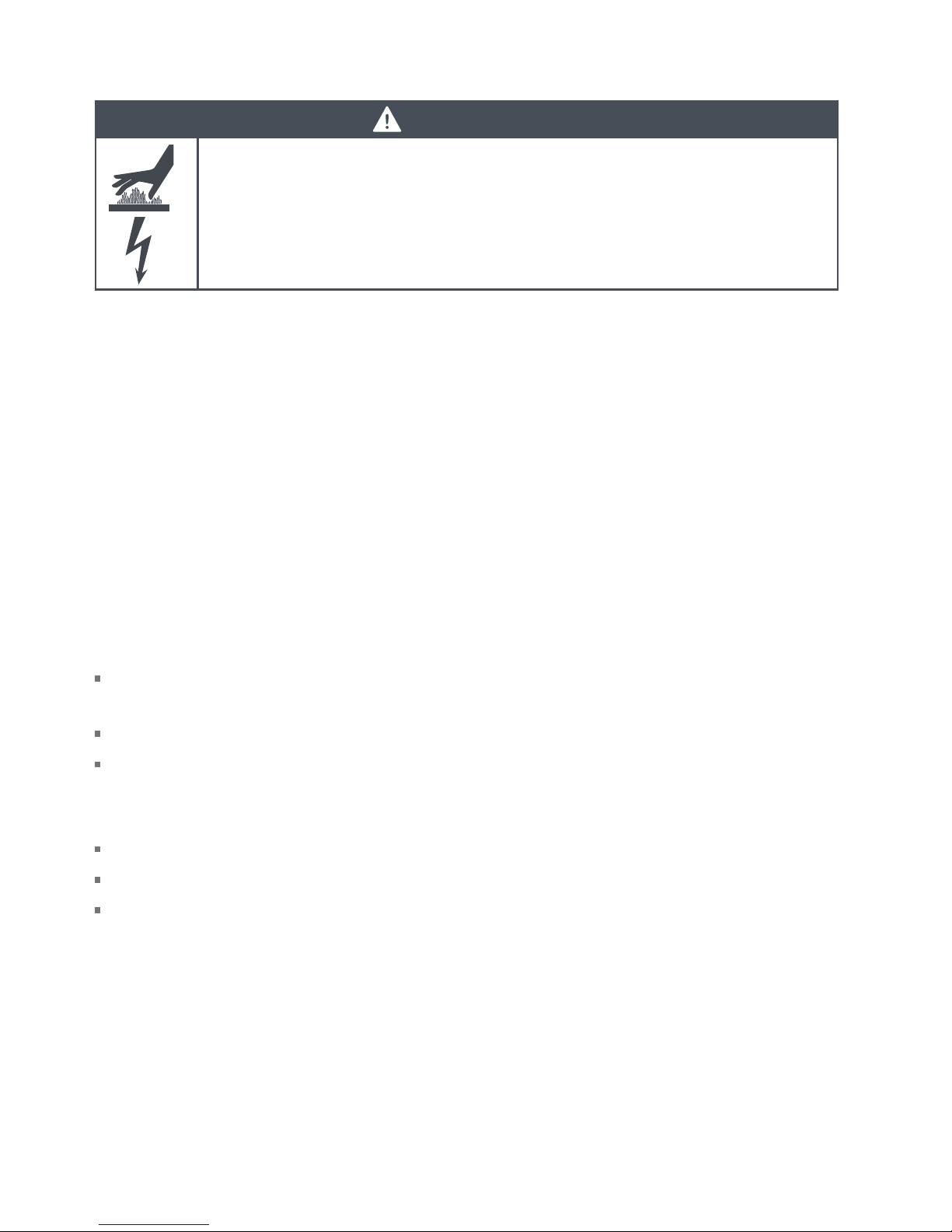

WARNING!

Hot Surface and Electrical Shock Hazard

Make sure all oven controls are turned off and the oven is cool before
cleaning.

Failure to do so could result in electrical shock or burns.

35

Cleaning the porcelain enamelled surfaces

The oven interior and inner door liners are porcelain enamelled and are cleaned during the self­clean cycle.

Important!

Do not use any oven cleaners, oven cleaning products or abrasives on the porcelain

enamel.

Do not clean the door seal (gasket) or cavity seal or use any oven cleaning products on

them. They are essential for a good seal and the efficient operation of the oven and care
should be taken not to rub, damage or move the seals.

Cleaning the three-piece broil/roast system and oven shelves and shelf
supports

The broil/roast system, oven shelves and self supports can be cleaned using a solution of

detergent and hot water. They are also dishwasher safe.

If particularly soiled, soak in a solution of hot water and biological clothes washing powder to

make cleaning easier.

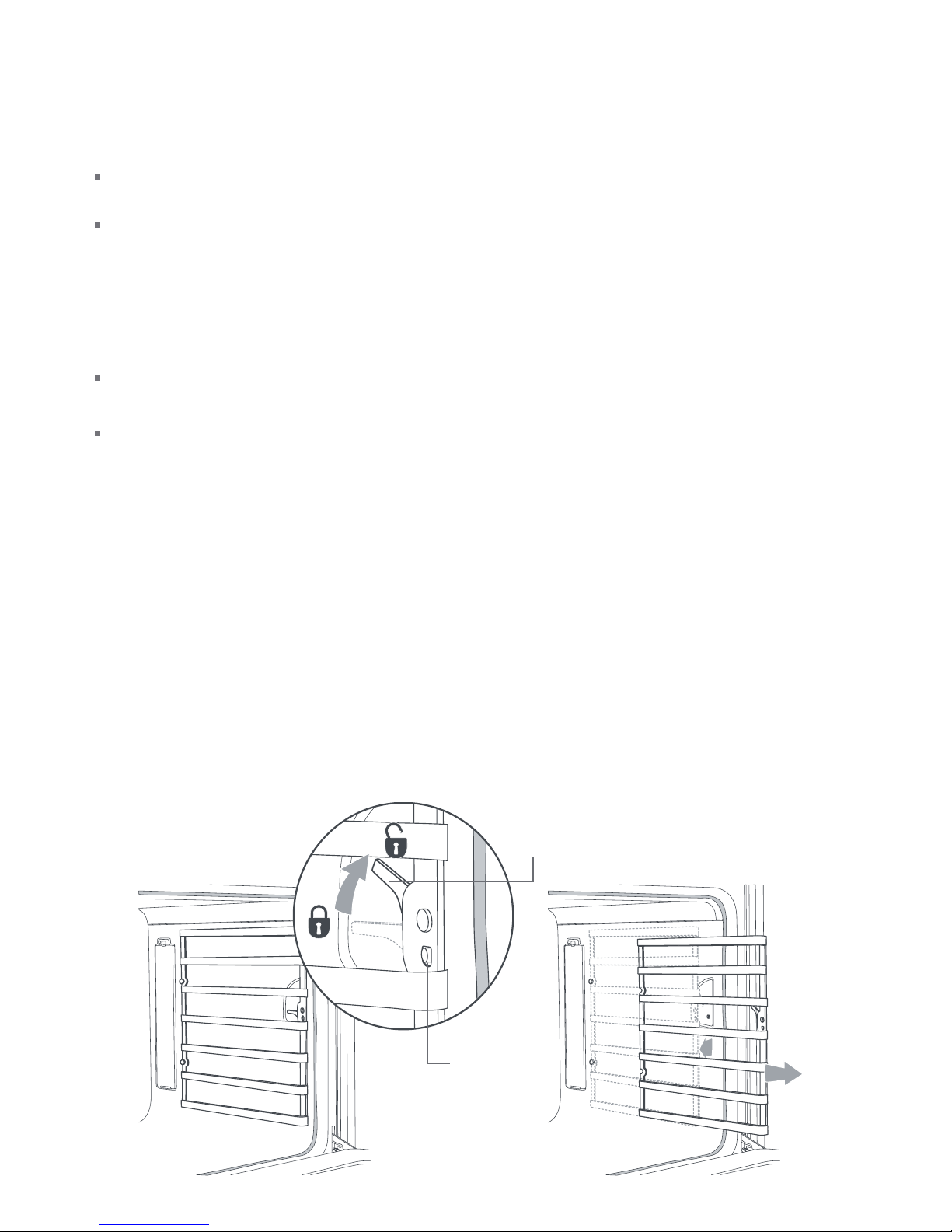

To remove the shelf supports

1

Lift the lever to unlock the shelf support.

2

Lift the shelf support up and away from the side wall of the cavity to clear the locating pin.

3

Pull the shelf support toward you and out of the oven.

To replace the shelf supports

1

Align the two notches on the rear edge of the shelf support with the two pins to the rear of

the oven cavity.

2

Replace the front of the shelf support against the wall of the oven cavity. Be sure the locating

pin slots into place.

3

Lock the shelf support into position by shifting the lever into the horizontal position where it

will ‘click’ into place.

Lever

Locating
pin

36

SELF CLEAN mode

This oven features a pyrolytic self-clean cycle.

During a self-clean cycle the oven reaches higher temperatures than it does for cooking and

this burns off and breaks down soil and grease deposits.

A smoke eliminator and active venting system removes and breaks down the smoke, fumes

and odors.

The ash residue that remains is easily removed from the cool oven with a small brush and a

damp cloth or sponge.

A self-clean cycle normally takes about three hours. This time can be reduced to as low as two

hours.

Only one oven in a double oven can be self-cleaned at a time.

When one oven is in a self-clean cycle, the other oven cannot be used for cooking.

Important safety instructions

Wipe up any large food spills or grease deposits before starting a self-clean cycle.

Do not use oven cleaners. Do not use any commercial oven cleaner, oven liner or

protective coating of any kind in or around any part of the oven.

Remove oven shelves and shelf supports (see ‘Cleaning’) before starting a self-clean cycle.

If left in the oven, they will permanently discolour.

Do not use your oven to clean miscellaneous parts.

Do not clean the door seal or cavity seal, or use any oven cleaning products on them. They

are essential for the efficient operation of the oven and care should be taken not to rub,
damage or move them.

37

Using the SELF CLEAN mode

1

Remove oven shelves, shelf supports (see ‘Cleaning’) and all other cookware/utensils from the

oven before using the SELF CLEAN mode.

2

Select the SELF CLEAN mode by turning the oven mode dial.

3

Turn the temperature dial to its maximum position.

will appear in the display and this

will change to

when the cycle begins. The

DOOR LOCK and CLEAN symbols will show in the

clock display and the time remaining will count down.

For your safety the door lock will automatically activate once the SELF CLEAN mode and
temperature have been selected.

4

At the end of a self-clean cycle, the door will unlock and the DOOR LOCK symbol will disappear.

The

CLEAN symbol and

will flash in the clock display and

SELF CLEAN will show in the mode

display until the oven is returned to manual operation – to do this turn the oven mode and
temperature dials to OFF.

5

At the completion of the self-clean cycle, you will notice grey ash deposited inside the oven.

The amount of ash in the oven is dependent on the amount of soil present in the oven before
it was cleaned. When the oven is completely cooled, the ash is easily removed with a small
brush or dry cloth, then wipe out the oven with a clean damp cloth and dry with a clean
lint-free cloth.

6

Replace the shelf supports (see ‘Cleaning’) and oven shelves.

To cancel the SELF CLEAN mode before it has finished

Turn the oven mode and temperature dials to OFF. CLEAN COOL will appear in the oven mode
display and the door will remain locked until

CLEAN END appears.

Important!

Do not turn off the mains power supply to the oven. The fans are needed to cool the
oven.

Once the oven is cool or below the safe temperature it will return to normal operation and the
clock display will show the time of day.

Short SELF CLEAN cycle

A shorter self-clean cycle can be selected if the oven is only lightly soiled:

1

Select the SELF CLEAN mode by turning the oven mode dial.

2

Turn the temperature dial to its maximum position. will appear in the display.

3

While is showing press the

COOK

TIME

button. The

COOK

TIME

and AUTO symbols and the colon will

flash.

4

Rotate the

PUSH TO

CLEAR

button to reduce the time: this can be anywhere between two and

three hours.

5

Press the

COOK

TIME

button again, or wait eight seconds to adopt the setting and start the self-

clean cycle. The clock display will show the time remaining.

38

SELF CLEAN – delayed start

Your Aerotech® oven can be set to start a self-clean cycle at your convenience:

1

Check that the clock shows the correct time.

2

Select the SELF CLEAN mode by turning the oven mode dial.

3

Turn the temperature dial to its maximum position. will show in the temperature display.

4

While is showing, press the

STOP TIME

button. The STOP TIME and AUTO symbols and the

colon will flash.

5

Set the time that you want the oven to finish by rotating the

PUSH TO

CLEAR

button. If there is

time to wait before the self-clean cycle starts,

AUTO and DELAY CLEAN will appear in the clock

display.

6

When the self-clean cycle starts, AUTO, DOOR LOCK and CLEAN will appear in the display and the

time remaining will count down.

39

Troubleshooting

Fault codes

If there is a fault, the oven will beep every second, and a fault code will appear in the clock
display as a letter ‘F’ with a number after it.

Important!

Do not turn off the main power supply to the oven if you get a fault code. The fans are
needed to cool the oven.

For safety, this oven is designed to self-cool. Turning off the power while the oven is
hot may damage the oven and its surrounding cabinetry.

If you get a fault code:

1

Note the fault code.

2

Turn the temperature and oven mode dials to OFF.

3

Press the

PUSH TO

CLEAR

button. The oven may have already self-corrected, and this will be

enough to clear the fault.

4

Call your Fisher & Paykel Authorised Service Centre with the fault code information.

Note: if you are unable to immediately clear the fault code or contact your Fisher & Paykel
Authorised Service Centre, wait for the oven cooling fans to stop, and then press the

PUSH TO

CLEAR

button again. It is likely that the oven will now clear the fault. If it does not, then you

may turn the oven off at the wall once the fans have stopped and the oven has completely

cooled down.

Problem Possible cause What to do

Oven does not
work.

Power supply is not
connected.

Have a service company/electrician
check power connections, wiring and
fuses.

Clock is not set due to power
cut or failure.

The clock must be set before the oven
can be used. The oven will go into
‘Set Up’ mode when the electricity is
restored after a power cut. The oven
mode and temperature displays will
show OFF. Both displays will be unlit and
unresponsive. The colon (:) in the clock
display will flash. See ‘Setting the clock’.

Oven door is open.

The elements are disabled by the door
switch when the door is open. Make
sure the door is properly closed.

Continued...

40

Oven door will not
open.

Oven door is locked.

Still in SELF CLEAN mode. The door will
unlock when the cycle has finished
and the oven has cooled to a safe
temperature.

Baked foods too
brown on top or
bottom.

Oven not preheated. Preheat until the temperature display

changes from orange to green (or
orange to blue on Iridium stainless steel
models).

Baking pans/tins too large
or too small for the recipe.

Use the correct sized pans/tins.

Baking pans/tins not evenly
spaced on shelves.

Stagger baking pans on the oven shelves
so that there is at least 1

1

/

8

“ (3 cm)

between them and the oven walls.

Baked products, eg biscuits,
not evenly sized or spaced
on cookie sheet.

Make baked products the same size and
shape and space them evenly over the
cookie sheet.

Shelf position too high for
specific mode.

Try a lower shelf position.

Opening the oven door
frequently during baking.

Do not open the door until at least ¾ of
the cooking time has passed.

Baking temperature too
high or too low.

Adjust temperature.

Oven light does
not work.

Light bulb has blown. Replace the light bulb. Refer to

‘Maintenance’ for details.

Oven not heating. Oven door is not properly

closed or opened too
frequently during operation.

Oven elements and fans turn off while
the door is open so be sure the oven
door is properly closed. Note: broil
modes are designed to operate with the
door closed.

Baked foods are
pale and under­cooked.

Shiny cookie sheets, tins,
or pans being used from
a previous oven with an
unconcealed lower element.

Shiny cookie sheets, tins, and pans reflect
the heat back towards the bottom of
the oven resulting in poor cooking
performance. Food tends to take longer
to cook and does not brown well. The
dark coloured accessories supplied with
the oven work efficiently by absorbing
heat and may reduce cooking times.

Problem Possible cause What to do

41

Maintenance

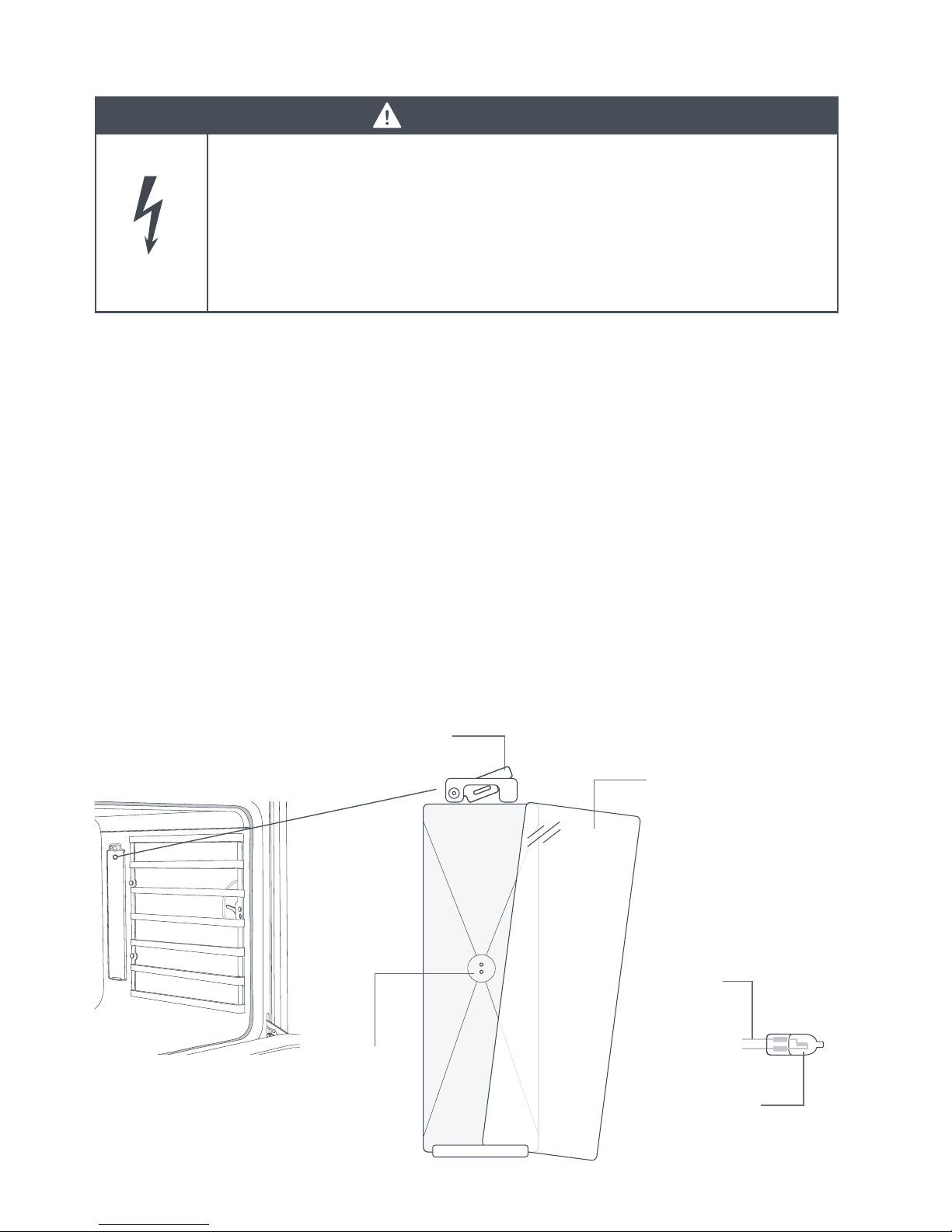

How to change the oven light bulbs

The oven is illuminated by three 12 volt/20 watt halogen bulbs. These have a very long life,
but if you should need to replace one, follow these steps:

1

Turn the oven off and allow it to cool.

2

Take out the shelves and use a small flat head screwdriver to twist and lift the retainer clip at

the top of the glass light cover while holding the glass to prevent it falling. The clip pivots
counter-clockwise (see the diagrams below).

3

Carefully lift the glass cover out of the lower support and pull out the faulty bulb.

4

Holding the replacement bulb in a soft cloth or tissue (touching the bulb will reduce its life

span), insert the new bulb. The two pins are vertically orientated.

5

Reposition the glass cover and twist the top clip back in place. The procedure is the same for

the light in the roof of the oven cavity.

Plate glass cover

Retainer clip

Sockets for

the pins

Pins

Replacement bulb

WARNING!

Electrical Shock Hazard

Ensure the appliance is switched off before replacing the lamp/light bulb.

Failure to do so could result in electrical shock.

42

Limited warranty

When you purchase any new Fisher & Paykel whiteware product for personal or consumer use
you automatically receive a two year limited warranty covering parts and labor for servicing
within the 48 mainland United States, Hawaii, Washington DC and Canada. In Alaska the
limited warranty is the same except that you must pay to ship the product to the service shop
or the service technician’s travel to your home. Products for use in Canada must be purchased
through the Canadian distribution channel to ensure regulatory compliance.

If the product is installed in a motor vehicle, boat or similar mobile facility, you receive the
same two year limited warranty, but you must bring the vehicle, boat or mobile facility
containing the product to the service shop at your expense or pay the service technician’s
travel to the location of the product.

Fisher & Paykel undertakes to:

Repair without cost to the owner either for material or labor any part of the product, the serial
number of which appears on the product, which is found to be defective. In Alaska, you must
pay to ship the product to the service shop or for the service technician’s travel to your home.
If the product is installed in a motor vehicle, boat or similar mobile facility, you must bring it to
the service shop at your expense or pay for the service technician’s travel to the location of the
product. If we are unable to repair a defective part of the product after a reasonable number of
attempts, at our option we may replace the part or the product, or we may provide you a full
refund of the purchase price of the product (not including installation or other charges).

This warranty extends to the original purchaser and any succeeding owner of the product for
products purchased for ordinary single-family home use.

All service under this Limited Warranty shall be provided by Fisher & Paykel or its Authorized
Service Agent during normal business hours.

How long does this Limited Warranty last?

Our liability under this limited warranty expires TWO YEARS from the date of purchase of the
product by the first consumer.

Our liability under any implied warranties, including the implied warranty of merchantability
(an unwritten warranty that the product is fit for ordinary use) also expires ONE YEAR (or such
longer period as required by applicable law) from the date of purchase of the product by the
first consumer. Some states do not allow limitations on how long an implied warranty lasts, so
this limit on implied warranties may not apply to you.

43

This warranty does not cover:

A

Service calls that are not related to any defect in the product. The cost of a service call will be

charged if the problem is not found to be a defect of the product. For example:

1. Correcting faulty installation of the product.

2. Instructing you how to use the product.

3. Replacing house fuses, reset circuit breakers, correct house wiring or plumbing, or replace
light bulbs.

4. Correcting fault(s) caused by the user.

5. Changing the set-up of the product.

6. Unauthorized modifications of the product.

7. Noise or vibration that is considered normal, for example, drain/fan sounds, regeneration
noises or user warning beeps.

8. Correcting damage caused by pests, for example, rats, cockroaches etc.

B

Defects caused by factors other than:

1. Normal domestic use or

2. Use in accordance with the product’s user guide.

C

Defects to the product caused by accident, neglect, misuse, fire, flood or Act of God.

D

The cost of repairs carried out by non-authorized repairers or the cost of correcting such

unauthorized repairs.

E

Travel fees and associated charges incurred when the product is installed in a location with

limited or restricted access (eg airplane flights, ferry charges, isolated geographic areas).

F

Normal recommended maintenance as set forth in the product’s user guide.

If you have an installation problem contact your dealer or installer. You are responsible for
providing adequate electrical, exhausting and other connection facilities.
We are not responsible for consequential or incidental damages (the cost of repairing or
replacing other property damaged if the product is defective or any of your expenses caused if
the product is defective). Some states do not allow the exclusion or limitation of incidental or
consequential damages, so the above limitation or exclusion may not apply to you.

How to get service

Please read your user guide. If you then have any questions about operating the product, need
the name of your local Fisher & Paykel Authorized Service Agent, or believe the product is
defective and wish service under this limited warranty, please contact your dealer or call us at:

TOLL FREE US & CA 1-888-9-FNP-USA (1-888-9-367-872)
or contact us through our web site: www.usa.fisherpaykel.com

You may be required to provide reasonable proof of the date of purchase of the product
before the product will be serviced under this limited warranty.

44

Commercial use

If you are using the product in a commercial setting (any use other than a single family
dwelling), we agree to repair or replace, without cost to you for parts only, any defective parts,
the serial number of which appears on the product. Our liability for these repairs expires ONE
YEAR from the date of original purchase.

At our option we may replace the part or the product, or we may provide you a full refund
of the purchase price of the product (not including installation or other charges). All service
under this limited warranty shall be provided by Fisher & Paykel or its Authorized Service Agent
during normal business hours.

No other warranties

This limited warranty is the complete and exclusive agreement between you and
Fisher & Paykel regarding any defect in the product. None of our employees (or our Authorized
Service Agents) are authorized to make any addition or modification to this limited warranty.
Warrantor: Fisher & Paykel Appliances, Inc.

If you need further help concerning this limited warranty, please contact us at:
Fisher & Paykel Appliances, Inc.
5900 Skylab Road
Huntington Beach
CA 92647

This limited warranty gives you specific legal rights, and you may also have other rights which
vary from state to state.

Copyright © Fisher & Paykel 2005. All rights reserved.

The product specifications in this booklet apply to the
specific products and models described at the date
of issue. Under our policy of continuous product
improvement, these specifications may change at any
time. You should therefore check with your Dealer to
ensure this booklet correctly describes the product
currently available.

www.fisherpaykel.com

US CA
Product User Guide
Published: 07/2005
Translated: 07/2005
Part No. 599194 C
