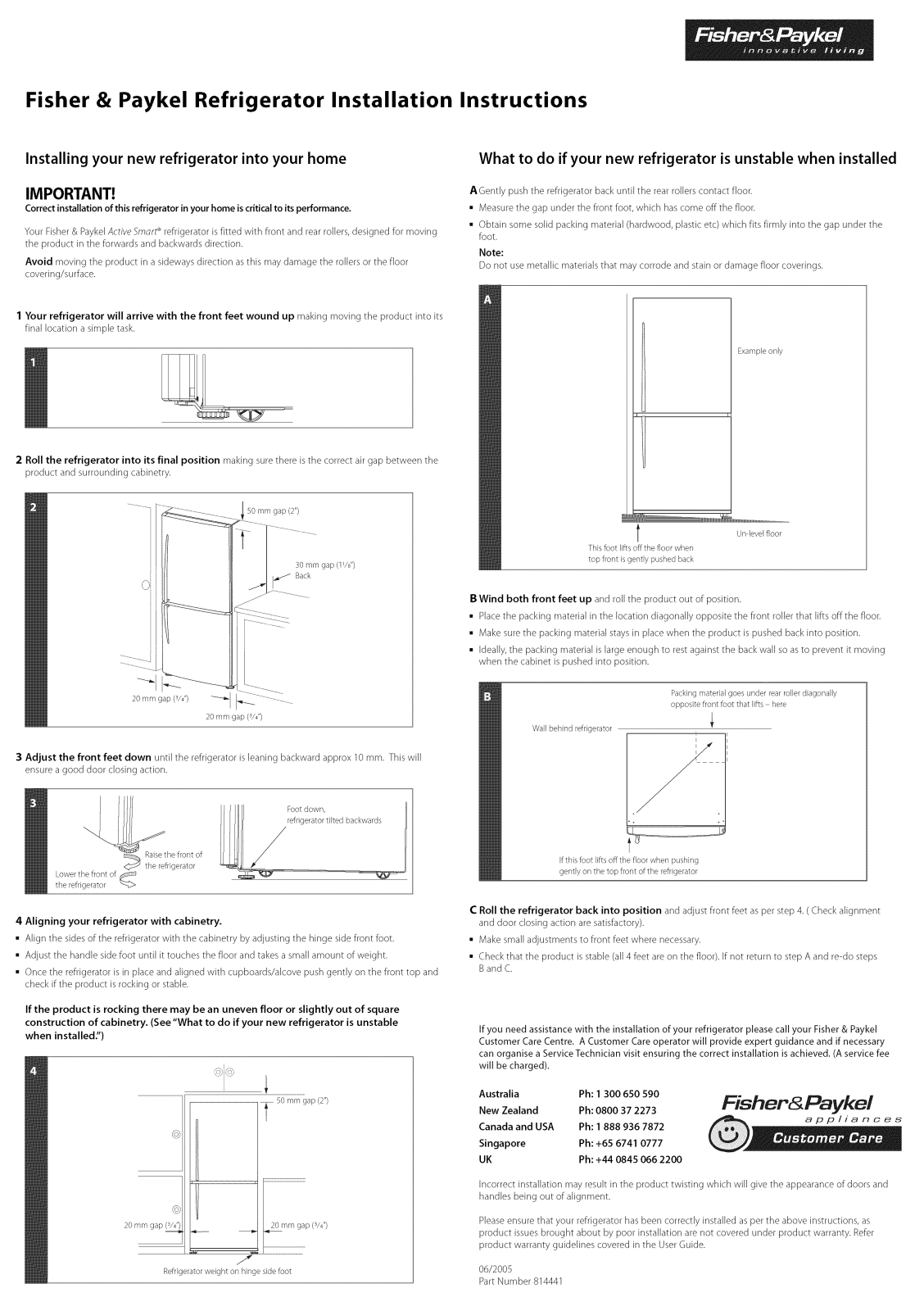

Fisher & Paykel Refrigerator Installation Instructions

Installing your new refrigerator into your home

IMPORTANT!

Correct installationofthis refrigerator inyour home iscritical to itsperformance.

Your Fisher& Payke]Active Smort®refrigerator isfitted with front and rear rollers,designed for moving

the product in the forwards and backwards direction.
Avoid moving the product in a sideways direction asthis may damage the rollers or the floor

covering/surface.

1 Your refrigerator will arrive with the front feet wound up making moving the product into its

final location asimple task.

2 Roll the refrigerator into its final position making surethere is the correct air gap between the

product and surrounding cabinetry.

What to do ifyour new refrigerator is unstable when installed

AGenfly push the refrigerator back until the rear rollers contact floor.

• Measure the gap under the front foot, which has come off the floor.

• Obtain some solid packing material (hardwood, plastic etc) which fits firmly into the gap under the
foot.

Note:
Do not use metallic materials that may corrode and stairsor damage floor coverings.

Exampleonly

50mm gap (2")

30 mm gap (1%")

Back

20 mm gap (s/4")

3 Adjust the front feet down until the refrigerator isleaning backward approx 10 ram. This will

ensure agood door closing action.

refrigeratortilted bac

Unlevelfloor

Thistootliftsoffthefloorwhen

top frontisgently pushed back

B Wind both front feet up and roll the product out of position.

• Place the packing material in the location diagonally opposite the front roller that lifts off the floor.

• Make sure the packing material stays in place when the product is pushed back into position.

• Ideally, the packing material is large enough to rest against the back wall so as to prevent it moving

when the cabinet is pushed into position.

Packingmaterialgoesunderrearrollerdiagonally

oppositefrontfootthatlifts here

Wallbehind refrigerator

_ aise the front of
Lower the front of
the refrigerator _

4 Aligning your refrigerator with cabinetry.

• Align the sides of the refrigerator with the cabinetry by adjusting the hinge side front foot.

• Adjust the handle sidefoot until it touches the floor and takes a small amount of weight.

• Once the refrigerator is in placeand aligned with cupboards/alcove push gently on the front top and
check if the product isrocking or stable.

If the product is rocking there may be an uneven floor or slightly out of square
construction of cabinetry. (See "What to do if your new refrigerator is unstable
when installed")

the refrigerator

.y

Footdown, Z

. 50mmgap(2")

f

Ifthisfoot liftsoffthefloorwhenpushing

gently on the top frontoftherefrigerator

C Roll the refrigerator back into position and adjust front feet as per step 4.( Check alignment

and door closing action aresatisfactory).

• Make small adjustments to front feet where necessary.

• Checkthat the product isstable (all 4feet are on the floor). If not return to step A and re-do steps
Band C.

If you need assistance with the installation of your refrigerator please call your Fisher & Paykel
Customer Care Centre. A Customer Careoperator will provide expert guidance and if necessary

can organise a Service Technician visit ensuring the correct installation isachieved. (A service fee
will be charged).

Australia
New Zealand

Canada and USA
Singapore

UK

Ph:l 300 650 590
Ph:0800 372273

Ph:l 888 936 7872
Ph:[phone]
Ph: [phone]

Fisher Payke!

appliances

©

20 mm gap (s/4")

Refrigerator weight on hinge side foot

Incorrect installation may result in the product twisting which will give the appearance of doors and
handles being out of alignment.

20mm gap(s/4")

Pleaseensure that your refrigerator has been correctly installed asper the above instructions, as
product issuesbrought about by poor installation are not covered under product warranty. Refer

product warranty guidelines covered in the UserGuide.

/

06/2005
Part Number 814441
