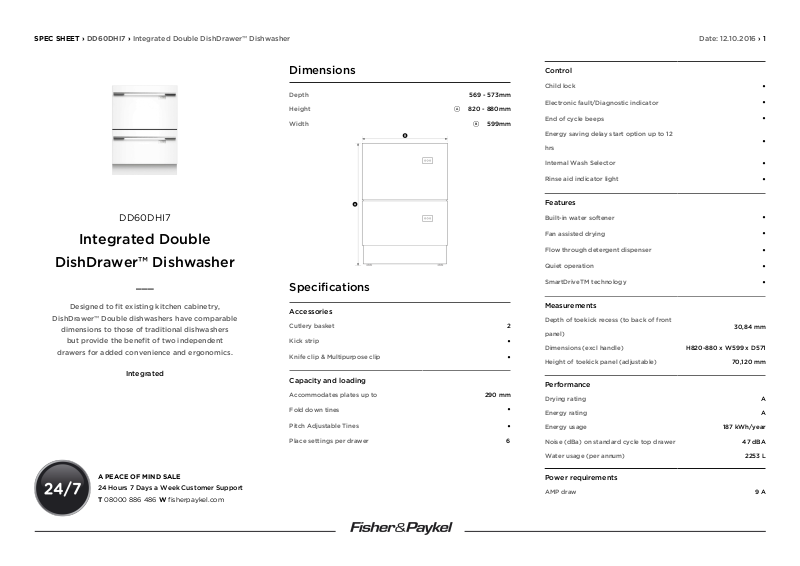

SPEC SHEET › DD60DHI7 › Integrated Double DishDrawer™ Dishwasher Date: 12.10.2016 › 1
DD60DHI7
Integrated Double
DishDrawer™ Dishwasher
___
Designed to fit existing kitchen cabinetry,
DishDrawer™ Double dishwashers have comparable
dimensions to those of traditional dishwashers
but provide the benefit of two independent
drawers for added convenience and ergonomics.
Integrated
Dimensions
Depth 569 - 573mm
Height
Width
A 820 - 880mm
B 599mm
Specifications
Accessories
Cutlery basket 2
Kick strip
Knife clip & Multipurpose clip
Capacity and loading
Accommodates plates up to 290 mm
Fold down tines
Pitch Adjustable Tines
Place settings per drawer 6
Control
Child lock
Electronic fault/Diagnostic indicator
End of cycle beeps
Energy saving delay start option up to 12
hrs
Internal Wash Selector
Rinse aid indicator light
Features
Built-in water softener
Fan assisted drying
Flow through detergent dispenser
Quiet operation
SmartDriveTM technology
Measurements
Depth of toekick recess (to back of front
•
•
•
•
panel)
Dimensions (excl handle) H820-880 x W599 x D571
Height of toekick panel (adjustable) 70,120 mm
Performance
Drying rating A
Energy rating A
Energy usage 187 kWh/year
Noise (dBa) on standard cycle top drawer 47 dBA
Water usage (per annum) 2253 L
•
•
•
•
•
•
•
•
•
•
•
30,84 mm
A PEACE OF MIND SALE
24 Hours 7 Days a Week Customer Support
T 08000 886 486 W fisherpaykel.com
Power requirements
AMP draw 9 A
SPEC SHEET › DD60DHI7 › Integrated Double DishDrawer™ Dishwasher Date: 12.10.2016 › 2
Warranty
Parts & Labour 2 years
Wash cycles
Delicate
Delicate Eco
Fast
Fast Eco
Heavy
Heavy Eco
Normal
Normal Eco
Rinse
Wash cycles 9
Wash programs 9
Water connection
Water pressure 0.1 - 1 Mpa
•
•
•
•
•
•
•
•
•
SKU 89473
The product dimensions and specifications in this page apply to the specific product
and model. Under our policy of continuous improvement, these dimensions and
specifications may change at any time. You should therefore check with Fisher &
Paykel’s Customer Care Centre to ensure this page correctly describes the model
currently available. © © Fisher & Paykel Appliances Ltd 2016
Other product downloads available at fisherpaykel.com
