Touch control
ceramic glass cooktops
CE604DT, CE704DT,
and CE754DT models
Installation instructions
and User guide
NZ AU GB IE
Contents
1
Safety and warnings
Installation instructions
Introduction
Using your cooktop
Using your cooktop’s special features
Cooking guidelines
Care and cleaning
Troubleshooting
Warranty and service
2
6
12
14
18
23
26
28
30
Important!
SAVE THESE INSTRUCTIONS
The models shown in this user guide may not be available in all markets and are
subject to change at any time. For current details about model and specification
availability in your country, please visit our local website listed on the back cover
or contact your local Fisher & Paykel dealer.
2
Safety and warnings
Your safety is important to us. Please read this information before using your cooktop.
Installation
WARNING!
Electrical Shock Hazard
Disconnect the appliance from the mains electricity supply before carrying
out any work or maintenance on it.
Connection to a good earth wiring system is essential and mandatory.
Alterations to the domestic wiring system must only be made by a qualified
electrician.
Failure to follow this advice may result in electrical shock or death.
Cut Hazard
Take care – panel edges are sharp.
Failure to use caution could result in injury or cuts.
WARNING!
Safety and warnings
Important safety precautions
Read these instructions carefully before installing or using this appliance.
No combustible material or products should be placed on this appliance at any time.
Please make this information available to the person responsible for installing the appliance as it
could reduce your installation costs.
In order to avoid a hazard, this appliance must be installed according to these instructions for
installation.
This appliance is to be properly installed and earthed only by a suitably qualified person.
This appliance should be connected to a circuit which incorporates an isolating switch providing
full disconnection from the power supply.
Failure to install the appliance correctly could invalidate any warranty or liability claims.
3
4
Safety and warnings
Operation and maintenance
Electrical Shock Hazard
Do not cook on a broken or cracked cooktop. If the cooktop surface should
break or crack, switch the appliance off immediately at the mains power
supply (wall switch) and contact a qualified technician.
Switch the cooktop off at the wall before cleaning or maintenance.
Failure to follow this advice may result in electrical shock or death.
Hot Surface Hazard
During use, accessible parts of this appliance will become hot enough to
cause burns.
Do not let body, clothing or any item other than suitable cookware contact
with the ceramic glass until the surface is cool.
Never leave metal objects on the cooktop as they can become hot very
quickly.
Keep children away.
Handles of saucepans may be hot to touch. Check saucepan handles do not
overhang other cooking zones that are on. Keep handles out of reach of
children.
Failure to follow this advice could result in burns and scalds.
WARNING!
WARNING!
WARNING!
Cut Hazard
The razor-sharp blade of a cooktop scraper is exposed when the safety
cover is retracted. Use with extreme care and always store safely and out
of reach of children.
Failure to use caution could result in injury or cuts.
Safety and warnings
Important safety precautions
Never leave the appliance unattended when in use. Boilover causes smoking and greasy
spillovers that may ignite.
Never use your appliance as a work or storage surface.
Never leave any objects or utensils other than suitable cookware on the appliance.
Never use your appliance for warming or heating the room.
Do not allow children to play with the appliance or sit, stand or climb on it.
Do not store items of interest to children in cabinets above the appliance. Children climbing on
the cooktop could be seriously injured.
Do not leave children alone or unattended in the area where the appliance is in use.
Children or persons with a disability which limits their ability to use the appliance should have a
responsible and competent person to instruct them in its use. The instructor should be satisfied
that they can use the appliance without danger to themselves or their surroundings.
Do not repair or replace any part of the appliance unless specifically recommended in the
manual. All other servicing should be done by a qualified technician.
Do not use a steam cleaner to clean your cooktop.
Do not place or drop heavy objects on your cooktop.
Do not stand on your cooktop.
Do not use pans with jagged edges or drag pans across the ceramic glass surface as this can
scratch the glass.
Do not use scourers or any other harsh/abrasive cleaning agents to clean your cooktop, as these
can scratch the ceramic glass.
If the power supply cable is damaged, it must only be replaced by a qualified technician.
5
6
Installation instructions
Cooktop and cutout dimensions
C
B
D
G
F
Electrical connection is
made at the middle rear
A
E
I
C
Cooktop and cutout dimensions (mm)
overall width of cooktop
A
overall depth of cooktop
B
height of chassis (below top of bench)
C
I
height of terminal block (below top of bench)
C
width of chassis
D
depth of chassis
E
overall width of cutout
F
overall depth of cutout
G
CE604DT
600 700 750
530 530 530
48 48 48
58 58 58
552 552 715
480 480 480
560 560 725
490 490 490
CE704DT
CE754DT
Clearances
Installation instructions
A
7
D
B
C
C
E
Clearances (mm)
CE604DT
minimum clearance from rear edge of cutout to:
A
nearest combustible surface
minimum clearance from glass surface to:
B
rangehood
minimum clearance from side edges of cutout to:
C
nearest combustible surface 85 135 78
minimum clearance from benchtop to:
D
overhead cabinet not directly above the
minimum clearance below top of benchtop to:
E
thermal protection barrier
cooktop 450 450 450
55 55 55
650 650 650
68 68 68
CE704DT
CE754DT
8
Installation instructions
Before you install the cooktop, make sure that
the benchtop is square and level, and no structural members interfere with space requirements
the benchtop is made of a heat-resistant material
the cooktop will not be installed directly above a dishwasher, as the humidity may damage the
cooktop electronics
the installation will comply with all clearance requirements and applicable standards and
regulations
a suitable isolating switch providing full disconnection from the mains power supply is
incorporated in the permanent wiring, mounted and positioned to comply with the local wiring
rules and regulations. The isolating switch must be of an approved type and provide a 3 mm air
gap contact separation in all poles (or in all active [phase] conductors if the local wiring rules
allow for this variation of the requirements)
the isolating switch will be easily accessible to the customer with the cooktop installed
you consult local building authorities and by-laws if in doubt regarding installation
you use heat-resistant and easy-to-clean finishes (such as ceramic tiles) for the wall surfaces
surrounding the cooktop.
When you have installed the cooktop, make sure that
the power supply cable is not accessible through cupboard doors or drawers
there is adequate flow of fresh air from outside the cabinetry to the base of the cooktop
if the cooktop is installed directly above an oven or its base is accessible through a cupboard
or drawer space after installation, a thermal protection barrier is installed below the base of the
cooktop (see Fig.1)
the isolating switch is easily accessible by the customer
you complete the ‘Final checklist’ at the end of these installation instructions.
The thermal protection barrier must be:
removable
heat-resistant
made from low thermal conductivity
material
at least 20 mm below the base of the
cooktop to ensure adequate ventilation
mm min.
20
< Fresh air from
outside the
cabinetry
Fig. 1 Thermal protection barrier
Installation instructions
Fastening the cooktop to the bench
1
Turn the cooktop upside down and place it on a soft surface.
2
Spread the seal around the edges of the ceramic glass with the adhesive side facing down,
making sure that the whole perimeter is sealed. Cut off any excess material.
3
Mount the supplied clamps (A) and screws (B) onto the cooktop, as shown (without tightening
the screws).
4
Place the cooktop into the cutout, then tighten the screws to clamp the cooktop securely to the
bench.
5
Using a sharp cutter or trimmer knife, trim the excess sealing material around the edge of the
cooktop. Take care not to damage the benchtop.
Note: if your bench is thicker than 40 mm, recess the underside to between 30 and 40 mm.
9
A
B
Adhesive side
A
A
B
B
Seal
Fig. 2 Preparing the cooktop before installation
Seal
B
A
B
Fig. 3 Fastening the cooktop to the bench
A
30 mm min.
40 mm max.
10
Installation instructions
Connecting the cooktop to the mains power supply
Important!
This cooktop must be connected to the mains power supply only by a suitably qualified person.
This cooktop must be earthed.
Before connecting the cooktop to the mains power supply, check that:
1
the domestic wiring system is suitable for the power drawn by the cooktop
2
the voltage corresponds to the value given on the rating plate
3
the power supply cable sections can withstand the load specified on the rating plate.
To connect the cooktop to the mains power supply, do not use adapters, reducers, or branching
devices, as they can cause overheating and fire.
The power supply cable must not touch any hot parts and must be positioned so that its
temperature will not exceed 75
Power supply
CE604DT 6400W @ 220-240/380-415V 2N~ (28A)
CE704DT 6400W @ 220-240/380-415V 2N~ (28A)
CE754DT 7300W @ 220-240/380-415V 2N~ (32A)
o
C at any point.
Connection diagrams
Fig. 4 Opening the terminal block cover
Single-phase connection Two-phase connection
220 - 240 V
12345
N (L2)L1
4
2
3
1
N L2
L1
220-240 V ~
PE
5
PE
Bridging links
removed
380 - 415 V 2N
12345
1
380-415 V 2N ~
PE
N
L2L1
4
2
3
5
PE
N
L2
L1
Installation instructions
11
Final checklist
TO BE COMPLETED BY THE INSTALLER
Is the cooktop earthed?
Check that the power supply cable is NOT touching the base of the cooktop. This will ensure that
the cable is not damaged by heat from the cooktop.
Check that the power supply cable is not accessible via cupboard doors or drawers.
Is the cooktop clamped down securely?
Check that all the cooking zones function correctly. Turn on all of them to a high setting and
leave them on for at least one minute.
Are all elements glowing?
Are all touch controls and displays functioning?
To check that the ‘hot surface’ indicators function correctly, turn off all the cooking zones. Is
displayed in all the cooking zone displays?
Have you shown the customer how to use the cooktop? Make sure you explain to the customer
about the ‘hot surface’ indicators. Encourage them to read the full user guide before using the
cooktop.
H
Installer’s name:
Installer’s signature:
Installation company:
Date of installation:
LEAVE THESE INSTRUCTIONS WITH THE CUSTOMER
12
Introduction
About your new cooktop
Thank you for buying a Fisher & Paykel ceramic glass cooktop. This guide introduces you to all its
special features. We recommend you read the whole guide before using your new cooktop, for
both safety and cooking success.
For more information, visit our local website listed on the back cover.
Before using your new cooktop
Read this user guide, taking special note of the ‘Safety and warnings’ section.
Remove any protective film that may still be on your cooktop.
Dual cooking zone
Cooking
zone
Cooking
zone
Touch
controls/
displays
Cooking
zone
Setting
selector
Fig.5 Cooktop layout
(for illustration only-layouts vary)
Touch controls overview
These indicators show
which cooking zone(s) the
timer is set for:
if flashing:
timer is selected and ready
to be set
if steadily lit:
timer is set and counting
down
if flashing and beeping:
set time is up
if on:
cooking zone is
selected and
ready to be set
if on:
cooktop is on
if off:
cooktop is off
Timer display:
- shows the
number of
minutes set/
remaining
- shows
CL
(cleared) if the
timer is not set
Introduction
if on:
outer section of the dual
cooking zone is on
if off:
outer section of the dual
cooking zone is off
13
if on:
controls (except
ON/OFF) are
locked and
unresponsive
if off:
controls are
responsive
Keylock control:
Locks the controls
(except ON/
OFF) to prevent
unintended use
ON/OFF control
Turns the cooktop
on and off
Setting selector:
Touch this area or
slide your finger
along it to select
the heat or timer
setting. The lights
above the selector
correspond to
the setting levels
u
-9)
(0-
Warning!
The cooking
zone is not
in use but its
surface is still
very hot!
Turns the outer
section of the
dual cooking
zone off and on
14
Using your cooktop
Using the touch controls
The cooking zone and timer displays also function as
touch controls. To select a cooking zone or the timer,
simply touch its display. Use the ball of your finger, not its
tip. The controls respond to touch, so you don’t need to
apply any pressure.
Once you have selected a cooking zone or the timer, you
have 10 seconds to set it (while the little red light at the
bottom right of the display is on). If the little red light
goes out before you have had a chance to select a setting,
simply re-select the cooking zone or timer by touching its
display again.
Make sure the controls are always clean, dry, and there
is no object (eg a utensil or a cloth) covering them.
Even a thin film of water may make the controls
difficult to operate.

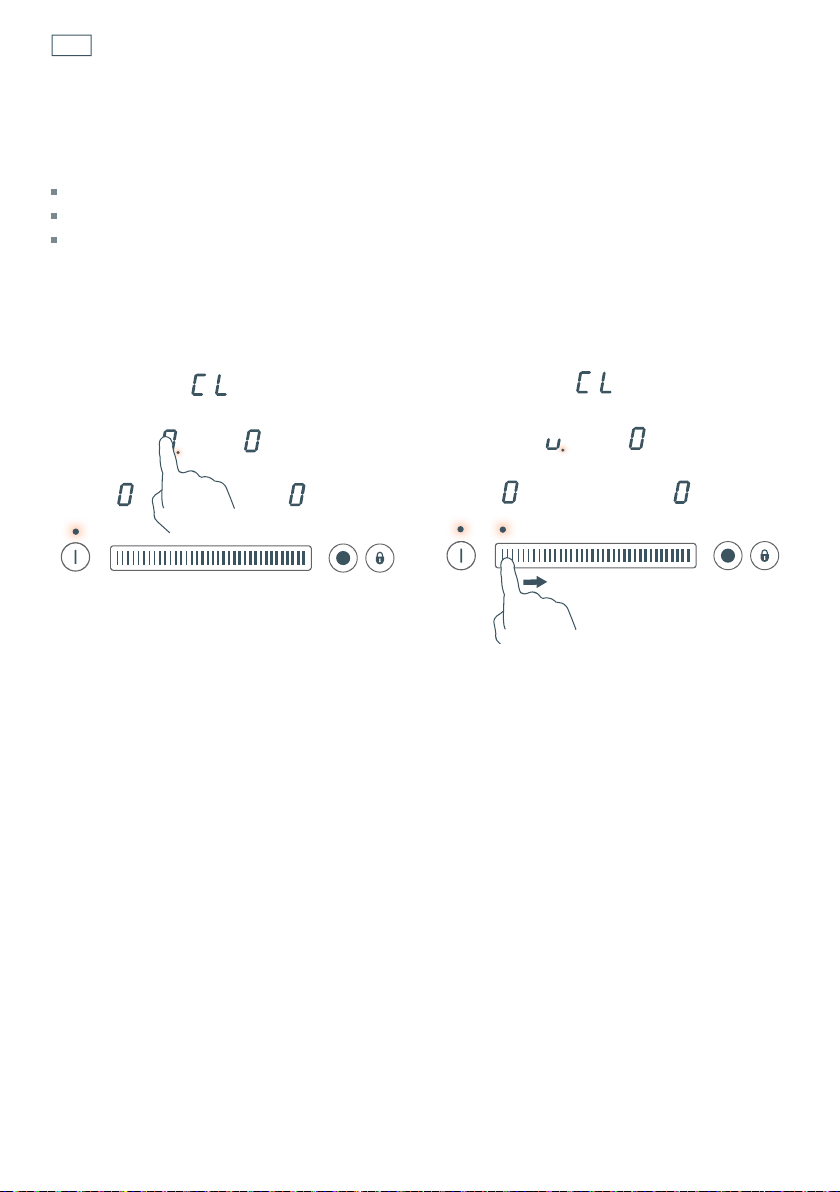

To select a setting on the selector:
Touch at one point to “jump” to a
specific setting
OR
selector.
slide your finger along the
To start cooking
1
Turn on the cooktop.
Notes:
CL (cleared) in the timer display means
that the timer is not set.
If you do not select a cooking zone within
20 seconds, the cooktop will automatically
turn off.
Using your cooktop
2
Select a cooking zone.
15
3
Select a heat setting (0-9).
Note: setting
See ‘Using your cooktop’s special features’.
u (between 0 and 1))provides continuous gentle heat between 0 and 1.
16
Using your cooktop
To modify the heat setting during cooking
1
Select a cooking zone.
2
Modify its heat setting.
When you have finished using a cooking zone, you can
turn it off, but continue to use other cooking zones:
1
Select the cooking zone you want to turn
off.
turn the whole cooktop off:
1
Turn the cooktop off.
2
Decrease its heat setting until the display
shows 0. If the cooking zone surface is
too hot to touch, H will replace 0 in the
display.
2
H will show which cooking zone surface is too
hot to touch. It will disappear when the surface
has cooled down to a safe temperature.
Using your cooktop
Using the dual (right rear) cooking zone
When you turn the dual (right rear) cooking zone on, both the inner and outer sections
will heat. Use the
control to toggle the outer section off or on again.
17
outer section
ON
outer section
OFF
Locking the controls
You can lock the controls to prevent unintended use (for example children accidentally turning
cooking zones on).
When the controls are locked, all controls except the ON/OFF control are disabled.
To lock the controls
1
Make sure that the cooktop is turned on but no cooking zone is in use.
2
Touch and hold the keylock control for 2 seconds. The red light above the control comes on,
indicating that the controls are locked.
Note: the cooktop will automatically turn off after 10 seconds, but the controls will still be locked
when you turn the cooktop on again.
To unlock the controls
1
Make sure the cooktop is turned on.
2
Touch and hold the keylock control for 2 seconds. The red light above the control goes out.
3
You can now start using your cooktop.
Important!
Do not lock the controls while a cooking zone is in use. If you do, you can always turn the cooktop off with
the ON/OFF control in an emergency.
18
Using your cooktop’s special features
Using the Auto Heat-reduce feature
Cooking zones set for this feature will:
first quickly heat up food or liquid at the highest setting
then automatically reduce the heat to a preset lower setting to cook the food through.
To set a cooking zone for Auto Heat-reduce
1
Select a cooking zone.
2
Select heat setting 9.
3
Re-touch the right end of the setting
selector.
A will start flashing alternately with 9 in
the cooking zone’s display.
When Auto Heat-reduce is set
Initially, while the cooking zone is at the highest setting, A will flash alternately with your
selected lower setting. Then, when the period of highest setting is over (eg after 5 minutes), A
will stop flashing and the cooking zone will automatically reduce the heat to your preset
lower setting.
4
Choose the lower heat setting you want the
cooking zone to automatically reduce to
(
1-8).
Using your cooktop’s special features
19
Preset lower heat setting
1 1 minute
2 3 minutes
3 5 minutes
4 6.5 minutes
5 8.5 minutes
6 2.5 minutes
7 3.5 minutes
8 4.5 minutes
To increase or quit the Auto Heat-reduce setting while
1
Select the cooking zone already set for
Auto Heat-reduce.
Period on highest setting
A
is flashing
2
Increase the lower heat setting.
The period on highest setting will be
automatically readjusted.
2
To quit, decrease the lower heat setting.
Note: if you want to keep using Auto Heat-
reduce and reduce the originally set lower
heat setting, quit Auto Heat-reduce and set
it again.
20
Using your cooktop’s special features
Using the GentleHeat feature
This heat setting between 0 and 1 provides continuous gentle heat and is ideal for:
delicate cooking tasks such as melting chocolate
warming plates
keeping cooked food warm. If reheating cooked food from cold, always bring it to the boil on
a higher setting before changing to the GentleHeat setting. For food safety reasons, a cooking
zone set for GentleHeat will automatically turn off after two hours of continuous use.
1
Select a cooking zone.
2
Select heat setting u.
Using your cooktop’s special features
Using the timer
You can set the timer to automatically turn one or more cooking zones off when the set time is
up.
Important!
Never leave the cooktop unattended when in use, even if you have set the timer to automatically turn a
cooking zone off.
To set the timer for a cooking zone
21
1
Select a cooking zone already in use.
3
The flashing indicator in the timer display
means that the timer is ready to be set for
the left rear cooking zone.
As an example, you would like to set the timer
to turn this particular cooking zone off after
25 minutes.
2
Select the timer.
4
Set the right-hand digit using the setting
selector.
22
Using your cooktop’s special features
5
The display will then indicate for you to set
the left-hand digit.
6
Set the left-hand digit using the setting
selector. The timer is now set and begins
counting down.
When the set time is up
The corresponding indicator in the timer display will flash, the timer will beep, and the cooking
zone will automatically turn off (its display showing
Touch any control to stop the beeping.
H if the surface is hot).
Notes on using the timer
Skip the last step (6) if you want to set the timer to less than 10 minutes.
To modify or cancel a timer setting, follow steps 1 and 2 under ‘To set the timer for a cooking
zone’, then modify the number of minutes as wished.
Once you have set the timer for one cooking zone, you can go on to set it for additional cooking
zones by repeating the steps under ‘To set the timer for a cooking zone’ for each, being mindful
of the following:
- The timer display will always revert to showing the setting for the cooking zone with the
shortest remaining time.
- To check the timer setting for a different cooking zone, simply select the cooking zone. Its
remaining time will briefly appear in the timer display.
Cooking guidelines
Cookware
Use heavy-gauge, flat, smooth-based cookware that matches the diameter of the cooking zone.
This will provide good contact with the glass and help reduce cooking times. Low heat or slow
cooking is often due to incorrect cookware size.
Cookware with a stainless steel sandwich base or enamelled cast iron will give you the best
results.
Saucepans or heavy frying pans with jagged edges or a rough base will scratch the glass.
Always lift pans off the cooktop - do not slide, or they may scratch the glass.
Never use plastic or aluminium foil dishes on the cooktop.
Aluminium and copper-bottomed cookware can leave a metallic residue on the cooktop. If left
on the glass, this becomes difficult to remove. Clean the cooktop after every use.
It is safe to place hot cookware from the oven, or another cooking zone, on the glass surface
when the surface is cool.
Avoid placing anything on a hot cooking zone until it has cooled completely (Hhas gone out).
Ensure that pans never extend over the touch control area.
23
24
Cooking guidelines
Important!
Take care when deep-frying: oil or fat can overheat very quickly, particularly on a high setting.
Cooking tips
When food comes to the boil, reduce the temperature setting.
Using a lid will reduce cooking times through retaining the heat.
Minimise the amount of liquid or fat to reduce cooking times.
Start cooking on a high setting and reduce the setting when the food has heated through.
Simmering, cooking rice
Simmering occurs below boiling point, at around 85
to the surface of the cooking liquid. It is the key to delicious soups and tender stews because
the flavours develop without overcooking the food. You should also cook egg-based and flour-
thickened sauces below boiling point.
Some tasks, including cooking rice by the absorption method, may require a setting higher than
the lowest setting to ensure the food is cooked properly in the time recommended.
Searing steak
To cook juicy flavoursome steaks:
1
Stand the meat at room temperature for about 20 minutes before cooking.
2
Heat up a heavy-based frying pan.
3
Brush both sides of the steak with oil. Drizzle a small amount of oil into the hot pan and then
lower the meat onto the hot pan.
4
Turn the steak only once during cooking. The exact cooking time will depend on the thickness of
the steak and how cooked you want it. Times may vary from about 2 – 8 minutes per side. Press
the steak to gauge how cooked it is – the firmer it feels the more ‘well done’ it will be.
5
Leave the steak to rest on a warm plate for a few minutes to allow it to relax and become tender
before serving.
For stir-frying
1
Choose a flat-based wok or a large frying pan.
2
Have all the ingredients and equipment ready. Stir-frying should be quick. If cooking large
quantities, divide the food into several smaller batches.
3
Preheat the pan briefly and add two tablespoons of oil.
4
Cook any meat first, put it aside and keep warm.
5
Stir-fry the vegetables. When they are hot but still crisp, turn the cooking zone to a lower setting,
return the meat to the pan and add your sauce.
6
Stir the ingredients gently to make sure they are heated through.
7
Serve immediately.
O
C, when bubbles are just rising occasionally
Heat settings
100
80
60
Cooking guidelines
Deilcate warming
for small amounts
of food or foods
that burn quickly
Gentle simmering,
slow warming
Reheating and
rapid simmering
Boiling, sautéing
and searing
Maximum heat
25
Percentage of power %
40
20
U
0
123456789
Heat setting
26
Care and cleaning
When the power to the cooktop is
switched off, there will be no ‘hot
surface’ warning but the cooking
zone may still be hot! Take extreme
care. Heavy-duty scourers, some nylon
scourers and harsh/abrasive
cleaning agents may scratch the
glass. Always read the label to
check if your cleaner or scourer is
suitable. Never leave cleaning residue on
the cooktop: the glass may become
stained.
Remove stains left by melts and
sugary food or spillovers as soon as
possible. If left to burn on or cool,
they may be difficult to remove
or even permanently damage the
glass surface. Cut hazard–when the safety cover
is retracted, the blade in a scraper
is razor-sharp. Use with extreme
angle and
o
care and always store safely and
out of reach of children.
the wall.
still warm (but not hot!)
1 Switch the power to the cooktop off at
2 Apply cooktop cleaner while the glass is
3 Rinse and wipe dry with a clean cloth or
fingerprints and marks
on the glass
stains left by non-
sugary spillovers on the
glass
What? Soiling examples How? Important!
Everyday soiling
on glass
paper towel.
at the wall.
4 Switch the power to the cooktop back on
Remove these immediately with a razor
blade scraper suitable for ceramic glass
cooktops, but beware of hot cooking zone
surfaces:
the wall.
1 Switch the power to the cooktop off at
sugar, sugary syrups, jams and jellies
vegetables or vegetable
water with high
sugar content (peas,
sweetcorn, beetroot) melted aluminium foil melted plastic wrap
Burnt-on food
or grease, melts,
sugary spillovers
on glass
scrape the soiling or spill to a cool area of
the cooktop.
cloth or paper towel.
2 Hold the razor blade at a 30
3 Clean the soiling or spill up with a dish
enough to safely touch, clean with
cooktop cleaner following the instructions
for ‘Everyday soiling on glass’ above.
4 As soon as the cooktop has cooled
5 Switch the power to the cooktop back on
at the wall.
Care and cleaning
The cooktop may beep and turn
itself off, and the touch controls
may not function while there is
liquid on them.
If the cooktop is not cleaned
regularly and the stains are
allowed to burn onto the surface,
they may react with the glass and
no longer be removable.
27
What? Soiling examples How? Important!
the wall.
1 Switch the power to the cooktop off at
2 Soak up the spill.
Spillover on the
touch controls
damp sponge or cloth.
paper towel.
at the wall.
3 Wipe the touch control area with a clean
4 Wipe the area completely dry with a
5 Switch the power to the cooktop back on
Clean the cooktop after every
use with cooktop cleaner or
conditioner. Follow the
instructions for ‘Everyday
soiling on glass’ above.
copper base
aluminium base
metallic sheen caused by
Metallic stains
cookware with
on glass
28
Troubleshooting
Troubleshooting chart
Problem Possible causes What to do
The cooktop cannot be
turned on.
No power. Make sure the cooktop is
connected to the power supply
and that it is switched on at the
wall. Check whether there is
a power outage in your home
or area. If you’ve checked
everything and the problem
persists, call your Authorised
Service Centre or Customer
Care.
Cooking zones seem to
turn themselves off and
on during use.
The touch controls are
unresponsive.
The touch controls are
difficult to operate.
There is a metal sheen on
the glass.
The glass is being
scratched.
The cooktop is
continuously beeping
and the cooking zone
displays read out
.
Er03
They cycle off and on to maintain
the selected setting or prevent the
glass from overheating.
The controls are locked. Unlock the controls. See
There may be a slight film of water
over the controls or you may be
using the tip of your finger when
touching the controls.
Cookware with copper or
aluminium base.
Rough-edged cookware.
Unsuitable, abrasive scourer
being used.
Liquid has spilled onto the touch
control area.
There are objects (e.g utensils) on
the touch control area.
This is normal and needs no
action.
section ‘Using your cooktop’ for
instructions.
Make sure the touch control
area is dry and use the ball of
your finger when touching the
controls.
See ‘Care and cleaning’.
Use cookware with flat and
smooth bases. See ‘Cookware
and cooking tips’.
See ‘Care and cleaning’.
Switch the power to the
cooktop off at the wall and
see ‘Care and cleaning’ for
instructions.
Remove the objects from the
touch control area.
Several touch controls are
registering continuous contact
(eg due to someone resting their
hand or arm on the touch control
area).
Remove the cause of
continuous contact.
Troubleshooting
Troubleshooting chart
Problem Possible causes What to do
The cooktop turns itself
off unexpectedly and the
cooking zone displays
read out
alternating with H.
Er21
The cookop electronics have
overheated and the cooktop turns
itself off as a safety measure.
Let the cooktop cool down
before using it again.
29
The cooktop turns itself
off unexpectedly and no
error message or hot
surface indication is
displayed.
The cooktop turns itself
off unexpectedly and the
displays show an error
code (a letter and
number combination)
other than the two
explained above.
The cooktop cannot be
turned off.
The cooktop displays do
not come on at all or are
only partly visible.
There is a power outage in your
home or area.
Technical fault. Note down the error code,
Electronics fault. Switch the power to the
Display fault. Call your Authorised Service
Wait until the power comes
back on.
then switch the power to the
cooktop off at the wall and
contact your Authorised Serivce
Centre or Customer Care with
the error code information.
cooktop off at the wall and call
your Authorised Service
Centre or Customer Care.
Centre or Customer Care.
30
Warranty and service
Before you call for service or assistance ...
Check the things you can do yourself. Refer to the installation instructions and your user guide
and check that:
1
your product is correctly installed
2
you are familiar with its normal operation.
If after checking these points you still need assistance or parts, please refer to the Service &
Warranty book for warranty details and your nearest Authorised Service Centre, Customer Care,
or contact us through our local website listed on the back cover.
Warranty and service
This cooktop has been designed and constructed in accordance with the following
codes and specifications:
In New Zealand and Australia:
AS/NZS 60335-1 General Requirements for Domestic electrical appliances
AS/NZS 60335-2-6 Particular Requirements for Domestic electrical cooking appliances
AS/NZS 1044 Electromagnetic Compatibility Requirements.
In Europe:
Safety requirements of EEC Directive “Low voltage” 2006/95:
- EN 60335-1 General Requirements for Domestic electrical appliances
- EN 60335-2-6 Particular Requirements for Domestic electrical cooking appliances
Safety requirements of EEC Directive “EMC” 89/336:
- EN 55014-1, EN 55014-2, EN 61000-3-2, EN 61000-3-3 Electromagnetic Compatibility
Requirements
Requirements of EEC Directive 93/68.
European directive 2002/96/EC on Waste Electrical and Electronic Equipment (WEEE)
(for European Union countries only)
GB This appliance is marked according to the European directive 2002/96/EC on Waste Electrical
and Electronic Equipment (WEEE). By ensuring this product is disposed of correctly, you will help
prevent potential negative consequences for the environment and human health, which could
otherwise be caused by inappropriate waste handling of this product.
The symbol
this appliance may not be treated as household waste. Instead it shall be handed over to the
applicable collection point for the recycling of electrical and electronic equipment. Disposal
must be carried out in accordance with local environmental regulations for waste disposal.
For more detailed information about treatment, recovery and recycling of this product, please
contact your local city office, your household waste disposal service or the shop where you
purchased the product.
on the product, or on the documents accompanying the product, indicates that
31
Product details
Fisher & Paykel Ltd
Model Serial No.
Date of Purchase Purchaser
Dealer Suburb
Town Country
www. sherpaykel.co.nz
www. sherpaykel.com.au
www. sherpaykel.co.uk
www. sherpaykel.ie
Copyright © Fisher & Paykel 2011. All rights reserved.
The product specifications in this booklet apply to the specific products
and models described at the date of issue. Under our policy of continuous
product improvement, these specifications may change at any time. You
should therefore check with your Dealer to ensure this booklet correctly
describes the product currently available.
NZ AU GB IE 03.2011F&P PN - 599581 B F&P ITALY PN - 1103203-β2
Loading...
