The F&P 950 Respiratory Humidifier is intended to provide heat and humidity to respiratory gases delivered to patients�

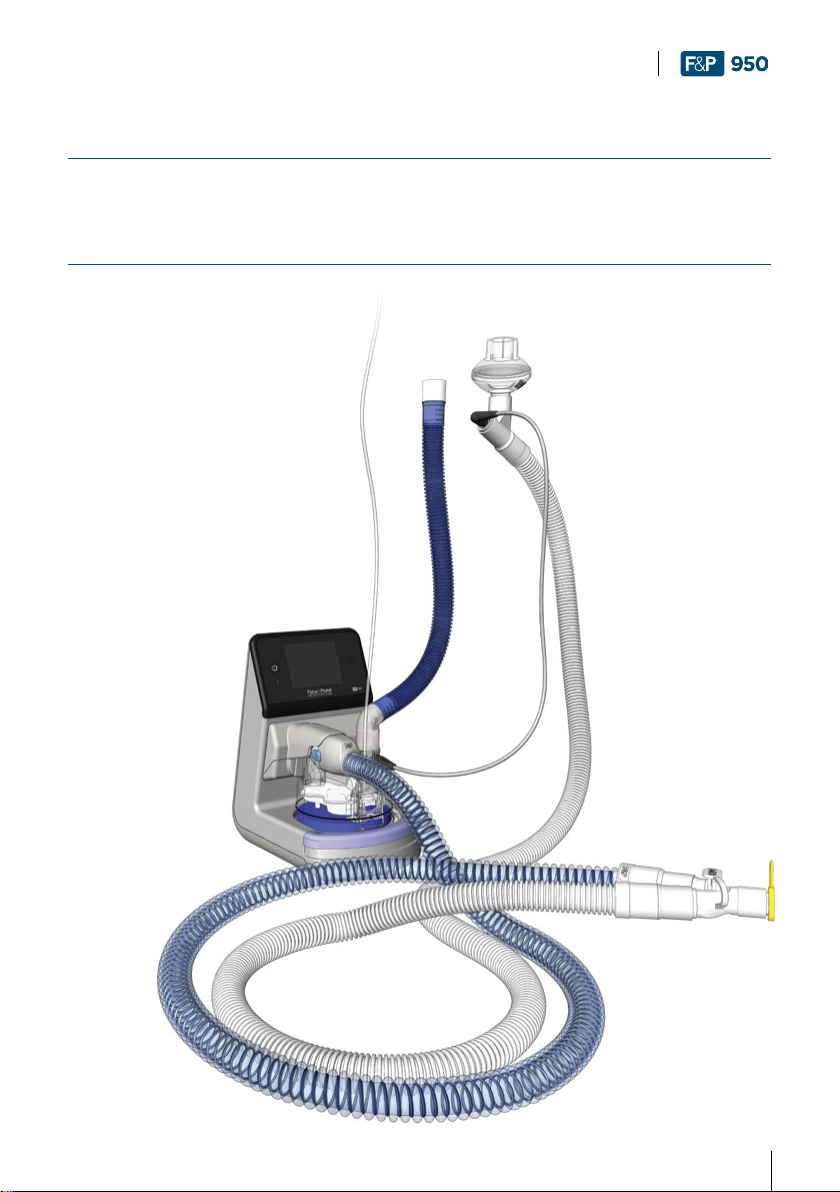

Operating principle
The F&P 950 Respiratory Humidifier
provides heat and humidity to
medical gases by passing the gas
through a heated water chamber
and heated breathing tubes�
The amount of heating is controlled
based on the gas temperature
measured at dierent parts of the
humidifier�
3
Page 4
USER INSTRUCTIONS

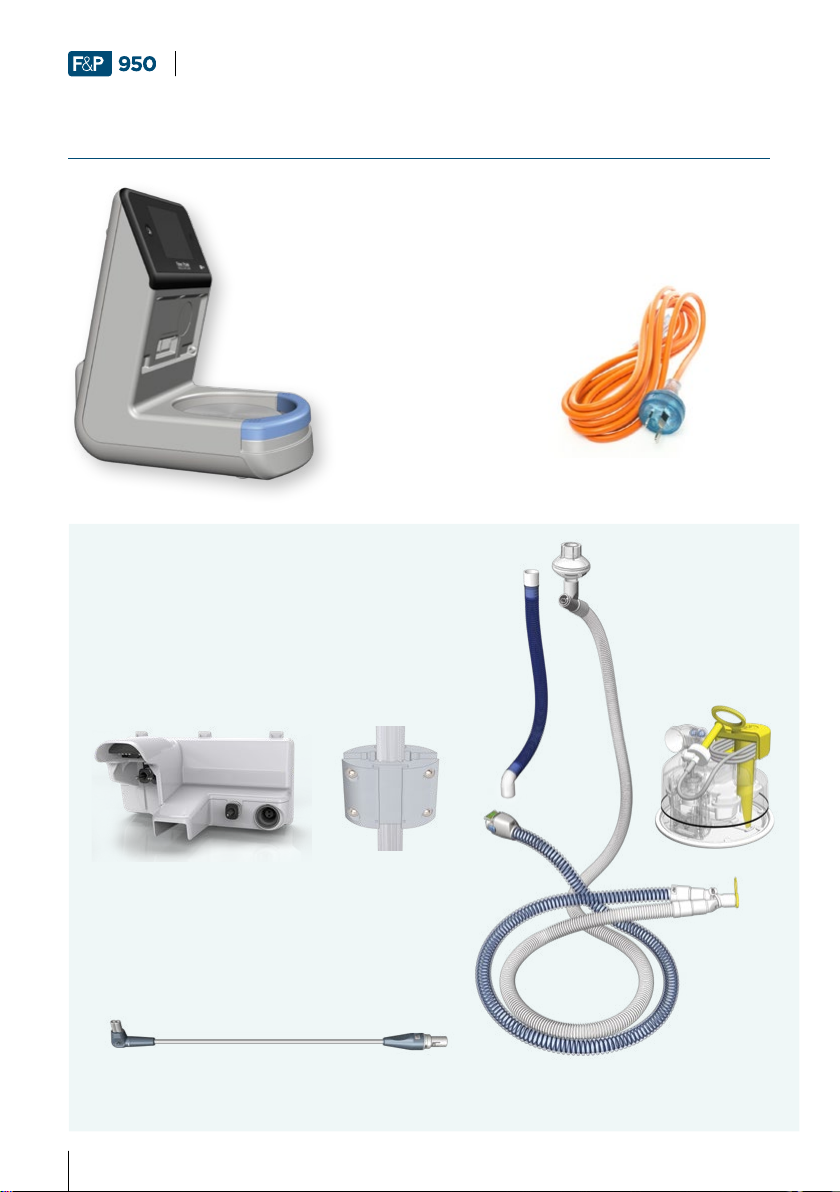

Package contents
F&P 950 Heaterbase
(e�g� 950ANZ)
Accessories to complete the
F&P 950 Respiratory Humidifier
Power cord
(e�g� 950X PI)
F&P 950 S ensor Cart ridge
(e�g� 950S02)
F&P 950 E xpiratory H eater Wire Adapter
4
(e�g� 950X00)
Equipment mount
(e�g� 900MR030)
F&P 950 B reathing Ci rcuit Kit
(e�g� 950A81, 950N80)
Page 5
F&P 950 Respiratory Humidifier setup

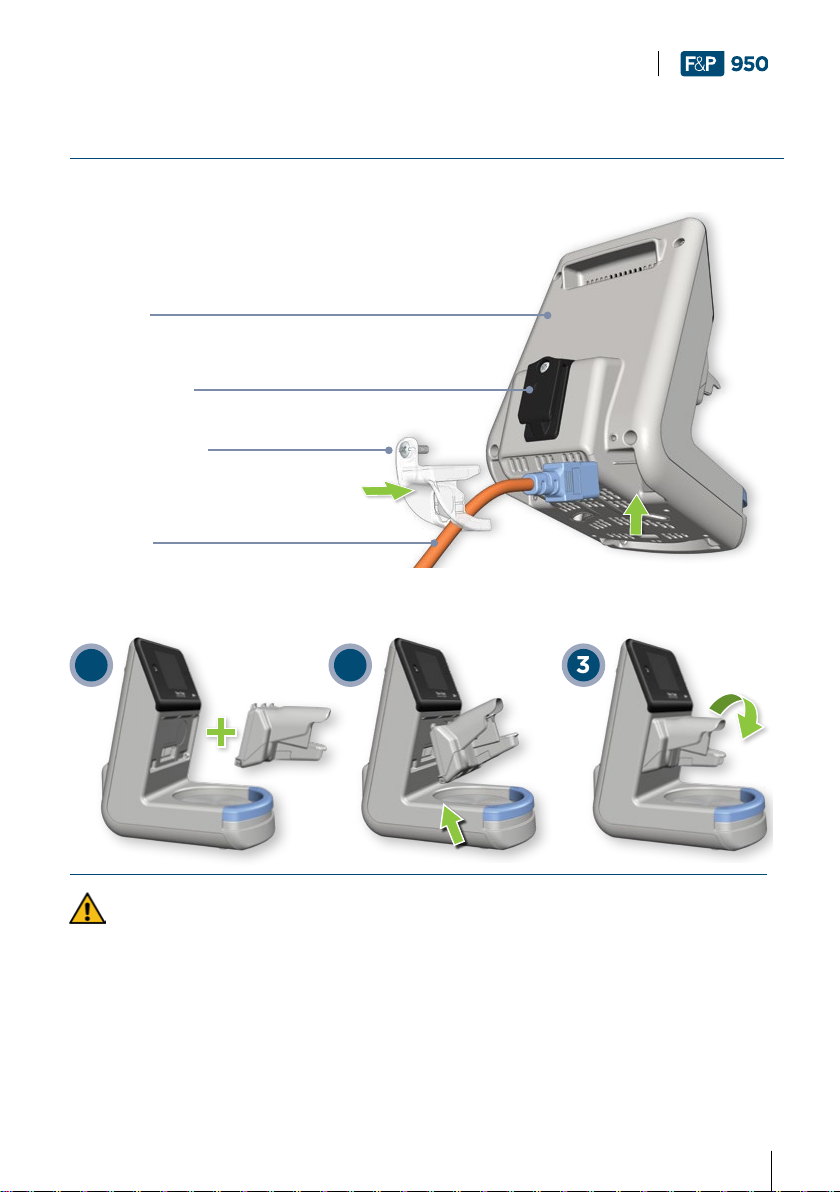

Attach the power cord and power cord retainer to the heaterbase�
Heaterbase
Mounting bracket
Power cord retainer
The power cord retainer prevents the
power cord from accidental disconnection�
Required screw torque: 0�8 ± 0�3 Nm
Power cord
Attach the sensor cartridge to the heater base�
USER INSTRUCTIONS
123
WARNING
The heaterbase must be mounted on an equipment mount capable of supporting 4 kg�
Failure to comply may result in damage to the equipment mount and heaterbase, and potentially
cause serious patient harm�
NOTES
• Ensure the heaterbase does not block access to the power supply outlet�
• Update the heaterbase software to Rev J (6�0�10) or later before attaching the 950S02 Sensor Cartridge�
5
Page 6
USER INSTRUCTIONS
F&P 950 Respiratory Humidifier setup

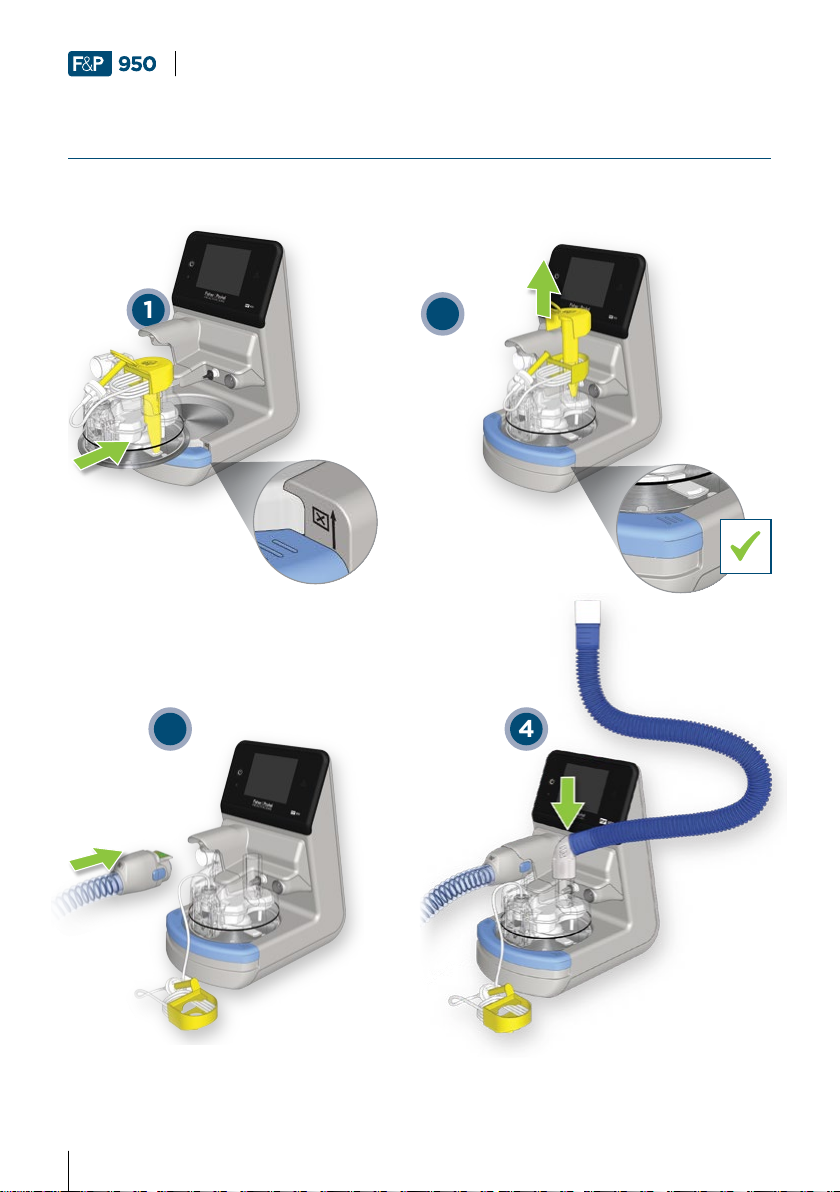

Set up the breathing circuit as described in the user instructions provided with the selected breathing circuit kit�
1
2
34
When turning on the humidifier, an audible single beep sound should be heard�
6
Page 7

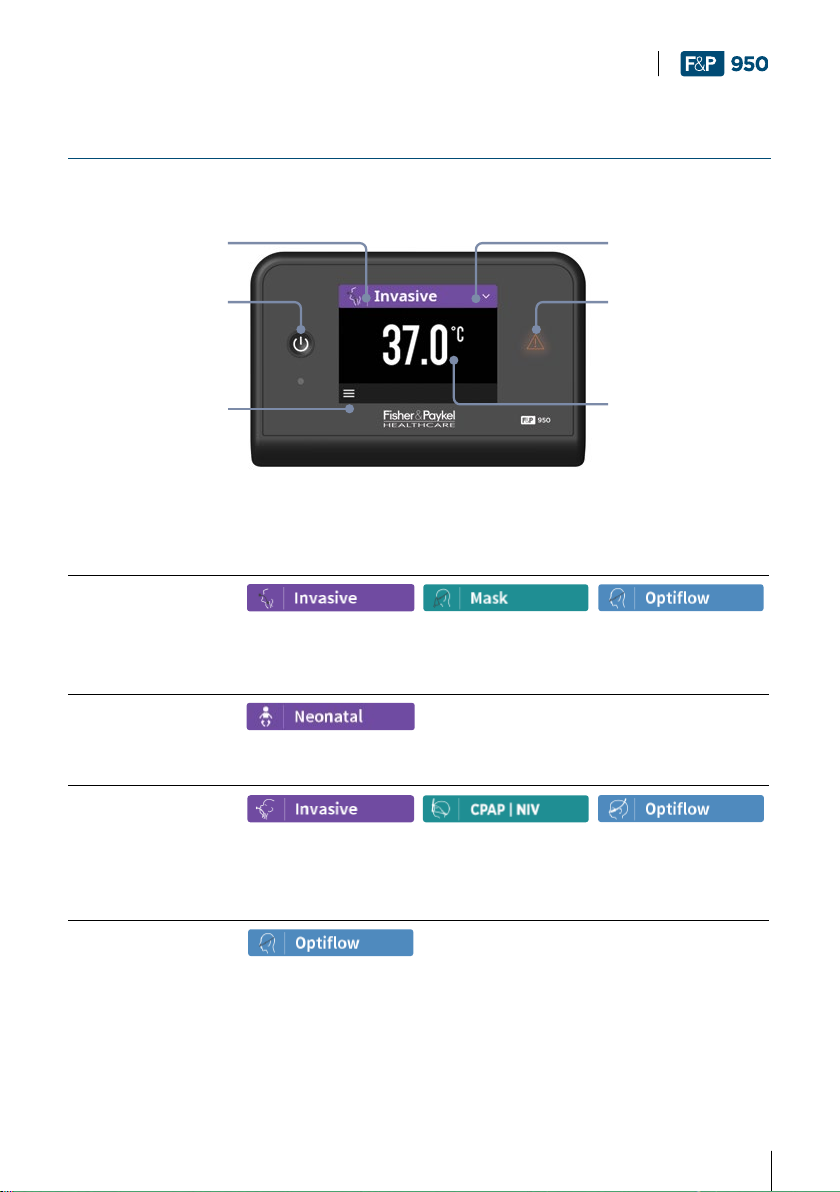

User interface
Screen navigation
USER INSTRUCTIONS
Mode banner
Displays current mode�
Standby button
Turn standby on/o�
Disconnect from
power source to
de-power the
humidifier�
Menu button
Access information
and service menus�
Drop-down menu button
Access operating mode�
Caution LED
Lights up solid orange for
> 5 seconds when a
fault condition occurs�
Esti mated dew poin t
Estimated dew point
of the gas reaching
the patient�
Modes
The modes available will depend on the type of breathing circuit connected� The availability and operating principles for
each mode are shown below�
Invasive mode is intended for
patients whose upper airways
have been bypassed by either a
tracheostomy or endotracheal
tube�
Neonatal mode is intended for
neonates who require respiratory
support�
Invasive mode is intended for
patients whose upper airways
have been bypassed by either a
tracheostomy or endotracheal
tube�
Optiflow mode is intended for
patients who require respiratory
therapy through an Optiflow
interface�
Mask mode is intended for
patients whose upper airways
have not been bypassed but are
receiving gas via a face mask
or similar�
CPAP | NIV mode is intended for
patients whose upper airways
have not been bypassed and
are receiving positive pressure
therapy through a sealed or
nasal interface�
Optiflow™ mode is intended for
patients who require respiratory
therapy through an Optiflow
interface�
Optiflow mode is intended for
patients who require respiratory
therapy through an Optiflow
interface�
7
Page 8
USER INSTRUCTIONS
User interface

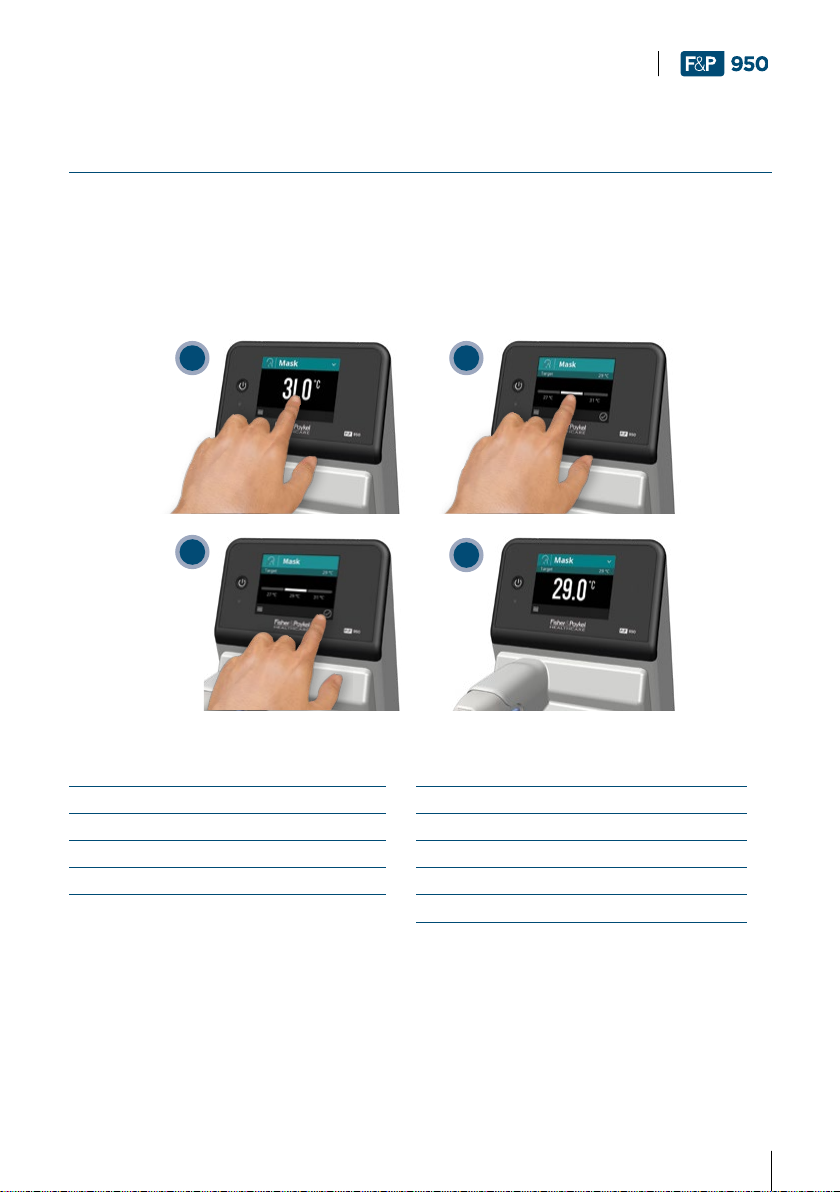

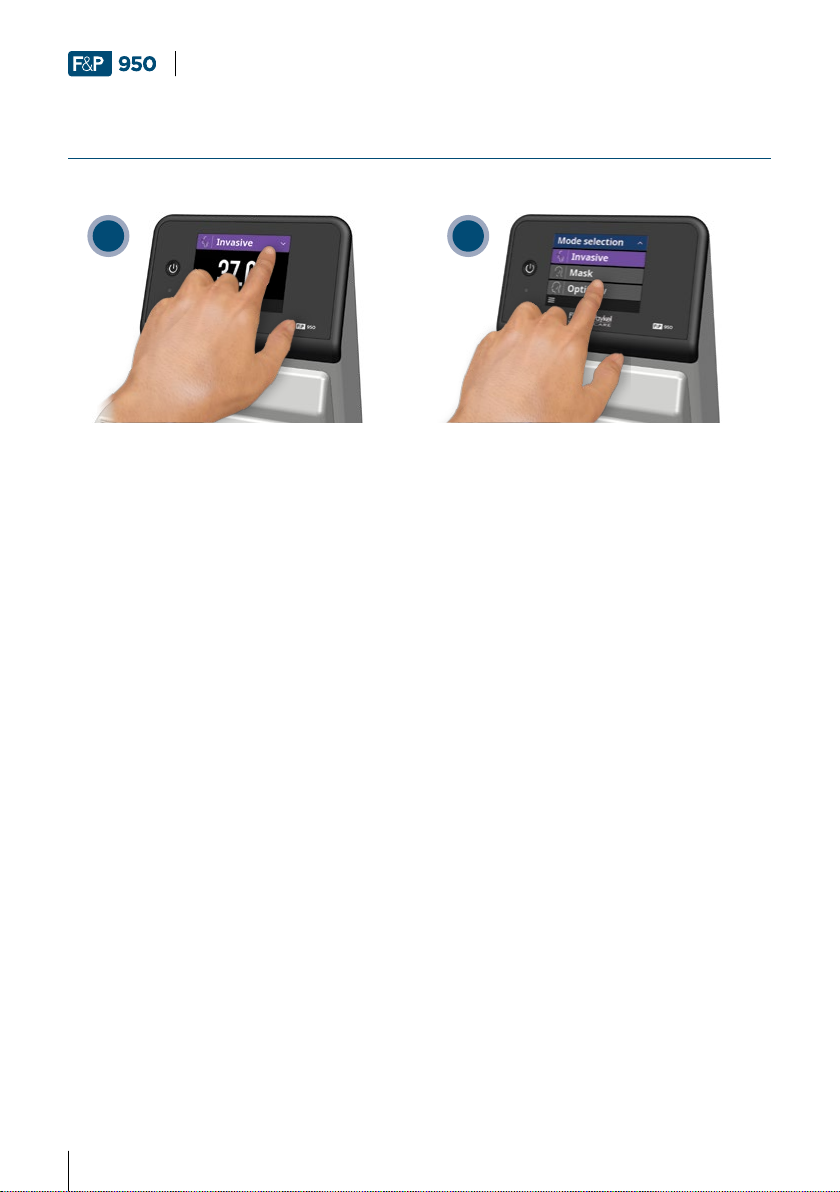

When multiple modes exist for a type of breathing circuit kit, selection can be accessed via the drop-down menu button�
12
8
Page 9
USER INSTRUCTIONS
User interface
Comfort settings
With an adult or pediatric inspiratory limb connected, it is possible to change the target temperature in Mask and
Optiflow modes, to provide conditions which may encourage patient comfort�
When additional neonatal modes are enabled, changing the target temperature in CPAP | NIV and Optiflow modes is also
possible�
1
3
The available comfort settings are:
Adult & PediatricNeonatal
ModeDefaultMediumLowModeDefaultMediumLow
Invasive37 °C--Neonatal37 °C--
Mask31 °C29 °C27 °CInvasive*37 °C--
Optiflow37 °C35 °C33 °CCPAP | NIV*37 °C34 °C31 °C
2
4
Optiflow*37 °C35 °C33 °C
* with additional modes enabled
The humidifier will reset to the default set-point if the mode is changed or the humidifier is turned o and back on� It is
possible for service personnel to change the default set-point for Mask, CPAP | NIV and Optiflow modes in the service
menu�
9
Page 10
USER INSTRUCTIONS

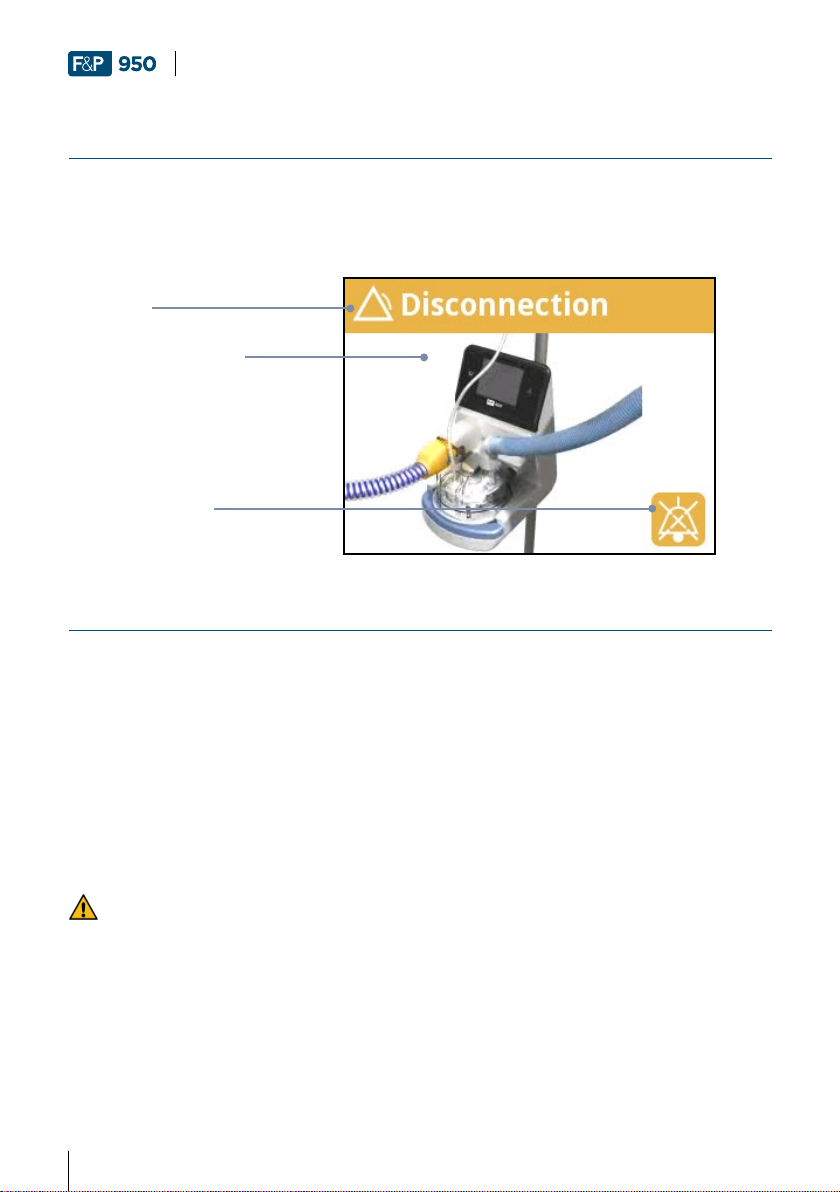

Alarms
Alarm signals
The F&P 950 Respiratory Humidifier has visual and audible alarms to warn about interruptions to treatment� These
alarms are generated by an intelligent alarm system, which processes information from the sensors and target settings of
the unit and compares this information to pre-programmed limits�
Alarm type
Text or animation tutorial
Demonstrates corrective action – see
“alarm conditions” table on the
next page�
Mute/unmute alarm
2 minutes�
Alarms
Alarm conditions
All possible alarm conditions are listed on the following pages, and all are classified as medium or low priorities�
As the F&P 950 Respiratory Humidifier does not include patient monitoring, these alarms are considered technical
indicators of humidifier performance� It is possible to have multiple alarm conditions occur simultaneously; under these
conditions the humidifier uses an internal ranking system to display the highest-ranked alarm�
Medium priority alarms have been designed to be detectable within one meter of the heaterbase, with the alarm signal
being three beeps repeated every five seconds�
Low priority alarms have been designed to be detectable within one meter of the heaterbase, with the alarm signal being
one beep repeated every five seconds�
Checking alarm system functionality
WARNING: Do not remove breathing circuit when connected to a patient� Failure to comply may compromise
safety, including serious patient harm�
To check alarm functionality, remove the heated breathing tube at any time while the humidifier is powered on but no t connected to a patient� This action should activate the “Disconnection” visual and audible alarms� If either signal is
absent, do not use the humidifier� Contact your servicing department for assistance�
In the event of an unexpected shutdown, the humidifier shall resume the operating mode and alarm settings (except
algorithm-based alarms) prior to the reset if the interruption is less than or equal to 30 seconds�
10
Page 11
USER INSTRUCTIONS
Alarms
Alarm Priority: Medium
ALARM CONDITIONSREQUIRED ACTION
The Dis connect ion alarm a ctivates when t he humidifier detects a disco nnection of the
inspiratory circuit�
Delay: < 1 0 seconds
The No Wat er alarm ac tivates when th e humidifier d etects that the chamb er is empty or
almos t empty of water�
The time-to-a larm signal ge neration is depende nt on operating mode se t-point and flow
rates as these de termine the wate r evaporation r ate�
Delay: < 6 0 minutes
The Che ck Setup al arm activates when t he humidifie r detects a repe ated elevated
temperature co ndition at the ch amber outlet �
The ala rm threshold is 43 °C�
The time-to-a larm signal ge neration is depende nt on the flow rates �
Delay: > 5 m inutes
The Low Temperature alarm activate s when the humid ifier detect s a low temperature
condition at the p atient end or chamber o utlet for a contin uous period of time�
The ala rm threshold is 2 °C below t he set-point temp erature�
The time-to-a larm signal ge neration is depende nt on the flow rates �
Delay: > 1 0 minutes
The High Temperature alarm activate s when the humi difier detect s a high temperature
condition at the patient end�
The ala rm threshold is a patien t end temperature of > 43 °C �
Delay: < 3 0 seconds
The Cartridge Disconnection alarm activates wh en the humidifi er detects th at the sensor
cartridge is n ot electric ally connected�
Delay: < 1 0 seconds
Conne ct inspiratory circuit and f ully
inser t the chamber f or complete
connection�
Replace the empty water bag�
Check t he dryline an d expiratory limb
conne ct to the correct port s on the
flow source�
Check t he humidifier i s receiving flow
within th e range stated i n this user
instruction�
Check t he humidifier s etup�
Check t he humidifier i s receiving flow
within th e range stated i n this user
instruction�
Check connec tions to the flow so urce�
Check t he humidifier s etup�
Conne ct the sensor c artridge�
The Tube Fa ult alarm a ctivates when t he humidifier detects a poten tial fault in the
breathing circuit�
Delay: < 1 0 seconds
Replace the bre athing circuit when safe
to do so�
11
Page 12
USER INSTRUCTIONS
Alarms
Alarm Priority: Medium
ALARM CONDITIONSREQUIRED ACTION
The Service Required alarm acti vates when the hu midifier dete cts a potential fault th at
requir es the humidifi er to be serviced�
Dela y: 10 second s to 5 minutes
The Ca ution Ind icator LE D light illuminates when the humidifier detects t hat there is a
potenti al fault with the h umidifier an d the screen is not o perational �
Delay: < 1 0 seconds
The Cartridge Authentication alarm activates wh en the humidifier doe s not recognize
the sensor cartridge�
If this oc curs, the use r may choose to pre ss “Acce pt” to acknowledge that the sen sor
cartridge is n ot Fisher Paykel Health care approved �
A senso r cartridge a uthentication failure icon wi ll appear at the b ottom right of th e
display�
The Ca rtridge S ervice Lif e alarm ac tivated when the h umidifier det ects the sensor
cartridge ha s exceeded the re commended s ervice life�
The sen sor cartrid ge should be rep laced at the nex t opportuni ty that it is safe to do so
(when not in u se by a patient)�
Delay: 1 5,000 hours of use or 7 years from the date of manufactu re, whichever is earlie r�
If the ala rm is paused, it will rea ppear 4 hours later�
Turn o the hu midifier as soon as
appropriate, remove from service, and
contac t a technician �
Turn o the hu midifier as soon as
appropriate, remove from service, and
contac t a technician �
To remove the se nsor cartr idge
authe ntication fai lure icon, cont act
technician to replace sensor cartridge as
soon as appropriate�
Press “ Pause Alarm ” button to dismi ss
the alarm scree n�
Contact technician to replace sensor
cartridge as soon as appropriate�
Alarm Priority: Low
ALARM CONDITIONSREQUIRED ACTION
The Che ck Adapter a larm acti vates when the hu midifier dete cts the expira tory heater
wire ada pter is disconn ected�
Note: By d efault this ala rm is disable d� It can be ena bled throug h the service m enu�
Dela y: < 20 second s
12
Conne ct the expirato ry heater wire
adapter between the sensor cartridge
and the ex piratory circ uit�
Page 13
USER INSTRUCTIONS
Alarms
Information signals
Notification type
Notification content
Demonstrates corrective action – see
“information signals” table below�
Mute/unmute alarm
INFORMATION SIGNALSPOSSIBLE ACTIONS

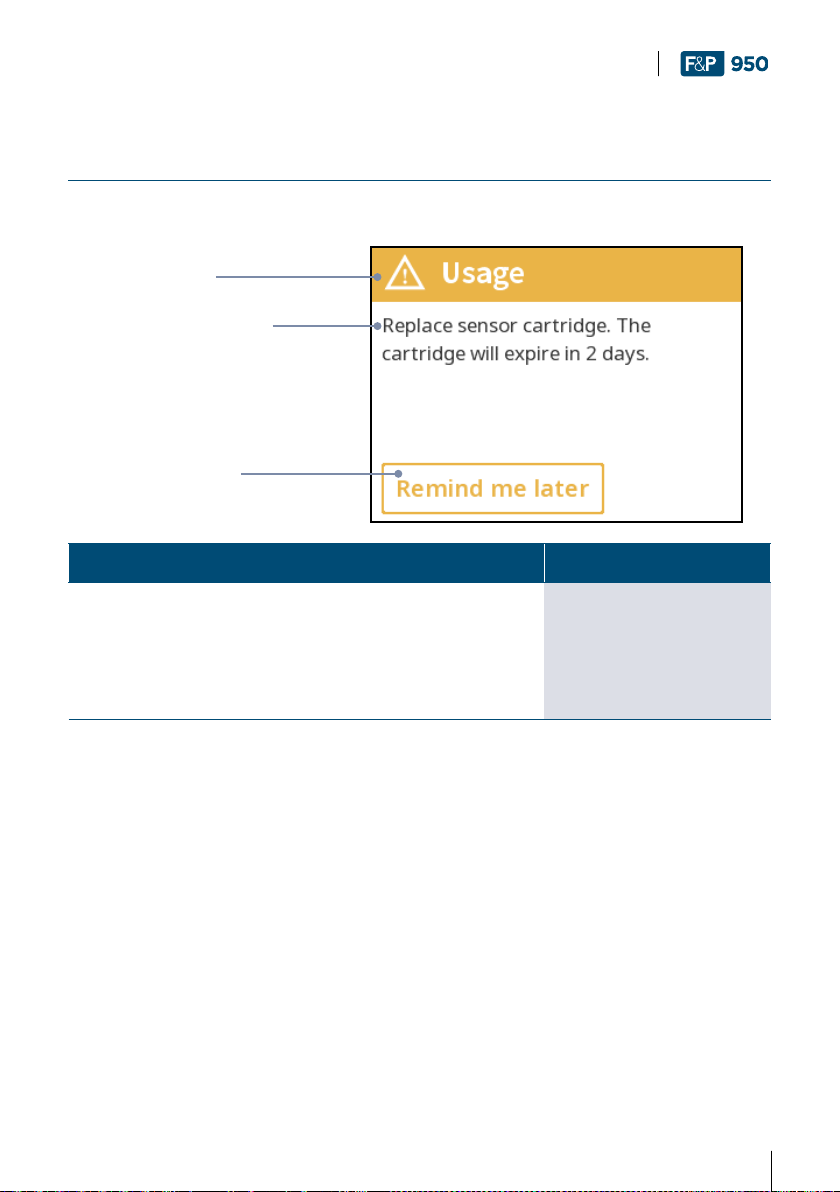

The Cartridge Service Life warning activates when the humi difier detects the se nsor
cartridge is approaching the end of its recommended service life�
At this point the se nsor cartri dge has one mon th of service life remain ing and a senso r
cartridge sh ould be made ava ilable for repl acement�
Dela y: 30 days prio r to expiry and wi ll reappear eve ry 24 hours, o r every 8 hours if l ess
than 7 days r emaining
Press “ Remind me late r” button to
dismis s the warning s creen�
Contact technician to replace sensor
cartridge as soon as appropriate�
13
Page 14
USER INSTRUCTIONS
Information and service menus
Options screen

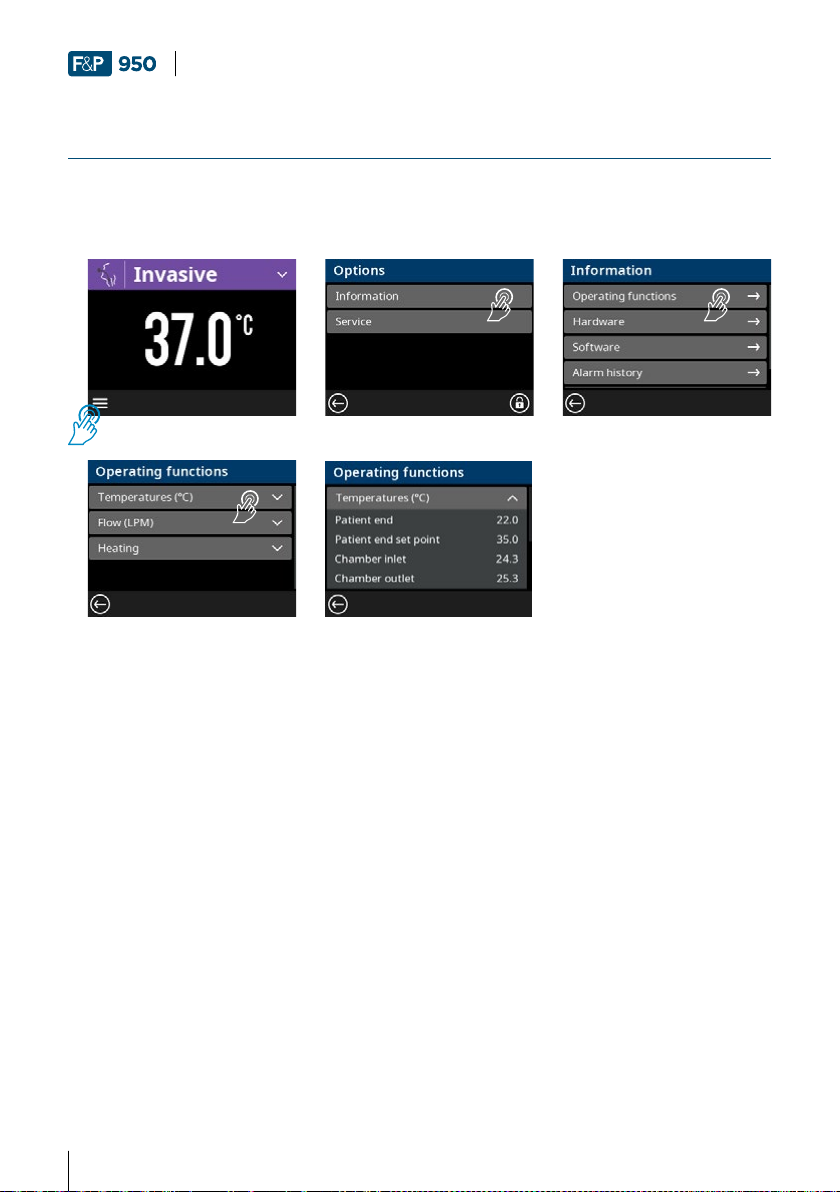

The “Options” screen contains additional information about the humidifier and can be accessed by pressing the
“Menu” button� Tapping on each option enables navigation through the screens�
The servicing functions are password protected and should only be accessed by technical personnel� Refer to the
Product Technical Manual for more information�
NOTE: The readings displayed in the Operating Functions page under the Information directory are additional
information for troubleshooting purposes only� These values are not intended to be used to specify patient treatment or
for patient diagnosis�
14
Page 15
USER INSTRUCTIONS
Information and service menus
Lock screen function

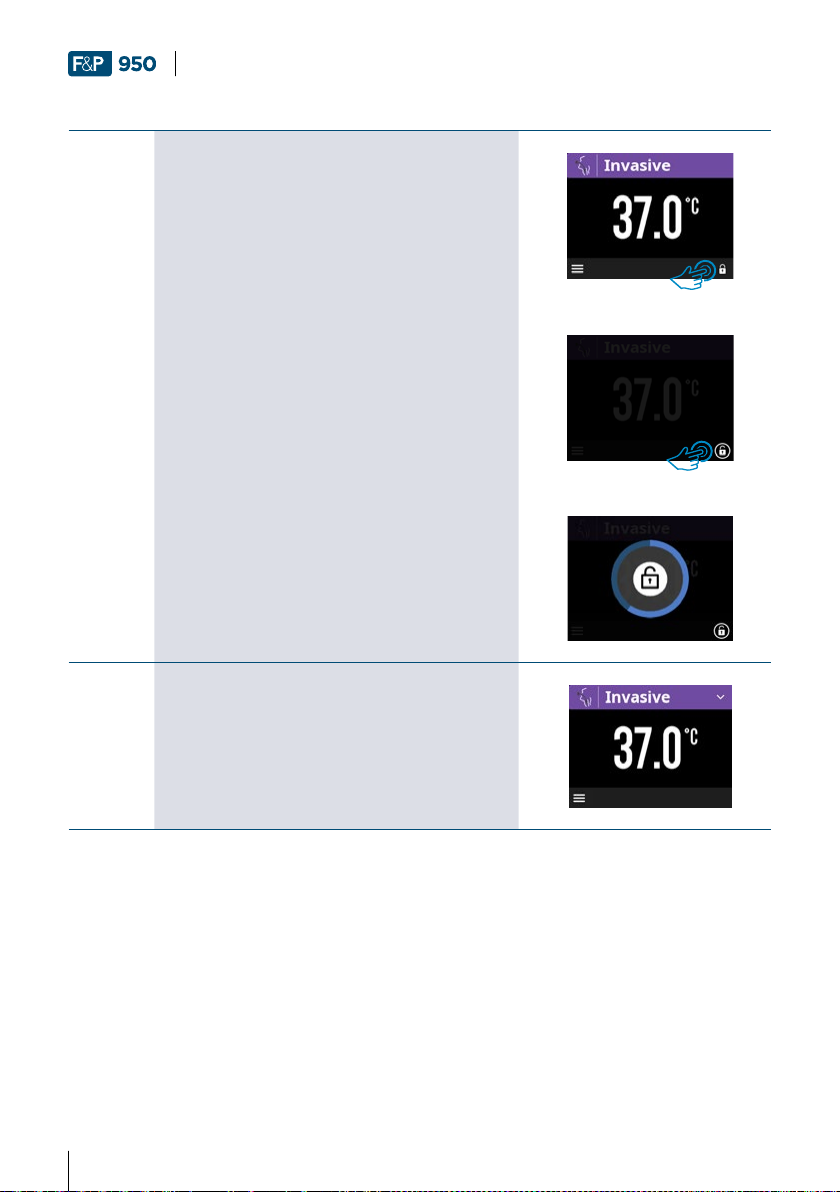

The F&P 950 Heaterbase screen can be locked to avoid unintentional changes to modes or settings� Follow the
instruction below to enable or disable the feature:

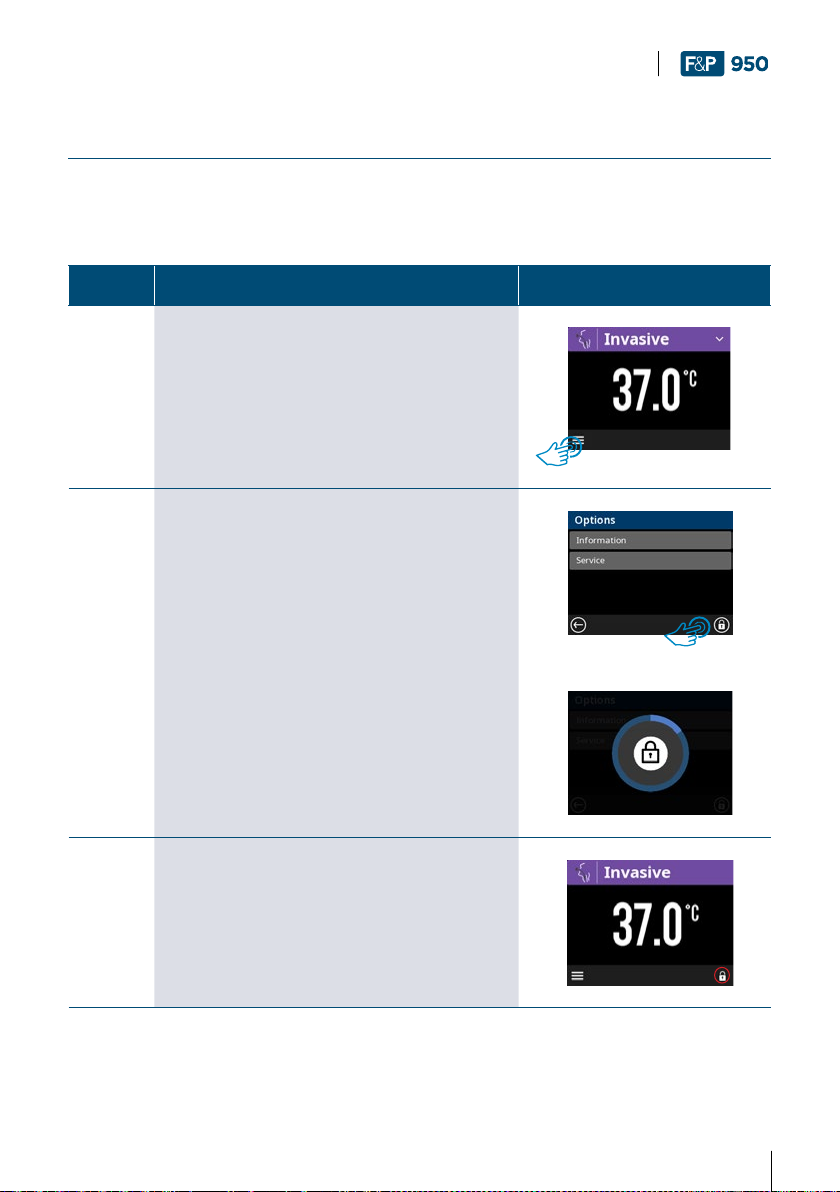

STEPINSTRUCTIONSCREENSHOT
1Navigate to th e “Options” s creen by touchi ng the menu icon i n the
2Pre ss and hold the l ock icon�
3When the screen is lo cked, a “lock ” icon is displaye d�
bottom l eft corner of t he “Main” scr een�
Hold dow n the icon until the countdown anima tion completes one
full revolution�
15
Page 16
USER INSTRUCTIONS
4To unlock th e screen, tap t he lock icon once �
The icon w ill change to “un lock”�
Press a nd hold the “unl ock” icon�
Hold dow n the icon until the countdown anima tion completes one
full revolution�
5When unlocked, th e humidifier wi ll return to the mai n screen and
the use r will be able to cha nge the mode or setting s�
NOTE: Please refer queries relating to setup, troubleshooting, service, repair and unexpected operation of the humidifier
or accessories, to your healthcare provider or local Fisher & Paykel Healthcare representative�
16
Page 17
USER INSTRUCTIONS
Cleaning and maintenance
Cleaning
Clean the heaterbase, sensor cartridge, or expiratory heater wire adapter using a cloth dampened with either isopropyl
alcohol or neutral detergent� Always disconnect the humidifier from the power supply before cleaning�
NOTES:
• Do not immerse or autoclave the heaterbase, sensor cartridge, or expiratory heater wire adapter�
• Do not spray liquid into the vents or onto electrical connectors� Failure to comply may result in irreparable damage to the
humidifier�
• Follow the responsible organization’s guidelines for frequency of cleaning, rinsing, drying, handling and storage between
uses�
Routine maintenance
A full technical description, including routine maintenance and service data, is contained in the Product Technical Manual
available from your supplier or Fisher & Paykel Healthcare�
WARNING:
humidifier� Failure to comply may impair performance of the humidifier or compromise safety (including potentially
causing serious harm)�
The Product Technical Manual must be followed for all servicing and maintenance of the
Warnings, cautions and notes
WARNINGS
• Refer to the instructions for use for breathing circuits, interfaces and accessories before operating the equipment�
Failure to comply may impair performance of the humidifier or compromise safety (including potentially causing patient
har m)�
• This product is only designed and verified for use with accessories and spare parts approved by Fisher & Paykel
Healthcare� Unauthorized accessories or spare parts which are used with the humidifier may impair performance
of the humidifier, or compromise safety (including potentially causing serious patient harm), or result in increased
electromagnetic emissions, or decreased electromagnetic immunity, resulting in improper operation�
• This product is designed for the delivery of air and/or oxygen� It is not suitable for the delivery of flammable anesthetic
gas mixes or Heliox gas� Failure to comply may impair performance of the humidifier or compromise safety (including
potentially causing patient harm)�
• The humidifier should always be level and positioned lower than the patient� Failure to comply may impair performance
of the humidifier or compromise safety (including potentially causing serious patient harm)�
• Visually inspect components and accessories for damage before use and replace if damaged� Use of damaged
components or accessories (including degraded sensors) may impair performance of the humidifier or compromise
safety (including potentially causing serious harm)�
• Appropriate patient monitoring (e�g� oxygen saturation) must be used at all times� Failure to monitor the patient (e�g� in
the event of an interruption to gas flow) may result in serious harm or death�
• Do not touch the electrical connectors and the patient simultaneously� Failure to comply may result in serious harm�
• Operation of the humidifier outside of the recommended operating conditions (as described in these user instructions)
may impair performance of the humidifier or compromise safety (including potentially causing patient harm)�
• Monitor circuit condensate ever y six hours to prevent occlusion or build-up of fluid� Drain as required� Failure to comply
may impair performance of the humidifier or compromise safety (including potentially causing serious patient harm)�
• Remove any sources of ignition, such as: cigarettes , an open flame, or materials which ignite easily at high oxygen
concentrations�
• Follow the instructions of the oxygen device provider; keep oxygen regulators, cylinder valves, tubing, connections, and
all other oxygen equipment away from oil, grease, or greasy substances� Spontaneous and violent ignition may occur if
these substances come into contact with oxygen under pressure�
17
Page 18
USER INSTRUCTIONS
Warnings, cautions and notes
• California residents, please be advised of the following, pursuant to Proposition 65: This product contains chemicals
known to the State of California to cause cancer, birth defects and other reproduc tive harm� For more information, please
visit: http://www�fphcare�com/prop65
• The operation of high-frequency surgical apparatus, shortwave or microwave equipment in the vicinity of the humidifier
may adversely aect its performance� If this occurs, remove the humidifier from the vicinity of such devices�
• Do not use this product in or near a magnetic resonance imaging (MRI) scanner, where the intensity of electromagnetic
disturbances is high� Failure to comply may impair the performance of the humidifier or compromise safety (including
potentially causing serious patient harm)�
• Do not connect the humidifier directly to a medical gas pipeline system� The humidifier is intended for connection to a
ventilator or gas mixer to control gas pressure and flow rate� Failure to control the gas delivery may result in a pressure
injury to the patient�
• Use of this equipment adjacent to or stacked with other equipment should be avoided because it could result in improper
operation� If such use is necessary, observe all equipment to confirm that it is operating normally�
• The F&P 950 Respiratory Humidifier and accessories contain small parts which could cause injury or suocation if
inhaled or swallowed�
• Install the humidifier away from heat sources, such as direc t sunlight, radiant heaters, fireplaces, ovens and kettles
and cooling sources, such as dehumidifiers, fans, air conditioners and ventilators� Failure to comply may impair the
performance of the humidifier or result in serious harm�
• To avoid strangulation or tripping, ensure the breathing tubes and power cord are positioned in a tidy manner away from
the floor and patient, so they will not get entangled or wrapped around the limbs or neck�
• Consideration should be given to the possible hazards that could arise from children, pests and pets�
CAUTIONS
• Ensure that Invasive mode is set for patients who have bypassed airways� Prolonged exposure to reduced humidity will
result in patient harm including decreased mucociliary clearance, atelectasis, or pneumonia�
• Do not touch the hot surface of the heater plate, chamber base or probes� Failure to comply may result in a skin burn�
• The F&P 950 Respiratory Humidifier does not contain material known to cause allergic reactions � If an allergic reaction
occurs during use, contact the responsible organization immediately�
NOTES
• Use USP sterile water for irrigation, or equivalent� Adding other substances may have adverse eects�
• The F&P 950 Respiratory Humidifier contains an embedded software system licensed to Fisher & Paykel Healthcare by
Microsoft� The license contains certain restrictions that are relevant to the use of the F&P 950 Respiratory Humidifier�
Visit www�fphcare�com/microsoftlicensing for more information about such restrictions�
• The F&P 950 Respiratory Humidifier has an IP21 rating, which protects against solid foreign objects 12� 5 mm in diameter
and uniform flow of water drops over the enclosure area with a flow rate of 1 mm/min�
• This equipment’s emissions characteristics make it suitable for use in industrial areas and hospitals (CISPR 11 class A) and
residential environments (CISPR 11 class B)�
• If a serious incident has occurred while using this device, please inform your local Fisher & Paykel Healthcare
representative and, for European Union member countries, the Competent Authority in your country�
18
Page 19

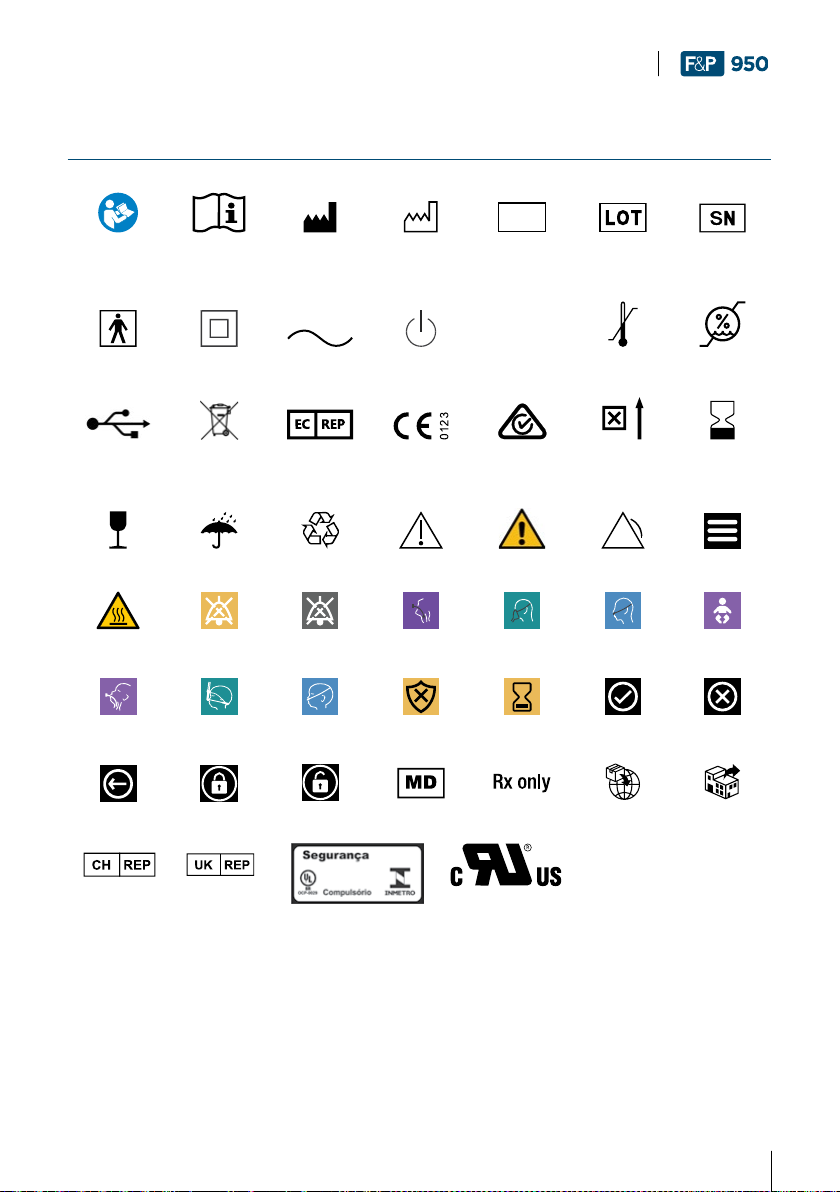

Symbol definitions
REF
REF
USER INSTRUCTIONS
Follow instructions
for use - s afety
Typ e BF
Applied Part
USB 2� 0WEEE (Waste
Fragile, handle
with care
Warnin g:
hot sur face
Neonatal Invasive
mode
Back arrowLockedUnlockMedical D evice* Prescription only*ImporterDistributor
Consult
instructions for
use�
www�fphcare�
com/950IFU
Class I I
equipment
Electrical and
Electronic
Equipment)*
Keep dr yRecyclableCautionWarningAlarmMenu
Alarm audible
pause
Neonatal
CPAP | NIV m ode
ManufacturerDate o f
Alternating currentStandby
European
representative*
Alarm audible
paused
Neonatal Optiflow
mode
manufacture
(On/O)
CE Marking
93/42/EEC*
Invasive modeMask modeOptiflow modeNeonatal mode
Sensor cartridge
authentication
failure
Catalogue
reference number
IP21
IP
Classification
Regulator y
Compliance Mark*
Sensor Cartridge
serv ice life warning
Batch
code
Temperature
limitations
Raise finger guard Date of expiration
AcceptCancel
Serial
number
Humidity
limitations
Authorized
representative for
Switzerland*
*symbo l displayed on sele ct models
UK responsible
person*
INMETRO Mark*UL Mar k*
E354976
19
Page 20
USER INSTRUCTIONS
Technical specifications
Product specifications
Dimensions (heaterbase
only)
Weight (heaterbase and
power co rd only)
Supply frequency50/60 Hz
Supply voltage
Power rating350 VA
Maxim um lengt h of power
cord
Sound pressure levelA larms exceed 45 dbA @ 1 m
Audit ory alarm p ause120 seconds
Maximum temperature of
delivered gas
Time to r each set
temperature (gas flow is
required)
Maximum surface
temperature of the breathing
circuit (applied part section)
Component service lifeHeaterbase: 7 years
Humidity performance
(Excep t in the event of a
humidifier alarm or power
failure or electromagnetic
disturbance)
Neon atal Mode: 0 �5-40 L /min
Invasive mode: 0� 5-40 L/min
CPAP | NIV m ode: 0�5 -40 L/min
Optiflow mode: 0�5-36 L /min
1
XX represents the country code
20
Page 21
USER INSTRUCTIONSUSER INSTRUCTIONS
Technical specifications
Operating conditions
SPECIFICATIONAD ULTPEDIATRIC & NEONATAL
Room temperature18–26 °C20–2 6 °C
Incoming gas temperatureMinimum = Room temperature
Operator position
Atmospheric pressure:Minimum of 70 kPa (equ ivalent to a
Maximum = 10 °C ab ove room temper ature
(at 30% relat ive humidity)
<1 m from h eaterbase<1 m from h eaterbase
maximum altitu de of 3000 m)
Maximum 106 k PA
Storage conditions
SPECIFICATIONVALU E
Temperature-20–6 0 °C
Humidity10–9 5% relative humidity no n-condensi ng
NOTE: If the humidification system has been stored outside the specified operating ambient temperature range, the
system must be left for 24 hours within the specified operating temperature range before use�
Minimum = Room temperature
Maximum = 10 °C ab ove room temper ature
(at 30% relat ive humidity)
Minimum of 70 kPa (equ ivalent to a
maximum altitu de of 3000 m)
Maximum 106 kPa
Disposal
At the end of its life, users should dispose of the humidifier according to the responsible organization’s guidelines, local
authority guidelines, and national electrical and electronic equipment regulations�
21
Page 22
USER INSTRUCTIONS
22
Page 23
USER INSTRUCTIONS
23
Page 24
Fisher&Paykel Healthcare Ltd, 15 Maurice Paykel Place, East Tamaki, Auckland 2013, PO Box 14348 Panmure, Auckland 1741, New
