Multimedia Projector

MODEL

PLV-75/PLV-80 PLV75L/PLV-80L (Lensless)

Owner’s Manual

CAUTION : TO REDUCE THE RISK OF ELECTRIC

SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE EXCEPT LAMP REPLACEMENT. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

THIS SYMBOL INDICATES THAT DANGEROUS VOLTAGE CONSTITUTING A RISK OF ELECTRIC SHOCK IS PRESENT WITHIN THIS UNIT.

THIS SYMBOL INDICATES THAT THERE ARE IMPORTANT OPERATING AND MAINTENANCE INSTRUCTIONS IN THE OWNER’S MANUAL WITH THIS UNIT.

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

Before operating this projector, read this manual thoroughly and operate the projector properly.

This projector provides many convenient features and functions. Operating the projector properly enables you to manage those features and maintain it in better condition for a considerable time.

Improper operation may result in not only shortening the product life, but also malfunctions, fire hazard, or other accidents.

If your projector seems to operate improperly, read this manual again, check operations and cable connections and try the solutions in the “Troubleshooting” section in the end of this booklet. If the problem still persists, contact the dealer where you purchased the projector or the service center.

Safety Precaution

WARNING : TO REDUCE THE RISK OF FIRE OR ELECTRIC

SHOCK, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE.

– This projector produces intense light from the projection

lens. Do not stare directly into the lens as much as possible. Eye damage could result. Be especially careful that children do not stare directly into the beam.

– Install the projector in a proper position. If not, it may result

in a fire hazard.

– Provide appropriate space on the top, sides and rear of the

projector cabinet for allowing air circulation and cooling the projector. Minimum clearances must be maintained. If the projector is to be built into a compartment or similarly enclosed, the minimum distances must be maintained. Do not cover the ventilation slot on the projector. Heat build-up can reduce the service life of your projector, and can also be dangerous.

– If the projector is not to be used for an extended time,

unplug the projector from the power outlet.

CAUTION

Not for use in a computer room as defined in the Standard for the Protection of Electronic Computer/Data Processing Equipment, ANSI/NFPA 75.

Ne peut être utilisé dans une salle d’ordinateurs telle que définie dans la norme ANSI/NFPA 75 Standard for Protection of Electronic Computer/Data Processing Equipment.

NOTE: This symbol mark and recycle system are applied only

to EU countries and not applied to the countries in the other area of the world.

Your SANYO product is designed and manufactured with high quality materials and components which can be recycled and reused.

This symbol means that electrical and electronic equipment, at their end-of-life, should be disposed of separately from your household waste.

Please dispose of this equipment at your local community waste collection/recycling centre. In the European Union there are separate collection systems for used electrical and electronic products.

Please help us to conserve the environment we live in!

CAUTION ON HANGING FROM THE CEILING

When hanging the projector from the ceiling, clean the air intake vents, air filters, and top of the projector periodically with a vacuum cleaner. If you leave the projector without cleaning for a long time, the dust will block the operation of the cooling function, and it may cause a breakdown or a disaster.

DO NOT SET THE PROJECTOR IN GREASY, WET, OR SMOKY CONDITIONS SUCH AS IN A KITCHEN TO PREVENT A BREAKDOWN OR A DISASTER. IF THE PROJECTOR COMES IN CONTACT WITH OIL OR CHEMICALS, IT MAY BECOME DETERIORATED.

READ AND KEEP THIS OWNER'S MANUAL FOR LATER USE.

TO THE OWNER

SIDE and TOP

REAR

3.3' (1m)

SAFETY INSTRUCTIONS

All the safety and operating instructions should be read before the product is operated.

Read all of the instructions given here and retain them for later use. Unplug this projector from AC power supply before cleaning. Do not use liquid or aerosol cleaners. Use a damp cloth for cleaning.

Follow all warnings and instructions marked on the projector.

For added protection to the projector during a lightning storm, or when it is left unattended and unused for long periods of time, unplug it from the wall outlet. This will prevent damage due to lightning and power line surges.

Do not expose this unit to rain or use near water... for example, in a wet basement, near a swimming pool, etc...

Do not use attachments not recommended by the manufacturer as they may cause hazards.

Do not place this projector on an unstable cart, stand, or table. The projector may fall, causing serious injury to a child or adult, and serious damage to the projector. Use only with a cart or stand recommended by the manufacturer, or sold with the projector. Wall or shelf mounting should follow the manufacturer's instructions, and should use a mounting kit approved by the manufacturers.

An appliance and cart combination should be moved with care. Quick stops, excessive force, and uneven surfaces may cause the appliance and cart combination to overturn.

Slots and openings in the back and bottom of the cabinet are provided for ventilation, to insure reliable operation of the equipment and to protect it from overheating.

The openings should never be covered with cloth or other materials, and the bottom opening should not be blocked by placing the projector on a bed, sofa, rug, or other similar surface. This projector should never be placed near or over a radiator or heat register.

This projector should not be placed in a built-in installation such as a book case unless proper ventilation is provided.

Never push objects of any kind into this projector through cabinet slots as they may touch dangerous voltage points or short out parts that could result in a fire or electric shock. Never spill liquid of any kind on the projector.

Do not install the projector near the ventilation duct of airconditioning equipment.

This projector should be operated only from the type of power source indicated on the marking label. If you are not sure of the type of power supplied, consult your authorized dealer or local power company.

Do not overload wall outlets and extension cords as this can result in fire or electric shock. Do not allow anything to rest on the power cord. Do not locate this projector where the cord may be damaged by persons walking on it.

Do not attempt to service this projector yourself as opening or removing covers may expose you to dangerous voltage or other hazards. Refer all servicing to qualified service personnel.

Unplug this projector from wall outlet and refer servicing to qualified service personnel under the following conditions: a. When the power cord or plug is damaged or frayed. b. If liquid has been spilled into the projector. c. If the projector has been exposed to rain or water. d. If the projector does not operate normally by following the

operating instructions. Adjust only those controls that are covered by the operating instructions as improper adjustment of other controls may result in damage and will often require extensive work by a qualified technician to restore the projector to normal operation.

e. If the projector has been dropped or the cabinet has been

damaged.

f. When the projector exhibits a distinct change in

performance-this indicates a need for service.

When replacement parts are required, be sure the service technician has used replacement parts specified by the manufacturer that have the same characteristics as the original part. Unauthorized substitutions may result in fire, electric shock, or injury to persons.

Upon completion of any service or repairs to this projector, ask the service technician to perform routine safety checks to determine that the projector is in safe operating condition.

Voor de klanten in Nederland

Bij dit product zijn batterijen geleverd. Wanneer deze leeg zijn, moet u ze niet weggooien maar inleveren als KCA.

COMPLIANCES

AC Power Cord for the United Kingdom :

This cord is already fitted with a moulded plug incorporating a fuse, the value of which is indicated on the pin face of the plug. Should the fuse need to be replaced, an ASTA approved BS 1362 fuse must be used of the same rating, marked thus . If the fuse cover is detachable, never use the plug with the cover omitted. If a replacement fuse cover is required, ensure it is of the same colour as that visible on the pin face of the plug (i.e. red or orange). Fuse covers are available from the Parts Department indicated in your User Instructions. If the plug supplied is not suitable for your socket outlet, it should be cut off and destroyed. The end of the flexible cord should be suitably prepared and the correct plug fitted. (See Over)

WARNING : A PLUG WITH BARED FLEXIBLE CORD IS HAZARDOUS IF ENGAGED IN A LIVE SOCKET OUTLET.

The Wires in this mains lead are coloured in accordance with the following code:

Green-and-yellow ············ Earth Blue ································· Neutral Brown ······························ Live

As the colours of the wires in the mains lead of this apparatus may not correspond with the coloured markings identifying the terminals in your plug proceed as follows: The wire which is coloured green-and-yellow must be connected to the terminal in the plug which is marked by the letter E or by the safety earth symbol or coloured green or green-and-yellow. The wire which is coloured blue must be connected to the terminal which is marked with the letter N or coloured black. The wire which is coloured brown must be connected to the terminal which is marked with the letter L or coloured red.

WARNING : THIS APPARATUS MUST BE EARTHED.

The AC Power Cord supplied with this projector meets the requirement for use in the country you purchased it.

AC Power Cord for the United States and Canada :

AC Power Cord used in the United States and Canada is listed by the Underwriters Laboratories (UL) and certified by the Canadian Standard Association (CSA). AC Power Cord has a grounding-type AC line plug. This is a safety feature to be sure that the plug will fit into the power outlet. Do not try to defeat this safety feature. Should you be unable to insert the plug into the outlet, contact your electrician.

THE SOCKET-OUTLET SHOULD BE INSTALLED NEAR THE EQUIPMENT AND EASILY ACCESSIBLE.

AC POWER CORD REQUIREMENT

Federal Communication Commission Notice

Note : This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures :

– Reorient or relocate the receiving antenna. – Increase the separation between the equipment and receiver. – Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

– Consult the dealer or an experienced radio/TV technician for help. Use of shielded cable is required to comply with class B limits in Subpart B of Part 15 of FCC Rules. Do not make any changes or modifications to the equipment unless otherwise specified in the instructions. If such

changes or modifications should be made, you could be required to stop operation of the equipment.

Model Number : PLV-75/PLV-80/PLV-75L/PLV-80L Trade Name : Sanyo Responsible party : SANYO FISHER COMPANY Address : 21605 Plummer Street, Chatsworth, California 91311

Telephone No. : (818)998-7322

ASA

GROUND

FEATURES AND DESIGN 6

BEFORE OPERATION 15

PREPARATION 7

NAME OF EACH PART OF PROJECTOR 7 SETTING-UP PROJECTOR 8

CONNECTING AC POWER CORD 8 POSITIONING PROJECTOR 9 LENS INSTALLATION 9 ADJUSTABLE FEET 10 INSTALLING PROJECTOR IN PROPER POSITION 10 MOVING PROJECTOR 11

CONNECTING PROJECTOR 12

TERMINALS OF PROJECTOR 12 CONNECTING TO COMPUTER 13 CONNECTING TO VIDEO EQUIPMENT 14

OPERATION OF REMOTE CONTROL 15

REMOTE CONTROL BATTERIES INSTALLATION 16

TOP CONTROLS AND INDICATORS 17 OPERATING ON-SCREEN MENU 18

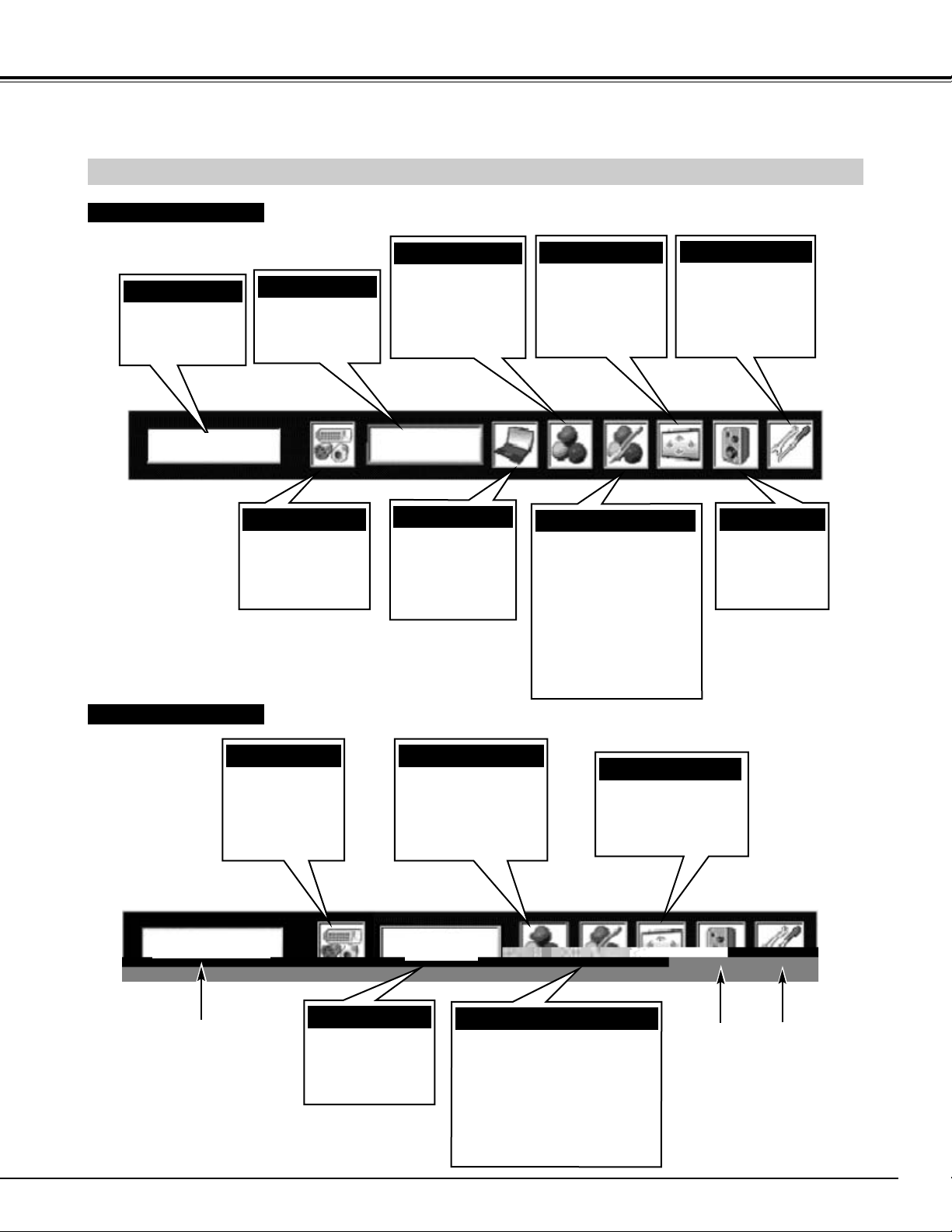

HOW TO OPERATE ON-SCREEN MENU 18 FLOW OF ON-SCREEN MENU OPERATION 18 MENU BAR 19

BASIC OPERATION 20

TURNING ON / OFF PROJECTOR 20

TURNING ON THE PROJECTOR 20 TURNING OFF THE PROJECTOR 21

ADJUSTING SCREEN 22

ZOOM ADJUSTMENT 22 FOCUS ADJUSTMENT 22 LENS SHIFT ADJUSTMENT 22 KEYSTONE ADJUSTMENT 22 PICTURE FREEZE FUNCTION 23 NO SHOW FUNCTION 23

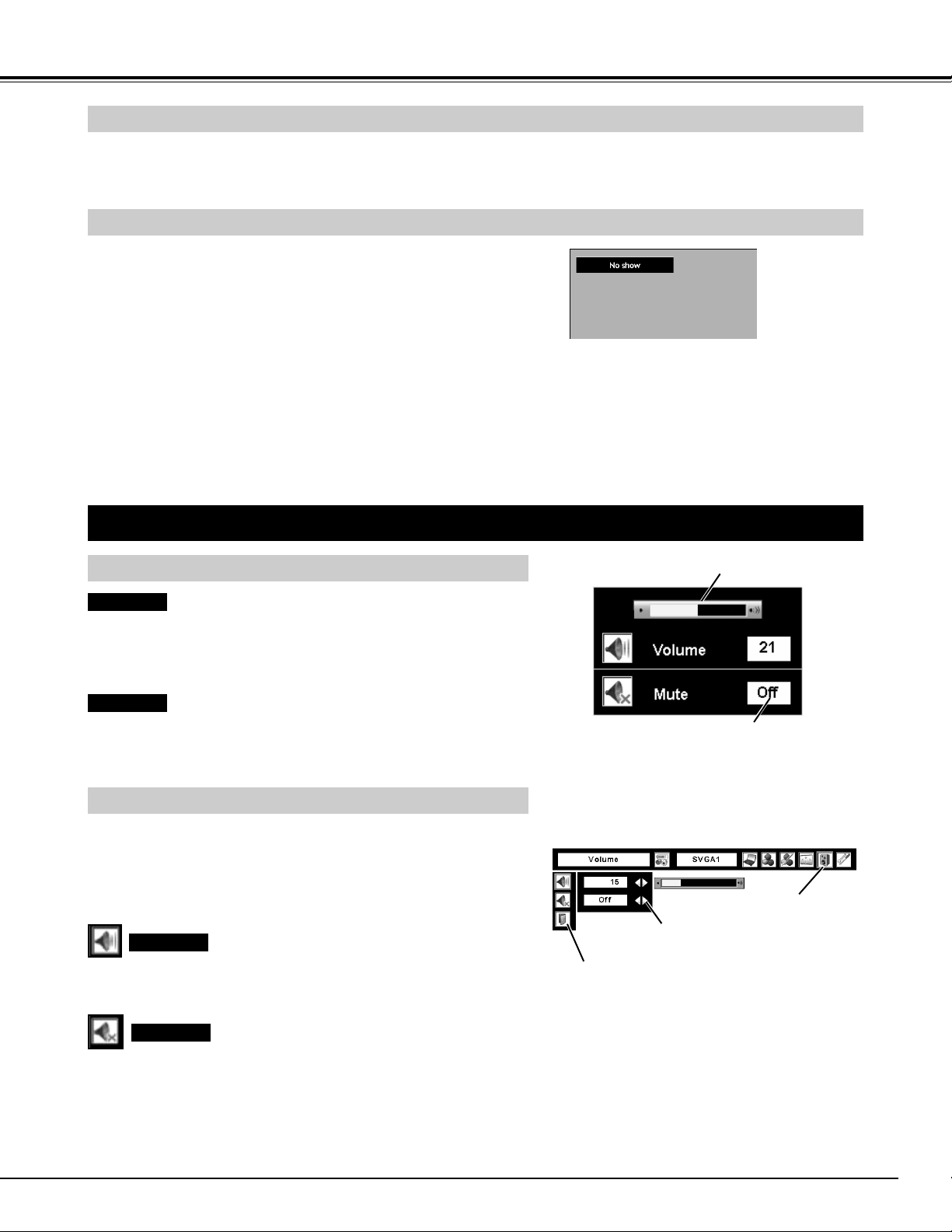

SOUND ADJUSTMENT 23

TRADEMARKS

● Apple, Macintosh, and PowerBook are trademarks or registered trademarks of Apple Computer,Inc.

● IBM and PS/2 are trademarks or registered trademarks of International Business Machines, Inc.

● Windows and PowerPoint are registered trademarks of Microsoft Corporation.

● Each name of corporations or products in the owner's manual is a trademark or a registered trademark of its

respective corporation.

COMPUTER INPUT 24

VIDEO INPUT 31

SETTING 38

APPENDIX 44

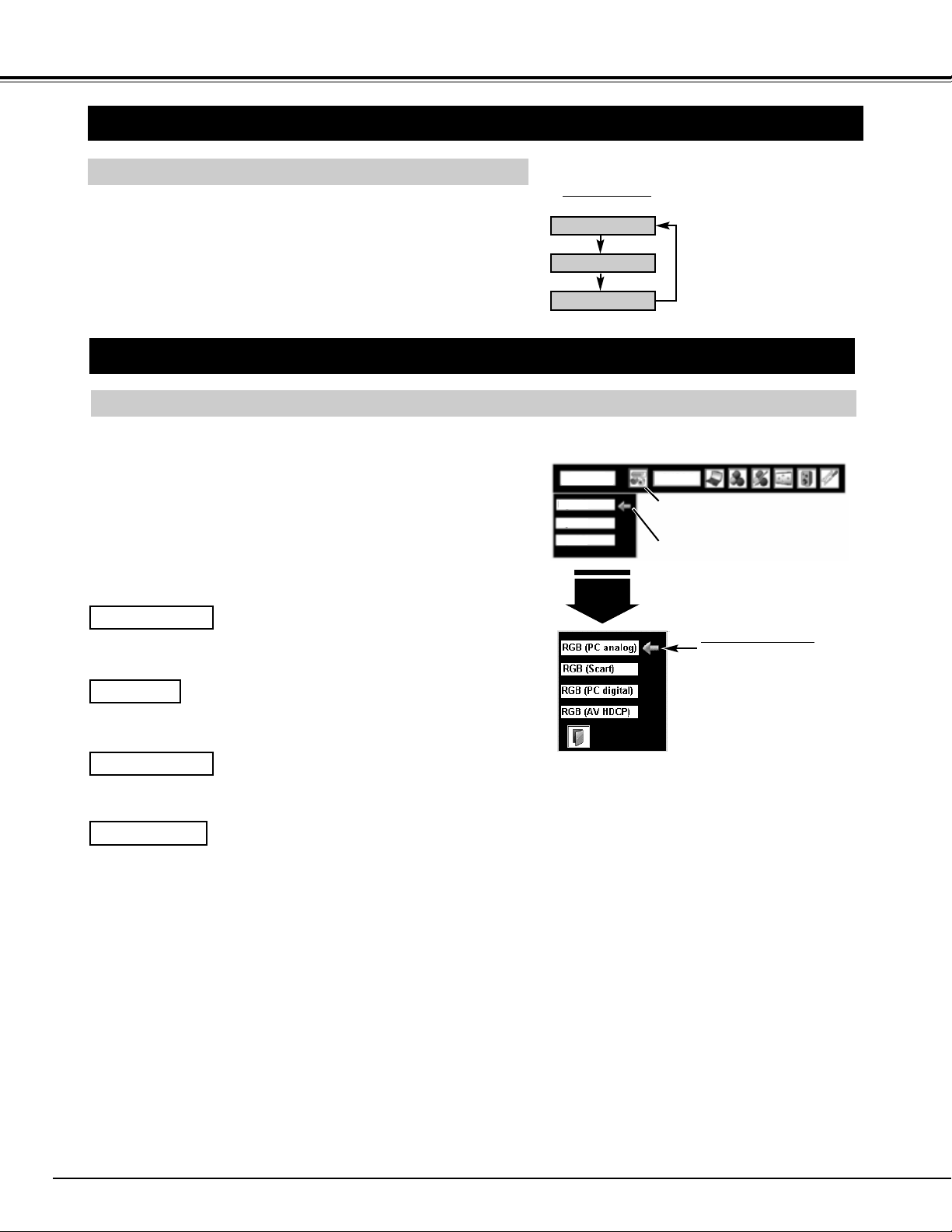

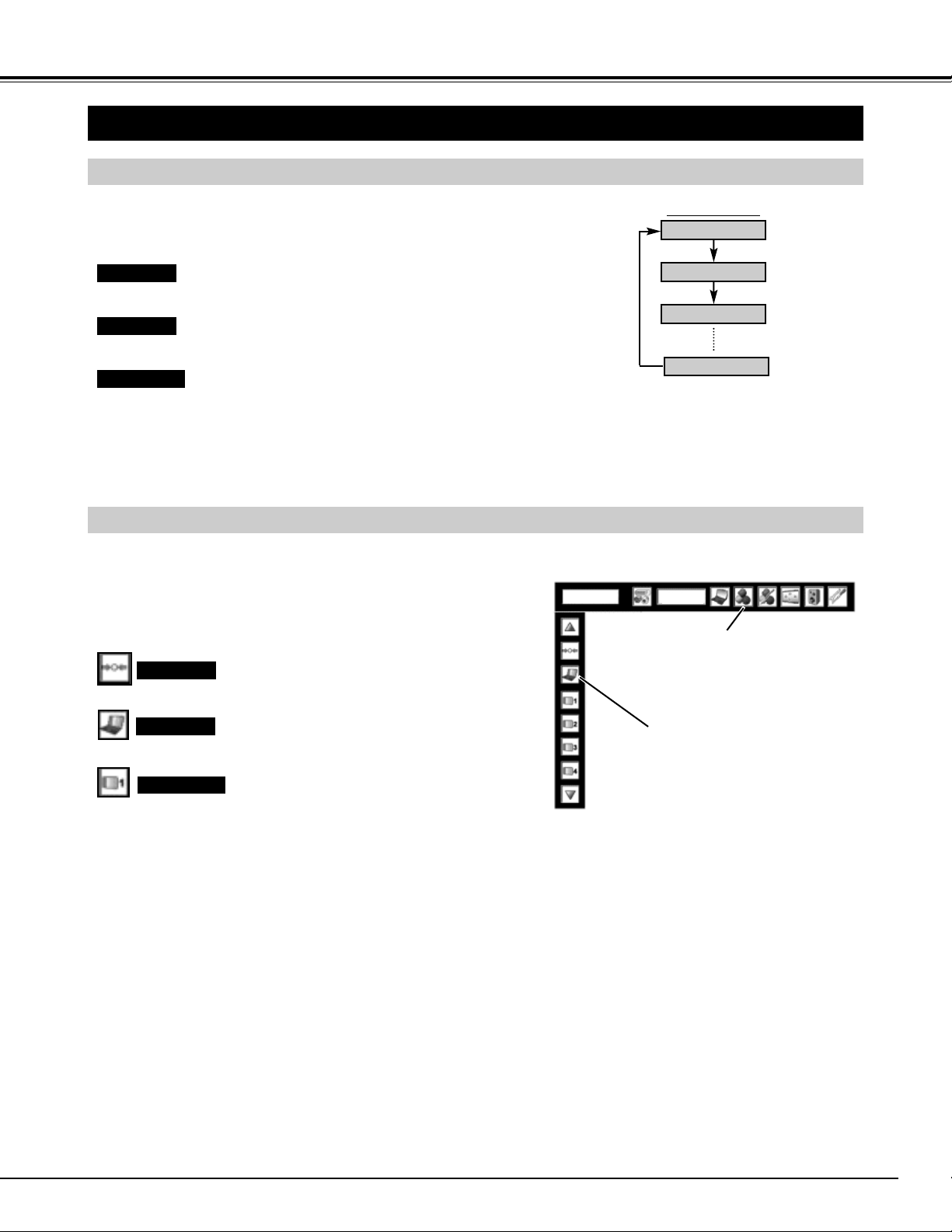

SELECTING INPUT SOURCE 24 SELECTING COMPUTER SYSTEM 24 PC ADJUSTMENT 26

AUTO PC ADJUSTMENT 26 MANUAL PC ADJUSTMENT 27

PICTURE IMAGE SELECT 29

IMAGE LEVEL SELECT 29

PICTURE SCREEN ADJUSTMENT 30

PICTURE SCREEN SELECT 30

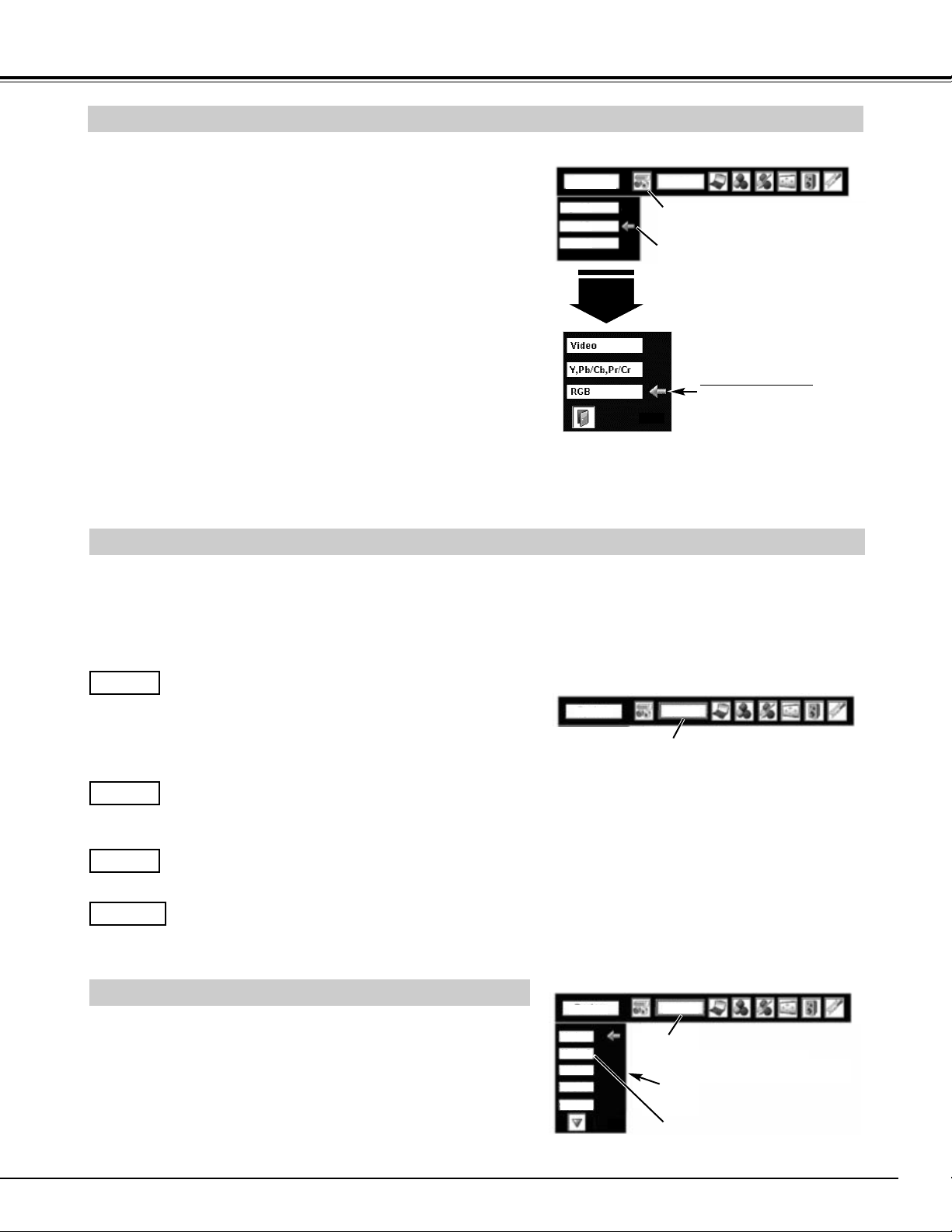

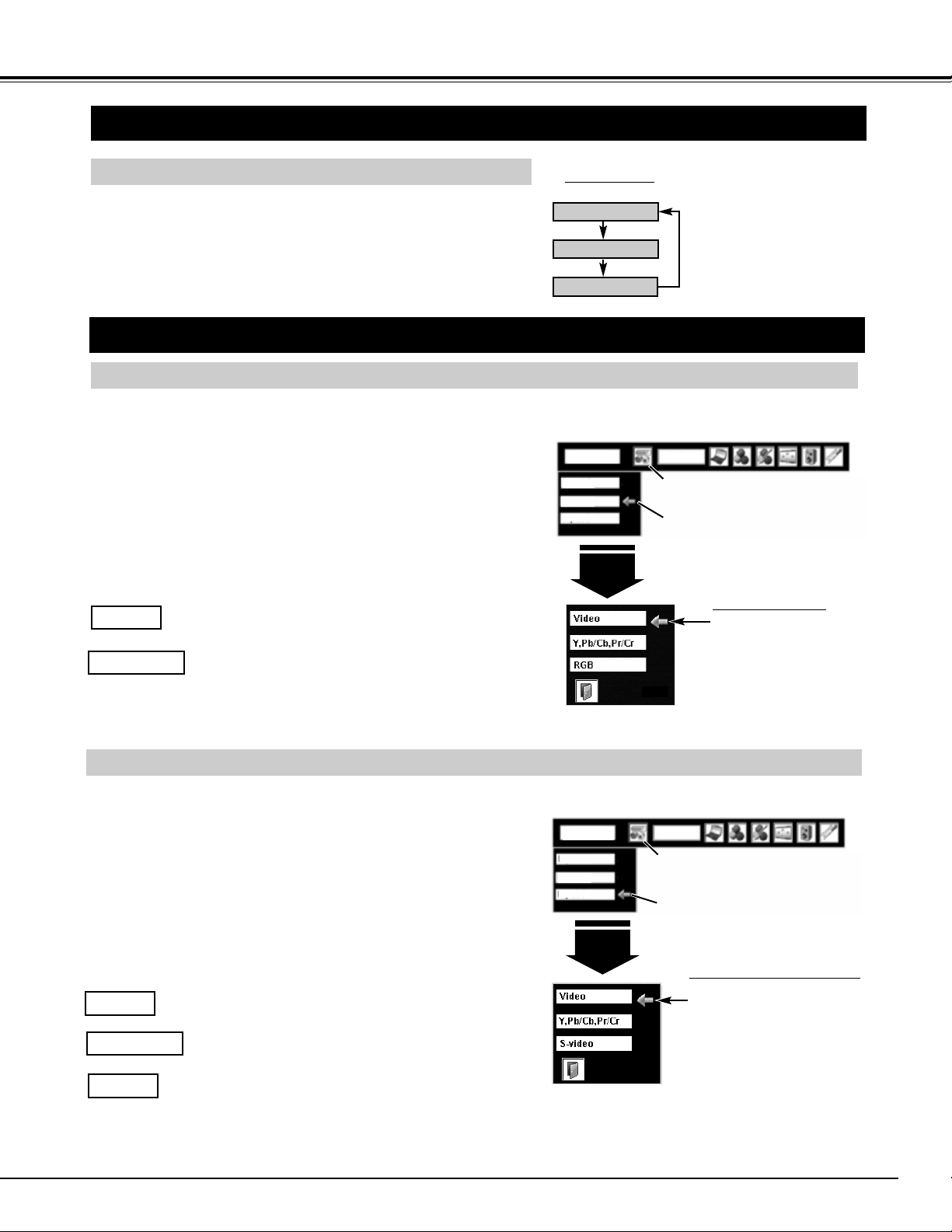

SELECTING INPUT SOURCE 31 SELECTING VIDEO SYSTEM 32 PICTURE IMAGE SELECT 33

IMAGE LEVEL SELECT 33

PICTURE SCREEN ADJUSTMENT 34

PICTURE SCREEN SELECT 34

SETTING MENU 38

MAINTENANCE 44

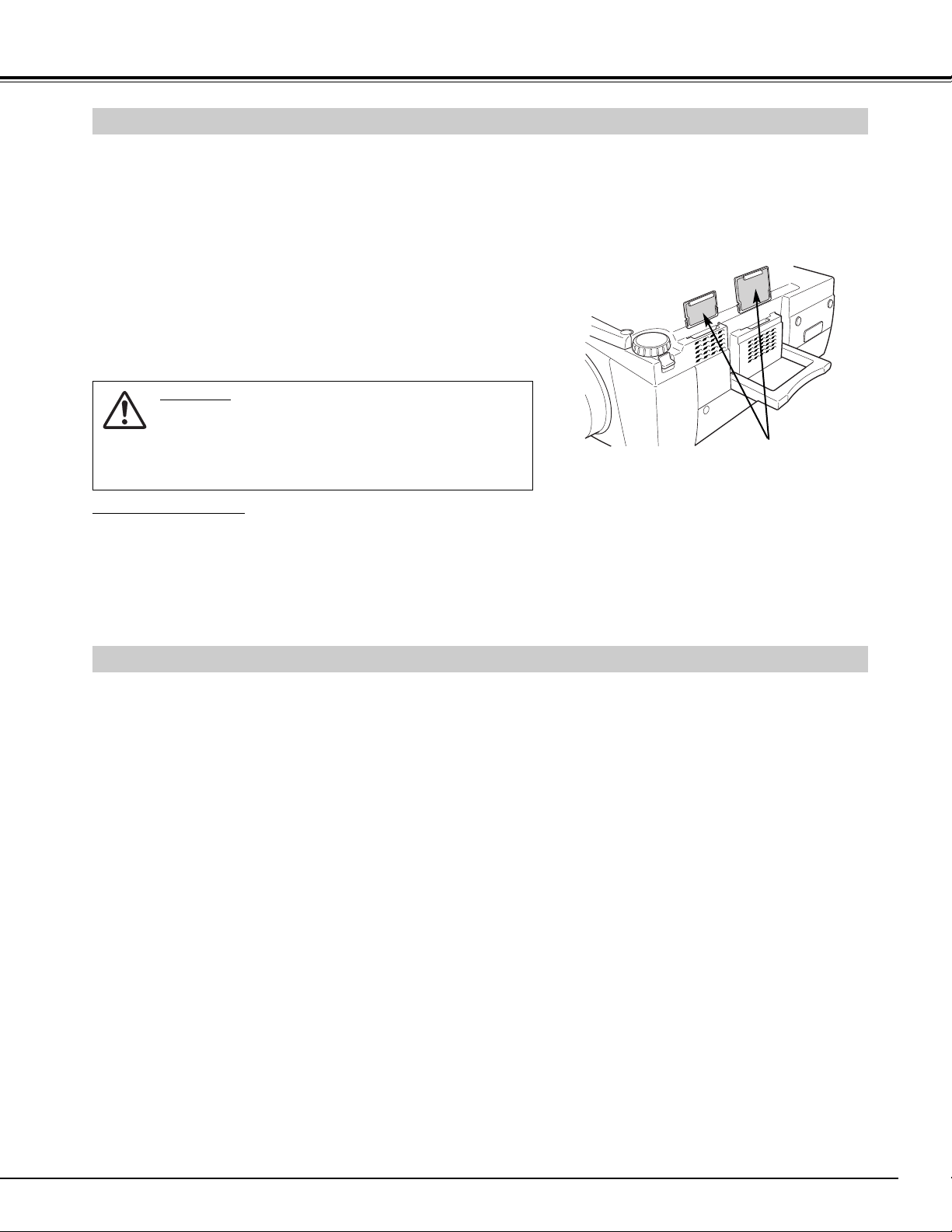

WARNING TEMP. INDICATOR 44 AIR FILTER CARE AND CLEANING 45 CLEANING PROJECTION LENS 45

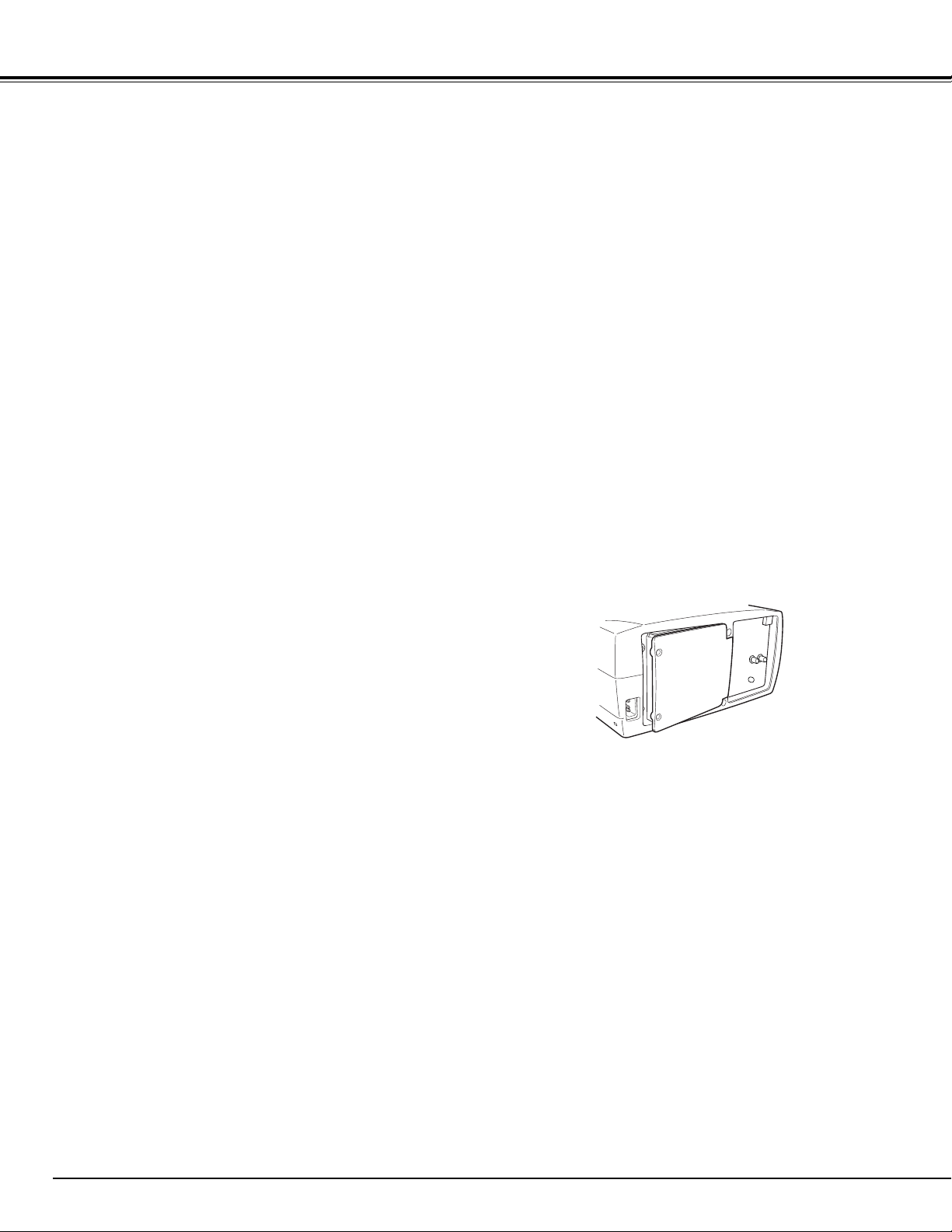

LAMP REPLACEMENT 46

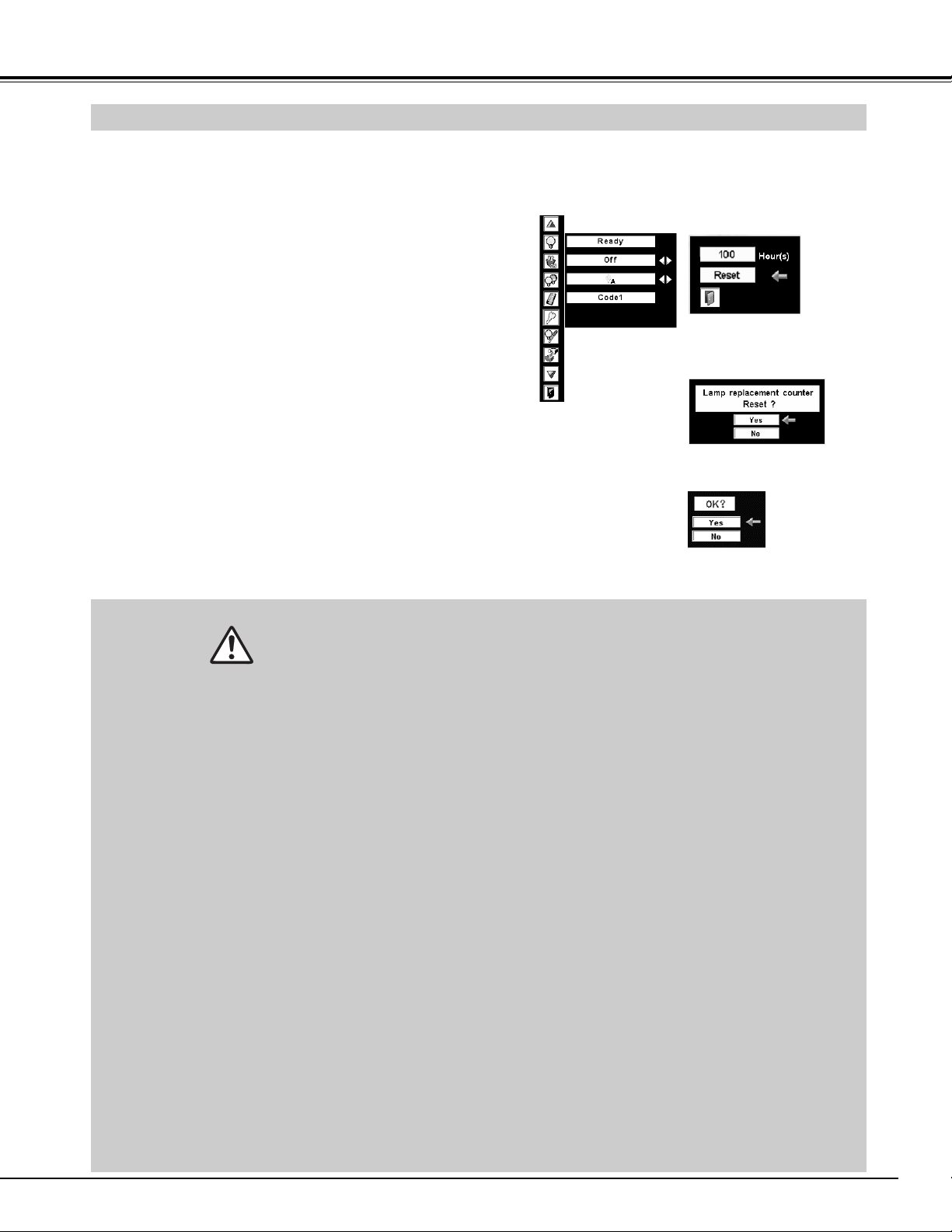

LAMP REPLACE COUNTER 47

TROUBLESHOOTING 48

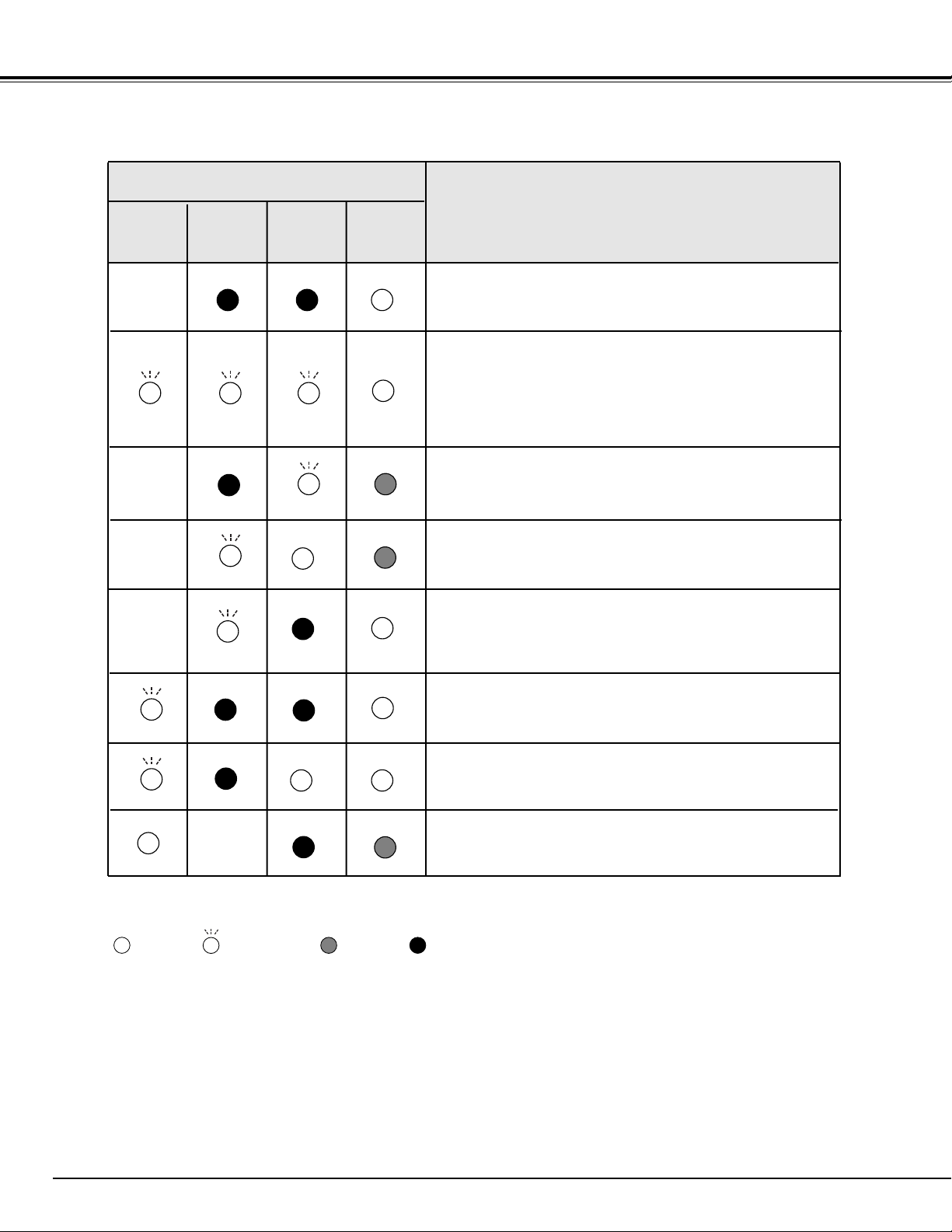

MENU TREE 50 COMPATIBLE COMPUTER SPECIFICATIONS 52 INDICATORS AND PROJECTOR CONDITION 53

TECHNICAL SPECIFICATIONS 55

PJ LINK NOTICE 56 CONFIGURATIONS OF TERMINALS 57 OPTIONAL PARTS 58 LENS REPLACEMENT 58 PIN CODE NUMBER MEMO 59

PICTURE IMAGE 35

PICTURE IMAGE ADJUSTMENTS 35

FEATURES AND DESIGN

This Multimedia Projector is designed with most advanced technology for portability, durability, and ease of use. This projector utilizes built-in multimedia features, a palette of 16.77 million colors, and matrix liquid crystal display (LCD) technology.

◆ Compatibility

This projector widely accepts various video and computer input signals including;

● Computers

IBM-compatible or Macintosh computer up to 1600 x 1200 resolution.

● 6 Color Systems

NTSC, PAL, SECAM, NTSC 4.43, PAL-M or PALN color system can be connected.

● Component Video

Component video signal, such as a DVD player output high definition TV signals including 480i, 480p, 575i, 575p, 720p, 1035i or 1080i, can be connected.

● S-Video

S-Video signal, such as a S-VHS VCR output signal, can be connected.

◆ High Resolution Image

This projector provides 1366 x 768 dots resolution for computer input and 800 horizontal TV lines. Resolution from a computer between XGA (1024 x 768) and UXGA (1600 x 1200) is compressed into 1024 x 768 dots. This projector cannot display image of over 1600 x 1200 dots. When resolution of your computer is over than 1600 x 1200, reset a computer output for lower resolution.

◆ Multi-Scan System

This projector has Multi-Scan System to conform to almost all computer output signals quickly. There is no need for troublesome manual adjustment of frequency and other settings.

◆ Keystone Correction

Positioning of a projector may result in distorted image being displayed in a trapezoid shape. Keystone Correction solves this problem by digitally altering projection to produce undistorted images.

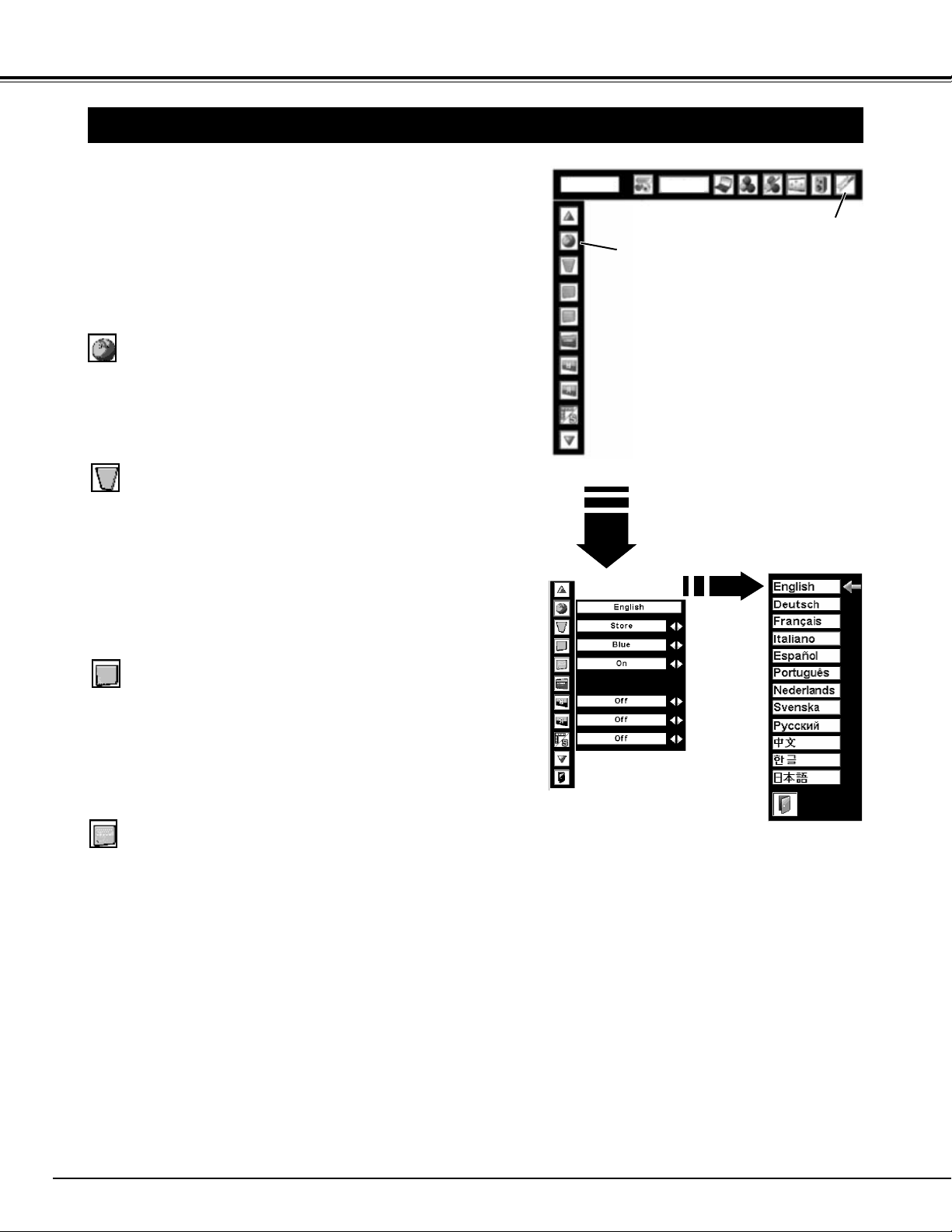

◆ Multilanguage Menu Display

Operation menu is displayed in; English, German, French, Italian, Spanish, Portuguese, Dutch, Swedish, Russian, Chinese, Korean or Japanese.

◆ One-Touch Auto PC Adjustment

Incoming computer video signals are recognized and best adjustment is automatically set by Auto PC Adjustment. No complicated setup is necessary and projection is always precise.

◆ Digital Zoom (for Computer)

Digital Zoom function adjusts image size to approx. 1/4 ~ 49 times of original image size, allowing you to focus on crucial information at a presentation.

◆ Compact Design

This projector is extremely compact in size and weight. It is designed to carry and work anywhere you wish to use.

◆ Power Management

Power Management function is provided to reduce power consumption while a projector is not in use. This Power Management function operates to turn Projection Lamp off when a projector detects signal interruption and any button is not pressed. Projection Lamp is automatically turned on again when a projector detects signal or any operation button is pressed. This projector is shipped with this function ON.

◆ Digital Visual Interface

This projector is equipped with DVI 24-pin terminal for connecting DVI output from a computer.

◆ Motor-driven Lens Shift

Projection lens can be moved up and down with motordriven lens shift function. This function makes it easy to provide projected image where you want. Zoom and focus can be also adjusted with motor-driven operation.

◆ PJ-Net Organizer (Optional)

PJ-Net Organizer enables the projector to display the image of the computer screen and the data image stored in the computer via a network. The projector can be also controlled and maintained through a web browser.

◆ Color management

You can make fine adjustments to the colors on the screen to change them to the desired colors. At this time, the colors are changed within an extremely narrow hue range, so that other colors are not affected. The luminance and gamma values can also be changed in addition to the hue. This allows colors to be reproduced with great accuracy. Faithful color reproduction and color correction which effectively matches colors to scenes or emphasizes colors can be achieved. Adjustments can be made easily, because they are reflected in the on-screen images in real time. Up to eight colors can be adjusted at a single time. The adjustment data can be saved for images in both in video mode and PC mode (total 20 images). The adjusted data is displayed in a list for easy checking.

◆ Auto Picture Control

The gamma value can be adjusted automatically in accordance with the luminance of the screen. Images that are either too dark or too bright can be adjusted to the optimum level, so that these images can be reproduced without any distortion. Equipped with an advanced Intelligent Digital Sharpness Control which controls the sharpness automatically in accordance with the images on the screen.

PREPARATION

NOTE ON POWER CORD

AC Power Cord must meet requirement of country where you use a projector. Confirm an AC plug type with chart below and proper AC Power Cord must be used. If supplied AC Power Cord does not match your AC outlet, contact your sales dealer.

SETTING-UP PROJECTOR

PREPARATION

To POWER CORD CONNECTOR on your projector.

Projector side AC Outlet side

Ground

To the AC Outlet.

(120 V AC)

For Continental Europe

For the U.S.A. and Canada

This projector uses nominal input voltages of 100-120 V or 200-240 V AC. This projector automatically selects correct input voltage. It is designed to work with single-phase power systems having a grounded neutral conductor. To reduce risk of electrical shock, do not plug into any other type of power system. Consult your authorized dealer or service station if you are not sure of type of power supply being in use. Connect a projector with a peripheral equipment before turning a projector on. (Refer to pages 12 ~ 14 for connection.)

CAUTION

For safety, unplug AC Power Cord when an appliance is not used. When this projector is connected to outlet with AC Power Cord, an appliance is in Stand-by Mode and consumes a little electric power.

CONNECTING AC POWER CORD

Connect AC Power Cord (supplied) to a projector. AC outlet must be near this equipment and must be easily accessible.

For the U.K.

To the AC Outlet.

(200 - 240 V AC)

To the AC Outlet.

(200 - 240 V AC)

PREPARATION

POSITIONING PROJECTOR

● This projector is designed to project on a flat projection surface.

● Projector can be focused from 5.0’ (1.5m) ~ 52.2’ (15.9m).

● Refer to figure below to adjust screen size.

Screen Size

Distance

40”

30”

5.0’ (1.5m)

PREPARATION

ADJUSTABLE FEET

Picture tilt and projection angle can be adjusted by rotating ADJUSTABLE FEET. Projection angle can be adjusted to 10.5 degrees.

Lift front of a projector and pull FEET LOCK LATCHES on both sides of a projector.

Release FEET LOCK LATCHES to lock ADJUSTABLE FEET and rotate ADJUSTABLE FEET to fine tune position and tilt.

To shorten ADJUSTABLE FEET, lift front of a projector and pull and undo FEET LOCK LATCHES.

Position and keystone distortion of image can be adjusted using Menu Operation. (Refer to P 22 and 38.)

INSTALLING PROJECTOR IN PROPER POSITION

Install the projector properly. Improper installation may reduce the lamp lifetime and cause a fire hazard.

Do not tilt the projector more than 10 degrees above and below.

Do not point the projector up to project an image.

Do not point the projector down to project an image.

Do not put the projector on either side to project an image.

NO UPWARD

NO DOWNWARD

NO SIDEWAYS

ADJUSTABLE FEET FEET LOCK

LATCHES

10˚

PREPARATION

CAUTION IN CARRYING OR TRANSPORTING A PROJECTOR

● Do not drop or bump a projector, otherwise damages or malfunctions may result.

● When carrying a projector, use a suitable carrying case.

● Do not transport a projector by using a courier or transport service in an unsuitable transport case. This

may cause damage to a projector. To transport a projector through a courier or transport service, consult your dealer for best way.

MOVING PROJECTOR

Use Carrying Handle when moving a Projector. When moving a projector, replace lens cover and retract feet to prevent damage to lens and cabinet. When this projector is not in use for an extended period, put it into case (not supplied with this projector).

CONNECTING PROJECTOR

TERMINALS OF PROJECTOR

When controlling the projector from a computer, connect the computer to this connector with a control cable. (Refer to P13.)

Connect S-VIDEO output from video equipment to this jack. (Refer to P14.)

Connect an audio output from video equipment to these jacks. (Refer to P14.)

CONTROL PORT CONNECTOR

AUDIO INPUT JACKS

VIDEO INPUT JACKS

S-VIDEO INPUT JACK

Connect composite video output from video equipment to VIDEO/Y jack or connect component video outputs to VIDEO/Y, Cb/Pb and Cr/Pr jacks. (Refer to P14.)

Connect computer output (Analog HDB 15 pin type) to this terminal. (Refer to P13.)

INPUT TERMINAL (ANALOG)

This projector has input and output terminals on its back for connecting computers and video equipment. Refer to figures on pages 12 to 14 and connect properly.

This projector uses a micro processor to control this unit, and occasionally, this micro processor may malfunction and need to be reset. This can be done by pressing RESET button with a pen, which will shut down and restart unit. Do not use RESET function excessively.

RESET BUTTON

Connect component video output (Y, Cb, Cr or Y, Pb, Pr) from video equipment to VIDEO/Y, Cb/Pb and Cr/Pr jacks or connect computer output {5 BNC Type (Green, Blue, Red, Horiz. Sync and Vert. Sync.)} from computer to G, B, R, H/V and V jacks. (Refer to P13 and 14.)

5 BNC INPUT JACKS

When using Wired/Wireless Remote Control Unit as Wired Remote Control, Connect Wired Remote Control Unit to this jack with Remote Control Cable (not supplied).

R/C JACK

Connect an audio output (stereo) from computer to this jack. (Refer to P13.)

Connect computer output (Digital DVI-D type) to this terminal. HD (HDCP Compatible) signal can also be connected. (Refer to P13.)

INPUT TERMINAL (DIGITAL)

Connect an audio output (stereo) from computer to this jack. (Refer to P13.)

AUDIO INPUT 1 JACK

AUDIO INPUT 2 JACK

INPUT 1

ANALOG

AUDIO 1

GBRH/V V

VIDEO/Y Cb/Pb Cr/Pr

DIGITAL(DVI-D)

RESET

INPUT 2

R–AUDIO–L

INPUT 3

AUDIO 2

CONTROL PORT

(

MONO

R/C JACK

S–VIDEO

)

CONNECTING PROJECTOR

CONNECTING TO VIDEO EQUIPMENT

Video Source (example)

Video Cassette Recorder

Video Disc Player

S-VIDEO Cable ✽

Terminals

of a Projector

S-VIDEO

Output

Cables used for connection (✽ = Cable is not supplied with this projector.)

Audio Cable (RCA x 2) ✽

AUDIO IN

S-VIDEO

Y - Cb/Pb - Cr/Pr

VIDEO

Component video output equipment.

(such as DVD player or high-definition TV source.)

Composite

Video Output

Component Video

Output

(Y, Cb/Pb, Cr/Pr)

Component Video

Output

(Y, Cb/Pb, Cr/Pr)

Y - Cb/Pb - Cr/Pr

Video Cables (RCA x 1 or

RCA x 3

) ✽

BNC Cable ✽

Audio

Output

Composite

Video Output

VIDEO

• Video Cable (RCA x 1 or RCA x 3) ✽

• BNC Cable ✽

• S-VIDEO Cable ✽

• DVI-Digital Cable (for Single Link T.M.D.S.) ✽

• Audio Cable (RCA x 2) ✽

• HDB 15 pin-SCART 21 pin Cable ✽

RGB Scart

21-pin Output

HDB 15 pinSCART 21 pin Cable ✽

INPUT TERMINAL (ANALOG)

Note: When connecting the cable, the power cords of both the projector and the external equipment should be disconnected from AC outlet.

Digital Output

(HDCP compatible)

DVI-Digital

Cable

✽

INPUT TERMINAL

(DIGITAL)

INPUT 1

ANALOG

AUDIO 1

GBRH/V V

VIDEO/Y Cb/Pb Cr/Pr

DIGITAL(DVI-D)

RESET

INPUT 2

R–AUDIO–L

INPUT 3

AUDIO 2

R/C JACK

CONTROL PORT

S–VIDEO

(

)

MONO

BEFORE OPERATION

To insure safe operation, please observe following precautions :

● Use (2) AA, UM3 or R06 type alkaline batteries.

● Replace two batteries at same time.

● Do not use a new battery with an used battery.

● Avoid contact with water or liquid.

● Do not expose Remote Control Unit to moisture, or heat.

● Do not drop Remote Control Unit.

● If a battery has leaked on Remote Control Unit, carefully wipe case clean and install new batteries.

● Danger of explosion if battery is incorrectly replaced.

● Dispose of used batteries according to batteries manufacturers instructions and local rules.

Pull up lid and remove it.

Remove battery compartment lid.

Slide batteries into compartment.

Replace compartment lid.

Two AA size batteries

For correct polarity (+ and –), be sure battery terminals are in contact with pins in compartment.

REMOTE CONTROL BATTERIES INSTALLATION

Operating Range

Point Remote Control Unit toward projector (Infrared Remote Receiver) whenever pressing any button. Maximum operating range for Remote Control Unit is about 16.4’ (5m) and 60° in front and rear of a projector.

16.4’ (5 m)

60°

BEFORE OPERATION

TOP CONTROLS AND INDICATORS

Used to open or close MENU operation. (P18,

19)

MENU BUTTON

IMAGE BUTTON

READY INDICATOR

SELECT BUTTON

POWER ON–OFF BUTTON

INPUT BUTTON

WARNING TEMP. INDICATOR

LAMP INDICATOR

POINT (VOLUME + / – ) BUTTONS

LAMP REPLACE INDICATOR

Used to select image level. (P29, 33)

Lights green when a projector is ready to be turned on. And it flashes green in Power Management mode. (P40, 44, 53-54)

Becomes dim when a projector is turned on. And bright when a projector is in stand-by mode. (P20, 21, 53-54)

Turns to yellow when life of projection lamp draws to an end. Flashes yellow when the lamp cannot light up. (P46, 53-54)

Flashes red when internal projector temperature is too high. (P44, 53-54)

Used to select input source. (P24, P31)

Used to select an item or adjust value in ON-SCREEN MENU. They are also used to pan image in DIGITAL ZOOM

+/– mode. (P30)

POINT LEFT/RIGHT buttons are also used as VOLUME +/– buttons. (P23)

Used to execute the selected item. It is also used to expand/compress image in DIGITAL ZOOM mode. (P30)

Used to turn a projector on or off. (P20, 21)

Used to adjust zoom. (P22)

FOCUS BUTTON

Used to adjust focus. (P22)

ZOOM BUTTON

This projector has CONTROL BUTTONS (TOP CONTROLS) and INDICATORS on its top.

LENS SHIFT BUTTON

Used to select LENS SHIFT function. (P22)

AUTO PC ADJ. BUTTON

Used to operate AUTO PC Adjustment function. (P26)

BEFORE OPERATION

HOW TO OPERATE ON-SCREEN MENU

You can control and adjust this projector through ON-SCREEN MENU. Refer to following pages to operate each adjustment on ON-SCREEN MENU.

2 MOVING POINTER

3 SELECT ITEM

Move pointer (✽ see below) or adjust value of item by pressing POINT buttons on Top Control or on Remote Control Unit.

Select item or set selected function by pressing SELECT button.

OPERATING ON-SCREEN MENU

✽ Pointer is icon on ON-SCREEN MENU to select item. See fig-

ures on section "FLOW OF ON-SCREEN MENU OPERATION" below.

Used to select item.

SELECT BUTTON

Used to move a Pointer UP/ DOWN/ RIGHT/ LEFT.

POINT BUTTONS

TOP CONTROL

MENU BAR

MENU ICON

SELECT

BUTTON

1 DISPLAY MENU

Press MENU button to display ON-SCREEN MENU.

Used to select the item.

SELECT BUTTON

Used to move a Pointer UP/ DOWN/ RIGHT/ LEFT.

POINT BUTTONS

REMOTE CONTROL UNIT

BEFORE OPERATION

MENU BAR

FOR PC SOURCE

Press MENU BUTTON while connecting to PC input source.

FOR VIDEO SOURCE

Press MENU BUTTON while connecting to VIDEO input source.

PC SYSTEM MENU

Used to select computer system. (Refer to P24, 25)

SETTING MENU

Used to change settings of projector or reset Lamp Replace Counter. (Refer to P38-43)

IMAGE SELECT MENU

Used to select image level among Standard, Real and Image 1 ~ 10. (Refer to P29)

GUIDE WINDOW

Shows selected item of ONSCREEN MENU.

SCREEN MENU

Used to adjust size of image. [Normal / Full / True / Digital zoom +/–] (Refer to P30)

SOUND MENU

Used to adjust volume or mute sound. (Refer to P23)

INPUT MENU

Used to select input source (Input 1, Input 2 or Input

3). (Refer to P24)

IMAGE ADJUST MENU

Used to adjust computer image. [Contrast/Brightness/Color /Tint/Color management /Auto picture control /Color temp. /White balance (R/G/B) /Sharpness/Gamma/Noise reduction/Progressive] (Refer to P35-37)

PC ADJUST MENU

Used to adjust parameters to match with input signal format. (Refer to P26-28)

INPUT MENU

Used to select input source (Input 1, Input 2 or Input 3). (Refer to P31)

IMAGE SELECT MENU

Used to select image level among Standard, Cinema and Image 1 ~ 10. (Refer to P33)

SCREEN MENU

Used to adjust size of image. [Full/ Normal/ Zoom / Natural wide]

(Refer to P34)

AV SYSTEM MENU

Used to select system of selected video source. (Refer to P32)

IMAGE ADJUST MENU

Used to adjust picture image.

[Contrast/Brightness/Color/Tint /Color management /Auto picture control/Color temp. /White balance (R/G/B) /Sharpness/Gamma /Noise reduction/Progressive]

(Refer to P35-37)

Same function as Menu for PC source.

Input

SVGA1

Auto

BASIC OPERATION

TURNING ON THE PROJECTOR

TURNING ON / OFF PROJECTOR

Connect the projector's AC power cord into an AC outlet. The LAMP Indicator lights RED, and READY Indicator lights GREEN.

Press the POWER ON-OFF button on the top control or on the remote control to ON. The LAMP Indicator dims, and the cooling fans start to operate. The preparation display appears on the screen and the count down starts.

The preparation display disappears after 20 ~ 30 seconds.

After the count-down, the input source that was selected last and the Lamp control status icon (see page 40) appear on the screen.

If the projector is locked with a PIN code, PIN code Input Dialog Box will appear. Enter the PIN code as instructed below.

For model PLV-80/PLV-80L only. (See page 40 for Lamp control.)

Selected Input Source and Lamp control

Complete peripheral connections (with a computer, VCR, etc.) before turning on the projector.

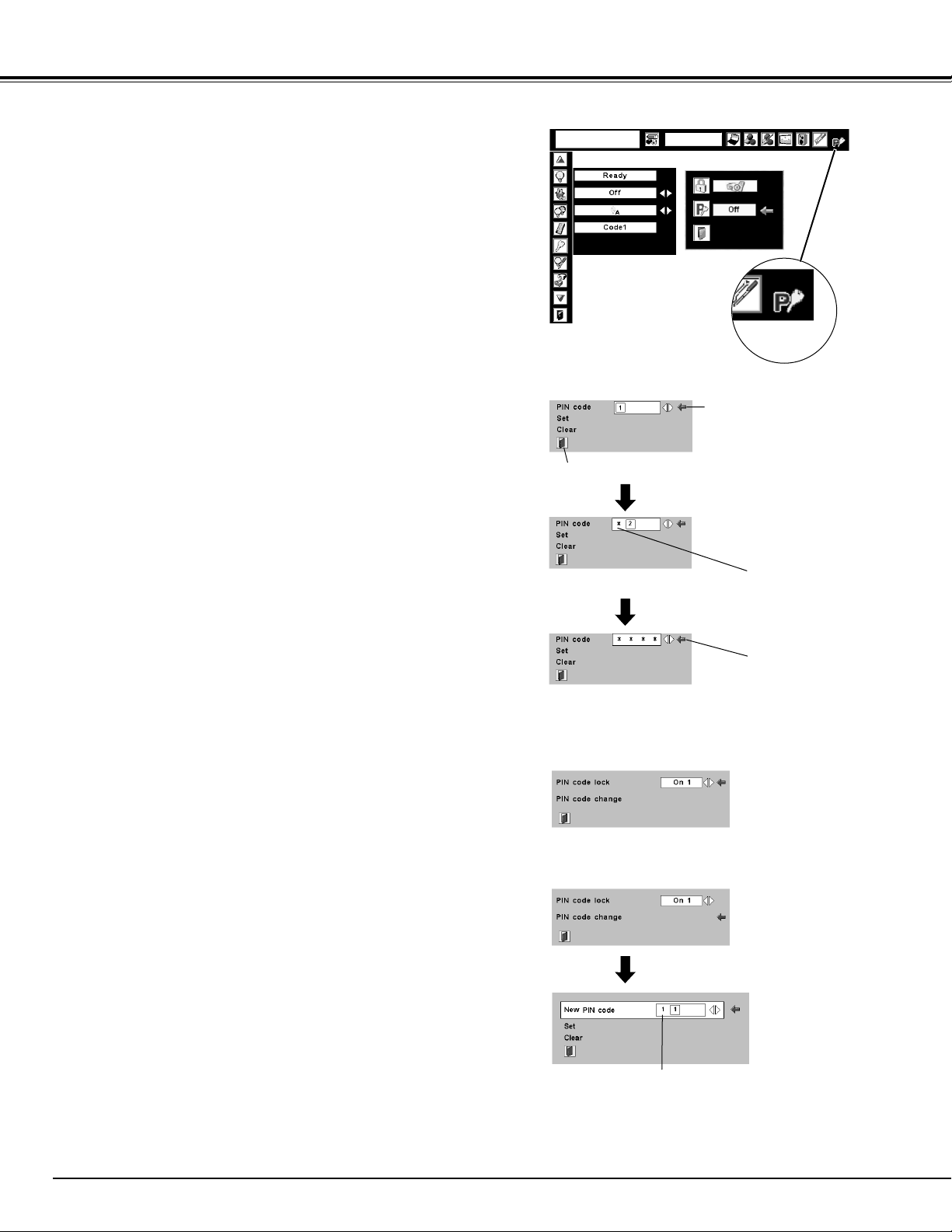

What is PIN code?

PIN code is a security code using Personal Identification Number that allows the person who knows it to operate the projector. Setting PIN code prevents others except the specific users from operating the projector.

A PIN code consists of a four-digit number. Refer to PIN Code Lock function in Setting on page 42 for locking operation of the projector with your PIN code.

Pointer

PIN code Input Dialog Box

Enter a PIN code

Select a number by pressing the POINT LEFT/RIGHT button and fix the number with the SELECT button. The number will change to "✳". If you fixed a wrong number, move the pointer to "Set" or "Clear" once by pressing the POINT DOWN button, then return to "PIN code". Enter the correct number again. Repeat this step to complete entering a four-digit number.

When the four-digit number is fixed, the pointer will automatically move to "Set". Press the SELECT button so that you can start to operate the projector.

If you entered a wrong PIN code, "PIN code" and the number (✳✳✳✳) will turn red and disappear. Enter a correct PIN code all over again.

CAUTION ON HANDLING PIN CODE

If you forget your PIN code, the projector can no longer be started. Set a new PIN code with special care, write it down in column on page 59 of this manual, and keep it at hand. Should the PIN code be missing or forgotten, consult your dealer or service center.

After the OK icon disappears, you can operate the projector.

Lamp control status

BASIC OPERATION

Press the POWER ON-OFF button on the top control or on the remote control, and a message "Power off?" appears on the screen.

Press the POWER ON-OFF button again to turn off the projector. The LAMP Indicator lights bright and READY Indicator turns off. After projector is turned off, Cooling Fans operate (for 90 seconds). During this "Cooling Down" period, this appliance cannot be turned on.

TO MAINTAIN THE LIFE OF LAMP, ONCE YOU TURN PROJECTOR ON, WAIT AT LEAST 5 MINUTES BEFORE TURNING IT OFF. DO NOT DISCONNECT AC POWER CORD WHILE COOLING FANS ARE RUNNING OR BEFORE READY INDICATOR LIGHTS GREEN AGAIN. OTHERWISE IT WILL RESULT IN SHORTENING LAMP LIFE.

When the projector has cooled down, READY Indicator lights GREEN again and you can turn projector on. After cooling down completely, disconnect AC Power Cord.

The message disappears after 4 seconds.

• The projector cannot be turned on during the cooling period with the READY indicator turned off. You can turn it on again after the READY indicator GREEN again.

• When the On start function is on, this projector is turned on automatically by connecting the AC power cord to an AC outlet. (See page 40 for the On start function.)

• Do not operate the projector continuously without rest. Continuous use may result in shortening the lamp life. Turn off the projector and give it a rest about an hour in every 24 hours.

• This projector monitors internal temperature and automatically controls the running speed of the cooling fans.

• If the WARNING TEMP indicator flashes red, see “WARNING TEMP INDICATOR ” on page 44.

TURNING OFF THE PROJECTOR

NOTE;

BASIC OPERATION

ADJUSTING SCREEN

Message disappears after 4 seconds.

ZOOM ADJUSTMENT

FOCUS ADJUSTMENT

Press ZOOM button on Top Control or ZOOM ▲/▼ button on Remote Control Unit. Message “Zoom” is displayed.

Press ZOOM ▲ button or POINT UP button to make image larger, and press ZOOM ▼ button or POINT DOWN button to make image smaller.

Press FOCUS button on Top Control or FOCUS ▲/▼ button on Remote Control Unit. Message “Focus” is displayed.

Adjust focus of image by pressing FOCUS ▲/▼ button or POINT UP/DOWN buttons.

LENS SHIFT ADJUSTMENT

Press LENS SHIFT button on Top Control or LENS SHIFT ▲/▼ button on Remote Control Unit. Message “Lens shift” is displayed.

Press POINT UP button or LENS SHIFT ▲ button to move image up, press POINT DOWN or LENS SHIFT ▼ button to move image down.

KEYSTONE ADJUSTMENT

Press KEYSTONE button on Remote Control Unit or select Keystone on SETTING menu. (Refer to page 38.) Keystone dialog box appears.

Correct keystone distortion by pressing POINT UP/DOWN/LEFT/RIGHT buttons. Press POINT UP button to reduce the upper part of the image, and press POINT DOWN button to reduce the lower part. Press POINT LEFT button to reduce the left part, and press POINT RIGHT button to reduce the right part.

Reduce the upper width with POINT UP button.

Reduce the lower width with POINT DOWN button.

If a projected picture has keystone distortion, correct the image with KEYSTONE adjustment.

Reduce the left part with POINT LEFT button.

Reduce the right part with POINT RIGHT button.

• Arrows are white in no correction.

• Arrow(s) of direction being corrected turn(s) red.

•Arrow(s) disappear(s) at the maximum correction.

• If you press the KEYSTONE button on Remote Control Unit once more while the keystone dialog box is being displayed, the keystone adjustment will be canceled.

NOTE; Focus adjustment may not function properly if the image is corrected by KEYSTONE adjustment.

Message disappears after 4 seconds.

Press FREEZE button on Remote Control Unit to freeze picture on-screen. To cancel FREEZE function, press FREEZE button again or press any other button.

Press NO SHOW button on Remote Control Unit to black out image. To restore to normal, press NO SHOW button again or press any other button.

NO SHOW FUNCTION

PICTURE FREEZE FUNCTION

Message disappears after 4 seconds.

Press MENU button and ON-SCREEN MENU will appear. Press POINT LEFT/RIGHT buttons to move a red frame pointer to SOUND Menu icon.

Volume

Press VOLUME (+/–) buttons on Top Control or on Remote Control Unit to adjust volume. Volume dialog box appears on screen for a few seconds. (+) button to increase volume, and (–) button for decreasing.

Mute

Press MUTE button on Remote Control Unit to cut off sound. To restore sound to its previous level, press MUTE button again or press Volume (+/–) buttons.

To increase volume, press POINT RIGHT button, and press POINT LEFT button for decreasing.

Press POINT UP/DOWN buttons to move a red frame pointer to item that you want to select, and then press SELECT button.

SOUND ADJUSTMENT

DIRECT OPERATION

MENU OPERATION

Volume

Indicates roughly level of volume.

Press MUTE button to set Mute function On or Off.

Display disappears after 4 seconds.

SOUND MENU

Press POINT LEFT/RIGHT buttons to cut off sound. Dialog box display is changed to “On” and sound is cut off. To restore sound to its previous level, press POINT LEFT/RIGHT buttons again.

Mute

BASIC OPERATION

Close SOUND Menu

Indicates roughly level of volume.

SOUND Menu icon

SELECTING INPUT SOURCE

DIRECT OPERATION

Select INPUT source by pressing INPUT button on Top Control or on Remote Control Unit. Select INPUT source by pressing INPUT 1, INPUT 2 or INPUT 3 button on Remote Control Unit. If projector cannot reproduce proper image, select correct input source through MENU OPERATION (see below).

INPUT button

Input 1

Input 2

Input 3

SELECTING COMPUTER SYSTEM

WHEN SELECT INPUT 1 (COMPUTER INPUT TERMINALS )

Press MENU button and ON-SCREEN MENU will appear. Press POINT LEFT/RIGHT buttons to move a red frame pointer to INPUT Menu icon.

Press POINT UP/DOWN buttons to move a red arrow pointer to Input 1 and then press SELECT button. Source Select Menu will appear.

Input 1

INPUT MENU

Move a pointer to source that you want to select and then press SELECT button.

When your computer is connected to INPUT 1 (DIGITAL) terminal, select RGB (PC digital).

RGB (AV HDCP)

When your computer is connected to INPUT 1 (ANALOG) terminal, select RGB (PC analog).

Move a pointer (red arrow) to source and press SELECT button.

Source Select Menu

INPUT Menu icon

Move a pointer (red arrow) to Input 1 and press SELECT button.

RGB (PC digital)

RGB (Scart)

When scart video equipment is connected to INPUT 1 (ANALOG) terminal, select RGB (Scart).

If a HDCP-compatible signal source is connected to the INPUT 1 (DIGITAL) terminal, select RGB (AV HDCP).

NOTE; HDCP (High-bandwidth Digital Content Protection) is a system for protecting digital entertainment content which is delivered by DVI (Digital Visual Interface) from being copied. The specification of HDCP is decided and controlled by Digital Content Protection, LLC. Should the specification be changed, this projector may not display the digital content protected by HDCP.

RGB (PC analog)

COMPUTER INPUT

Input

NOTE; INPUT SOURCE changes if the INPUT 1 button on Remote Control Unit is pressed.

SVGA1

Input 1

Input 2

Input 3

COMPUTER INPUT

This projector automatically tunes to most different types of computers based on VGA, SVGA, XGA, SXGA, SXGA+, WXGA or UXGA (refer to “COMPATIBLE COMPUTER SPECIFICATION” on pages 52-53). When a computer is selected, this projector automatically tunes to incoming signal and projects the proper image without any special setting. (Some computers need to be set manually.)

The projector displays one of the Auto, -----, Mode 1/2/3/4/5/6/7/8/9/10, or the system provided in the projector.

When projector cannot recognize connected signal as PC system provided in this projector, Auto PC Adjustment function operates to adjust projector and message “Auto” is displayed on SYSTEM Menu icon. When image is not provided properly, manual adjustment is required. (Refer to P27 and 28.)

There is no signal input from computer. Make sure connection of computer and a projector is set correctly. (Refer to TROUBLESHOOTING on page 48.)

Auto

––––

PC SYSTEM Menu icon Displays system being selected.

PC SYSTEM MENU

SELECT COMPUTER SYSTEM MANUALLY

Press MENU button and ON-SCREEN MENU will appear. Press POINT LEFT/RIGHT buttons to move a red frame pointer to PC SYSTEM Menu icon.

Press POINT UP/DOWN buttons to move a red arrow pointer to system that you want to set, and then press

SELECT button.

PC SYSTEM MENU

This projector automatically selects PC system among those provided in this projector and PC system can be also selected manually.

AUTOMATIC MULTI-SCAN SYSTEM

Press MENU button and ON-SCREEN MENU will appear. Press POINT LEFT/RIGHT buttons to move a red frame pointer to INPUT Menu icon.

Press POINT UP/DOWN buttons and a red-arrow icon will appear. Move arrow to "RGB", and then press SELECT button.

When connect a computer output [5 BNC Type (Green, Blue, Red, Horiz. Sync and Vert. Sync.)] from a computer to G, B, R, H/HV and V jacks.

WHEN SELECT INPUT 2 (5 BNC INPUT JACKS )

Input 2

INPUT MENU

Move a pointer (red arrow) to RGB and press SELECT button.

Source Select Menu

Press POINT UP/DOWN buttons to move a red arrow pointer to Input 2 and then press SELECT button. Source Select Menu will appear.

INPUT Menu icon

Move a pointer (red arrow) to Input 2 and press SELECT button.

PC SYSTEM Menu icon Displays system being selected.

Systems on this dialog box can be selected.

Custom Mode (1~10) set in PC ADJUST Menu. (P27, 28)

User preset adjustment in MANUAL PC ADJUSTMENT. Adjustment data can be stored in the Mode 1-10.

Mode 1

Computer systems provided in the projector. The projector chooses proper system and displays it.

SVGA 1

Mode 1 and SVGA 1 are examples.

✽

Input

NOTE; INPUT SOURCE changes if the INPUT 2 button on Remote Control Unit is pressed.

SVGA1

Input 1

Input 2

Input 3

System

Mode 1

Mode 2

SVGA 1

SVGA 2

SVGA 3

System

Mode 1

COMPUTER INPUT

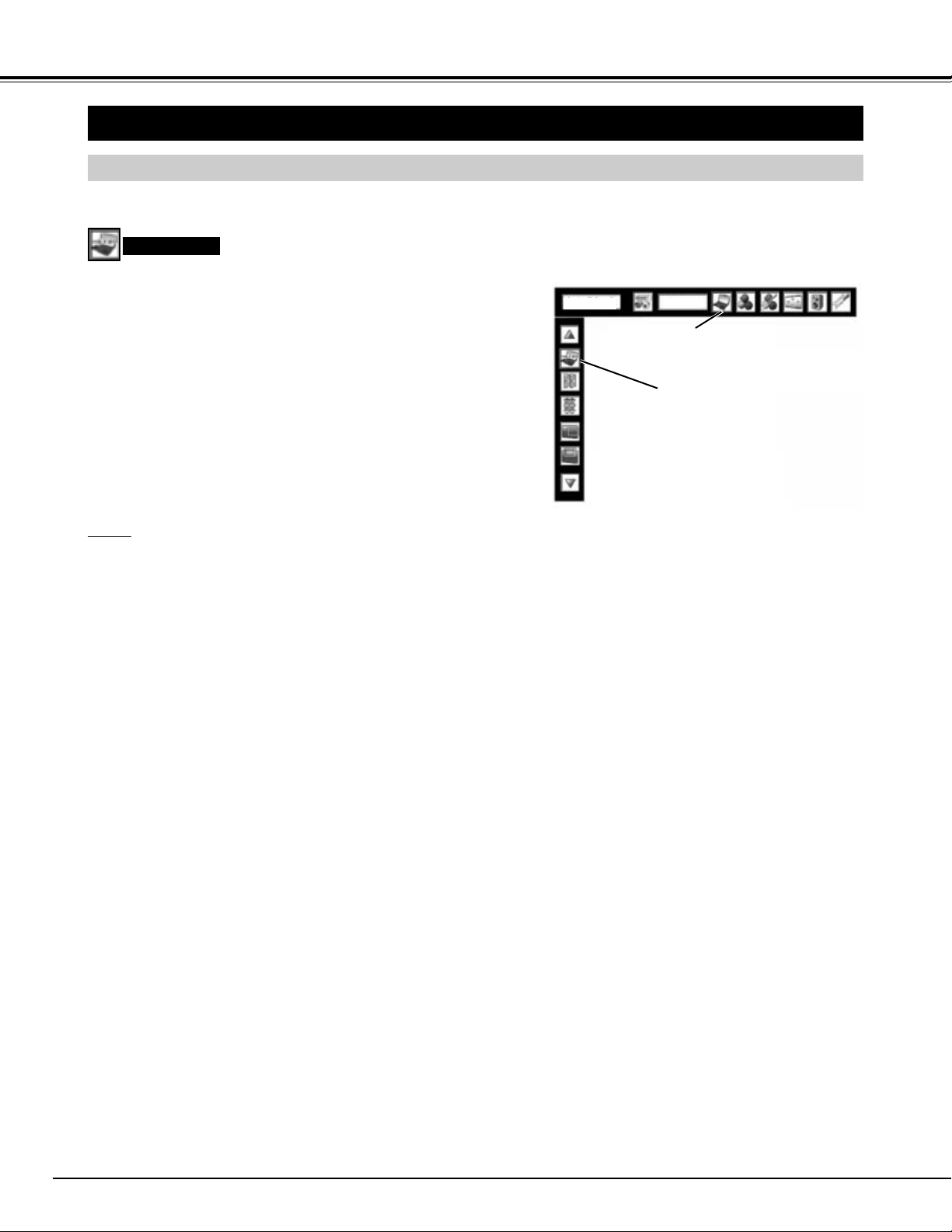

PC ADJUSTMENT

AUTO PC ADJUSTMENT

Auto PC Adjustment function is provided to automatically adjust Fine sync, Total dots and Picture Position to conform to your computer. Auto PC Adjustment function can be operated as follows.

Press MENU button and ON-SCREEN MENU will appear. Press POINT LEFT/RIGHT buttons to move a red frame pointer to PC ADJUST Menu icon.

Press POINT UP/DOWN buttons to move a red frame pointer to AUTO PC Adj. icon and then press SELECT button. This Auto PC Adjustment can be also executed by pressing AUTO PC ADJ. button on Top Control or on Remote Control Unit.

PC ADJUST MENU

Auto PC Adj.

Store adjustment parameters. Adjustment parameters from Auto PC Adjustment can be memorized in this projector. Once parameters are memorized, setting can be done just by selecting Mode in PC SYSTEM Menu (P25). Refer to MANUAL PC ADJUSTMENT section (P27-28).

NOTE

● Fine sync, Total dots and Picture Position of some computers can not be fully adjusted with this Auto PC Adjustment function. When image is not provided properly through this function, manual adjustments are required. (Refer to pages 27, 28.)

● Auto PC Adjustment function cannot be operated in Digital Signal input on DVI terminal and “480p”, “575p”, “480i”, “575i” “720p (HDTV)”, “1035i (HDTV)” or “1080i (HDTV)” is selected on PC SYSTEM Menu.

PC ADJUST Menu icon

Move a red frame pointer to AUTO PC Adj. icon and press SELECT button.

Auto PC adj.

SVGA1

COMPUTER INPUT

MANUAL PC ADJUSTMENT

This projector can automatically tune to display signals from most personal computers currently distributed. However, some computers employ special signal formats which are different from standard ones and may not be tuned by Multi-Scan system of this projector. If this happens, projector cannot reproduce a proper image and image may be recognized as a flickering picture, a non-synchronized picture, a non-centered picture or a skewed picture. This projector has a Manual PC Adjustment to enable you to precisely adjust several parameters to match with those special signal formats. This projector has 10 independent memory areas to memorize those parameters manually adjusted. This enables you to recall setting for a specific computer whenever you use it.

Note : This PC ADJUST Menu cannot be operated when in digital signal input on DVI terminal is selected on PC SYSTEM

MENU (P24).

Press MENU button and ON-SCREEN MENU will appear. Press POINT LEFT/RIGHT buttons to move a red frame pointer to PC ADJUST Menu icon.

Press POINT UP/DOWN buttons to move a red frame pointer to item that you want to adjust and then press SELECT button. Adjustment dialog box will appear. Press POINT LEFT/RIGHT buttons to adjust value.

Adjusts an image as necessary to eliminate flicker from display. Press POINT LEFT/RIGHT buttons to adjust value. (From 0 to 31.)

Fine sync

Adjust the number of total dots in one horizontal period. Press POINT LEFT/RIGHT buttons and adjust number to match your PC image.

Total dots

Adjusts horizontal picture position. Press POINT LEFT/RIGHT buttons to adjust position.

Position H

Adjusts vertical picture position. Press POINT LEFT/RIGHT button(s) to adjust position.

Position V

Press SELECT button to show information of computer selected.

Current mode

Adjusts clamp position. When image has a dark bar(s), try this adjustment.

Clamp

Press SELECT button at Current mode icon to show information of computer connected.

Current mode

PC ADJUST MENU

PC ADJUST Menu icon

Move a red frame pointer to item and press SELECT button.

Press POINT LEFT/RIGHT buttons to adjust value.

Press SELECT button at this icon to adjust “Clamp,” “Display area H” or set “Display area V.”

Press SELECT button at this icon to display previous items.

Adjustment of horizontal area displayed with this projector. Press POINT LEFT/RIGHT buttons to decrease/increase value and then press SELECT button.

Display area H

Adjustment of vertical area displayed with this projector. Press POINT LEFT/RIGHT buttons to decrease/increase value and then press SELECT button.

Display area V

Selected Mode

Shows status (Stored / Free) of selected Mode.

Auto PC adj.

SVGA1

Fine sync

Mode 1 Stored

COMPUTER INPUT

Reset

Store

Closes PC ADJUST MENU.

Quit

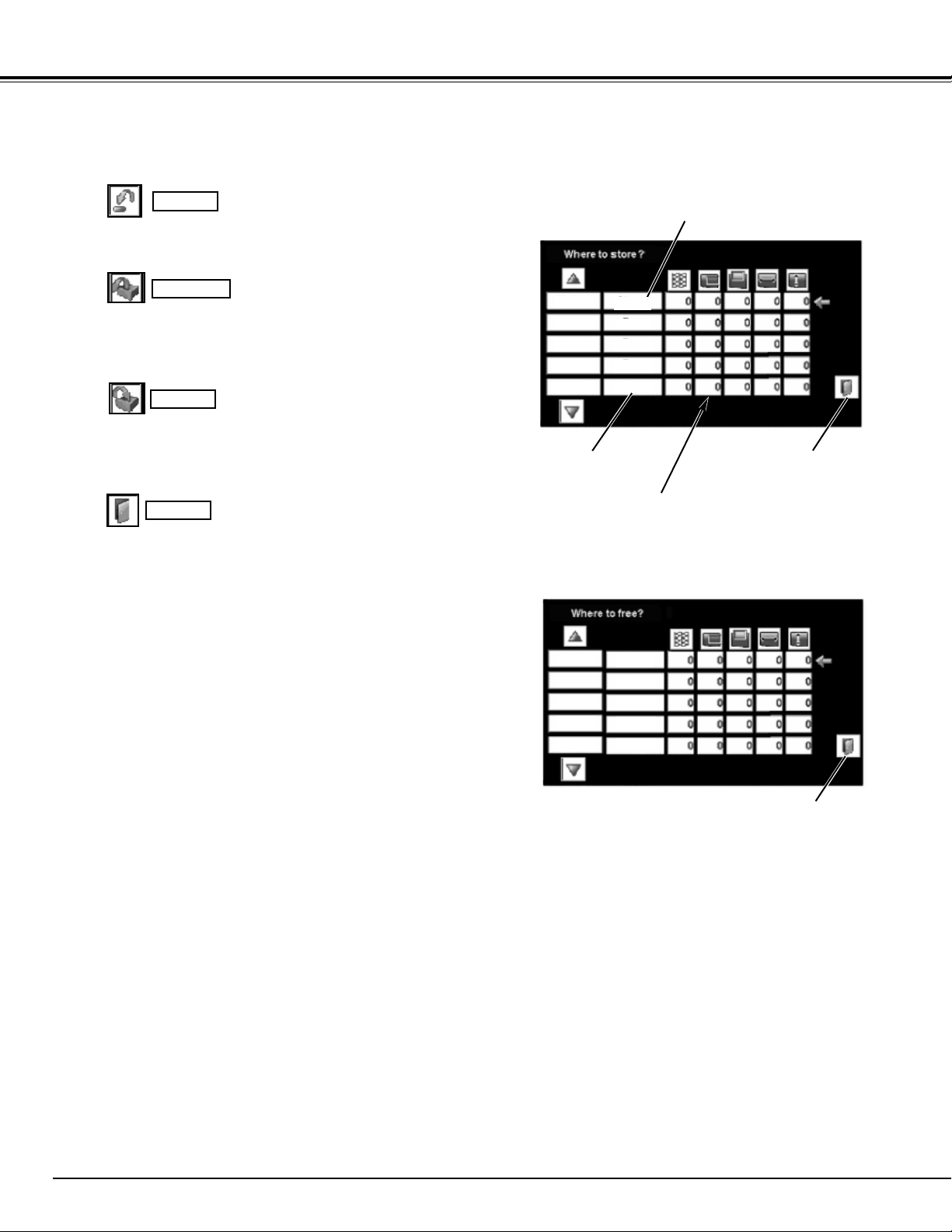

Other icons operates as follows.

To store adjustment parameters, move a red frame pointer to Store icon and then press SELECT button. Move a red arrow pointer to any of Mode 1 to 10 that you want to store and then press SELECT button.

Reset all adjust parameters on adjustment dialog box to previous figure.

Mode free

Vacant Mode

Shows values of “Total dots,” “Position H,” “Position V,” “Display area H,” and “Display area V.”

Close this dialog box.

To store adjustment data.

To clear adjustment data.

To clear adjustment parameters previously set, move a red frame pointer to Mode free icon and then SELECT button. Move a red arrow pointer to Mode that you want to clear and then press SELECT button.

This Mode has parameters being stored.

Close this dialog box.

Mode 1

Mode 2

Mode 3

Mode 4

Mode 5

Stored

Free

Mode 1

Mode 2

Mode 3

Mode 4

Mode 5

Stored

Free

COMPUTER INPUT

PICTURE IMAGE SELECT

IMAGE LEVEL SELECT (MENU)

Press MENU button and ON-SCREEN MENU will appear. Press POINT LEFT/RIGHT buttons to move a red frame pointer to IMAGE SELECT Menu icon.

Press POINT UP/DOWN buttons to move a red frame pointer to level that you want to set and then press SELECT button.

IMAGE SELECT MENU

Normal picture level preset on this projector.

Standard

Picture level with improved halftone for graphics.

Real

User preset picture adjustment in IMAGE ADJUST Menu (P37).

IMAGE 1~10

IMAGE LEVEL SELECT (DIRECT)

Select image level among Standard, Real, Image 1 to Image 10 by pressing IMAGE button on Top Control or IMAGE SELECTION ▲/▼ button on Remote Control Unit.

IMAGE button

Standard

Real

Image 1

Image 10

Normal picture level preset on this projector.

Picture level with improved halftone for graphics.

User preset picture adjustment in IMAGE ADJUST Menu (P37).

Standard

Real

IMAGE 1~10

Move a red frame pointer to level and press SELECT button.

IMAGE SELECT Menu icon

Image 1

SVGA 1

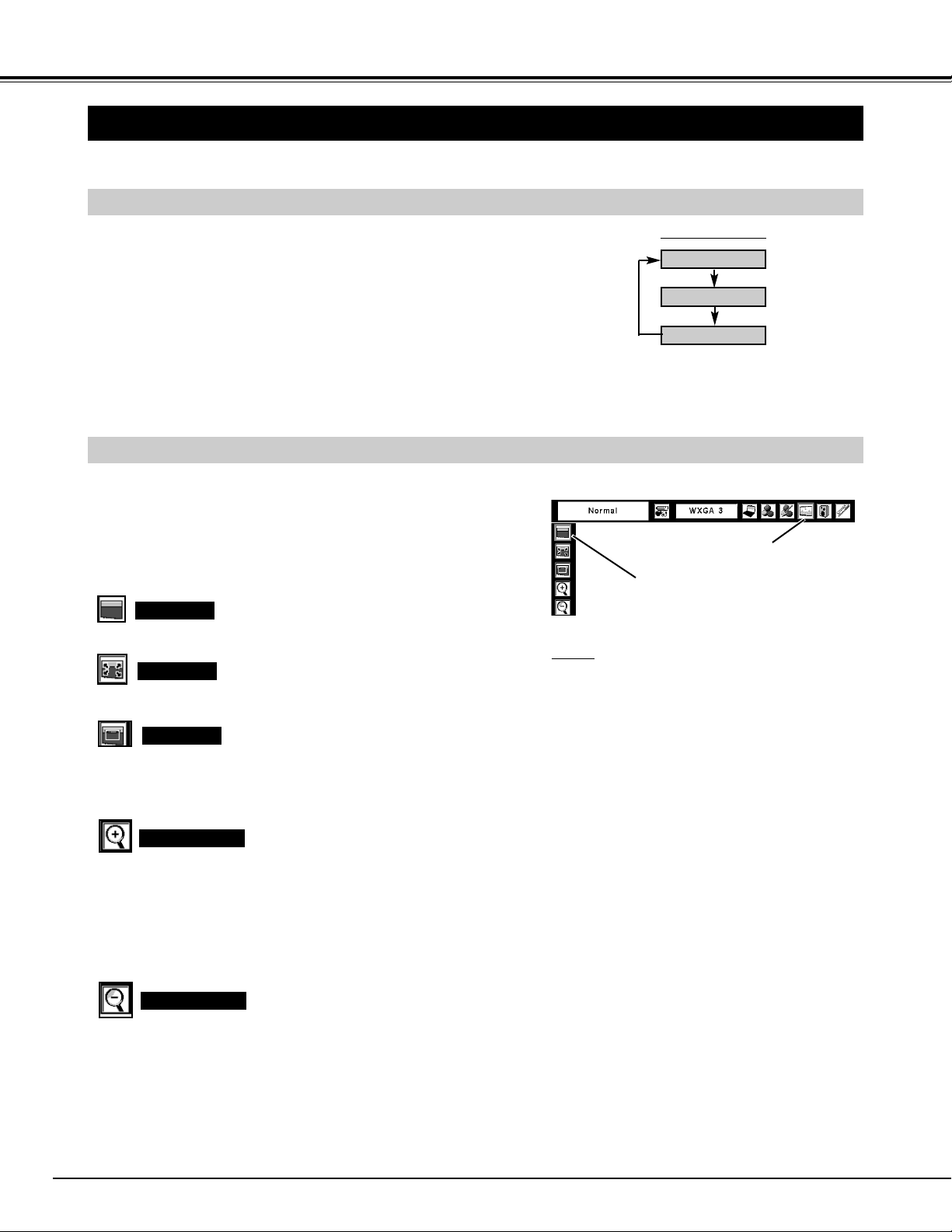

PICTURE SCREEN ADJUSTMENT

This projector has a picture screen resize function, which enables you to display desirable image size.

Press MENU button and ON-SCREEN MENU will appear. Press POINT LEFT/RIGHT buttons to move a red frame pointer to SCREEN Menu icon.

When Digital zoom + is selected, ON-SCREEN MENU disappears and message “D. Zoom +” is displayed. Press SELECT button to expand image size. And press POINT UP/DOWN/LEFT/RIGHT button(s) to pan image. Panning function can work only when image is larger than screen size. A projected image can be also expanded by pressing D.ZOOM and SELECT button on Remote Control Unit.

To cancel Digital Zoom +/– mode, press any button except D.ZOOM, SELECT and POINT buttons.

Press POINT UP/DOWN buttons and move a red frame pointer to function that you want to select and then press SELECT button.

Digital zoom +

NOTE

● Picture screen adjustment can not be operated when “720p (HDTV)”, “1035i (HDTV)” or “1080i (HDTV)” is selected on PC SYSTEM Menu (P25).

● True and Digital zoom +/- can not be selected when “480i”, “575i”, “480p” or “575p” is selected on PC SYSTEM Menu (P25).

● This projector cannot display any resolution higher than 1600 X 1200. If your computer’s screen resolution is higher than 1600 X 1200, reset resolution to lower before connecting projector.

● Image data in other than XGA (1024 x 768) is modified to fit screen size in initial mode.

● Panning function may not operate properly if computer system prepared on PC ADJUST Menu is used.

Normal

SCREEN MENU

When Digital zoom – is selected, ON-SCREEN MENU disappears and message “D. Zoom –” is displayed. Press SELECT button to compress image size. A projected image can be also compressed by pressing D.ZOOM and SELECT button on Remote Control Unit.

Digital zoom –

Move a red frame pointer to function and press SELECT button.

SCREEN Menu icon

True

Provides image to fit the panel size of the screen.

Full

Provides image to fit the horizontal size of the screen.

Provides image in its original size. When the original image size is larger than screen size (1366 X 768), this projector enters “D. Zoom +” mode automatically.

COMPUTER INPUT

PICTURE SCREEN SELECT (DIRECT)

Select picture screen among Normal, Full and True by pressing SCREEN button on Remote Control Unit.

SCREEN button

Normal

Full

True

PICTURE SCREEN SELECT (MENU)

When video input signal is connected to Y-Pb/CbPr/Cr jacks, select Y, Pb/Cb, Pr/Cr.

Y,Pb/Cb,Pr/Cr

SELECTING INPUT SOURCE

Press MENU button and ON-SCREEN MENU will appear. Press POINT LEFT/RIGHT buttons to move a red frame pointer to INPUT Menu icon.

Move a pointer (red arrow) to source and press SELECT button.

Source Select Menu (VIDEO)

Move a pointer to source that you want to select and then press SELECT button.

When video input signal is connected to VIDEO jack, select Video.

Video

When video input signal is connected to S-VIDEO jack, select S-Video.

S-Video

When connecting to those equipment, select a type of Video source in SOURCE SELECT (VIDEO) Menu.

WHEN SELECT INPUT 3 (AV TERMINALS )

WHEN SELECT INPUT 2 (5 BNC INPUT JACKS )

INPUT MENU

Move a pointer (red arrow) to Video or Y, Pb/Cb, Pr/Cr and press SELECT button.

Source Select Menu

Press POINT UP/DOWN buttons to move a red arrow pointer to Input 3 and then press SELECT button. Source Select Menu will appear.

When video input signal is connected to Y-Pb/CbPr/Cr jacks, select Y, Pb/Cb, Pr/Cr.

Y,Pb/Cb,Pr/Cr

When video input signal is connected to VIDEO jack, select Video.

Video

When connecting to those equipment, select a type of Video source in SOURCE SELECT Menu.

Press MENU button and ON-SCREEN MENU will appear. Press POINT LEFT/RIGHT buttons to move a red frame pointer to INPUT Menu icon.

Move a pointer to source that you want to select and then press SELECT button.

Press POINT UP/DOWN buttons to move a red arrow pointer to Input 2 and then press SELECT button. Source Select Menu will appear.

Input 2

INPUT Menu icon

Move a pointer (red arrow) to Input 2 and press SELECT button.

Input 3

INPUT Menu icon

Move a pointer (red arrow) to Input 3 and press SELECT button.

INPUT MENU

VIDEO INPUT

Input

SELECTING INPUT SOURCE

DIRECT OPERATION

INPUT button

Input 1

Input 2

Input 3

NOTE; INPUT SOURCE changes if the INPUT 2 button on Remote Control Unit is pressed.

NOTE; INPUT SOURCE changes if the INPUT 3 button on Remote Control Unit is pressed.

SVGA 1

Input 1

Input 2

Input 3

Input 1

Input 2

Input 3

VIDEO INPUT

AV SYSTEM MENU (VIDEO OR S-VIDEO)

AV SYSTEM MENU (COMPONENT VIDEO)

SELECTING VIDEO SYSTEM

Press MENU button and ON-SCREEN MENU will appear. Press POINT LEFT/RIGHT buttons to move a red frame pointer to AV SYSTEM Menu icon.

Press POINT UP/DOWN buttons to move a red arrow pointer to system that you want to select and then press SELECT button.

If projector cannot reproduce proper video image, it is necessary to select a specific broadcast signal format among PAL, SECAM, NTSC, NTSC 4.43, PAL-M, and PAL-N.

PAL / SECAM / NTSC / NTSC4.43 / PAL-M / PAL-N

Projector automatically detects incoming Video signal, and adjusts itself to optimize its performance. When Video System is 1035i or 1080i, select system manually first.

If projector cannot reproduce proper video image, it is necessary to select a specific component video signal format among 480i, 575i, 480p, 575p, 720p, 1035i and 1080i.

Auto

COMPONENT VIDEO SIGNAL FORMAT

VIDEO JACK OR S-VIDEO JACK

Y, Pb/Cb, Pr/Cr JACKS

Projector automatically detects incoming Video system, and adjusts itself to optimize its performance.

Auto

AV SYSTEM Menu icon This box indicates system being selected.

Move a pointer (red arrow) to system and press SELECT button.

AV SYSTEM Menu icon This box indicates system being selected.

Move a pointer (red arrow) to system and press SELECT button.

System

Auto

System

Auto

PAL

SECAM

NTSC

NTSC4.43

PAL-M

PAL-N

VIDEO INPUT

PICTURE IMAGE SELECT

IMAGE LEVEL SELECT (MENU)

Press MENU button and ON-SCREEN MENU will appear. Press POINT LEFT/RIGHT buttons to move a red frame pointer to IMAGE SELECT Menu icon.

Press POINT UP/DOWN buttons to move a red frame pointer to level that you want to set and then press SELECT button.

IMAGE SELECT MENU

Normal picture level preset on this projector.

Standard

Picture level adjusted for picture with fine tone.

Cinema

User preset picture adjustment in IMAGE ADJUST Menu (P37).

IMAGE 1~10

IMAGE LEVEL SELECT (DIRECT)

Select image level among Standard, Cinema, Image 1 to Image 10 by pressing IMAGE button on Top Control or IMAGE SELECTION ▲/▼ button on Remote Control Unit.

Normal picture level preset on this projector.

Standard

Picture level adjusted for picture with fine tone.

Cinema

User preset picture adjustment in IMAGE ADJUST Menu (P37).

IMAGE 1~10

IMAGE button

Standard

Cinema

Image 1

Image 10

Move a red frame pointer to level and press SELECT button.

IMAGE SELECT Menu icon

Image 1

Auto

PICTURE SCREEN ADJUSTMENT

This projector has a picture screen resize function, which enables you to display desirable image size.

Press MENU button and ON-SCREEN MENU will appear. Press POINT LEFT/RIGHT buttons to move a red frame pointer to SCREEN Menu icon.

Press POINT DOWN button and move a red frame pointer to function that you want to select and then press SELECT button.

NOTE : SCREEN Menu can not be operated when

“720p”, “1035i” or “1080” is selected on AV SYSTEM Menu (P32).

Move a red frame pointer to function and press SELECT button.

SCREEN MENU

SCREEN Menu icon

Provides image to fit width of screen by expanding image width uniformly. This function can be used for providing a squeezed video signal at wide video aspect ratio of 16 : 9. When your video equipment (such as DVD) has 16 : 9 output mode, select 16 : 9 and select Full on this SCREEN Menu to provide better quality.

Full

Provides image to fit screen size (16 : 9 aspect ratio) by expanding image width and height uniformly. This function can be used for providing a letter box mode picture (4 : 3 aspect picture with black bar on top and bottom edges) at wide video aspect of 16 : 9.

Zoom

Provides image at the normal video aspect ratio of 4 : 3.

Normal

Provides image to fit width of screen by expanding both sides of image. This function is suitable to provide a normal video signal (4 : 3 aspect ratio) at wide video aspect ratio of 16 : 9.

Natural wide

VIDEO INPUT

PICTURE SCREEN SELECT (DIRECT)

Select picture screen among Full, Normal, Zoom and Natural wide by pressing SCREEN button on Remote Control Unit.

SCREEN button

Full

Normal

Zoom

Natural wide

PICTURE SCREEN SELECT (MENU)

Press MENU button and ON-SCREEN MENU will appear. Press POINT LEFT/RIGHT buttons to move a red frame pointer to IMAGE ADJUST Menu icon.

Press POINT UP/DOWN buttons to move a red frame pointer to item that you want to adjust and then press SELECT button. Level of each item is displayed. Adjust each level by pressing POINT LEFT/RIGHT buttons.

IMAGE ADJUST MENU

Press POINT LEFT button to decrease contrast, and POINT RIGHT button to increase contrast. (From 0 to 63.)

Press POINT LEFT button to adjust image darker, and POINT RIGHT button to adjust brighter. (From 0 to 63.)

Contrast

Brightness

Press POINT LEFT button to lighten color, and POINT RIGHT button to deepen color. (From 0 to 63.)

Press POINT LEFT button or POINT RIGHT button to obtain proper color. (From 0 to 63.)

Color

Tint

Color Management

The Color management function can be used to adjust the level, phase and gamma of the selected display colors (except black, white and gray) on the screen, and to replace these colors with other colors if required. The projector lets you replace up to eight colors for each image. There are ten preset images for VIDEO mode and ten preset images for PC, giving a total of twenty images.

Press the POINT UP/DOWN buttons to move a red frame pointer to "COLOR MANAGEMENT", and then press the SELECT button. The COLOR MANAGEMENT menu will appear and pointer mode will be enabled. The image that was being projected when the button was pressed will be paused, and the COLOR MANAGEMENT POINTER will appear.

Use the POINT buttons to move a pointer to a section of the paused image that contains the color that you would like to adjust, and then press the SELECT button. The mode will change to COLOR SELECTION mode, and the color in the center of the pointer will be selected and adjustment will be possible.

Use the POINT buttons to adjust the level and phase of the color, and then press the SELECT button to confirm the setting. Next, use the POINT buttons to adjust the gamma correction for the color, and then press the SELECT button to accept the setting. When the SELECT button is pressed, the mode will change to LIST mode.

Press the COLOR M. button on the remote control to display the COLOR MANAGEMENT menu. If you would like to check or re-adjust a color management setting that has already been made, press the COLOR M. button on the remote control once more to change to LIST mode.

NOTE;

COLOR MANAGEMENT POINTER

POINTER MODE

Move a red frame pointer to item to be selected and then press SELECT button.

IMAGE ADJUST Menu icon

Press POINT LEFT/RIGHT buttons to adjust value.

PICTURE IMAGE ADJUSTMENTS

PICTURE IMAGE

Contrast

Auto

PICTURE IMAGE

Auto picture control

Press either POINT LEFT button or POINT RIGHT button to Auto picture control position that you want to select . (Off, L1 or L2) Off ······· Auto picture control OFF position. L1 ········ Auto picture control LEVEL 1 position. L2 ········ Auto picture control LEVEL 2 position.

To move a red frame pointer to "MENU", and then press the SELECT button. The COLOR MANAGEMENT menu will be exited and the display will return to the IMAGE ADJUST menu. (At this time, the image will stop being paused and normal projection will resume.) After changing the COLOR MANAGEMENT settings, use the IMAGE ADJUST menu to store the changed settings.

The check mark will be cleared and the effect of the setting adjustment for that line on the projected images will be momentarily canceled.

COLOR M.

COLOR SELECTION MODE

The mode will return to the pointer mode (even if you press the MENU key on the projector or the remote control). (You will need to reselect and re-adjust the color in this case.)

The COLOR MANAGEMENT menu will be exited and the display will return to the normal projection screen, but any settings that have been changed will not be stored. To store the changed settings, be sure to select "LIST" using the POINT buttons and change to the next mode (LIST mode).

If you press the COLOR M. button on the remote control, the COLOR MANAGEMENT menu will be exited and the display will return to the normal projection screen, but any settings that have been changed will not be stored. To store the changed settings, be sure to select "MENU" using the POINT buttons and store the settings.

LIST MODE

The mode will return to COLOR SELECTION mode so that you can re-adjust the setting for the color in that line. This option is not available if the check mark has been cleared by the operation immediately above.)

COLOR PALETTE

The setting adjustment for the color in that line will be canceled.

DEL

ALL DEL

The setting adjustment for the colors in all lines will be canceled.

COLOR M.

The mode will return to POINTER mode.

NOTE;

COLOR SELECTION MODE

COLOR M.LIST

Level and phase adjustment palette.

Gamma adjustment palette.

LIST MODE

COLOR PALETTE

DEL

ALL DEL

COLOR M.MENU

Reset all adjustment to previous figure.

Reset

Store

Closes IMAGE ADJUST MENU.

Quit

Other icons operates as follows.

To store manually preset image, move a red frame pointer to Store icon and press SELECT button. Image Level Menu will appear. Move a red frame pointer to Image 1 to 10 where you want to set and then press SELECT button.

Press either POINT LEFT button or POINT RIGHT button to obtain better balance of contrast. (From 0 to 15.)

Gamma

Press POINT LEFT button to soften the image, and POINT RIGHT button to sharpen the image. (From 0 to 31.)

Sharpness

Press POINT LEFT button to lighten red tone and POINT RIGHT button to deeper tone. (From 0 to 63.)

White balance (Red)

Press POINT LEFT button to lighten green tone and POINT RIGHT button to deeper tone. (From 0 to 63.)

White balance (Green)

Press POINT LEFT button to lighten blue tone and POINT RIGHT button to deeper tone. (From 0 to 63.)

White balance (Blue)

Press POINT LEFT/RIGHT buttons to change progressive scan mode. Dialog box display is changed to “Off”, “On”, “Film”.

Off ··· Progressive scan mode to OFF. On ···· Progressive scan mode to ON. Film ···· Effective on 3:2 pulldown video sources.

Press POINT LEFT/RIGHT buttons to change noise reduction mode. Dialog box display is changed to “Off”, “L1”, “L2”.

Off ··· Noise reduction mode to OFF. L1 ···· Noise reduction mode to L1. L2 ···· Noise reduction mode to L2.

Noise reduction

Progressive

Color temp.

Press either POINT LEFT button or POINT RIGHT button to Color temp. level that you want to select. (XLow, Low, Mid or High)

Press SELECT button at this icon to display other items.

Press SELECT button at this icon to display previous items.

Press POINT LEFT/RIGHT buttons to adjust value.

Image Level Menu Move a red frame pointer to any of Image 1 to 10 where you want to set and then press SELECT button.

Store icon Press SELECT button at this icon to store the adjustment.

PICTURE IMAGE

Keystone

Press the MENU button to display the On-Screen Menu. Press the POINT LEFT/RIGHT buttons to move a red frame pointer to the Setting Menu icon.

Language

The language used in the On-Screen Menu is available in English, German, French, Italian, Spanish, Portuguese, Dutch, Swedish, Russian, Chinese, Korean, or Japanese.

Set a red frame pointer to the item and press the SELECT button.

Press the POINT DOWN button to move a red frame pointer to the item that you want to set and then press the

SELECT

button. The Setting dialog box appears.

When pressing the SELECT button at Language, the Language Menu appears.

SETTING MENU (LANGUAGE)

SETTING Menu icon

This function corrects distortion of a projected image. Select either Store or Reset with the POINT LEFT/RIGHT buttons, and then press the Select button. The keystone dialog box appears. Adjust keystone with the POINT UP/DOWN/LEFT/RIGHT buttons.

Store . . . . . stores the keystone adjustment even if the AC power

cord is disconnected.

Reset . . . . .resets the keystone adjustment when the AC power

cord is disconnected.

This projector has Setting menu that allows you to set up the other various functions described as follows;

Display

This function decides whether to display On-Screen Displays.

Off . . . . . . . does not show On-Screen Display except;

● On-Screen Menu

● “Power off?” message

● “No signal” message

● ”Please wait....”

● Color management operation screen

Count-down Off does not show Count-down Display.

On . . . . . . . shows all the On-Screen Display.

Background

3 background settings are available in this projector. Select one of the followings when no input source is connected to the projector or no input signal is coming from the connected equipment:

Blue . . . . . .blue colored background

My logo . . .the image you captured

Black . . . . .black colored background

SETTING MENU

SETTING

Language

SVGA 1

SETTING

Logo

Logo settings can be altered as follows:

Logo select

This function decides what to be displayed on the starting-up display as follows:

Off . . . . . . .count-down only

Default . . . .the factory-set logo

User . . . . . .the image you captured

Capture

This function enables you to capture the image being projected and use it for a starting-up display or interval of presentations.

After capturing the projected image, go to the Logo function and set it to “User”. Then the captured image can be displayed when turning on the projector next time. To capture the image, select [Yes]. To cancel the Capture function, select [No].

Logo PIN Code Lock Dialog Box

Quit

Pointer

Enter a Logo PIN code

Select a number by pressing the POINT LEFT/RIGHT buttons and fix the number with the SELECT button. The number will change to "✳". If you fixed a wrong number, move the pointer to "Set" or "Clear" once by pressing the POINT DOWN button, then return to "Logo PIN code". Enter the correct number again.

Repeat this step to complete entering a four-digit number.

When the four-digit number is fixed, the pointer will automatically move to "Set". Press the SELECT button so that you can change the Logo PIN code lock setting.

If you entered a wrong Logo PIN code, "Logo PIN code" and the number (✳✳✳✳) will turn red and disappear. Enter a correct Logo PIN code all over again.

After a correct Logo PIN code is entered, the following dialog box will appear.

Select On/Off by pressing the POINT LEFT/RIGHT buttons or change the Logo PIN code.

Change the Logo PIN code

Logo PIN code can be changed to your desired fourdigit number. Select "Logo PIN code change" with the POINT DOWN button and press the SELECT button. Set a new Logo PIN code.

Be sure to note the new Logo PIN code and keep it at hand. If you lost the number, you could no longer change the Logo PIN code setting. For details on PIN code setting, refer to relevant instructions of the PIN Code Lock function on page 42.

Logo

This function prevents an unauthorized person from changing the Logo setting.

Off . . . . .the Logo setting can be changed freely from the

Logo menu.

On . . . . .the Logo setting cannot be changed without the

Logo PIN code.

If you want to change the Logo PIN Code Lock setting, enter a Logo PIN code along the following steps. The initial Logo PIN code is set "4321" at the factory.

Logo PIN Code Lock

• Before capturing an image, select Standard in the Image Select Menu to capture a proper image. (See page 29, 33.)

• A signal from a computer can be captured up to XGA (1024 X 768).

• Certain signals may not be captured properly.

• When capturing the image that has been adjusted by the Keystone function, the adjustment data is automatically reset and the projector captures an image without keystone correction.

• When starting to capture a new image, the previously stored image is cleared even if you cancel the capturing.

• Once you exit the Logo menu after setting Logo lock to "On", you are required to enter the PIN code every attempting to change the Logo setting.

NOTE;

Select [Yes] to stop capturing.

Select [Yes] to capture the projected image.

SETTING

Ceiling

Rear

Ceiling

When this function is “On,” the picture is top/bottom and left/right reversed. This function is used to project the image from a ceiling mounting the projector.

Rear

When this function is “On,” the picture is left/right reversed. This function is used to project the image to a rear projection screen.

Lamp control

This function allows you to change brightness of the screen.

···· brightness according with the input signal.

···· normal brightness.

···· lower brightness reduces the lamp power consumption

and extends the lamp life.

Power management

Time left until Lamp off

Press the SELECT button at Power management and this box appears. Choose one of three settings with the POINT LEFT/RIGHT buttons, and go to the timer with the POINT DOWN button and set time with the POINT LEFT/RIGHT buttons.

For reducing power consumption as well as maintaining the lamp life, the Power Management function turns off the projection lamp when the input signal is interrupted and no button is pressed for 30 seconds or more.

If the input signal is interrupted and no button is pressed for 30 seconds or more, the timer display with the message "No signal" appears on the screen. The count-down of the set time will get started. The count-down time can be set between 1 and 30 minutes.

When the count-down time has been elapsed, the lamp will be turned off to cool itself down. The READY indicator will be switched off during this cooling-off period. The next operation depends on the setting as follows :

Ready . . . . .When the lamp has been fully cooled down, the

READY indicator starts flashing. In this condition, the projection lamp will be turned on if the input signal is reconnected or any button on the top control or remote control unit is pressed.

Shutdown . . .When the lamp has been fully cooled down, the

power will be turned off.

Off . . . . . . . . .The Power Management function is canceled.

On start

When this function is “On,” the projector is automatically turned on just by connecting the AC power cord to a wall outlet.

Be sure to turn the projector off properly (see “Turning Off the Projector” on page 21). If the projector is turned off in the incorrect sequence, such as disconnecting the AC power cord before completing the cool down etc., the On start function does not operate properly.

Simple menu

When this function is “On,” the value adjustment bar in the picture image adjustment menu is displayed on the bottom left of the screen.

NOTE;

This function available on models PLV-80 and PLV-80L.

NOTE;

Remote control

This projector provides eight different remote control codes (Code 1-Code 8); the factory-set, initial code (Code 1) and the other seven codes (Code 2 to Code 8). This switching function prevents remote control interference when operating several projectors or video equipment at the same time. For example operating the projector in “Code 7”, both the projector and the remote control must be switched to “Code 7”.

To change the code for the projector;

Select a remote control code in this Setting Menu.

To change the code for the remote control;

Check the Reset Switch to "Use position" in the compartment lid on back of the remote control. And then while holding down the MENU button, press the IMAGE button number of times corresponding to the remote control code for the projector.

To reset the code for the remote control;

Slide the Reset Switch to "Reset position" in the compartment lid on back of the remote control.

Remote control

Security

This function locks operation of the top control and remote control. It is useful to prevent operation by an unauthorized person.

···· not locked.

···· locks operation of the top control. To unlock, use the

remote control.

···· locks operation of the remote control. To unlock, use the top control.

If the top control accidentally becomes locked and you do not have the remote control nearby, disconnect the AC power cord from the AC outlet, and then with pressing the SELECT button, reinsert the AC power cord. This will cancel the top control lock.

Key lock

Select Key lock and this box appears. Choose one of these with the POINT UP/DOWN buttons and select [Yes] to activate it.

SETTING

Security

Key lock

When pressing the SELECT button at Remote control, the remote control code menu appears.

Use position

Reset position

Reset switch

SETTING

The PIN code can be changed to your desired four-digit number. Select "PIN code change" with the POINT DOWN button, and press the SELECT button. The New PIN code input dialog box will appear.

Select a number with the POINT LEFT/RIGHT buttons and fix the number with the SELECT button. Repeat it to complete entering a four-digit number. When the four-digit number is fixed, the pointer will automatically move to "Set". Then press the SELECT button.

To Change the PIN Code

Change the PIN code

Select PIN code change and press the SELECT button. The New PIN code input dialog box will appear.

The input numbers are being displayed for confirmation.

Select Off, On1, or On2 with the POINT LEFT/RIGHT buttons and then "Quit" with the POINT DOWN button and press the SELECT button to close the dialog box.

To Change the PIN Code Lock setting

Change the PIN Code Lock setting

Select a desired setting with the POINT LEFT/RIGHT buttons.

CAUTION: WHEN YOU HAVE CHANGED PIN CODE, WRITE DOWN THE NEW PIN CODE IN COLUMN OF THE PIN CODE NO. MEMO ON PAGE 59, AND KEEP IT SECURELY. SHOULD THE PIN CODE BE LOST OR FORGOTTEN, THE PROJECTOR CAN NO LONGER BE OPERATED.

PIN code lock

This function prevents the projector from being operated by an unauthorized person and provides the following settings for security options.

Off

...............the projector is not locked with the PIN code.

On1

.............requires to enter the PIN code every time turning on

the projector.

On2

..........requires to enter the PIN code to operate the

projector once the power cord is disconnected; as long as the AC power cord is connected, the projector can be operated without the PIN code.

Whenever to change the PIN Code Lock setting or the PIN code (the four-digit number), you are required to enter the PIN code. "1234" is set as the initial PIN code at the factory.

PIN code lock

When the projector is locked with the PIN code, the PIN code lock mark appears on the menu bar.

Enter a PIN code

Quit

Pointer

The input numbers change to “✳” for security.

Enter a PIN code

When the four-digit number is fixed, the pointer will automatically move to "Set". Press the SELECT button so that you can change the following PIN code lock settings.

If you entered a wrong PIN code, "PIN code" and the number (✳✳✳✳) will turn red and disappear. Enter a correct PIN code all over again.

When the pointer automatically move to "Set", press the SELECT button.

Security

SVGA1

SETTING

This function is used to reset the lamp replace counter. When replacing the projection lamp, reset the lamp replace counter by using this function. See page 47 for operation.

Lamp counter

Factory default

This function returns all setting values except for the user logo, Key lock, PIN code lock, logo PIN code lock and the lamp counter to the factory default settings.

Select Factory default and this box appears. Select [Yes] , and the next box appears.

Factory default

Select [Yes] to activate it.

MAINTENANCE

WARNING TEMP. INDICATOR

Ventilation Slots of a projector may be blocked. In such an event, reposition a projector so that Ventilation Slots are not obstructed.

Air Filter may be clogged with dust particles. Clean Air Filter by following section AIR FILTER CARE AND CLEANING on next page.

If WARNING TEMP. Indicator remains on after performing above checks, Cooling Fans or Internal Circuits may be malfunctioning. Contact the service station.

The Warning Temp. Indicator flashes red to let you know the internal temperature of the projector exceeds the normal level. If the temperature goes up further, the projector will be turned off automatically and the Ready indicator will go out. (The Warning Temp. Indicator continues flashing.) After the cooling-off period, the Ready Indicator lights on again and the projector can be turned on by pressing the On/Off button on the remote control unit or on the top control. When you turn on the projector, the Warning Temp. Indicator will go out. If the Warning Temp. Indicator is still flashing, check the followings;

TOP CONTROL

When both of the Warning Temp. and Ready indicators are flashing:

Warning Temp. Indicator

Ready Indicator

When the projector detects an internal problem, it will shut down automatically and both of the Warning temp. and Ready Indicators start flashing. In this condition, the projector cannot be turned on even if you press the On/Off button on the remote control unit or on the top control. If this case happenes, disconnect and reconnect the AC power cord, and then turn on the projector again to check its operation. If the projector shuts down again or fails to be turned on, the internal check and repair will be required. Plug off the AC power cord and contact service station.

APPENDIX

CLEANING PROJECTION LENS

Apply a non-abrasive camera lens cleaner to a soft, dry cleaning cloth. Avoid using an excessive amount of cleaner. Abrasive cleaners, solvents or other harsh chemicals might scratch a surface.

When a projector is not in use, replace Lens Cover.

Lightly wipe a cleaning cloth over Projection Lens.

Follow these steps to clean Projection Lens:

AIR FILTER CARE AND CLEANING

AIR FILTER Pull up and remove.

Turn off a projector, and disconnect AC power cord from AC outlet.

Turn a projector upside down and remove Air Filter (2 used) by pulling latches upward.

Air Filter prevents dust from accumulating on surface of Projection Lens and Projection Mirror. Should Air Filter become clogged with dust particles, it will reduce Cooling Fans’ effectiveness and may result in internal heat build up and adversely affect life of a projector. Clean Air Filter following steps below:

Clean Air Filter with a brush or wash out dust and particles.

Replace Air Filter properly. Make sure that Air Filter is fully inserted.

CAUTION

Do not operate a projector with Air Filter removed. Dust may accumulate on LCD Panel and Projection Mirror degrading picture quality. Do not put small parts into Air Intake Vents. It may result in malfunction of a projector.

RECOMMENDATION

We recommend avoiding dusty/smoky environments when operating a projector. Usage in these environments may cause poor image quality.

When using under dusty or smoky conditions, dust may accumulate on a lens, liquid crystal panels, or optical elements inside a projector. This condition may degrade quality of a projected image. When above symptoms are noticed, contact your authorized dealer or service station for proper cleaning.

Turn off a projector, and disconnect AC power cord from AC outlet.

APPENDIX

Turn off a projector and disconnect AC plug. Allow a projector to cool for at least 45 minutes.

Loosen 2 screws with a screwdriver and pull out Lamp Assembly by grasping Handle.

Replace Lamp Assembly with a new one and tighten 2 screws back. Make sure that Lamp Assembly is set properly. Replace Lamp Cover and tighten 2 screws.

Loosen 2 screws with a screwdriver and open Lamp Cover.

Connect AC Power Cord to a projector and turn it on.

Follow these steps to replace lamp assembly.

Reset Lamp Replace Counter (refer to next page “LAMP REPLACE COUNTER” section).

APPENDIX

LAMP REPLACE COUNTER

Be sure to reset the Lamp Replace Counter after the Lamp Assembly is replaced. When the Lamp Replace Counter is reset, the LAMP REPLACE Indicator stops lighting.

NOTE : Do not reset the Lamp Replace Counter until after the Projection Lamp is replaced.

Turn projector on, press MENU button and ON-SCREEN MENU will appear. Press POINT LEFT/RIGHT buttons to move a red frame pointer to SETTING Menu icon (refer to page 43).

Press POINT UP/DOWN buttons to move a red frame pointer to “Lamp counter” and then press

SELECT button. The next

box appears.

Another confirmation dialog box appears and select [Yes] to reset Lamp Replace Counter.

This projector uses a high-pressure lamp which must be handled carefully and properly. Improper handling may result in accidents, injury, or create a fire hazard.

● Lamp lifetime may differ from lamp to lamp and according to the environment of use. There is no

guarantee of the same lifetime for each lamp. Some lamps may fail or terminate their lifetime in a shorter period of time than other similar lamps.

● If the projector indicates that the lamp should be replaced, i.e., if the LAMP REPLACE INDICATOR

lights up, replace the lamp with a new one IMMEDIATELY after the projector has cooled down. ( Follow carefully the instructions in the LAMP REPLACEMENT section of this manual. ) Continuous use of the lamp with the LAMP REPLACE INDICATOR lighted may increase the risk of lamp explosion.

● A Lamp may explode as a result of vibration, shock or degradation as a result of hours of use as its

lifetime draws to an end. Risk of explosion may differ according to the environment or conditions in which the projector and lamp are being used.

IF A LAMP EXPLODES, THE FOLLOWING SAFETY PRECAUTIONS SHOULD BE TAKEN.

If a lamp explodes, disconnect the projector’s AC plug from the AC outlet immediately. Contact an authorized service station for a checkup of the unit and replacement of the lamp. Additionally, check carefully to ensure that there are no broken shards or pieces of glass around the projector or coming out from the cooling air circulation holes. Any broken shards found should be cleaned up carefully. No one should check the inside of the projector except those who are authorized trained technicians and who are familiar with projector service. Inappropriate attempts to service the unit by anyone, especially those who are not appropriately trained to do so, may result in an accident or injury caused by pieces of broken glass.

LAMP HANDLING PRECAUTIONS

Lamp counter

Select Lamp counter and this box appears. Select [Reset] , and the next box appears.

Select [Yes] to activate it.

Select [Yes] and the next box appears.

Press POINT UP/DOWN buttons to select “Reset” and then press

SELECT button. The message "Lamp replacement counter reset?" is displayed. Move the pointer to [Yes] and then press SELECT button.

APPENDIX

TROUBLESHOOTING

Before calling your dealer or service center for assistance, check matters below once again.

1. Make sure you have connected a projector to your computer or video equipment as described in section "CONNECTING PROJECTOR" on pages 12 ~ 14.

2. Check cable connection. Verify that all computer, video and power cord are properly connected.

3. Verify that all power is switched on.

4. If a projector still does not produce an image, re-start your computer.

5. If an image still does not appear, unplug a projector from your computer and check your computer monitor's display. Problem may be with your graphics controller rather than with a projector. (When you reconnect a projector, be sure to turn computer and monitor off before you power up a projector. Power equipment back on in order of : Projector and computer.)

6. If problem still exists, check following chart.

No power.

● Plug a projector into your AC outlet.

● Make sure READY Indicator lights.

● Wait 90 seconds after a projector is turned OFF when turning a projector back on.

NOTE : After pressing Power ON-OFF button to OFF, make sure a projector works as

follows:

1. LAMP indicator lights bright and READY indicator turns off.

2. After 90 seconds, READY indicator lights green again and a projector may be turned on by pressing Power ON-OFF button.

● Check WARNING TEMP. and READY indicator. If both WARNING TEMP. and READY indicator flashes, a projector cannot be turned on. (See "TURNING ON/OFF PROJECTOR" section on pages 20-21.)

● Check Projection Lamp. (Refer to page 46.)

Image is out of focus.

● Adjust focus of a projector.

● Make sure a projection screen is at least 5.0’ (1.5m) from a projector.

● Check Projection Lens to see if it needs cleaning.

NOTE : Moving a projector from a cool temperature location to a warm temperature location

may result in moisture condensation on Projection Lens. In such an event, leave a projector OFF and wait until condensation disappears.

Picture is Left/Right reversed.

● Check Ceiling/Rear feature. (See “SETTING” section on page 40.)

Problem: Try these Solutions

Picture is Top/Bottom reversed.

● Check Ceiling feature. (See “SETTING” section on page 40.)

Some displays are not seen during Operation.

● Check Display feature.(See “SETTING” section on page 38.)

No image.

● Check connection between your computer or video equipment and a projector.

● When turning a projector on, it takes about 20 ~30 seconds to display an image.

● Check system that you select is corresponding with your computer or video equipment.

● Make sure temperature is not out of Operating Temperature 41 ˚F ~ 95 ˚F (5 ˚C ~ 35 ˚C).

No sound.

● Check audio cable connection from audio input source.

● Adjust audio source.

● Press VOLUME (+) button.

● Press MUTE button.

APPENDIX

Remote Control Unit does not work.

● Check batteries.

● Make sure nothing is between Infrared Remote Receiver and Remote Control Unit.

● Make sure you are not too far from a projector when using Remote Control Unit.

Maximum operating range is 16.4’ (5m).

● Check remote control code from Remote Control Unit. (See“SETTING” section on page 41.)

Problem: Try these Solutions

SERVICE

WARNING: High voltages are used to operate this projector. Do not attempt to open cabinet.

You can often correct operating problems yourself. If a projector fails to work properly, see "TROUBLESHOOTING" section on pages 48, 49. To correct failure, try "Solutions".

If after following all operating instructions, you find that service is necessary, contact Sanyo Service Station or store where you purchased unit. Give model number and explain difficulty. We will advise you how to obtain service.

This symbol on the nameplate means the product is Listed by Underwriters Laboratories Inc. It is designed and manufactured to meet rigid U.L. safety standards against risk of fire, casualty and electrical hazards.

The CE Mark is a Directive conformity mark of the European Community (EC).

Pixelworks ICs used.

APPENDIX

System (1)

SVGA 1 SVGA 2 SVGA 3

Auto PC Adj. Fine sync. Total dots Position H Position V Current mode Clamp

Display area - H Display area - V

Reset Mode free Store

Quit

Standard Real Image 1

Image 10

Normal Full True D.zoom + D.zoom –

0 - 31

Computer Input

PC Adjust

Mode 1 Mode 2 Mode 3 Mode 4 Mode 5

Image Select

Screen

Mode 6

Yes/No

MENU TREE

MODE 1

MODE 2

Mode 7 Mode 8 Mode 9 Mode 10 Quit

Input

RGB (PC analog)

RGB (Scart)

Go to System (1)

Input 2

Video

Input 3

Go to System (3)

Go to System (2)

Input 1

Video

S-video

Y, Pb/Cb, Pr/Cr

N/A

Go to System (2)

Computer Input/Video Input

✽N/A - - - not applicable

Go to System (3)

Go to System (2)

RGB (PC digital)

RGB (AV HDCP)

RGB

Go to System (1)

Y, Pb/Cb, Pr/Cr

N/A

APPENDIX

Auto PAL SECAM NTSC NTSC 4.43 PAL-M PAL-N

Video Input

Auto

1035i 720p 575p 480p 575i 480i

Quit

Full

Zoom

0 - 63 0 - 63 0 - 63 0 - 63

Off/On/Film

Volume

Language

System (3)

System (2)

Image Adjust

Contrast Brightness Color Tint

Red Green Blue Sharpness

Reset Store

Gamma

Progressive

0 - 63 0 - 63 0 - 63 0 - 31 0 - 15

Image 1

Image 10

Screen

Sound

Setting

English German French Italian Spanish Portuguese Dutch Swedish

Chinese Korean Japanese

Store/Reset

Blue/My logo/Black

Off/Countdown Off/On

Logo select

On/Off

Off

On/Off

Auto/Normal/Eco

Code 1

Yes / No

Keystone

Background

Display

Logo

Ceiling

Rear

Power management

On start

Lamp control

Remote control

Factory default

Yes/No

Quit

Code 8 Quit

Quit

0 - 63

Russian

HighColor Temp Mid Low XLow

Ready Shut down

Yes / No

Lamp counter reset

Off

Key lock

Projector Remote Control

1-30 Min Quit

Quit

Computer Input/Video Input

1080i

Off/L1/L2Noise reduction

Normal

Natural wide

Quit

Mute On/Off

Standard Cinema Image 1

Image 10

Image Select

Color management

Gamma

List

Color M. Menu

Color

Auto picture control Off/L1/L2

All Del

Color M.

Off/Default/User

Capture

Yes/No

On/Off

Logo PIN code change

Quit

Logo PIN code lock

On/Off

Simple menu

Security

Off/On1/On2

Pin code lock

PIN code change

Quit

APPENDIX

COMPATIBLE COMPUTER SPECIFICATIONS

–––––––– (Interlace)

1024 x 768

(Interlace)

ON-SCREEN

DISPLAY

RESOLUTION

H-Freq.

(kHz)

V-Freq.

(Hz)

VGA 1

640 x 480 31.47 59.88

VGA 2 720 x 400

APPENDIX

NOTE : Specifications are subject to change without notice.

ON-SCREEN

DISPLAY

RESOLUTION

H-Freq.

(kHz)

V-Freq.

(Hz)

D-VGA

640 x 480 31.47 59.94

D-480p

720 x 480

(

Progressive

)

31.47 59.88

D-575p

768 x 575

(

Progressive

)

31.25 50.00

D-SVGA

800 x 600 37.879 60.32

D-XGA

1024 x 768 43.363 60.00

ON-SCREEN

DISPLAY

RESOLUTION

H-Freq.

(kHz)

V-Freq.

(Hz)

D-WXGA1

1366 x 768

48.36

60.00

D-WXGA5

1368 x 768

46.50 50.00

D-1035i

1920 x 1035

(Interlace)

33.75 60.00

D-1080i

1920 x 1080

(

Interlace

)

33.75 60.00

D-1080i

1920 x 1080

(Interlace)

28.125 50.00

D-WXGA2

1360 x 768

47.70

60.00

D-WXGA3

1376 x 768 48.36

60.00

D-720p

1280 x 720

(

Progressive

)

37.50 50.00

D-720p

1280 x 720

(

Progressive

)

45.00 60.00

D-SXGA1

1280 x 1024

63.98 60.02

D-SXGA2

1280 x 1024

60.276 58.069

When a input signal is digital from DVI terminal, refer to chart below.

D-1080psf/30

1920 x 1080

33.75 60.00

D-1080psf/25

1920 x 1080

28.125 50.00

D-1080psf/24

1920 x 1080

27.00 48.00

D-SXGA+

1400 x 1050

63.97 60.19

INDICATORS AND PROJECTOR CONDITION

Check the Indicators for projector condition.

• • • on • • • dim • • • off• • • flashing

The projector is OFF. (The AC Power Cord is unplugged.)

The projector is READY to be turned on with the POWER ONOFF button.

The Warning Temp. Indicator flashes red to let you know the internal temperature of the projector exceeds the normal level. If the temperature goes up further, the projector will be turned off automatically and the Ready indicator will go out. When the projector is cooled down enough and the temperature returns to normal, the READY indicator lights green and the projector can be turned on. (The WARNING TEMP. indicator keeps flashing.) Check and clean the Air Filter.

Projector Condition

The projector is operating normally.

The projector is cooled down enough and the temperature returns to normal. When turning on the projector, the WARNING TEMP. indicator stops flashing. Check and clean the Air Filter.

LAMP

REPLACE

yellow

Indicators

READY

green

LAMP

red

WARNING

TEMP.

red

✽

✳

Depending on the condition of signals and the type and length of cables, these signals may not be properly viewed.

✳

✳ ✳

APPENDIX

• • • on • • • dim • • • off• • • flashing

✽ When the life of the projection lamp draws to an end, the LAMP REPLACE indicator lights yellow. When this indicator lights yellow,

replace the projection lamp with a new one promptly. Reset the Lamp Replace Counter after replacement of the lamp.

The projector is being cooled down. It cannot be turned on until the READY indicator lights green.

Projector Condition

LAMP

REPLACE

yellow

Indicators

READY

green

LAMP

red

WARNING

TEMP.

red

The projector detects an abnormal condition and cannot be turned on. Unplug the AC Power Cord and plug it again to turn on the projector. If the projector is turned off again, disconnect the AC Power Cord and contact the dealer or the service center for service and checkup. Do not leave the projector on. It may cause electric shock or a fire hazard.

The projector is in the Power management mode.

✽

The temperature inside the projector is abnormally high. The projector cannot be turned on. When the projector is cooled down enough and the temperature returns to normal, the READY indicator lights green and the projector can be turned on.

✽

The temperature inside the projector is abnormally high.

The lamp cannot light up. (The projector is preparing for standby or the projection lamp is being cooled down. The projector cannot be turned on until cooling is completed.)

The lamp cannot light up. (The lamp has been cooled down enough and the projector is in stand-by mode and ready to be turned on with the POWER ON-OFF button.)

✽

The life of the projection lamp draws to an end. Replace the lamp and then reset the Lamp time. The indicator will turn off.

Owner’s Manual AC Power Cord Wireless/Wired Remote Control Transmitter and Batteries Control Cable for Serial port Lens Cover (PLV-75/PLV-80) PIN Code Label

Multi-media Projector

Accessories

● Specifications are subject to change without notice.

TECHNICAL SPECIFICATIONS

1.21" TFT Active Matrix type, 3 panels

19.2 lbs (8.7 kg) PLV-75/PLV-80, 16.3 lbs (7.4 kg) PLV-75L/PLV-80L

12.6" x 6.6" x 16.8" (319 mm x 168 mm x 429.5 mm)

1366 x 768 dots

3,147,264 (1366 x 768 x 3 panels)

PAL, SECAM, NTSC, NTSC4.43, PAL-M and PAL-N

Up and Down

800 TV lines (HDTV)

INT. SP. Stereo (R and L), 2 watt RMS (T.H.D. 10%)

41 ˚F ~ 95 ˚F (5 ˚C ~ 35 ˚C)

14 ˚F ~ 140 ˚F (-10 ˚C ~ 60 ˚C)

Projector Type

Net Weight

Dimensions

(W x H x D)

Panel Resolution Number of Pixels Color System

Scanning Frequency

Horizontal Resolution

Built-in Speakers

Operating Temperature Storage Temperature

LCD Panel System

300 watt type (PLV-80/PLV-80L), 200 watt type (PLV-75/PLV-75L)

Projection Lamp

0˚ to 10.5˚

Feet Adjustment

Power Source : AA, UM3 or LR06 1.5V ALKALINE Type x 2 Operating Range : 16.4’ (5m) / ±30˚ Dimensions : 1.97” x 1.06” x 6.61” (50mm x 27mm x 168mm) Net Weight : 4.4 oz (126 g) (including batteries)

Remote Control Transmitter

480i, 480p, 575i, 575p, 720p, 1035i and 1080i

High Definition TV Signal

AC 100 ~ 120 V (3.6 A Max. Ampere), 50 / 60 Hz

(The U.S.A and Canada)

AC 200 ~ 240 V (1.8 A Max. Ampere), 50 / 60 Hz

(Continental Europe and The U.K.)

Voltage and Power Consumption (PLV-75/PLV-75L)

H-sync. 15 ~ 100 KHz, V-sync. 48 ~ 100 Hz

Motorized Lens Shift

DVI Terminal (Digital) HDCP Compatible, HDB 15-pin Terminal (Analog) and Stereo Mini Type Jack (Audio)

Input 1 Jacks

BNC Type x 5 (G or VIDEO/Y, B or Cb/Pb, R or Cr/Pr, H and V), Stereo Mini Type Jack (Audio)

Input 2 Jacks

RCA Type x 3 (VIDEO/Y, Cb/Pb and Cr/Pr), RCA Type x 2 (Audio R and L) and DIN 4-pin (S-Video)

Input 3 Jacks

DIN 8-pin (Control port), Wired Remote Jack and PJ-Net Organizer Connector

Other Jacks

Adjustable from 30" to 400"

Projection Image Size (Diagonal)

F1.8 ~ 2.1 lens with f=48.4 mm ~ 62.8 mm Motor zoom and focus

Projection Lens

5.0' (1.5 m) ~ 52.2' (15.9 m)

Throw distance

● LCD panels are manufactured to the highest possible standards. Even though 99.99% of the pixels are effective, a tiny fraction of the pixels (0.01% or less) may be ineffective by the characteristics of the LCD panels.

AC 100 ~ 120 V (5.0 A Max. Ampere), 50 / 60 Hz

(The U.S.A and Canada)

AC 200 ~ 240 V (2.5 A Max. Ampere), 50 / 60 Hz

(Continental Europe and The U.K.)

Voltage and Power Consumption (PLV-80/PLV-80L)

APPENDIX

This projector is compliant with PJLink Standard Class 1 of JBMIA (Japan Business Machine and Information System Industries Association). This projector supports all commands defined by PJLink Class 1 and is verified conformance with PJLink Standard Class 1.

PJLink is a registered trademark of JBMIA.

PJ LINK NOTICE

SANYO Projector Input

RGB (AV HDCP)

RGB (PC (Analog)

RGB (PC Digital)

RGB (Scart)

Video Y, Pb/Cb, Pr/Cr RGB

PJLink Input

DIGITAL 2

RGB 1

DIGITAL 1

RGB 2

VIDEO 1 VIDEO 2

Video Y, Pb/Cb, Pr/Cr

VIDEO 3

VIDEO 4

RGB 3

VIDEO 5

S-video

INPUT-1

INPUT-2

INPUT-3

Parameter

11 12 31 32 21 22 13 23 24 25

CONFIGURATIONS OF TERMINALS

COMPUTER INPUT-1 TERMINALS (ANALOG)

Terminal : HDB15-PIN

Red Input

Ground (Horiz.sync.)

Green Input

Sense 2

Blue Input

Ground (Red) Ground (Green) Ground (Blue)

6 7 8

+5V Power

Horiz. sync.

Ground (Vert.sync.)

DDC Data

Sense 0

Vert. sync. DDC Clock

14 15

Pin Configuration

Terminal : Mini DIN 8-PIN

Pin Configuration

CONTROL PORT CONNECTOR

-----

CLK

DATA

GND

-----

GND

-----

R X D

-----

GND

RTS / CTS

T X D

GND GND

-----

ADB

-----

GND

-----

GND

PS/2 Serial

ADB 1 2 3 4 5 6 7 8

COMPUTER INPUT-1 TERMINAL (DIGITAL)

Terminal : DVI 24-pin

T.M.D.S. Data2–

No Connect

T.M.D.S. Data2+

No Connect

T.M.D.S. Data2 Shield

DDC Clock DDC Data No Connect

6 7 8

Pin Configuration

T.M.D.S. Data1–

No Connect

T.M.D.S. Data1+

No Connect

T.M.D.S. Data1 Shield

+5V Power Ground (for +5V) Hot Plug Detect

14 15 16

T.M.D.S. Data0–

No Connect

T.M.D.S. Data0+

No Connect

T.M.D.S. Data0 Shield

T.M.D.S. Clock Shield T.M.D.S. Clock+ T.M.D.S. Clock–

22 23 24

APPENDIX

9 678

8 7 6

APPENDIX

OPTIONAL PARTS

The parts listed below are optionally supplied. When ordering those parts, give the name and Type No. to the sales dealer.

● DVI Cable Type No. : KA-DV20

● HDB 15 pin-SCART 21 pin Cable Type No. : POA-CA-SCART

● Long Zoom Lens Type No. : LNS-T31A

● Ultra Long Zoom Lens Type No. : LNS-T32

● Short Zoom Lens Type No. : LNS-W31A

● Short Fixed Lens Type No. : LNS-W32

● PJ-Net Organizer Type No. : POA-PN40

LENS REPLACEMENT

The lens of this projector can be replaced with other optional lens which are sold separately. This feature enables you to use the projector for wide variety of uses. For installation and replacement of the lens, always contact the sales dealer. The projector lens must be installed or replaced by well-trained sales or service engineers. Do not attempt to do by yourself as it may cause injury.

After installing the lens, attach the lens cap to the lens when setting up the projector. Do not hold the lens when carrying or lifting the projector. It may cause serious damage to the projector.

APPENDIX

Write down the PIN code number in the column below and keep it with this manual securely. If you forgot or lost the number and unable to operate the projector, contact the service station.

Factory default set No: 1 2 3 4*

Factory default set No: 4 3 2 1*

*Should the four-digit number be

changed, the factory set number will be invalid.

Put the label below (supplied) on in a prominent place of the projector's body while it is locked with a PIN code.

While the projector is locked with the PIN code...

PIN Code Lock No.

Logo PIN Code Lock No.

PIN CODE NUMBER MEMO

Printed in Japan Part No. 610 324 1739 (1AA6P1P4949-- M4YA)

SANYO Electric Co., Ltd

Fisher PLV75L, PLV-75, PLV-80, PLV-80L User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

TO THE OWNER

SAFETY INSTRUCTIONS

COMPLIANCES

TABLE OF CONTENTS

FEATURES AND DESIGN

PREPARATION

CONNECTING PROJECTOR

BEFORE OPERATION

BASIC OPERATION

COMPUTER INPUT

VIDEO INPUT

PICTURE IMAGE

SETTING

APPENDIX
