Fisher ID EDGE Operating Manual
QUALITY
Fisher detectors are renowned for their quality.
In the Fisher tradition, each detector is hand crafted with pride
PERFORMANCE
Our detectors are durable, dependable, and search deeper.
REPUTATION
Fisher produced the rst patented metal detector in 1931. For
over 70 years, the Fisher logo has been a mark of excellence.
5-YEAR LIMITED WARRANTY
Fisher believes in the products we produce and backs this belief with
a 5-Year Limited Warranty. Warranty may vary outside the United
States. See your dealer for details
SERVICE
Fisher is committed to providing you, our valued customer, with
superior service. Each and every instrument is rigidly tested
& carefully inspected during assembly and before shipment.
Should you have any questions or problems, contact:
FISHER RESEARCH LABORATORY
200 West Willmott Road.,
Los Banos, California 93635
Tel 209.826.3292 Fax 209.826.0416
www.sherlab.com email: info@sherlab.com
FRL#8730024-C
ID EDgE
Target I.D. Metal Detector
F I S H E R R E S E A R C H L A B O R A T O R Y
Operating Manual
IDedgeManual-8730024 .indd 1 6/13/06 3:08:57 PM
CONTENTS
About Your Detector ...............................................................pg. 3
Setting Up .................................................................................pg. 4

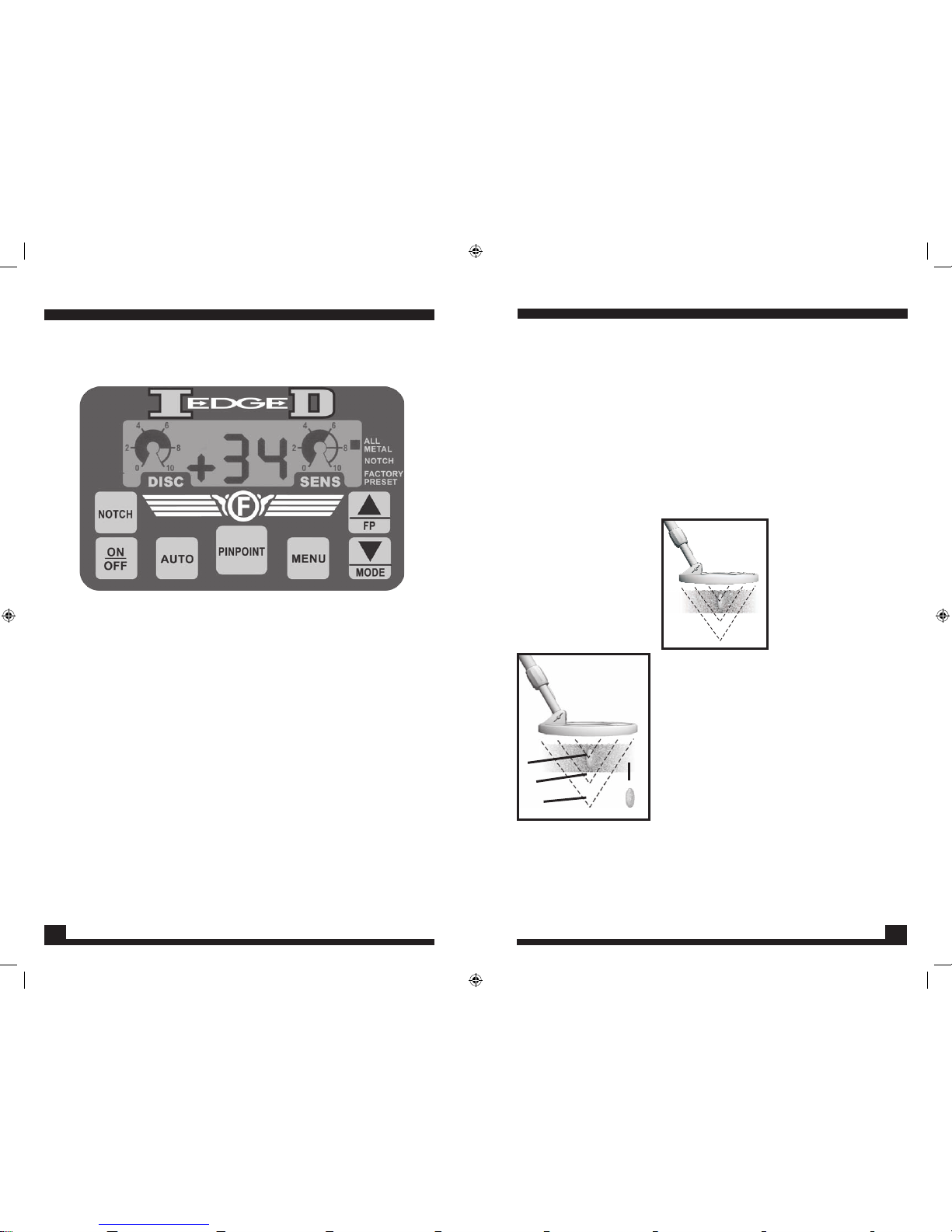

Control Panel ...........................................................................pg. 6
4 Tone Audio System ...............................................................pg. 10
Pinpointing ...............................................................................pg. 10
LCD Identication System .......................................................pg. 11
Auto ground Balance .............................................................pg. 12
Additional Features .................................................................pg. 13
Searching ................................................................................. pg. 14
Battery Replacement .............................................................. pg. 16
Maintenance ...........................................................................pg. 17
Treasure Hunter’s Code of Ethics ...........................................pg. 17
Specications ..........................................................................pg. 18
IDedgeManual-8730024 .indd 2 6/13/06 3:08:57 PM
SPECIFICATIONS
NOTES
WEIGHT
FREQUENCY
Complete ......................................... 2.76 lbs with 8” coil
Extended................. 52” Collapsed 3................ 42”
Type ..............................................Concentric, Co-planar Spider
Diameter .......................................8"
Shielding .......................................100% ESI
6
Submersible Coil ..........................Yes
LENGTH
OPERATING
MODES
SEARCH COIL
BATTERIES
WARRANTY
SPECIAL
FEATURES
18
Subject to improvement, modification
or change without notice.
• ID discrimination with 4 tone audio & high resolution numeric target ID
4
• Normal DISC (-36 to +22)
• Notch DISC: “FL”= foil, “5c”= nickel, “Pt”= pull-tab, “1c”= zinc penny, “—”= none
• Factory preset programs: “OC”= old coins, “MC”= modern coins, “JL”= gold jewelry “cP”= none
• True ALL-Metal mode with single tone & high resolution numeric target ID
4
• Pinpoint - no motion mode with precision numeric readout
1. Operating Frequency....................…6.25 kHz
2. Audio Target Response:
Iron ID .......................................…(LOW TONE)
Foil, Nickel, Rnd. Tabs .....................(MID/LOW TONE)
Square Tabs, Zinc ............................(MID/HIGH TONE)
Copper, Clad, Silver Coin .................(HIGH TONE)
Drop-in, no wires ....................................Yes
Automatic Battery Level Readout ...........Yes
Automatic Low Battery Alert .................. Yes
Type ........................ .............................. Two, 9-Volt Alkaline 5
5-Year Limited Warranty*
*warranty may vary outside of the United States, warranty applies to the original purchaser only. see your dealer for details.
1. Subject to improvement or modification without notice.
2. Approximate.
3. The ID Edge disassembles to fit into an optional carrying case measuring approximately 6"x 21" x 15".
4. The ID Edge is a motion detector in the All Metal and Target ID modes. The search coil must be moving at least
slightly to detect a target.
5. For maximum performance and battery life, always use Alkaline Batteries.
6. ESI: Electro-Static Insulated to eliminate certain types of false signals.
Controls ............................................... keypad with tactile response
Display ................................................. LCD with constant control readout
Audio ................................................... .4-tone digital audio ID system
Factory Preset Modes ........................... Yes (Old Coins, Modern Coins, Jewelry)
DISC control ....................................... Yes
SENS control ...................................... Yes
Volume control ..................................... Yes
Notch Disc ...........................................Yes
Fast Automatic Ground Balance ............ Yes
Last Setting Memory ............................ Yes
Audio OutputStereo Jack ...................... Stereo Headphones (Optional)
Speaker................................................ Built in
3
ABOUT YOUR DETECTOR
Your ID EDGE was engineered to give you the
edge in treasure hunting with deep detection
and accurate target ID. The ID EDGE is really 3
detectors in 1 with programming to nd old coins
& relics, modern coins and gold jewelry. Featuring
superior target separation, trash rejection and a
fast automatic ground balance system, you'll soon
nd that value and performance come standard
with the ID EDGE.
Read th is inst ructi on manu al thoroughl y,
practice often and you will be ready for some
exciting and rewarding treasure hunting. Drop us
a line if you have any questions, comments or good
nds to tell us about. In the meantime...
Happy Hunting!
Fisher Labs
IDedgeManual-8730024 .indd 3 6/13/06 3:08:58 PM
