INSTRUCTION MANUAL
ICR-B50
Digital Voice Recorder
SANYO'S HELP-LINE
Call the toll-free number below if you have any difficulties operating this
product.
1-877-999-1840 (Weekdays 8:00 AM - 5:00 PM, Pacific Time)
LlNEA DE CONSULTA SANYO
Llame gratis al número indicado a continuación si tiene dificultades al
utilizar este producto.
1-877-999-1840 (días laborables de 8:00 AM a 5:00 PM, hora del Pacífico)
ENGLISH
1AD6P1P1429--A
ICR-B50, Issue Number 2, Printed in China
ESPAÑOL
ENGLISH
CONTENTS
ACCESSORIES .....................................................................................2
PRECAUTIONS ..................................................................................... 2
CONTROLS ...........................................................................................3
POWER SUPPLY...................................................................................4
BEFORE OPERATION .......................................................................... 5
SELECTING THE MENU MODE ........................................................... 7
RECORDING ......................................................................................... 9
PLAYBACK........................................................................................... 12
ERASING ............................................................................................. 15
VOICE ALARM TIMER.........................................................................17
PC (Personal Computer) CONNECTION.............................................18
CLEANING THE CABINET ..................................................................23
TROUBLESHOOTING GUIDE.............................................................24
USER LICENSE AGREEMENT...........................................................25
FCC INFORMATION............................................................................30
SPECIFICATIONS ............................................................................... 30
WARRANTY (For USA)........................................................................31
WARRANTY (For Canada) ..................................................................34
Important Information:
Notes on clock setting
Be sure to set the date and time of the unit’s clock before you start using
it. (See “Adjusting the date and time” in “BEFORE OPERA TION” section.)
Backup recommendation
To avoid potential risk of data loss caused by accidental operation or
malfunction of the unit, we recommend that you save a backup copy of
your recorded massages on the PC, etc.
1
234
POWER SUPPL Y
Batteries
1. Open the battery compartment lid.
2. Install two “AAA” batteries. Observe proper polarity.
Battery indicator ( )
BEFORE OPERA TION
Earphone
Connect an earphone (8 ohms, cord length less than 2 meters (6 feet, 6
inches), not supplied) to the EAR jack. (The speaker is automatically disconnected.)
Note: Be sure to reduce the volume before connecting or disconnecting
the earphone.
External microphone
Connect an external microphone (not supplied) to the MIC jack. (The builtin microphone is automatically disconnected.)
Turning the power on and off
Press the n button to turn on the power.
The display appears as shown right. The
unit is now in standby mode.
To turn off the power, press the n button
for at least 1 second in the stop mode.
Auto power off function
The power turns off automatically when 5 minutes have elapsed after entering the stop, playback pause or recording pause mode.
Hold function
The HOLD switch (back of the unit) disables the buttons (m, n, a, c or
d) from operating, to prevent playback or recording due to accidental
operation.
Set the HOLD switch to ON. “HOLD ON” appears briefly on the display.
For normal use, set the switch to OFF. “HOLD OFF” appears briefly on the
display.
5
Fig. 4
Adjusting the date and time
1. Press the MENU button repeatedly until the date and time display appears.
Fig. 5
2. Press the TIME/SET button. The year display blinks.
3. Press the c or d button repeatedly to select the year.
Fig. 6
4. Press the TIME/SET button. The month display blinks.
5. Set the month, day, hour and minute by following steps 3 - 4 above.
• The time can be set accurately by pressing the TIME/SET button
when a time signal is heard.
6. Press the n button to return the original display.
Changing the clock to the 12-hour (or 24-hour) display
1. Press the MENU button repeatedly until “12/24” appears.
2. Press the TIME/SET button. “24HOUR” (or “12HOUR”) blinks.
3. Press the c or d button once. “12HOUR” (or “24HOUR”) blinks.
4. Press the TIME/SET button.
6
SELECTING THE MENU MODE
1. Press the MENU button repeatedly to select the
desired menu mode. Each time the button is
pressed, the display changes as follows:
FOLDER v EDIT v AUTO PAUSE v Date and time v VAS v REC
v
BEEP v ERASE GUARD v 12/24 v Original display returns
2. T o change the setting of a sub-menu in the selected menu mode, press
the TIME/SET button so that the display blinks.
3. Press the c or d button to select a new sub-
menu. (See “Various menu modes” below.)
4. Press the TIME/SET button to set it.
5. Repeat steps above to change other settings.
6. Press the n button to return to the original display.
Various menu modes
FOLDER: Selecting folder mode
PERS
wv
BUSI
wv
LECT
wv
OTHER
PERS: Personal BUSI: Business
LECT: Lecture OTHER: Others
ALARM: Voice alarm
EDIT: Selecting edit mode
OVER WRITE
OVER WRITE: Overwrite recording
INSERT: Insertion recording (“INSERT” appears on the display.)
AUTO P AUSE: Selecting auto pause time mode
PAUSE 03SEC
PAUSE OFF
Note: The initial setting of the auto pause function is ON (3
seconds).
7
wv
INSERT
wv
PAUSE 04SEC w ... v PAUSE 10SEC
wv
PAUSE 01SEC
wv
wv
ALARM
PAUSE 02SEC
wv
...
Fig. 7
Fig. 8
wv
Date and time (See “Adjusting the date and time”.)
VAS (Voice activated system): Selecting V AS mode
VAS OFF
VAS OFF: To start and stop recording manually
VAS ON: Recording begins when the unit picks up sound, and stops
after the sound stops. Press the + or – VOLUME button to set the microphone’s sensitivity when recording begins. The VAS sensing level
appears on the display (“VAS 01” ~ “VAS 10”). “VAS” appears.
REC: Selecting recording time mode
REC STAND (Standard)
REC STAND: For better sound quality (The unit can record for up to
approx. 80 minutes.)
REC LONG: For longer recording (The unit can record for up to approx.
110 minutes.)
BEEP: Selecting beep mode
BEEP ON
BEEP ON: Every time the operation buttons are pressed, a beep sound
will be heard.
BEEP OFF: No beep sound
ERASE GUARD: Selecting erasing guard mode (See “Erasing guard”.)
GUARD OFF
GUARD OFF: Y ou may erase the data.
GUARD ON: Y ou cannot erase the data. “ ” appears on the display .
12/24: (See “Changing the clock to the 12-hour (or 24-hour) display”.)
wv
VAS ON
wv
BEEP OFF
wv
wv
GUARD ON
REC LONG
Original display returns
8
RECORDING
1. Press the n button to turn the power on.
2. Set the REC MODE switch (back of the unit) to select the desired
recording mode.
DIC (Dictating): “ ” appears.
CONF (Conference): “ ” appears.
LECT (Lecture): “ ” appears.
Note:
If an external microphone (not supplied) is connected, the recording
mode cannot be changed. “ ” appears.
3. Select the desired folder name, VAS and recording time modes. (See
“SELECTING THE MENU MODE”.)
4. Press the m button (red). Recording starts with
new file number.
Example: The display appears as shown below.
Folder name
Current file number Total file number
(Red)
Fig. 9
Elapsed recording time
5. Press the n button to stop the recording at any time.
Note:
• The unit can record up to file number 99 for each folder (except ALARM
folder).
• When the recording time is full, “MEMORY FULL” appears briefly . In this
case, erase the unnecessary file.
9
Fig. 10
• If the CUE INDEX button is pressed during recording, an index mark is made (INDEX number
appears briefly) and recording continues. (Up to
16 index marks, for each file, can be made. Index
marks cannot be deleted individually.)
File number
Each time a recording is made, a file number is automatically placed in the
memory at the beginning of the recording.
Temporarily stopping recording (Recording pause)
Press the m button. The elapsed recording time blinks on the display. To
resume recording, press the button again.
EDITING THE RECORDED DATA
Overwrite recording
T o overwrite recorded material (Previous recorded material will be erased.)
1. Select the “OVER WRITE” edit mode. (See “SELECTING THE MENU
MODE”.)
2. Locate the desired point during playback, then press the a button to
pause.
• Elapsed playing time blinks.
3. Press the m button. Over writing recording starts from the paused
position. (The CUE INDEX button will not function during over writing
recording.)
4. Press the n button to stop the recording.
Fig. 11
10
Insertion recording
To insert into a file (Previous recorded material will remain.)
1. Select the “INSERT” edit mode. “INSERT” appears on the display .
(See “SELECTING THE MENU MODE”.)
2. Locate the desired point during playback, then press the a button to
pause.
3. Press the m button. Insertion recording starts from the paused position.
(The CUE INDEX button will not function during insertion recording.)
4. Press the n button to stop the recording.
Notes:
• The edit mode (OVER WRITE
pressing the CUE INDEX button during play back paused.
• In case of paused recording, the mode can be changed to play back.
Press the a button.
wv
INSERT) can be changed by
11
PLAYBACK
1. Set the PLAY SPEED switch (back of the unit) to SLOW, STD, or FAST.
SLOW: Slow-speed playback
STD: Standard-speed playback
FAST: Fast-speed playback
2. Select the desired folder name. (See “SELECTING THE MENU MODE”.)
3. Press the a button.
Fig. 12
Folder name
Current file number Total file number
Elapsed playing time
• To start playback from the desired file, select the file number by
pressing the c or d button, then press the a button.
• If no data was recorded in the selected folder, “NO DA TA” appears.
4. Press the + or – VOLUME button as desired.
5. Press the n button to stop playback at any time.
Temporarily stopping playback (Playback pause)
Press the a button. Elapsed playing time blinks. T o resume playback, press
the button again.
Fig. 13
12
Auto pause
When the end of the file is reached during playback, “AUTO” and “PAUSE”
appear in turn. The unit pauses automatically for the preset auto pause
time. After the set time elapses, the next file playback begins.
Press the a button during auto pause to return to the normal pause mode.
File skip
Press the c or d button to skip to the desired file.
In case the auto pause is set, if the c button is pressed during playback,
the unit enters the auto pause mode at the end of the file. Press the c
button again to play back the next file.
File search
If the c or d button is pressed during playback, the unit will search at
high speed in the forward or reverse direction while the button is being
pressed. When the button is released, normal playback will continue.
Index search
If an index mark was made in the file, press the CUE INDEX button during
playback. The unit will search for the next index point and playback starts
from this point.
Repeat
1. Press the REPEAT button during playback.
“ ” appears.
The unit plays back repeatedly the last 5 seconds
of recorded content in the selected file. (If the recorded times are shorter than 5 seconds, repeat
playback starts from the beginning of the current
file.)
2. Press the REPEAT button again to return to normal playback.
Fig. 14
13
Time display
Press the TIME/SET button repeatedly during recording, playback and stop
mode. The display changes as follows.
In recording mode
Recording time mode, Current file number/Total file number, Remaining recording time v Current time v Original display returns.
Example of remaining recording time:
Recording time
mode
Remaining recording
time
Fig. 15
In playback mode
Recorded date/time v Current time v Recording time mode, Current
file number/Total file number, Remaining playing time v Original display returns
In stop mode
Recording time mode, Remaining recording time v Current time
Original display returns
To secure the unit
In case the unit is used by unauthorised persons, you can set the security
mode.
To switch security mode on/off during power off, press the TIME/SET and
MENU buttons simultaneously. The buttons must be pressed for 4 seconds
long. The display shows “SECURI ON”/“SECURI OFF”.
v
14
ERASING
Important Note:
Before erasing, make sure that the battery indicator is full.
Preparations
1. Press the MENU button to select “FOLDER”.
2. Press the TIME/SET button. The folder name blinks.
3. Press the c or d button to select the folder to be erased, then press
the TIME/SET button.
4. Press the n button to return to the original display.
Erasing one file in memory
1. Press the c or d button to select the file number to be erased.
2. Press the ERASE button once. The file number and “ERASE” blink.
Fig. 16
3. While the display is blinking, press the TIME/SET button. “ERASE” ap-
pears briefly. The file memory in the selected folder is erased. All the file
numbers after the file that was erased are reduced by one.
Erasing one folder memory
1. Press the ERASE button twice. The folder name, file numbers and
“ERASE” blink.
2. While the display is blinking, press the TIME/SET button. “ERASE” ap-
pears briefly. All memories in the selected folder are erased.
Erasing all memories
1. Press the ERASE button three times. “MEMORY ALL ERASE” blinks.
2. While “MEMORY ALL ERASE” is blinking, press the TIME/SET button.
“ERASE” appears briefly. All memories in all folders are erased.
15
Partial erasing (A-B erasing)
1. Press the c or d button to select the file number.
2. Press the a button to start playback.
3. Press the a button again to pause at the starting point you want to
erase (point A).
4. Press the ERASE button. “ERASE STAR T” blinks.
5. While “ERASE ST ART” is blinking, press the TIME/SET button. “ERASE”
remains. Playback starts.
6. Press the ERASE button at the ending point you want to erase (point
B). “ERASE END” blinks.
7. While “ERASE END” is blinking, press the TIME/SET button. “ERASE”
appears briefly. The section between points A and B in the selected file
is erased. Playback pause is issued.
Notes:
• The ERASE button will not function during recording and playback.
• Erase all function can only be operated if in the actual selected folder
there is at least one file.
Erasing guard
Erasing guard functions to prevent accidental erasure.
1. Press the MENU button repeatedly to select “ERASE GUARD”.
2. Press the TIME/SET button.
3. Press the c or d button to select “GUARD ON”. “ ” appears.
4. Press the TIME/SET button.
In the erasing guard mode, the ERASE button will not function.
16
VOICE ALARM TIMER
1. Press the n button to turn the power on.
2. Select the sub-menu “ALARM” of “FOLDER”. (See “SELECTING THE
MENU MODE”.) “FOLDER ALARM” appears.
3. Press the n button to return to the original display mode.
4. Press the c or d button to select the file number (01/02 or 02/02).
5. Press the m button to record your alarm message.
6. Press the n button to stop.
7. Press the TIME/SET button. “OFF” or “ON” blinks.
8. Press the c or d button to select “ON”. “ ” or “ ” appears.
9. Press the TIME/SET button. The year display blinks.
10. Set the timer ON time by using the TIME/SET, c or d button. (Refer
to “Adjusting the date and time”.)
11. Press the MENU button to select the other folder as desired. (See
“SELECTING THE MENU MODE”.)
When the alarm ON time arrives, the voice alarm will be activated as shown
below:
At stop mode:
• Beep 1 time & Voice message (If voice message is recorded.)
• Beep 10 times (If no voice message is recorded.)
During playback mode:
The operation is the same as “At stop mode” as above. And, it goes back to
the previous point and pauses.
During recording mode:
Beep 1 time (Recording will not be interrupted.)
At power off mode:
• Beep 1 time & Voice message (If voice message is recorded.)
• Beep 10 times (If no voice message is recorded.)
17
PC (Personal Computer) CONNECTION
Important Note:
Y our PC must run the Windows98 operating system with parallel port.
Windows is a registered trademark of Microsoft Corporation.
Playing back/Editing a data file recorded with your PC
Digital voice recordings can be transferred to the PC for playback or editing.
Before you start, install the “PC Memo Scriber” program on the PC as
follows.
1. Load the PC Memo Scriber CD-ROM in the CD-ROM drive of the
PC.
The set-up program starts automatically.
Note:
If the set-up program doesn’t start…
1) Choose [Run] on the Start menu.
2) T ype the following line:
D:\PCMEMO\setup.exe
“D” (is the drive letter) should be replaced by the CD-ROM
drive letter on your PC.
3) Click [OK].
2. Follow the instructions on the screen.
Installing the Acrobat Reader
1. Double-click on [ar405eng.exe] in the Manual folder on the CD-ROM.
The [ar405eng.exe] name may differ between the countries.
2. Follow the instructions on the screen.
Acrobat Reader is a registered trademark of Adobe Systems Incorporated.
18
19
4. Press the REPEAT and CUE INDEX buttons at the same time to select
“ENROLL”.
5. Operate the PC and start “ViaVoice”. (Follow the instruction manual
supplied with ViaVoice.)
Notes on operating ViaV oice
For ViaVoice Millennium:
1) On the desktop of Windows, select [Start] > [Settings] > [Control
Panel]. Double-click [IBM ViaVoice Options] icon. The “IBM
ViaVoice Options” screen appears.
2) Select [Sanyo ICR-B50 W avefile] in the [Input Device] field.
3) Click [Add/Modify] or [Add User]. The “ViaVoice User Wizard”
screen appears.
4) Select “First Voice Model [Sanyo ICR-B50 Wavefile]” in the “Voice
Model” field. Select “[Sanyo ICR-B50 Wavefile]” in the “Device”
field.
5) Click [Next]. The Setting Up and the Enrollment will go on.
If the recorded voice from the ICR-B50 cannot be recognized using
the Audio Setup Wizard, follow the steps below.
1) On the desktop of Windows, select [Start] > [Programs] > [Acces-
sories] > [Entertainment] > [Volume Control].
2) On the Menu bar, click [Options] > [Properties].
3) Click [Recording] in [Adjust volume for].
4) Click the [Line-In] check box in [Show the following volume con-
trols].
5) Click [OK].
6) In the [Recording control], click the [Select] check box under [Line-
In].
20
6. Speak into the unit to record your voice.

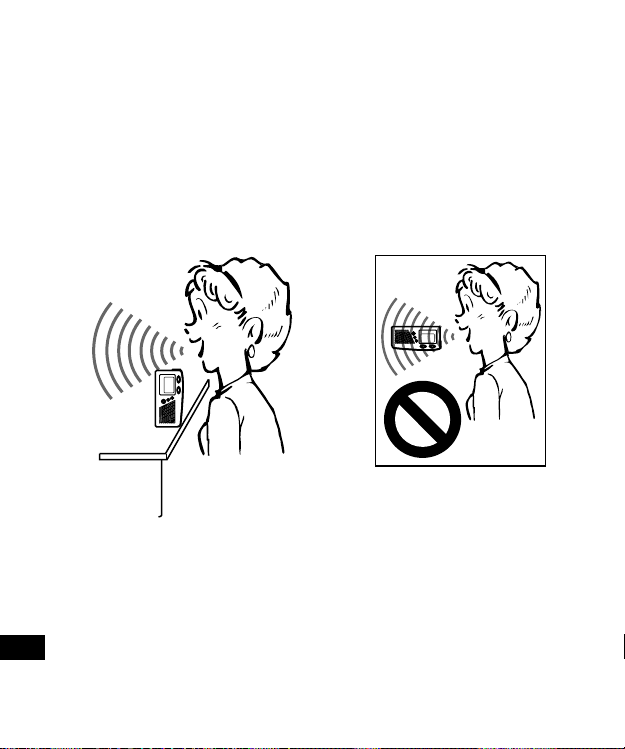

Notes on enrolling (Fig. 18)
It is important to place the unit in a proper position to achieve maximum
recognition precision during the transcription process.
• Place the unit 5 to 8 cm (2 to 3 inches) away from your mouth.
• To prevent the microphone from picking up your breathing, do not
place the microphone right in front of your mouth. Hold it a little bit
to the side.
• When speaking, do not touch the unit or do not breathe into the
microphone.
7. To stop enrolling, press the n button.
8. After enrollment is completed, disconnect the audio cable.
Fig. 18
21
Important Note:
When you attempt to transcribe a data file of the ICR-B50, be sure to enroll
by using the ICR-B50. If you enroll data by using the headset supplied with
ViaVoice, an extremely low recognition rate results.
Note:
IBM ViaVoice Millennium must be used.
IBM and ViaVoice are registered trademarks of International Business
Machines Corporation.
Creating a data file for transcription
1. Press the n button to turn on the power.
2. Select the “DICTATING” recording mode.
3. Select the “STANDARD” recording time mode.
4. Press the m button, then start dictating (when dictating, pay attention to
“Notes on enrolling”).
Transcribing a data file
Note:
Only the data file recorded under the “DICTATING” recording mode and the
“STANDARD” recording time mode can be used for transcription.
1. Connect the unit to the PC using the DIGITAL I/O cable and Parallel
port Adapter.
2. Operate the PC and select a file to be transcribed. (Follow the instructions
on the CD-ROM.)
3. Click [ ]. “ViaVoice” starts automatically and the selected file will be
transcribed.
22
CLEANING THE CABINET
Clean the outside of the unit with a clean soft cloth, moistened with lukewarm
water. Do not use benzene, thinner or alcohol since they will mar the finish
of the surfaces.
23
TROUBLESHOOTING GUIDE
SYMPTOM
POSSIBLE CAUSE
CORRECTIVE ACCTION
The unit does not operate.
The batteries are discharged or not installed.
Insert two new “AAA” batteries.
“ ” appears.
The batteries are discharged.
Insert two new “AAA” batteries.
“HOLD” appears when the operation button is pressed.
Hold function is set.
Set the HOLD switch to OFF.
No sound.
The earphone is plugged in.
Unplug the earphone.
The volume is turned down completely.
Press the + VOLUME button to adjust the sound level.
Cannot erase.
The erasing guard is set. (“ ” appears.)
Cancel the erasing guard. Refer to “Erasing guard”.
Operation or display is not normal.
The unit must be reset.
See “WHAT TO DO IF…” on page 2.
24
READ CAREFULLY BEFORE USE!!!
USER LICENSE AGREEMENT
IMPORTANT! — BY INSTALLING, COPYING, ACCESSING, DOWNLOAD-
ING, AND/OR USING THIS THE SOFTWARE, YOU ARE CONSENTING
TO BE BOUND BY AND ARE BECOMING A PARTY TO THIS AGREEMENT AS A LICENSEE. IF YOU DO NOT AGREE TO ALL OF THE TERMS
OF THIS AGREEMENT, TERMINATE THIS INSTALLATION PROCESS
OR, IF THE SOFTWARE IS ALREADY INSTALLED, IMMEDIATELY
UNINSTALL IT.
THIS USER LICENSE AGREEMENT (“this Agreement”) shall serve as a
legally binding instrument between you (as “Licensee”, whether an individual
or a corporation, regardless) and SANYO Technosound Co., Ltd. (“Licen-
sor”) concerning the Licensee’s use of a single SANYO SOFTWARE
PRODUCT (“the Software”) under the terms and conditions set forth herein.
The Software shall include, but without limitation, computer software and
related media materials, printed materials (documents such as user manuals), and electronic documents whether or not retrieved by licensee “on-line”,
and shall include any updates and upgrades thereof supplied by Licensor
having additional features and functions.
Where a separate User License Agreement is attached to any the Software
supplied by Licensor, the terms and conditions of that User License Agreement shall also apply in addition to the terms and conditions set forth in this
Agreement.
If you are unable to agree to any of the terms and conditions set forth herein,
Licensor is unable to grant you the license to install, use or copy the Software.
The Software covered under this Agreement is protected under the international conventions and treaties on copyright and the related laws and
regulations. This license shall constitute a grant of a license to Licensee for
a single use of the Software and may not be deemed under any circumstances to constitute a sale of the Software itself.
25
1. Grant of License. Licensor shall grant Licensee a non-exclusive, nonsublicensable, non-transferable license for the use of the Software
under the terms and conditions set forth herein:
• System Software
Licensee may use the Software only in a single computer or on a
computer network (“the Computer”, including without limitation, workstation, terminal, and/or other digital or electronic device) in binary executable form.
2. Other rights and limitations
• Reverse engineering, etc.
Except as expressly provided herein, Licensee shall not copy, modify
reproduce, display, decompile, reverse engineer, reverse assemble,
store, translate, sell, lease or otherwise transfer, distribute the Software,
in whole or in part, nor may Licensee use the Software with the intent to
clone any proprietary product to Licensor.
• Separation or division of the Software prohibited
This license hereby is granted for a single use only. In no circumstances
shall Licensee separate, divide or compartmentalize any constituent
portion(s) of the Software into multiple parts, sections, or compartments
for use in multiple computers.
• Rental, lease or loan prohibited
Licensee shall not lend, lease or loan the Software to any party(ies).
• User support service by Licensor
Licensor may choose to provide user support service in accordance with
the Licensor’s policy set out in User Manual, On-line documents, or other
printed matters made available by Licensor from time to time (the
“Support Service”). All additional software code made available to
Licensee as a part of the Support Service shall be deemed to constitute
a part of the Software hereof to which all the terms and conditions of this
Agreement shall apply. Licensor shall be entitled to use for commercial
26
purposes or otherwise any and all technical information (the “Technical
Information”) provided by Licensee to Licensor, provided, however, that
Licensor shall ensure that the identity of the Licensee shall remain
undisclosed in the Licensor’s use of all such Technical Information.
3. Other Intellectual Proprietary Rights
Licensor or its supplier is the owner of all right, title and interest in and
to the Software and its documents such as user manual and any and all
copies thereof. The proprietary ownership of all data operated using this
Software shall remain with the respective owner(s) and shall be protected by the international conventions and treaties and other intellectual
proprietary rights. Licensee shall not be deemed, by anything contained
in or done pursuant to this Agreement to acquire any right, title, or interest
in any trademark, copyright, patent or other intellectual property of
Licensor, and shall do nothing to prejudice the value or validity of the
respective owner’s rights therein or ownership thereof. Licensor shall
preserve the proprietary ownership of any and all rights and titles in the
Software not specifically provided herein.
4. Backup copy
After having installed a copy of the Software pursuant to this Agreement,
Licensee may make a single copy of the Software for backup and
archival purposes only, provided that any copy must contain all proprietary notices included in the original. If another original medium becomes necessary to use the Software on a computer under this Agreement, Licensee may make a single copy of the Software. Except as
specifically provided herein, Licensee shall refrain from making copy of
the Software or its incidental documents such as user manual in any
manner whatsoever.
27
5. DISCLAIMER OF WARRANTY:
THE SOFTWARE IS DEEMED ACCEPTED BY LICENSEE UPON IT’S
USE BY LICENSEE.
THE SOFTWARE IS PROVIDED TO LICENSEE AS IS, WITHOUT
WARRANTY OF ANY KIND. TO THE MAXIMUM EXTENT PERMITTED BY APPLICABLE LAW. LICENSOR FURTHER DISCLAIMS ALL
WARRANTIES, INCLUDING WITHOUT LIMITATION, ANY IMPLIED
WARRANTIES OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE, AND NON INFRINGEMENT. THE ENTIRE RISK
ARISING OUT OF THE USE OR PERFORMANCE OF THE PRODUCT
AND DOCUMENTATION REMAINS WITH LICENSEE. IN NO EVENT
SHALL LICENSOR OR ITS SUPPLIERS BE LIABLE FOR ANY CONSEQUENTIAL, INCIDENTAL, DIRECT, INDIRECT, SPECIAL, PUNITIVE OR OTHER DAMAGES WHATSOEVER (INCLUDING WITHOUT
LIMITATION, DAMAGES FOR LOSS OF BUSINESS PROFITS, BUSINESS INTERRUPTION, LOSS OF BUSINESS INFORMATION, OR
OTHER PECUNIARY LOSS) ARISING OUT OF THIS AGREEMENT
OR THE USE OF OR INABILITY TO USE THE PRODUCT, EVEN IF
LICENSOR HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH
DAMAGES. LICENSOR DOES NOT WARRANT THAT THE SOFTWARE DOES NOT INCLUDE ANY VIRUS OR DEFECTS, THE SOFTWARE ROUTINE OR OTHER SOFTWARE DESIGNED TO RESTRICT
UNAUTHORIZED ACCESS; OR TO DISABLE, ERASE OR OTHERWISE HARM THE SOFTWARE, HARDWARE, OR DATA; OR TO
PERFORM ANY OTHER SUCH ACTIONS AND LICENSOR HEREBY
EXPRESSLY DISCLAIMS ANY AND ALL LIABILITIES TO RESTORE
ANY SUCH DEFECTS.
28
6. Indemnification:
Licensor will not have any liability to Licensee for, and Licensee will
defend and hold Licensor harmless against, any claim, expense, judgment, liability, or loss (including attorneys’ fees and expert witnesses’
expenses) based on Licensee’s use of any content of the Software,
arising from any intellectual property claim (including patent, trademark,
copyright, or trade secret infringement), any right of publicity or privacy
claim, or any defamation or unfair competition claim.
7. Termination.
Without prejudice to any other rights, Licensor may terminate this
Agreement if Licensee fails to comply with the terms and conditions
herein. Licensee may also terminate this Agreement at any time by
destroying the Software and Documentation and all copies thereof. The
provisions of sections 2, 3, 4, 5, 6 and 7 shall survive any termination of
this Agreement.
8. Restricted Rights and Export Restrictions
Licensee shall not use the Software and/or Support Service for military
purposes, nor shall directly or indirectly use the Software in the development, production or handling of conventional weapons or weapons of
mass destruction, including but not limited to, nuclear, chemical or
biological weapons and missiles.
Licensee acknowledges that none of the Software or underlying information or technology may be downloaded or otherwise exported or reexported into (or to a national or resident of ) Cuba, Iraq, Libya, Yugoslavia
(Serbia and Montenegro), North Korea, Iran, Syria.
29
FCC INFORMA TION
FOR HOME OR OFFICE USE
Tested To Comply
With FCC Standards
Model Number : ICR-B50
Trade Name : Sanyo
Responsible Party : SANYO FISHER COMPANY
Address : 21605 Plummer Street
Telephone No. : (818) 998-7322
• This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions:
(1) this device may not cause harmful interference,
and
(2) this device must accept any interference received, including
interference that may cause undesired operation.
Declaration of Conformity
Chatsworth, California 91311
SPECIFICA TIONS
Frequency response
200 Hz - 4,600 Hz (Standard mode)
200 Hz - 3,400 Hz (Long mode)
Output power
100 mW (DC max.)
Power source
DC: DC 3V (2 “AAA” batteries)
Loudspeaker
8 ohms (1.1" Dia.)
Output terminal
EAR: 8 ohms (1/8" Dia.)
Dimensions
Approx.1.8" (W) x 3.7" (H) x 0.6" (D)
Weight
Approx. 2 oz (without batteries)
30
For USA
SANYO SERVICE PLUS LIMITTED
WARRANTY
DICTATION PRODUCTS ONLY
In order to obtain factory warranty service for Sanyo Dictation Products,
call the toll-free number below. The unit must be packed in the original
carton or a well-padded sturdy carton in order to avoid shipping damage.
Note: Do not return this unit to the retail store for service.
T o obtain Service Plus Warranty service, product operation information or
for problem resolution, call
OBLIGATIONS
Toll Free 1-877-999-1840
Weekdays 8:00 AM – 5:00 PM Pacific Time
THIS WARRANTY IS VALID ONLY ON SANYO DICTATION PRODUCTS
PURCHASED AND USED IN THE UNITED STATES OF AMERICA, EXCLUDING ALL U.S. TERRITORIES AND PROTECTORA TES. THIS W ARRANTY APPLIES ONLY TO THE ORIGINAL RETAIL USER, AND DOES
NOT APPLY TO PRODUCTS USED FOR ANY INDUSTRIAL, PROFESSIONAL, OR COMMERCIAL PURPOSE. THE ORIGINAL DATED BILL
OF SALE OR SALES SLIP MUST BE SUBMITTED AT THE TIME WARRANTY SERVICE IS REQUESTED.
31
Subject to the OBLIGATIONS above and EXCLUSIONS below, SANYO
FISHER COMPANY (SFC) warrants this SANYO Dictation product against
defects in materials and workmanship for the periods of LABOR and PAR TS
specified below. SFC will, at its option, within two business days after its
receipt of any dictation product that fails to conform to this warranty at SFC’s
designated facility, either (a) repair such product or any of its parts which
fail to conform to this warranty or (b) ship a replacement product. The
warranty period commences on the date the product was first purchased at
retail.
LABOR PARTS
1 YEAR 1 YEAR
This warranty does not cover (A) the adjustment of customer-operated controls as explained in the appropriate model’s instruction manual, or (B) the
repair of any product, whose serial number has been altered, defaced or
removed. This warranty shall not apply to the cabinet or cosmetic parts,
antenna, knobs, batteries or routine maintenance.
This warranty does not apply to repairs or replacements necessitated by
any cause beyond the control of SFC including, but not limited to, any malfunction, defect, or failure caused by or resulting from unauthorized service
or parts, improper maintenance, operation contrary to furnished instructions, shipping or transit accidents, modification or repair by the user, abuse,
misuse, neglect, accident, incorrect line voltage, fire, flood, or other Acts of
God, or normal wear and tear.
The foregoing is in lieu of all other expressed warranties and SFC does not
assume or authorize any party to assume for it any other obligation or liability.
EXCLUSIONS
32
THE DURATION OF ANY WARRANTIES WHICH MAY BE IMPLIED BY
LAW (INCLUDING THE W ARRANTIES OF MERCHANT ABILITY AND FIT NESS) IS LIMITED TO THE TERM OF THIS WARRANTY. IN NO EVENT
SHALL SFC BE LIABLE FOR SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES ARISING FROM OWNERSHIP OR USE OF THIS PRODUCT, OR FOR ANY DELAY IN THE PERFORMANCE OF ITS OBLIGATIONS UNDER THIS WARRANTY DUE TO CAUSES BEYOND ITS CONTROL. SOME STATES DO NOT ALLOW LIMITATIONS ON HOW LONG
AN IMPLIED WARRANTY LASTS AND/OR DO NOT ALLOW THE EXCLUSION OR LIMITA TION OF CONSEQUENTIAL DAMAGES, SO THE ABOVE
LIMITA TIONS AND EXCLUSIONS MA Y NOT APPLY TO YOU. THIS W ARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS. YOU MA Y HA VE OTHER
RIGHTS, WHICH VARY FROM STATE TO STATE.
For your protection in the event of theft or loss of this product, please fill in
the information below for your own personal records.
Model No.
Serial No.
(Located on back or bottom side of unit)
Date of Purchase
Purchase Price
Where Purchased
S/D R1
33
21605 Plummer Street
Chatsworth, CA 91311
Loading...
