Fisher FB200-2 User Manual

FB200-2

Electrophoresis

Power Supply

Operator’s Manual

Fisher Biotech FB200 Electrophoresis Power Supply

Table of Contents

Safety Considerations 2

Introduction 3

Unpacking the Power Supply 3

Specifications 4

Getting Started 5

Using the Power Supply 5

Constant Voltage Operations 6

Constant Current Operations 6

Timed Operations 6

Automatic Power-fail Restart 7

Cleaning 7

Troubleshooting and Error Indications 8

FB200 Warranty Statement 9

Compliance 9

Replacement Parts 10

FB200-2 MANUAL Page 1 7608175 Rev A 8/02

Safety Considerations

Read and understand this manual completely before attempting to set up or use this instrument.

This equipment has been designed and tested to conform to IEC1010-1 safety standards, as applicable to laboratory instrumentation. This applies only to the FB200 when used as specified in the documentation, in its intended applications, with Fisher Biotech approved electrophoresis apparatus only. Usage in any other manor may not provide similar performance or safety protection.

This equipment is provided with a 3-conductor, grounded AC line cord. The protective earth ground is necessary for safe operation. Do not use any other AC line cord with this instrument.

The FB200 is a high voltage power supply capable of generating dangerous levels of voltage and current during operation. Exercise caution when working around and with the electrical connections of this equipment. Always check electrical connectors, wires, and associated apparatus for any signs of wear or damage before using with this equipment. Be sure to use only electrophoresis equipment that is suitably rated for the voltage and current capabilities of the FB200 power supply.

The output of the FB200 power supply is intended for connection to electrically isolated electrophoresis apparatus only. Use only with electrically isolated electrophoresis apparatus with minimum isolation of 600V. Do not connect any terminal of the FB200 output to earth ground. This may impair the safety protection provided by the equipment, or cause equipment damage.

The high voltage output of the FB200 power supply takes some amount of time to decay when unloaded or lightly loaded. Wait a minimum of 60 seconds after stopping a run before touching the power supply leads.

This equipment has a protective ground leakage current of 0.5mA at 120VAC, and 1mA at 230VAC. While significantly below the 3.5mA limitation for laboratory instrumentation, some applications and locations require a leakage current below 0.5mA. Check the specific requirements of your application before using this equipment.

This equipment is for indoor use only.

FB200-2 MANUAL Page 2 7608175 Rev A 8/02

Introduction

Thank you for selecting a Fisher Scientific FB200 Electrophoresis power supply. This manual describes the operation of the FB200. The power supply that you have purchased is the most productive and easy-to-use unit available anywhere. This manual should answer any questions that might arise in operating your power supply; however, don't hesitate to call our Fisher Lab Equipment Technical Support Hotline at 1-800-943-2006 or 1-800-926-0505 if you need any assistance.

The FB200 power supply is designed to provide constant voltage or constant current output to apparatus used in electrophoresis applications. One to four sets of electrophoresis cells can be connected in parallel and run simultaneously. The FB200 can deliver up to 200W of total output power. When operating in constant voltage or constant current mode, the power supply automatically limits the other parameter to either the power supply maximum, or a lower limit if set by the user. If this non-constant limit is reached, the power supply will automatically switch control modes, from constant voltage to constant current, or vice versa. In this way, the FB200 protects your electrophoresis cells from damaging over power conditions. The FB200 power supply also provides for timed operation in either voltage or current modes, and allows an automatic completion in the event of a power loss if enabled by the user.

• 5-200V, adjustable in 1 volt steps

• 0.01-2.00A, adjustable in 0.01A steps

• 200W maximum output

• Automatic control mode crossover

• 0-99 hour 59 minute timed run

• Automatic restart if loss of AC power (if enabled)

• Large LCD display

Unpacking the Power Supply

When unpacking your FB200 power supply, be sure you have received the following items.

• FB200 unit

• AC line cord

• This manual

Inspect your equipment and packaging material for signs of damage. Damage to the shipping container may indicate rough handling which could cause internal damage to the power supply. If you suspect shipping damage to the power supply, contact your carrier for instructions on filing a claim. If you are missing any of the above items, contact your supplier for instructions.

FB200-2 MANUAL Page 3 7608175 Rev A 8/02

Specifications

AC input Power

85-265VAC, 50-60Hz, 250VA Max

Environmental

Operating temperature: 0-40°C, 0-95% R.H. non-condensing Altitude: 2000m Overvoltage category II, IEC664 Pollution degree 2, IEC664

DC output Power

5-200VDC, 200W Max

0.01-2.00A, 200W Max Ripple: ± 1% Drift: ± 1%, after 30-minute warm-up

FB200-2 MANUAL Page 4 7608175 Rev A 8/02

Getting Started

Select a location that allows for 3" clearance behind the power supply, and comfortable reach of the front panel controls and cell connections. Do not block the vented area of the case - on the front bottom of the unit, or the fan area at the rear. Connect the power supply to a 3-prong grounded AC outlet, using the AC cord provided with the unit only electrophoresis apparatus to the power supply, making sure to match the red positive lead to the red positive jack, and the black negative lead to the black negative jack. Similarly, connect one or more electrophoresis apparatus to the power supply if you plan to run more than one in parallel. Power the unit on using the AC power switch located at the rear of the unit, next to the AC line cord entry.

. Connect the

Function keys

black negative jacks black negative jacks

red positive jacks

Using the Power Supply

Press the dark gray key on the front of the unit to enable/disable the control logic. The LCD display will illuminate and show the values of the last saved run setup. The FB200 preserves the run settings each time you start a run. One set of conditions is saved for each mode, constant voltage or constant current. The setpoint value, limit parameter, time duration, and power-fail restart settings are all saved. This allows convenient setup for repetitive runs.

Exit key Clear key

Stop key Run key

Pause key

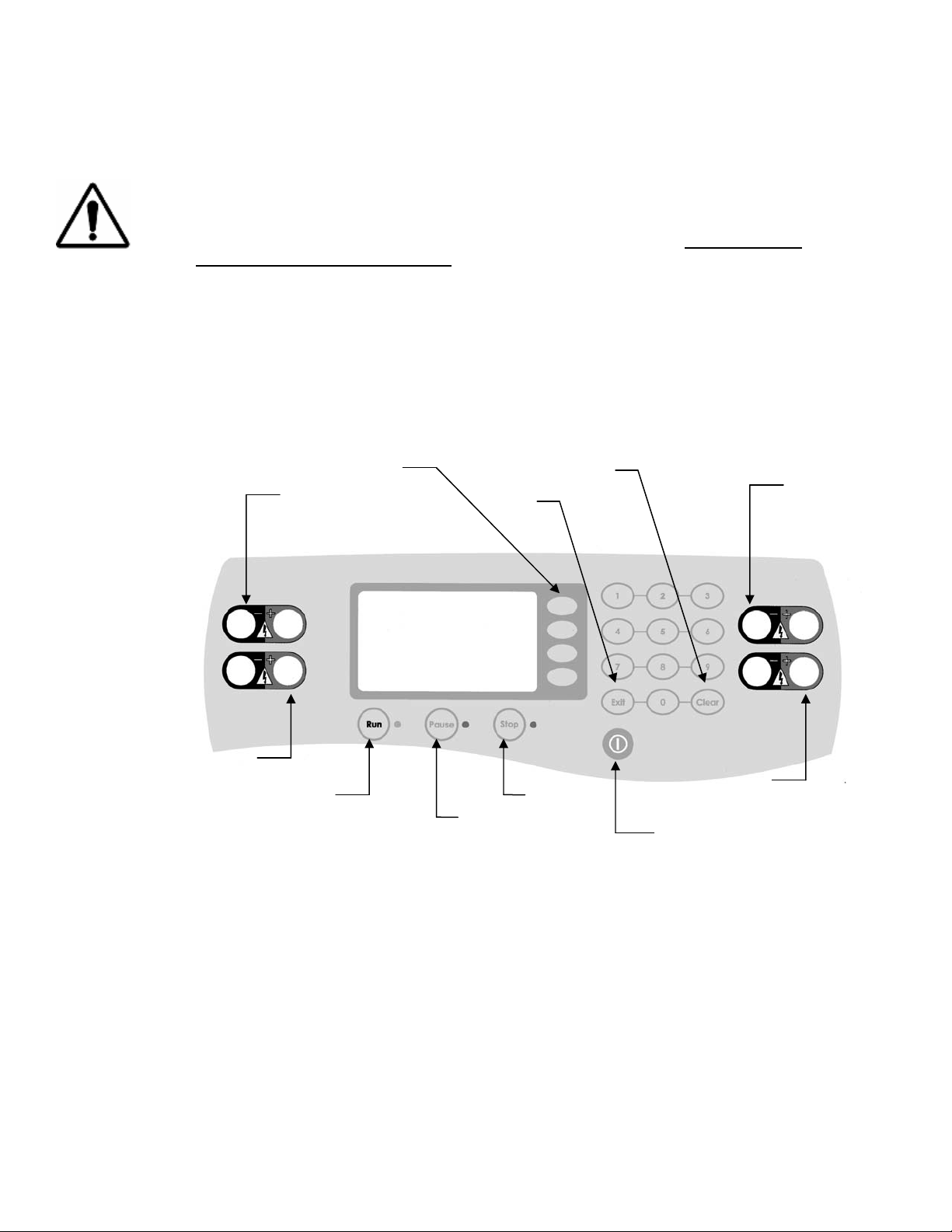

Figure 1. Front Panel Controls

red positive jacks

gray ON/OFF key

To change the control mode, press the Exit key. From the resulting screen, select either constant volts or constant amps using the function keys to the right of the display.

After selecting a control mode, either constant voltage or current, and setting the limit and timed run parameters if desired (see Constant Voltage/Current Operations) press the Run key to energize the power supply output. The power supply output will ramp up to the appropriate setpoint, while not allowing the limit parameter to be exceeded. If the limit parameter should be exceeded, then the power supply will crossover control modes, making the limit parameter the new control

FB200-2 MANUAL Page 5 7608175 Rev A 8/02

setpoint. The run mode display shows the controlled parameter highlighted, and will automatically change if a crossover has occurred.

To stop a run in progress, press the Run key, the Stop key, or the gray ON/OFF key. The display will change to "STOP" signifying that the output is no longer energized. To pause a run in progress, press the Pause key. The display will change to "PAUSE" signifying that the output is no longer energized, and that the run can be resumed. Pressing Run or Pause resumes the run from the previous point (i.e. for a timed run). Only a run that has been paused can be restarted. After Stopping a run, or to change parameters of a (paused) run, you must cycle the control logic off and then back on by pressing the gray ON/OFF key.

During a run, the display will show the actual values of voltage and current. The time value displays elapsed time for an untimed run, or time left for a timed run.

Constant Voltage Operations

From the mode selection screen, select constant voltage operation by pressing the appropriate function key located to the right of the display. To get to the selection screen from an operating screen, press Exit, or cycle the control logic off and then back on by pressing the gray ON/OFF key. The FB200 will display the last saved values for constant voltage mode. To change a parameter, press the function key located to the right of the display, next to the parameter you wish to change. The FB200 will allow a new value to be entered using the keypad numeric keys. Press the function key labeled "Enter" to complete the new setting. Press Clear to erase previous keystrokes. Press Exit to cancel entering a new value. The FB200 will not accept a voltage setpoint outside of the allowed range. Press Clear to re-enter an appropriate value.

The limit parameter, in this case current, is normally set to the power supply maximum value of

2.00 A. The FB200 will not accept a current limit outside of the allowed range.

In addition, the FB200 will never exceed the maximum power output specification of 200W. When starting a run, the power supply calculates a maximum limit parameter, above which the power supply maximum power output rating would be exceeded. If this value is lower than the limit setpoint entered, the FB200 will automatically lower the limit parameter.

Constant Current Operations

From the mode selection screen, select constant current operation by pressing the appropriate function key located to the right of the display. To get to the selection screen from an operating screen, press Exit, or cycle the control logic off and then back on by pressing the gray ON/OFF key. The FB200 will display the last saved values for constant current mode. To change a parameter, press the function key located to the right of the display, next to the parameter you wish to change. The FB200 will allow a new value to be entered using the keypad numeric keys. Press the function key labeled "Enter" to complete the new setting. Press Clear to erase previous keystrokes. Press Exit to cancel entering a new value. The FB200 will not accept a current setpoint outside of the allowed range. Press Clear to re-enter an appropriate value.

The limit parameter, in this case voltage, is normally set to the power supply maximum value of 200 volts. The FB200 will not accept a voltage limit outside of the allowed range.

Timed Operations

It is possible to enter an amount of time for the power supply to provide power, after which it will automatically shut off. Use this feature for timed runs.

FB200-2 MANUAL Page 6 7608175 Rev A 8/02

Enter a time parameter as described above for setting a voltage or current setpoint. Enter a time duration of 0-99 hours, 59 minutes. A time duration of zero effectively disables timed run mode.

When running a timed run, the time parameter displays the time remaining in the run. When running a non-timed run, the time parameter displays the elapsed time during the run

Automatic Power-fail Restart

Automatic power-fail restart capability allows a timed run which is interrupted by loss of AC power to be restarted automatically, so that the total time programmed for the time parameter will be met. NOTE: Loss of AC power includes switching off the unit using the power switch located at the rear of the unit. When performing timed runs with power-fail restart enabled, always use

the front panel controls to stop a run in progress.

To enable power-fail restart, press the top function key when in the operating mode screen (constant voltage or current). The state of power-fail restart will toggle from off to on or on to off with each keypress.

When AC power is restored during a timed run in which power-fail restart is enabled, the display will show "POWER-FAIL RESTART" for approximately 10 seconds indicating power-fail restart pending. During this time the output is not energized, to allow safely stopping the run (by pressing Run). After the power-fail restart pending delay is completed, the power supply output will ramp up to the setpoint value and the time will continue from that point. Any number of power interruptions can occur during the completion of a single run.

Cleaning

Before cleaning the unit, be sure to always turn off AC power using the switch at the rear of the unit, and then disconnecting the AC line cord. The front of the unit is sealed and can be wiped clean with any mild detergent solution. Avoid harsh cleaners or agents as they may deteriorate the surface of the tactile membrane keys.

FB200-2 MANUAL Page 7 7608175 Rev A 8/02

Troubleshooting and Error Indications

The FB200 detects and reports several events and conditions that are considered errors. The FB200 will stop any run in process and display "ERROR XX" where XX is one of the below listed errors. When the FB200 is displaying an error indication, press the gray ON/OFF key to clear the error and return to setup mode, or press the Run key to resume the run (after correcting the cause of the error). Note that loss of AC power during a run is considered an error condition. Always stop a run before turning off AC power to the FB200.

'XX' Condition and possible remedy

06-99

Before servicing the unit, be sure to always turn off AC power using the switch at the rear of the unit, and then disconnecting the AC line cord. The FB200 power supply requires no periodic servicing and should provide years of trouble free operation. Should you need to replace the fuses proceed as follows:

Minimum load current detected. The output is not connected, or the electrophoresis apparatus is not set up properly. Check your setup and connections.

Maximum load current exceeded. The output is short circuit, or the electrophoresis apparatus is not set up properly. Check your setup and connections

Step load current change. The FB200 has detected a large change in load current. Check your setup and connections

Loss of AC power; PF enabled and completed. The FB200 detected loss of AC power, however the run was completed as programmed.

Loss of AC power; PF disabled and not completed. The FB200 detected loss of AC power, the run was not completed since PF was not enabled.

Loss of AC power; run not timed. The FB200 detected loss of AC power.

The FB200 detected an internal error condition. Contact technical support for instructions.

Replacing a fuse

CAUTION: The FB200 uses double pole neutral fusing. Turn off AC power using the switch at the rear of the unit, and then disconnecting the AC line cord. Remove the fuse holder assembly using a small flat blade screwdriver. Always replace both fuses with appropriate replacement fuses: 3A, 250V, 5X20mm, type T fuse (T3A,250V) (Fisher catalog number FB-FUSE-2).

FB200-2 MANUAL Page 8 7608175 Rev A 8/02

FB200 Warranty Statement

The Fisher Scientific Company ("Fisher") warrants to the direct purchaser that the FB200 will be free from defects in material or workmanship for a specified warranty period. During that period, Fisher will repair or replace the product or provide credit, at its sole option, upon prompt notification and compliance with its instructions. For FB200 power supplies that specified period is 48 months from manufacturing date.

Unless otherwise agreed, the warranty is limited to the country in which the product is sold.

No Fisher employee, agent or representative has the authority to bind Fisher to any oral representation or warranty concerning any product sold. Any oral representation or warranty made prior to purchase of any product and not set forth in writing and signed by a duly authorized officer of Fisher shall not be enforceable by the purchaser.

FISHER EXPRESSLY DISCLAIMS ALL OTHER WARRANTIES, EXPRESS OR IMPLIED, INCLUDING THE IMPLIED WARRANTY OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE.

Fisher's sole responsibility and the purchaser's exclusive remedy for any claim arising out of the purchase of any product listed above is repair, replacement or credit as described above, where applicable. In no event: 1) shall the cost of the exclusive remedy exceed the purchase price: 2) shall Fisher be liable for any special, indirect, incidental, consequential, or exemplary damages, howsoever arising, even if Fisher has been advised of the possibility of such damages.

Each article that Fisher furnishes will conform to the written specifications given in this manual, or those of a further improved model. Changes are made often to the information in the manual and will be incorporated into future editions.

Compliance

Pertaining to models: FB200-1 FB200-2

EMC - This equipment when used in accordance with the instruction manual conforms to EMC Directive 89/336/EEC and EMC Standard EN61326, as applicable to electrical equipment for measurement control and laboratory use.

IEC - This equipment has been designed and tested to conform to Low Voltage Directive 73/23/EEC and IEC 1010-1 Safety Standards, as applicable to electrical equipment for measurement control and laboratory use.

FB200-2 MANUAL Page 9 7608175 Rev A 8/02

Replacement Parts

Fuse, T3A, 250V FB-FUSE-3 AC line cord, UK Plug FB-CORD-2 AC line cord, Cont. Euro Plug FB-CORD-3

Accessories

Adapter for Cells FBAD-1 Under Counter Bracket FBUB3000

For replacement parts contact Fisher Scientific at:

Fisher Scientific 2000 Park Lane Pittsburgh, PA 15275

1-800-766-7000

Technical Support:

1-800-943-2006 or 1-800-926-0505

FB200-2 MANUAL Page 10 7608175 Rev A 8/02

Alimentation électrique pour électrophorèse Fisher Biotech FB200

Table des matières

Considérations de sécurité 2

Introduction 3

Déballage de l’alimentation électrique 3

Spécifications 4

Mise en route 5

Utilisation de l’alimentation électrique 5

Opérations à tension constante 6

Opérations à intensité constante 6

Opérations à durée déterminée 7

Redémarrage automatique en cas de coupure de courant 7

Nettoyage 7

Dépannage et indications d’erreur 8

Garantie du FB200 9

Conformité 9

Pièces de rechange 10

FB200-2 MANUAL Page 1 7608175 Rev A 8/02

Considérations de sécurité

Lisez et comprenez complètement ce manuel avant d’entreprendre d’installer ou d’utiliser cet instrument.

Cet appareil a été conçu et testé pour être conforme aux normes de sécurité IEC1010-1, telles qu’elles s’appliquent aux instruments de laboratoire. Ceci s’applique uniquement au FB200 lorsqu’il est utilisé de la manière spécifiée dans la documentation, dans le cadre des applications auxquelles il est destiné, uniquement avec un appareil d’électrophorèse agréé par Fisher Biotech. Une utilisation dans d’autres circonstances peut ne pas donner les mêmes performances ou la même protection de sécurité.

Cet appareil est fourni avec un cordon d’alimentation en CA à 3 fils offrant une connexion à la terre. Le fil de terre de protection est nécessaire à la sécurité lors du fonctionnement. N’utilisez aucun autre cordon d’alimentation en CA avec cet instrument.

Le FB200 est une alimentation électrique à haute tension capable de générer des tensions et des intensités dangereuses lors de son fonctionnement. Soyez prudent lorsque vous travaillez à proximité et avec les connexions électriques de cet appareil. Vérifiez toujours les connecteurs électriques, les fils et les appareils associés pour vous assurer qu’ils ne sont ni usés ni endommagés avant de les utiliser avec cet appareil. Veillez à utiliser uniquement un appareil d’électrophorèse qui corresponde aux valeurs nominales de tension et d’intensité de l’alimentation électrique FB200.

La sortie de l’alimentation électrique FB200 est prévue uniquement pour une connexion à un appareil d’électrophorèse électriquement isolé. Utilisez-la uniquement avec un appareil d’électrophorèse électriquement isolé muni d’une isolation minimum de 600 V. Ne connectez aucune borne de sortie du FB200 à la terre. Ceci pourrait affecter la protection de sécurité fournie par l’appareil ou endommager l’appareil.

La sortie à haute tension de l’alimentation électrique FB200 met un certain temps à décliner lorsqu’elle est déchargée ou légèrement chargée. Attendez au minimum 60 secondes après l’arrêt d’une exécution avant de toucher les fils de l’alimentation électrique.

Cet appareil a un courant de fuite à la terre de 0,5 mA à 120 V CA et 1 mA à 230 V CA. Bien que cela soit nettement inférieur à la limite de 3,5 mA applicable aux instruments de laboratoire, certaines applications et certains endroits exigent un courant de fuite inférieur à 0,5 mA. Vérifiez les besoins spécifiques de votre application avant d’utiliser cet appareil.

Cet appareil ne doit pas être utilisé à l’extérieur.

FB200-2 MANUAL Page 2 7608175 Rev A 8/02
