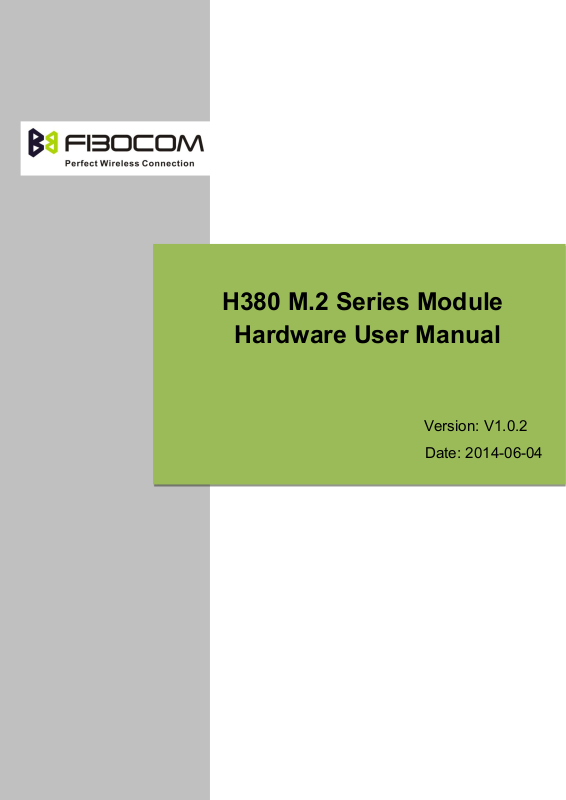

Fibocom Wireless H38F User Manual

H380 M.2 Series Module
Hardware User Manual
Version: V1.0.2
Date: 2014-06-04
H380 M.2 Series Module Hardware User Manual page2of
Confidential Material
This document contains information highly confidential to Fibocom Wireless Inc. (Fibocom). Fibocom
offers this information as a service to its customers, to support application and engineering efforts that use
the products designed by Fibocom. The information provided is based upon requirements specifically
provided to Fibocom by the customers. All specifications supplied herein are subject to change.
Disclosure of this information to other parties is prohibited without the written consent of Fibocom.
Copyright
Copy, Reproduce, Distribute and/or Edit of this document or part of it as well as utilization of its contents
and communication thereof to others without express authorization are prohibited. Offenders will be held
liable for payment of damages. All rights created by patent grant or registration of a utility model or design
patent are reserved. Copyright ©2013 Fibocom Wireless Inc. All rights reserved.
Trademarks Notice
The FIBOCOM Logo is registered by Fibocom Wireless Inc. All other product or service names or logos
are the property of their respective owners. Copyright ©2013 Fibocom Wireless Inc. All rights reserved.
Revision History
Version Date Remarks
V1.0.0 2014-03-20 Initial version
V1.0.1 2014-04-18
1.Change current part.
2.Change GPS part.
3.Change temperature .
V1.0.2 2014-06-04 Add support spec of Win 8 / android dual system switch .
H380 M.2 Series Module Hardware User Manual page3of
Applicability Table
No. Type Note
1 H380-Q50-00
The difference M.2 wireless communication module of H380 series as listed below:
Model No.
GSM/GPRS/EDGE
Band(MHz)
WCDMA Band(MHz)
HSDPA
(Mbps)
HSUPA
(Mbps)
H380-Q50-00 850/900/1800/1900 850/900/1900/2100 21 5.76
Contents
1 Preface....................................................................................................................................................................... 6
1.1 Outline............................................................................................................................................................. 6
1.2 Standards....................................................................................................................................................... 6
2 Introduction................................................................................................................................................................ 8
2.1 Description......................................................................................................................................................8
2.2 Specifications................................................................................................................................................. 8
2.3 Appearance.................................................................................................................................................. 10
3 Mechanical...............................................................................................................................................................11
3.1 Size................................................................................................................................................................ 11
3.2 Application Interface Description..............................................................................................................12
3.3 M.2 Connector............................................................................................................................................. 13
4 Hardware Overview................................................................................................................................................14
4.1 Block Diagram............................................................................................................................................. 14
4.2 Pin Definition................................................................................................................................................15
Pin Map................................................................................................................................................................15
4.2.1 Pin Description.................................................................................................................................16
5 Hardware Interface.................................................................................................................................................20
5.1 Power Interface........................................................................................................................................... 20
5.1.1 Power Supply................................................................................................................................... 20
5.1.2 Power Consumption........................................................................................................................21
5.2 The signal of on/off and reset................................................................................................................... 23
5.2.1 Pin Definition.................................................................................................................................... 23
5.2.2 ON/OFF Signal.................................................................................................................................24
5.2.3 Reset Signal..................................................................................................................................... 24
5.3 Indicator Signal............................................................................................................................................25
5.3.1 Pin Description.................................................................................................................................25
5.4 USB Interface...............................................................................................................................................26
5.4.1 USB Interface definition..................................................................................................................26
5.4.2 USB Interface Application.............................................................................................................. 26
5.5 USIM Interface.............................................................................................................................................27
5.5.1 USIM pin-out.....................................................................................................................................27
5.5.2 USIM.................................................................................................................................................. 27
5.5.3 USIM Design Notice........................................................................................................................28
5.5.4 USIM Hot Plug..................................................................................................................................29
5.6 Digital Audio................................................................................................................................................. 29
5.6.1 I2S Interface Description................................................................................................................30
H380 M.2 Series Module Hardware User Manual page4of
5.6.2 I2C Interface Description................................................................................................................30
5.6.3 PCM Mode Interface Description..................................................................................................30
5.7 Win8/Android Dual System Switch.......................................................................................................... 31
5.8 W_DISABLE# Interface............................................................................................................................. 31
5.8.1 WWAN_DISABLE# Interface Description................................................................................... 31
5.8.2 GPS_DISABLE# Interface Description........................................................................................ 32
5.9 TX_BLANKING............................................................................................................................................32
5.10 Wakeup Host Interface............................................................................................................................ 32
5.11 BODY_SAR Interface............................................................................................................................... 33
5.12 Clock Interface.......................................................................................................................................... 33
5.13 Config..........................................................................................................................................................33
5.14 RF Interface............................................................................................................................................... 34
5.14.1 RF Connector Interface Description...........................................................................................34
5.14.2 RF Connector Description............................................................................................................34
5.14.3 RF Connector main performance index.................................................................................... 35
5.15 Others......................................................................................................................................................... 35
6 Electrical and Environmental................................................................................................................................ 36
6.1 Electrical....................................................................................................................................................... 36
6.2 Environmental..............................................................................................................................................36
7 RF Interface.............................................................................................................................................................37
7.1 Operating Band........................................................................................................................................... 37
7.1.1 Antenna Band...................................................................................................................................37
7.1.2 Diversity Antenna Band.................................................................................................................. 37
7.2 RF PCB Design........................................................................................................................................... 37
7.2.1 Impedance Design...........................................................................................................................37
7.3 Antenna Design........................................................................................................................................... 37
7.3.1 Main Antenna Design Requirements........................................................................................... 37
7.3.2 Diversity Antenna Design...............................................................................................................39
IMPORTANT NOTE.................................................................................................................................................. 40
USERS MANUAL OF THE END PRODUCT....................................................................................................... 40
H380 M.2 Series Module Hardware User Manual page5of
H380 M.2 Series Module Hardware User Manual page6of
1 Preface
1.1 Outline
The document outlines the electrical, RF performance, mechanical size and application environment
of H380 series M.2 wireless communication module. Under the help of the document and others
application notice, the application developer could understand quickly the performance of H380 series
M.2 wireless communication module,and developing the product.
1.2 Standards
The products`reference design standard as listed below:
3GPP TS 27.007 -v6.9.0: AT command set for User Equipment (UE)
3GPP TS 27.005 -v6.0.1: Use of Data Terminal Equipment -Data Circuit terminating Equipment
(DTE-DCE) interface for Short Message Service (SMS) and Cell Broadcast Service (CBS)
3GPP TS 23.040 -v6.9.0: Technical realization of Short Message Service (SMS)
3GPP TS 24.011 -v6.1.0: Point- to - Point (PP) Short Message Service (SMS) support on mobile
radio interface.
3GPP TS 27.010 -v6.0.0: Terminal Equipment to User Equipment (TE-UE) multiplexer protocol
3GPP TS 27.060 -v6.0.0: Packet domain; Mobile Station (MS) supporting Packet Switched services
3GPP TS 25.304-v6.10.0: User Equipment (UE) procedures in idle mode and procedures for cell
reselection in connected mode.
3GPP TS 25.308 -v6.4.0: High Speed Downlink Packet Access (HSDPA); Overall description;Stage
2.
3GPP TS 25.309 -v6.6.0: FDD enhanced uplink; Overall description; Stage 2.
3GPP TS 23.038 -v6.1.0: Alphabets and language - specific information
3GPP TS 21.111 -v6.3.0: USIM and IC card requirements.
3GPP TS 31.111 -v6.11.0 "USIM Application Toolkit (USAT)".
3GPP TS 45.002 -v6.12.0: Multiplexing and multiple access on the radio path.
3GPP TS 51.014 -v4.5.0: Specification of the SIM Application Toolkit for the Subscriber Identity
Module - Mobile Equipment (SIM-ME) interface.
3GPP TS 51.010 -1 -v6.7.0: Mobile Station (MS) conformance specification; Part 1: Conformance
specification.
3GPP TS 22.004 -v6.0.0: General on supplementary services.
3GPP TS 23.090 -v6.1.0: Unstructured Supplementary Service Data (USSD); Stage 2
3GPP TS 24.008 v6.19, Mobile radio interface Layer 3 specification;
H380 M.2 Series Module Hardware User Manual page7of
PCIe_M.2_Electromechanical_Spec_Rev0.9-3_07312013_RS_Clean[1]
H380 M.2 Series Module Hardware User Manual page8of
2 Introduction
2.1 Description
H380 M.2 series modules are highly integrated 3G wireless communication modules, support GSM /
GPRS / EDGE and UMTS / HSDPA / HSUPA / HSPA+ , GPS/GNSS(follow-up support ).
2.2 Specifications
Specifications
Bands UMTS (WCDMA/FDD): 850/900/1900/2100MHz
GSM/GPRS/EDGE: 850/900/1800/1900MHz
Data
UMTS/HSDPA/HSUPA 3GPP release 7
HSUPA 5.76Mbps (Cat 6)
HSDPA 21Mbps (Cat 14) or 7.2Mbps (Cat 8)
GSM 3GPP release 7
EDGE (E-GPRS) multi-slot class 33(296kbps DL, 236.8kbps UL)
GPRS multi-slot class 33(107kbps DL, 85.6kbps UL)
GPS GPS/GNSS(follow-up support)
Physical
Dimension: 22mm x 42mm x 2.35mm
Interface: M.2
Weight: 5.0 grams
Environment
Operating Temperature: -30℃ ~ +75℃
Storage Temperature: -40℃ ~ +85℃
Performance
Operating
Voltage
Voltage: 3.135V ~ 4.4V Normal: 3.3V
Operating
Current
(Typical Value)
3mA (Sleep Mode)
3G Talk: 660mA
2G Talk: 270mA (GSM PCL5)
Transmit Power
(Typical Value)
Class 4 (2W): 850/900 MHz, GSM
Class 1 (1W): 1800/1900 MHz, GSM
Class E2 (0.6W): 850/900 MHz, EDGE
Class E2 (0.5W): 1800/1900 MHz, EDGE
H380 M.2 Series Module Hardware User Manual page9of
Class 3 (0.25W): 900/850/1900/2100 MHz, WCDMA
Rx Sensitivity
(Typical Value)
UMTS/HSPA: -109dBm
GSM: -108dBm
Interfaces
RF Interface Main Antenna, Diversity Antenna(RF diversity and GPS Aux)
Connectivity
1 x USB 2.0,Multiple Profiles over USB
I2C Support,I2S/PCM Support
GPIO Connectivity
Data Features
Protocol Stack Embedded TCP/IP and UDP/IP protocol stack
EDGE
Multi-slot class 33(5 Down; 4 Up; 6 Total)
Coding Scheme MCS1~9
GPRS
Multi-slot class 33(5 Down; 4 Up; 6 Total)
Coding Scheme CS1~4
CSD UMTS(14.4kbps), GSM(9.6kbps)
USSD Support
SMS
MO / MT Text and PDU modes
Cell broadcast
Voice Features
Digital Audio
Voice coders: EFR/HR/FR/AMR
Audio Control Gain Control
Character Set
IRA
GSM
UCS2
HEX
AT Commands
FIBOCOM proprietary AT commands
GSM 07.05
GSM 07.07
Accessories
Firmware Loader Tool over USB/UART
User Manual
Developer Kit
H380 M.2 Series Module Hardware User Manual page10of
2.3 Appearance
The following picture shows the H380 M.2 WWAN Module.
Top view:
Figure 2- 1 Top View
Bottom view:
Figure 2- 2 Bottom View
H380 M.2 Series Module Hardware User Manual page11of
3 Mechanical
3.1 Size
Figure 3- 1 Mechanical size
H380 M.2 Series Module Hardware User Manual page12of
3.2 Application Interface Description
H380 M.2 module uses 75-pin gold fingers as the external interface,the size of the module please
refer to the Section3.1.
As shown in Figure 4-2, H380 M.2 module uses the 75-pin fingers interface(67 pin is signal interface
and 8 is notch).
About the naming rules of M.2, H380 uses the Type 2242-S3-B (22mmx42mm,Top surface element
layer maximum thickness is 1.5mm, the thickness of PCB is 0.8mm, Key ID is B)
H380 M.2 Series Module Hardware User Manual page13of
3.3 M.2 Connector
Recommended to use the M.2 connector from LOTES, type is APCI0026-P001A,the Connector
package design please refer to the relevant specifications and design.
As shown in Figure 3-2::
Figure 3- 2 APCI0026-P001A M.2 connector dimension
Loading...
+ 28 hidden pages
Buy Points How it Works FAQ Contact Us Questions and Suggestions Privacy Policy Cookie Policy Terms of Use
