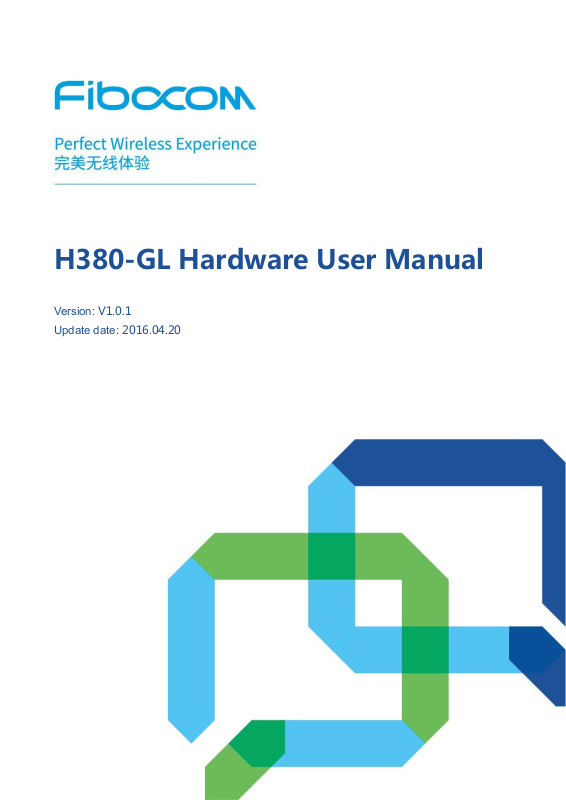

H380-GL Hardware User Manual

Version: V1.0.1

Update date: 2016.04.20

H380-GL Hardware User Manual Page2of

Applicability Table

No.

Product model

Description

H380-GL

H380-GL Hardware User Manual Page3of

Without the prior written permission of the copyright holder, any company or individual is prohibited to

excerpt, copy any part of or the entire document, or distribute the document in any form.

Notice

The document is subject to update from time to time owing to the product version upgrade or other

reasons. Unless otherwise specified, the document only serves as the user guide. All the statements,

information and suggestions contained in the document do not constitute any explicit or implicit

guarantee.

Trademark

The trademark is registered and owned by Fibocom Wireless Inc.

Version Record

Version

Update Date

Description

V1.0.0

2016-03-21

Draft

V1.0.1

2016-04-20

Modify the pictures

H380-GL Hardware User Manual Page4of

Contents

1 Foreword

.......................................................................................................................................

1.1 Introduction........................................................................................................................................... 6

1.2 Reference Standard............................................................................................................................ 6

1.3 Related Documents

.............................................................................................................................

2 Overview........................................................................................................................................7

2.1 Description............................................................................................................................................ 7

2.2 Specification

..........................................................................................................................................

2.3 Application Framework......................................................................................................................11

2.4 Hardware Framework........................................................................................................................11

3 Application Interface

................................................................................................................

3.1 M.2 Interface.......................................................................................................................................12

3.1.1 Pin Distribution.................................................................................................................................13

3.1.2 Pin Definition.................................................................................................................................... 14

3.2 Power Supply..................................................................................................................................... 18

3.2.1 Power Supply................................................................................................................................... 19

3.2.2 Logic Level........................................................................................................................................20

3.2.3 Power Consumption........................................................................................................................20

3.3 Control Signal.....................................................................................................................................25

3.3.1 Module Start-up............................................................................................................................... 25

3.3.1.1 Start-up Circuit

.............................................................................................................................

3.3.1.2 Start-up timing............................................................................................................................. 26

3.3.2 Module Shutdown............................................................................................................................27

3.3.2.1 Software Shutdown

.....................................................................................................................

3.3.2.2 Hardware Shutdown................................................................................................................... 28

3.3.3 Module Reset................................................................................................................................... 28

3.4 USB Interface..................................................................................................................................... 29

3.4.1 USB Interface Definition................................................................................................................. 30

3.4.2 USB2.0 Interface Application.........................................................................................................30

3.5 USIM Interface................................................................................................................................... 31

3.5.1 USIM Pins......................................................................................................................................... 31

3.5.2 USIM Interface Circuit.....................................................................................................................31

3.5.2.1 N.C. SIM card slot

.......................................................................................................................

3.5.2.2 N.O. SIM card slot....................................................................................................................... 32

H380-GL Hardware User Manual Page5of

3.5.3 USIM Hot-Plugging..........................................................................................................................32

3.5.4 USIM Design.................................................................................................................................... 33

3.6 Status Indicator.................................................................................................................................. 33

3.6.1 LED1# Signal....................................................................................................................................34

3.6.2 WOWWAN#......................................................................................................................................34

3.6.3 TX_BLANKING................................................................................................................................ 35

3.7 Interrupt Control

.................................................................................................................................

3.7.1 W_DISABLE1#.................................................................................................................................36

3.7.2 System switching control................................................................................................................36

3.7.3 BODY SAR....................................................................................................................................... 36

3.8 Clock Interface

...................................................................................................................................

3.9 Config Interface..................................................................................................................................37

3.10 Other Interfaces

...............................................................................................................................

4 RF Interface

................................................................................................................................

4.1 RF Interface........................................................................................................................................38

4.1.1 RF Interface Function..................................................................................................................... 38

4.1.2 RF Connector Performance........................................................................................................... 38

4.1.3 RF Connector Dimension............................................................................................................... 38

4.2 Operating Band

..................................................................................................................................

4.3 Transmitting Power

............................................................................................................................

4.4 Receiving Sensibility......................................................................................................................... 41

4.5 Antenna Design

..................................................................................................................................

5 Structure Specification

............................................................................................................

5.1 Product Appearance..........................................................................................................................42

5.2 Dimension of Structure

.....................................................................................................................

5.3 M.2 Interface Type

.............................................................................................................................

5.4 M.2 Connector....................................................................................................................................44

5.5 Storage

................................................................................................................................................

5.5.1 Storage Life...................................................................................................................................... 45

5.6 Package.............................................................................................................................................. 45

5.6.1 Tray Package....................................................................................................................................45

5.6.2 Tray Size........................................................................................................................................... 46

H380-GL Hardware User Manual Page6of

1 Foreword

1.1 Introduction

This document describes the electrical characteristics, RF performance, dimension of structure,

application environment and other information of H380-GL (hereinafter referred to as H380) module. With

the help of this document and other related documents, application developers can quickly understand

the hardware functions of H380 module and implement the hardware development of products.

1.2 Reference Standard

The design of this product refers to the following standards:

 3GPP TS 51.010-1 V10.5.0: Mobile Station (MS) conformance specification; Part 1:

Conformance specification

 3GPP TS 34.121-1 V10.8.0: User Equipment (UE) conformance specification; Radio

transmission and reception (FDD);Part 1: Conformance specification



3GPP TS 21.111 V10.0.0: USIM and IC card requirements

 3GPP TS 51.011 V4.15.0: Specification of the Subscriber Identity Module -Mobile Equipment

(SIM-ME) interface



3GPP TS 31.102 V10.11.0: Characteristics of the Universal Subscriber Identity Module (USIM)

application

 3GPP TS 31.11 V10.16.0: Universal Subscriber Identity Module (USIM) Application

Toolkit(USAT)

 3GPP TS 36.124 V10.3.0: ElectroMagnetic Compatibility (EMC) requirements for mobile

terminals and ancillary equipment



3GPP TS 27.007 V10.0.8: AT command set for User Equipment (UE)

 3GPP TS 27.005 V10.0.1: Use of Data Terminal Equipment - Data Circuit terminating Equipment

(DTE - DCE) interface for Short Message Service (SMS) and Cell Broadcast Service (CBS)



PCI Express M.2 Specification Rev0.9-3

1.3 Related Documents

 H380 Module Performance Test Report

 RF Antenna Application Design Specification

 H3-Family Driver & Dial-up Application Design Specification

 H3-Family AT Command Manual

H380-GL Hardware User Manual Page7of

2 Overview

2.1 Description

H380, as a highly-integrated 3G wireless communication module, applies standard PCIe M.2 interface

and supports GSM/GPRS/EDGE and UMTS /HSDPA / HSUPA/HSPA+ cellular communications network.

2.2 Specification

Specification

Operating Band

WCDMA/HSPA+: Band I, II, V, VIII

GSM/GPRS/EDGE: 850/900/1800/1900MHz

Data

Transmission

UMTS/HSPA+ UMTS:384 kbps DL/384 kbps UL

DC-HSDPA+:21Mbps DL(Cat 14)/5.76Mbps UL(Cat6)

GPRS/EDGE

GPRS:107kbps DL/85.6kbps UL(multi-slot class 33)

EDGE(E-GPRS):296kbps DL/236.8kbps UL

(multi-slot class 33)

Power

DC 3.135V~4.4V,Typical 3.3V

Temperature Normal operating temperature: –20°C to +65°C

Storage temperature: -40°C ~+85°C

Physical

Interface: M.2 Key-B

Dimension: 22mm x 42mm x 2.3mm

Weight: About 4.5 g

Interface

Antenna WWAN Main Antenna x 1

WWAN Diversity Antenna x 1

Functional

Interface

USIM 3V/1.8V

USB 2.0 x 1

I2S (not supported)

I2C (not supported)

EINT, System Indicator

H380-GL Hardware User Manual Page8of

Clock

Software

Protocol Stack

IPV4/IPV6

AT Commands

3GPP TS 27.007 and 27.005, and proprietary FIBOCOM AT commands

Firmware update

USB

Note:

When the temperature goes beyond the normal operating temperature range of -20°C~+65°C,

the RF performance of the module may be slightly off 3GPP specifications.

FOR FCC

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:

(1) This device may not cause harmful interference, and (2) this device must accept any interference

received, including interference that may cause undesired operation.

NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device,

pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against

harmful interference in a residential installation. This

equipment generates, uses and can radiate radio frequency energy and, if not installed and used in

accordance with the instructions, may cause harmful interference to radio communications. However,

there is no guarantee that interference will not occur in a

Particular installation. If this equipment does cause harmful interference to radio or television reception,

which can be determined by turning the equipment off and on, the user is encouraged to try to correct the

interference by one or more of the following measures:

—Reorient or relocate the receiving antenna.

—Increase the separation between the equipment and receiver.

—Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

—Consult the dealer or an experienced radio/TV technician for help.

FCC Caution:

Any Changes or modifications not expressly approved by the party responsible for compliance could void

the user‘s authority to operate the equipment.

RF Exposure Information

This device meets the government’s requirements for exposure to radio waves.

H380-GL Hardware User Manual Page9of

This device is designed and manufactured not to exceed the emission limits for exposure to radio

frequency (RF) energy set by the Federal Communications Commission of the U.S. Government.

This device complies with FCC radiation exposure limits set forth for an uncontrolled environment. In

order to avoid the possibility of exceeding the FCC radio frequency exposure limits, human proximity to

the antenna shall not be less than 20cm (8 inches) during normal operation.

R&TTE Regulation:

In all cases assessment of the final product must be mass against the Essential requirements of the R&TTE Directive Articles 3.1(a) and (b), safety and EMC respectively, as well as any relevant Article 3.3 requirements.

Human proximity to the antenna shall not be less than 20cm (8 inches) during normal operation.

The maximum antenna gain for frequency 900 is 3dBi; for frequency 1800 is 5 dBi.

EU Regulatory Conformance

Hereby, FIBOCOM Wireless Inc. declares that this device is in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC.

IC Canada Statement：

This device complies with Part 15 of the FCC Rules and with RSS-247 of Industry Canada. Operation is

subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this

device must accept any interference received, including interference that may cause undesired operation.

Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts

de licence.

L'exploitation est autorisée aux deux conditions suivantes : (1) l'appareil ne doit pas produire de

brouillage, et

(2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est

susceptible

d'en compromettre le fonctionnement.

This Class B digital apparatus complies with Canadian ICES-003.

Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada.

H380-GL Hardware User Manual Page10of

Radiation Exposure Statement:

This equipment complies with IC radiation exposure limits set forth for an uncontrolled environment. This

equipment should be installed and operated with minimum distance 20cm between the radiator & your b

ody.

Déclaration d'exposition aux radiations:

Cet équipement est conforme aux limites d'exposition aux rayonnements IC établies pour un environnem

ent non contrôlé. Cet équipement doit être installé et utilisé avec un minimum de 20 cm de distance entr

e la source de rayonnement et votre corps.

This device is intended only for OEM integrators under the following conditions:

1) The antenna must be installed such that 20 cm is maintained between the antenna and

users, and the maximum antenna gain allowed for use with this device is 5 dBi.

2) The transmitter module may not be co-located with any other transmitter or antenna.

As long as 2 conditions above are met, further transmitter test will not be required. However, the OEM

integrator is still responsible for testing their end-product for any additional compliance requirements

required with this module installed

IMPORTANT NOTE: In the event that these conditions can not be met (for example certain laptop

configurations or co-location with another transmitter), then the FCC authorization is no longer considered

valid and the FCC ID can not be used on the final product. In these circumstances, the OEM integrator will

be responsible for re-evaluating the end product (including the transmitter) and obtaining a separate FCC

authorization.

End Product Labeling

This transmitter module is authorized only for use in device where the antenna may be installed such that

20 cm may be maintained between the antenna and users. The final end product must be labeled in a

visible area with the following: “Contains FCC ID: ZMOH380GL”. The grantee's FCC ID can be used

only when all FCC compliance requirements are met.

The final end product will be laptop, tablet, M2M or similar product.

Manual Information To the End User

The OEM integrator has to be aware not to provide information to the end user regarding how to install or

remove this RF module in the user’s manual of the end product which integrates this module. The end

user manual shall include all required regulatory information/warning as show in this manual.

H380-GL Hardware User Manual Page11of

2.3 Application Framework

The peripheral application of H380 module is shown in Figure 2-1:

Figure 2-1 Application Framework

2.4 Hardware Framework

The hardware framework in Figure 2-2 shows the main hardware functions of H380 module, including

baseband and RF functions.

Baseband contains the followings:

 GSM/UMTS controller/Power supply



NAND+LPDDR RAM

 Application interface

RF contains the followings:



RF Transceiver

 RF Power/PA

 RF Front end



RF filter

H380-GL Hardware User Manual Page12of

 Antenna

Figure 2-2 Hardware Framework

3 Application Interface

3.1 M.2 Interface

The L816 module adopts the standard M.2 Key-B Interface, with a total of 75 pins.

H380-GL Hardware User Manual Page13of

3.1.1 Pin Distribution

Figure 3-1 Pin Distribution Diagram

Note:

Pin “Notch” refers to the notch of the Gold Finger.

H380-GL Hardware User Manual Page14of

3.1.2 Pin Definition

The pin definition is as below:

Pin Name

I/O

Reset Value

Pin Description

Type

CONFIG_3

Internally connected to GND,

H380 M.2 module configured as

WWAN-SSIC-0 interface type

module

+3.3V

Main power input

Power

supply

GND

Power

supply

+3.3V

Main power input

Power

supply

GND

Power

supply

FUL_CARD_POWER_OFF

Start-up and shutdown control

signals, internal 200KΩ pull-up

resistance

CMOS

3.3/1.8V 7

USB D+

I/O

USB 2.0 signal+

0.3---3V

W_DISABLE1#

WWAN Disable, Internal pull up,

Active low

3.3V/1.8V 9

USB D-

I/O

USB 2.0 signal-

0.3---3V

LED1#

OODSystem status LED, drain output

CMOS 3.3V

GND

Power

supply

Notch

H380-GL Hardware User Manual Page15of

Pin Name

I/O

Reset Value

Pin Description

Type

Notch

I2S_CLK

OTI2S serial clock (not supported)

CMOS 1.8V

CONFIG_0

Not connected, H380 M.2

module configured as

WWAN-SSIC-0 interface type

module

I2S_RX

I2S serial data input (not

supported)

CMOS 1.8V

WOWWAN#

Module wakes up Host

equipment signal, drain output

CMOS

3.3/1.8V

I2S_TX

I2S serial data output (not

supported)

CMOS 1.8V

DPR

IPUBody SAR Detect, Internal pull up

CMOS

3.3/1.8V

26NCNC

GND

Power

supply

I2S_WA

I2S left/right channel clock signal

(not supported)

CMOS 1.8V 29NCNC

UIM_RESET

OPPUSIM card reset signal

1.8V/3V

31NCNC

UIM_CLK

OPPUSIM card clock signal

1.8V/3V

GND

Power

supply

UIM_DATA

I/O

USIM card data signal, internal

4.7KΩ pull-up resistance

1.8V/3V 35NCNC

UIM_PWR

USIM card power output

1.8V/3V

H380-GL Hardware User Manual Page16of

Pin Name

I/O

Reset Value

Pin Description

Type

37NCNC

38NCNC

GND

Power

supply

GNSS_SCL

I2C serial data signal clock,

internal 4.7KΩ pull-up resistance

(not supported)

CMOS 1.8V

41NCNC

GNSS_SDA

I/O

I2C serial data signal data,

internal 4.7KΩ pull-up resistance

(not supported)

CMOS 1.8V

43NCNC

GNSS_IRQ

Module system switch input

interrupt signal, Internal pull up

CMOS 1.8V

GND

Power

supply

SYSCLK

OL26MHz clock output

1.8V

47NCNC

TX_BLANKING

GSM TDMA Timer output signal,

external GPS control signal

CMOS 1.8V 49NCNC

50NCNC

GND

Power

supply

52NCNC

53NCNC

54NCNC

55NCNC

56NCNC

H380-GL Hardware User Manual Page17of

Pin Name

I/O

Reset Value

Pin Description

Type

GND

Power

supply

58NCNC

ANTCTL0

Tunable antenna control

signal,bit0 (currently not

supported)

CMOS 1.8V

60NCNC

ANTCTL1

Tunable antenna control

signal,bit1 (currently not

supported)

CMOS 1.8V

62NCNC

ANTCTL2

Tunable antenna control signal,

bit2 (currently not supported)

CMOS 1.8V 64NCNC

ANTCTL3

Tunable antenna control signal,

bit3 (currently not supported)

CMOS 1.8V

SIM_DETECT

SIM Detect, internal 390KΩ

pull-up resistance

CMOS 1.8V

RESET#

External reset signal input,

internal 200KΩ pull-up resistance

CMOS

3.3/1.8V

68NCNC

CONFIG_1

Internally connected to GND,

H380 M.2 module configured as

WWAN-SSIC-0 interface type

module

+3.3V

Main power input

Power

supply

GND

Power

supply

+3.3V

Main power input

Power

supply

H380-GL Hardware User Manual Page18of

Pin Name

I/O

Reset Value

Pin Description

Type

GND

Power

supply

+3.3V

Main power input

Power

supply

CONFIG_2

Internally connected to GND,

H380 M.2 module configured as

WWAN-SSIC-0 interface type

module

H: High Voltage Level

L: Low Voltage Level

PD: Pull-Down

PU: Pull-Up

T: Tristate

OD: Open Drain

PP: Push-Pull

PI: Power Input

PO: Power Output

Note:

To ensure that unused pins are floating.

3.2 Power Supply

The power interface for H380 module is as follows:

Pin Name

I/O

Pin Description

DC Parameter (V)

Minimum

Value

Typical

Value

Maximum

Value

2,4,70,72,74

+3.3V

Power input

3.135

3.3

4.4

UIM_PWR

USIM power supply

1.8V/3V

H380-GL Hardware User Manual Page19of

3.2.1 Power Supply

H380 module provides power supply by using +3.3V pin, and the power supply design is shown in Figure

3-2:

Figure 3-2 Power Supply Design

The filter capacitor design of power supply is as follows:

Recommended

Capacitance

Application

Description

220uF x 2

Voltage-stabilizing

capacitance

To reduce power supply fluctuation in the

operating process of the module, low ESR

capacitance shall be adopted



LDO or DC/DC power supply shall not be less

than 440uF capacitance

 Battery power supply can be reduced to

100~220uF capacitance

1uF,100nF

Digital signal noise

Filter the interference produced by clock and

digital signal

39pF,33pF

850,900 MHz band

Filter the RF interference of low band

18pF,8.2pF,6.8pF

1800/1900,2100,2500MHz

band

Filter the RF interference of middle/high band

(including third harmonic of low band)

The stable power supply ensures the normal operation of H380 module. In the design, it's should be noted

that the ripple of power supply shall be lower than 300mV. When the module is operating in GSM mode

(Burst transmit), the maximum operating current is up to 2A, and the power supply voltage shall not be

less than 3.135V; otherwise, the module may shut down or restart due to outage. The power supply limit

is shown in Figure 3-3:

H380-GL Hardware User Manual Page20of

Figure 3- 3 Power Supply Limit

3.2.2 Logic Level

The 1.8V logic level of H380 module is defined as follows:

Parameter

Minimum Value

Typical Value

Maximum Value

Unit

1.8V logic level

1.71

1.8

1.89

VIH1.3

1.8

1.89

VIL-0.300.5

The 3.3V logic level of H380 module is defined as follows:

Parameter

Minimum Value

Typical Value

Maximum Value

Unit

3.3V logic level

3.135

3.3

3.465

VIH2.3

3.3

3.465

VIL-0.300.9

3.2.3 Power Consumption

When the power supply is 3.3V, the power consumption of H380 module is as below.

The shutdown and sleep currents are as below:

Description

Bands

Average

Current (mA)

Notes/Configuration

Power off

0.07

3.3 V is on and Power_On_Off pin is pulled to low.

HSPA+/

WCDMA

(Standby)

UMTS

supported

bands

2.2

DRX cycle=8 (2.56 s)

Module is registered on and not connected to the 3G

network.

H380-GL Hardware User Manual Page21of

Description

Bands

Average

Current (mA)

Notes/Configuration

USB is in suspend.

2.9

DRX cycle=6 (0.64 s)

Module is registered on and not connected to the 3G

network.

USB is in suspend.

GPRS/EDGE

(Standby)

GSM

bands

2.4

MFRMS=5 (1.175 s)

Module is registered on and not connected to the 2G

network.

USB is in suspend.

2.3

MFRMS=2 (0.47 s)

Module is registered on and not connected to the 2G

network.

USB is in suspend.

HSPA+/

WCDMA

(Connect

Standby)

UMTS

bands

3.3

DRX cycle=8 (2.56 s)

Module is registered on the 3G network, and PDP is

activated,

No data transmission. USB is in suspend.

DRX cycle=6 (0.64 s)

Module is registered on the 3G network, and PDP is

activated,

No data transmission. USB is in suspend.

GPRS/EDGE

(Connect

Standby)

GSM

bands

2.6

MFRMS=5 (1.175 s)

Module is registered on the 2G network, and PDP is

activated,

No data transmission. USB is in suspend.

MFRMS=2 (0.47 s)

Module is registered on the 2G network, and PDP is

activated,

No data transmission. USB is in suspend.

H380-GL Hardware User Manual Page22of

The power consumption in HSPA/WCDMA mode is as below:

Description

Band

Test Value(mA)

Power

WCDMA

Band 1 (IMT2100)

635

23.5 dBm Tx Power

191

10 dBm Tx Power

150

1 dBm Tx Power

Band 2

(PCS 1900) 653

23.5 dBm Tx Power

182

10 dBm Tx Power

155

1 dBm Tx Power

Band 5

(850 MHz)

529

23.5 dBm Tx Power

185

10 dBm Tx Power

150

1 dBm Tx Power

Band 8

(900 MHz)

561

23.5 dBm Tx Power

176

10 dBm Tx Power

152

1 dBm Tx Power

HSDPA

Band 1 (IMT2100)

176

1 dBm Tx Power

215

10 dBm Tx Power

652

23.5 dBm Tx Power

Band 2

(PCS 1900) 175

1 dBm Tx Power

212

10 dBm Tx Power

634

23.5 dBm Tx Power

Band 5 (850 MHz)

174

1 dBm Tx Power

217

10 dBm Tx Power

678

23.5 dBm Tx Power

Band 8

(900 MHz)

186

1 dBm Tx Power

234

10 dBm Tx Power

679

23.5 dBm Tx Power

H380-GL Hardware User Manual Page23of

The power consumption in GPRS/EDGE mode is as below:

Description

Test Value 1#

PCL

Configuration

GPRS850

265

1 Up/1 Down

353

2 Up/1 Down

399

4 Up/1 Down

1 Up/1 Down

150

2 Up/1 Down

237

4 Up/1 Down

GPRS900

265

1 Up/1 Down

357

2 Up/1 Down

407

4 Up/1 Down

1 Up/1 Down

154

2 Up/1 Down

238

4 Up/1 Down

GPRS1800

181

1 Up/1 Down

239

2 Up/1 Down

278

4 Up/1 Down

1 Up/1 Down

2 Up/1 Down

107

4 Up/1 Down

GPRS1900

179

1 Up/1 Down

228

2 Up/1 Down

278

4 Up/1 Down

1 Up/1 Down

2 Up/1 Down

108

4 Up/1 Down

H380-GL Hardware User Manual Page24of

Description

Test Value 1#

PCL

Configuration

EDGE850

185

1 Up/1 Down

290

2 Up/1 Down

419

4 Up/1 Down

1 Up/1 Down

2 Up/1 Down

125

4 Up/1 Down

EDGE900

185

1 Up/1 Down

295

2 Up/1 Down

411

4 Up/1 Down

1 Up/1 Down

105

2 Up/1 Down

151

4 Up/1 Down

EDGE1800

200

1 Up/1 Down

216

2 Up/1 Down

286

4 Up/1 Down

1 Up/1 Down

2 Up/1 Down

117

4 Up/1 Down

EDGE1900

198

1 Up/1 Down

213

2 Up/1 Down

290

4 Up/1 Down

1 Up/1 Down

2 Up/1 Down

118

4 Up/1 Down

H380-GL Hardware User Manual Page25of

3.3 Control Signal

H380 module provides 2 channel control signals for start-up/shutdown and reset operations of the module,

and the pins are defined as follows:

Pin Name

I/O

Reset Value

Functions

Type

FUL_CARD_POWE

R_OFF#

Start-up/shutdown signal, internal

200KΩ pull-up resistance

High level start-up, low level or floating

shutdown

3.3/1.8V

RESET#

Reset signal, internal 200KΩ pull-up

resistance

Low-active

3.3/1.8V

3.3.1 Module Start-up

3.3.1.1 Start-up Circuit

The module start-up pin FUL_CARD_POWER_OFF# requires external pull-up 18.V voltage (VDD_1V8

provided externally), and the module has two start-up modes:



AP (Application Processor) controls the module start-up, and the circuit design is shown in

Figure 3-4:

 Automatically start-up when powered on, and the circuit design is shown in Figure 3-5:

Figure 3- 4 Circuit for Module Start-up Controlled by AP

H380-GL Hardware User Manual Page26of

Figure 3- 5 Circuit for Automatic Start-up

3.3.1.2 Start-up Timing

After the module is powered on, when the FUL_CARD_POWER_OFF# signal pulls up and exceeds 20ms

(the recommended value is 100ms), the module starts up. Meanwhile, VSD2_1V8 inside the module

outputs 1.8V voltage, and the module begins the process of start-up initialization. The start-up timing is

shown in Figure 3-6:

Figure 3-6 Start-up Timing Control Diagram

Note:

VSD2_1V8 is a PMU inside the module, it outputs 1.8V voltage and has not been led out via M.2

interface, the appearance of this voltage in timing chart is mainly purposed to facilitate the

understanding of timing;

RESET# is required to delay its pull-up for 1s compared with +3.3V, because the module needs

time for power-on of +3.3V power supply (capacitor charging). If +3.3V maintains as ordinary

power supply, then the delay time is negligible.

H380-GL Hardware User Manual Page27of

3.3.2 Module Shutdown

The module supports two shutdown modes as shown below:

Shutdown

Mode

Shutdown Method

Applicable Scenario

Software

shutdown

Send AT+CPWROFF command

Normal shutdown

Hardware

shutdown

Pull down

FUL_CARD_POWER_OFF#

When software shutdown is unavailable in case

of module abnormity

3.3.2.1 Software Shutdown

AT+CPWROFF command can be sent to shut down the module.

When the module receives software shutdown command, the module starts ending process (finalization,

a reverse process of initialization), and the module completes shutdown after about 3s. When ending

process, the module will save the parameters such as network and SIM card in the memory, and then

empty the memory, and switch off PMU power supply. After shutdown, VSD2_1V8 voltage inside the

module will also switch off. The software shutdown timing is shown in Figure 3-7:

Figure 3-7 Software Shutdown Timing Control Diagram

After the completion of software shutdown, FUL_CARD_POWER_OFF# still remains at high level, at this

moment, the module will not start up again. To facilitate the next start-up of the module,

FUL_CARD_POWER_OFF# should be pulled down first.

Note:

VSD2_1V8 is a PMU inside the module, it outputs 1.8V voltage and has not been led out via M.2

interface, the appearance of this voltage in timing chart is mainly purposed to facilitate the

understanding of timing.

H380-GL Hardware User Manual Page28of

3.3.2.2 Hardware Shutdown

By pulling down FUL_CARD_POWER_OFF# for more than 10ms (the recommended value is 100ms),

the power management unit (PMU) of the module powers down, and then the module achieves hardware

shutdown. The PMU of the module powers down when pulling down FUL_CARD_POWER_OFF#, the

module may be damaged after several start-ups and shutdowns; therefore, RESET# pin shall be pulled

down for 100ms before pulling down FUL_CARD_POWER_OFF#. The hardware shutdown control timing

is shown in Figure 3-8:

Figure 3- 8 Hardware Shutdown Control Timing

Note:

VSD2_1V8 is a PMU inside the module, it outputs 1.8V voltage and has not been led out via M.2

interface, the appearance of this voltage in timing chart is mainly purposed to facilitate the

understanding of timing.

3.3.3 Module Reset

The module supports reset function. Pulling down RESET# signal for more than 10ms (the recommended

value is 100ms) can reset the module to the initial state, and the module restarts after releasing RESET#.

When performing Reset function, PMU inside the module will not power down. The recommended circuit

design is shown in Figure 3-9:

H380-GL Hardware User Manual Page29of

Figure 3- 9 Recommended Design of Reset Circuit

The control timing of RESET is shown in Figure 3-10:

Figure 3- 10 Reset Control Timing

Note:

RESET# is a sensitive signal, filter capacitor is recommended to be added close to the module

end. PCB layout shall be away from RF interference and shall have proper grounding handling;

meanwhile, wiring at PCB edge and surface shall be avoided (so as to avoid ESD causing

module reset).

3.4 USB Interface

H380 module supports USB2.0 and is compatible with USB High-Speed (480 Mbits/s) and USB

Full-Speed (12 Mbits/s). Please refer to “Universal Serial Bus Specification 2.0” for timing and electrical

characteristics of the USB of the module.

After inserting H380 module into PC, the USB can map 1 MBIM interface on Win8.1/Win10 system-based

PC and map 7 ACM ports on Android/Linux system-based PC. Please refer to Section 3.7.2 for details of

H380-GL Hardware User Manual Page30of

system switching.

 MBIM interface is used for initiating data service;



For 7 ACM ports:

1 port is 3G Modem/AT port, which is mainly used for initiating data service

3 ports are used for sending AT Command

1 port is used for capturing software LOG information

2 ports are reserved for future use

3.4.1 USB Interface Definition

Pin Name

I/O

Reset Value

Pin Description

Type

USB_D+

I/O

USB Data Plus

0.3---3V,

USB2.0

USB_D-

I/O

USB Data Minus

0.3---3V,

USB2.0

3.4.2 USB2.0 Interface Application

The reference circuit is shown in Figure 3-11:

Figure 3- 11 Reference Circuit for USB2.0 Interface

The module supports USB 2.0 High-Speed, so the TVS equivalent capacitance on USB_D-/D+ differential

signal line shall be lower than 1pF, it’s recommended to adopt TVS with 0.5pF capacitance.

USB_D- and USB_D + are high-speed differential signal lines, the maximum transmission rate is up to

480 Mbits/s, the PCB Layout shall strictly adhere to the following rules:



USB_D- and USB_D+ signal line controls 90 Ω differential impedance;



USB_D- and USB_D+ signal line shall be isometric and parallel, rectangular wiring shall be

avoided;The cabling of USB_D- and USB_D+ signal line shall be located on the signal layer closest to the

ground, up, down, left and right grounding protections shall be completed for wiring.

H380-GL Hardware User Manual Page31of

3.5 USIM Interface

H380 module has built-in USIM card interface that supports 1.8V and 3V SIM card.

3.5.1 USIM Pins

USIM pins are as below:

Pin Name

I/O

Reset Value

Pin Description

Type

UIM_PWR

USIM power supply

1.8V/3V

UIM_RESET

OPPUSIM reset

1.8V/3V

UIM_CLKOPP

USIM clock

1.8V/3V

UIM_DATA

I/O

USIM data, Internal pull up(4.7KΩ)

1.8V/3V

SIM_DETECT

USIM detect, pull up(390KΩ)

High-active, high level indicates SIM

card inserted, and low level indicates

SIM card removed

1.8V

3.5.2 USIM Interface Circuit

3.5.2.1 N.C. SIM card slot

The reference circuit design for the N.C. (Normally Closed) SIM card slot is shown in Figure 3-12:

Figure 3-12 Reference Circuit for N.C. SIM Card Slot

The principle description for N.C. SIM card slot is as follows:

 When the SIM card is detached, the CD and SW pins will short, and the SIM_DETECT is low.



When the SIM card is inserted, the CD and SW pins will open, and the SIM_DETECT is high.

H380-GL Hardware User Manual Page32of

3.5.2.2 N.O. SIM card slot

The reference circuit design for the N.O. (Normally Open) SIM card slot is shown in Figure 3-13:

Figure 3-13 Reference Circuit for N.O. SIM Card Slot

The principle description for N.O. SIM card slot is shown in the following:

 When the SIM card is detached, the CD and SW pins will open, and the SIM_DETECT is low.



When the SIM card is inserted, the CD and SW pins will short, and the SIM_DETECT is high.

3.5.3 USIM Hot-Plugging

H380 supports SIM card hot-plugging function; it judges whether SIM card is inserted or removed by

detecting SIM_DETECT pin state of SIM card slot, so as to support SIM card hot-plugging function.

SIM card hot-plugging function can be configured by “AT+MSMPD” command, and the description of AT

command is as below:

AT Command

Detection of SIM Card

Hot-plugging Function

Function Description

AT+MSMPD=1

Default value, SIM card hot-plugging detection function is

The module detects whether SIM card is inserted or not

by detecting SIM_DETECT pin state

AT+MSMPD=0

Off

SIM card hot-plugging detection function is off

When start-up, the module reads SIM card and does not

detect SIM_DETECT state

When SIM card hot-plugging detection function is on and SIM_DETECT is at high level, the module

executes SIM card initialization program after detected SIM card inserted, and the module conducts

H380-GL Hardware User Manual Page33of

network registration after read SIM card information. When SIM_DETECT is at low level, the module

judges that SIM card has been removed, and then it does not read SIM card.

Note:

SIM_DETECT is high-active by default and can be switched to low-active by AT command.

Please refer to AT command manual for specific AT command.

3.5.4 USIM Design

SIM card circuit design shall meet EMC standard and ESD requirements and shall improve the

anti-interference capability, so as to ensure the stable operation of SIM card. In the design, the followings

shall be strictly complied with:



The layout of SIM card slot shall be as close as possible to the module and away from RF

antenna, DC/DC power supply, clock signal line and other strong interference sources;

 SIM card slot with metal shield shall be applied to improve the anti-interference capability;



The cable between the module and SIM card slot shall not be longer than 100mm, as redundant

cable will degrade the quality of signal;

 UIM_CLK and UIM_DATA signal shall be isolated by grounding protection, so as to avoid mutual

interference. If impossible, then a grounding protection shall be completed at least for SIM signal

as a group;

 The filter capacitor and ESD devices of SIM card signal line shall be placed close to SIM card

slot, and 22~33pF capacitance shall be chose for equivalent capacitance of ESD devices.

3.6 Status Indicator

H380 module provides 3 signals for displaying the operating state of the module, and the status indicator

pins are as below:

Pin Name

I/O

Reset Value

Pin Description

Type

LED1#OPD

System status LED, drain output

CMOS 3.3V

WOWWAN#

Module wakes up Host(AP) signal,

drain output

CMOS 3.3/1.8V

TX_BLANKING

PA Blanking output, external GPS

control signal

CMOS 1.8V

H380-GL Hardware User Manual Page34of

3.6.1 LED1# Signal

LED1# signal is used to indicate the operating state of the module, and the detailed description is as

follows:

Operating Mode of

Module

LED1# Signal

RF function is on

Low level (LED light on)

RF function is off

High level (LED light off)

LED drive circuit is shown in Figure 3-15:

Figure 3-15 LED Drive Circuit

Note:

The current-limiting resistance value of LED light is configured according to driving voltage and

driving current of the light.

3.6.2 WOWWAN#

The module wakes up Host (AP) by WOWWAN# signal when receiving incoming call/SMS or data

request. WOWWAN# signal is drain output; therefore, external pull-up is required, WOWWAN# supports

3.3V or 1.8V external voltage pull-up. WOWWAN# signal is defined as follows:

Operating Mode

WOWWAN# Signal

Ringing/SMS or data

requests

An 1s low level pulse by default Idle/Sleep

High level

WOWWAN# timing is shown in Figure 3-16:

H380-GL Hardware User Manual Page35of

Figure 3-16 WOWWAN# Timing

3.6.3 TX_BLANKING

When the module is operating on GSM band, TX_BLANKING outputs pulse signal synchronized with

GSM burst TX timing.

Because GSM TX timing may interfere with GPS signal receiving, the AP switches off GPS or stops GPS

data receiving after detected TX_BLANKING pulse signal, so as to avoid abnormal GPS operation.

Operating Mode of

Module

TX_BLANKING Signal

Default state

Low level

GSM burst TX

Output pulse signal synchronized with GSM burst TX

TX_BLANKING timing is shown in Figure 3-17:

Figure 3-17 TX_BLANKING Timing

3.7 Interrupt Control

H380 module provides 3 interrupt signals, and the pins are defined as below:

Pin Name

I/O

Reset Value

Pin Description

Type

W_DISABLE1#

Switch on or off RF network

CMOS 3.3V

DPR

Body SAR detection

CMOS 1.8V

GNSS_IRQ

MBIM/ACM interface system

switching

CMOS 1.8V

H380-GL Hardware User Manual Page36of

3.7.1 W_DISABLE1#

The module provides hardware for switching on/off WWAN RF function signal, and this function can also

be controlled by AT command. The module enters Flight mode when switching off RF function.

W_DISABLE1# signal function is defined as follows:

W_DISABLE1# Signal

Function

High/Floating

WWAN function is on, the module exits Flight mode

Low

WWAN function is off, the module enters Flight mode

3.7.2 System Switching Control

The module supports switching between MBIM and ACM interfaces, which are respectively designed for

supporting Win8.1/Win10 and Android/Linux/Win7 systems. The detection of interrupt signal GNSS_IRQ

is used for achieving system function switching. GNSS_IRQ signal function is defined as follows:

GNSS_IRQ Signal

Function

High/Floating

Set the USB port of the module as MBIM interface to support

Win8.1/Win10 system

Low

Set the USB port of the module as ACM interface to support

Android/Linux/Win7 system

Note:



When starting up, the module switches MBIM and ACM interfaces by detecting GNSS_IRQ level,

the stability of GNSS_IRQ level shall be maintained in start-up process;

 After start-up, the module switches MBIM and ACM interfaces by detecting GNSS_IRQ

rising/falling edge, the filter time is 100ms. When the condition is met, the module will restart and

switch to another interface.

3.7.3 BODY SAR

H380 module supports BODY SAR function through DPR pin detection. DPR is at high level by

default, the AP pulls down the DPR when approaching human body is detected by using SAR Sensor

(distance sensor), then the module reduces the transmit power to a preset threshold value, decreasing

RF radiation on the human body. The preset threshold value can be set by the relevant AT command or

DPR Tool. DPR function is defined as follows:

DPR Signal

Function

High/Floating

The module maintains default transmit power

Low

Reduce the threshold value of maximum transmit power of the module

H380-GL Hardware User Manual Page37of

3.8 Clock Interface

H380 module supports 1 channel clock and can respectively output 26MHz clock.

Pin Name

I/O

Reset Value

Pin Description

Type

SYSCLK

26M clock output

(available for external GPS or Audio

Codec)

1.8V

3.9 Config Interface

H380 module provides 4 config pins and is configured as WWAN-SSIC-0 type M.2 module:

Pin Name

I/O

Reset Value

Pin Description

Type

CONFIG_3

OLInternally connected to GND

CONFIG_0

CONFIG_1

OLInternally connected to GND

CONFIG_2

OLInternally connected to GND

M.2 module configuration is as follows:

Config_0

(pin21)

Config_1

(pin69)

Config_2

(pin75)

Config_3

(pin1)

Module Type and Main

Host Interface

Port

Configuration

GND

WWAN-SSIC

Please refer to “PCI Express M.2 Specification Rev0.9-3” for details.

3.10 Other Interfaces

The ANT Tunable interface of the module is currently not supported.

H380-GL Hardware User Manual Page38of

4 RF Interface

4.1 RF Interface

4.1.1 RF Interface Function

H380 module provides 2 RF connectors for connecting with external antennas. As shown in Figure

4-1, “M” refers to RF main antenna, which is used for sending and receiving RF signals; “D” refers to

Diversity antenna, which is used for receiving diversity RF signals.

Figure 4-1 Schematic Diagram of RF Interface

4.1.2 RF Connector Performance

Rated Conditions

Environmental Conditions

Frequency Range

DC to 6GHz

Temperature Range:

Characteristic Impedance

50Ω

–40°C to +85°C

4.1.3 RF Connector Dimension

H380 module applies standard M.2 module RF connector, the model is Murata MM4829-2702, and

the dimension of connector is 2*2*0.6mm. The dimension of connector is as below:

H380-GL Hardware User Manual Page39of

Figure 4-2 Dimension Figure of RF Connector

Figure 4-3 Dimension Figure of 0.81mm Coaxial Line Coupling with RF Connector

Figure 4-4 Schematic Diagram of 0.81mm Coaxial Line Locking into RF Connector

H380-GL Hardware User Manual Page40of

4.2 Operating Band

The operating band of H380 module antenna is as below:

Operating Band

Description

Mode

Tx (MHz)

Rx (MHz)

Band 1

IMT 2100MHz

WCDMA

1920 - 1980

2110 - 2170

Band 2

PCS 1900MHz

WCDMA/GSM

1850 - 1910

1930 - 1990

Band 3

DCS 1800MHz

GSM

1710 - 1785

1805 - 1880

Band 5

CLR 850MHz

WCDMA/GSM

824 - 849

869 - 894

Band 8

E-GSM 900MHz

WCDMA/GSM

880 - 915

925 - 960

4.3 Transmitting Power

The transmitting power of various bands of H380 module is as below:

Mode

Condition

Band Transmit Power (dBm)

Min

Type

Max

GSM

GMSK

(1TX Slot)

GSM850

31.5

32.5

33.5

GSM900

31.5

32.5

33.5

DCS1800

28.5

29.5

30.5

PCS1900

28.5

29.5

30.5

EGPRS

8PSK

(1TX Slot)

GSM850

262728

GSM900

262728

DCS1800

252627

PCS1900

252627

WCDMA

22.5

23.5

24.5

22.5

23.5

24.5

22.5

23.5

24.5

VIII

22.5

23.5

24.5

H380-GL Hardware User Manual Page41of

4.4 Receiving Sensibility

The sensitivity of various bands of H380 module is as below:

Mode

Band

Rx Sensitivity (dBm)

Conditions

Typ

Max

GPRS

GSM850

-112.5

-109

GMSK

(CS1,BLER<10%)

GSM900

-112

-109

DCS1800

-112.5

-109

PCS1900

-112

-109

EGPRS

GSM850

-104.5

-101.5

8PSK

(MCS5,BLER<10%)

GSM900

-104

-101

DCS1800

-104.5

-101.5

PCS1900

-104.5

-101.5

WCDMA

(Main)

-110

-108

(BER<0.1%)

-110.5

-108

-110.5

-108

VIII

-110

-108

WCDMA

(Diversity)

-110.5

-108

(BER<0.1%)

-110

-108

-111

-108

VIII

-111

-108

H380-GL Hardware User Manual Page42of

4.5 Antenna Design

H380 module provides two antenna connectors, i.e., main and diversity antenna connectors, and the

design requirements of antenna is as below:

Requirements of H380 Module Main Antenna

Frequency range

The most appropriate antenna shall be used to adapt to the relevant bands

Bandwidth

(GSM/EDGE)

GSM850: 70 MHz

GSM900: 80 MHz

GSM1800(DCS): 170 MHz

GSM1900(PCS): 140 MHz

Bandwidth (WCDMA)

WCDMA band I(2100): 250 MHz

WCDMA band II(1900): 140 MHz

WCDMA band V(850): 70 MHz

WCDMA band VIII(900): 80 MHz

Impedance

50Ω

Input power

> 33dBm(2 W) peak power GSM

> 23.5dBm average power WCDMA

Standing-wave ratio

(SWR) recommended

≤ 2:1

5 Structure Specification

5.1 Product Appearance

The product appearance for the H380 module is shown in Figure 5-1:

Figure 5-1 Top View & Bottom View

H380-GL Hardware User Manual Page43of

5.2 Dimension of Structure

The dimension of structure of H380 module is shown in Figure 5-2:

Figure 5-2 Dimension of Structure

5.3 M.2 Interface Type

H380 M.2 module applies 75-pin Gold Finger as the external interface, of which 67 pins are signal

interfaces, and 8 pins are a notch (as shown in Figure 3-1). Please refer to the description in Section 5.2

for dimension of the module. According to the definition of M.2 interface, H380 module applies Type

2242-S3-B interface (22x42mm, the thickness of element layer on Top surface is up to 1.5mm, the

thickness of PCB is 0.8mm, and Key ID is B).

H380-GL Hardware User Manual Page44of

5.4 M.2 Connector

H380 module connects with the AP by using M.2 connector, LOTES M.2 connector is recommended,

the model is APCI0026-P001A, as shown in Figure 5-3. Please refer to specification design for connector

package.

Figure 5-3 Dimension of M.2 Connector

H380-GL Hardware User Manual Page45of

5.5 Storage

5.5.1 Storage Life

Storage conditions (recommended): Temperature: 23±5°C, relative humidity (RH): 35-70%.

Storage period (sealed vacuum packing): 12 months under the recommended storage conditions.

5.6 Package

The H380 module uses the tray sealed vacuum packing, combined with the hard cartoon box outer

packing method, so that the storage, transportation and the usage of the module can be protected to the

greatest extent.

Note:

The vacuum package bag includes the humidity card and a desiccant. The module is the

humidity sensitive device, and the humidity sensitivity level is Class 3, which meets the

requirements of the American Electronic Component Industry Association (JEDEC). Please

protect the module to avoid the permanent damage to the product caused by humidity.

The module is a sophisticated electronic product and may suffer permanent damage if no proper

ESD protection measures are taken.

5.6.1 Tray Package

The L816 module uses tray package, 20pcs are packed in each tray, with 5 trays in each box and 6

boxes in one case. Tray packing process is shown in Figure 5-4:

H380-GL Hardware User Manual Page46of

Figure 5-4 Tray Packing Process

5.6.2 Tray Size

The type of tray is C (43*23mm), and its size is 329*176*9.5mm, as shown in Figure 5-5:

H380-GL Hardware User Manual Page47of

Figure 5-5 Tray Size

Fibocom Wireless H380GL User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
