Festool RO 150 FEQ User Manual 2
ROTEX
RO 150 FEQ
Instruction manual
Page 2 - 8
IMPORTANT: Read and understand all instructions
before using.
Guide d’utilisation
Page 9 - 15
IMPORTANT: Lire et comprendre toutes les instructions
avant de démarrer les travaux.
Manual de instrucciones
Página 16 - 22
IMPORTANTE: Lea y comprende todas las instrucciones
493 978_004
antes de usar.
1
Contents
Safety rules .............................................2
Technical data .........................................3
Symbols .................................................. 3
Intended use ........................................... 3
Electrical connection and operation ........ 4
Extension cord .........................................4
Electronic control .................................... 4
Tool settings ...........................................4
Dust extraction ........................................ 4
Edge protector .........................................5
Sanding motion .......................................5
Choice and installation of sanding pads .......5
Attaching the abrasive .............................. 5
Securing polishing attachments ..................6
Auxiliary handle ....................................... 6
Working with the tool .............................6
Metalworking ...........................................6
Maintenance and care ............................. 6
Pad brake ................................................ 6
Accessories, tools ................................... 6
Warranty .................................................7
Table A: Sanding ..................................... 7
Table B: Polishing ................................... 8
Safety rules
Read and understand all instruc-
tions. Failure to follow all instructions listed below
may result in electric shock, fi re and/or serious
personal injury.
SAVE THESE INSTRUCTIONS
General safety rules
1) Work area safety
a) Keep work area clean and well lit. Cluttered
and dark areas invite accidents.
b) Do not operate power tools in explosive atmospheres, such as in the presence
of fl ammable liquids, gases or dust. Power
tools create sparks which may ignite the dust or
fumes.
c) Keep children and bystanders away while
operating a power tool. Distractions can cause
you to lose control.
2) Electrical safety
a) Power tool plugs must match the outlet.
Never modify the plug in any way. Do not use
any adapter plugs with earthed (grounded)
power tools. Unmodifi ed plugs and matching
outlets will reduce risk of electric shock.
b) Avoid body contact with earthed or
grounded surfaces such as pipes, radiators,
ranges and refrigerators. There is an increased
risk of electric shock if your body is earthed or
grounded.
c) Do not expose power tools to rain or wet
conditions. Water entering a power tool will in-
crease the risk of electric shock.
d) Do not abuse the cord. Never use the cord
for carrying, pulling or unplugging the power
tool. Keep cord away from heat, oil, sharp
edges or moving parts. Damaged or entangled
cords increase the risk of electric shock.
e) When operating a power tool outdoors,
use an extension cord suitable for outdoor
use. Use of a cord suitable for outdoor use reduces
the risk of electric shock.
f) Hold power tool by insulated gripping surfaces only, when performing an operation
where the cutting accessory may contact
hidden wiring or its own cord. Contact with a
„live“ wire will make exposed metal parts of the
power tool „live“ and shock the operator.
3) Personal safety
a) Stay alert, watch what you are doing and
use common sense when operating a power
tool. Do not use a power tool while you are
tired or under the infl uence of drugs, alcohol
or medication. A moment of inattention while
operating power tools may result in serious personal injury.
b) Use safety equipment. Always wear eye
protection. Safety equipment such as dust mask,
non-skid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce
personal injuries.
c) Avoid accidental starting. Ensure the
switch is in the off position before plugging
in. Carrying power tools with your fi nger on the
switch or plugging in power tools that have the
switch on invites accidents.
d) Remove any adjusting key or wrench before turning the power tool on. A wrench or a
key left attached to a rotating part of the power
tool may result in personal injury.
e) Do not overreach. Keep proper footing and
balance at all times. This enables better control
of the power tool in unexpected situations.
f) Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing
and gloves away from moving parts. Loose
clothes, jewellery or long hair can be caught in
moving parts.
g) If devices are provided for the connection
of dust extraction and collection facilities,
ensure these are connected and properly
2
used. Use of these devices can reduce dust related hazards.
4) Tool use and care
a) Do not force the power tool. Use the correct power tool for your application. The cor-
rect power tool will do the job better and safer at
the rate for which it was designed.
b) Do not use the power tool if the switch
does not turn it on and off. Any power tool that
cannot be controlled with the switch is dangerous
and must be repaired.
c) Disconnect the plug from the power
source before making any adjustments,
changing accessories, or storing power tools.
Such preventive safety measures reduce the risk
of starting the power tool accidentally.
d) Store idle power tools out of the reach of
children and do not allow persons unfamiliar
with the power tool or these instructions to
operate the power tool. Power tools are dan-
gerous in the hands of untrained users.
e) Maintain power tools. Check for misalignment or binding of moving parts, breakage
of parts and any other condition that may affect the power tools operation. If damaged,
have the power tool repaired before use.
Many accidents are caused by poorly maintained
power tools.
f) Keep cutting tools sharp and clean. Properly
maintained cutting tools with sharp cutting edges
are less likely to bind and are easier to control.
g) Use the power tool, accessories and tool
bits etc., in accordance with these instructions and in the manner intended for the
particular type of power tool, taking into
account the working conditions and the
work to be performed. Use of the power tool
for operations different from those intended could
result in a hazardous situation.
5) Service
a) Have your power tool serviced by a qualifi ed repair person using only identical replacement parts. This will ensure that the safety
of the power tool is maintained.
Specifi c Safety Rules
a) Hold power tools by insulated gripping
surfaces only, when performing an operation
where the cutting accessory may contact
hidden wiring or its own cord. Contact with a
„live“ wire will make exposed metal parts of the
power tool „live“ and shock the operator.
TO REDUCE THE RISK OF INJURY,
USER MUST READ AND UNDERSTAND INSTRUCTION MANUAL.
Various dust created by power sanding, sawing, grinding, drilling and other construction activities contains chemicals known (to the
State of California) to cause cancer, birth defects
or other reproductive harm. Some examples of
these chemicals are:
• Lead from lead-based paints,
• Crystalline silica from bricks and cement and
other masonry products,
• Arsenic and chromium from chemically-treated
lumber.
The risk from these exposures varies, depending
on how often you do this type of work.
To reduce your exposure to these
chemicals work in a well ventilated
area and use approved safety equipment, such as dust masks that are
specially designed to fi lter out micro-
scopic particles.
Technical data
Wattage ............................................. 720 W
No load speed .......................3300 - 6800 rpm
Sanding stroke ......................... 5 mm (0.2 in.)
Sanding base dia. ................ 150 mm (5.9 in.)
Weight ..................................2.3 kg (5.1 lbs.)
Safety level ..............................................
Symbols
V Volts
A Amperes
Hz Hertz
W Watt
~ Alternating current
n
No load speed
0
Class II Construction
rpm Revolutions per minute
Ø Diameter
Intended use
The sanders are designed for sanding and polishing wood, plastic, metal, stone, composite materials, paint/varnish, fi ller and similar materials.
Do not use with materials containing asbestos.
The tools must not be used when wet or damp,
or operated in a damp environment, for electrical safety reasons. Use this sander only for dry
sanding.
The user bears sole responsibility for
any damage or accidents resulting from incorrect
use.
3
/ II

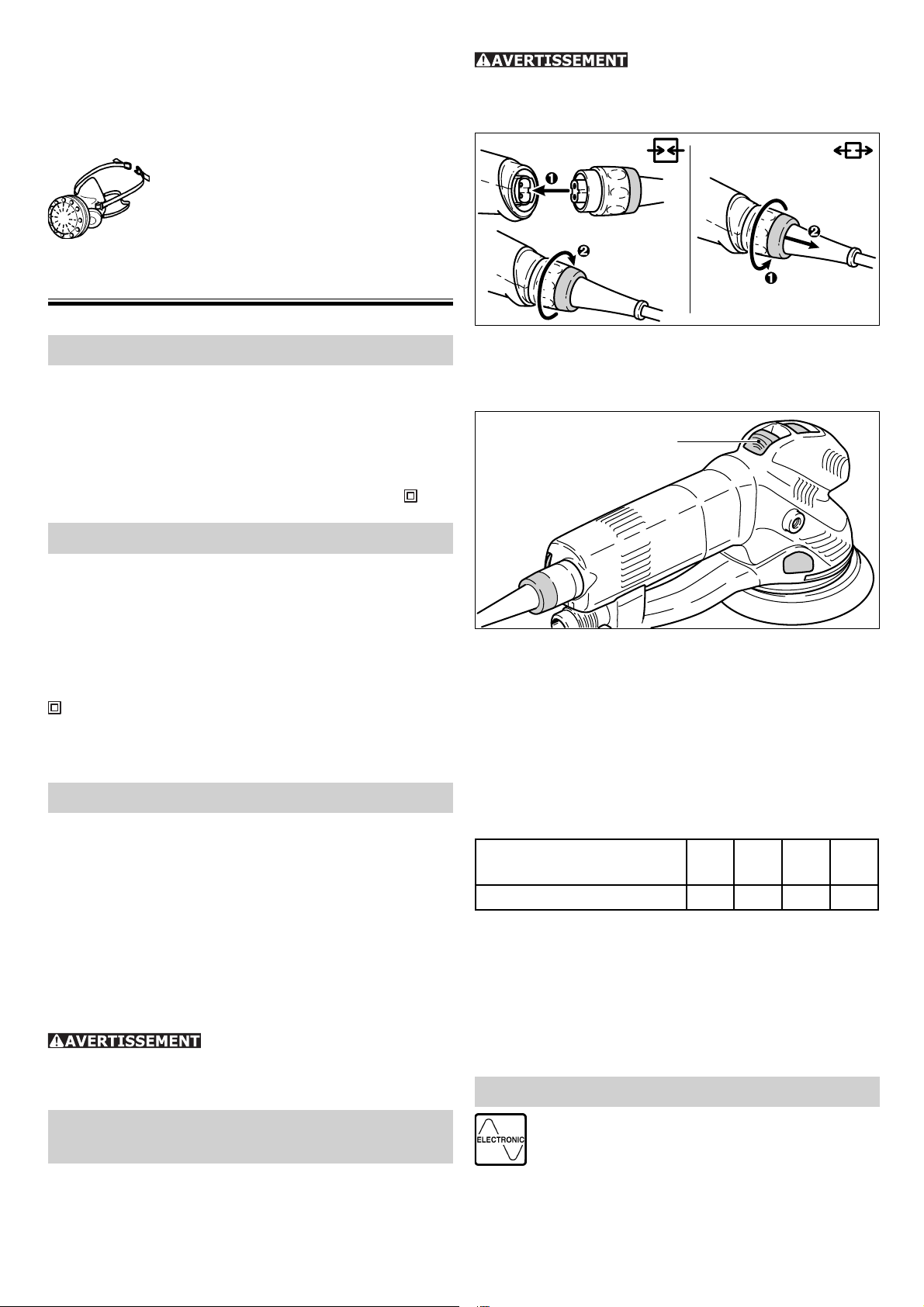

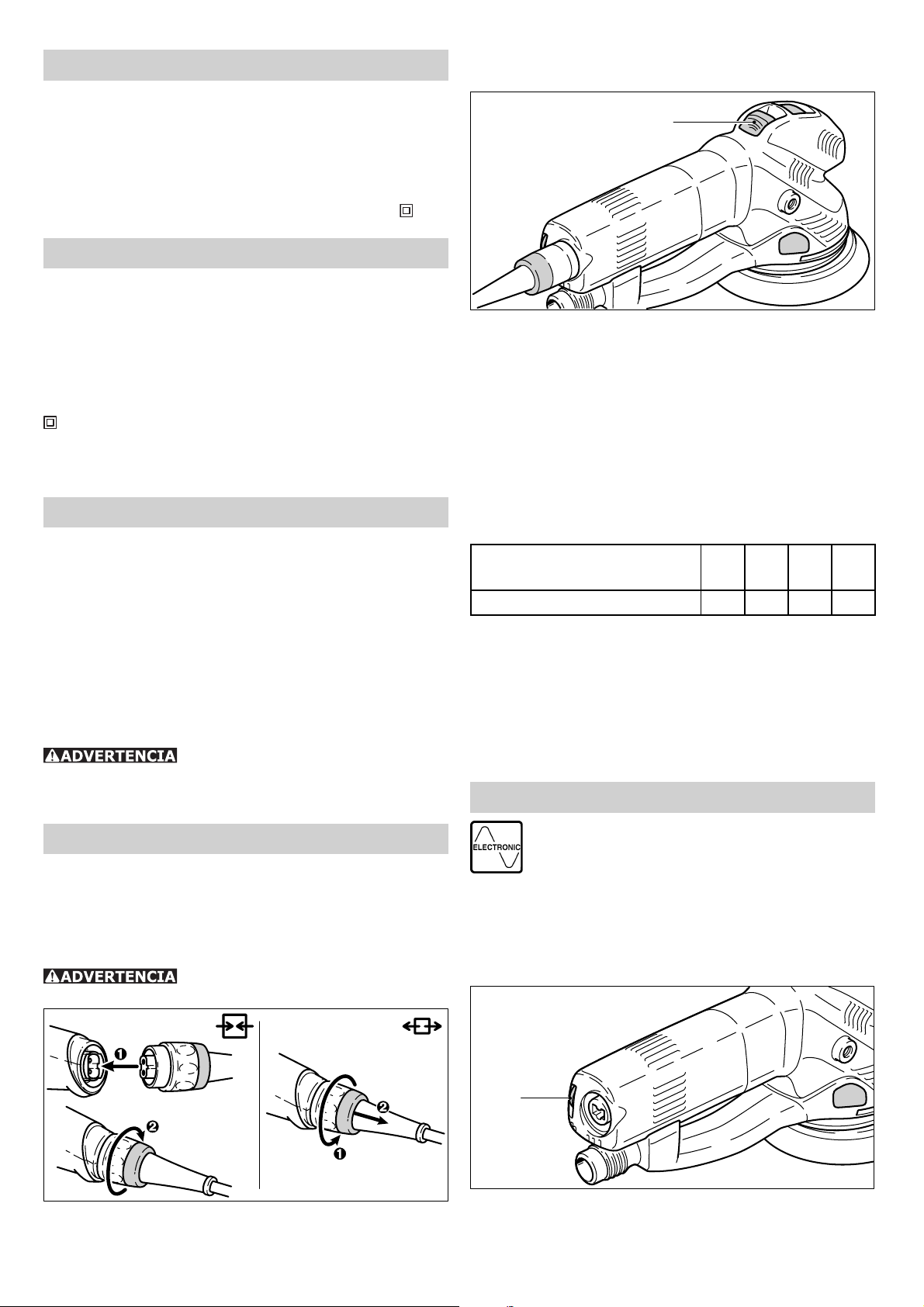

Electrical connec-
tion and operation
The mains voltage must correspond to the voltage
on the rating plate!
See the following fi gure for connection and dis-
connection of the power cord.
Always switch the tool off before con-
necting or disconnecting the power cord!
4
Edge protector
Hard: Coarse sanding on surfaces, sanding at
edges.
Soft: Universal use for coarse and fi ne sanding
for fl at and curved surfaces.
Super-soft: Fine sanding on formed parts,
curves, radii. Do not use on edges!
5.1
The edge protector (5.1) prevents the sanding
pad from touching the edge perpendicular to a
surface (e.g. when sanding along a wall), thereby
preventing the machine from rebounding.
Assembly: Slide the edge protector onto the machine until it latches into place.
Sanding motion
6.1
You can use the switch (6.1) to set two different
sanding motions.
The change from eccentric motion
(fi ne sanding) to Rotex rotary motion (coarse
sanding) can only be made when the sanding
pad is stationary, as the switch is locked in place
during operation for reasons of safety.
Rotex rotary motion (coarse sanding, polishing)
The Rotex rotary motion is a combination of
rotary and eccentric motions. This motion
is recommended for sanding with aggressive material removal (coarse sanding) and
polishing.
Slide the switch (6.1) into the right position.
Eccentric motion (fi ne sanding)
This motion is recommended for sanding
with low material removal for a scratch-free
fi nish (fi ne sanding).
Press the switch (6.1) downwards and push it into
the left-hand position.
Choice and installa-
tion of sanding pads
The tool can be fi tted with three sanding pads of
different hardnesses depending on the surface to
be sanded.
Installation
7.1
7.2
7.3
7.4
The FastFix system enables tool-free replacement
of the sanding pad (7.4):
- Set the switch (7.1) to the right, to the Rotex
rotary motion
- Press spindle stop (7.2),
- Turn the fi tted sanding pad from the spindle
(right-handed thread)
- Keep the spindle stop pressed and screw on the
new sanding pad (in doing so, make sure that
the rubber collar (7.3) is correctly fi tted!).
- Let go of the spindle stop.
Actuate the spindle stop only when the
drive spindle is stationary. Do not switch on the
motor when the spindle stop is pressed in.
Attaching the abrasive
Stickfi x is a hook-and-loop fastening sys-
tem. Stickfi x sanding pads allow the use
of self-adhesive hook-and-loop abrasives
such as Stickfi x sandpapers and sanding
cloths.
Simply press the abrasive onto the sanding pad
and pull it off again after use.
Use only abrasives with an undam-
aged Stickfi x hook-and-loop coating. Before use,
check that the coating has not been damaged by
improper use (such as over heating).
Securing polishing attachments
To prevent damage, use PoliStick polishing attachments (sponges, felt, lambswool bonnets) only
with the special polishing pad fi tted on the tool
instead of a sanding pad. Like StickFix abrasives,
the PoliStick polishing attachments are simply
pressed onto the polishing pad and pulled off
after use.
5
Auxiliary handle
8.1
The auxiliary handle (Accessories, 8.1) can be
screwed onto either the right or left of the gear
head.
Working with the tool
Always secure the workpiece in
such a manner that it cannot move while being
sanded.
Never overload the tool by using
too much pressure! The best sanding results
are achieved when applying moderate pressure.
Sanding performance and quality depend primarily
on the choice of the right abrasive.
For safe guidance, hold the tool with both
hands.
Application
Tables A and B show the settings we recommend
for different sanding and polishing work.
Metalworking
Observe the following safety precau-
tions when working on metals:
• Pre-connect a residual current circuit-breaker
(FI, PRCD).
• Connect the tool to a suitable dust extractor.
• Regularly clear out any dust accumulations in
the motor housing.
• Wear protective goggles.
Pad brake
9.1
The rubber collar (9.1) prevents the sanding pad
from revving up to maximum speed in an uncontrolled manner during eccentric motion (fi ne
sanding). Because the collar wears down in the
course of time, it has to be replaced by a new
one (order no. 465472) as soon as there is any
reduction in the braking effect.
Accessories, tools
For safety reasons, only use original
Festool accessories and tools!
The accessory and tool order number can be found
in the Festool catalog or on the Internet under
www.festool-usa.com.
Systainer
Many Festool products are shipped in a unique
system container, called "Systainer". This provides
protection and storage for the tool and accessories. The Systainers are stackable and can be
interlocked together. They also can be interlocked
atop Festool CT dust extractors.
Maintenance and care
All maintenance or repair work requiring the motor housing to be opened must be
carried out only by an authorized service workshop. Maintenance or repair work carried out by
an unauthorized person can lead to the incorrect
connection of the wiring or other components,
which in turn can lead to accidents with serious
consequences.
Always remove the plug from the
mains supply socket before carrying out any work
on the machine!
Always keep the tool and in particular the ventilation slots clean.
6
Warranty
Conditions of 1+2 Warranty
You are entitled to a free extended warranty (1
year + 2 years = 3 years) for your Festool power
tool. Festool shall be responsible for all shipping
costs during the fi rst year of the warranty. Dur-
ing the second and third year of the warranty the
customer is responsible for shipping the tool to
Festool. Festool will pay for return shipping to the
customer using UPS Ground Service. All warranty
service is valid 3 years from the date of purchase
on your receipt or invoice.
Festool Limited Warranty
This warranty is valid only on condition that the
tool is used and operated in compliance with the
Festool operating instructions. Festool warrants,
only to the original consumer purchaser, that the
specifi ed tool will be free from defects in materi-
als and workmanship for a term of one year from
the date of procurement. Festool makes no other
warranty, express or implied, for Festool portable
power tools. No agent, representative, distributor,
dealer or employee of Festool has the authority
to increase or otherwise change the obligations
or limitations of this warranty. The obligations of
Festool in its sole discretion under this warranty
shall be limited to the repair or replacement of
any Festool portable power tool that is found to be
defective as packaged with the User Manual.
Excluded from coverage under this warranty are:
normal wear and tear; damages caused by misuse, abuse or neglect; damage caused by anything
other than defects in material and workmanship.
This warranty does not apply to accessory items
such as circular saw blades, drill bits, router bits,
jigsaw blades, sanding belts, and grinding wheels.
Also excluded are “wearing parts”, such as carbon
brushes, vanes of air tools, rubber collars and
seals, sanding discs and pads, and batteries.
Festool portable power tools requiring replacement or repair are to be returned with the receipt
of purchase to Festool (call 800-554-8741 for
address details).
IN NO EVENT SHALL FESTOOL BE LIABLE
FOR ANY CONSEQUENTIAL OR INCIDENTAL
DAMAGES FOR BREACH OF THIS OR ANY
OTHER WARRANTY, EXPRESSED OR IMPLIED
WHATSOEVER. ALL WARRANTIES IMPLIED
BY STATE LAW, INCLUDING THE IMPLIED
WARRANTIES OF MERCHANTABILITY AND
FITNESS FOR A PARTICULAR PURPOSE, ARE
HEREBY LIMITED TO THE DURATION OF
THREE YEARS.
Some states in the U.S. and some Canadian provinces do not allow the limitations on how long
an implied warranty lasts, so the above limitation may not apply to you. With the exception of
any warranties implied by state or province law
as hereby limited, the foregoing express limited
warranty is exclusive and in lieu of all other warranties, guarantees, agreements and similar obligations of Festool.
This warranty gives you specifi c legal rights and
you may also have other rights which vary from
state to state in the U.S. and province to province
in Canada.

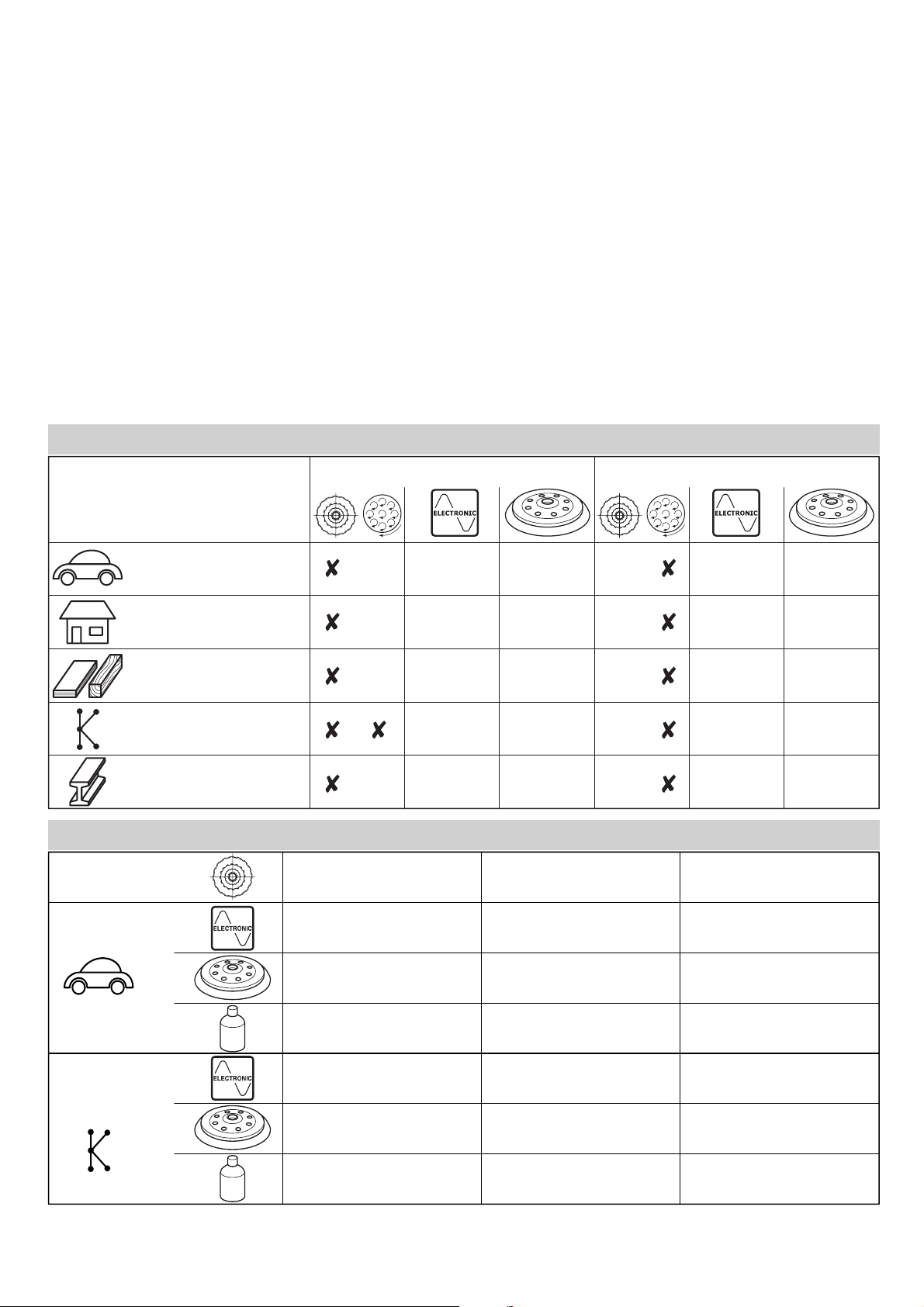

Table A:
Sanding
Paintwork, filler
Paintwork, paint
Wood, veneered
surface
Plastics
Steel, copper,
aluminium
Table A: Sanding
Coarse sanding
5 - 6
5 - 6
5 - 6
4 - 6
6
7
soft
hard
hard
soft
soft
Fine sanding
1- 3
3 - 6
3 - 6
1 - 4
3 - 6
super
soft
hard
soft
soft
soft
Table B: Polishing
Table B:
Polishing
Paintwork
Plastics
Polishing
6
Sponge, coarse/fine
Polishing paste
6
Felt, hard
Polishing paste
Sealing High-gloss polishing
3
Felt, soft
Hard wax
3
Felt, soft
Hard wax
4 - 6
Sheepskin
-
6
Sheepskin
-
8
Loading...
