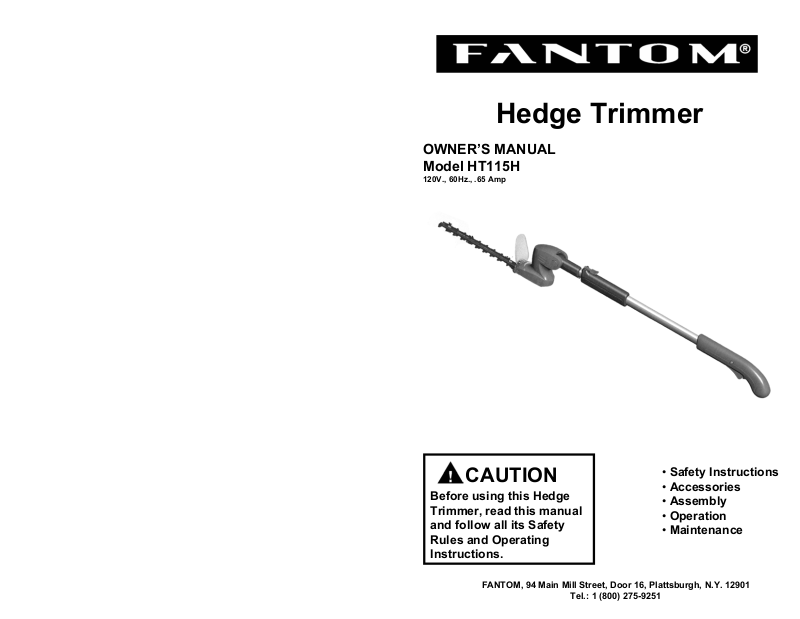

Hedge Trimmer
OWNER’S MANUAL
Model HT115H
120V., 60Hz., .65 Amp
CAUTION
Before using this Hedge
Trimmer, read this manual
and follow all its Safety
Rules and Operating
Instructions.
FANTOM, 94 Main Mill Street, Door 16, Plattsburgh, N.Y. 12901
Tel.: 1 (800) 275-9251
• Safety Instructions
• Accessories
• Assembly
• Operation
• Maintenance
SAFETY & WARNING INSTRUCTIONS
Model HT115H
ONE (1) YEAR LIMITED WARRANTY
FANTOM warrants this product to be free from defects in material and workmanship for a period of
one (1) year from the date of the original purchase, when utilized for normal household use, subject to
the following conditions, exclusions and exceptions.
If your appliance fails to operate properly while in use under normal household conditions within the
warranty period, return the complete appliance and accessories, freight prepaid to FANTOM, 94 Main
Mill Street, Door 16, Plattsburgh NY 12901. If the appliance is found by FANTOM to be defective in
material or workmanship, FANTOM will repair or replace it free of charge. Proof of purchase date and
$ 16.95 to cover the cost of return shipping and handling must be included. *
Non-durable parts including, without limitation, blades and electrical parts which normally require
replacement are specifically excluded from warranty.
The liability of FANTOM is limited solely to the cost of the repair or replacement of the unit at our
option. This warranty does not cover normal wear of parts and does not apply to any unit that has
been tampered with or used for commercial purposes. This limited warranty does not cover damage
caused by misuse, abuse, negligent handling or damage due to faulty packaging or mishandling in
transit. This warranty does not cover damage or defects caused by or resulting from damages from
shipping or repairs, service or alterations to the product or any of its parts, which have been
performed by a repair person not authorized by FANTOM.
This warranty is extended to the original purchaser of the unit and excludes all other legal and/or
conventional warranties. The responsibility of FANTOM if any, is limited to the specific obligations
expressly assumed by it under the terms of the limited warranty. In no event is FANTOM liable for
incidental or consequential damages of any nature whatsoever. Some states do not permit the
exclusion or limitation of incidental or consequential damages, so the above may not apply to you
This warranty gives you specific legal rights, and you may also have other rights which vary from
state to state.
*Important: Carefully pack item to avoid damage in shipping. Be sure to include proof of
purchase date and to attach tag to item before packing with your name, complete address and
phone number with a note giving purchase information, model number and what you believe is
the problem with item. We recommend you insure the package (as damage in shipping is not
covered by your warranty). Mark the outside of your package “ATTENTION CUSTOMER
SERVICE”. We are constantly striving to improve our products, therefore the specifications
contained herein are subject to change without notice.
-----------------------------------------------------------------------------------------------------OWNERSHIP REGISTRATION CARD
Please fill out and mail the product registration card within ten (10) days of purchase. The registration
will enable us to contact you in the unlikely event of a product safety notification. By returning this
card you acknowledge to have read and understood the instructions for use, and warnings set forth
in the accompanying instructions.
RETURN TO FANTOM: 94 Main Mill Street, Door 16, Plattsburgh, NY 12901
Model HT115H
________________________________________________________________________
Appliance model
________________________________________________________________________________
Date purchased Name of store
________________________________________________________________________________
Owner’s name
________________________________________________________________________________
Address City State Zip Code
.
WARNING! THIS MACHINE CAN CAUSE SERIOUS INJURIES.
When using the Hedge Trimmer basic safety precautions should
always be followed to reduce the risk of fire, electric shock and
personal injury. Carefully read and understand the entire owner’s
manual before using your Hedge Trimmer. Pay close attention to the
Operating Instructions and Safety Warnings.
READ ALL INSTRUCTIONS BEFORE USING
1. Do NOT leave the hedge trimmer
plugged in. Unplug from electrical
outlet when not in use, changing
blades or before servicing.
2. Avoid dangerous environments.
Never operate your unit in damp
or wet conditions. Moisture is a
shock hazard.
3. Do NOT use the hedge trimmer in
the rain.
4. Do NOT handle the unit with wet
hands.
5. Use the right tool for the right
job. Use the unit only as
described in this manual. Do NOT
use for any job except that for
which it is intended.
6. Clear the area to be cut before
each use. Remove all objects
such as cords, lights, wires or
string which can become
entangled in the cutting blade.
7. Do NOT abuse the power cord.
Do NOT pull or carry the unit by
the power cord., use the power
cord as a handle, close a door on
cord, or pull by the cord around
sharp edges or corners. Keep the
cord away from heated surfaces,
oil and sharp edges.
8. Do NOT unplug by pulling on the
power cord. To unplug, grasp the
plug, not the cord.
WARNING: The operation of any hedge trimmer can result in
foreign objects being thrown in the eyes. This can lead to severe
eye damage. Before commencing power tool operation always
wear safety glasses or goggles that are marked as meeting ANSI
Z87.1 standards and a full face shield when needed.
9. Keep hair, loose clothing, fingers
and parts of the body away from
openings and moving parts.
10. Do NOT allow to be used as a toy.
Close attention is necessary when
used by or near children.
11. Inspect all extension cords and the
unit power connection periodically.
Look closely for deterioration, cuts
or cracks in the insulation. Also
inspect the connections for damage.
Replace the cords if any defects or
damage appear.
12. Danger! Risk of cuts. Keep hands
away from blades. Keep both hands
on handles when power is on.
13. Do NOT attempt to remove cut
material or hold material to be cut
when the blades are moving. Make
sure the unit is unplugged when
clearing jammed material from
blades. Do NOT grasp the exposed
cutting blades or cutting edges
when picking up or holding the unit.
CAUTION: Blades coast after the unit is
turned off.
14. Warning! To reduce the risk of
electrical shock, use only with an
extension cord intended for outdoor
use such as SW-A, SOW-A, STW-A,
STOW-A, SJW-A, SJOW-A,
SJTW-A or SJTOW-A.
Printed in China
8
Rev. 02/04E
1
SAFETY & WARNING INSTRUCTIONS
continued
15. To reduce the risk of electrical shock,
this unit has a polarized plug (one
blade is wider than the other) and will
require the use of a polarized
extension cord. This unit plug will fit
into a polarized extension cord only
one way. If the plug does not fit,
obtain a correct polarized extension
cord. A polarized extension cord
requires the use of a polarized wall
outlet. This plug will fit into a
polarized wall outlet only one way. If
the plug does not fit, contact a
qualified electrician to install the
proper wall outlet. Do NOT change
the unit plug, extension cord
receptacle or extension cord plug in
any way.
16. Ground Fault Circuit Interrupter
(GFCI) protection should always be
provided on electrical circuits or
outlets to be used for this unit.
17. When using an extension cord, make
sure that it is a cord that is heavy
enough to carry the current that your
unit will draw. An undersized
extension cord will cause a drop in
line voltage resulting in loss of power
and overheating. The table below
shows the correct size to use
depending on the cord length and
amperage rating.
WARNING
To reduce the risk of electrocution, keep all
connections dry and off the ground. Do not
touch the plug with wet hands.
AMPERAGE
RATING
1-10 AMPS 18 16 14 12
Extension Cord Length
25' 50’ 100’ 150’
WIRE SIZE (AWG)
18. Before each use, thoroughly
inspect your unit for loose or
damaged parts. Do NOT use until
adjustments or repairs have been
made.
19. All guards and safety attachments
must be installed properly before
operating the unit.
20. Use the unit in daylight or good
artificial light.
21. Keep all bystanders especially pets
and children at least fifty (50) feet
from the unit while using.
22. To avoid unintentional starting of
the unit, do NOT carry plugged-in
unit with your finger on the safety
switch. Be sure the unit is
unplugged.
23. Always remain alert and use
common sense when using this
unit. To prevent injury to yourself
and to others, NEVER use the
hedge trimmer when you are tired.
24. DO NOT operate this unit while
under the influence of drugs,
alcohol or medication.
25. Wear safety glasses or goggles
that are marked as meeting ANSI
Z87.1 standards and ear/hearing
protection when operating this unit.
Wear a face or dust mask if the job
is dusty.
26. Do NOT over reach or use the
hedge trimmer from unstable
surfaces such as ladders, trees,
steep slopes, rooftops, etc. Keep
proper footing and balance at all
times.
27. When using the hedge trimmer to
trim branches from trees, make
sure that there are no overhead
power lines.
28. Wear heavy, long pants, boots,
gloves and a long sleeve shirt. Do
NOT wear loose clothing, jewelry,
short pants, sandals or go barefoot.
Secure hair above shoulder level.
29. Always release the hand grip
trigger when cutting is delayed or
when walking from one cutting
location to another.
OPERATING INSTRUCTIONS
10. Press on the head angle release
button to change the angle of the
cutting head. There are 8 possible
positions. (Fig. 4 & 5)
Fig. 4
Fig. 5
11. If desired, you can use a string to
help you cut your hedge level.
Decide how high you want the
hedge to be and then stretch a
piece of string along the hedge at
this height. Trim the hedge just
above this guide line. Trim the
sides of the hedge so that the
hedge will be a little narrower at
the top.
NOTE: Do NOT try to cut stems that
are larger than 3/8-inch thick or those
obviously too large to feed into the
cutting blade.
Care, Maintenance & Storage
WARNING: To avoid serious
personal injury, be sure that the
unit is unplugged before cleaning or
performing any kind of maintenance
on it.
1. Oil the blades before each use
and before storing for a long
period of time. (Fig. 6)
2. Do NOT use abrasive
materials to clean
the unit or immerse
it in water or any
other liquid.
3. Clean the unit with
a damp cloth. Do NOT use any
strong detergents on the plastic
housing or handles.
4. Wipe off the unit with a clean, dry,
soft cloth.
5. Keep handles dry, clean and free
from oil and grease at all times.
Do NOT use on wet or steep/
slippery ground.
6. Do NOT attempt to cut string or
fabrics with this unit.
7. If parts need to be replaced or
repaired, contact FANTOM
customer service for information.
8. Store the unit indoors, away from
moisture and harmful substances
such as solvents.
9. Store the unit in a dry place,
either locked up or up high to
prevent unauthorized use or
damage. Keep out of the reach of
children.
Fig. 6
2
7
OPERATING INSTRUCTIONS
Using Your Hedge Trimmer
WARNING: If any parts are
missing, damaged or broken,
DO NOT operate the hedge trimmer
until they have been replaced.
Failure to do so could result in
possible serious injury.
WARNING: To prevent
serious personal injury, always
use both the front hand grip and the
rear handle to hold the hedge
trimmer during operation.
WARNING: To prevent
serious personal injury, keep
hands away from the blades. DO
NOT attempt to remove cut material
or hold material to be cut when
blades are moving. Make sure that
the unit is unplugged when clearing
jammed material from blades. DO
NOT grasp the exposed cutting
blades or cutting edges when
picking up or holding the unit.
WARNING: Never use the
safety guard as a handle.
Never grasp the unit by the safety
guard. Failure to do so can result in
serious possible injury.
WARNING: Clear the area to
be cut before starting. Remove
all objects such as cords, lights,
wire or string which may become
entangled in the cutting blade.
DANGER: If the blade
becomes jammed on any
electrical cord or line, DO NOT
TOUCH THE BLADE! IT CAN
BECOME ELECTRICALLY LIVE
AND VERY DANGEROUS.
Continue to hold your trimmer by
the insulated handles and
immediately disconnect the
damaged electrical cord or line from
the power source. Failure to heed
this will result in serious personal
injury and possibly death.
Use the hedge trimmer for trimming
and the forming of hedges, bushes
and shrubs with a branch diameter of
up to 3/8 inch.
For your protection there is safety guard
between the front hand grip and the
blade.
1. Attach the power cord to an extension
cord.
2. Secure the extension cord to the clip
holder. (Fig. 3)
Cord Holder
Fig. 3
3. Adjust the length of the extension
handle.
4. Remove the blade cover.
5. Plug the extension cord into an
electrical outlet.
6. With the blade directed away from
you, hold the unit by the rear
handle and the front hand grip.
7. Press and hold the safety switch
and then press on the handle
trigger.
8. Start the unit away from the
hedges that you wish to trim.
9. If you hear the motor change pitch
dramatically while cutting, it may
be overloaded. Check to see if the
hedge or bush that you are
trimming is very thick or dense.
Doing a rough cut to trim about
half the height that you want is
recommended to help reduce the
load on the motor. The maximum
thickness of a branch that the
hedge trimmer will cut is
approximately 3/8 inch. Keep from
trimming too much at one time as
this can cause the blades to bind
and slow, reducing the cutting
efficiency. Do NOT force the unit
through dense growth. If your
blades slow down, reduce your
pace.
6
SAFETY & WARNING INSTRUCTIONS
continued
30. Keep cutting blades clean of
vegetation and other materials.
Blades may become clogged with
debris.
31. When using the hedge trimmer,
always hold the unit with both hands.
Keep a firm grip on the front handle
and on the rear handle. NEVER hold
the hedge trimmer by the safety
guard or use the safety guard as a
handle.
32. NEVER force the unit. It will do the
job better and with less chance of
injury at a rate for which it was
designed.
33. If you strike or become entangled
with a foreign object, stop the unit
immediately and check for damage.
Do NOT operate the hedge trimmer
with loose or damaged parts.
34. Maintain the hedge trimmer with
care. Keep the cutting blades sharp
and clean for best performance and
to reduce the risk of injury. Follow
instructions for lubricating and
changing cutting blades. Keep
handles dry, clean and free from oil
and grease. Always use a clean cloth
when cleaning. Never use brake
fluid, gasoline, petroleum-based
products, or any strong solvents to
clean your hedge trimmer.
35. This appliance is double insulated
to protect you from electrical
shock.
36. Store the unit in a dry place either
locked up or in a high shelf out of
the reach of children to prevent
unauthorized use or damage.
37. NEVER douse or squirt the unit
with water or any other liquid. Keep
handles dry, clean and free from
debris. Clean after every use. See
cleaning and storage section for
further instructions..
38. Do NOT operate this unit in
explosive atmospheres, such as in
the presence of flammable liquids,
gases or dust.
39. Maintain hedge trimmer with care.
Keep cutting edge sharp and clean
for best performance and to reduce
the risk of injury. Follow
instructions for lubricating.
40. When operating the hedge trimmer,
keep the extension cord behind the
hedge trimmer. Never drape it over
the hedge to be trimmed.
WARNING
SERVICING OF A DOUBLE-INSULATED
APPLIANCE.
In a double-insulated product, two systems
of insulation are provided instead of
grounding. No grounding means are
provided for a double-insulated product, nor
should grounding means be added to the
product. Servicing a double-insulated
product requires extreme care and
knowledge of the system and should be
done only by qualified service personnel.
Replacement parts for a double-insulated
product must be identical to the
original parts. A double-insulated
product is marked with the words
" double Insulation" or "Double
Insulated". Product may also be
marked with symbol shown.
SAVE THESE INSTRUCTIONS
For Household Use Only
3
GETTING TO KNOW YOUR HEDGE TRIMMER OPERATING INSTRUCTIONS
Extension Handle Adjustment
WARNING: Remove the plug
from the power source before
making adjustments to the hedge
trimmer. This will help prevent
accidental starting of the unit which
could result in serious injury.
The handle length on this unit can be
varied allowing you to reach difficult
places without the use of a ladder.
To adjust the length:
1. Grip the head of the hedge trimmer
1. Rear Handle
2. Handle Trigger
3. Safety Switch
4. Extension Handle
5. Front Hand Grip
6. Extension Handle Lock
7. Head Angle Release Button
8. Safety Guard
9. Blades
10. Blade Cover
11. Cord Holder
12. Power Cord
Illustrations may differ from actual product.
firmly and lift the extension handle
lock. (Fig. 1)
2. Pull the extension handle to the
desired length.
3. When you have the length that you
want, press the handle lock down
firmly to lock the extension handle in
place. (Fig. 1)
4. When you have finished using the
hedge trimmer, lift the extension
handle lock and retract the handle
before storing.
Starting & Stopping The Hedge
Trimmer
The Hedge Trimmer is designed with a
safety switch to prevent accidental
starting of the unit.
To start the hedge trimmer:
1. Remove the blade cover.
2. Connect the power plug into the
electrical outlet.
3. Press the and hold the safety switch
on the side of the handle, then press
the handle trigger. (Fig. 2)
4. Continue to press on the handle
trigger and release the safety switch.
5. To stop the blades, release the
handle trigger.
IMPORTANT: When releasing the handle
trigger, wait for the blades to stop
completely before removing your hands
from the handle.
Fig. 1
Handle
Trigger
Fig. 2
Extension
Handle Lock
Safety
Switch
Technical Specifications
Voltage: 120V., 60Hz.
Power: .65 Amp
4 5
Loading...
