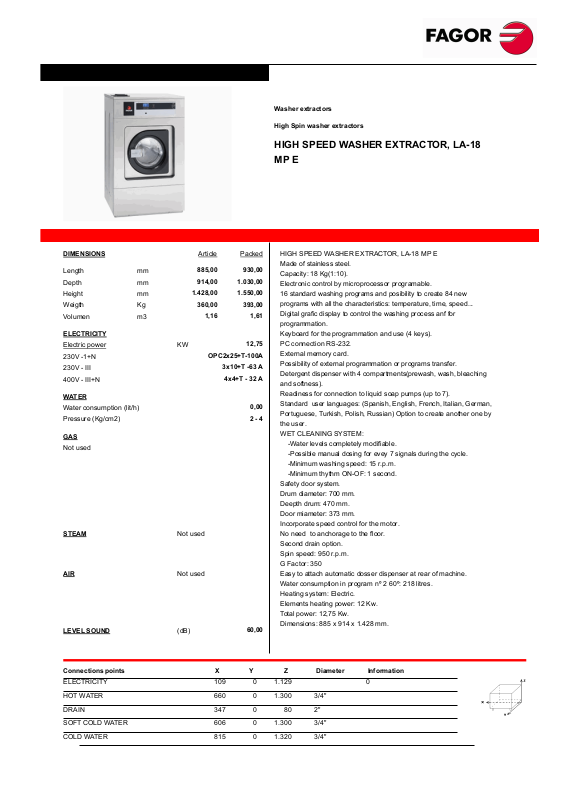

Fagor LA-18MPE Datasheet

HIGH SPEED WASHER EXTRACTOR, LA-18
MP E

High Spin washer extractors

Washer extractors

HIGH SPEED WASHER EXTRACTOR, LA-18 MP E
Made of stainless steel.
Capacity: 18 Kg(1:10).
Electronic control by microprocessor programable.
16 standard washing programs and posibility to create 84 new
programs with all the characteristics: temperature, time, speed...
Digital grafic display to control the washing process anf for
programmation.
Keyboard for the programmation and use (4 keys).
PC connection RS-232.
External memory card.
Possibility of external programmation or programs transfer.
Detergent dispenser with 4 compartments(prewash, wash, bleaching
and softness).
Readiness for connection to liquid soap pumps (up to 7).
Standard user languages: (Spanish, English, French, Italian, German,
Portuguese, Turkish, Polish, Russian) Option to create another one by
the user.
WET CLEANING SYSTEM:

-Water levels completely modifiable.

-Possible manual dosing for evey 7 signals during the cycle.

-Minimum washing speed: 15 r.p.m.

-Minimum thythm ON-OF: 1 second.
Safety door system.
Drum diameter: 700 mm.
Deepth drum: 470 mm.
Door miameter: 373 mm.
Incorporate speed control for the motor.
No need to anchorage to the floor.
Second drain option.
Spin speed: 950 r.p.m.
G Factor: 350
Easy to attach automatic dosser dispenser at rear of machine.
Water consumption in program nº 2 60º: 218 litres.
Heating system: Electric.
Elements heating power: 12 Kw.
Total power: 12,75 Kw.
Dimensions: 885 x 914 x 1.428 mm.

885,00

914,00

1.428,00

360,00 393,00

1,61

Length

Depth

Height

Weigth

Volumen

mm

mm

mm

Kg

m3

12,75

OPC2x25+T-100A

3x10+T -63 A

4x4+T - 32 A

230V -1+N

230V - III

400V - III+N

GAS

KW

0,00

2 - 4

Pressure (Kg/cm2)

Connections points X Y Z Diameter

LEVEL SOUND

60,00

Information

DIMENSIONS

930,00

1.030,00

1.550,00

1,16

ELECTRICITY

STEAM

AIR

(dB)

Article Packed

Electric power

WATER

Water consumption (lit/h)

Not used

Not used

Not used

109 0 1.129ELECTRICITY 0

660 0 1.300HOT WATER 3/4"

347 0 80DRAIN 2"

606 0 1.300SOFT COLD WATER 3/4"

815 0 1.320COLD WATER 3/4"
