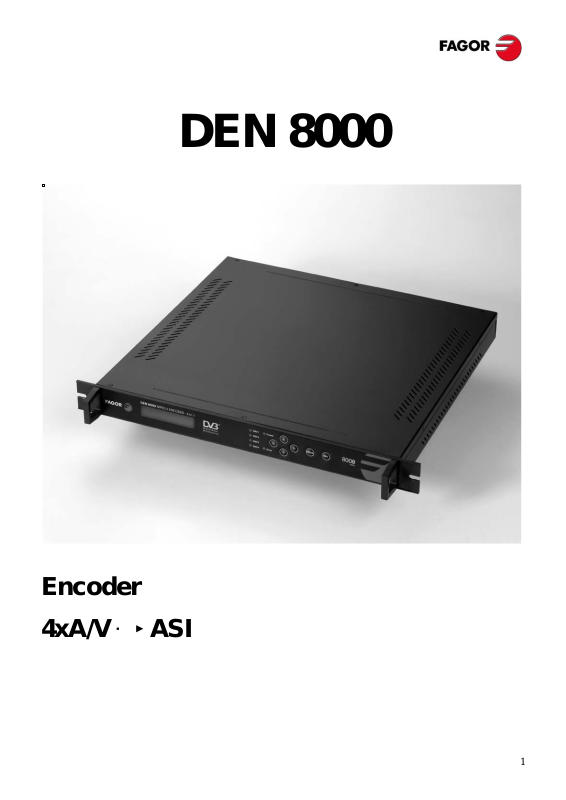

1

DEN 8000

Encoder

4xA/V ASI

2

TABLE OF CONTENTS

1.- SAFETY INSTRUCTIONS

2.- SYSTEM PRINCIPLE

2.1 SYSTEM DIAGRAM

2.2 WORKING PRINCIPLE

2.2.1 VIDEO AUDIO A/D PROCESS

2.2.2 A/V ENCODING

2.2.3 AV TS PROCESS

2.2.4 DATA OUTPUT PORT

3.- SPECIFICATIONS

4.- EQUIPMENT CONNECTION

4.1 FRONT PANEL DISPLAY & KEY BUTTON

4.2 REAR PANEL

5. OPERATION

5.1 BASIC PROGRAMMING

5.2 MENU OPTION

5.2.1 LOCK STATUS DISPLAY

5.2.2 MAIN MENU DISPLAY

5.2.3 ENCODER SETTING

5.2.4 VIDEO SETTING

5.2.5 AUDIO SETTING

5.2.6 SYSTEM SETTING

5.2.7 OUTPUT SETTING

5.2.8 NETWORK SETTING

5.2.9 SAVE CONFIG

5.2.10 LOAD CONFIG.

5.2.11 VERSION

5.2.12 LANGUAGE

5.2.13 INFORMATION ERROR

6.- SYSTEM FAILURE & TROUBLE SHOOTING

6.1 INDICATOR STATUS

6.2 TROUBLE SHOOTING

7.- CE MARKING

3

1. SAFETY INSTRUCTION

● Read this manual carefully before use.

● Do not open the case without disconnecting it from the mains

● Allows the air circulation around the equipment

● Protects against the water or liquids drops on the equipment

● Do not place near to the heat sources.

● Do not obstruct he ventilation slots.

2. SYSTEM PRINCIPLE

2.1. SYSTEM DIAGRAM

4

2.2. WORKING PRINCIPLE

The DEN 8000 encoder structure is as per above picture, which consists of AV A/C process

unit, AV encoding unit, TS process unit, data output unit and CPU.

2.2.1 VIDEO AUDIO A/D PROCESS

AV A/D process unit converts analog audio & video input into digital format and send it to

encoding chipset. Video port supports ordinary signal source in broadcasting and various

standard video &audio signal ports, including analog CVBS input and mono, stereo audio

input. PAL/NTSC are both acceptable in this device.

2.2.2. A V ENCODING

AV encoding adopts MPEG-2 real-time encoding chipset, encoding the digital AV signal as

MPEG-2 format. The video encoding process is according to MPEG-2 main profile (MP@ML)，

max bit rate is 15Mbps.The audio encoding process is done by professional audio encoding

software according to MPEG-2 layer I and layer II.

2.2.3. A V TS PROCESS

A V TS multiplexing includes the 4 routes ES to MPTS process. All data are MPEG-2

compliance.

2.2.4. DATA OUTPUT PORT

The output TS is compliant with DVB ASI.

3. SPECIFICATIONS

3.1. APPLICATION

The DEN 8000 encoder transforms the 4 input analogue A/V sources into a single DVB-ASI

digital stream.

3.2. CHARACTERISTICS

> Multiplexer function for up to 4 analogue A/V sources (PAL, NTSC).

> MPEG-2 MP@ML output video encoding, bit rate 1-15Mbps.

> MPEG-1 Layer 1, Layer 2 audio encoding.

5

> Programming via front panel (keyboard + LCD display) or PC (local or remote).

> Mountable in 19” rack.

> Includes:

- 4 x 3RCA-3BNC cables for 4 analogue A/V sources.

- 1 x BNC-F(m) cable for one COFDM output.

- 1 x user's manual.

- 1 x 230Vac cable.
