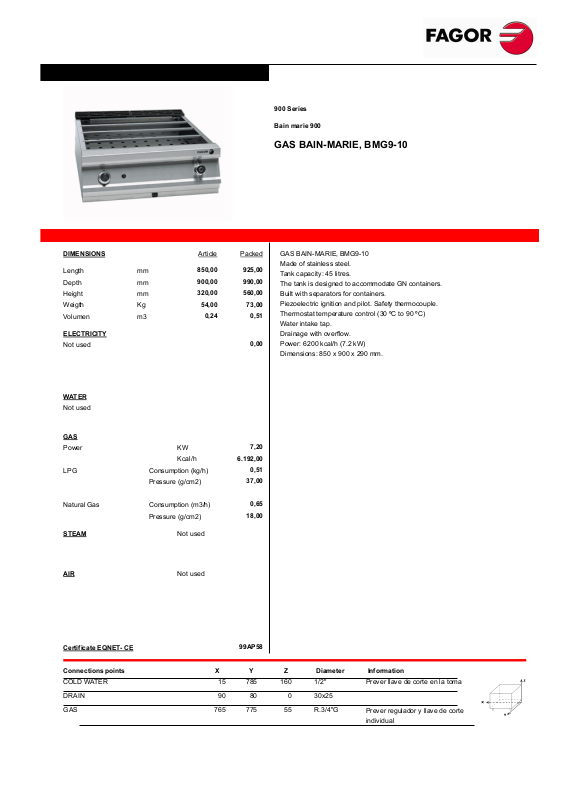

Fagor BMG9-10 Datasheet
900 Series
Bain marie 900
GAS BAIN-MARIE, BMG9-10
DIMENSIONS |
|
Article |
Packed |
Length |
mm |
850,00 |
925,00 |
Depth |
mm |
900,00 |
990,00 |
Height |
mm |
320,00 |
560,00 |
Weigth |
Kg |
54,00 |
73,00 |
Volumen |
m3 |
0,24 |
0,51 |
ELECTRICITY |
|
|
|
Not used |
|
|
0,00 |
WATER |
|
|
|
Not used |
|
|
|
GAS |
|
|
|
Power |
|
KW |
7,20 |
|
|
Kcal/h |
6.192,00 |
LPG |
|
Consumption (kg/h) |
0,51 |
|
|
Pressure (g/cm2) |
37,00 |
Natural Gas |
|
Consumption (m3/h) |
0,65 |
|
|
Pressure (g/cm2) |
18,00 |
STEAM |
|
Not used |
|
AIR |
|
Not used |
|
Certificate EQNETCE |
|
|
99AP58 |
GAS BAIN-MARIE, BMG9-10 Made of stainless steel.
Tank capacity: 45 litres.
The tank is designed to accommodate GN containers. Built with separators for containers.
Piezoelectric ignition and pilot. Safety thermocouple. Thermostat temperature control (30 ºC to 90 ºC) Water intake tap.
Drainage with overflow. Power: 6200 kcal/h (7.2 kW)
Dimensions: 850 x 900 x 290 mm.
Connections points |
X |
Y |
Z |
Diameter |
Information |
||
|
|
|
|
|
|
|
|
COLD WATER |
15 |
785 |
160 |
1/2" |
Prever llave de corte en la toma |
||
|
|
|
|
|
|
|
|
DRAIN |
90 |
80 |
0 |
30x25 |
|
|
|
|
|
|
|
|
|
|
|
GAS |
765 |
775 |
55 |
R.3/4"G |
Prever regulador y llave de corte |
||
|
|
|
|
|
|
individual |
|
