FAAC 950N User Manual

950 N

EN 16005

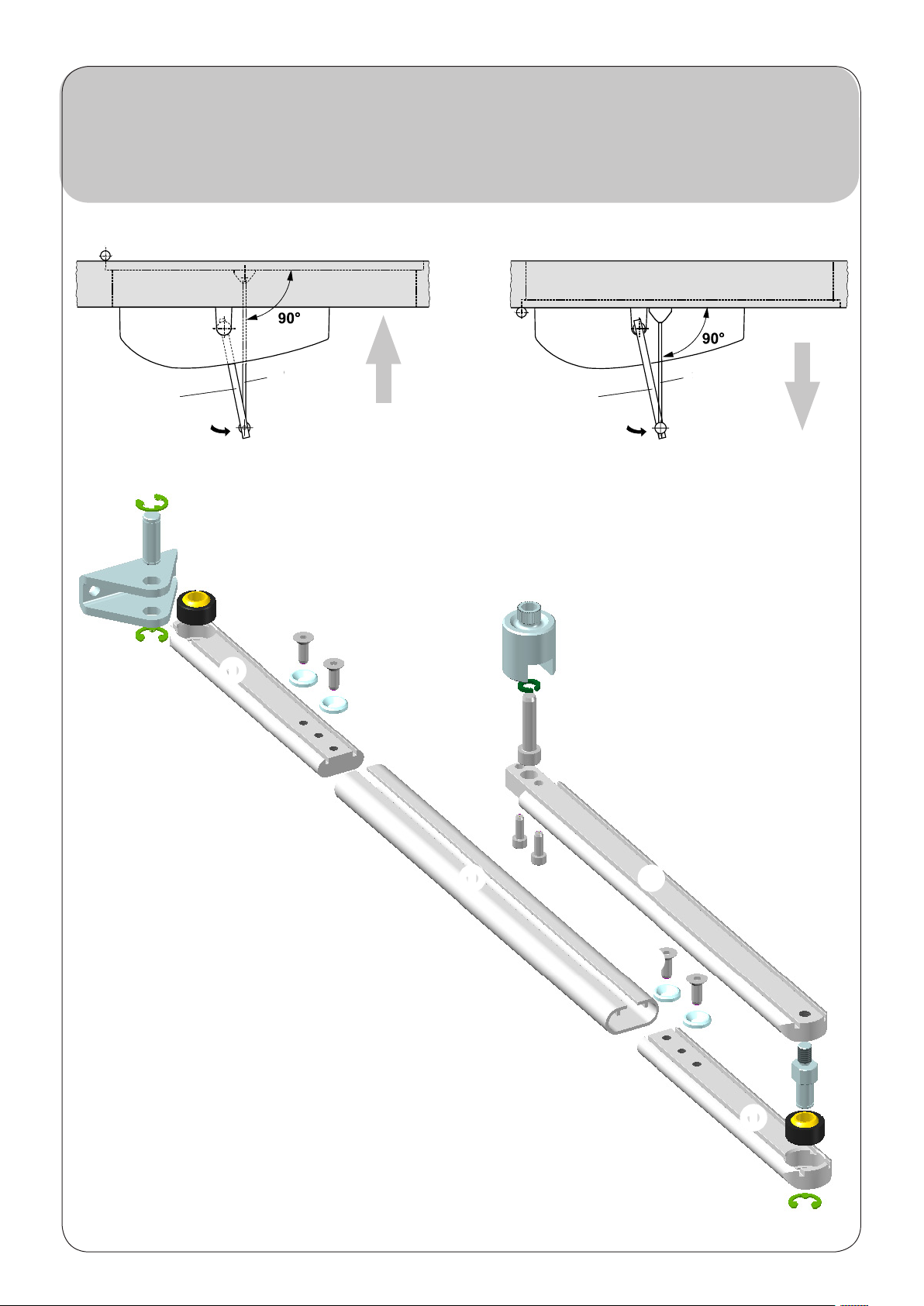

BRACCIO ARTICOLATO

ARTICULATED ARM

BRAS ARTICULÉ

BRAZO ARTICULADO

GELENKARM

KNIKARM

LEDAD ARM

OPEN

h

c

a

a

f

a

c

OPEN

b

g

d

a

c

f

e

a

950N 1 732708 - Rev. F

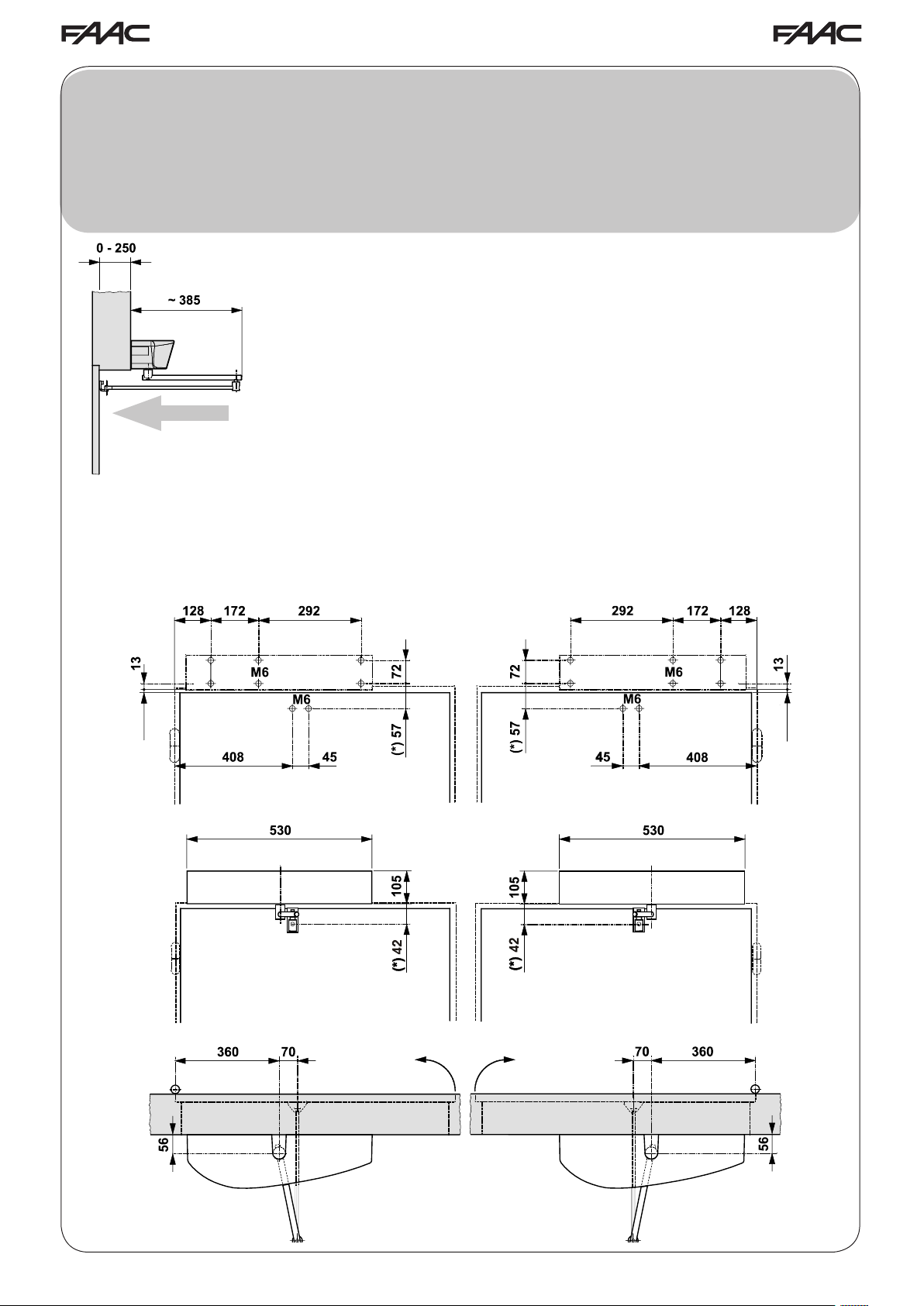

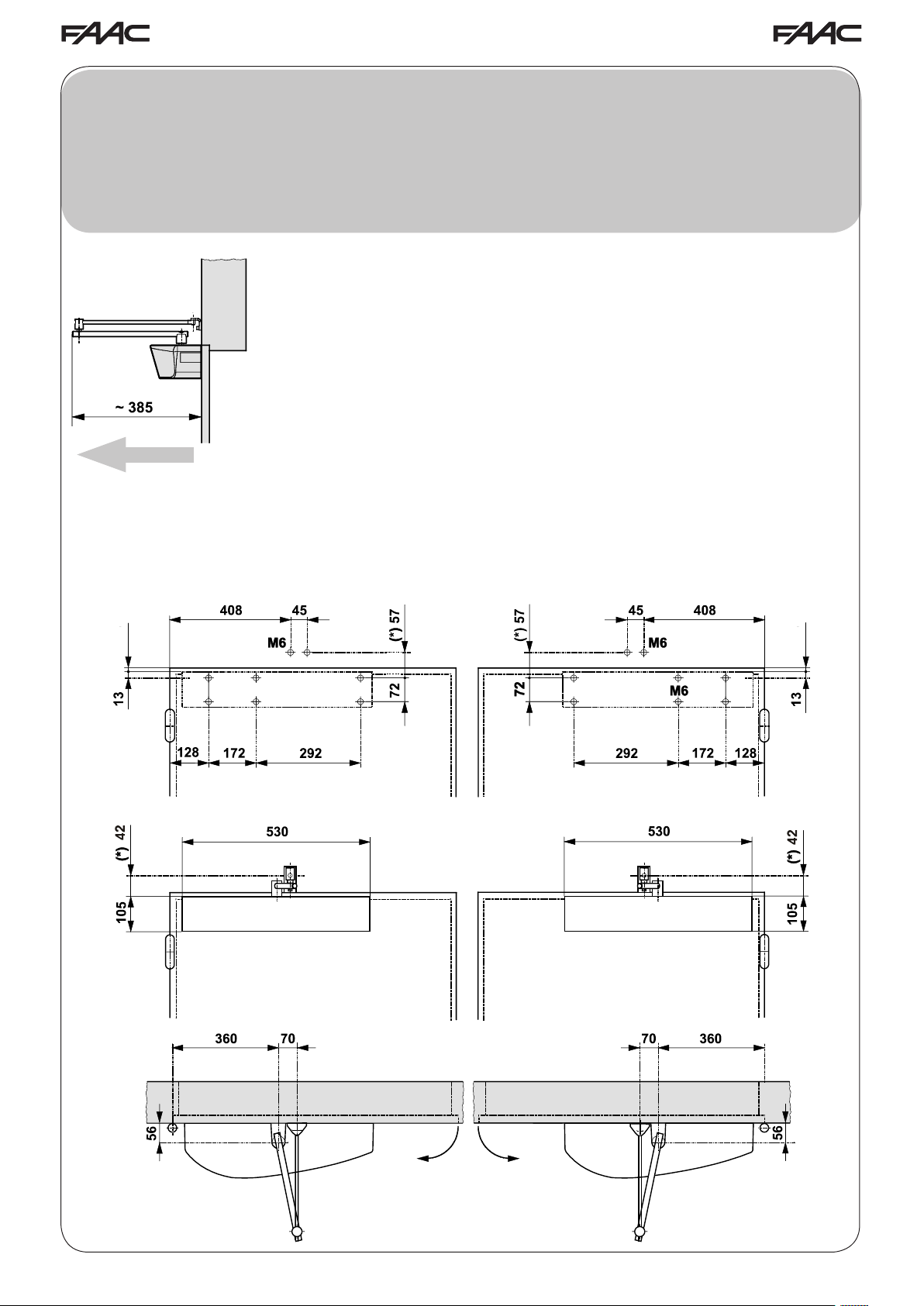

TAVOLA A : BRACCIO ARTICOLATO A SPINGERE CON MONTAGGIO OPERATORE SULL’ARCHITRAVE

TABLE A : ARTICULATED PUSH ARM WITH OPERATOR INSTALLATION ON THE LINTEL
TABLE A : BRAS ARTICULÉ À POUSSÉE AVEC MONTAGE DE L’OPÉRATEUR SUR LE LINTEAU
LÁMINA A : BRAZO ARTICULADO DE EMPUJE CON MONTAJE DEL OPERADOR EN EL DINTEL

ÜBERSICHT A : DRUCKGELENKARM MIT MONTAGE DES ANTRIEBS AM STURZ

TEKENING A : KNIKARM MET DUWSYSTEEM MET MONTAGE AANDRIJVING OP DE BOVENDORPEL

BILD A : LEDAD TRYCKARM MED DÖRRÖPPNARE MONTERAD PÅ KARMÖVERSTYCKET

* Quota con albero standard 20 mm. Nel caso fosse necessario aumentare la distanza tra l’operatore ed il braccio,
utilizzare le prolunghe opzionali ( Quota con albero 50 mm = 87 mm. - Quota con albero 80 mm = 117 mm)

* Standard shaft dimension 20 mm. Should it become necessary to increase the distance between the operator
and the arm, use the optional extensions (dimension with 50 mm shaft = 87 mm - with 80 mm shaft = 117 mm)

* Cote avec arbre standard de 20 mm. S’il est nécessaire d’augmenter la distance entre l’opérateur et le bras,
utiliser les rallonges en option (Cote avec arbre de 50 mm = 87mm. - Cote avec arbre de 80 mm = 117 mm)

* Cota con árbol estándar 20 mm. Si fuera necesario aumentar la distancia entre el operador y el brazo, utilizar
los alargues opcionales (Cota con árbol 50 mm = 87mm. - Cota con árbol 80 mm = 117 mm)

0 - 15

OPEN

* Maß mit Standardwelle 20 mm. Wenn der Abstand zwischen dem Antrieb und dem Arm erhöht werden muss,
die optionalen Verlängerungen verwenden (Maß mit 50-mm-Welle = 87 mm; Maß mit 80-mm-Welle = 117 mm)

* Afstand met standaardas 20 mm. Indien de afstand tussen de aandrijving en de arm groter moet zijn, gebruik
dan de optionele verlengstukken (Afstand met as 50 mm = 87mm. - Afstand met as 80 mm = 117 mm)

* Mått med standardaxel 20 mm. Om det är nödvändigt att öka avståndet mellan dörröppnaren och armen,
använd de extra förlängningarna. (Mått med axel på 50 mm = 87 mm - mått med axel på 50 mm = 87 mm.)

a

b

0 - 15

950N 2 732708 - Rev. F

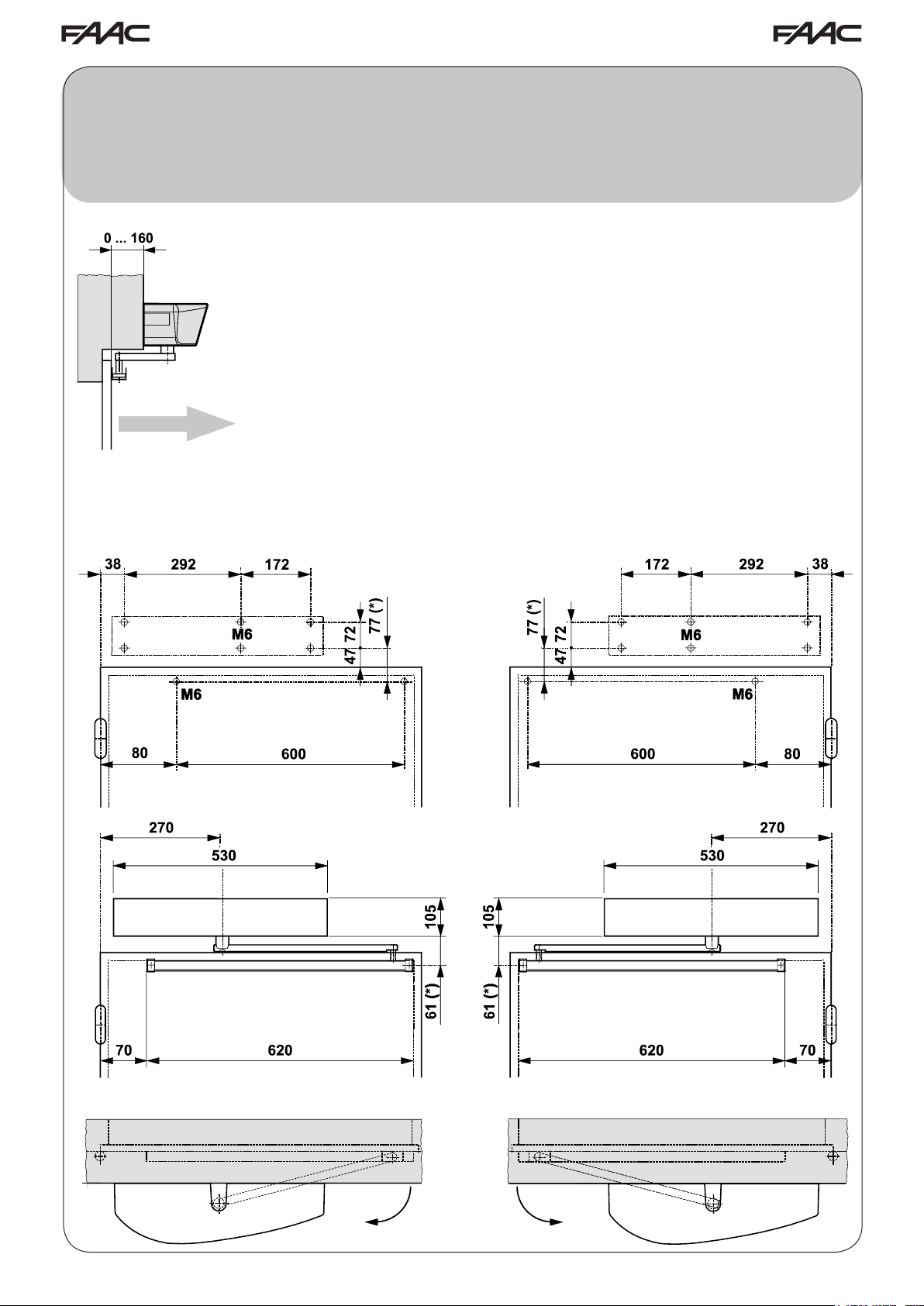

TAVOLA B : BRACCIO ARTICOLATO A SPINGERE CON MONTAGGIO OPERATORE SULLA PORTA

TABLE B : ARTICULATED PUSH ARM WITH OPERATOR INSTALLATION ON THE DOOR

TABLE B : BRAS ARTICULÉ À POUSSÉE AVEC MONTAGE DE L’OPÉRATEUR SUR LA PORTE

LÁMINA B : BRAZO ARTICULADO DE EMPUJE CON MONTAJE DEL OPERADOR EN LA PUERTA

ÜBERSICHT B : DRUCKGELENKARM MIT MONTAGE DES ANTRIEBS AM TOR

TEKENING B : KNIKARM MET DUWSYSTEEM MET MONTAGE AANDRIJVING OP DE DEUR

BILD B : LEDAD TRYCKARM MED DÖRRÖPPNARE MONTERAD PÅ DÖRREN

* Quota con albero standard 20 mm. Nel caso fosse necessario aumentare la distanza tra l’operatore ed il braccio,
utilizzare le prolunghe opzionali ( Quota con albero 50 mm = 87 mm. - Quota con albero 80 mm = 117 mm)

* Standard shaft dimension 20 mm. Should it become necessary to increase the distance between the operator
and the arm, use the optional extensions (dimension with 50 mm shaft = 87 mm - with 80 mm shaft = 117 mm)

* Cote avec arbre standard de 20 mm. S’il est nécessaire d’augmenter la distance entre l’opérateur et le bras,
utiliser les rallonges en option (Cote avec arbre de 50 mm = 87mm. - Cote avec arbre de 80 mm = 117 mm)

* Cota con árbol estándar 20 mm. Si fuera necesario aumentar la distancia entre el operador y el brazo, utilizar
los alargues opcionales (Cota con árbol 50 mm = 87mm. - Cota con árbol 80 mm = 117 mm)

* Maß mit Standardwelle 20 mm. Wenn der Abstand zwischen dem Antrieb und dem Arm erhöht werden muss,
die optionalen Verlängerungen verwenden (Maß mit 50-mm-Welle = 87 mm; Maß mit 80-mm-Welle = 117 mm)

ITALIANO

OPEN

0 - 15

* Afstand met standaardas 20 mm. Indien de afstand tussen de aandrijving en de arm groter moet zijn, gebruik
dan de optionele verlengstukken (Afstand met as 50 mm = 87mm. - Afstand met as 80 mm = 117 mm)

* Mått med standardaxel på 20 mm. Om det är nödvändigt att öka avståndet mellan dörröppnaren och armen,
använd de extra förlängningarna. (Mått med axel på 50 mm = 87 mm - mått med axel på 50 mm = 87 mm.)

c d

0 - 15

950N 3 732708 - Rev. F

f

BRACCIO A PATTINO

SLIDING ARM
BRAS À PATIN

BRAZO DE PATÍN

GLEITKUFENARM

ARM MET GLIJSCHOEN

GLIDARM

OPEN

a

i

h

f

d

d

j

e

g

k

b

a

950N 4 732708 - Rev. F

TAVOLA C : BRACCIO A PATTINO L=430 mm CON MONTAGGIO OPERATORE SULL’ARCHITRAVE

TABLE C : SLIDING ARM L=430 mm WITH OPERATOR INSTALLATION ON THE ARCHITRAVE

TABLE C : BRAS À PATIN L=430 mm AVEC MONTAGE DE L’OPÉRATEUR SUR LE LINTEAU

LÁMINA C : BRAZO DE PATÍN L=430 mm CON MONTAJE DEL OPERADOR EN EL DINTEL

ÜBERSICHT C : GLEITKUFENARM L = 430 mm MIT MONTAGE DES ANTRIEBS AM STURZ

TEKENING C : ARM MET GLIJSCHOEN L=430 mm MET MONTAGE AANDRIJVING OP DE BOVENDORPEL

BILD C : ARM MET GLIJSCHOEN L=430 mm MET MONTAGE AANDRIJVING OP DE BOVENDORPEL

ITALIANO

OPEN

* Quota con albero standard 20 mm. Nel caso fosse necessario aumentare la distanza tra l’operatore ed il braccio,
utilizzare le prolunghe opzionali ( Quota con albero 50 mm = 107mm. - Quota con albero 80 mm = 137 mm)

* Standard shaft dimension 20 mm. Should it become necessary to increase the distance between the operator
and the arm, use the optional extensions (dimension with 50 mm shaft = 107 mm - with 80 mm shaft = 137 mm)

* Cote avec arbre standard de 20 mm. S’il est nécessaire d’augmenter la distance entre l’opérateur et le bras,
utiliser les rallonges en option (Cote avec arbre de 50 mm = 107mm. - Cote avec arbre de 80 mm = 137 mm)

* Cota con árbol estándar 20 mm. Si fuera necesario aumentar la distancia entre el operador y el brazo, utilizar
los alargues opcionales (Cota con árbol 50 mm = 107mm. - Cota con árbol 80 mm = 137 mm)

* Maß mit Standardwelle 20 mm. Wenn der Abstand zwischen dem Antrieb und dem Arm erhöht werden muss,
die optionalen Verlängerungen verwenden (Maß mit 50-mm-Welle = 107 mm; Maß mit 80-mm-Welle = 137 mm)

* Afstand met standaardas 20 mm. Indien de afstand tussen de aandrijving en de arm groter moet zijn, gebruik
dan de optionele verlengstukken (Afstand met as 50 mm = 107mm. - Afstand met as 80 mm = 137 mm)

* Mått med standardaxel 20 mm. Om det är nödvändigt att öka avståndet mellan dörröppnaren och armen,
använd de extra förlängningarna. (Mått med axel på 50 mm = 107mm - mått med axel 80 mm = 137 mm.)

e f

950N 5 732708 - Rev. F

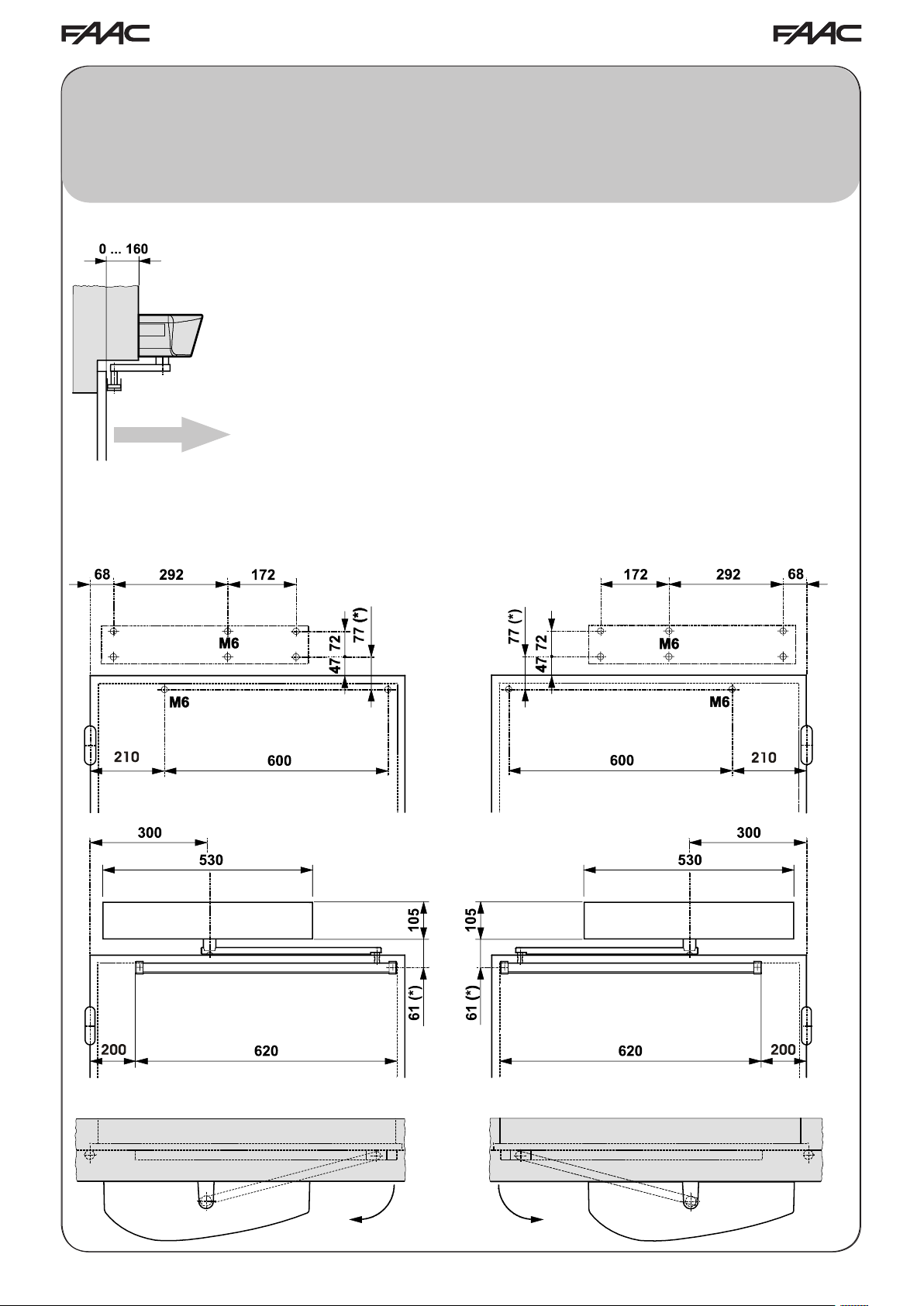

TAVOLA D : BRACCIO A PATTINO L=330 mm CON MONTAGGIO OPERATORE SULL’ARCHITRAVE

TABLE D : SLIDING ARM L=330 mm WITH OPERATOR INSTALLATION ON THE ARCHITRAVE

TABLE D : BRAS À PATIN L=330 mm AVEC MONTAGE DE L’OPÉRATEUR SUR LE LINTEAU

LÁMINA D : BRAZO DE PATÍN L=330 mm CON MONTAJE DEL OPERADOR EN EL DINTEL

ÜBERSICHT D : GLEITKUFENARM L = 330 mm MIT MONTAGE DES ANTRIEBS AM STURZ

TEKENING D : ARM MET GLIJSCHOEN L=330 mm MET MONTAGE AANDRIJVING OP DE BOVENDORPEL

BILD D : GLIDARM L = 330 mm MED DÖRRÖPPNAREN MONTERAD PÅ KARMÖVERSTYCKET

* Quota con albero standard 20 mm. Nel caso fosse necessario aumentare la distanza tra l’operatore ed il braccio,
utilizzare le prolunghe opzionali ( Quota con albero 50 mm = 107mm. - Quota con albero 80 mm = 137 mm)

* Standard shaft dimension 20 mm. Should it become necessary to increase the distance between the operator
and the arm, use the optional extensions (dimension with 50 mm shaft = 107 mm - with 80 mm shaft = 137 mm)

* Cote avec arbre standard de 20 mm. S’il est nécessaire d’augmenter la distance entre l’opérateur et le bras,
utiliser les rallonges en option (Cote avec arbre de 50 mm = 107mm. - Cote avec arbre de 80 mm = 137 mm)

* Cota con árbol estándar 20 mm. Si fuera necesario aumentar la distancia entre el operador y el brazo, utilizar
los alargues opcionales (Cota con árbol 50 mm = 107mm. - Cota con árbol 80 mm = 137 mm)

* Maß mit Standardwelle 20 mm. Wenn der Abstand zwischen dem Antrieb und dem Arm erhöht werden muss,
die optionalen Verlängerungen verwenden (Maß mit 50-mm-Welle = 107 mm; Maß mit 80-mm-Welle = 137 mm)

* Afstand met standaardas 20 mm. Indien de afstand tussen de aandrijving en de arm groter moet zijn, gebruik

OPEN

dan de optionele verlengstukken (Afstand met as 50 mm = 107mm. - Afstand met as 80 mm = 137 mm)

* Mått med standardaxel 20 mm. Om det är nödvändigt att öka avståndet mellan dörröppnaren och armen,
använd de extra förlängningarna. (Mått med axel på 50 mm = 107mm - mått med axel 80 mm = 137 mm.)

g

h

950N 6 732708 - Rev. F

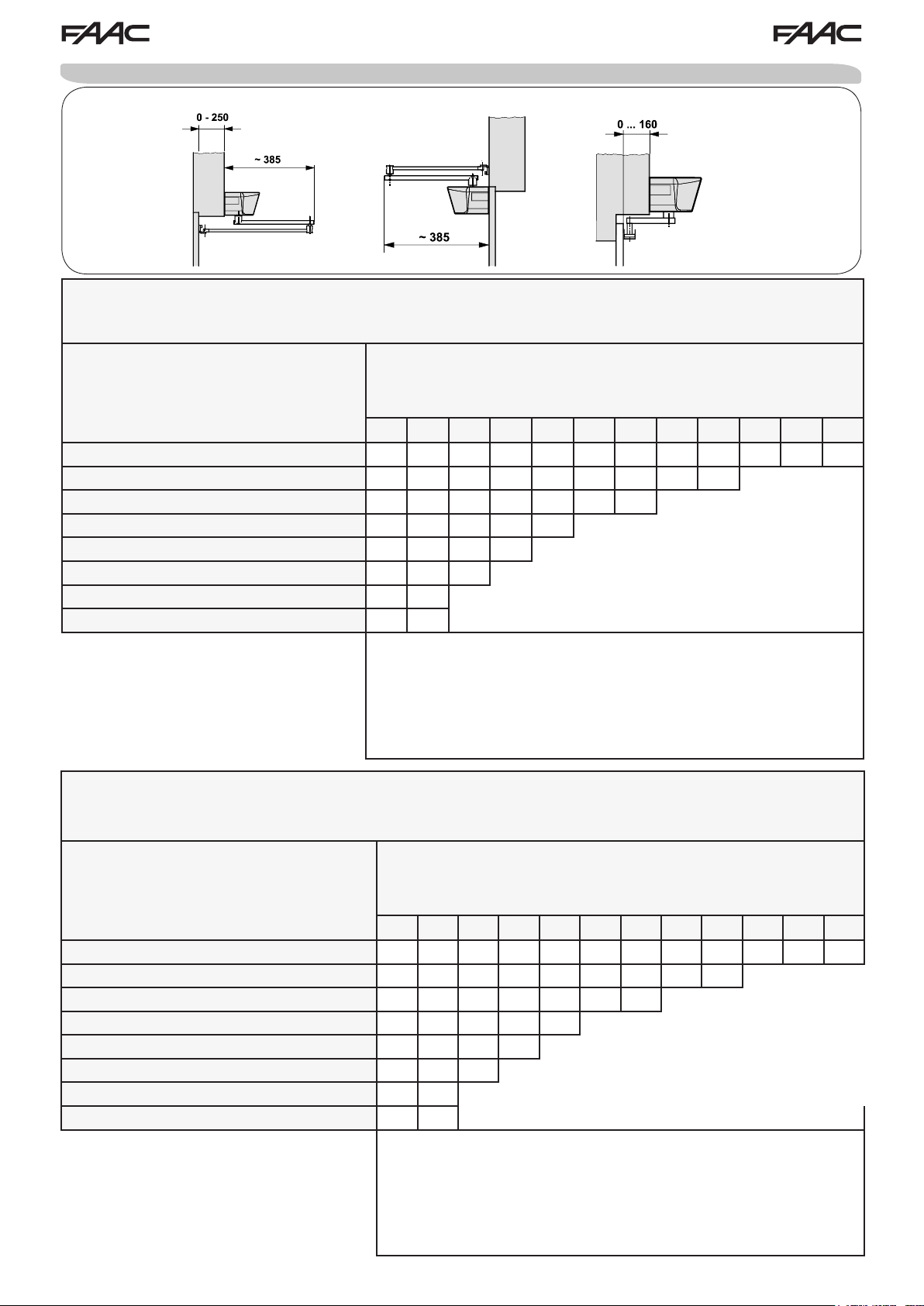

LOW ENERGY

B

BRACCIO ARTICOLATO (B=250-160 mm)- ARTICULATED PUSH ARM (B=250-160 mm) -

BRAS ARTICULÉ À POUSSÉE (B=250-160 mm) - BRAZO ARTICULADO DE EMPUJE (B=250-160 mm)-

DRUCKGELENKARM (B=250-160 mm) - KNIKARM MET DUWSYSTEEM (B=250-160 mm) - LEDAD ARM (B = 250-160 mm)

- LUNGHEZZA ANTA - LEAF LENGTH

- LONGUEUR VANTAIL -

FLÜGELLÄNGE

- LONGITUD HOJA - LENGTE VLEUGEL
DÖRRBLADETS LÄNGD ( mm )

FLÜGELGEWICHT - PESO DE LA HOJA - GEWICHT VLEUGEL -

20 40 80 100 120 140 160 180 200 220 240 260

PESO PORTA - LEAF WEIGHT - POIDS VANTAIL -

DÖRRBLADETS VIKT (Kg)

B

700 8 5 3 2 2 2 1 1 1 1 1 1
800 7 4 2 2 1 1 1 1 1

900 6 3 2 1 1 1 1
1000 5 3 1 1 1
1100 4 2 1 1
1200 4 2 1
1300 3 2
1400 3 1

- Velocità apertura e chiusura da impostare tramite KP CONTROLLER

- Opening and closing speed to be set via KP CONTROLLER

- Vitesse d’ouverture et de fermeture à régler par KP CONTROLLER

- Über den KP CONTROLLER einzugebende Öffnungs- und Schließungsgeschwindigkeit

- Velocidad de apertura y cierre para congurar mediante KP CONTROLLER

- Snelheid openen en sluiten in te stellen via KP CONTROLLER

- Öppnings- och stängningshastighet ställs in med programmeringsenheten KP CONTROLLER

BRACCIO ARTICOLATO ( B=0 mm-) ARTICULATED PUSH ARM (B=0 mm) -

BRAS ARTICULÉ À POUSSÉE (B= 0 mm) - BRAZO ARTICULADO DE EMPUJE (B= 0 mm) -

DRUCKGELENKARM (B= 0 mm) - KNIKARM MET DUWSYSTEEM (B= 0 mm) - LEDAD ARM (B = 0 mm)

- LUNGHEZZA ANTA - LEAF LENGTH

- LONGUEUR VANTAIL -

FLÜGELLÄNGE

- LONGITUD HOJA - LENGTE VLEUGEL
DÖRRBLADETS LÄNGD ( mm )

FLÜGELGEWICHT - PESO DE LA HOJA - GEWICHT VLEUGEL -

20 40 80 100 120 140 160 180 200 220 240 260

PESO PORTA - LEAF WEIGHT - POIDS VANTAIL -

DÖRRBLADETS VIKT (Kg)

700 8 5 3 2 2 2 1 1 1 1 1 1
800 7 4 2 2 1 1 1 1 1

900 6 3 2 1 1 1 1
1000 5 3 1 1 1
1100 4 2 1 1
1200 4 2 1
1300 3 2
1400 3 1

- Velocità apertura e chiusura da impostare tramite KP CONTROLLER

- Opening and closing speed to be set via KP CONTROLLER

- Vitesse d’ouverture et de fermeture à régler par KP CONTROLLER

- Über den KP CONTROLLER einzugebende Öffnungs- und Schließungsgeschwindigkeit

- Velocidad de apertura y cierre para congurar mediante KP CONTROLLER

- Snelheid openen en sluiten in te stellen via KP CONTROLLER

- Öppnings- och stängningshastighet ställs in med programmeringsenheten KP CONTROLLER

950N 7 732708 - Rev. F

BRACCIO A PATTINO L=430 mm CON MONTAGGIO OPERATORE SULL’ARCHITRAVE ( B=160mm)

SLIDING ARM L=430 mm WITH OPERATOR INSTALLATION ON THE ARCHITRAVE ( B=160mm)

BRAS À PATIN L=430 mm AVEC MONTAGE DE L’OPÉRATEUR SUR LE LINTEAU ( B=160mm)

BRAZO DE PATÍN L=430 mm CON MONTAJE DEL OPERADOR EN EL DINTEL ( B=160mm)

GLEITKUFENARM L = 430 mm MIT MONTAGE DES ANTRIEBS AM STURZ ( B=160mm)

ARM MET GLIJSCHOEN L=430 mm MET MONTAGE AANDRIJVING OP DE BOVENDORPEL ( B=160mm)

GLIDARM L = 430 mm MED DÖRRÖPPNAREN MONTERAD PÅ KARMÖVERSTYCKET (B = 160 mm)

- LUNGHEZZA ANTA - LEAF LENGTH

- LONGUEUR VANTAIL -

FLÜGELLÄNGE

- LONGITUD HOJA - LENGTE VLEUGEL
DÖRRBLADETS LÄNGD ( mm )

850 10 6 4 3 3 2 2 2 2 1 1 1 1 1

900 9 6 4 3 2 2 2 2 1 1 1 1 1 1
1000 8 5 3 2 2 2 1 1 1 1 1 1 1
1100 7 4 2 2 2 1 1 1 1 1
1200 6 4 2 2 1 1 1 1
1300 6 3 2 1 1 1 1
1400 5 3 1 1 1 1

PESO PORTA - LEAF WEIGHT - POIDS VANTAIL -

FLÜGELGEWICHT - PESO DE LA HOJA - GEWICHT VLEUGEL -

DÖRRBLADETS VIKT (Kg)

20 40 80 100 120 140 160 180 200 220 240 260 280 300

- Velocità apertura e chiusura da impostare tramite KP CONTROLLER

- Opening and closing speed to be set via KP CONTROLLER

- Vitesse d’ouverture et de fermeture à régler par KP CONTROLLER

- Über den KP CONTROLLER einzugebende Öffnungs- und Schließungsgeschwindigkeit

- Velocidad de apertura y cierre para congurar mediante KP CONTROLLER

- Snelheid openen en sluiten in te stellen via KP CONTROLLER

- Öppnings- och stängningshastighet ställs in med programmeringsenheten KP CONTROLLER

BRACCIO A PATTINO L=430 mm CON MONTAGGIO OPERATORE SULL’ARCHITRAVE ( B=80mm)

SLIDING ARM L=430 mm WITH OPERATOR INSTALLATION ON THE ARCHITRAVE ( B=80mm)

BRAS À PATIN L=430 mm AVEC MONTAGE DE L’OPÉRATEUR SUR LE LINTEAU ( B=80mm)

BRAZO DE PATÍN L=430 mm CON MONTAJE DEL OPERADOR EN EL DINTEL ( B=80mm)

GLEITKUFENARM L = 430 mm MIT MONTAGE DES ANTRIEBS AM STURZ ( B=80mm)

ARM MET GLIJSCHOEN L=430 mm MET MONTAGE AANDRIJVING OP DE BOVENDORPEL ( B=80mm)

GLIDARM L= 430 mm MED DÖRRÖPPNAREN MONTERAD PÅ KARMÖVERSTYCKET (B = 80 mm)

- LUNGHEZZA ANTA - LEAF LENGTH

- LONGUEUR VANTAIL -

FLÜGELLÄNGE

- LONGITUD HOJA - LENGTE VLEUGEL
DÖRRBLADETS LÄNGD ( mm )

850 8 5 3 2 2 2 1 1 1 1 1 1

900 7 4 2 2 2 1 1 1 1 1
1000 6 4 2 2 1 1 1 1
1100 5 3 1 1 1 1
1200 5 3 1 1 1
1300 4 2 1 1
1400 4 2 1

PESO PORTA - LEAF WEIGHT - POIDS VANTAIL -

FLÜGELGEWICHT - PESO DE LA HOJA - GEWICHT VLEUGEL -

DÖRRBLADETS VIKT (Kg)

20 40 80 100 120 140 160 180 200 220 240 260

- Velocità apertura e chiusura da impostare tramite KP CONTROLLER

- Opening and closing speed to be set via KP CONTROLLER

- Vitesse d’ouverture et de fermeture à régler par KP CONTROLLER

- Über den KP CONTROLLER einzugebende Öffnungs- und Schließungsgeschwindigkeit

- Velocidad de apertura y cierre para congurar mediante KP CONTROLLER

- Snelheid openen en sluiten in te stellen via KP CONTROLLER

- Öppnings- och stängningshastighet ställs in med programmeringsenheten KP CONTROLLER

BRACCIO A PATTINO L=430 mm CON MONTAGGIO OPERATORE SULL’ARCHITRAVE ( B=0 mm)

SLIDING ARM L=430 mm WITH OPERATOR INSTALLATION ON THE ARCHITRAVE ( B=0mm)

BRAS À PATIN L=430 mm AVEC MONTAGE DE L’OPÉRATEUR SUR LE LINTEAU ( B=0mm)

BRAZO DE PATÍN L=430 mm CON MONTAJE DEL OPERADOR EN EL DINTEL ( B=10mm)

GLEITKUFENARM L = 430 mm MIT MONTAGE DES ANTRIEBS AM STURZ ( B=0mm)

ARM MET GLIJSCHOEN L=430 mm MET MONTAGE AANDRIJVING OP DE BOVENDORPEL ( B=0mm)

GLIDARM L= 430 mm MED DÖRRÖPPNAREN MONTERAD PÅ KARMÖVERSTYCKET (B = 0 mm)

- LUNGHEZZA ANTA - LEAF LENGTH

- LONGUEUR VANTAIL -

FLÜGELLÄNGE

- LONGITUD HOJA - LENGTE VLEUGEL
DÖRRBLADETS LÄNGD ( mm )

850 6 3 2 1 1 1 1

900 5 3 1 1 1 1
1000 4 2 1 1
1100 4 2 1
1200 3 1
1300 2 1
1400 2 1

PESO PORTA - LEAF WEIGHT - POIDS VANTAIL -

FLÜGELGEWICHT - PESO DE LA HOJA - GEWICHT VLEUGEL -

DÖRRBLADETS VIKT (Kg)

20 40 80 100 120 140 160 180 200 220 240 260

- Velocità apertura e chiusura da impostare tramite KP CONTROLLER

- Opening and closing speed to be set via KP CONTROLLER

- Vitesse d’ouverture et de fermeture à régler par KP CONTROLLER

- Über den KP CONTROLLER einzugebende Öffnungs- und Schließungsgeschwindigkeit

- Velocidad de apertura y cierre para congurar mediante KP CONTROLLER

- Snelheid openen en sluiten in te stellen via KP CONTROLLER

- Öppnings- och stängningshastighet ställs in med programmeringsenheten KP CONTROLLER

BRACCIO A PATTINO L=330 mm CON MONTAGGIO OPERATORE SULL’ARCHITRAVE ( B=160mm)

SLIDING ARM L=330 mm WITH OPERATOR INSTALLATION ON THE ARCHITRAVE ( B=160mm)

BRAS À PATIN L=330 mm AVEC MONTAGE DE L’OPÉRATEUR SUR LE LINTEAU ( B=160mm)

BRAZO DE PATÍN L=330 mm CON MONTAJE DEL OPERADOR EN EL DINTEL ( B=160mm)

GLEITKUFENARM L = 330 mm MIT MONTAGE DES ANTRIEBS AM STURZ ( B=160mm)

ARM MET GLIJSCHOEN L=330 mm MET MONTAGE AANDRIJVING OP DE BOVENDORPEL ( B=160mm)

GLIDARM L= 330 mm MED DÖRRÖPPNAREN MONTERAD PÅ KARMÖVERSTYCKET (B = 160mm)

- LUNGHEZZA ANTA - LEAF LENGTH

- LONGUEUR VANTAIL -

FLÜGELLÄNGE

- LONGITUD HOJA - LENGTE VLEUGEL
DÖRRBLADETS LÄNGD ( mm )

700 14 9 6 5 4 4 4 3 3 3 3 2 2 2
800 12 8 5 4 4 3 3 3 2 2 2 2 2 1

PESO PORTA - LEAF WEIGHT - POIDS VANTAIL -

FLÜGELGEWICHT - PESO DE LA HOJA - GEWICHT VLEUGEL -

DÖRRBLADETS VIKT (Kg)

20 40 80 100 120 140 160 180 200 220 240 260 280 300

- Velocità apertura e chiusura da impostare tramite KP CONTROLLER

- Opening and closing speed to be set via KP CONTROLLER

- Vitesse d’ouverture et de fermeture à régler par KP CONTROLLER

- Über den KP CONTROLLER einzugebende Öffnungs- und Schließungsgeschwindigkeit

- Velocidad de apertura y cierre para congurar mediante KP CONTROLLER

- Snelheid openen en sluiten in te stellen via KP CONTROLLER

- Öppnings- och stängningshastighet ställs in med programmeringsenheten KP CONTROLLER

950N 9 732708 - Rev. F950N 9 732708 - Rev. F

BRACCIO A PATTINO L=330 mm CON MONTAGGIO OPERATORE SULL’ARCHITRAVE ( B=80mm)

SLIDING ARM L=330 mm WITH OPERATOR INSTALLATION ON THE ARCHITRAVE ( B=80mm)

BRAS À PATIN L=330 mm AVEC MONTAGE DE L’OPÉRATEUR SUR LE LINTEAU ( B=80mm)

BRAZO DE PATÍN L=330 mm CON MONTAJE DEL OPERADOR EN EL DINTEL ( B=80mm)

GLEITKUFENARM L = 330 mm MIT MONTAGE DES ANTRIEBS AM STURZ ( B=80mm)

ARM MET GLIJSCHOEN L=330 mm MET MONTAGE AANDRIJVING OP DE BOVENDORPEL ( B=80mm)

GLIDARM L= 330 mm MED DÖRRÖPPNAREN MONTERAD PÅ KARMÖVERSTYCKET (B = 80 mm)

- LUNGHEZZA ANTA - LEAF LENGTH

- LONGUEUR VANTAIL -

FLÜGELLÄNGE

- LONGITUD HOJA - LENGTE VLEUGEL
DÖRRBLADETS LÄNGD ( mm )

700 13 8 5 5 4 3 3 3 3 2 2 2 2 2
800 11 7 4 4 3 3 2 2 2 2 2 1 1 1

PESO PORTA - LEAF WEIGHT - POIDS VANTAIL -

FLÜGELGEWICHT - PESO DE LA HOJA - GEWICHT VLEUGEL -

DÖRRBLADETS VIKT (Kg)

20 40 80 100 120 140 160 180 200 220 240 260 280 300

- Velocità apertura e chiusura da impostare tramite KP CONTROLLER

- Opening and closing speed to be set via KP CONTROLLER

- Vitesse d’ouverture et de fermeture à régler par KP CONTROLLER

- Über den KP CONTROLLER einzugebende Öffnungs- und Schließungsgeschwindigkeit

- Velocidad de apertura y cierre para congurar mediante KP CONTROLLER

- Snelheid openen en sluiten in te stellen via KP CONTROLLER

- Öppnings- och stängningshastighet ställs in med programmeringsenheten KP CONTROLLER

BRACCIO A PATTINO L=330 mm CON MONTAGGIO OPERATORE SULL’ARCHITRAVE ( B=00mm)

SLIDING ARM L=330 mm WITH OPERATOR INSTALLATION ON THE ARCHITRAVE ( B=0mm)

BRAS À PATIN L=330 mm AVEC MONTAGE DE L’OPÉRATEUR SUR LE LINTEAU ( B=0mm)

BRAZO DE PATÍN L=330 mm CON MONTAJE DEL OPERADOR EN EL DINTEL ( B=0mm)

GLEITKUFENARM L = 330 mm MIT MONTAGE DES ANTRIEBS AM STURZ ( B=0mm)

ARM MET GLIJSCHOEN L=330 mm MET MONTAGE AANDRIJVING OP DE BOVENDORPEL ( B=0mm)

GLIDARM L= 330 mm MED DÖRRÖPPNAREN MONTERAD PÅ KARMÖVERSTYCKET (B = 0 mm)

- LUNGHEZZA ANTA - LEAF LENGTH

- LONGUEUR VANTAIL -

FLÜGELLÄNGE

- LONGITUD HOJA - LENGTE VLEUGEL
DÖRRBLADETS LÄNGD ( mm )

700 9 6 3 3 2 2 2 2 1 1 1 1 1 1
800 8 5 3 2 2 2 1 1 1 1 1 1

PESO PORTA - LEAF WEIGHT - POIDS VANTAIL -

FLÜGELGEWICHT - PESO DE LA HOJA - GEWICHT VLEUGEL -

DÖRRBLADETS VIKT (Kg)

20 40 80 100 120 140 160 180 200 220 240 260 280 300

- Velocità apertura e chiusura da impostare tramite KP CONTROLLER

- Opening and closing speed to be set via KP CONTROLLER

- Vitesse d’ouverture et de fermeture à régler par KP CONTROLLER

- Über den KP CONTROLLER einzugebende Öffnungs- und Schließungsgeschwindigkeit

- Velocidad de apertura y cierre para congurar mediante KP CONTROLLER

- Snelheid openen en sluiten in te stellen via KP CONTROLLER

- Öppnings- och stängningshastighet ställs in med programmeringsenheten KP CONTROLLER

950N 10 732708 - Rev. F950N 10 732708 - Rev. F

EC DECLARATION OF INCORPORATION OF PARTLY COMPLETED MACHINE

The undersigned, representing the following manufacturer :

Manufacturer : FAAC S.p.A.

Address : Via Calari ,10 - 40069 Zola Predosa BOLOGNA - ITALIA

herewith declares that to the partly completed machinery :

Description : Automated system for swing doorsf
Model : 950N

the essential requirements of the following EC directive (including all applicable amendments)

 • 2006/42/ECMachineryDirective

have been applied and fulfilled, and that the relevant technical documentation is compiled in accordance with part B

ofAnnexVIIoftheabovementionedMachineryDirective.

The above identified partly completed machinery is also in compliance with the all the relevant provisions of the
following EC directive (including all applicable amendments)

ENGLISH

 • 2004/108/ECEMCDirective

The following harmonized standards have been applied:

o EN16005:2012
o EN61000-6-2:2005
o EN61000-6-3:2007

The above identified partly completed machinery must not be put into service until the final machinery into which it is

tobeincorporatedhasbeendeclaredinconformitywiththeprovisionsoftheabovementionedMachinery
Directive2006/42/EC.

Bologna,23-07-2013     ManagingDirector

A. Marcellan

950N 11 732708 - Rev. F

950 N

1 PRELIMINARY CHECKS

For correct operation of the automated system, the existing door structure must feature the following:

1. Length and weight corresponding to the description contained in section 3.1

2. Max. post depth corresponding to the description contained in section 3.2

3. Sturdy and rigid leaf structure.

4. Existing hinges in good condition.

5. Smooth and even movement of the leaf, without irregular friction during the entire stroke.

6. Door “neutral” position during the entire stroke. Should the door tend to close or open, check the alignment of the hinges.

7. Presence of mechanical limit switches or others integrated in the automated system being used.

2 DESCRIPTION AND TECHNICAL SPECIFICA-

TIONS

The 950 N automated system for leaf doors is an enbloc
consisting of an electromechanical device that allows door

ENGLISH

opening by means of a transmission arm. The door closes
itself using a spring system.
The operator can be installed either on the architrave or
directly on the door structure.
The protective housing contains the electronic control unit
for system programming and operation control. The 950 N
operator is a reversible operator. Therefore, in the event of
power drop, the door can be opened manually.

This instruction is valid for firmware

version 2.2 or later.

Automated system

power supply

Absorbed power 100 W

Absorbed current 0,5 A

Electric motor 24 V= with encoder

Dimensions 530 x 105 x 160

Weight 10 Kg

Operating ambient

temperature

Protection

class

Maximum leaf

dimensions and

weight

Use frequency continuous

ROT Continuous use at 55°C

Operation with

no power

Type of transmis-

sion arms

Anti-crushing

device

Maximum

opening angle

230 V~* or 115 V~*

(+6% -10%)

(* Depending on the model)

L x H x D

- 20° C..........+55°C

IP 23 (indoor use)

Section 3

manual push or pull opening

depending on the arm

• Articulated

• Sliding L=330 mm

• Sliding L=430 mm

With reverse in case of obstacle

(standard supply)

Section 3.3

Opening

time

Closing

time

Accessories power

supply+ Electric

lock power supply

Operating modes

(by selector switch)

Pause time adjustable

With trimmer: see gure 5

Modes adjustable

Terminal board

outputs

Terminal board

inputs

Rapid connectors

Mode selection • Mode selector switch

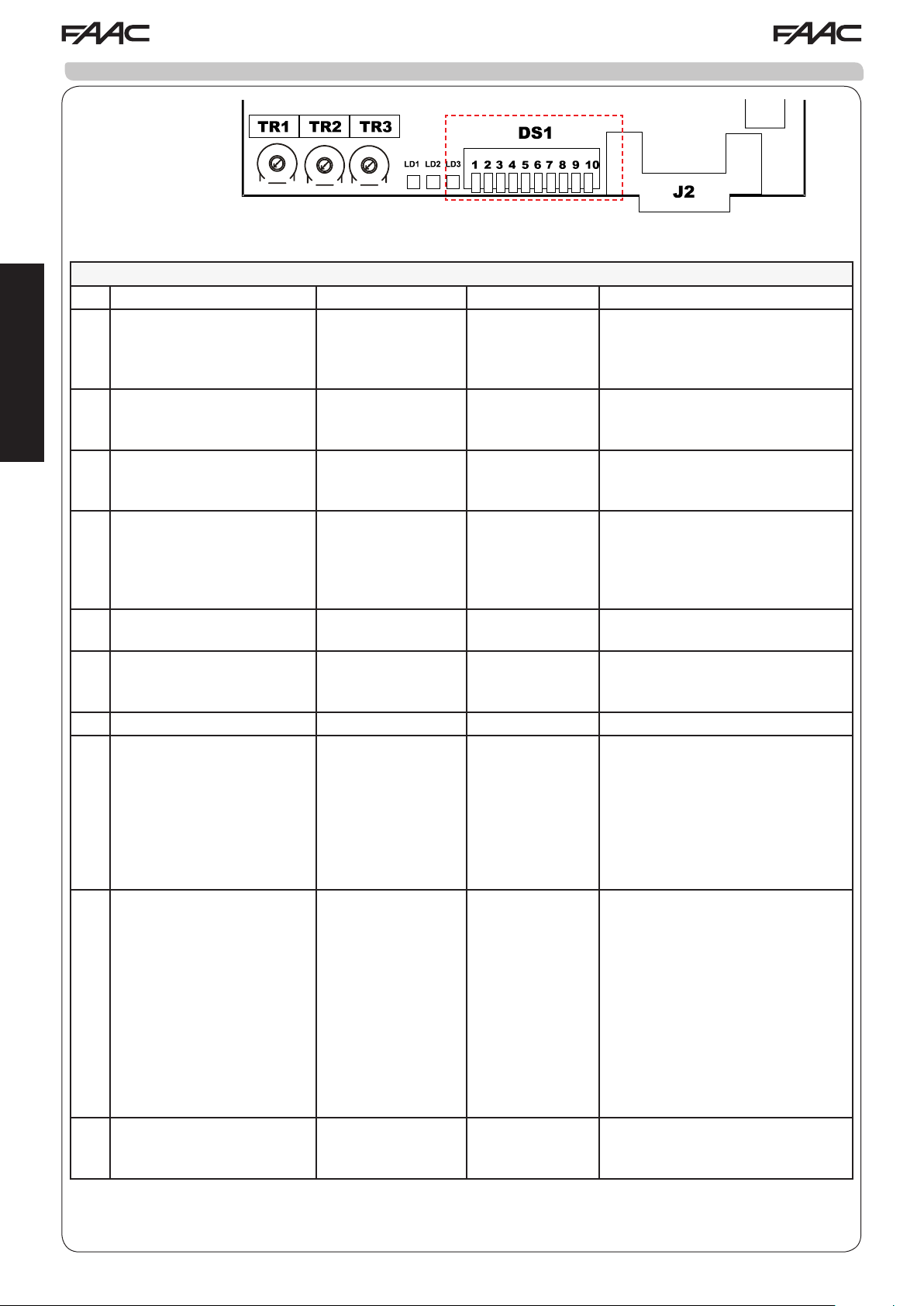

With dip switch: see gures 4

• Board fault signal

• Electric lock activation

• Accessories power supply

• Door status signal

• Exchange relay controlled

from card reader

• 2-leaf connection signal

• Signal for interlock between

two doors

• Opening commands

• Emergency command

• Key command

• Card reader command

• Fire protection command

• Opening STOP safety

device with re-opening on
release

• Safety device with inversion

during closure

• KP controller/SDK light

(optional)

• Radio rp, minidec, decoder

board connector

• Mode selector switch

connector

• KP controller

• SDK light

adjustable

from 4 to 10 seconds

adjustable

from 4 to 10 seconds

24 V =

1000mA max

Open - Automatic -

Manual or Night

from 0 to 30 seconds

and 6

950N 12 732708 - Rev. F

k

a

n

b

c

d

f

e

g

l

m

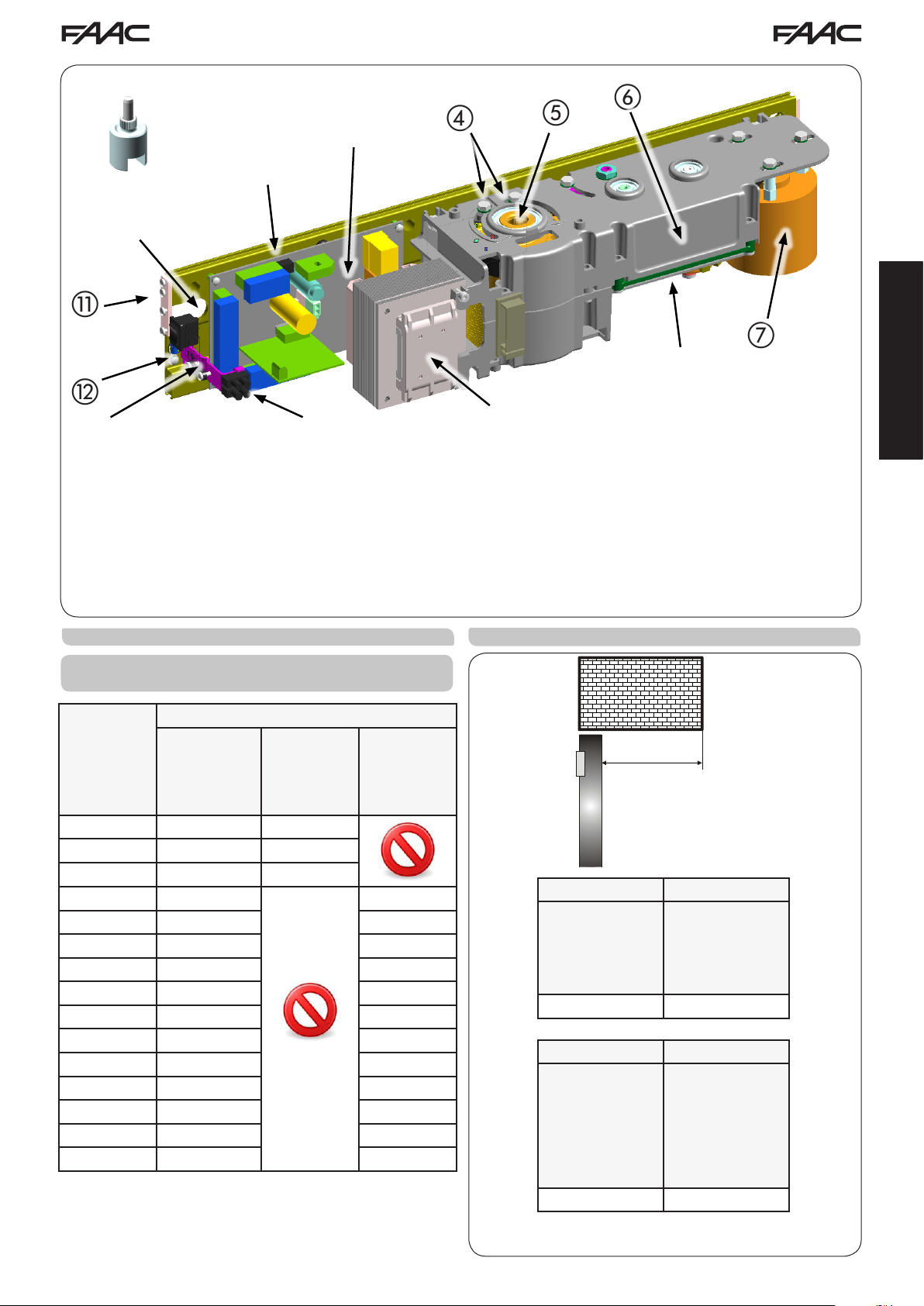

1. Cable routing holes

2. Support prole

3. 950 I/O unit

4. Mechanical stops adjustment

5. Motion transmission shaft coupling

6. Drive unit and return spring

7. Electric motor

3 APPLICATION LIMITS

3.1 APPLICATION LIMITS DEPENDING ON LEAF WEIGHT

AND LENGTH

MAX LEAF WEIGHT (Kg)

LEAF

LENGTH

(mm)

700 367 286
750 320 249
800 281 219
850 249 194
900 222 173

950 199 155
1000 180 140
1050 163 127
1100 149 116
1150 136 106
1200 125 97
1250 115 90
1300 107 83
1350 99 77
1400 92 71

ARTICULA-

TED PUSH

ARM

j

SLIDING

ARM

L=330 mm

SLIDING

ARM

L=430 mm

e

h

i

8. 950 MPS programming unit

9. Transformer

10. Mains power supply terminal board

11. Housing securing bracket

12. Earthing terminal

13. Power supply cable securing terminal

14. Extension coupling (standard height 20 mm; 50 or
80 mm optional)

3.2 MAXIMUM DOORPOST DEPTH

MAXIMUM

DOORPOST

DEPTH

(mm)

TABLE A TABLE B

ARTICULATED

ARM

Outward

opening

0 - 250 mm 0 mm

TABLE C TABLE D
SLIDING

ARM

L=430 mm

Inward

opening

0 - 160 mm 0-160 mm

ARTICULATED

ARM

Inward

opening

SLIDING

ARM

L=330 mm

Inward

opening

Fig.1

Fig.2

ENGLISH

950N 13 732708 - Rev. F

3.3 MAXIMUM DOOR OPENING ANGLE
ARTICULATED ARM

INSTALLATION

TYPE

DOORPOST

DEPTH (mm)

MAXIMUM

OPENING

ANGLE

0 100°

Operator on

architrave

125 110°
250 125°

Operator on door 0 100°

3) Secure the operator using the six M6 screws and washers
in the previously drilled holes, as per the drilling templates

4.2 INSTALLING THE TRANSMISSION ARMS

It is always advisable to adjust the

mechanical stops inside the opening/
closing operator so that they are occupied

ITALIANO

when the leaf reaches its mechanical
stops.

4.2.1 INSTALLING THE ARTICULATED ARM

Refer to the gure on page 1

SLIDING ARM

INSTALLATION

TYPE

ENGLISH

Operator on

DOORPOST

DEPTH (mm)

architrave

arm

L=430 mm

Operator on

architrave

arm

L=330 mm

4 INSTALLATION

4.1 SECURING THE OPERATOR

The architrave (or door) structure designed

for securing the operator must not be warped.

-The operator must be secured parallel with the
floor.

MAXIMUM

OPENING

ANGLE

0 90°

160 105°

0 90°

160 90°

1) Close the door.

2) Release the telescopic arm a by loosening the coupling
screws to allow it to slide.

3) Secure the coupling b , to the operator motion
transmission shaft connection, using the provided screw g
so that the arm is installed perpendicular to the operator c.

4) Secure the arm c to the coupling b using the two
provided screws d .

Should a greater distance be required

between the operator and the arm, use the
shaft extensions, available as accessories,
until the desired distance is reached.

5) Turn the arm c until the arm a is perpendicular to the
closed door or architrave.

6) Secure the arm plate h to the door or to the architrave
using two M6 screws and washers.

7) Tighten the four screws f securing the telescopic arm
a .

8) Manually verify that the door freely opens and closes

Should use of a sliding arm be required, in-

stall the transmission arm before securing the
operator to the architrave (see paragraph 4.2.2
or 4.2.3)

1) With regard to the operator securing position (on the

completely and stops on the leaf mechanical stop.
Important: The two transmission arms must never touch
each other.

4.2.2 INSTALLING THE SLIDING ARM

(inward opening)

architrave or door) and the type of arm used (push or sliding)
refer to the corresponding installation Table and drill the
holes required for securing the operator and the pull arm.

IMPORTANT: When installing an sliding

arm, before powering the system, set
micro-switch nr. 2 to ON.

Please note: The two intermediate operator securing holes

are not centred (see installation Tables). The offset holes

Refer to the gure on page 4.

make it possible to secure the operator in the correct sense
of rotation of the mechanism. The installation Tables are
as follows:

Install the arm g on the transmission

shaft before securing the operator to the
architrave.

Table. A: ARCHITRAVE INSTALLATION

(ARTICULATED
PUSH ARM): outward opening.
Table. B: DOOR INSTALLATION (ARTICULATED
PUSH ARM): inward opening.
Table. C: ARCHITRAVE INSTALLATION (SLIDING
ARM LENGTH 430 mm): inward opening.
Table. D: ARCHITRAVE INSTALLATION (SLIDING
ARM LENGTH 330 mm): inward opening.

1) Insert the screw h in the coupling f .

2) Secure the arm g to the coupling f using the two
provided screws i.

3) Insert the coupling f on the operator transmission shaft
so that the arm is secured at a 45° angle outward.

4) Tighten the operator screw h.

Should a greater distance be required

between the operator and the arm, use the
shaft extensions, available as accessories,

2) Install the housing securing brackets (g.1 ref. ©) and

tighten the xing screws. Insert the xing screws in the

housing, without tightening them completely.

until the desired distance is reached

5) Screw the part f to the arm g .

6) Insert the part e into the part f and join them using
a Seeger ring k

950N 14 732708 - Rev. F

7) Assemble the sliding block d with the springs j .

8) Insert the Teon sliding block inside the track b .

9) Manually pull the arm g inward and secure the track to
the closed door using two M6 screws.

10) Insert the two lateral plugs a in the track.

11) Manually verify that the door freely opens and closes
completely and stops on the mechanical stops.

ENGLISH

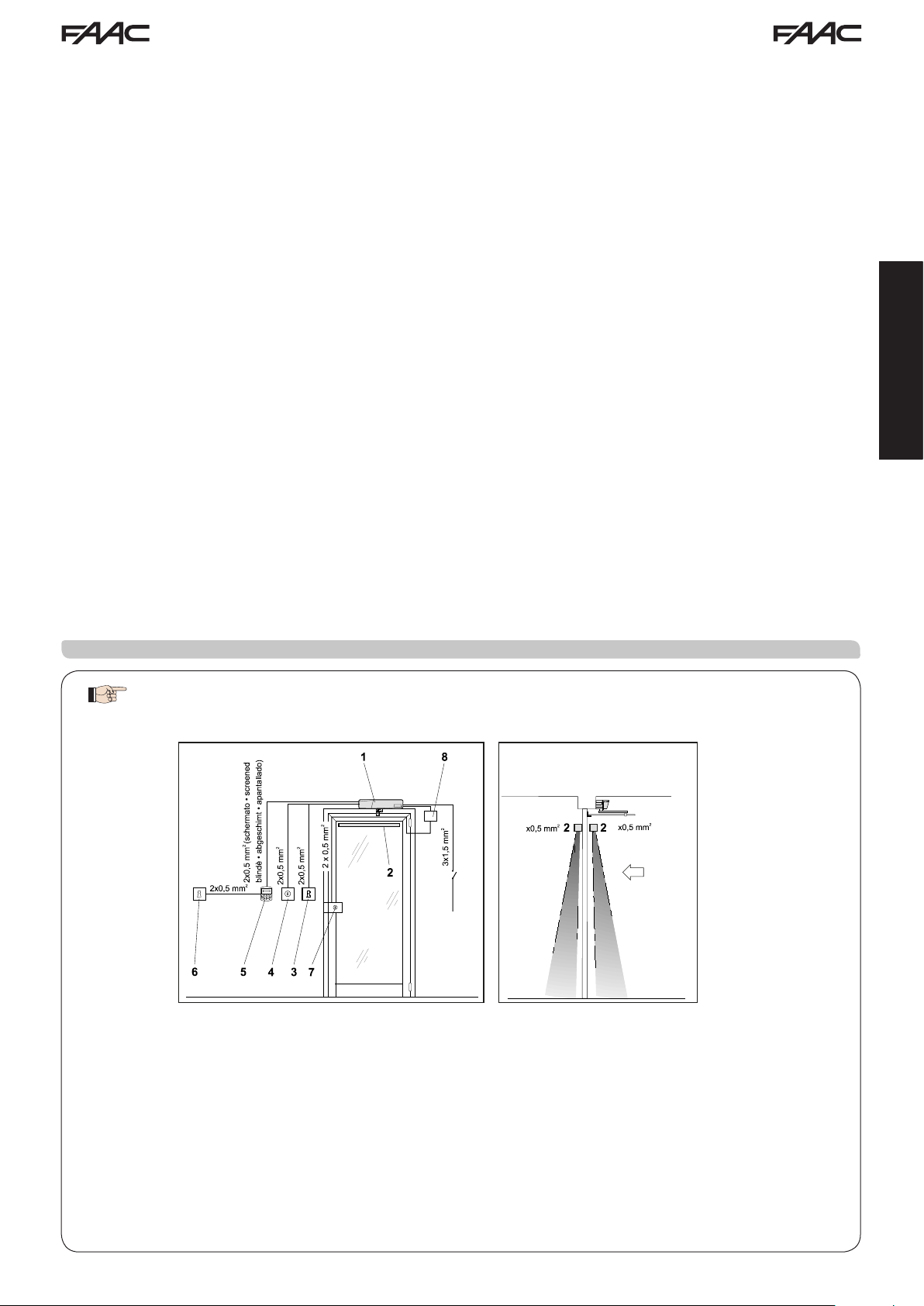

5 ELECTRICAL PREPARATIONS

For electrical cable installation, use adequate rigid and/or flexible tubes. Always separate the

low-voltage accessories connection cables from the power supply cables. To avoid possible
interference, use separate sheathing.

8

8

1. 950 N Operator

2. Monitored infrared sensors

3. Key release for external use (KEY command)

4. Emergency open/close button

5. KP-CONTROLLER programming unit (optional)

6. KP-CONTROLLER locking key switch (optional)

7. Electric lock 24V= max 0.5 A

8. Shunt box

In case of operator on-door installation, make all electrical connections using a shunt box and suitable exible

tubes/couplings, available commercially.

Fig.3

950N 15 732708 - Rev. F

6 PROGRAMMING THE 950 MPS BOARD

950 MPS

DS1 950 MPS SETTING

N° FUNCTION OFF ON NOTE

1

Final closing stroke Disabled Enabled

2

ENGLISH

3 External selector switch in

4

5 Leaf delay at opening

6 Special automatic function

7 Not used
8 SCP

9

10 Board updating using the

Set-up procedure

position 2

Push and go Disabled Enabled

(master/slave application)

(Not available in the master

and slave application)

(Selectable Close Powe-

ring)

Additional force before

closing

NOTE: With dip switch 9

set to OFF, this function is

never active

FAILSAFE

(safety devices test as per

EN 16005)

LOW ENERGY

(low energy operation as

required by EN 16005)

RS232 port Disabled Enabled

Articulated arm and/

or openings up

to 90°

Position 2

set on

Manual

Disabled Enabled

Disabled Enabled When in automatic mode, if this

Disabled Enabled

FAILSAFE TEST

NOT ACTIVE

LOW ENERGY

ACTIVE

Sliding arm and/

or openings

greater than 90°

Position 2

set on

Night

FAILSAFE TEST

ACTIVE

LOW ENERGY

NOT ACTIVE

In the closed door position, it al-

lows the door to be kept constantly

pressurised via the motor. (do not

enable if push and go is ON)

Allows to decide which mode is to

be associated to position 2 of the

external selector switch

Set the outer selector switch to

position 0 (automatic) and push

or pull the door to open it. (do not

enable if the nal closing stroke is

parameter is enabled, the motor

will not prevent manual opening.

When this function is enabled, it

reduces the sensitivity of the

electronic anti-crushing device.

The activation of this function is

useful whenever high friction,

particularly hard door gaskets or

electric locks with difcult latching

If set to the ON position, dip sw

9 selects the activation of the

opening/closing function test of the

If set to the OFF position, the

sensor test is disabled and the

movement of leaf can be set in the

“Low energy” mode as required by

When dip switch 9 is ON, the “inter-

lock” function and the gong are no

Allows enabling of the RS232

port for connection with the PC to

perform rmware updates.

Fig.4

ON)

are present.

safety sensors.

Standard EN 16005.

longer available.

950N 16 732708 - Rev. F

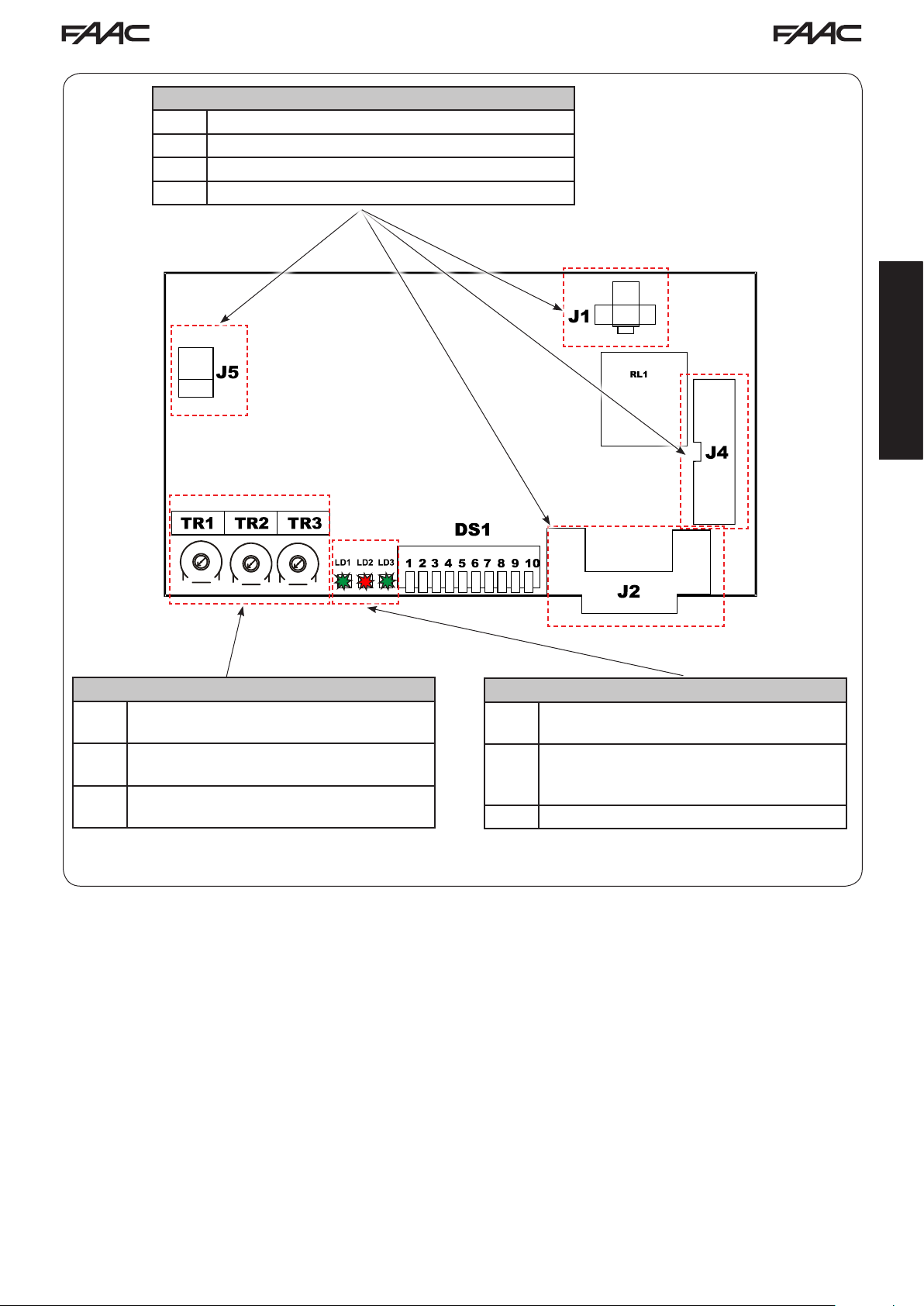

950 MPS BOARD CONNECTORS
J1 24V= connector
J2 RS232 connector
J4 Connector for connecting to the 950 I/0 board
J5 Motor connector

ITALIANO

ENGLISH

950 MPS BOARD TRIMMERS

TR 1 Opening time adjustment

( 4 - 10 seconds )

TR 2 Closing time adjustment

( 4 - 10 seconds )

TR 3 Pause time adjustment

( 0 - 30 seconds )

950 MPS BOARD LEDs

LD1 Green LED indicating

the electric motor power

LD2 Red signal LED:

• Rapid ashing SET-UP in progress

• Slow ashing active fault

LD3 Green LED for 5 V = power supply

Fig.5

950N 17 732708 - Rev. F

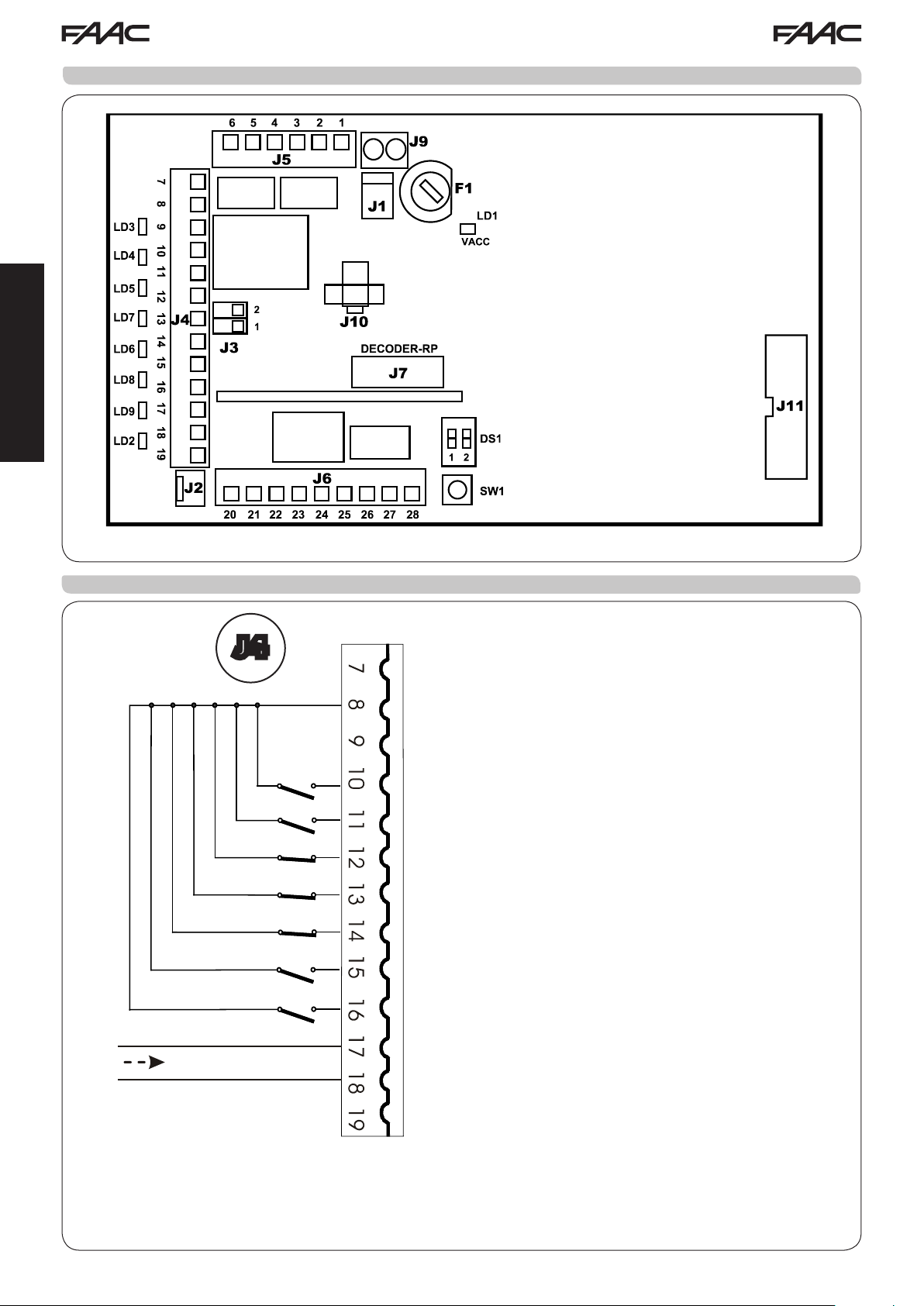

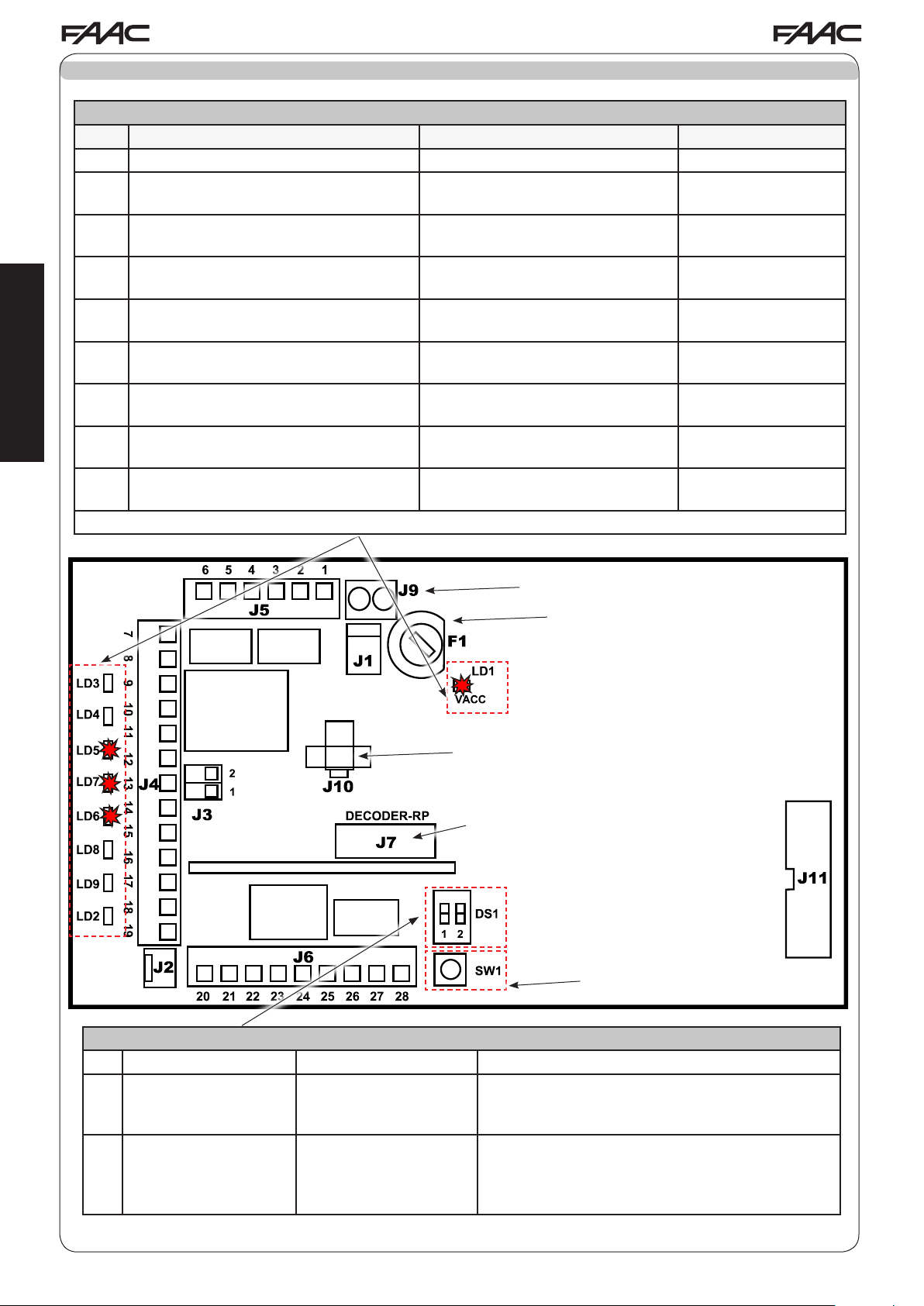

7 PROGRAMMING AND DESCRIPTION OF THE 950 I/O BOARD

950 I/O BOARD LEDs

LED ON OFF NOTE

LD1 Accessories power present No accessories power
LD2 Card reader active Card reader not active Signals the status of

LD3 Internal opening command active Internal opening sensor

LD4 External opening command active External opening sensor

LD5 Emergency command not active Emergency command active Signals the status of

LD6 The opening STOP safety sensor is

not engaged

LD7 The closing safety sensor is not

ENGLISH

engaged

Closing phase safety

LD8 Key command active Key command not active Signals the status of

LD9 Fire-prevention command active Fire-prevention command not

BOLD PRINT INDICATES THE DEFAULT CONDITION WITH DOOR IN REST POSITION

input 17

Signals the status of

not active

input 10

Signals the status of

not active

input 11

input 12

STOP safety active Signals the status of

input 13

Signals the status of

occupied

input 14

input 15

Signals the status of

active

input 16

J9 = MOTOR POWER INTERRUP-

TION TERMINAL

F1= 4A

950 I/0

J10 = 950 MPS POWER CONNECTOR

J7 = COUPLING FOR RADIO RECEI-

VER (RP, MINIDEC, DECODER)

J11 = RAPID CONNECTOR FOR STATUS

SIGNALS TO THE 950 MPS BOARD

SW1= SET-UP START BUTTON

950 I/O DS1 SETTING

N° FUNCTION OFF ON

1

Pause time following ope-

ning using the “push and

2

seconds

Value set in automatic mode (using TR3 or

KP controller trimmers)

go” function.

2

Opening delay for door

with electric lock

200 milliseconds

(the electric lock re-

mains active up to a 70°

opening)

500 milliseconds

(the electric lock remains active for over a 70°

opening)

Inversion stroke starting from a closed position.

Fig.6

950N 18 732708 - Rev. F

950 O/I BOARD CONNECTORS
J1 Secondary for transformer
J2 Rapid connector for Manual/Night, Open, Automatic mode selector switch

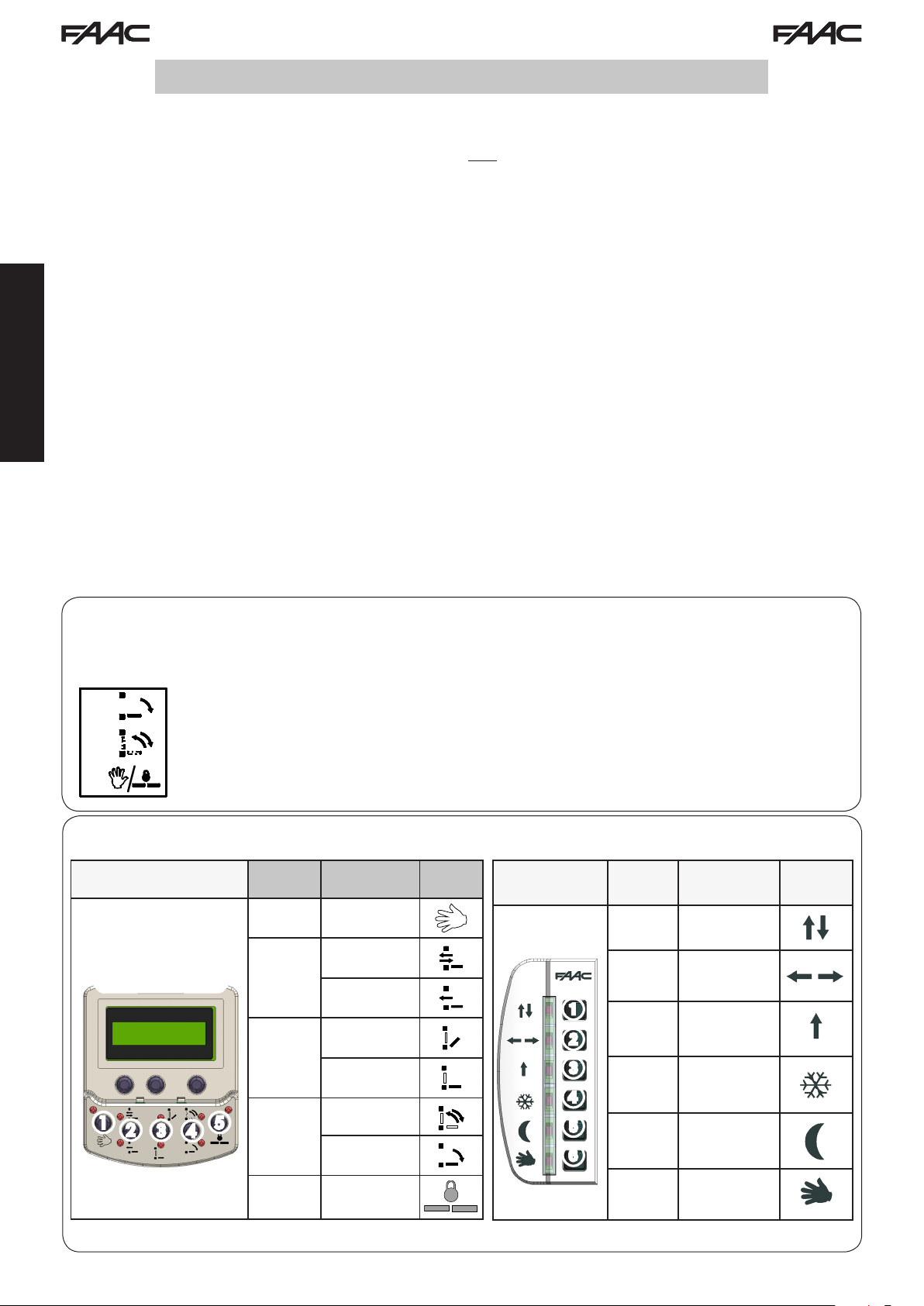

J3 Connector for KP CONTROLLER programming unit

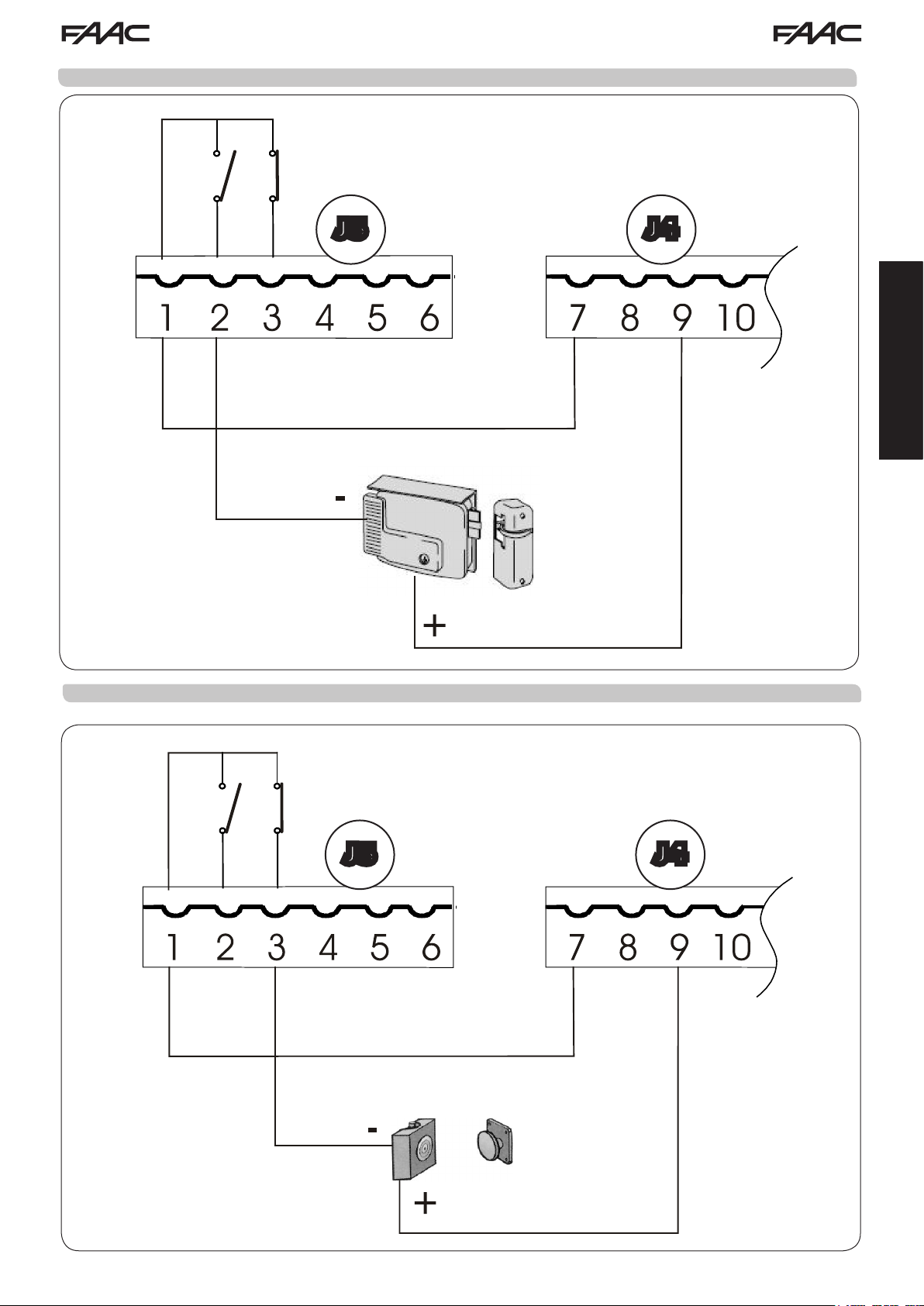

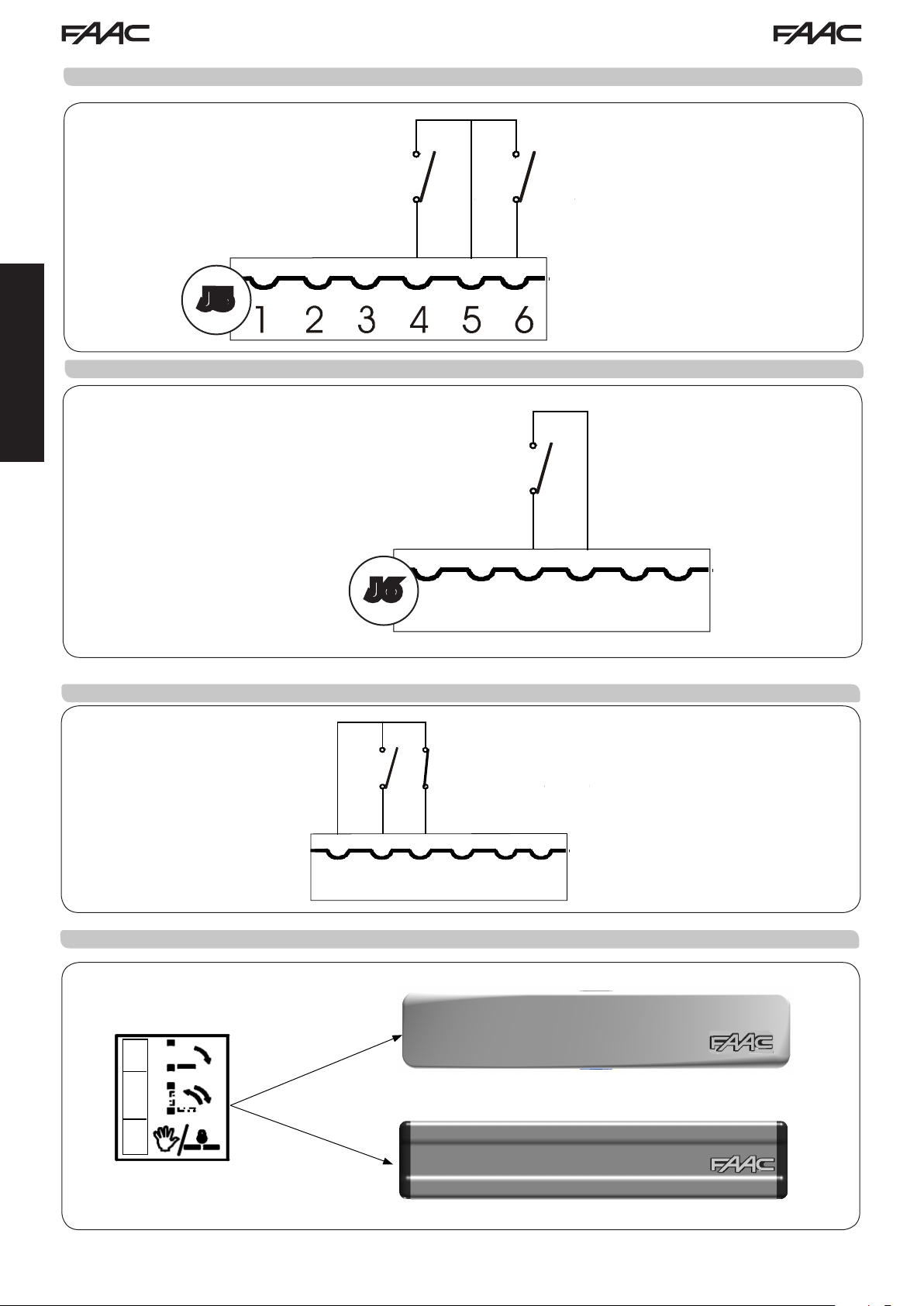

1 Common contact for electric lock
2 Normally open contact for activating the electric lock (max contact capacity 0.5A 24V). The contact

J5

3 Normally closed contact for activating the electric lock (max contact capacity 0.5A 24V). The contact

4 Door closed status (normally open contact, max 0.5A / 24V ).

5 Common contact for door status
6 Door open status (normally open contact, max 0.5A / 24V ). The contact will close when the door is

7-8 GND = control board power supply negative

9 + 24 V= control board power supply positive

10 Internal open command (normally open contact).

11 External open command (normally open contact).

12 Emergency command (normally closed contact). If open, it commands door closing (the mode can be

J4

13 Safety command during closing phase (normally closed contact). If open during closing, it reverses

14 Opening STOP safety device command. If open, it blocks the motion and restores it when it is no

15 Key command (normally open contact).

16 Fire alarm command (normally open contact).

17 Command coming from the card reader positive (24V signal = between 17 and 18).

18-19 GND = control board power supply negative

20 Exchanging relay - Common contact
21 Exchanging relay - (normally open contact). This output closes when the card reader input

22 Exchanging relay - (normally closed contact). This output opens when the card reader input

J6

J9 Terminal for interrupting motor power (if interrupted, it cuts off power to the motor)

23 Board fault output - Common contact
24 Board fault output (normally open contact).

25 +24 V=
26 GND = control board power supply negative
27 Interlock output if dip 9 = OFF

28 “Two leaf” output

will close following an open command, during the approximately 70° stroke and with the door in ma-

will open following an open command, during the approximately 70° stroke and with the door in ma-

The contact will close when the door is closed.

the opening motion. As long as it is open it inhibits closing.

longer engaged. As long as it is open, it inhibits the opening (normally closed contact)

If closed, it commands door opening in any mode.

If closed, it commands door closing.

The pause time is xed on 10 seconds.

This output closes when there is a board fault (see section 11.3)

Failsafe output for sensor monitoring if dip 9 = ON

ITALIANO

nual mode.

nual mode.

opened.

In night mode does not open door.

In night mode does not open door.

modied using the KP controller)

is activated, for 2 seconds.

is activated, for 2 seconds.

ENGLISH

950N 19 732708 - Rev. F

8 950 I/0 BOARD ELECTRICAL WIRING

ENGLISH

950 I/0

8.1 COMMAND INPUTS

Fig.7

J4

GND

GND

+24 V=

INTERNAL OPEN COMMAND (n.o.)

EXTERNAL OPEN COMMAND (n.o.)

EMERGENCY COMMAND (n.c.)

SAFETY COMMAND DURING CLOSING (n.c.)

STOP COMMAND DURING OPENING (n.c.)

KEY COMMAND (n.o.)

FIRE-PREVENTION COMMAND (n.o.)

CARD READER COMMAND

+

-

CARD READER INPUT
(24 V= signal)

950N 20 732708 - Rev. F

GND

GND

Fig.8

8.2 XPB34-1/70-1 XPB90-1/90-2 SENSOR CONNECTION WITH MONITORING (DIP 9=ON)

Sensor monitoring according to EN 16005 is only guaranteed in models XPB34-1/70-1 XPB90-

1/90-2

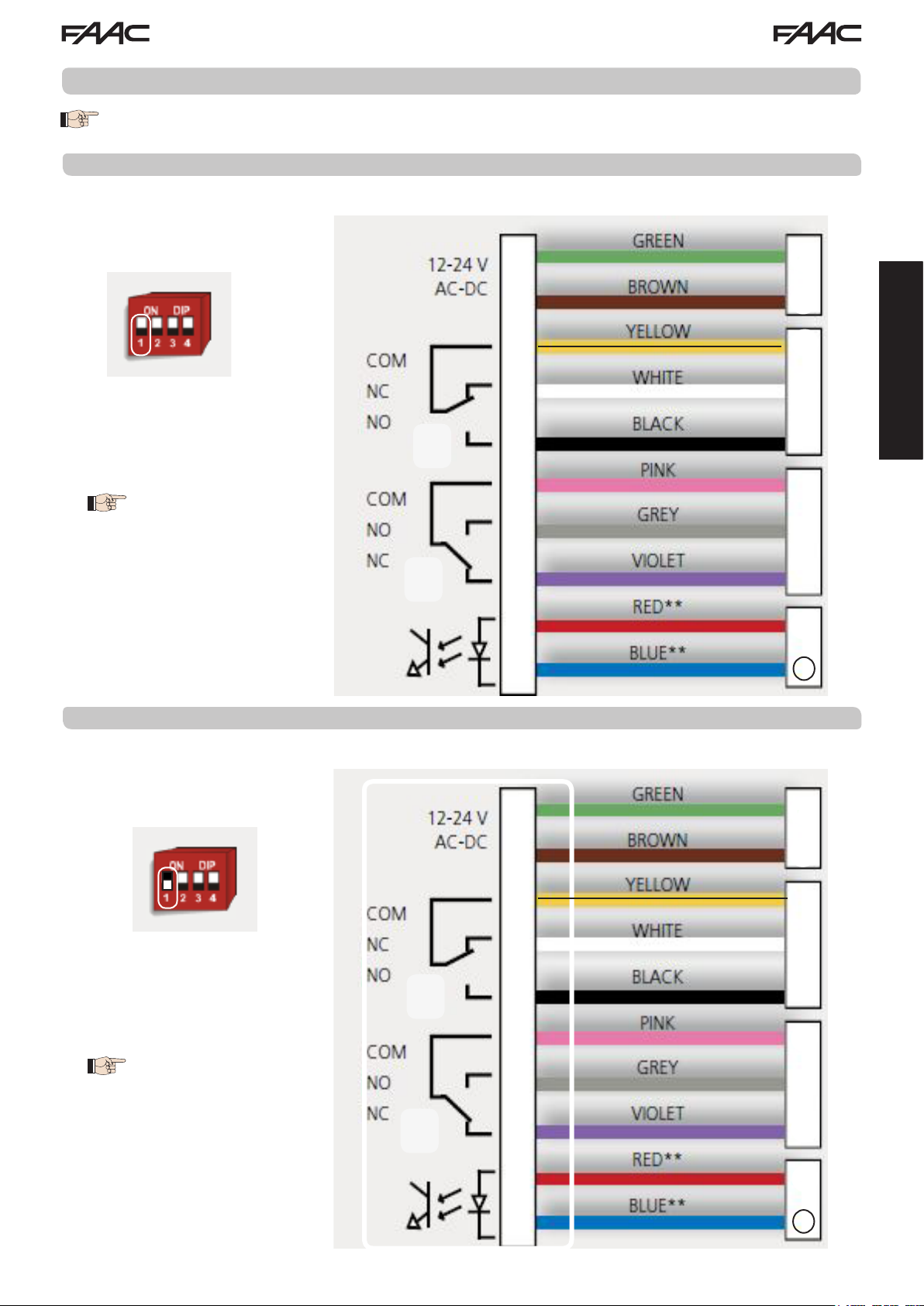

8.2 OPENING SAFETY SENSOR CONNECTION

SET DIP 1 OF THE

SENSOR TO ON

IMPORTANT:

If this sensor is
not present, ter­minal 14 must be
connected to 27
of board 950 I/O.

XPB SENSOR

950 I/O BOARD

g

i

h

n

ENGLISH

i

Fig.9a

8.2 CLOSING SAFETY SENSOR CONNECTION

XPB SENSOR

SET DIP 1 OF THE

SENSOR TO OFF

IMPORTANT:

If this sensor is
not present, ter­minal 13 must be
connected to 27
of board 950 I/O.

27

950 I/O BOARD

g

i

h

m

i

Fig.9b

950N 21 732708 - Rev. F

27

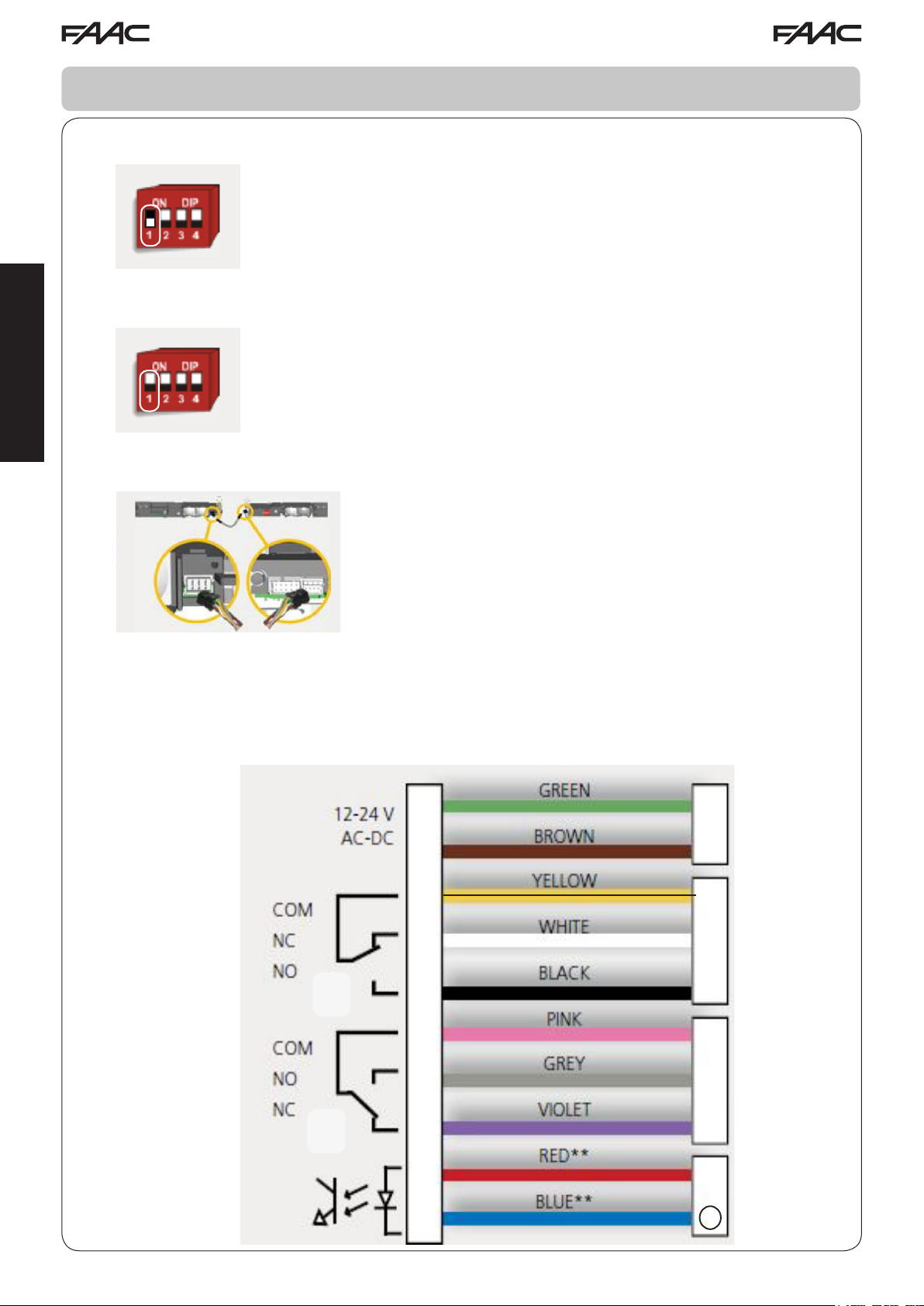

8.3 OPENING AN CLOSING SAFETY SENSOR CONNECTION IN THE MASTER AND SLAVE CONFIGURATION

1. ASSEMBLE THE SENSORS ON BOTH SIDES OF THE DOOR

2. ON THE CLOSING SAFETY SENSOR, SET DIP 1 TO OFF

3. ON THE OPENING SAFETY SENSOR, SET DIP 1 TO ON

ENGLISH

4. CONNECT THE MASTER SENSOR TO THE SLAVE SENSOR VIA
THE RELATIVE WIRE

5. CONNECT THE MASTER SENSOR TO THE 950 I/O EQUIPMENT AS DESCRIBED BELOW.
DO NOT CONNECT THE TERMINALS OF THE SLAVE SENSOR

XPB MASTER SENSOR

950 I/O BOARD

g

i

h

n

h

m

i

27

950N 22 732708 - Rev. F

8.3 ELECTRICAL LOCK COMMAND OUTPUT

N.O.

J5 J4

ENGLISH

ELECTRIC LOCK
24 V=

8.4 ELECTROMAGNET COMMAND OUTPUT

N.C.

J5 J4

Fig.10

950 I/0

ELECTROMAGNET

24V=

Fig.11

950N 23 732708 - Rev. F

22 23 24 25

20 21 22

8.5 DOOR STATUS OUTPUT (Max contact capacity 0.5 A / 24 V=)

950 I/0

CLOSED DOOR N.O. CONTACT
(Closes when the door is closed)

J5

8.6 BOARD FAULT OUTPUT (Max contact capacity 0.5 A / 24 V=)

ENGLISH

BOARD FAULT OUTPUT N.O. CONTACT
(It closes when an automated system fault is active)

J6

OPEN DOOR N.O. CONTACT
(Closes when the door is open)

Fig.12

950 I/0

8.7 CARD READER CONTACT OUTPUT (Max contact capacity 0.5 A / 24 V=)

CARD READER INPUT
N.O. CONTACT

(Closes when the card
reader input is active)

9 MODE SELECTION

CARD READER INPUT N.C.
CONTACT

(Opens when the card reader
input is active)

1

Fig.13

950 I/0

Fig.14

0

2

950N 24 732708 - Rev. F

Fig.17

1

1

0

1

0

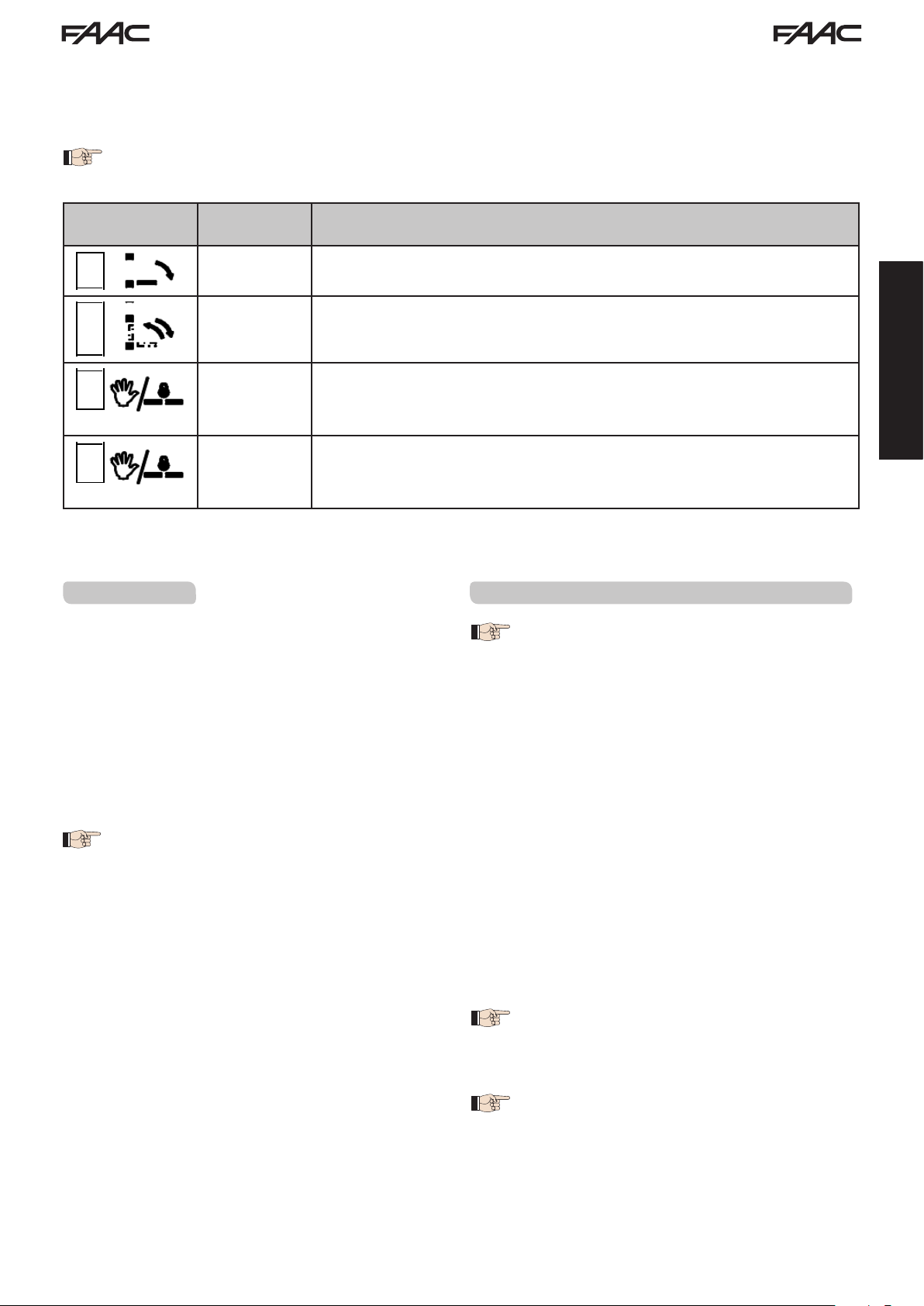

The 950N operator features a 3-position mode selector switch (0-1-2) located on the side of the housing. The selector
switch must be set on a mode. The connection cable to the 950 I/O must be positioned so as to avoid damaging it.

If the kp controller or sdk light is used, the selector switch will have no effect on the automated

system.

SELECTOR

POSITION

MODE DESCRIPTION

DOOR OPEN When this mode is selected, the door opens and stays open.

1

When this mode is selected, and when an internal/external command is acti-

0

2

DIP N° 3 OFF

2

DIP N°3 ON

10 OPERATION

Make the electrical connections on the 950 I/O control board
as shown in section 8, connect the electrical mains supply

to the corresponding terminal (g.l-ref. j ) and ensure that
the earthing cable is crimped to the terminal (g.1-ref. l
) screwed on to the support prole (g.l-ref. b ). Finally,
tighten the terminal (g.l-ref. m )
Set the trimmer (see g.5) and program the micro-switches

(see fig.4 and 6) depending on need. To access the
equipment, run the cables through the provided conduit
(g.l-ref. a ) or open the tabs on the sides of the housing.

IMPORTANT: When installing a sliding

arm or for opening greater than 90° , before
powering the system, set micro-switch nr.
2 of the 950 MPS to ON.

2) Place the door in close position.

3) Power the operator.

4) Ensure that green LEDs LD1 and LD3 on the 950 MPS
board are ON.

5) Ensure that the status LEDs on the 950 I/O board are in

default status, as shown in the table in gure 6.

6) Perform a SET-UP cycle, as described in paragraph 10

AUTOMATIC

MANUAL

The external and internal commands are inactive. Door opening can be com-

NIGHT

vated, the door will open and close again after the pause time.

The door can be opened manually (the lock, if present, will remain inactive)

manded only by activating the Key command.

ENGLISH

10.1 SET-UP PROCEDURE

It is advisable to repeat the set-up

procedure after having modified the
opening and closing speed.

With the automated system powered, press SW1 (950 I/0)
for at least 5 sec. until the red LED LD2 located on the 950

MPS board is ON. The LED will begin ashing indicating

that the SET UP procedure is in progress. During this
procedure the following parameters are adjusted:

- door mass measurement;

- identication of the limit switch positions;

The door will open at reduced speed and will close
approximately half way and then reverse to opening.
Closing is determined by the spring return action.
The process is inhibited in one of the following conditions:

1. Mode selector switch in position 2 (MANUAL/NIGHT) or
KP-CONTROLLER programmer in MANUAL or NIGHT
position

2. Accessories connected incorrectly (electric lock, command/
safety elements);

3. Incorrect position of the programming unit micro-switches.

To repeat the set-up process, press SW1 for
more than 5 seconds. Once the procedure is completed,
ensure that the door opens and closes correctly.

If a KP controller is used, the procedure can be
performed directly from it.

950N 25 732708 - Rev. F

11 FAILSAFE TEST TO MONITOR THE SAFETY SENSORS (dip switch 9 ON) EN 16005

sensor monitoring, as required by EN 16005, is only guaranteed if sensors XPB34-1/70-1 XPB90-

1/90-2 are used

The failsafe test allows the operator’s electronic board 950N to monitor any safety sensors installed, before each mo­vement. Dip 9 must be set to ON in order to enable it.
If the failsafe test is not successful, the movement in that direction is inhibited until the test is successful. If the KP
Controller is connected, the following alarms are displayed:
ALARM 13 = failsafe test failed on closing ­ALARM 14 = failsafe test failed on opening.

If both alarms are triggered, the rst one to be detected is displayed.

Set DIP 9 to ON for the interlock function between two doors and the gong cannot be activated.

In a master and slave application, all the sensor connections (contacts, test, etc.) must be brought
to the board set as master.

.12 LOW ENERGY (dip switch 9 OFF) EN 16005

Standard EN 16005 stipulates that in LOW ENERGY mode, the kinetic energy of a moving door must not exceed

1.69 J. For this to happen, Dip 9 must be set to OFF and the opening and closing speed must be adjusted via the KP
CONTROLLER. These settings must guarantee compliance with the values in the table below.

ENGLISH

The “LOW ENERGY” tables found on page 7 can provide an indicative value of the speed to be

set. However, the speed value set must be verified that it guarantees compliance with EN 16005.

The table provides the settings regarding the minimum opening and closing time with reference to the most com-

mon widths and masses of doors

LEAF WEIGHT (Kg)

LEAF WIDTH

(m)

0.75 3.0 3.0 3.0 3.0 3.5

0.85 3.0 3.0 3.5 3.5 4.0

1.00 3.5 3.5 4.0 4.0 4.5

1.20 4.0 4.5 4.5 5.0 5.5

50 60 70 80 90

OPENING/CLOSING TIME (s)

- Set DIP 9 to OFF for the SCP function to always be disabled.

12 ASSEMBLING THE HOUSING

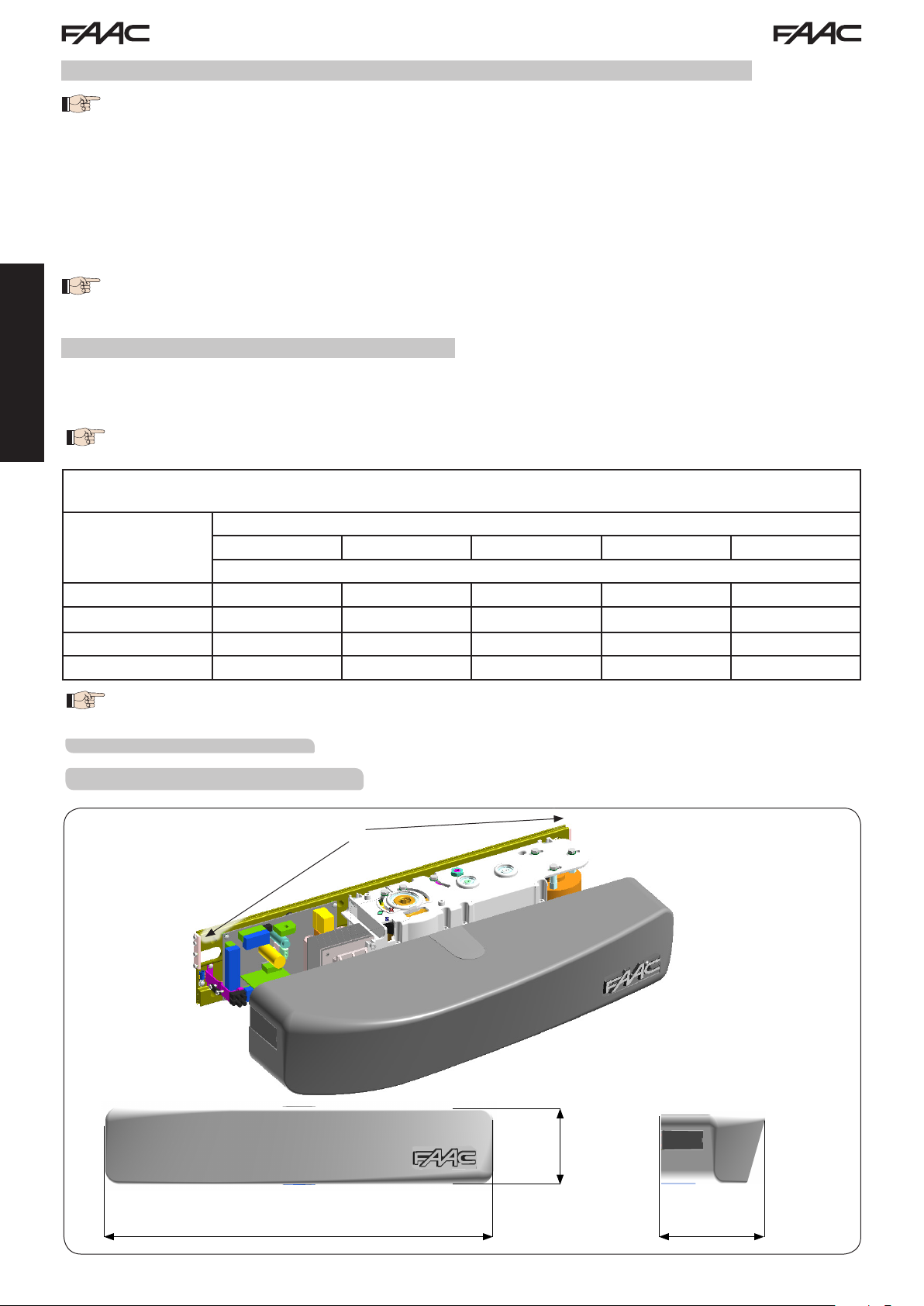

12.1 ASSEMBLING THE PLASTIC HOUSING

HOUSING FIXING SCREWS

105

530 mm

950N 26 732708 - Rev. F

160mm

Fig.18

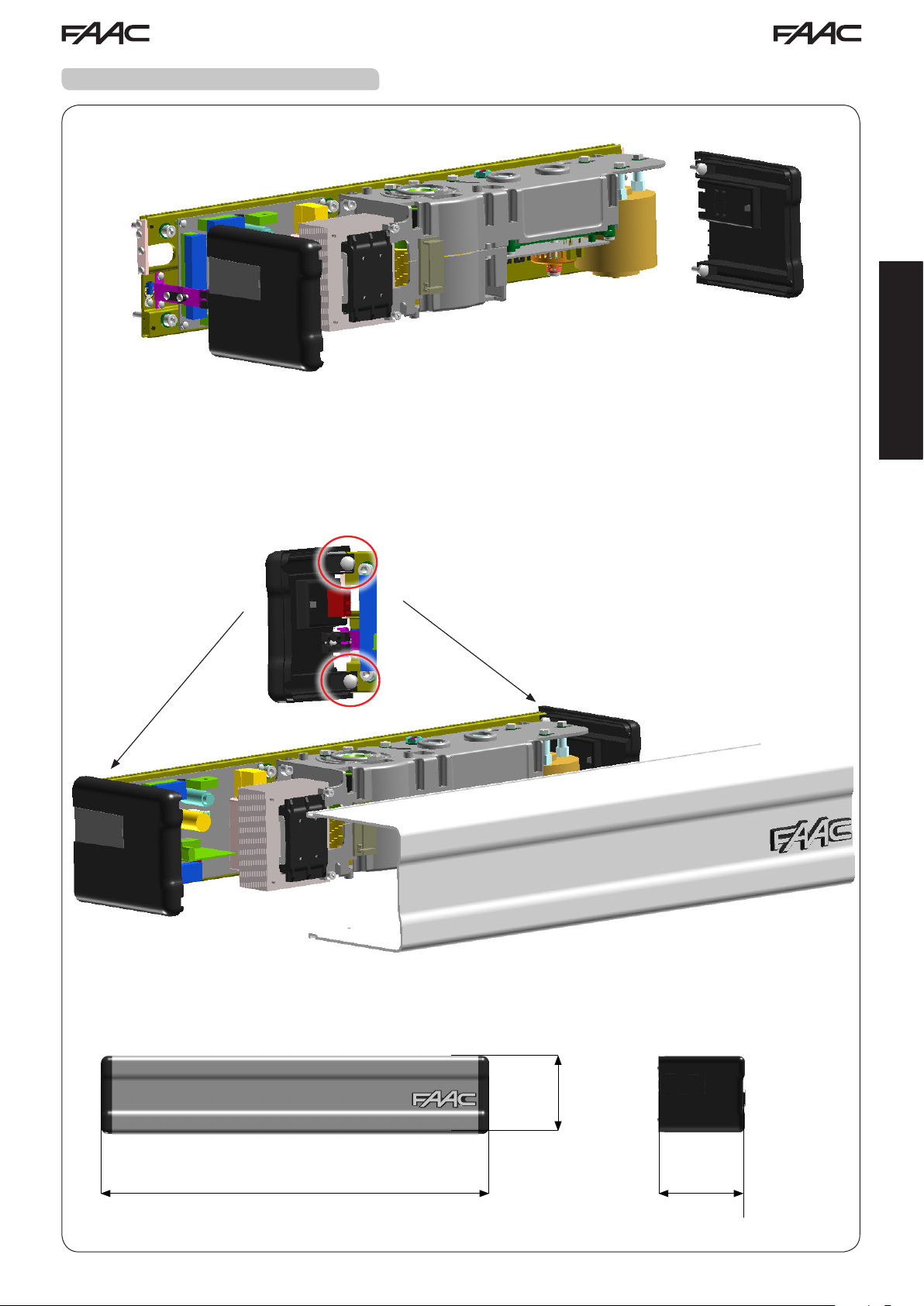

12.2 ASSEMBLING THE ALUMINIUM HOUSING

ENGLISH

4x

TCI M5 x 10

FIXING SCREWS

107

530

121

mm

Fig.19

950N 27 732708 - Rev. F

950N AUTOMATED SYSTEM User’s Guide

Carefully read the instructions before using the product and
keep for future use.

GENERAL SAFETY REGULATIONS

The 950N automated system, if correctly installed and used,
guarantees a high level of safety. A few simple behaviour rules can
avoid accidental inconveniences::

• Do not stand and do not allow children, people or things to stand

near the automated system, especially during operation.

• Do not allow children to play with the door.

• Do not voluntarily prevent movement of the door.

• Ensure that the system “automatic door” signals are kept efcient

and in perfect view.

• In case of malfunction, select MANUAL MODE and wait for the
technical intervention of qualied personnel.

• Do not modify any of the automated system components.

• Do not attempt direct repair or action and refer only to qualied

FAAC personnel.

• Have the efciency of the automated system, the safety devices
and the earthing checked at least every 6 months by qualied

ENGLISH

personnel.

DESCRIPTION

The 950N reversible automated system for leaf doors is an enbloc
consisting of an electromechanical device that allows door opening
by means of a transmission arm. The protective housing contains the
electronic control unit for system programming and operation control.
The 950N automated system features a selector switch for choosing

the operating logic, as shown in g. 1. As an alternative to the function

selector switch, it is possible to install a “KP Controller” programming

unit (g.2) available as an accessory.

OPERATING MODES

Selection is done by pressing the keys located on the xed section
of the programmer; the mode is identied by the lighting of the

corresponding LED.
Note: once the “Night” or “Manual” modes have been set, the
corresponding keys must be pressed again to exit them.

MANUAL OPERATION

Should manually operating the door be required due to power

cut-offs or automated system inefciency, proceed as described below:

MODE SELECTOR SWITCH -

Set the selector switch to “2” MANUAL/NIGHT (g.1) and manually

open or close the door.

KP-CONTROLLER PROGRAMMER, SDK LIGHT

Press the Manual button (g.2). The corresponding LED will go on
xed.

RESTORING NORMAL OPERATION

MODE SELECTOR SWITCH

Set the selector switch to “0” AUTOMATIC (g.1).

KP-CONTROLLER PROGRAMMER

Press the Manual button again to exit and then select the desired

mode using the buttons (g.2). The selected mode will be indicated
by the corresponding LED going on xed.

ITALIANO

POSITION “1”: OPEN

When this mode is selected, the door opens and stays open. Door closing can be commanded only by activating the Emergency
input.

POSITION “0”: AUTOMATIC

When an internal/external or key command is activated, the door will open and close again after the pause
time.

1

POSITION “2”: MANUAL/NIGHT

Position “2” can select two different operating modes depending on how the 950 N unit is programmed. The

0

two modes are:

MANUAL: The door can be opened manually.

2

NIGHT: The external and internal commands are inactive. Door opening can be commanded only by

activating the Key command.

KP

CONTROLLER

A

B

C

D

E

BUTTON

NUMBER

a

b

c

d

e

MODE LOGO

MANUAL

TWO-WAY

DIRECTION

PARTIAL

OPENING

COMPLETE

OPENING

AUTOMATIC

DOOR

NIGHT

ONE

OPEN

SDK

LIGHT

1
2

3
4
5
6

BUTTON
NUMBER

a

b

c

d

e

f

MODE LOGO

AUTOMATIC

DOOR
OPEN

ONE

DIRECTION

PARTIAL

OPENING

NIGHT

MANUAL

Fig.1

Fig.2

950N 28 732708 - Rev. F

SEDE - HEADQUARTERS

FAAC S.p.A.

Via Calari, 10
40069 Zola Predosa (BO) - ITALY
Tel. [phone] - Fax [phone]
www.faac.it - www.faacgroup.com

ASSISTENZA IN ITALIA

SEDE

tel. [phone]
www.faac.it/ita/assistenza

MILANO

tel [phone]
[e-mail]

PADOVA

tel [phone]
[e-mail]

ROMA

tel [phone]
[e-mail]

SUBSIDIARIES

AUSTRIA

FAAC GMBH
Salzburg, Austria
tel. [phone]
www.faac.at
FAAC TUBULAR MOTORS
tel. [phone]
[e-mail]
www.faac.at

AUSTRALIA

FAAC AUSTRALIA PTY LTD
Homebush – Sydney, Australia
tel. [phone]
www.faac.com.au

CHINA

FAAC SHANGHAI
Shanghai, China
tel. [phone]
www.faacgroup.cn

UNITED KINGDOM

FAAC UK LTD.
Basingstoke - Hampshire, UK
tel. [phone]
www.faac.co.uk

FRANCE

FAAC FRANCE
Saint Priest - Lyon, France
tel. [phone]
www.faac.fr
FAAC FRANCE - AGENCE PARIS
Massy - Paris, France
tel. [phone]
www.faac.fr
FAAC FRANCE - DEPARTEMENT
VOLETS
Saint Denis de Pile - Bordeaux, France
tel. [phone]
fax [phone]
www.faac.fr

TORINO

tel [phone]
[e-mail]

GERMANY

FAAC GMBH
Freilassing, Germany
tel. [phone]
www.faac.de
FAAC TUBULAR MOTORS
tel. [phone]
[e-mail]
www.faac.de

INDIA

FAAC INDIA PVT. LTD
Noida – Delhi, India
tel. [phone]/4199
www.faacindia.com

NORDIC REGIONS

FAAC NORDIC AB
Perstorp, Sweden
tel. [phone]
www.faac.se

SPAIN

F.A.A.C. SA
San Sebastián de los Reyes.
Madrid, Spain
tel. [phone]
www.faac.es

U.S.A.

FAAC INTERNATIONAL INC
Jacksonville, FL - U.S.A.
tel. [phone]
www.faacusa.com
FAAC INTERNATIONAL INC
Fullerton, California - U.S.A.
tel. [phone]
www.faacusa.com

FIRENZE

tel. [phone]
[e-mail]

BENELUX

FAAC BENELUX NV/SA
Brugge, Belgium
tel. [phone]
www.faacbenelux.com
FAAC TUBULAR MOTORS
Schaapweg 30
NL-6063 BA Vlodrop, Netherlands
tel. [phone]
[e-mail]
www.faacbenelux.com

SWITZERLAND

FAAC AG
Altdorf, Switzerland
tel. [phone]
www.faac.ch

POLAND

FAAC POLSKA SP.ZO.O
Warszawa, Poland
tel. [phone]
www.faac.pl

RUSSIA

FAAC RUSSIA LLC
Moscow, Russia
tel. [phone]
www.faac.ru

MIDDLE EAST

FAAC MIDDLE EAST BRANCH
Dubai Silicon Oasis free zone
tel. [phone]
www.faac.ae

TURKEY

FAAC OTOMATİK GEÇİS SİSTEMLERİ
SAN. VE TİC. LTD. ŞTİ.
Çağlayan, Kağıthane, İstanbul (Turkey)

tel.+90 (0)212 – 3431311

732708 - Rev. F
