FAAC 844 User Manual

Page 1

844

Slide Gate Operator

UL325 - UL991

FAAC International Inc. Headquarter & East Coast Operations 3160 Murrell Rd Rockledge, FL 32955 Tel. 800 221 8278 www.faacusa.com

FAAC International Inc.

West Coast Operations

357 South Acacia Avenue

Fullerton, CA 92831

Page 2

TABLE OF CONTENTS

IMPORTANT SAFETY INFORMATION 3

Important Safety Instructions 3

Important Installation Instructions 3

General Safety Precautions 4

UL325 Gate Operator Classifications 5

Installing the Warning Signs 5

1. DESCRIPTION & SPECIFICATIONS 6

1.1. Maximum Use Curve 6

1.2 Technical Specifications 6

2. DIMENSIONS 7

3. ELECTRIC LAYOUT 7

4. INSTALLATION 7

4.1. Preliminary Checks 7

4.2. Foundation Plate Installation 7

4.3. Mechanical Installation 8

4.4. Installing The Rack 8

4.5. Installation Of Chain Pinions 9

5. CONTROL BOARD 780D 10

5.1. Warnings 10

5.2. 780D Technical Specifications 10

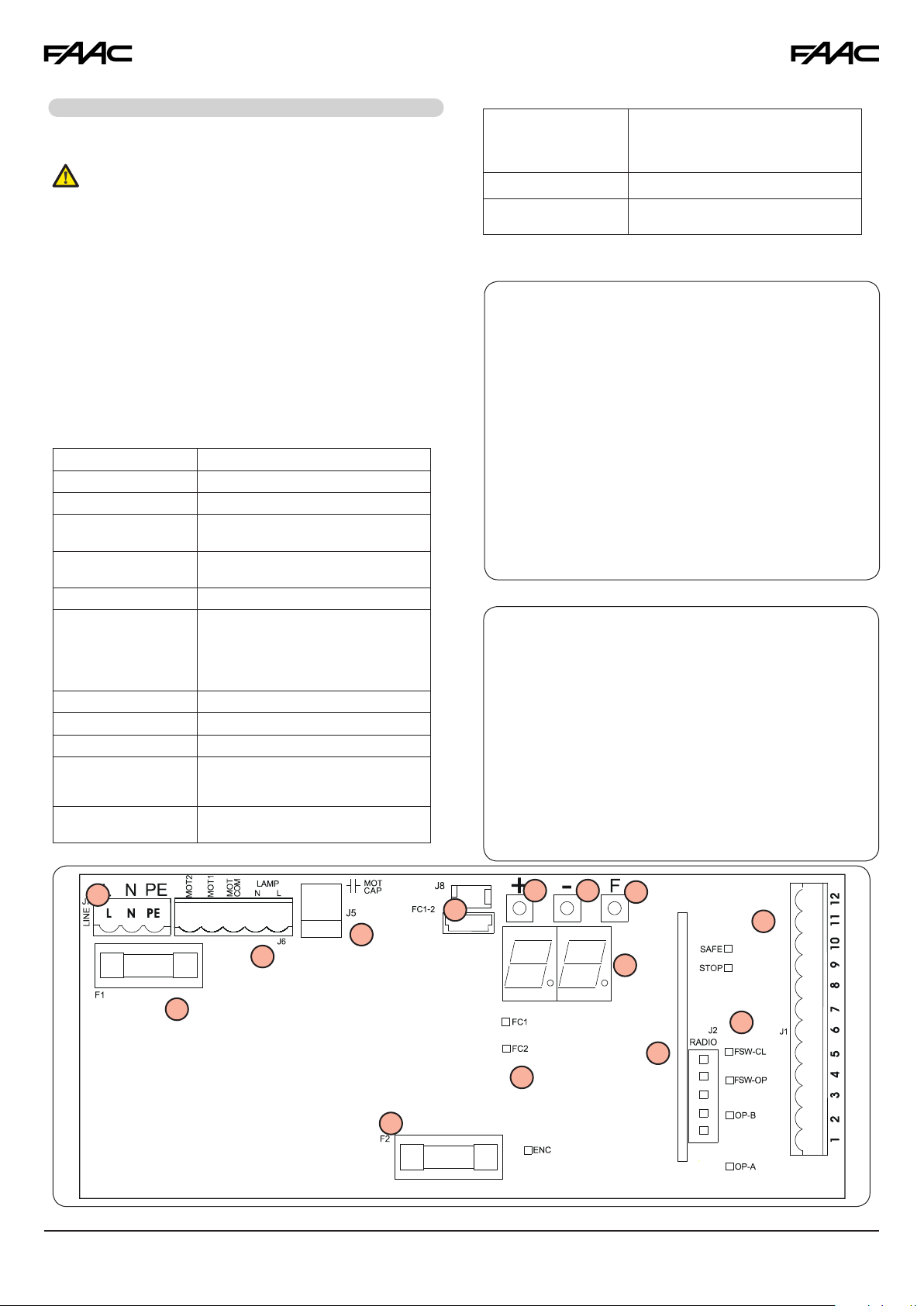

5.3. Layout And Components 10

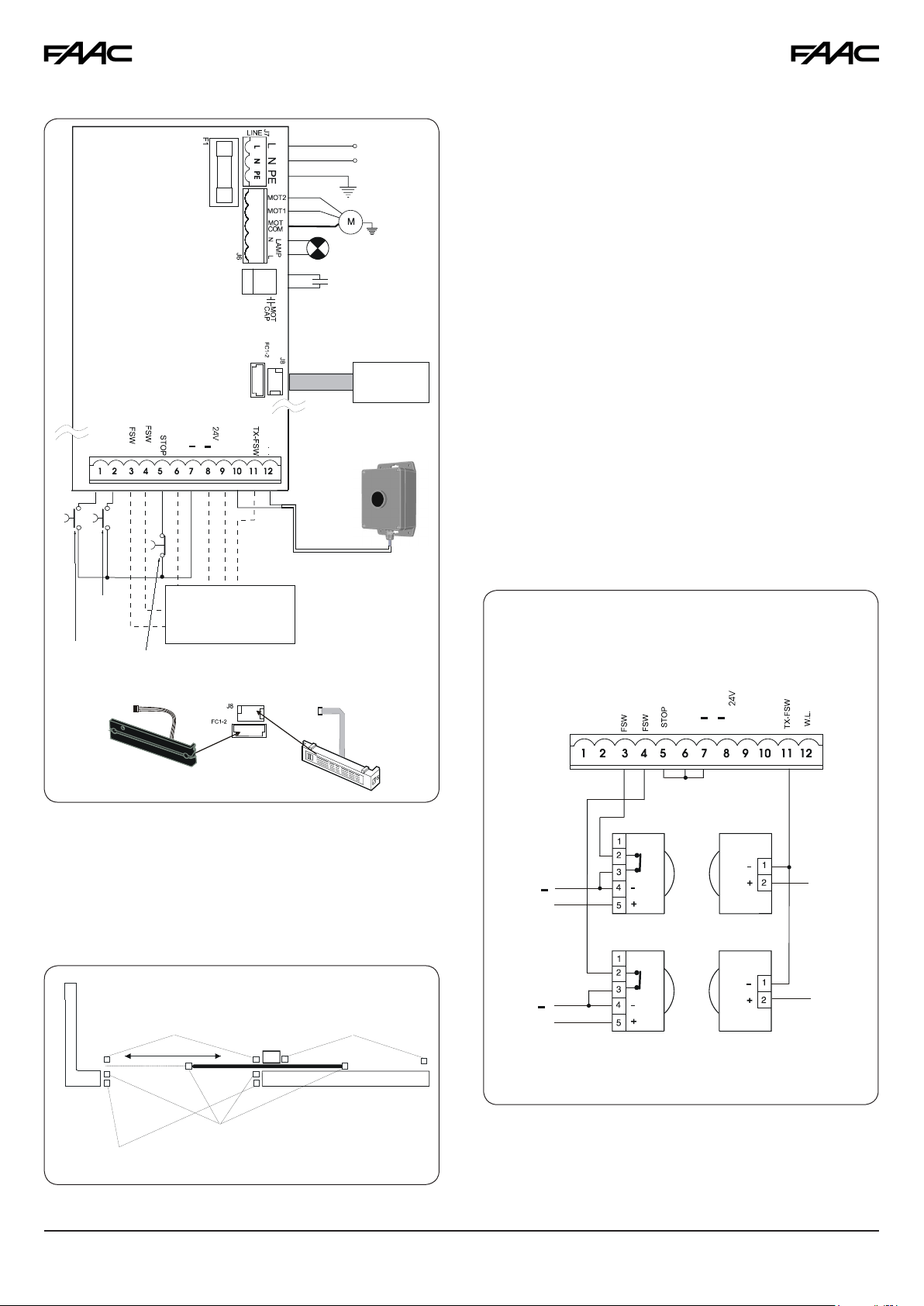

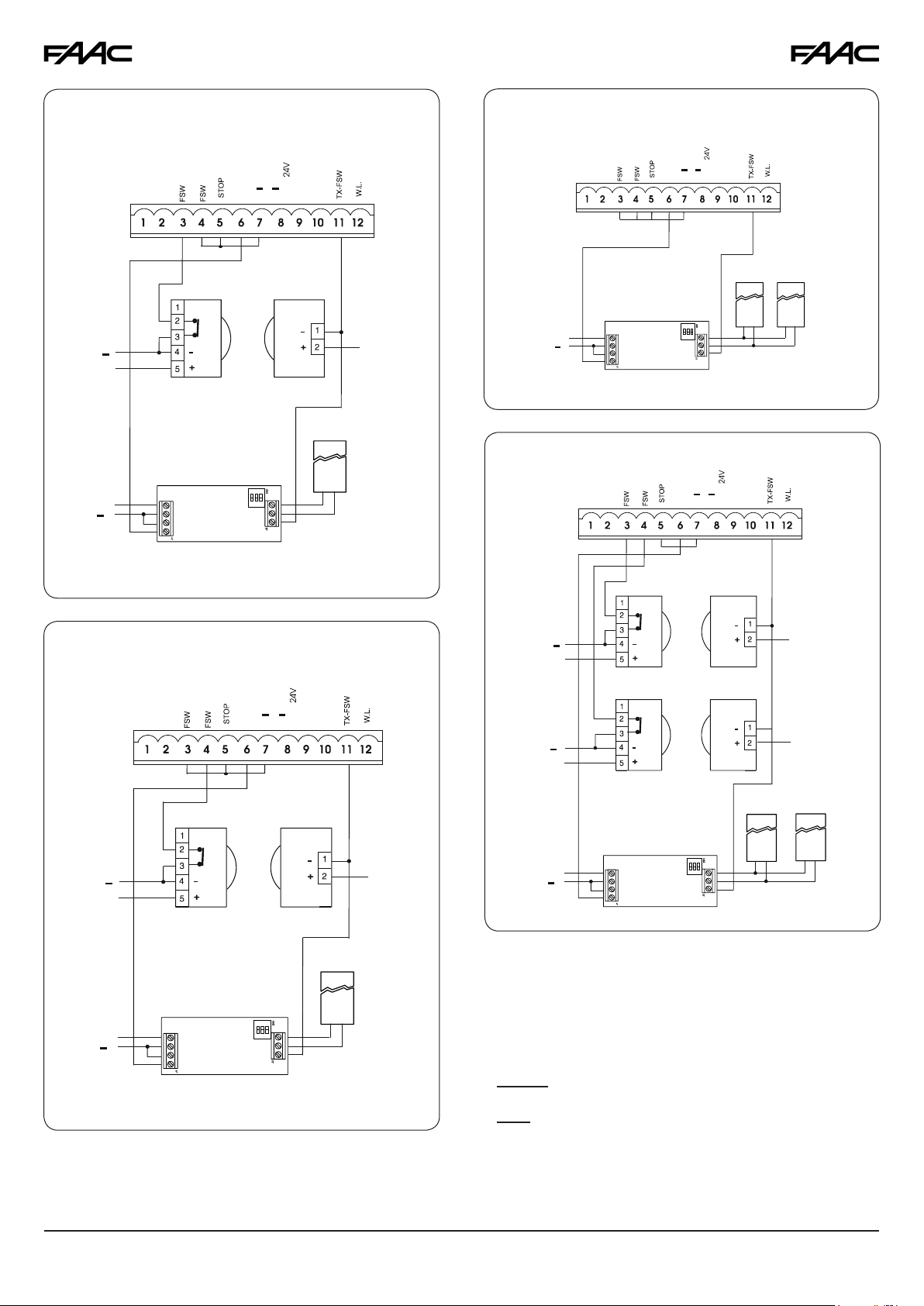

5.4. Electric Connections 11

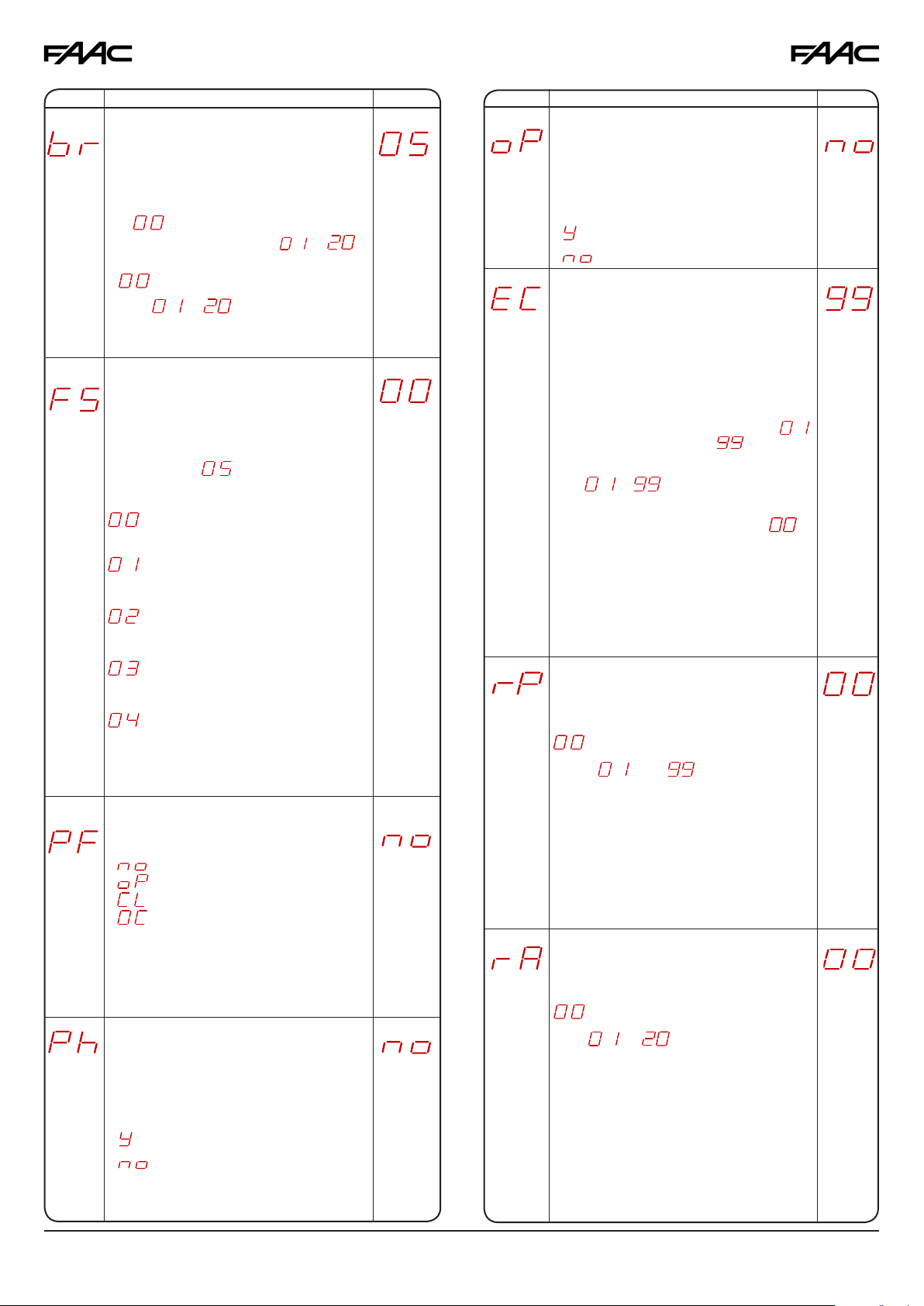

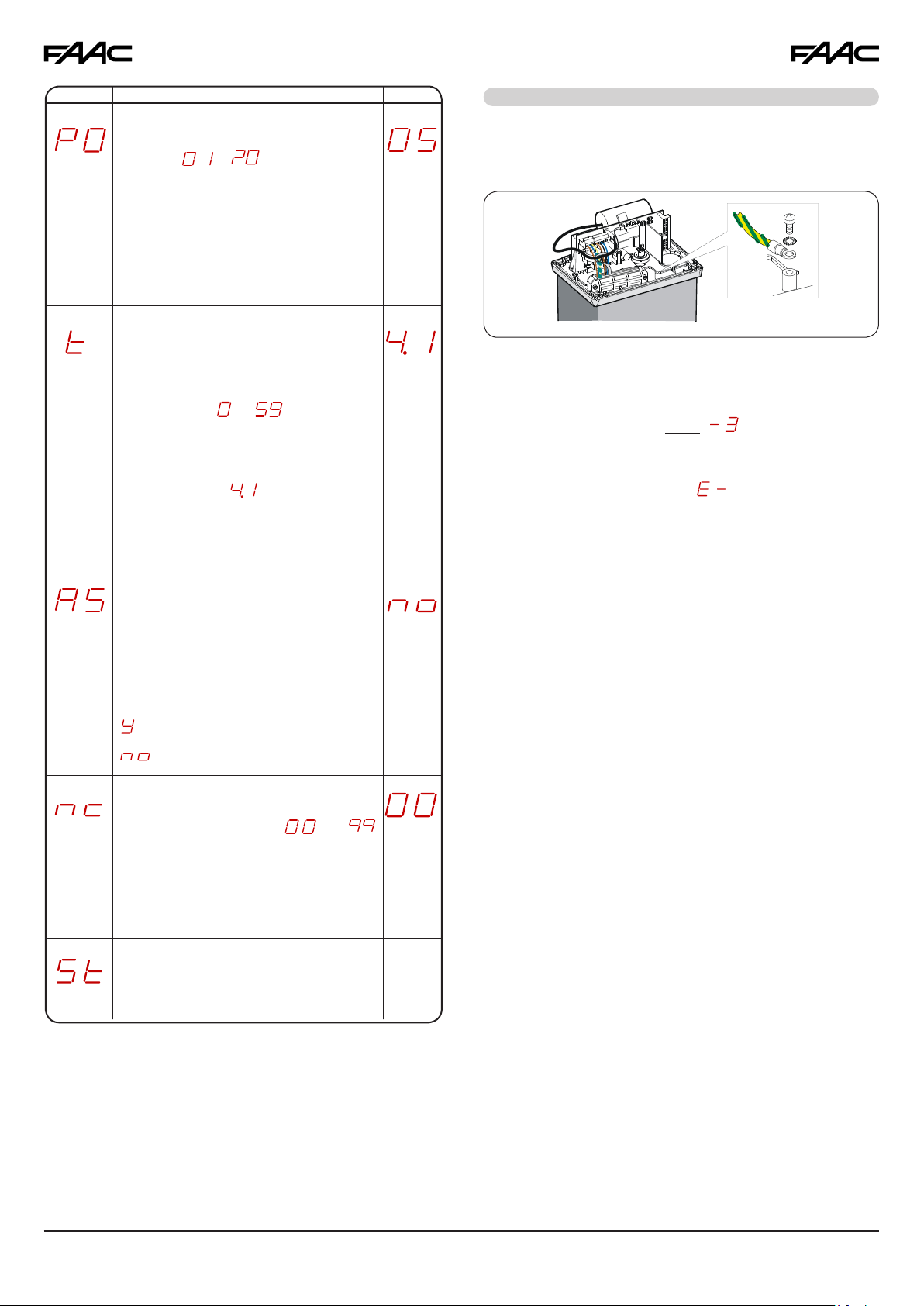

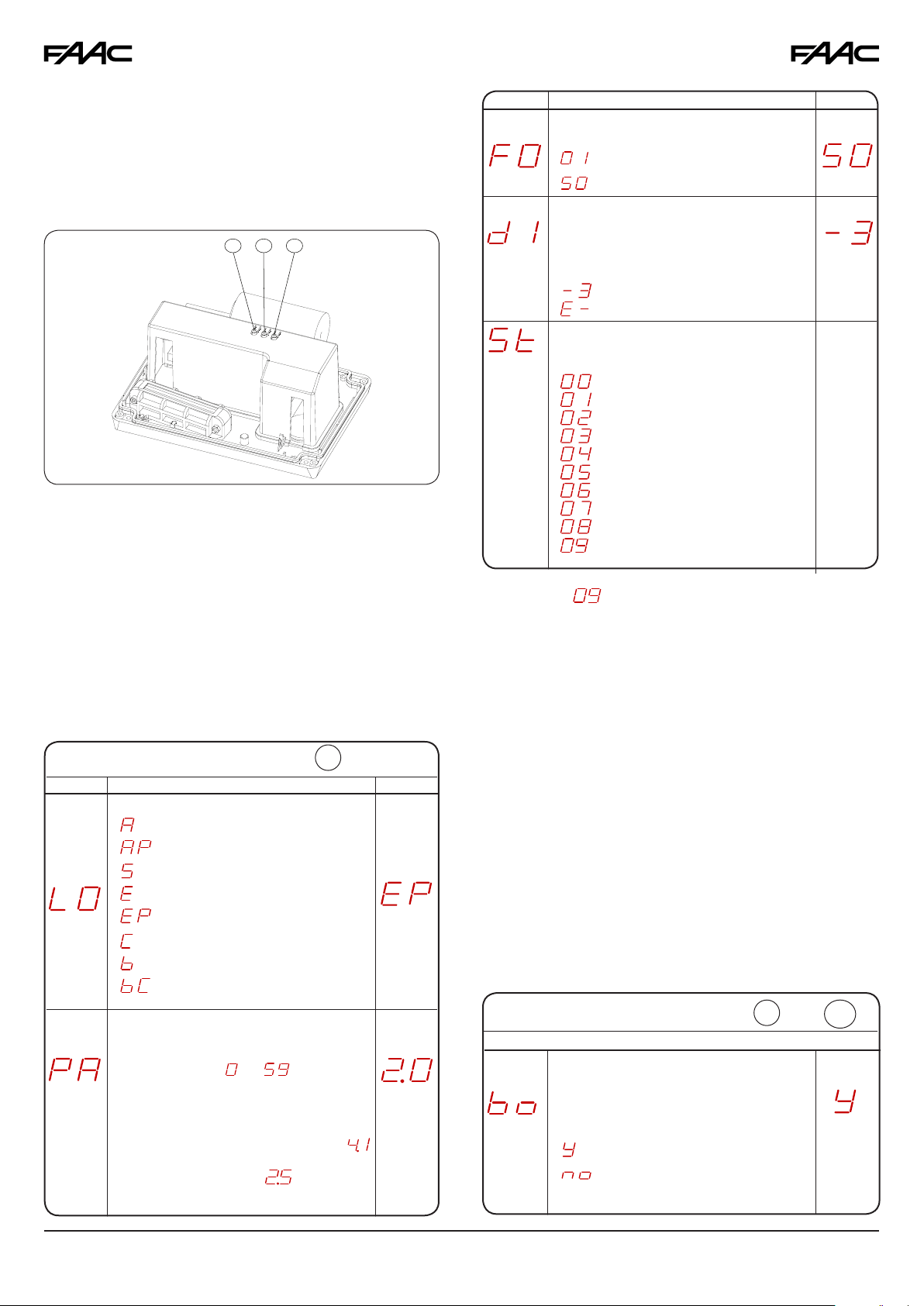

5.5. Programming 13

6. START-UP 16

6.1. Electric Connections 16

6.2. Opening - Closing Directions 16

6.3. Determining Stop Points At Travel Limit 16

6.4. Inputs Check 17

6.5. Mechanical Clutch Adjustment 17

6.6. Travel Limits Check 17

6.7. Safety Devices Check 17

7. FINAL OPERATIONS 18

8. MANUAL OPERATION 18

9. RESTORING NORMAL OPERATION 18

10. MAINTENANCE 19

10.1. Removing Board And Transformer 19

10.2. Oil Top-Offs 19

10.3. Repairs 19

11. LOGICS TABLES 20

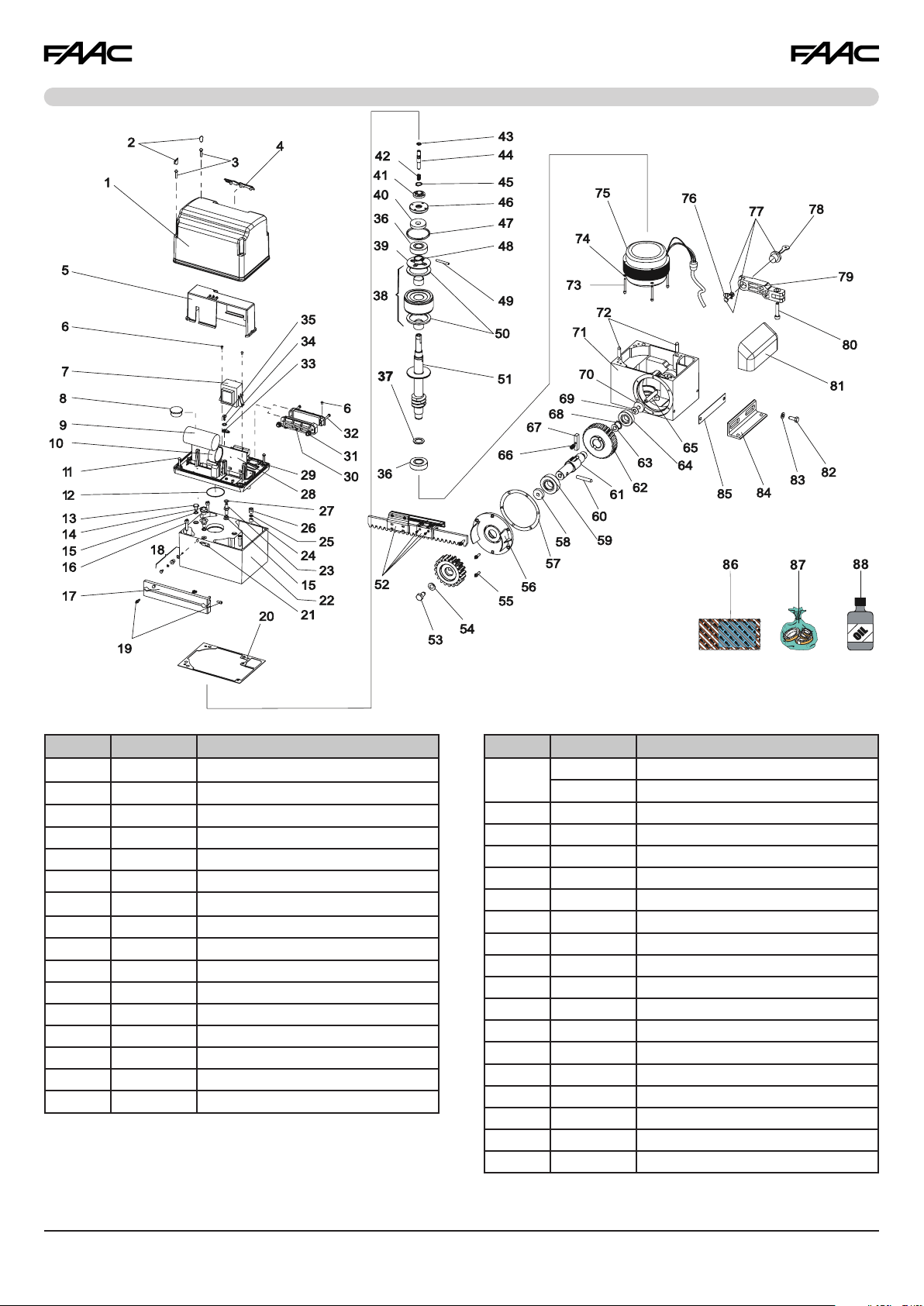

12. SPARES PARTS DIAGRAM 22

13. TROUBLESHOOTING 24

844ER_732242_RevB_US - Jan 2017

Page 3

IMPORTANT SAFETY INFORMATION

Important Safety Instructions

WARNING: TO REDUCE THE RISK OF SEVERE INJURY OR DEATH:

• READ AND FOLLOW ALL INSTRUCTIONS.

• Never let children operate or play with the gate controls. Keep remote controls away from children.

• Always keep people and objects away from the gate. NO ONE SHOULD CROSS THE PATH OF A MOVING GATE.

• Test the gate operator monthly. The gate MUST reverse on contact with a rigid object or when an object activates a non-contact sensor. If necessary, adjust the force or the limit of travel and then retest the gate operator. Failure to properly adjust and retest the gate operator can increase the risk of injury or death.

• Use the manual release mechanism only when the gate is not moving.

• KEEP GATE PROPERLY MAINTAINED. Have a qualified service person make repairs to gate hardware.

• The entrance is for vehicles only. Pedestrians must use a separate entrance.

• SAVE THESE INSTRUCTIONS.

Important Installation Instructions

1. Install the gate operator only when the following conditions have been met:

• The operator is appropriate for the type and usage class of the gate.

• All openings of a horizontal slide gate have been guarded or screened from the bottom of the gate to a minimum of 6 feet (1.83 m) above the ground to prevent a 2-1/4 inch (57.2 mm) diameter sphere from passing through openings anywhere in the gate or through that portion of the adjacent fence that the gate covers when in the open position.

• All exposed pinch points are eliminated or guarded.

• Guarding is supplied for exposed rollers.

2. The operator is intended for installation on gates used by vehicles only. Pedestrians must be provided with a separate access opening.

3. To reduce the risk of entrapment when opening and closing, the gate must be installed in a location that allows adequate clearance between the gate and adjacent structures. Swinging gates shall not open outward into public access areas.

4. Before installing the gate operator, ensure that the gate has been properly installed and that it swings freely in both directions. Do not over-tighten the operator clutch or pressure relief valve to compensate for a damaged gate.

5. Controls intended for user activation must be located at least six feet (6’) away from any moving part of the gate and where the user is prevented from reaching over, under, around or through the gate to operate the controls.Exception: Emergency access controls only accessible by authorized personnel (e.g. fire, police, EMS) may be placed at any location in the line-of-sight of the gate.

6. The Stop and/or Reset buttons must be located within line-of-sight of the gate. Activation of the reset control shall not cause the operator to start.

7. All warning signs and placards must be installed and easily seen within visible proximity of the gate. A minimum of one warning sign shall be installed on each side of the gate.

8. For gate operators that utilize a non-contact sensor (photo beam or the like):

• See instructions on the placement of non-contact sensors for each type of application.

• Exercise care to reduce the risk of nuisance tripping, such as when a vehicle trips the sensor while the gate is still moving.

• Locate one or more non-contact sensors where the risk of entrapment or obstruction exists, such as at the reachable perimeter of a moving gate or barrier.

• Use only FAAC “Photobeam” photoelectric eyes to comply with UL325.

9. For gate operators that utilize a contact sensor (edge

Page 4

Important Installation Instructions (continued)

sensor or similar):

• Locate one or more contact sensors where the risk of entrapment or obstruction exists, such as at the leading edge, trailing edge, and post mounted both inside and outside of a vehicular horizontal slide gate

• Locate one or more contact sensors at the bottom edge of a vehicular vertical lift gate.

• Locate one or more contact sensors at the bottom edge of a vertical barrier (arm).

• Locate one or more contact sensors at the pinch point of a vehicular vertical pivot gate.

• Locate hard-wired contact sensors and wiring so that communication between sensor and gate operator is not subjected to mechanical damage.

• Locate wireless contact sensors, such as those that transmit radio frequency (RF) signals, where the transmission of signals are not obstructed or impeded by building structures, natural landscaping or similar hindrances. Wireless contact sensors shall function under their intended end-use conditions.

• Use only FAAC XS 55, CN 60 E edge sensors.

General Safety Precautions

Gate Construction

Vehicular gates should be constructed and installed in accordance with ASTM F2200: Standard Specification for Automated Vehicular Gate Construction.

For more information, contact ASTM at: www.astm.org

Installation

• If you have any questions or concerns regarding the safety of the gate operating system, do not install the operator and consult the manufacturer.

• The condition of the gate structure itself directly affects the reliability and safety of the gate operator.

• Only qualified personnel should install this equipment. Failure to meet this requirement could cause severe injury and/or death, for which the manufacturer cannot be held responsible.

• The installer must provide a main power switch that meets all applicable safety regulations.

• It is extremely unsafe to compensate for a damaged gate by increasing hydraulic pressure.

• Install devices such as reversing edges and photo beams to provide better protection for personal property and pedestrians. Install reversing devices that are appropriate to the gate design and application.

• Before applying electrical power, ensure that voltage requirements of the equipment correspond to the supply voltage. Refer to the label on your gate operator system.

Usage

• Use this equipment only in the capacity for which it was designed. Any use other than that stated should be considered improper and therefore dangerous.

• The manufacturer cannot be held responsible for damage caused by improper, erroneous or unreasonable use.

• If a gate system component malfunctions, disconnect the main power before attempting to repair it.

• Do not impede the movement of the gate, you may injure yourself or damage the gate system as a result.

• This equipment may reach high thermal temperatures during normal operation, therefore use caution when touching the external housing of the gate operator.

• Use the manual release mechanism according to the procedures presented in this manual.

• Before performing any cleaning or maintenance operations, disconnect power to the equipment.

• All cleaning, maintenance or repair work must be performed by qualified personnel.

Page 5

UL325 Gate Operator Classifications

RESIDENTIAL VEHICULAR GATE OPERATOR CLASS I

A vehicular gate operator system intended for use in a single family dwelling, garage or associated parking area.

COMMERCIAL / GENERAL ACCESS VEHICULAR GATE OPERATOR CLASS II

A vehicular gate operator system intended for use in commercial locations or buildings such as multi-family housing units (five or more single family units), hotels, parking garages, retail stores or other buildings that service the general public.

INDUSTRIAL / LIMITED ACCESS VEHICULAR GATE OPERATOR CLASS III

A vehicular gate operator system intended for use in industrial locations or buildings such as factories, loading docks or other locations not intended to service the general public.

RESTRICTED ACCESS VEHICULAR GATE OPERATOR CLASS IV

A vehicular gate operator system intended for use in guarded industrial locations or buildings such as airport security areas or other restricted access locations that do not service the general public, and in which unauthorized access is prevented via supervision by security personnel.

Installing the Warning Signs

This FAAC slide gate operator is supplied with two warning signs to alert people that a possible hazard exists and that appropriate actions should be taken to avoid the hazard or to reduce exposure to it.

Permanently install one warning sign on each side of the gate so they are fully visible to traffic and pedestrians.

Use appropriate hardware such as metal screws (not supplied) to permanently install each warning sign.

Page 6

844 OPERATOR

1. DESCRIPTION AND SPECIFICATION

The FAAC Model 844 is an electro-mechanical operator for sliding gates transmitting motion to the sliding leaf via a rack or chain pinion appropriately coupled to the gate.

The non-reversing system ensures the gate is mechanically locked when the motor is not operating and, therefore, no lock needs to be installed.

The gearmotor is equipped with a mechanical clutch which, combined with an electronic device, offers the necessary adjustable anti-crushing safety and guarantees stopping or reversing the gate movement. A handy manual release makes it possible to move the gate in the event of a power cut or malfunction. The control board, if supplied with the gearmotor, it is placed inside the operator.

The 844 automated system is designed and manufactured to control access of vehicles. Do not use for any other purpose.

Fig. 1

where: Ta = opening time Tc = closing time Tp = pause time Ti = time of interval between two complete cycles

Use Frequency Graph

% Freq. Used % Duty Cycle

100

1. Mounting Brackets

2. Pinion

3. Limit Sensor Switch

4. Operator Cover

5. 780 D Control Board

6. Adjustment Screw for Anti-crushing Clutch

7. Oil Filling Plug

8. Operator Grounding

9. Lever Operated Release System

10. Protective Side Panels

11. Cover for 780D Control Board

1.1. Maximum Use Curve

The curve makes it possible to establish maximum work time (T) according to use frequency (F). The 844 gearmotor can operate non-stop at 70% use frequency.

To ensure efficient operation, operate in the work range below the curve.

Important: The curve is obtained at a temperature of 75°F. Exposure to direct sunlight can reduce use frequency down to 20%.

Calculating Use Frequency

The percentage of effective work time (opening + closing) compared to total time of cycle (opening + closing + pause times).

Calculation formula:

Ta + Tc

%F = X 100

Ta + Tc + Tp + Ti

12 3456789101112

Time (h)

1.2 Technical Specifications

Type of Pinion

Power Supply

Absorbed Power

Reduction Ratio

Max. Thrust Max. Torque Winding Thermal Protection Use Frequency 70% (see graph) Oil Quantity Type of Oil Ambient Operating Temperature Weight Protection Class Gate Max. Weight Gate Speed Gate Max. Length Clutch twin-disk in oil bath Protective Treatment cataphoresis Control Board Limit-Switch magnetic or inductive Overall Dimensions L x H x D

Electric Motor Technical Specifications Rotation Speed Power Current Starting Capacitor Power Supply

Z16 Z20

115 Vac (+

10% -6%)

650 W

1 : 30

247 lbf 198 lbf

26 lbf.ft

248

°F

1.9 qt

FAAC HP

-4 to +131

°F 32 lb IP 44

3950 lb 2200 lb

38 ft/min

131 ft

47 ft/min

164 ft

780D

See Fig. 2

1700 r.p.m

650 W

7 A

µF

115 Vac (+

10% -6%)

Page 7

¾0

2. DIMENSIONS

8 ¾

10 ¾

Fig. 2

- Measurements in Inches

3. ELECTRICAL LAYOUT

VAC ~ 15 AWG

20 AWG

 Operator 844  Photocells  Key-operated push-button  Flashing lamp

 Radio receiver

15 ¼

7 ½

20 AWG

15 AWG

20 AWG

Fig. 3

2.5 in



- Measurements in Inches

Fig. 6

Fig. 4

Fig. 5

to 2

4. INSTALLATION

4.1. Preliminary Checks

To ensure safety and an efficiently operating automated system, make sure the following conditions are observed:

• The gate structure must be suitable for automation. For example, wheel diameter must be in proportion to the weight of the gate to be automated, an upper guide must be provided, mechanical stop limits to prevent the gate derailing must be installed.

• The soil must permit sufficient stability for the concrete pad.

• There must be no pipes or electric cables in the pad excavation area.

• If the operator is exposed to passing vehicles, install, if possible, adequate means of protection against accidental impact.

• Check if an efficient grounding is available for connection to the gearmotor.

4.2. Foundation Plate Installation

1. Assemble the foundation plate as shown in Fig 4. The foundation plate must be located as shown in Fig 5 (right closing) or Fig 6 (left closing) to ensure that the rack and pinion mesh correctly.

0 to 2

- Measurements in Inches



2. Prepare a concrete pad as shown in Fig.7, following the suggested dimensions. It’s recommended to have the pad a minimum of 4” above level grade to avoid any flooding of the operator. The underground depth of the concrete pad is determined by the soil condition and the local building codes. Make sure the concrete pad is leveled.

3. Provide one or more conduit pathways for all power and accessory connections. Extend the conduit about of 1/2” above the level of the concrete pad.

4. After the concrete is poured in the forms and before it has a chance to set, insert the foundation plate into the cement and position it flush with the top of the concrete and aligned with the top of the lower gate frame. Use the dimensions shown in Figs 5 or 6 to align your foundation plate. Allow the concrete to set for a minimum of two days before installing the operator.

5. Route the wires in the conduits. To facilitate the connections allow for about 15” of extra length of cables out of the conduit. Separate the high and low voltage wires in different conduits.

Page 8

- Measurements in Inches

4 ⅜ (Z16)

- Measurements in Inches

Fig. 7

11.5

Fig. 11

1.75

6.25

2⅜

1.75

- Measurements in Inches

0.25

12.25

4.3. MECHANICAL INSTALLATION

1. Assemble the mounting brackets and anti-vibration spacers on the operator as shown in Fig. 8.

2. Open the cover, remove the securing screws.

3. Attach the operator to the plate, using the supplied washers and nuts as shown in Fig. 9. During this operation, route cables through the opening inside the lower half-casing of the operator (Fig.10 - Ref. A).

Fig. 8

Fig. 9

Fig. 10BFig. 10A

4 ¾ (Z20)

2 ½

⅝ to 1 ¼

4. Adjust the height and distance from the gate as shown in Fig 11.

5. Secure the operator to the foundation plate, tighten nuts as shown in Fig. 12.

Fig. 12

4.4. INSTALLING THE RACK

4.4.1. STEEL RACK TO WELD (Fig. 13)

1. Place the three threaded dowel nuts on the rack element, positioning them at the top of the slot. In this way, the slot play will allow any adjustments to be made.

2. Manually move the leaf to its closed position.

3. Lay the first piece of rack level on the pinion and weld the threaded dowel nut to the gate as shown in Fig. 15.

4. Move the gate manually, checking that the rack is resting on the pinion, then weld the second and third dowel nut.

5. Place another rack element next to the previous one, use a third piece of rack (as shown in Fig. 16) to synchronize the teeth of the first two elements.

6. Move the gate manually and weld the three threaded dowel nuts. Proceed as described until the gate is fully covered.

4.4.2. STEEL RACK TO SCREW (Fig. 14)

Fig. 13

To access the electronic board, route the cables through the appropriate hole, using the supplied rubber cable-clamp. Make sure to strip the jacket on all cables so that the clamp holds single cables only (Fig.10 - Ref. B).

15 ¾

1. Manually move the leaf to its closing position.

2. Lay the first piece of rack level on the pinion and place the spacer between the rack and the gate, positioning it at the top of the slot.

3. Mark the drilling point on the gate. Drill a Ø ¼ inch hole and apply thread with a Ø 5/16 inch male tap. Screw in the bolt.

4. Move the gate manually, checking that the rack is resting on the pinion. Repeat step 3.

Fig. 14

Page 9

⅛ to ½

- Measurements in Inches

6. Place another rack element next to the previous one, use a third piece of rack (as shown in Fig. 16) to synchronize the teeth of the first two elements.

7. Move the gate manually and secure the first element. Proceed as previously described until the gate is fully covered.

Fig. 15

4.5.2. MODEL 844 ER RF (Figs. 20 & 21)

3. Insert the pin g on the shaft, using a hammer.

4. Fit the idle transmissions bracket on the operator flange, using the four screws a (M5 x 12) and the appropriate washers b, in the kit as shown in Fig. 20.

5. Fit the chain pinion on the shaft, making the channel coincide with the pin and tighten the screw d and the appropriate washers e and f.

6. Pass the chain as shown in Fig. 21A and install the cover with screw a and washer c as in Fig. 20.

Fig. 20

Fig. 16

Notes on Rack Installation

• Make sure that, during gate travel, no rack elements derail from the pinion.

• Do not, for any reason, weld the rack elements either to the spacers or to each other.

• When the rack has been installed, to ensure that it meshes correctly with the pinion, lower the gearmotor position by

about 1/16 inch (Fig. 17).

• Manually check that the gate regularly reaches the mechanical stop li-

inch

mits and make sure there is no friction during gate travel.

• Do not use grease or other lubricants between rack

Fig. 17

and pinion.

4.5. INSTALLATION OF CHAIN PINIONS

The operators for chain and idle transmissions require the installation of a Z16 or Z20 chain pinion.

4.5.1. MODEL 844 ER CAT (Figs. 18 & 19)

1. Insert the pin on the shaft, using a hammer.

2. Fit the chain pinion on the shaft, making the channel coincide with the pin. Tighten the screw and the appropriate washers.

Fig. 18

Fig. 19

Fig. 21A

4.5.3. LIMIT SWITCHES

In case of operators with magnetic limit switches, you have to provide a bracket to mount them on the gate, following the proper distances shown in Fig. 21B.

Fig. 21B

0 to ⅜

Page 10

5. CONTROL BOARD 780D

5.1. WARNINGS

Important: Before attempting any work on the control board (connections, maintenance), always turn off power.

• Check local wiring codes in all cases and follow all local building codes. Wiring and hookup should be performed by qualified electricians/installers only.

• AC power should be supplied from a circuit breaker panel and must have its own dedicated circuit breaker. This supply must include a green ground conductor.

• Properly ground the gate operator to minimize or prevent damage from power surges and/or lightning. Use a grounding rod if necessary. Connect the ground cable to the PE terminal on J7 (Fig. 22), and to the ground lug on the operator (Fig. 40). A surge suppressor is recommended for additional protection.

• Always separate power cables from control and safety cables (push-button, receiver, photocells, etc.).

5.2. 780D TECHNICAL SPECIFICATIONS

Power Supply

Input Power 10 W

Motor Max. Load 1000 W

Accessories Max. Load (A)

Operating Ambient Temperature

Protection Fuses 2 (see Fig. 22 and Section 5.3)

Function Logics Automatic / “Stepped” automatic /

Work Time Programmable (from 0 to 4.1 min.)

Pause Time Programmable (from 0 to 4.1 min.)

Thrust Force Adjustable over 50 levels

Terminal Board Inputs Open - Partial Open - Opening safety

On-Connector Inputs Opening and closing limit-switch -

115 Vac (+

0.5 A

-4°F to +131°F

Semi-automatic / Safety devices / Semi-automatic B / Dead-man C / “Stepped” semi-automatic / Mixed B/C logic

devices - Closing safety devices - Stop

- Edge - Power supply+ground

Motor capacitor

10% -6%)

780D Technical Specifications (continued)

Terminal Board Outputs

Rapid Connector 5-pin card connection for RP receivers

Programming 3 keys (+, -, F) and display, "basic" or

Flashing lamp - Motor - 24 VDC accessories power supply- 24 VDC indicatorlight / Timed output / Electric lock command - 'traffic lights' - Failsafe

"advanced" mode

5.3. LAYOUT AND COMPONENTS

DL SIGNALLING AND PROGRAMMING DISPLAY

Led INPUTS STATUS CONTROL LED

J1 LOW VOLTAGE TERMINAL BLOCK

J2 CONNECTOR FOR RP RECEIVER

J5 CONNECTOR FOR MOTOR STARTING CAPACITOR

J6 MOTOR AND FLASHING LAMP CONNECTION TERMINAL BLOCK

J7 VAC POWER SUPPLY TERMINAL BLOCK

J8 DOUBLE CONNECTOR - RAPID CONNECTION TO LIMIT-SWITCH

F1 MOTOR AND TRANSFORMER PRIMARY WINDING FUSE (F 5A - 230V;

F 10A - 115V)

F2 LOW VOLTAGE AND ACCESSORIES FUSE (T 800mA)

F "F" PROGRAMMING PUSH-BUTTON

– "–" PROGRAMMING PUSH-BUTTON

+ "+" PROGRAMMING PUSH-BUTTON

J1 CONNECTOR

1 OPEN A (total opening)

2 OPEN B (partial opening)

3 FSW-OP (opening safety devices)

4 FSW-CL (closing safety devices)

5 STOP

6 SAFE (“edge” safety devices)

7 - (negative for power supply to accessories)

8 - (negative for power supply to accessories)

9 +24V (supply to accessories)

10 +24V (supply to accessories)

11 FSW-TX (negative for emitting photocells - FAILSAFE)

12 AA (negative for Audio Alarm)

Fig. 22

Led

–

Led

Page 11

5.4. ELECTRIC CONNECTIONS

J 5

P E

N B

N A

PARTIAL OPEN

TOTAL OPEN

O P

S A F

For connection of the photocells and safety devices, see Section

5.4.1.

STOP

A A

BLUE

AUDIO ALARM

~ VAC

VAC (Max. 60W)

Capacitor

LIMIT-SWITCH

Opening Safety Devices: Active only during gate opening movement. When an

obstacle is detected they cause immediate reversing and resumption of the opening motion on release (see advanced programming in Section 5.5.2.)

Closing Safety Devices: Active only during gate closing movement. When an

obstacle is detected they cause reversing, either immediate or on release (see advanced programming in Section 5.5.2.)

Edge Safety Devices: Active during the gate opening and closing move-

ments. They cause immediate reversal of motion and

stopping after two seconds. Encoder: Monitors for an obstacle during gate opening and

closing movements. It causes immediate reversal of

motion and stopping after two seconds.

Note: For compliance with the UL325 Ed. 6 all safety devices that protect entrapment zones must be monitored. The 844 operator monitors the safety devices with the FAIL SAFE function.

See advance programming in Section 5.5.2 tor details on the different options for Fail Safe. A minimum of one external de-

vice on opening and one external device on closing must be connected and monitored. See the following figures for various

examples of connections.

Connection of a pair of monitored opening photocellsa pair of

monitored closing photocells

Fig. 23

5.4.1. Connection of Photocells and Safety Devices

For compliance with UL325 all the entrapment zones generated by the moving gate must be protected by safety devices. See Fig. 24 for a typycale example of how safety devices can be installed to protect entrapment zones.

Closing

photocells

"Edge" safety devices

Closing photocells

Opening photocells

Fig. 24

PE O

RX OPEN TX OPEN

RX CLOSE

FE SA

TX CLOSE

Fig. 25

Page 12

Connection of a pair of monitored opening photocells and a

XS 55

CN 60 E

1 4

OPEN EDGE

XS 55

CLOSE EDGE

monitored closing edge

PE O

RX OPEN TX OPEN

FE SA

CLOSE EDGE

XS 55

CN 60 E

1 4

Connection of a monitored sensing edge in closing and opening

Fig. 28

Connection of a pair of monitored opening photocells, monito-

red closing photocells and a monitored closing edge

PE O

FE SA

Connection of a pair of monitored closing photocells and a

monitored opening edge

PE O

RX CLOSE TX CLOSE

FE SA

OPEN EDGE

XS 55

1 4

CN 60 E

Fig. 26

Fig. 27

RX OPEN TX OPEN

RX CLOSE

TX CLOSE

XS 55

CLOSE EDGE

XS 55

Fig. 29

OPEN EDGE

CN 60 E

1 4

5.4.2. J7 Terminal Block - Power Supply (Fig. 23)

POWER SUPPLY (Terminals PE-N-L): PE : Ground connection N : AC Power ( Neutral ) L : AC Power ( Line )

5.4.3. J6 Terminal Block - Motors / Flashing Lamp (Fig. 23)

MOTOR - (Terminals MOT-C, MOT-1, MOT-2): Motor con-

nection (see Section 6.5). LAMP - (Terminals LAMP L, LAMP N): Flashing lamp output

same VAC as input; max 60W.

5.4.4. J1 Terminal Block - Accessories (Fig. 23)

Consult the relevant tables for a detailed description of operation in the different logics

Page 13

OPEN A - “Total Opening” Command (Terminal 1): any pulse generator (push-button, detector, etc.) which, by closing a contact, commands total opening and/or closing of the gate leaf.

To install several total opening pulse generators, connect the N.O. contacts in parallel (Fig. 30).

OPEN B - “Partial Opening” or “Closing” Command (Terminal 2): any pulse generator (push-button, detector,

etc.) which, by closing a contact, commands partial opening and/or closing of the gate leaf. In the B, C and B/C logics, it always commands gate closure.

To install several partial opening pulse generators, connect the N.O. contacts in parallel (Fig. 30).

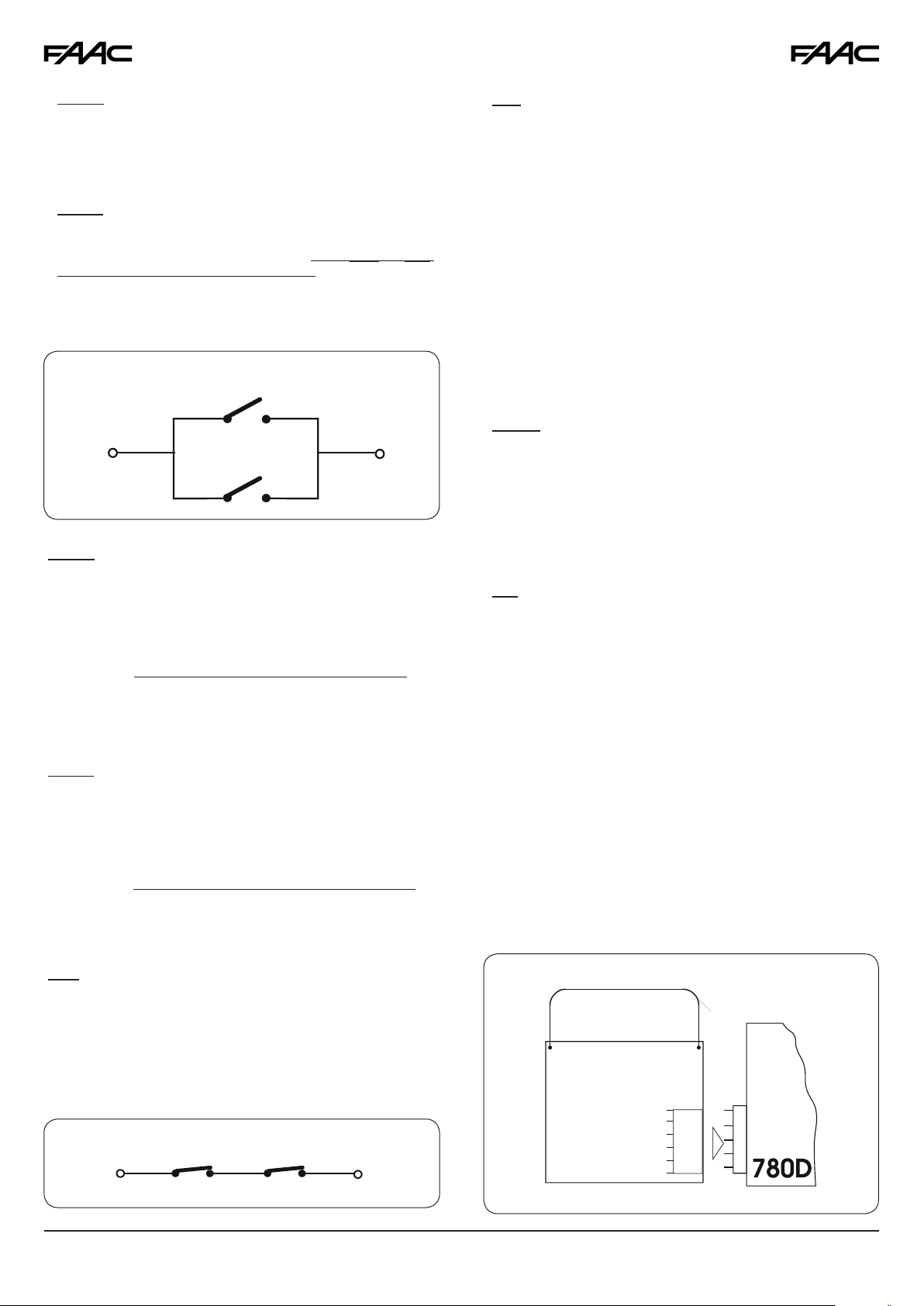

Connection of two N.O. contacts in parallel

(Open A, Open B)

Fig. 30

FSW OP - Opening Safety Devices Contact (Terminal 3):

The purpose of the opening safety devices is to protect the leaf movement area during opening. During opening, in the A-AP-S-E-EP logics the safety devices reverse the movement of the gate, or stop and restart the movement when it is released (see advanced programming in Section 5.5.2). During the opening cycle in logics B, C and B/C, they interrupt movement. They never operate during the closing cycle.

If the Opening Safety Devices are engaged when the gate is closed, they prevent the opening movement.

Note: If no opening safety devices are needed, jumper terminals FSW OP and -.

FSW CL - Closing Safety Devices Contact (Terminal 4):

The purpose of the closing safety devices is to protect the gate movement area during closing. During closing, in the A-AP-S-E-EP logics, the safety devices reverse the movement of the gate, or stop and reverse the movement when it is released (see advanced programming in Section 5.5.2). During the closing cycle in logics B, C and B/C, they interrupt movement. They never operate during the opening cycle.

If the Closing Safety Devices are engaged when the gate is open, they prevent the closing movement.

Note: If no closing safety devices are needed, jumper terminals FSW CL and -.

STOP - STOP Contact (Terminal 5):

Any device (e.g. a push-button) which, by opening a contact, stops gate movement.

To install several STOP devices, connect the N.C. contacts in series (Fig. 31).

Note: If STOP devices are not connected, jumper the STOP and - terminals.

SAFE - EDGE Safety Device Contact (Terminal 6):

The purpose of the edge safety device is to protect the leaf movement area during opening/closing. In all logics, during opening and closing, the safety device reverses gate movement for 2 seconds. If the safety devices operate again during the 2-seconds reversing time, it stops movement (STOP) without any reversing.

If the Edge Safety Device is engaged while the gate is closed or open, it prevents movement.

Note: If edge safety devices are not needed, jumper terminals SAFE and -.

– Negative for power supply to accessories

(Terminals 7 and 8)

+ 24 VDC - Positive for power supply to accessories (Terminals 9 and 10)

Important: Accessories max. load is 500 mA. To calculate the

load, refer to the instructions for the individual accessories.

TX -FSW - Negative for Power Supply to Photocell Transmitters or edge controller (Terminal 11)

Use this terminal to connect the negative transmitters of the photocell power and enable the FAIL SAFE function (see advanced programming in Section 5.5.2) for compliance with UL325 Ed. 6

With this function is enabled, the equipment checks for proper operation of the photocells or edge controller before every opening or closing cycle.

A.A. - Power Supply to Audio Alarm (Terminal 12)

Connect the supplied Audio Alarm as shown in fig. 23. The alarm will sound upon two consecutive obstacle detections by the operator. It will sound continuosly until the activation of the STOP input or a power cycle.

5.4.5. J2 Connector - Rapid Connection to RP

This is used for rapid connection of RP receivers (see Fig.

38). Fit the accessory with the components side toward connector J1. Insert and remove after cutting power.

5.4.6. J5 Connector - Rapid Connection to Capacitor

Quick-fit connector for connecting the motor starting capacitor.

5.4.7. Double Connector J8 - Limit-Switch Quick Fit

Quick-fit connector for connecting the limit-switch. For connecting both the MLS magnetic limit-switch and the inductive limit-switch (Fig. 23 Ref. ) to the operator.

Connection of two Stop N.C. contacts in series

Fig. 31

Fig. 32

Page 14

5.5. PROGRAMMING

To program operation of the automated system, access the "PROGRAMMING" mode with keys F,+ and - on the cover.

Attention: before attempting to power up the system, re-position the board's cover to avoid contact with high voltage parts and to access the push-button keys on the cover (Fig. 33).

Fig. 33

Programming is divided in two parts: BASIC and ADVANCED.

5.5.1. BASIC PROGRAMMING

To access BASIC PROGRAMMING, press key F:

• If you press it (and hold it down), the display shows the name of the first function.

• If you release the key, the display shows the value of the function that can be modified with keys + and -.

• If you press F again (and hold it down), the display shows the name of the next function, etc.

• When you reach the last function, press F to exit the program, and the display resumes showing the gate status.

The following table shows the sequence of functions accessible in BASIC PROGRAMMING:

BASIC PROGRAMMING

Display Function Default

FUNCTION LOGICS (see table of logics):

= Automatic

= "Stepped" automatic

= "Safety" Automatic

= Semi-automatic

= "Stepped" Semi-automatic

= Dead-man

= "B" Semi-automatic

= Mixed Log.(B opening / C closing)

Display Function Default

FORCE:

Adjusts Motor thrust.

= minimum force

= maximum force

OPENING DIRECTION:

Indicates the gate opening movement and makes it possible not to change the motor connections on the terminal board.

= Rightward opening movement = Leftward opening movement

STATUS OF AUTOMATED SYSTEM:

Exit from programming, save data, and return to gate status viewing.

= Closed = Now opening = At "STOP" = Open = Pause = "FAIL SAFE" error = Now closing = Now reversing = Photocells tripped

= Sequential obstacle detection

NOTE: Status will be displayed after two consecutive triggers of the safe input or two consecutive obstacle detections from the inherent entrapment protection device (encoder). In this status the operator will also set off the audio alarm. Normal operation can only be resumed by breaking the stop circuit or resetting power.

5.5.2. ADVANCED PROGRAMMING

To access ADVANCED PROGRAMMING, press key F and, as you hold it down, press key +:

• If you release key + , the display indicates the name of the first function.

• If you release key F too, the display shows the value of the function that can be modified with keys + and -.

• If you press key F (and hold it down), the display shows the name of the next function, and if you release it, the value that can be modified with keys + and - is shown.

• When you reach the last function, press F to exit the program, and the display resumes showing the gate status.

The following table shows the sequence of functions accessible in ADVANCED PROGRAMMING:

PAUSE TIME:

This has effect only if automatic logic was selected.

Adjustable from to sec. in onesecond steps.

Subsequently, display changes to minutes and tens of seconds (separated by a point) and time is adjusted in 10-second steps, up to the maximum value of minutes.

E.g. if the display shows , pause time is 2 min. and 50 sec.

ADVANCED PROGRAMMING

Display Function Default

MAXIMUM TORQUE AT INITIAL THRUST:

The motor operate at maximum torque (ignoring the torque setting) at start of move-

ment. Useful for heavy leaves.

= Active

= Disabled

Page 15

Display Function Default

FINAL BRAKING:

When the gate reaches the opening or closing limit-switch, a braking stroke can be selected to ensure the leaf is stopped immediately. If decelerations are selected, braking starts when they finish.

At value, braking is disabled.

Time can be adjusted from to in

0.01-second steps.

= Braking disabled

from to = Timed braking

FAIL SAFE:

This function allows to select wich safety inputs will be monitored by the controller. it enables a functional test of the photocells or safety edges before any gate movement. If the test fails (device not present or not working are indicated by the value on the display), the gate does not start moving.

FSW-OP, FSW-CL monitored

SAFE not monitored

Display Function Default

OPENING PHOTOCELLS LOGIC:

Select the tripping mode of the opening photocells.

They operate for the opening movement only: they stop the movement and restart it when they are released, or they reverse it immediately.

= Reverse immediately to closing

= Restart movement on release

ENCODER:

The encoder operates as an anti-crushing device. If the gate hits an obstacle during opening or closing, the encoder immediately reverses the gate leaf movement for 2 seconds. If the encoder operates again during the 2-seconds reversing time, the movement stops (STOP) without commanding any reversing.

Adjust the sensitivity of the anti-crushing system, by varying the parameter between (maximum sensitivity) and (minimum sensitivity).

From to = Encoder active and sensitivity adjustment

IMPORTANT: Do not set the sensitivity to

FSW-OP, FSW-CL not monitored

SAFE monitored

FSW-OP, SAFE monitored

FSW-CL not monitored

FSW-CL, SAFE monitored

FSW-OP not monitored

FSW-OP, FSW-CL, SAFE monitored

PRE-FLASHING (5 s):

Activates the flashing lamp for 5 seconds before start of movement.

= Disabled = Only before opening

= Only before closing

= Before every movement

CLOSING PHOTOCELLS LOGIC:

Select the tripping mode of the closing photocells.

They operate for the closing movement only: they stop movement and reverse it when they are released, or they reverse it immediately.

= Reverse on release

= Reverse immediately to opening

Pre-limit switch DECELERATION:

You can select gate deceleration before the opening and closing limit-switches have been tripped.

= Deceleration disabled

From to = Deceleration enabled

Post-limit switch DECELERATION:

You can select gate deceleration after the opening and closing limit-switches have been tripped.

= Deceleration disabled

from to = Deceleration enabled

Page 16

Display Function Default

PARTIAL OPENING:

You can adjust the width of partial leaf opening. from to .

For example, with pinion Z20, partial opening can vary from 2' to 13'.

6. START-UP

6.1. ELECTRIC CONNECTIONS

Make all electrical connections to the board as described in Section 5, including grounding the operator (Fig. 34).

WORK TIME (time-out):

It is advisable to set a value of 5 to 10 seconds over the time taken by the gate to travel from the closing limit-switch to the opening limitswitch and vice versa.

Adjustable from to sec. in one-second steps.

Subsequently, display changes to minutes and tens of seconds (separated by a point) and time is adjusted in 10 second steps, up to a maximum value of minutes.

Attention: the set value will not exactly match the motor's maximum operating time if decelerations are used.

ASSISTANCE REQUEST (combined with next function):

If activated, at the end of countdown (see the next function: "Cycle Programming") it effects 2 sec. (in addition to the value already set with the PF function) of pre-flashing at every Open pulse (job request). It can be useful to set scheduled maintenance jobs.

= Active

= Disabled

CYCLE PROGRAMMING:

To set countdown of system operation cycles. Settable (in thousands) from to thousand cycles.

The displayed value is updated as cycles proceed.

GATE STATUS:

Exit from programming, save data and return to viewing gate status (see Section

5.5.1.).

Note 1: To reset the programming default settings, check

that the edge input is closed (SAFE LED ON), and simultaneously press keys +, - and F, holding them down for 5 seconds.

Note 2: Modifications of programming parameters take

effect immediately, whereas changes are saved to memory only after you exit programming and return to normal gate status viewing. If the equipment is powered down before returning to status viewing, any modifications will be lost.

Fig. 34

6.2. OPENING - CLOSING DIRECTIONS

Power up the system and set the opening direction on the board (see Section 5.5.1).

If opening direction is to the RIGHT ( ):

OPENING limit-switch LED = FC1

CLOSING limit-switch LED = FC2

If opening direction is to the LEFT ( ):

OPENING limit-switch LED = FC2

CLOSING limit-switch LED = FC1

Note: for RF chain applications the wires on Mot1 and Mot2 (See Fig. 23) need to be reversed.

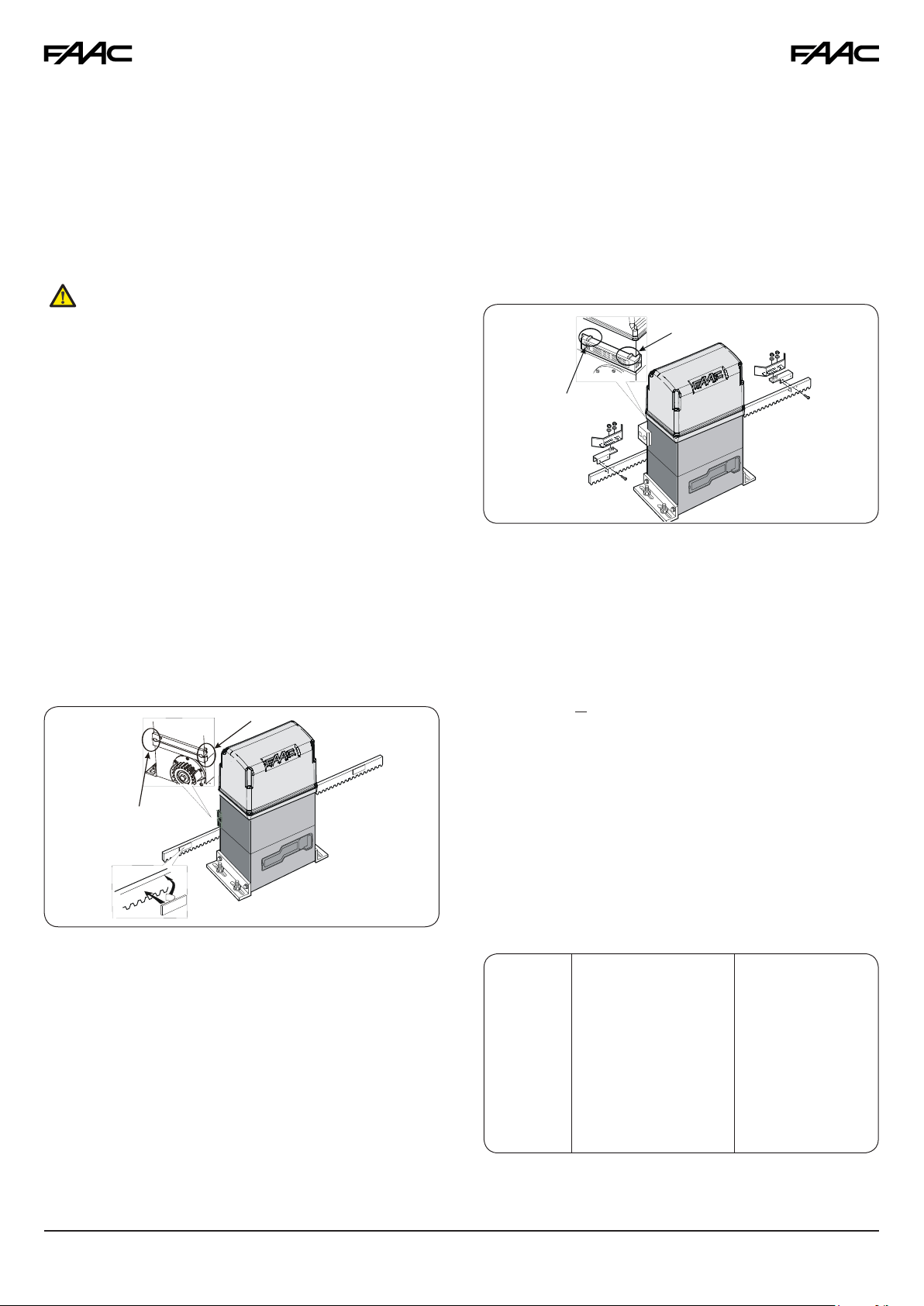

6.3. DETERMINING STOP POINTS AT TRAVEL LIMIT

The 844 operator has a limit sensor switch which, by detecting the transit of a reference applied to the rack, commands the motor to stop. The device can be magnetic (Fig. 41) or inductive (Fig. 42).

6.3.1. Magnetic Limit-Switch (MLS)

The MLS limit-switch detects the transit of two magnets fitted on the side of the rack facing the operator.

Procedure for correct positioning of the two supplied magnets:

1. Check that the operator is in manual mode (see Sec.8).

2. Manually open the gate to within 3/4 to 2 inches of the travel limit mechanical stop.

3. Fit the magnet (without removing the protective film from the adhesive side) on the side of the rack facing the operator, aligning the upper edges. Slide the magnet on the rack in opening direction until the relevant LED turns on (Fig. 22 and 41), then move the magnet forward an additional 1 3/4 inches.

4. Manually close the gate to within 3/4 to 2 inches of the travel limit mechanical stop.

5. Fit the magnet (without removing the protective film from the adhesive side) on the side of the rack facing the operator, aligning the upper edges. Slide the magnet on the rack in closing direction until the relevant LED turns on (Fig. 22 and 41), then move the magnet forward an additional 1 3/4 inches.

6. Move the gate to its halfway travel point and relock the system (see Sec. 9).

7. Find out the desired pre- and post-limit-switch deceleration values (see Section 5.5.2) and run the automated system for at least one complete cycle.

Page 17

8. Check that the gate stops approximately 3/4 to 2 inches from its mechanical stop point. If necessary, correct the position of the magnets and check that the stop point is correct.

9. Mark the position of the magnets on the rack, and remove them.

10. Clean the rack on its fitting points, remove the film on the adhesive parts of the magnets (Fig. 41 Ref. 1) and reposition the magnets with the adhesive strip in contact with the rack (Fig. 35 Ref. 2).

Attention: Due to the power ful magnetic fields produced

by the supplied magnets, do not place magnetic storage devices (credit cards, magnetic tapes, floppy disks, etc) or sensitive electronic equipment (watches, CRT monitors, LCD screens, etc.) near the magnets.

Notes on Magnet Positioning

• To ensure correct operation, allow at least 3/4 inch from the mechanical stop limit in the gate stop position. Carry out this check after determining the values of the preand post-limit switch decelerations (see Section 5.5.2.) and after running at least one complete cycle of the automated system.

• The distance between the limit-switch and magnets must be from 1/4 to 1/2 inch.

• Magnets should be fitted on the rack and not on the screws. If necessary, position the magnet at the side of the screw and adjust decelerations (see Section 5.5.2) in order to obtain the correct stop point.

FC1

4. Allow the plate to move on the rack in opening direction until the relevant LED goes off (Figs. 22 and 36); next, move the plate forward an additional 1 3/4 inches and secure it to the rack by tightening the screws.

5. Manually close the gate to within 3/4 to 2 inches of the mechanical stop limit.

6. Allow the plate to move on the rack in closing direction until the relevant LED goes off (Figs. 22 and 36); next, move the plate forward by an additional 1 3/4 inches and secure it to the rack by tightening the screws.

FC1

FC2

Fig. 36

Notes on Plate Positioning

• To ensure correct operation, allow at least 3/4 inch from

the mechanical stop limit in the gate stop position. Carry out this check after determining the values of the preand post-limit switch decelerations (see Section 5.5.2.) and after running at least one complete cycle of the automated system.

• The distance between the limit-switch and the plates

must be < 3/16 inch.

FC2

Fig. 35

6.3.2. Inductive Limit-Switch

The inductive limit-switch detects the travel of the two steel plates fitted on the top of the rack or the chain.

Procedure for correct positioning of the two supplied steel plates:

1. Assemble the limit-switch by centering the plate with respect to the threaded pins of the support (Fig. 36).

2. Check that the operator is in manual operating mode (see Section 8).

3. Manually open the gate to within 3/4 to 2 inches of the mechanical stop limit.

6.4. INPUTS CHECK

The table below shows the status of the LEDs in relation to to the status of the inputs.

Note the following: Led ON = closed contact

Led OFF = open contact

Check the status of the LEDs as per the following table.

Note: The status of the LEDs while the gate is closed are shown in bold. If opening direction is to the left, the status of LEDS FC1 and FC2 is reversed.

Table 2: Operation of the Signalling Status LEDs

LEDS ON OFF

OP-A Command activated Command inactive

OP-B Command activated Command inactive

FC1 Limit-switch free Limit-switch engaged

FC2 Limit-switch free Limit-switch engaged

FSW OP Safety devices disengaged Safety devices engaged

FSW CL Safety devices disengaged Safety devices engaged

STOP Command inactive Command activated

SAFE Safety devices disengaged Safety devices engaged

ENC

Flashes while the motor rotates

Page 18

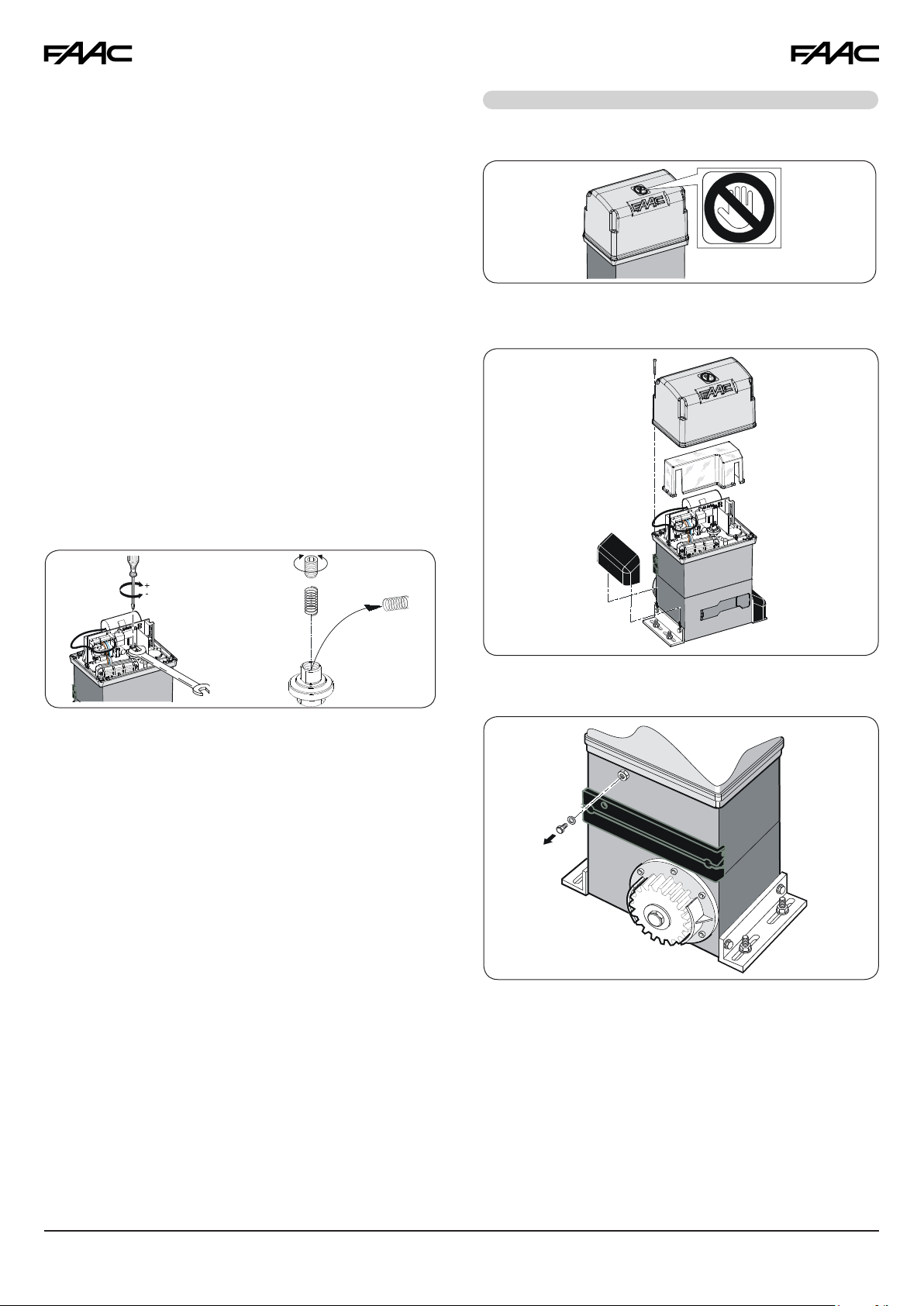

6.5. MECHANICAL CLUTCH ADJUSTMENT

In addition to its electronic safety devices (encoder and force adjustment), the 844 operator is also equipped with a mechanical clutch. The clutch doesn't need to be adjusted in a typical application. It comes from the factory set to its maximum strength, and can be left as it is for the majority of applications. To adjust the operator's thrust and reversing behavior use the force and encoder settings, as detailed in Sections 5.5.1 and 5.5.2.

In case the clutch needs to be adjusted:

1. Cut electrical power to the operator.

2. Keep the motor shaft locked with a wrench and turn the

clutch adjustment screw with an Allen wrench or screwdriver as shown in Fig. 37 Ref. A.

- To increase torque, turn the screw clockwise.

- To reduce torque, turn the screw counter-clockwise.

3. Power up the operator and check that the torque you

have just set is correct.

 The operator is supplied as standard with a clutch

adjustment spring for gates up to 2200 lbs. For heavier gates, use the supplied alternative spring. For spring replacement instructions, see Fig. 37 Ref. B.

7. FINAL OPERATIONS

• After installation, apply the danger sticker to the top of the cover (Fig. 38).

Fig. 38

• Snap-fit the side panels, put the equipment's cover on and secure it with the supplied screws (Fig. 39).

Fig. 39

Fig. 37

6.6. TRAVEL LIMITS CHECK

Be careful when setting the post-limit-switch deceleration and braking. If the deceleration is too long and braking is insufficient, the magnet or steel plate fitted on the gate's rack can overshoot the sensor until it is disengaged.

When the gate stops, check that the correct light limit-switch is engaged. The relevant LED must be OFF. If it went OFF and then ON again, or if both limit-switch LEDS are OFF, you must reduce the post-limit-switch deceleration value and/or increase the braking value (see Section 5.5.2).

6.7. SAFETY DEVICES CHECK

Check for the correct operation of all safety equipment, anti-crushing devices (ENCODER sensor), and accessories used in the system.

• Remove the vent screw (Fig. 40).

Fig. 40

Page 19

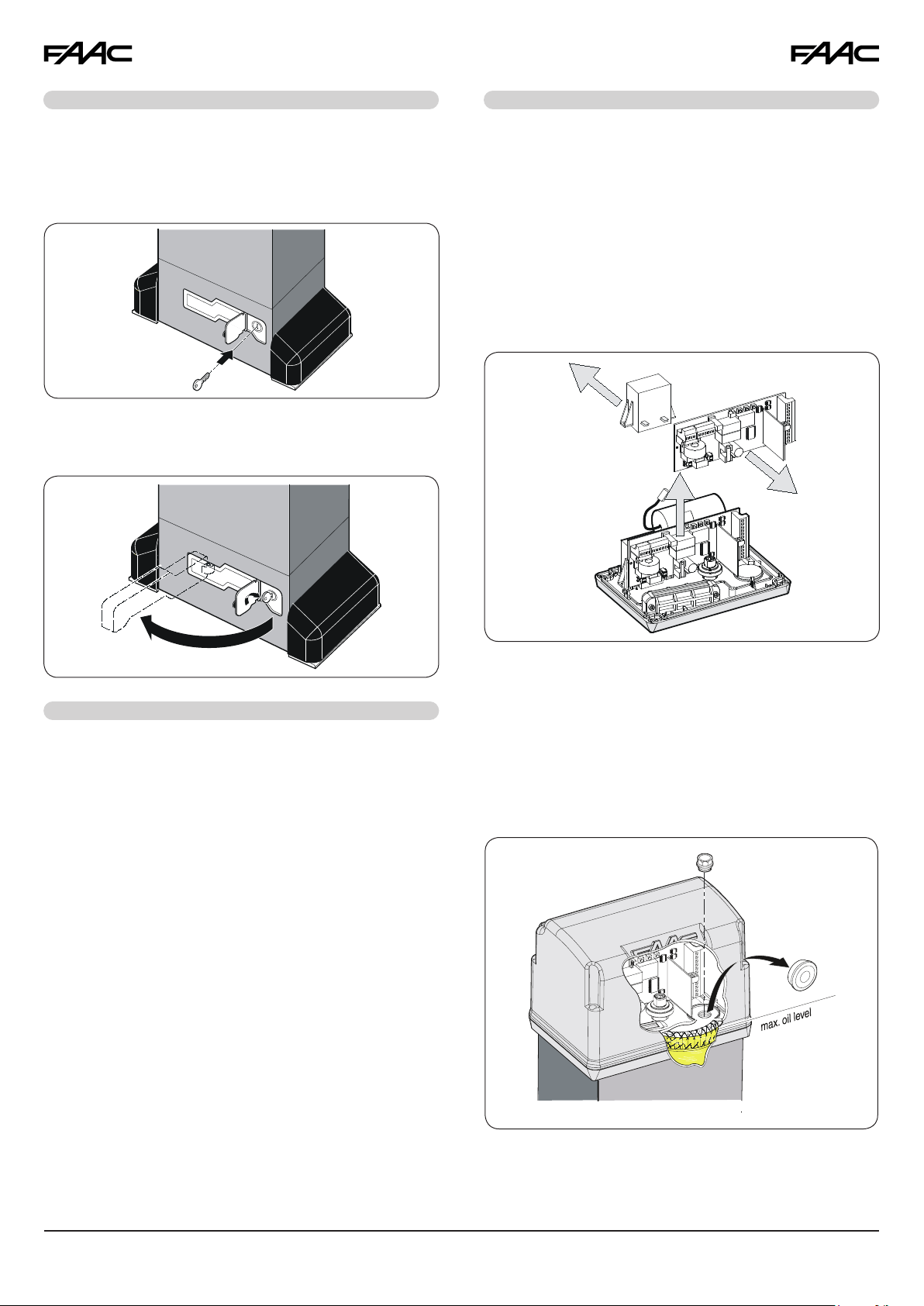

8. MANUAL OPERATION

10. MAINTENACE

1. If the gate has to be operated manually due to a power outage or malfunction of the automated system, use the release device as follows:

2. Open the protection door and insert the supplied key in the lock (Fig. 41).

Fig. 41

3. Turn the key clockwise and pull the release lever as shown in Fig. 42.

4. Open and close the gate manually.

Check the operational efficiency of the system at least once every 6 months, especially the efficiency of the safety and release devices (including operator thrust force).

10.1. REMOVING BOARD AND TRANSFORMER

If you have to disassemble the transformer-board unit, proceed as follows:

Remove all terminal boards and connectors from the board. Unscrew the 3 screws from the board and the 2 from the transformer. Lift the unit up and gently remove the transformer from the couplings on the board as shown in Fig. 43.

Fig. 42

9. RESTORING NORMAL OPERATION

To prevent an involuntary pulse from activating the gate, cut power to the system before re-locking the operator.

1. Re-close the release lever.

2. Turn the key counter-clockwise

3. Remove the key and close the lock protection door.

4. Move the gate until the release engages.

Fig. 43

10.2. OIL TOP-OFFS

Periodically check the oil level inside the operator. A oncea-year check is enough for medium or low usage. For heavy duty usage, a check every 6 months is recommended.

To access the tank, temporarily remove the plastic oil filler cap (Fig. 44). Oil level is visually checked and must cover the copper coil of the electric motor.

If more oil is needed, add it through the oil filler hole. Use FAAC HP oil only.

10.3. REPAIRS

For any repairs, contact an FAAC authorized repair center.

Fig. 44

Page 20

"PA"cigoL SESLUP

SUTATSETA AG -NEP BO -NEP PO OT SS ECIVEDYTEFASGNINEP SO ECIVEDYTEFASGNISOL EC CIVEDYTEFASLC/P EO CIVEDYTEFASEGDE

DESOLC

sesolcdnafaelehtsnepO

emitesuapretfati

laitrapehtroffaelsnepO

retfasesolcdnaemitgninepo

emitesuap

tceffeoN

)delbasidNEPO(

tceffeoN

)delbasidNEPO(

ESUAPnoNEPO

)3(noitarepospotS

spotS

noitarepo

tceffeoN

)delbasidANEPO.gnpo.trapnofi(

)3(emitesuapsdaoleR

)delbasidNEPO(

emitesuapsdaoleR

)delbas

idNEPO(

emitesuapsdaoleR

)delbasidNEPO(

GNISOLC

yletaidemmifaelehtsnepo-eR

tceffeoN

)NEPOsevas(

.2.5.5hpargarapees

otsesrever,esaelerno,dnaskcoL

nepo

)2("2rofnepootsesreveR

GNINEPO

)3(noitarepospotS .2.5.5hpargarapee ts ceffeoN

seunitnoc,esaelerno,dnaskcoL

gninepo

)2("2rofesolcotsesreveR

DEKCOL

,degagnesecivedytefaSgnisolChtiw(faelehtsesolC

)3()eslupdn2ehttasnepo

tceffeoN

)delbasidNEPO(

tceffeoN

)delbasidNEPO(

Tab. 3/b

"S"cigoL SESLUP

SUTATSETA AG -NEP BO -NEP PO OT SS ECIVEDYTEFASGNINEP SO ECIVEDYTEFASGNISOL EC CIVEDYTEFASLC/P EO CIVEDYTEFASEGDE

DESOLC

sesolcdnafaelehtsnepO

emitesuapretfati

laitrapehtroffaelsnepO

retfasesolcdnaemitgninepo

emitesuap

tceffeoN

)delbasidNEPO(

tceffeoN

)delbasidNEPO(

ESUAPnoNEPO

)3(yletaidemmifaelehtsesolc-eR

spotS

noitarepo

tceffeoN

)delbasidANEPO.gnpo.trapnofi(

NEPO("5retfasesolc,esaelernO

)3()delbasid

"5re

tfasesolc,esaelernO

)delbasidNEPO(

)1(emitesuapsdaoleR

)delbasidNEPO(

GNISOLC

yletaidemmifaelehtsnepo-eR

tceffeoN

)NEPOsevas(

.2.5.5hpargarapees

otsesrever,esaelerno,dnaskcoL

nepo

)2("2rofnepootsesreveR

GNINEPO

)3(yletaidemmifaelehtsesolc-eR .2.5.5hpargarapees

tceffeoN

)NEPOsevas(

seunitnoc,esaelerno,dnaskcoL

gninepo

)2("2rofesolcotsesreveR

DEKCOL

)3(faelehtsesolC

tceffeoN

)delbasidNEPO(

tceffeoN

)delbasidNEPO

Tab. 3/c

"E"cigoL SESLUP

SUTATSETA AG -NEP BO -NEP PO OT SS ECIVEDYTEFASGNINEP SO ECIVEDYTEFASGNISOL EC CIVEDYTEFASLC/P EO CIVEDYTEFASEGDE

DESOLC

faelehtsnepO

laitrapehtroffaelsnepO

emitgninepo

tceffeoN

)delbasidNEPO(

tceffeoN

)delbasidNEPO(

NEPO

)3(yletaidemmifaelehtsesolc-eR

spotS

noitarepo

tceffeoN

)delbasidANEPO.gnpo.trapnofi(

)3(tceffeoN

)delbasidNEPO(

tceffeoN

)delbasidNEPO(

GNISOLC

yletaidemmifaelehtsnepo-eR

tceffeoN

)NEPOsevas(

.2.5.5hpargarapees

otsesrever,esaelerno,dnaskcoL

nepo

)2("2rofnepootsesreveR

GNINEPO

)3(noitarepospotS .2.5.5hpargarapee ts ceffeoN

seunitnoc,esaelerno,dnaskcoL

gninepo

)2("2rofesolcotsesreveR

DEKCOL

,degagnesecivedytefaSgnisolChtiw(faelehtsesolC

)3()eslupdn2ehttasnepo

tceffeoN

)delbasidNEPO(

tceffeoN

)delbasidNEPO(

Tab. 3/d

"A"cigoL SESLUP

SUTATSETA AG -NEP BO -NEP PO OT SS ECIVEDYTEFASGNINEP SO ECIVEDYTEFASGNISOL EC CIVEDYTEFASLC/P EO CIVEDYTEFASEGDE

DESOLC

sesolcdnafaelehtsnepO

)1(emitesuapretfati

laitrapehtroffaelsnepO

retfasesolcdnaemitgninepo

)1(emitesuap

tceffeoN

)delbasidNEPO(

tceffeoN

)delbasidNEPO(

ESUAPnoNEPO

)3()1(emitesuapsdaoleR

spotS

noitarepo

tceffeoN

)delbasidANEPO.gnpo.trapnofi(

)3()1(emitesuapsdaoleR

)1(emitesuapsdaoleR

)delb

asidNEPO(

)1(emitesuapsdaoleR

)delbasidNEPO(

GNISOLC

)1(yletaidemmifaelehtsnepo-eR

tceffeoN

)NEPOsevas(

.2.5.5hpargarapees

otsesrever,esaelerno,dnaskcoL

nepo

)2("2rofnepootsesreveR

GNINEPO

)3()1(tceffeoN .2.5.5hpargarapee ts ceffeoN

seunitnoc,esaelerno,dnaskcoL

gninepo

)2("2rofesolcotsesreveR

DEKCOL

)3(faelehtsesolC

tceffeoN

)delbasidNEPO(

tceffeoN

)delbasidNEPO(

Tab. 3/a

11. LOGICS TABLES

Page 21

(1) If maintained, it prolongs the pause until disabled by the command (timer function) (3) During the partial opening cycle, an OPEN A pulse causes total opening.

(2) If a new pulse occurs within 2 seconds after reversing, it immediately stops operation. NB.: Effects on other active pulse inputs in brackets.

"PE"cigoL SESLUP

SUTATSETA AG -NEP BO -NEP PO OT SS ECIVEDYTEFASGNINEP SO ECIVEDYTEFASGNISOL EC CIVEDYTEFASLC/P EO CIVEDYTEFASEGDE

DESOLC

faelehtsnepO

laitrapehtroffaelsnepO

emitgninepo

tceffeoN

)delbasidNEPO(

tceffeoN )delbasidNEPO(tceffeoN

NEPO

)3(yletaidemmifaelehtsesolc-eR

spotS

noitarepo

ANEPO.gnpo.trapnofi(tceffeoN

)delbasid

)3()delbasidNEPO(tceffeoN )delbasidNEPO(tceffeoN

GNISOLC

noitarepospotS )NEPOsevas(tceffeo .N 2.5.5hparg

arapees

otsesrever,esaelerno,dnaskcoL

nepo

)2("2rofnepootsesreveR

GNINEPO

)3(noitarepospotS .2.5.5hpargarapee ts ceffeoN

seunitnoc,esaelerno,dnaskcoL

gninepo

)2("2rofesolcotsesreveR

DEKCOL

)3(noitceridesrevernitnemevomstratseR

)potSaretfasesolcsyawla(

tceffeoN

)delbasidNEPO(

tceffeoN

)NEPOselbasidti,nepotsumtifi(

tceffeoN

)NEPOselbasidti,esolctsumtifi(

)delbasidNEPO(tceffeoN

Tab. 3/e

"C"cigo NL WODDLEHSYAWLASLORTNOC SESLUP

SUTATSETA )G gninepo(A-NEP )O gnisolc(B-NEP PO OT SS ECIVEDYTEFASGNINEP SO ECIVEDYTEFASGNISOL EC CIVEDYTEFASLC/P EO CIVEDYTEFASEGDE

DESOLC

faelehtsnepO

tceffeoN

)delbasidA-NEPO(

tceffeoN

)delbasidANEPO(

tceffeoN

)delbasidANEPO(

NEPO

tceffeoN

)delbasidB-NEPO(

faelehtsesolC

tceffeoN

)delbasidB/A-NEPO(

tceffeoN

)delbasidANEPO(

tceffeoN

)delbasidBNEPO(

tceffeoN

)delbasidBNEPO(

tceffeoN

)delbas

idB/A-NEPO(

GNISOLC

noitarepospot /S

noitarepospotS

tceffeoN

noitarepospotS

)delbasidB-NEPO(

noitarepospotS

)delbasidB/A-NEPO(

)2("2rofnepootsesreveR

GNINEPO

n/ oitarepospotS

noitarepospotS

)delbasidA-NEPO(

tceffeoN )2("2rofesolcotsesreveR

Tab. 3/f

"B"cigoL SESLUP

SUTATSETA )G gninepo(A-NEP )O gnisolc(B-NEP PO OT SS ECIVEDYTEFASGNINEP SO ECIVEDYTEFASGNISOL EC CIVEDYTEFASLC/P EO CIVEDYTEFASEGDE

DESOLC

faelehtsnep tO ceffeoN

tceffeoN

)delbasidANEPO(

tceffeoN

)delbasidANEPO(

NEPO

tceffeo fN aelehtsesolC

NEPO(tceffeoN

)delbasidB

tceffeoN

)delbasidBNEPO(

tceffeoN

)delbasidBNEPO(

tceffeoN

)delbasidB/A-NEPO(

GNISOLC

nepootsesreve tR ceffeoN

spotS

noitarepo

tceffeoN

)ANEPOseva

noitarepospotS

)delbasidB-NEPO(

noitarepospotS

)delbasidB/A-NEPO(

)2("2rofnepootsesreveR

GNINEPO

tceffeo tN ceffeoN

noitarepospotS

)delbasidA-NEPO(

tceffeoN )2("2rofesolcotsesreveR

DEKCOL

faelehtsnep fO aelehtsesolC

tceffeoN

)delbasidB/ANEPO(

tceffeoN

)delbasidA-NEPO(

tceffeoN

)delbasidBNEPO(

tceffeoN

)delbasidB/ANEPO(

Tab. 3/g

"C/B"cigo SL LORTNOCNUROTDLOHGNISOLC/ESLUPGNINEPO SESLUP

SUTATSETA )G gninepo(A-NEP )O gnisolc(B-NEP PO OT SS ECIVEDYTEFASGNINEP SO ECIVEDYTEFASGNISOL EC CIVEDYTEFASLC/P EO CIVEDYTEFASEGDE

DESOLC

faelehtsnep tO ceffeoN

tceffeoN

)delbasidANEPO(

tceffeoN

)delbasidANEPO(

NEPO

tceffeo fN aelehtsesolC

tceffeoN

)delbasidBNEPO(

tceffeoN

)delbasidBNEPO(

tceffeoN

)delbasidBNEPO(

tceffeoN

)delbasidB/A-NEPO(

GNISOLC

nepootsesreve tR

ceffeoN

spotS

noitarepo

tceffeoN

)ANEPOsevas(

noitarepospotS

)delbasidB-NEPO(

noitarepospotS

)delbasidB/A-NEPO(

)2("2rofnepootsesreveR

GNINEPO

tceffeo tN ceffeoN

noitarepospotS

)delbasidA-NEPO(

tceffeoN )2("2rofesolcotsesreveR

DEKCOL

faelehtsnep fO aelehtsesolC

NEPO(tceffeoN

)delbasidB/A

tceffeoN

)delbasidA-NEPO(

tceffeoN

)delbasidBNEPO(

tceffeoN

)delbasidB/ANEPO(

Tab. 3/h

Page 22

12. SPARE PARTS DIAGRAM

POS. P/N DESCRIPTION

01 63000399 Operator Plastic Cover

02 7111245 Cover Holes Caps (Nr 4)

03 701520 Thread Forming Screw

04 7324745 Faac Logo

05 7273435 Cover For Control Board

06 701422 Screw

07 63000333 Transformer 115Vac

08 711969 Kapsto Plug

09 7601092 Capacitor 70Uf 280Vac

10 722084 Capacitor Support

11 701814 Bolt M4x20

12 709062002 O Ring Gasket 6,75X1,78

13 7029055 Stator Fixing Nut

14 7110015 Cap

15 7099145 Gear Motor Stator Nut Gasket

16 7580375 Cap Screw Socket Head

POS. P/N DESCRIPTION

18 390516 Breather Plug Assembly

19 701002 Cap Scr.sock.hea.4X10 5931 8Gz

20 7099645 Gasket

21 7320065 Breather Screw Label

22 7160605 Upper Half Body

23 7029175 Stator Nut / Earth Ground

24 7099245 Strain Relief Gasket

25 7043355 Strain Relief Ring

26 7109095 Cable Damp

27 709000002 O Ring Gasket 7,59X2,62

28 79092113 780 D Control Unit With Terminals 115V

29 63000348 Base Plate For Cover

30 7109255 Strain Relief

31 702705 Nut With Locking Washer M4

32 701000 Screw 4X 25 5931 12 K

33 752207 Lug Cembre Bf-M5

34 703007 Washer 5 6592 R40 Z

40985115 Limit Switch Chain Version

7580375 Limit Switch Rack And Pinion Version

Page 23

POS. P/N DESCRIPTION

35 701367 Screw 5 X 10 7687/Din7985 4,8 Z

36 707010 Bearing 6204-Z 20-47-14

37 7269185 Bearing Spacer

38 445842 Rotor With Clutch

39 7310275 Friction Disk

40 7093105 Smim 10X30x4.5 Gasket

41 7226605 Magnetic Disk 746/844

42 7210125 Clutch Adjustm. Spring

43 7090030015 Gasket Or 6.75X1.78 ( 106)

44 7181935 Pin For Clutch Adjust. 746/844 R

45 704008 Cir Clip E15 7435

46 7049125 Gasket Adjustment Ring Nut

47 7090410025 Gasket Or 42.52X2.62 (3168)

48 704005 Cir Clip E24 7435

49 7061185 Pin 5 X 40 M6 Uni 100 C6

50 7310125 Friction Disk

51 7181995 Motor Shaft

53 701119 Screw 10X16 Uni 5739 10.9 Z

54 7030185 Washer 10,5X35x4 Cat.a Z

55 701007 Cap Scr.sock.head 5X16 8G Z

56 71707615 Side Flange

57 7094085 Gasket Lateral Flange

58 7093005 Gasket For Motor Shaft A 25407

59 7070111 Bearing 6205 25-52-15 Econ.

60 7061115 Pin 8X45 Ric.uni En22338

61 7180785 Slow Shaft 746-844

62 7192075 Gear

63 704339 Ring

63000355 Magnetic Limit Switches

2529 Limit Switch Plates For Chain

POS. P/N DESCRIPTION

64 7070121 Ball Bearing 6004

65 7182765 Unlock Pin

66 7211015 Release Spring

67 7051085 Tab

68 704009 C Clip E20 7435

69 704200 Ring Lmkas 42 D

70 7093055 Gasket Rp 10X30x7

71 7160615 Lower Semi-Body

72 7061035 Pin

73 7230145 Stator Mounting Rod

74 703205 Lock Washer 8842 Z

75 63000543 Stator 844 UL 115V r

76 7291115 Lever For Lock

77 7120885 Lock

78 7131005 Key

79 409867 Release Lever Unit

80 7019415 Release Lever Screw

81 727197 Protective Side Cover

82 701107002 Hex.head 5739 8G Z 8X20

83 703002 Washer 8 6592 R40 Z

84 722351 Mounting Bracket

85 7269525 Spacer

86 3905745 Skin Pack

87 390829 Skinpack Motor

88 714019 Hydraulic Oil Faac Hp Oil Lt. 1

Page 24

13. TROUBLESHOOTING

If you have a problem installing the operator, check the problems and solutions listed below for suggestions.

PROBLEM SOLUTIONS

The operator does not respond to the activating signal.

The gate is closed and does not open. • Make sure the clutch adjustment is not too weak.

The gate opens, but will not close. • Make sure the closing safety devices are working properly and that they are not

On initial operation the operator moves a few inches and stops.

The gate opens, but the operator continues to run.

• Make sure the main power switch is on.

• Check the control panel terminal strip for possible broken or disconnected wires.

• If a radio signal is being used to activate the operator, be sure the code sets on both the transmitter and receiver are the same.

• Momentarily short across terminals 1 and 7 on the control panel. If this activates the operator, a problem probably exists in the activating device itself.

• Increase the torque if the motor is running and the gate is not moving. This may be necessary for especially heavy gates.

• Check that the closed limit switch is working. The FC status light should be off. Make sure that the limit switch plate is not too far away from the limit switch. The distance between a plate and the switch should be 3/16 in.

• Check fuse F1 and replace it if necessary.

activated (an activated reversing device will prevent the gate from closing)

• Check that the FSW-CL light is on indicating that the closing safety is not active. Make sure that the display doesn't show 05, indicating that the Fails Safe Check didn't pass.

• Check the encoder setting

• Check the FC light on the control panel. It should be OFF. If it is ON, check the alignment of the limit switch plate.

• If the FCC light is ON and the limit switch plate is correctly adjusted, replace the limit switch.

Note: If the limit switch plates are not detected by the limit switch on the operator, the motor will run for 120 seconds and then the control panel will be in alarm status.

Page 25

NOTES:

_________________________________________________________________________________________

Page 26

NOTES:

_________________________________________________________________________________________

Page 27

LIMITED WARRANTY

To the original purchaser only:

FAAC International, Inc., warrants, for twenty-four (24) months from the date of invoice, the gate operator systems and other related systems and equipment manufactured by FAAC S.p.A. and distributed by FAAC International, Inc., to be free from defects in material and workmanship under normal use and service for which it was intended provided it has been properly installed and operated.

FAAC International, Inc.’s obligations under this warranty shall be limited to the repair or exchange of any part of parts manufactured by FAAC S.p.A. and distributed by FAAC International, Inc. Defective products must be returned to FAAC International, Inc., freight prepaid by purchaser, within the warranty period. Items returned will be repaired or replaced, at FAAC International, Inc.’s option, upon an examination of the product by FAAC International, Inc., which discloses, to the satisfaction of FAAC International, Inc., that the item is defective. FAAC International, Inc. will return the warranted item freight prepaid. The products manufactured by FAAC S.p.A. and distributed by FAAC International, Inc., are not warranted to meet the specific requirements, if any, of safety codes of any particular state, municipality, or other jurisdiction, and neither FAAC S.p.A. or FAAC International, Inc., assume any risk or liability whatsoever resulting from the use thereof, whether used singly or in combination with other machines or apparatus.

Any products and parts not manufactured by FAAC S.p.A. and distributed by FAAC International, Inc., will carry only the warranty, if any, of the manufacturer. This warranty shall not apply to any products or parts thereof which have been repaired or altered, without FAAC International, Inc.’s written consent, outside of FAAC International, Inc.’s workshop, or altered in any way so as, in the judgment of FAAC International, Inc., to affect adversely the stability or reliability of the product(s) or has been subject to misuse, negligence, or accident, or has not been operated in accordance with FAAC International, Inc.’s or FAAC S.p.A.’s instructions or has been operated under conditions more severe than, or otherwise exceeding, those set forth in the specifications for such product(s). Neither FAAC S.p.A. nor FAAC International, Inc., shall be liable for any loss or damage whatsoever resulting, directly or indirectly, from the use or loss of use of the product(s). Without limiting the foregoing, this exclusion from

liability embraces a purchaser’s expenses for downtime or for making up downtime, damages for which the purchaser may be liable to other persons, damages to property, and injury to or death of any persons.

FAAC S.p.A. or FAAC International, Inc., neither assumes nor authorizes any person to assume for them any other liability in connection with the sale or use of the products of FAAC S.p.A. or FAAC International, Inc. The warranty herein above set forth shall not be deemed to cover maintenance parts, including, but not limited to, hydraulic oil, filters, or the like. No agreement to replace or repair shall constitute an admission by FAAC S.p.A. or FAAC International, Inc., of any legal responsibility to effect such replacement, to make such repair, or otherwise. This limited warranty extends only to wholesale customers who buy directly through FAAC International, Inc.’s normal distribution channels. FAAC International, Inc., does not warrant its products to end consumers.

Consumers must inquire from their selling dealer as to the nature and extent of that dealer’s warranty, if any. This warranty is expressly in lieu of all other warranties expressed or implied including the warranties of merchantability and fitness for use. This warranty shall not apply to products or any part thereof which have been subject to accident, negligence, alteration, abuse, or misuse or if damage was due to improper installation or use of improper power source, or if damage was caused by fire, flood, lightning, electrical power surge, explosion, wind storm, hail, aircraft or vehicles, vandalism, riot or civil commotion, or acts of God.

Page 28

Published in Jan. 2017

FAAC 844 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
