IN1608 Series • Setup Guide

ab cdgh efikl

O

O

Rack Ears

Rack Mounting

Furniture Mounting

IMPORTANT:

Go to www.extron.com for the

complete user guide, installation

instructions, and specifications.

The Extron IN1608 Scaling Presentation Switcher is an eight input, HDCP-compliant
video scaler that accepts a wide variety of audio and video formats. This guide allows
an experienced user to set up and congure IN1608, IN1608 SA, and IN1608 MA
scalers. It covers how to perform basic operations using the front panel controls and
selected Simple Instruction Set (SIS™) commands.

NOTE: For full installation, configuration, menus, connector wiring, and

operation details, see the IN1606 and IN1608 Series User Guide, at

OUTPUTS

12

VARIABLE

LR

AMPLIFIED OUTPUT

2x25W(8Ω)/2x50W(4Ω)

LR

CLASS 2 WIRING

RESET

LAN

REMOTE

RS-232

Tx Rx

OUTPUTS

10

12

VARIABLE

LR

G

www.extron.com.

Installation

IN1608 SA IN1608 MA

Rear Panel Features

100-240V ~ 1.0 A MAX

50-60 Hz

1

CONFIGURABLE

2

INPUTS

3

4

5

HDMI

HDMI

6

7

SIG LINK

RS-232 IR

Tx Rx Tx RxG

OVER DTP OVER DTP

RS-232 IR

DTP IN

Tx Rx Tx RxG

8

SIG LINK

DTP IN

RS-232 IR

Tx Rx Tx RxG

Figure 1. IN1608 Series Shared Rear Panel Connectors

Power and Input Connections Output Connections Control Connections

AC power connector

a

Congurable analog 15-pin HD (VGA) connectors (inputs 1 and 2)

b

HDMI input connectors (inputs 3 through 6)

c

DTP input and corresponding RS-232/IR Over DTP connectors

d

(inputs 7 and 8)

Analog audio input connectors (associated with inputs 1 through 6)

e

Mic/Line audio input connectors and adjacent phantom power LEDs

f

OUTPUTS

C

A

SIG LINK

DTP OUT

HDMI

B

DTP output connector and

g

corresponding RS-232/IR Over

AUDIO INPUTSOUTPUTSOUTPUTS

L1

L3

R

L2

L4

R

DTP connector (output C)

HDMI output connectors

h

(outputs A and B)

Analog audio output connectors

i

Amplied audio output connectors

j

(IN1608 SA and IN1608 MA only)

IN1608

12

1

+48V

L5

R

R

MIC/LINE

VARIABLE

L6

R

2

R

+48V

k
l

RESET

LR

LAN connector

RS-232 connector

AMPLIFIED OUTPUT

70V - 100W

CLASS 2 WIRING

RESET

REMOTE

LAN

LAN

REMOTE

Tx Rx

RS-232

RS-232

Tx Rx

G

G

Mounting and Cabling

Step 1 — Mounting

a. Turn off or disconnect all equipment power sources.

b. Mount IN1608 scalers to a rack using the pre-installed rack ears or use an optional

mounting kit for under-the-desk mounting. The IN1608 comes in a 1U, full rack width
enclosure. The IN1608 SA and IN1608 MA come in 2U, full rack width enclosures.

Step 2 — Connecting Inputs

a. Connect analog video sources to the VGA connectors (see b above).

b. Connect digital HDMI or DVI (with an appropriate adapter) sources to the HDMI

connectors (see c above).

c. Connect a DTP transmitter to the DTP input connectors (see d above). For cable wiring

and recommendations, see Twisted Pair Recommendations for DTP Communication
on page 2.

Signal LED — Lights green when the unit is receiving an active video signal from a DTP
transmitter.

Link LED — Lights amber when a valid link is established to a DTP transmitter.

d. To pass serial, infrared data, or other control signals, as for serial control of a source,

connect the control device to the RS-232 and IR Over DTP captive screw connectors
(see RS-232 and IR Over DTP Wiring on page 2).

e. Connect analog audio input sources to the 5-pole captive screw connectors

(see e above). For audio wiring, see Audio Wiring on page 2.

f. Connect Mic/Line audio input sources to the 3-pole captive screw connectors

(see f above).

Mounting Screws
(2) Places
Each Side

#8 Screw
(4) Places
Each Side

MBU 149

Mounting Bracket

1

IN1608 Series • Setup Guide (Continued)

12345678

Insert Twisted

Pair Wires

Pins:

Pin

1
2
3

4
5
6
7

8

Wire color

White-green

Green

White-orange

Blue

White-blue

Orange

White-brown

Brown

Wire color

T568A T568B

White-orange
Orange
White-green

Blue
White-blue
Green
White-brown

Brown

Slee

Step 3 — Connecting outputs

a. Connect a DTP receiver to the DTP output connector (see g on page 1). For cable wiring and recommendations, see Twisted Pair

Recommendations for DTP Communication below.

Signal LED — Lights green when the IN1608 is outputting active video to a DTP receiver.

Link LED — Lights amber when a valid link is established between the IN1608 and a DTP receiver.

b. To pass serial, infrared data, or other control signals, connect a control device to the RS-232 and IR Over DTP captive screw connector

(see RS-232 and IR Over DTP Wiring below).

c. Connect suitable video displays to the HDMI connectors (see h on page 1).
d. Connect analog audio output devices to the 3.5 mm 5-pole captive screw connectors (see i on page 1). For audio wiring, see Audio

Wiring below.

e. For SA and MA models, connect an audio output device to the 5 mm, 4-pole or 2-pole captive screw connector (see j on page 1).

Step 4 — Connecting control devices

a. For control through Ethernet, connect a LAN or WAN to the RJ-45 connector (see k on page 1). The default IP address is

192.168.254.254. The default subnet mask is 255.255.0.0.

b. For serial RS-232 control, connect a host device to the 3-pole captive screw connector (see l on page 1). The default baud rate is 9600.

c. For control through USB, connect a host device to the front panel mini USB B port (see a of gure 2).

Step 5 — Connecting power

Connect a 100 to 240 VAC, 50-60 Hz power source to the AC power connector
(see a on page 1).

Twisted Pair Recommendations for DTP Communication

Extron recommends using the following practices to achieve full transmission distances up to
230 feet (70 m) and reduce transmission errors.

• Use Extron XTP DTP 24 SF/UTP cable for the best performance. If not using XTP DTP 24 cable, at

a minimum, Extron recommends 24 AWG, solid conductor, STP cable with a minimum bandwidth of
400 MHz.

• Terminate cables with shielded connectors to the TIA/EIA T 568 B standard (shown to the right).

• Limit the use of more than two pass-through points, which may include patch points, punch down

connectors, couplers, and power injectors. If these pass-through points are required, use CAT 6 or 6a
shielded couplers and punch down connectors.

ATTENTION:

• Do not connect these devices to a computer or telecommunications network.

• DTP remote power is intended for indoor use only. No part of the network that uses DTP remote power should be routed outdoors.

TIA/EIA T 568 B

Pin Wire Color

1 White-orange

2 Orange

3 White-green

4 Blue

5 White-blue

6 Green

7 White-brown

8 Brown

2

NOTE: When using CAT 5e or CAT 6 cable in bundles or conduits, consider the following:

• Do not exceed 40% ll capacity in conduits.

• Do not comb the cable for the rst 20 m, where cables are straightened, aligned, and secured in tight bundles.

• Loosely place cables and limit the use of tie wraps or hook and loop fasteners.

• Separate twisted pair cables from AC power cables.

RS-232 and IR Over DTP Wiring

To pass bidirectional serial command signals between DTP-compatible devices, connect a control device to the three leftmost poles (Tx, Rx, and G)
of the 5-pole captive screw connector. To transmit and receive IR signals, connect a control device to the three rightmost poles (G, Tx, and Rx).

NOTE: RS-232 and IR data can be transmitted or received simultaneously.

Audio Wiring

Wire the audio input and output connectors as shown to the right.
Use the supplied tie-wrap to strap the audio cable to the extended tail
of the connector. This does not apply to the amplied audio output
connectors on the IN1608 SA and IN1608 MA.

ATTENTION: For unbalanced outputs, do not connect

wires to the “-” poles (see the Extron Audio Wiring Card).

NOTE: The length of exposed wires is critical. The ideal

length is 3/16 inch (5 mm).

Tip

Ring

Sleeves

Tip

Ring

Balanced Audio Output

Tip

Ring

ves
Tip

Ring

No Ground Here

LR

Tip

Sleeves

Tip

No Ground Here

Unbalanced Audio Output

LR

Tip

Sleeve

Tip

Sleeve

Unbalanced Audio InputBalanced Audio Input

LR

LR

Do not tin the wires!

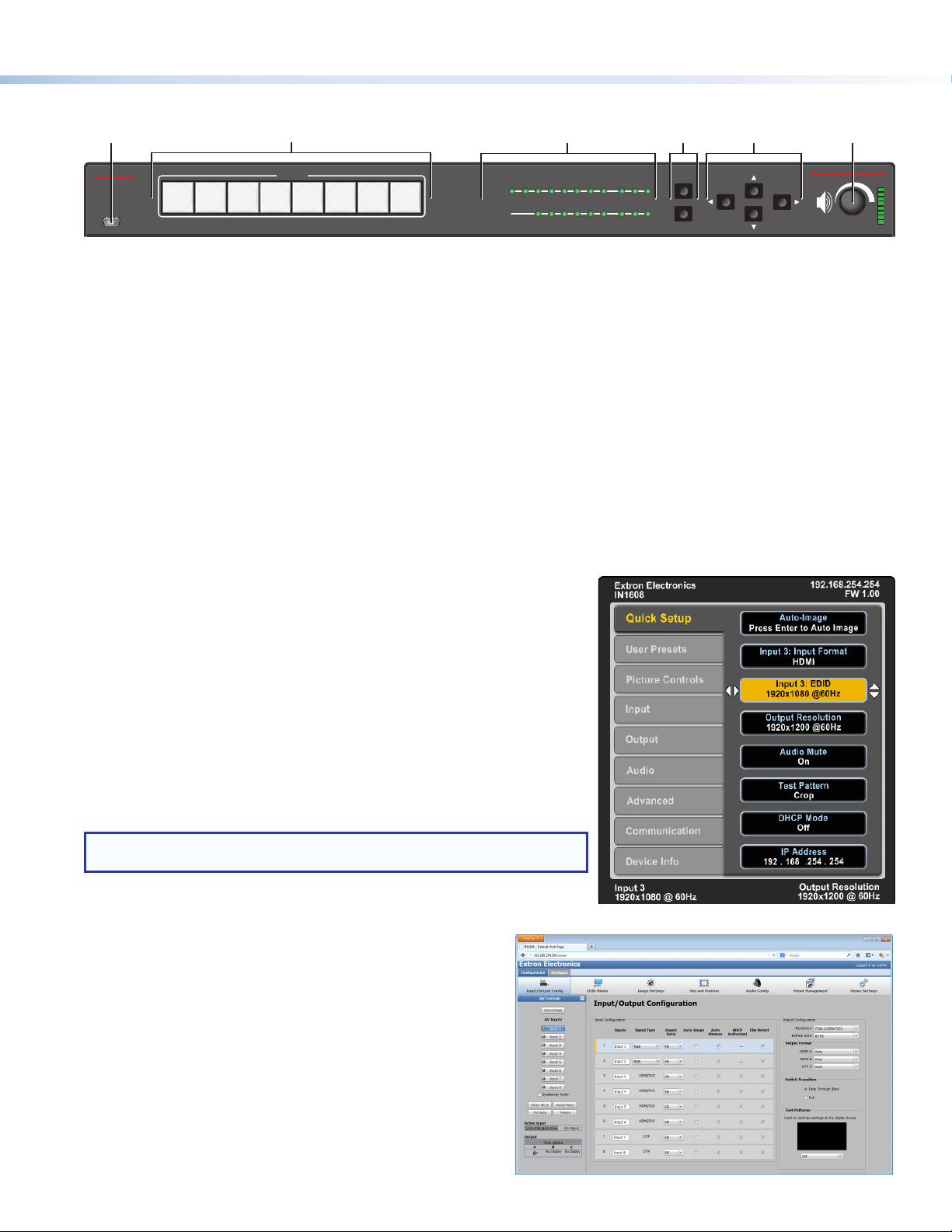

Front Panel Overview

ab cdef

Extron

CONFIG

Figure 2. Front Panel Features

Front panel configuration port — Connect a host device to the mini USB B port for device conguration, control, and rmware upgrades.

a

Input selection buttons (1-8) — Press one of these buttons to select an input. The buttons light amber for audio and video, green for video

b

only, or red for audio only.

Status LED indicators

c

Input signal LEDs — Light green for each input when active video content is detected.

Output signal LEDs — Remain lit green when active video is being output or blink amber when output video and sync are disabled.

Input HDCP LEDs — Light green for each input signal that is HDCP-encrypted. Analog inputs 1 and 2 cannot be HDCP-encrypted.

Output HDCP LEDs — Light green for an output when it is currently HDCP-encrypted.

Menu and Enter buttons — Press these buttons to access and navigate the on-screen display menu system.

d

Navigation buttons — Press these buttons to navigate through the on-screen display menu system or change selected settings.

e

Volume knob and LED indicators — Rotate the Volume knob to adjust the variable analog audio output volume. The eight Volume LED

f

indicators light according to the output audio volume level. The bottom LED blinks when the volume is muted. They light in order from
bottom to top to indicate steps from 1% (-99 dB) to 99% (-1 dB). The top LED blinks when the volume is 100% (0 dB).

1 2 3 4 5 6 7 8

INPUTS

SIGNAL

HDCP

INPUTS

1

2 3 4 5 6 7 8 A B C

OUTPUTS

MENU

ENTER

Conguring IN1608 Scalers

IN1608 scalers can be congured through front panel controls and the on-screen display
(OSD) menu, the internal web pages, the Extron Product Conguration Software, or SIS
commands. To access the internal web pages or send SIS commands, connect a host
device to the scaler via RS-232, USB, or Ethernet connection. The internal web pages can
only be accessed through an Ethernet connection.

SCALING PRESENTATION SWITCHER

IN1608

VOLUME

On-screen Display (OSD) Menu System

IN1608 scalers have an OSD menu consisting of nine submenus that can be accessed
using the front panel Menu and Enter buttons (see the example to the right). View the menu
on a display connected to either HDMI output or DTP output connector (see h on page 1).
The submenus are:

Quick Setup User Presets Picture Controls Input Output

Audio Advanced Communication Device Info

NOTE: Press and hold the Enter button for 10 seconds to edit settings in the

Communication submenu.

Internal Web Pages

IN1608 scalers can be congured, controlled, and operated using a web
browser. Connect the Ethernet port on the device to a LAN or WAN. The
browser displays the factory-installed web pages, which provide a means
of conguring and operating the device (see the example to the right).
Enter the IP address of the unit in the browser Address eld to access the
web pages (see the IN1608 User Guide for more details). The default IP
address is 192.168.254.254. The default subnet mask is 255.255.0.0.

Extron Product Conguration Software

To congure IN1608 scalers using the Extron Product Conguration
Software (PCS), install the software (available on the Extron website,

www.extron.com) to a PC connected to the scaler via Ethernet, RS-232,

or front panel USB Cong port. After the installation, start the program.
For full instructions, press <F1> or click the ? button and select Help
File.

3

Firmware Upgrades

The rmware of the scaler can be upgraded via the internal web pages or the Extron Firmware Loader program (available on the Extron website,

www.extron.com). The internal web pages cannot be accessed through the USB port.

Basic SIS Command Table

IN1608 scalers can be congured with specic SIS commands via an RS-232, USB, or Ethernet connection. Use the Extron DataViewer utility
or a control system to send and receive SIS commands. The table below lists a selection of SIS commands. For a full list of SIS commands and
variables, see the IN1608 User Guide at www.extron.com.

Command ASCII Command

Select audio and video input

Select video input only

Select audio input only

Execute Auto-Image

Execute Auto-Image and ll

Execute Auto-Image and follow

Mute video to black

Mute video and sync

Unmute video and sync

(Host to Device)

X! ! InX!

X!& InX!

X!$ InX!

A

1*A

2*A

1B

2B

0B

Response

(Device to Host)

All] Selects audio and video input X!.

•

RGB] Selects the video only input X!.

•

Aud] Selects the audio only input X!.

•


]


]


]

Vmt1

]

Vmt2

]

Vmt0

]

Additional Description

Executes an Auto-Image on the current input.

Executes an Auto-Image and lls the output.

Executes an Auto-Image and maintains the aspect ratio
of the current input.

Mutes the video and displays a black output.

Mutes the video and sync output.

Unmutes the video.

NOTE: By default, adjusting variable volume with the following commands only affects variable analog output (configurable through group

masters).

Set variable volume level

Raise variable volume

Lower variable volume

View variable volume level

ED8*X4$GRPM} GrpmD08*X4$]

ED8*X4*+GRPM}

ED8*X4*-GRPM}

GrpmD08*X4$]

GrpmD08*X4$]

ED8GRPM} X4$ ]

Set the variable volume to a value of X4$.

Increase the level of the variable volume by X4* dB.

Decrease the level of the variable volume by X4* dB.

View the current variable volume level.

NOTE: By default, setting the audio mute with the following commands affects all outputs (configurable through group masters).

Set master audio mute

View master audio mute status

Enable executive mode 1

Enable executive mode 2

Disable executive modes

Set scaler IP address

Set scaler DHCP mode

Set subnet mask

Set gateway IP address

Reboot networking

ED7*X(GRPM} GrpmD07*X(]

ED7GRPM} X( ]

1X

2X

0X

EX4)CI} Ipi

Exe1

Exe2

Exe0

]

]

]

X4) ]

•

EX(DH} Idh X(]

EX4!CS} Ips

EX4@CG} Ipg

X4! ]

•

X4@ ]

•

E2BOOT} Boot2]

Enable or disable master audio mute.

View the current master audio mute status.

Locks the entire front panel.

Locks the front panel except for input selection and
volume control.

Allows all front panel adjustments and selections.

Species a new scaler IP address.

Enables or disables DHCP (0 = default).

Species a new subnet mask.

Species a new gateway IP address.

Restarts the network connection after IP or DHCP
changes.

NOTE: IP settings will not take effect until the E 2BOOT} command is executed.

NOTES:

X! = Input selection (1-8)
X( = Enable or disable (0 = off or disabled; 1 = on or enabled)
X4) = IP address (xxx.xxx.xxx.xxx; 192.168.254.254 = default)
X4! = Subnet mask (xxx.xxx.xxx.xxx; 255.255.0.0 = default)
X4@ = Gateway address (xxx.xxx.xxx.xxx; 0.0.0.0 = default)
X4$ = Group volume level (-1000 to 0, where -1000 = -100 dB or 0% volume and 0 = 0 dB or 100% volume)
X4* = Increment value (dB value multiplied by ten, in 0.1 dB increments, to raise or lower a group fader [for example, 100 = 10 dB])

Extron USA Headquarters

+1.800.633.9876 (Inside USA/Canada Only)

4

© 2013 Extron Electronics — All rights reserved. All trademarks mentioned are the property of their respective owners. www.extron.com

Extron USA - West: +1.714.491.1500 FAX: [phone]
Extron USA - East: +1.919.850.1000 FAX: [phone]

68-1916-50 Rev. A

06 13
