FOX T UWP 302
Two Input Fiber Optic Transmitter
User Guide
Fiber Optic Extender
68-2092-01 Rev. A
07 13
Safety Instructions • English
Chinese Simplified（简体中文）
WARNING: This symbol, , when used on the product, is intended to
alert the user of the presence of uninsulated dangerous voltage within
the product’s enclosure that may present a risk of electric shock.
ATTENTION: This symbol, , when used on the product, is intended
to alert the user of important operating and maintenance (servicing)
instructions in the literature provided with the equipment.
For information on safety guidelines, regulatory compliances, EMI/EMF
compatibility, accessibility, and related topics, see the Extron Safety and
Regulatory Compliance Guide, part number 68-290-01, on the Extron
website, www.extron.com
.
Instructions de sécurité • Français
AVERTISSEMENT: Ce pictogramme, , lorsqu’il est utilisé sur
le produit, signale à l’utilisateur la présence à l’intérieur du boîtier
du produit d’une tension électrique dangereuse susceptible de
provoquer un choc électrique.
ATTENTION: Ce pictogramme, , lorsqu’il est utilisé sur le produit,
signale à l’utilisateur des instructions d’utilisation ou de maintenance
importantes qui se trouvent dans la documentation fournie avec le
matériel.
Pour en savoir plus sur les règles de sécurité, la conformité à la
réglementation, la compatibilité EMI/EMF, l’accessibilité, et autres sujets
connexes, lisez les informations de sécurité et de conformité Extron, réf.
68-290-01, sur le site Extron,
www.extron.fr.
Sicherheitsanweisungen • Deutsch
WARNUNG: Dieses Symbol auf dem Produkt soll den Benutzer
darauf aufmerksam machen, dass im Inneren des Gehäuses dieses
Produktes gefährliche Spannungen herrschen, die nicht isoliert sind
und die einen elektrischen Schlag verursachen können.
警告： 产品上的这个标志意在警告用户该产品机壳内有暴露的危险
电 压 ，有 触 电 危 险 。
注意： 产品上的这个标志意在提示用户设备随附的用户手册中有
重要的操作和维护(维修）说明。
关于我们产品的安全指南、遵循的规范、
使用的特性等相关内容，敬请访问
安全规范指南，产品编号
68-290-01。
EMI/EMF 的兼容性、无障碍
Extron 网站 www.extron.cn，参见 Extron
Chinese Traditional（繁體中文）
警告: 若產品上使用此符號，是為了提醒使用者，產品機殼內存在著
可能會導致觸電之風險的未絕緣危險電壓。
注意 若產品上使用此符號，是為了提醒使用者。
有關安全性指導方針、法規遵守、EMI/EMF 相容性、存取範圍和相關主題的詳細
資訊，請瀏覽 Extron 網站：www.extron.cn，然後參閱《Extron 安全性與法規
遵守手冊》，準則編號 68-290-01。
Japanese
警告: この記 号 が製品上に表示されている場合は、筐体内に絶縁されて
いない高電圧が流れ、感電の危険があることを示しています。
注意:この 記号 が製品上に表示されている場合は、本機の取扱説明書に
記載されている重要な操作と保守( 整備)の指示についてユーザーの
注意を喚起するものです。
VORSICHT: Dieses Symbol auf dem Produkt soll dem Benutzer in
der im Lieferumfang enthaltenen Dokumentation besonders wichtige
Hinweise zur Bedienung und Wartung (Instandhaltung) geben.
Weitere Informationen über die Sicherheitsrichtlinien, Produkthandhabung,
EMI/EMF-Kompatibilität, Zugänglichkeit und verwandte Themen finden Sie in
den Extron-Richtlinien für Sicherheit und Handhabung (Artikelnummer
68-290-01) auf der Extron-Website, www.extron.de
.
Instrucciones de seguridad • Español
ADVERTENCIA: Este símbolo, , cuando se utiliza en el producto,
avisa al usuario de la presencia de voltaje peligroso sin aislar dentro del
producto, lo que puede representar un riesgo de descarga eléctrica.
ATENCIÓN: Este símbolo, , cuando se utiliza en el producto, avisa
al usuario de la presencia de importantes instrucciones de uso y
mantenimiento recogidas en la documentación proporcionada con
el equipo.
Para obtener información sobre directrices de seguridad, cumplimiento
de normativas, compatibilidad electromagnética, accesibilidad y temas
relacionados, consulte la Guía de cumplimiento de normativas y seguridad
de Extron, referencia 68-290-01, en el sitio Web de Extron, www.extron.es
安全上のご注意、法規厳守、EMI/EMF適合性、その他の関連項目に
つ い て は 、エ ク ストロ ン の ウ ェ ブ サ イト www.extron.jpより
『Extron Safety and Regulatory Compliance Guide 』 (P/N 68-290-01) をご覧ください。
Korean
경고: 이 기호 , 가 제품에 사용될 경우, 제품의 인클로저 내에 있는
접지되지 않은 위험한 전류로 인해 사용자가 감전될 위험이 있음을
경고합니다.
주의: 이 기호 , 가 제품에 사용될 경우, 장비와 함께 제공된 책자에 나와
있는 주요 운영 및 유지보수(정비) 지침을 경고합니다.
안전 가이드라인, 규제 준수, EMI/EMF 호환성, 접근성, 그리고 관련
항목에 대한 자세한 내용은 Extron 웹 사이트(www.extron.co.kr)의
Extron 안전 및 규제 준수 안내서, 68-290- 01 조항을 참조하십시오.
.
FCC Class A Notice
This equipment has been tested and found to comply with the limits for a Class A digital
device, pursuant to part15 of the FCC rules. The ClassA limits provide reasonable
protection against harmful interference when the equipment is operated in a commercial
environment. This equipment generates, uses, and can radiate radio frequency energy and,
if not installed and used in accordance with the instruction manual, may cause harmful
interference to radio communications. Operation of this equipment in a residential area is
likely to cause interference; the user must correct the interference at his own expense.
NOTE: For more information on safety guidelines, regulatory compliances, EMI/
EMF compatibility, accessibility, and related topics, see the “Extron Safety and
Regulatory Compliance Guide” on the Extron website.
FDA/IEC 60825-1 Requirements
CLASS 1 LASER PRODUCT
Complies with FDA performance standards for laser products except for deviations pursuant
to Laser Notice No. 5, dated June 24, 2007.
The product is intended to be used with the fiber optic cables fully installed.
This product meets the applicable requirements of IEC 60825-1, Edition 1 (2007).
Any service to this product must be carried out by Extron Electronics and its qualified
service personnel.
Copyright
© 2013 Extron Electronics. All rights reserved.
Trademarks
All trademarks mentioned in this guide are the properties of their respective owners.
The following registered trademarks
(®)
, registered service marks
(SM)
, and trademarks
(TM)
are the property of
RGBSystems, Inc. or Extron Electronics:
Registered Trademarks
AVTrac, Cable Cubby, CrossPoint, eBUS, EDID Manager, EDID Minder, Extron, Flat Field, GlobalViewer, Hideaway, Inline, IPIntercom, IPLink,
Key Minder, LockIt, MediaLink, PoleVault, PowerCage, PURE3, Quantum, SoundField, SpeedMount, SpeedSwitch, System Integrator,
TeamWork, TouchLink, V-Lock, VersaTools, VN-Matrix, VoiceLift, WallVault, WindoWall, XTP and XTP Systems
Registered Service Mark
AAP, AFL (Accu-Rate Frame Lock), ADSP (Advanced Digital Sync Processing), AIS (Advanced Instruction Set), Auto-Image, CDRS (Class D
Ripple Suppression), DDSP (Digital Display Sync Processing), DMI (Dynamic Motion Interpolation), DriverConfigurator, DSPConfigurator, DSVP
(Digital Sync Validation Processing), FastBite, FOXBOX, IP Intercom HelpDesk, MAAP, MicroDigital, ProDSP, QS-FPC (QuickSwitch Front Panel
Controller), Scope-Trigger, SIS, Simple Instruction Set, Skew-Free, SpeedNav, Triple-Action Switching, XTRA, ZipCaddy, ZipClip
(SM)
: S3 Service Support Solutions
Trademarks
(®)
(™)
Conventions Used in this Guide
Notifications
The following notifications are used in this guide:
WARNING: A warning indicates a situation that has the potential to result in death or
severe injury.
CAUTION: A caution indicates a situation that may result in minor injury.
ATTENTION: Attention indicates a situation that may damage or destroy the product or
associated equipment.
NOTE: A note draws attention to important information.
TIP: A tip provides a suggestion to make working with the application easier.
Software Commands
Commands are written in the fonts shown here:
^AR Merge Scene,,Op1 scene 1,1 ^B 51 ^W^C
[01] R 0004 00300 00400 00800 00600 [02] 35 [17] [03]
E X! *X1&* X2)* X2#* X2! CE
NOTE: For commands and examples of computer or device responses mentioned
in this guide, the character “0” is used for the number zero and “O” represents the
capital letter “o.”
Computer responses and directory paths that do not have variables are written in the font
shown here:
Reply from 208.132.180.48: bytes=32 times=2ms TTL=32
C:\Program Files\Extron
Variables are written in slanted form as shown here:
ping xxx.xxx.xxx.xxx —t
SOH R Data STX Command ETB ETX
Selectable items, such as menu names, menu options, buttons, tabs, and field names are
written in the font shown here:
From the
Click the OK button.
File menu, select New.
Specifications Availability
Product specification are available on the Extron website, www.extron.com.
}
Contents
Introduction ................................................... 1
About This Guide ................................................ 1
About the FOX T UWP 302 ................................. 1
System Compatibility ...................................... 1
Cable Transmission Modes ............................. 1
Key Features ...................................................... 2
Application Diagram ........................................... 3
Installation and Operation ........................... 4
Installation Overview ........................................... 4
Rear Panel Features ........................................... 5
Front Panel Features ........................................... 6
Outside-the-Faceplate Features ...................... 6
Under-the-Faceplate Features ........................ 7
Mounting and Making Connections .................... 8
Mounting ........................................................ 8
Connecting the HDMI Connector .................... 9
Wiring for Fiber Communication ...................... 9
Wiring for Remote RS-232 and Alarm
Communication ........................................... 10
Wiring the Power Supply .............................. 11
Operation ......................................................... 12
Initial Power Up............................................. 12
System Reset ............................................... 12
SIS Conguration and Control .................. 13
Simple Instruction Set Control .......................... 13
SIS Programming Guide ............................... 13
Command and Response Tables for SIS
Commands ................................................. 16
FOX Extenders Control Program ............... 21
Installing the Software ....................................... 21
Starting the Software ........................................ 22
Using the Software ........................................... 22
Top Menu ..................................................... 23
Main Screen ................................................. 30
Reference Information ............................... 38
Firmware Loader .............................................. 38
Downloading Extron Firmware Loader .......... 38
Installing Firmware Loader ............................ 39
Firmware Updates ............................................ 39
Downloading Firmware ................................. 39
Installing Firmware with Firmware Loader ...... 40
ivFOX T UWP 302 Wallplate Transmitter • Contents
FOX T UWP 302 Wallplate Transmitter • Contents v
Introduction
This section describes general information about this guide and the FOX T UWP 302
Universal Wallplate Transmitter and selected device features. Topics in this section include:
• About This Guide
• About the FOX T UWP 302
• Key Features
• Application Diagram
About This Guide
This guide describes installation, operation, and control procedures, and reference
information for the FOX T UWP 302 Universal Wallplate Transmitter. In this guide,
“FOX T UWP 302” refers to the FOX T UWP 302 Universal Wallplate Transmitter in
singlemode or multimode.
About the FOX T UWP 302
The Extron FOX T UWP 302 is a three-gang universal wallplate transmitter with a two input
integrated switcher that provides long haul transmission of HDCP-compliant HDMI, RGBHV,
or HD component video; stereo audio; and RS-232 signals over fiber optic cabling. It has
dedicated connectors for RGB, HDMI, and audio.
To configure and control the FOX T UWP 302, connect a host device, such as a computer,
and enter Simple Instruction Set (SIS) commands (see Simple Instruction Set Control
on page 13) or use the FOX Extenders Control Program (see FOX Extenders Control
Program on page 21).
System Compatibility
The FOX T UWP 302 operates in either of two modes, selected under RS-232 control, for
compatibility with other, non-HDMI, units:
• Plus — Supports resolutions up to 1920x1200 @ 60 Hz, including HDTV 1080p/60 Hz.
The fiber optic output of the transmitter can be received only by one of six receivers: a
FOXBOX HDMI Rx, FOXBOX DVI Plus Rx, PowerCage HDMI Rx, PowerCage FOX DVI
Plus Rx, FOXBOX SR HDMI, and PowerCage FOX SR HDMI.
• Non-Plus — Supports resolutions up to 1600x1200 and 1080p @ 60 Hz (including
HDTV 1080p/60 Hz), is HDCP compliant, and does not contain embedded audio
(analog audio is still supported). The fiber optic output of the transmitter can be received
by any FOXBOX, PowerCage FOX, and FOX 500 VGA and DVI unit, including the Plus
and non-Plus units.
Cable Transmission Modes
The transmitter is categorized by the type of fiber optic cable, multimode
(FOX T UWP 302 MM) or singlemode (FOX T UWP 302 SM), which define the effective
range of transmission:
• Multimode — Long distance, up to 2 km (6,560 feet) (depending on the fiber cable)
• Singlemode — Very long distance, up to 30 km (18.75 miles)
1FOX T UWP 302 Wallplate Transmitter • Introduction
Key Features
High reliability and maximum performance transmission over long distance fiber
optic cabling — Transmits HDMI or analog video and stereo audio signals over very long
distances using fiber optic cabling.
Inputs — Include a female HDMI type A connector; 15-pin HD connector for RGBHV,
RGBS, or HD component video; and a 3.5 mm stereo mini-jack for unbalanced stereo
audio.
All digital technology — Delivers pixel-for-pixel transmission of video signals to ensure
optimal image quality at resolutions up to 1920x1200, including HDTV 1080p/60.
Digital conversion of analog video — Analog signals are digitized, ensuring that a
reliable, high quality digital video signal is sent to the output destination.
Auto-input switching — Automatically switches to the lowest or highest priority input with
an active video signal for simplified operation.
HDCP-compliance
Key Minder — Authenticates and maintains continuous HDCP encryption between input
and output devices to ensure quick and reliable switching in professional AV environments,
while enabling simultaneous distribution of a single source signal to one or more displays.
EDID Minder — Automatically manages EDID communication between connected devices
to ensure that all sources properly power up and reliably display content.
Audio embedding — Converts analog stereo audio signals to digital HDMI audio when the
analog input is selected.
Audio gain and attenuation adjustment capability
LED indicators for signal presence, HDCP, and power — Provides a visual indication of
system status for real-time feedback and monitoring of key performance parameters.
Multimode and singlemode availability — Available as an 850 nm multimode model for
long-range transmissions up to 2 km (6,560 feet), and a 1310 nm singlemode model for
extreme distances up to 30 km (18.75 miles).
Industry standard LC connectors — Provide reliable physical connectivity and precise
fiber core alignment.
Compatibility with the following Extron FOX series products:
• Matrix switchers — Creates HDCP-compliant signal distribution systems up to
1000x1000 and larger.
• HDMI, DVI Plus, DVI, and VGA receivers — Compatible with FOX series HDMI and
DVI Plus receivers up to 1920x1200, including HDTV 1080p/60. Compatible with
FOX series DVI and VGA receivers up to 1600x1200, including HDTV 1080p/60.
NOTE: The FOX T UWP 302 is not compatible with the FOX 3G HD-SDI, FOX 3G DVC,
or FOX AV models.
Front panel USB configuration port
Mounts in an included three-gang Decora
®
-style wallplate — Includes a
black or white three-gang Decora-style wallplate to blend with a wide range of
environments.
Includes LockIt HDMI cable lacing bracket
Energy-efficient external universal power supply included — Provides worldwide
compatibility, low power consumption, and reduced operating costs.
FOX T UWP 302 Wallplate Transmitter • Introduction 2
Application Diagram
Extron
The following diagram shows a typical application of the FOX T UWP 302 with two input
sources, connected to a fiber optic receiver.
XPA 1002
Power
Amplier
RxTx
LINK
LINK
POWER
OPTICAL
12V
1.0A MAX
Extron
FOXBOX SR HDMI
Fiber Optic Receiver
XPA 1002
2
OUTPUT
1
CLASS 2 WIRING
REMOTE
10V 50 mA
VOL/MUTE
INPUTS
2
STANDBY
1
LEVEL
2
1
0
2
1
0
LIMITER/
PROTECT
SIGNAL
100-240V 1.3A, 50-60Hz
REMOTE
RS-232
ALARM
RS-232
Tx Rx
OVER FIBER
AUDIO
L R
OUTPUTS
Tx Rx 1 2
HDMI
HDMI AUDIO
ON
OFF
FOX SR HDMI
HDMI
Audio
Up to 30 km (18.75 miles)
Singlemode Fiber
SM Model
Flat Panel
Display
Extron
SI 28
Surfacemount
Speakers
Extron
FOX T UWP 302
Fiber Optic
Transmitter
HDMI INPUT
AUDIO INPUT
COMPUTER INPUT
POWER
PC
HDMI
HDCP
AUDIO
VGA
HDMI + Audio
Audio
Laptop
with VGA
Output
Laptop
with HDMI
Output
Figure 1. Typical FOX T UWP 302 Application
FOX T UWP 302 Wallplate Transmitter • Introduction 3
Installation and Operation
This section describes procedures to cable, connect, and manually operate the
FOX T UWP 302. Topics in this section include:
• Installation Overview
• Rear Panel Features
• Front Panel Features
• Mounting and Making Connections
• Operation
Installation Overview
Install the FOX T UWP 302 into an electrical UL Listed junction box.
CAUTION: Risk of personal injury. Failure to check the items listed below may result
in personal injury.
ATTENTION: Failure to check the items listed below may result in property damage.
1. Check that installation of an electrical UL Listed junction box meets local and state
building, electrical, and safety codes.
2. Install the junction box according to the junction box installation instructions.
3. Prepare and pull the cables through the junction box.
TIP: Secure cables with clamps or ties to provide strain relief.
4. Trim back and insulate shields with heat shrink.
ATTENTION: To prevent short circuits, the outer foil shield can be cut back to the
point where the cable exits the cable clamp. Both braided and foil shields should
be connected to an equipment ground at the other end of the cable.
5. Connect cables to the rear panel connectors (see Rear Panel Features on page 5).
6. Mount the FOX T UWP 302 enclosure into the junction box (see Mounting on page 8).
7. Configure the FOX T UWP 302 with SIS commands (see Simple Instruction Set
Control on page 13) or the FOX Extenders control program (see FOX Extenders
Control Program on page 21).
8. Install the faceplate (see Mounting on page 8).
4FOX T UWP 302 Wallplate Transmitter • Installation and Operation
Rear Panel Features
Tx
a
b
c
RearRight Side
Tx
Rx
G
1
2
+
-
REMOTE
RS-232
ALARM
POWER
12V
0.6A MAX
Rx
Figure 2. FOX T UWP 302 Rear Connectors from the Side and Rear Panels
Fiber connector — For one-way video, audio, and serial
a
communication from the transmitter to a receiver, connect a fiber optic
cable between the Tx port on the transmitter and the Rx port on a
receiver.
To return serial data from a receiver to the transmitter (such as
responses from a controlled device) or for HDCP-compliance, connect a
fiber optic cable between the Rx port on the transmitter and the Tx port
on the receiver (see Wiring for Fiber Communication on page 9).
NOTES:
• Ensure the proper fiber optic cable is used. Typically,
singlemode fiber optic cable has a yellow jacket and multimode
Transmitter
to
Receiver
fiber optic cable has an orange or aqua jacket.
• Only one fiber optic cable, transmitter-Tx-to-receiver-Rx,
is required for video, audio, and serial command transmission,
but the HDMI signal output on the receiver will not be
HDCP-compliant.
LINK
Tx
OPTICAL
Tx
OPTICAL
Rx
Rx
LINK
Remote RS-232 port — For serial RS-232 control, connect a host device
b
to the transmitter via the leftmost poles (Tx, Rx, and G) of this 5-pole
captive screw connector (see Wiring for Remote RS-232 and Alarm
Communication on page 10 for wiring configuration).
Alarm output port — For remote monitoring of the status of fiber optic
link 2, connect a custom or furnished monitoring device to the transmitter
via the rightmost poles (1 and 2) of this 5-pole captive screw connector (see
Wiring for Remote RS-232 and Alarm Communication on page 10).
NOTE: Pins 1 and 2 short when link 2 does not detect any connection.
Power connector — Connect the provided external 12 VDC power supply
c
to this 3.5 mm, 2-pole captive screw connector (see Wiring the Power
Supply on page 11).
FOX T UWP 302 Wallplate Transmitter • Installation and Operation 5
Tx Rx G 1 2
Tx Rx 1 2G
Front Panel Features
a
Tip (+)
Sleeve ( )
Sleeve ( )
Ring (-)
Tip (+)
Audio Plugs.eps
RCA Connector
3.5 mm Stereo Plug Connector
(balanced)
Outside-the-Faceplate Features
b
AUDIO INPUT
POWER
PC
HDMI
HDCP
AUDIO
COMPUTER INPUT
HDMI INPUT
d
c
Figure 3. FOX T UWP 302 Outside-the-Faceplate Features
LED indicators
a
Power LED — Lights when the device receives 12 V from an external power supply.
PC LED — Lights when PC input is detected.
HDMI LED — Lights when HDMI input is detected.
HDCP LED — Lights if the HDMI input signal is HDCP encrypted.
Audio LED — Lights when the device detects audio with the selected input. If the
selected input has an analog audio signal above -44 dBV, the Audio LED lights
immediately, but turns off only after the audio signal level drops below the threshold
continuously for 10 seconds. If the selected input has digital embedded audio, the
Audio LED lights and remains lit as long as the digital audio signal is detected.
Audio Input connector — Connect an audio source to the 3.5 mm TRS jack.
b
Tip (L)
Ring (R)
Sleeve ( )
3.5 mm Stereo Plug Connector
(unbalanced)
Figure 4. Wiring for Unbalanced Stereo Audio
Computer Input connector — Connect a video source to the female 15-pin HD
c
connector.
HDMI Input connector — Connect a source device to the HDMI connector. This
d
connector can accept HDMI, DVI, or dual mode DisplayPort video signals.
FOX T UWP 302 Wallplate Transmitter • Installation and Operation 6
Under-the-Faceplate Features
f
g
POWER
PC
HDMI
HDCP
AUDIO
Figure 5. FOX T UWP 302 Under-the-Faceplate Features
Link 1 and Link 2 LED indicators — Light when there is light present on the
e
corresponding fiber optic port.
e
LINK 1
RESET
CONFIG
AUDIO INPUT
LINK 2
COMPUTER INPUT
HDMI INPUT
Reset button — Press the Reset button to return device settings or firmware to the
f
factory default settings (see System Reset on page 12).
Config port — Connect a host device, such as a PC, to the mini-USB type B config
g
port for RS-232 protocol control of all FOX T UWP 302 functions. Configure the
FOX T UWP 302 with SIS commands (see Simple Instruction Set Control on page 13)
or the FOX Extenders control program (see FOX Extenders Control Program on
page 21).
FOX T UWP 302 Wallplate Transmitter • Installation and Operation 7
Mounting and Making Connections
Mounting
Scr
(6 Plcs)
Mounting
Before mounting an electrical UL Listed junction box, consider the mounting location and
prepare the surface as necessary.
Flush with
Wall Surface
e
Wall Stud
Junction Box
Screws or Nails
b
f
ews
Extron
FOX T UWP 302
Universal Wallplate
Transmitter
Figure 6. Mounting the FOX T UWP 302 Into a Junction Box
1. Mount the junction box in the wall or floor, following the directions provided with the
box.
2. Run the cables through the junction box.
TIP: Secure cables with clamps or ties to provide strain relief.
ATTENTION: To prevent short circuits, the outer foil shield can be cut back to the
point where the cable exits the cable clamp. Both braided and foil shields should
be connected to an equipment ground at the other end of the cable.
3. Disconnect power from all devices at the source.
4. Connect all cables to the FOX T UWP 302 rear panel connectors.
5. Secure the FOX T UWP 302 enclosure to the box using three of the provided screws
into the slots at the top and bottom of the device.
6. Fasten the Decora wallplate onto the enclosure using six of the provided screws in the
holes at the top and bottom.
FOX T UWP 302 Wallplate Transmitter • Installation and Operation 8
Connecting the HDMI Connector
Transmitter
to
Receiver
OPTICAL
Rx
Tx
LINK
LINK
OPTICAL
Rx
Tx
Use an Extron LockIt Lacing Bracket to secure an HDMI cable to each device as follows:
c
d
3
b
e
a
Figure 7. Installing the LockIt Lacing Bracket
1. Plug the HDMI cable into the panel connection.
2. Loosen the HDMI connection mounting screw from the panel enough to allow the
LockIt lacing bracket to be placed over it. The screw does not have to be removed.
3. Place the LockIt lacing bracket on the screw and against the HDMI connector, then
tighten the screw to secure the bracket.
ATTENTION: Do not overtighten the HDMI connector mounting screw. The shield
to which it fastens to is very thin and can easily be stripped.
4. Loosely place the included tie wrap around the HDMI connector and the LockIt lacing
bracket as shown.
5. While holding the connector securely against the lacing bracket, use pliers or a similar
tool to tighten the tie wrap, then remove any excess length.
Wiring for Fiber Communication
WARNING: Risk of serious physical injury: This device outputs
continuous invisible light, which may be harmful to the eyes; use with
caution.
• Do not look into the rear panel fiber optic cable connectors or into
the fiber optic cables themselves.
• Plug the attached dust caps into the optical transceivers when
the fiber cable is unplugged.
NOTES:
• Ensure the proper fiber optic cable is used for the transmitter and
receiver. Typically, singlemode fiber optic cable has a yellow jacket
and multimode fiber optic cable has an orange or aqua jacket.
• Only one fiber optic cable, transmitter-Tx-to-reciever-Rx, is
required for video, audio, and serial command transmission.
However, for only one fiber optic cable, the HDMI signal output by
the receiver is not HDCP-compliant.
• To receive responses from the controlled device and for HDCP
compliance, install both fiber optic cables and leave link 2
enabled.
FOX T UWP 302 Wallplate Transmitter • Installation and Operation 9
Wiring for Remote RS-232 and Alarm Communication
REMOTE
The Remote RS-232 and Alarm connector is for RS-232 control (such as updating firmware,
status queries, and various control functions) and the alarm feature. Wire the connector as
shown in figure 8 below.
RS-232 ALARM
Tx Rx G1 2
RxTx
RS-232 Device
G
Figure 8. Wiring the Remote RS-232 and Alarm Connector
ATTENTION: The length of exposed wires is critical. The ideal length is
3/16 inch (5 mm).
• Longer bare wires can short together.
• Shorter wires are not as secure in the connectors and could be pulled out.
12
Alarm Device
Cross the Tx and Rx lines once between the source and the target.
The alarm pins do not produce any discrete on or off or voltage signals. It is an internal relay
to connect or disconnect a custom alarm circuit.
NOTE: If power is lost or if link 2 optical light is disconnected, lost, or broken, alarm
pins 1 and 2 internally short.
FOX T UWP 302 Wallplate Transmitter • Installation and Operation 10
Wiring the Power Supply
AA
Connect 12 VDC power supply to the 3.5 mm, 2-pole captive screw connector.
2-Pole Captive Screw
Connector
Tie Wrap
3/16”
(5 mm) Max.
Smooth
Power Supply
Output Cord
Figure 9. Power Connector Wiring
CAUTION: Electric shock hazard. The two power cord wires must be kept separate
while the power supply is plugged in. Remove power before wiring.
Ridges
SECTION A–A
ATTENTION:
• This product is intended to be supplied by a Listed Power Unit marked “Class 2”
or “LPS,” rated 12 VDC, 1.0 A minimum. Always use a power supply supplied by
or specified by Extron. Use of an unauthorized power supply voids all regulatory
compliance certification and may cause damage to the supply and the end product.
• Unless otherwise stated, the AC/DC adapters are not suitable for use in air handling
spaces or in wall cavities. The installation must always be in accordance with the
applicable provisions of National Electrical Code ANSI/NFPA 70, article 75 and
the Canadian Electrical Code part 1, section 16. The power supply shall not be
permanently fixed to a building structure or similar structure.
• Power supply voltage polarity is critical. Incorrect voltage polarity can damage the
power supply and the unit. The ridges on the side of the cord identify the power cord
negative lead.
• The length of the exposed (stripped) copper wires is important. The ideal length is
3/16 inch (5 mm).
TIP: Do not tin the stripped power supply leads. Tinned wires are not as secure in the
captive screw connectors and could be pulled out.
FOX T UWP 302 Wallplate Transmitter • Installation and Operation 11
Operation
After all devices are connected and powered, the system is fully operational. The
FOX T UWP 302 can be configured through SIS commands (see Simple Instruction Set
Control on page 13) or the FOX Extenders control program (see FOX Extenders Control
Program on page 21).
Initial Power Up
Upon initial power up, all the front panel LEDs blink simultaneously. They blink once to
indicate the device is a multimode device or twice to indicate the device is a singlemode
device. Afterwards, the LEDs return to their normal signal presence indication.
If a different SFP module or no SFP module is connected, the LEDs first blink once or twice
to identify the device and then blink continuously.
System Reset
Use the Reset button beneath the faceplate to return the device to default settings or to
restore factory-shipped firmware (see to the Reset Mode Summary table below for more
details). If necessary, remove the faceplate.
Reset Mode Summary
Mode Mode Activation Result Purpose/Notes
1 Hold the Reset button down
while applying power to the
device.
NOTE: After a mode 1
reset, update the device
with the latest firmware
Factory Reset
version. DO NOT operate
the firmware version that
results from this mode
reset.
• The device reverts to the factory
default firmware.
• All user files and settings (audio
adjustments, audio input selection,
input selection, auto-switch mode,
picture adjustments, and input
video format) are maintained.
Use mode 1 to revert
to factory firmware for
a single power cycle if
an incompatibility issue
arises.
5 Hold the Reset button down
for about 9 seconds or until
the Power LED blinks three
times. Then press the Reset
button momentarily (for
<1 second) within 1 second.
NOTE: The reset
procedure is aborted if the
Reset to Factory Defaults
second momentary press
does not occur within one
second.
• Mode 5 performs a complete
reset to factory defaults except for
firmware.
• Reset all user modifiable
configurations to default values
including real-time adjustments.
• The Power LED blinks 4 times in
quick succession during the reset.
FOX T UWP 302 Wallplate Transmitter • Installation and Operation 12
Use mode 5 to start
over with configuration
or uploading.
NOTE: This is
equivalent to SIS
command ZXXX.
SIS Configuration and Control
This section describes remote control of the FOX T UWP 302 through SIS commands
and basic installation instructions for the FOX Extenders Control Program (see to the FOX
Extenders Control Program Help File for configuration and control details).
To enable serial control of the transmitter, use a computer running the HyperTerminal or
Extron DataViewer utility, or a control system to enable serial control of the transmitter.
Connect the computer to the FOX T UWP 302 through the front panel Config port or the
rear panel Remote RS-232 connector (see Installation and Operation on page 4).
The protocol for the RS-232 port is as follows: 9600 baud, no parity, 8 data bits, 1 stop bit,
no flow control.
Simple Instruction Set Control
SIS Programming Guide
Host-to-device and device-to-host communication
SIS commands consist of one or more characters per field. No special characters are
required to begin or end a command sequence. When the FOX T UWP 302 determines that
a command is valid, it executes the command and sends a response to the host device. All
responses from the transmitter or receiver to the host end with a carriage return and a line
feed (CR/LF = ]), which signals the end of the response character string. A string is one or
more characters.
Device-initiated messages
When a local event occurs, the device responds by sending a message to the host. The
device-initiated message may depend on whether the device is a multimode or singlemode
unit. They are listed below.
© Copyright 2013, Extron Electronics FOX T UWP 302 MM, Vx.xx, 60-1232-xx
© Copyright 2013, Extron Electronics FOX T UWP 302 SM, Vx.xx, 60-1232-xx
Vx.xx is the firmware version number.
Reconfig]
The FOX T UWP 302 returns this message when there is any change to the input frequency
on the currently selected input.
1LnkX%• 2Lnk X%•Vid X%• Aud X%•X1)•TX]
The FOX T UWP 302 returns this status message whenever a change in the fiber link, video,
or audio connection occurs. X% indicates whether the link is present or not present
(0 = not present, 1 = present) and X1) represents whether the device is multimode or
singlemode (MM = multimode, SM = singlemode).
13FOX T UWP 302 Wallplate Transmitter • SIS Configuration and Control
Error responses
Space
When the FOX T UWP 302 receives an SIS command and determines it is valid, it performs
the command and sends the corresponding response to the host device. If the command is
determined invalid or contains invalid parameters, the transmitter returns an error response
to the host. The error response codes are:
E01 = Invalid input number E13 = Invalid parameter
E06 = Invalid switch attempt in this mode E14 = Not valid for this configuration
E10 = Invalid command E17 = Invalid command for signal type
E12 = Invalid port number E22 = Busy
Using the command and response table for SIS commands
The Command and Response Tables begin on page 16. Lowercase letters are
acceptable in the command field except where indicated. Figure 10 shows the hexadecimal
equivalent of ASCII characters used in the command and response tables.
ASCII to Hex Conversion Table
•
Figure 10. ASCII to Hexadecimal Conversion
Symbol definitions
= Carriage return and line feed
]
¦ or }
E or W
= Carriage return with no line feed
= Space
•
= Escape key
FOX T UWP 302 Wallplate Transmitter • SIS Configuration and Control 14
= EDID output resolution and refresh
X2^
See the tables below.
rate
VGA - PC
SIS
Value
1 800x600 60 7 1360x768 60 12 1600x1200 60
2 1024x768 60 8 1366x768 60 13 1680x1050 60
3
4 1280x768 60 10 1440x900 60 15 1920x1200 60
5 1280x800 60 11 1600x900 60 16 2048x1080 60
6 1280x1024 60
Resolution Refresh
Rate (Hz)
1280x720
(default - analog)
SIS
Value
60 9 1400x1050 60 14 1920x1080 60
Resolution Refresh
Rate (Hz)
SIS
Value
Resolution Refresh
Rate (Hz)
DVI - PC
SIS
Value
17 800x600 60 23 1360x768 60 28 1600x1200 60
18 1024x768 60 24 1366x768 60 29 1680x1050 60
19 1280x720 60 25 1400x1050 60 30 1920x1080 60
20 1280x768 60 26 1440x900 60 31 1920x1200 60
21 1280x800 60 27 1600x900 60 32 2048x1080 60
22 1280x1024 60
Resolution Refresh
Rate (Hz)
SIS
Value
Resolution Refresh
Rate (Hz)
SIS
Value
Resolution Refresh
Rate (Hz)
HDMI - PC with 2-channel Audio
SIS
Value
33 800x600 60 38 1360x768 60 43 1600x1200 60
34 1024x768 60 39 1366x768 60 44 1680x1050 60
35 1280x768 60 40 1400x1050 60 45 1920x1200 60
36 1280x800 60 41 1440x900 60 46 2048x1080 60
37 1280x1024 60 42 1600x900 60
Resolution Refresh
Rate (Hz)
SIS
Value
Resolution Refresh
Rate (Hz)
SIS
Value
Resolution Refresh
Rate (Hz)
HDMI HDTV
SIS
Value
47
48
49
50
Resolution Refresh
Rate (Hz)
480p
2-ch audio
576p
2-ch audio
720p
2-ch audio
720p
2-ch audio
(default - digital)
60 51
50 52
50 53
60
SIS
Value
Resolution Refresh
Rate (Hz)
1080i
2-ch audio
1080i
2-ch audio
1080p
2-ch audio
50 54
60 55
50 56
SIS
Value
Resolution Refresh
Rate (Hz)
1080p
2-ch audio
VGA user
assigned or
imported 1
HDMI user
assigned or
imported 2
60
FOX T UWP 302 Wallplate Transmitter • SIS Configuration and Control 15
Command and Response Tables for SIS Commands
Command ASCII Command
(Host to Device)
Response
(Device to Host)
Additional Description
Input Switching
Input selection
Video input select
View video input
NOTE: The FOX T UWP 302 saves the last input selection when cycling power.
Auto switch mode
Disable auto switch mode
Set priority to the highest
active input
Set priority to the lowest
active input
View auto switch mode
setting
NOTE: This command can be entered only via RS-232 or USB. The settings will only reset back to (off) once
setting is changed, or when unit is reset.
X1!! InX1!
!
•
X1!]
E0AUSW } Ausw0]
E1AUSW } Ausw1]
E2AUSW} Ausw2]
EAUSW } X1@]
ALL] Select input X1!.
View currently selected source.
Manual input switching only.
Gives priority to the highest
numbered active input (default).
Gives priority to the lowest
numbered active input.
View current setting.
Audio Configuration
Audio gain and attenuation
NOTE: Gain and attenuation are case-sensitive.
Set gain
Set attenuation
Increment gain or
attenuation
Decrement gain or
attenuation
View audio level
Audio input selection
Set audio input format
View input audio format
NOTE: X& = Audio gain 0 to 10 (in dB)
X&G AudX(] Set gain to X(.
X*g AudX(] Set attenuation to X(.
+G or +g
-G or -g
G or g
Aud
Aud
X(]
EI X1!*X2% AFMT} AfmtIX1!*X2%]
EIX1! AFMT} X2%]
X* = Audio attenuation –18 to 0 (in dB)
X( = Audio level –18 to +10 (in dB)
X1! = Input selection 1 = VGA
2 = HDMI
X1@ = Auto switch mode 0 = disable
1 = gives priority to the highest numbered active input
(default)
2 = gives priority to the lowest numbered active input
X2% = Audio input format 0 = auto (default)
1 = embedded digital
2 = analog
X(] Audio level is X(.
X(] Audio level is X(.
View current audio level.
FOX T UWP 302 Wallplate Transmitter • SIS Configuration and Control 16
Command ASCII Command
(Host to Device)
Picture Adjustment (Analog Only)
Pixel phase
Set a pixel phase value
Increment value
Decrement value
View pixel phase value
Total pixels
Set the total pixel value
Increment value
Decrement value
View total pixel value
Horizontal start
Set horizontal start value
Increment value
Decrement value
View horizontal start value
E1* X2@ PHAS} Phas X2@ ] Adjust the pixel phase to X2@ for
E1+PHAS} PhasX2@]
E1-PHAS} PhasX2@]
E1PHAS} X2@]
E1* X2# TPIX} Tpix X2#] Set the total pixels to X2# for
E1+TPIX} TpixX2#]
E1-TPIX} TpixX2#]
E1TPIX} X2#]
E1* X2$ HSRT} Hsrt X2$ ]
E1+HSRT} HsrtX2$]
E1-HSRT} HsrtX2$]
E1HSRT} X2$]
EDID
NOTE: Digital EDID can be assigned only to a digital input and analog EDID can be assigned only to an analog
input.
Input EDID (VGA and HDMI)
Assign EDID
View assigned EDID
View EDID native resolution
View current EDID in Hex
Export specific EDID
selection
Import EDID to store
location
EA X1! *X2^ EDID} EdidAX1!*X2^] Set the EDID for the X1! input.
EA X1! EDID} X2^] View EDID for the X1! input.
EN X1! EDID} X@]
ER X1! EDID} X#]
EE X2^ EDID} X$
EI X1$ EDID}X$ E EdidI X1$ ]
Response
(Device to Host)
Additional Description
input 1.
Increase the pixel phase.
Decrease the pixel phase.
Show the pixel phase value for
input 1.
input 1.
Increase the total pixels.
Decrease the total pixels.
Show the total pixels for input 1.
Set horizontal location of first
active pixel in input 1.
Move the image to the right.
Move the image to the left.
Show horizontal location of the
first active pixel in input 1.
View EDID in Hex format.
Export EDID in binary format.
Import EDID in binary format to
user stored EDID slot ‘
X1$.’
NOTE: X@ = Native resolution and refresh rate
X# = EDID record (Hex) 128 or 256 bytes
X$ = EDID record (binary) 128 or 256 bytes
X1! = Input selection 1 = VGA
2 = HDMI
X1$ = User assigned EDID 55 = VGA input 1
56 = HDMI input 2
X2@ = Pixel phase 0 to 63 (32 = default)
X2# = Total pixels ±255 of the default value (depends on the input rate)
X2$ = Horizontal start 0 to 255 (128 = default)
X2^ = EDID output resolution See the tables on page 15.
FOX T UWP 302 Wallplate Transmitter • SIS Configuration and Control 17
Command ASCII Command
(Host to Device)
Advanced Configuration
Input sync detection
View input sync detection
Input video format (VGA only)
Set input video format
View input video format
Plus mode transmission
Disable Plus mode
transmission
Enable Plus mode
transmission
View Plus mode
transmission
HDCP authorized device (HDMI input only)
HDCP authorized device on
HDCP authorized device off
Query HDCP authorized
device status
HDCP status (HDMI input only)
Query HDCP status
E1LS} xxx.x,xxx.x ]
1*X1%\ Typ1*X1% ] Sets input 1 to format X1%.
1\
81*0#
81*1#
81#
EE2*1HDCP} HdcpE2*1]
EE2*0HDCP} HdcpE2*0]
EE2HDCP} X^]
EI2HDCP} X1#]
Response
(Device to Host)
X1%]
]
Plus0
]
Plus1
X%]
Additional Description
Shows horizontal frequency in kHz
and vertical frequency in Hz.
000.0,000.0 if no signal.
View video format of input 1.
Disable Plus mode transmission.
Enable Plus mode transmission
(default).
View Plus mode transmission
setting.
HDCP authorized device on for
input 2 (default).
HDCP authorization off for input 2.
View the HDCP authorization
status.
Query the HDCP status of the
current input.
NOTE: X% = Enable or disable 0 = off or disabled
1 = on or enabled
X^ = HDCP authorization 0 = HDCP authorization off
1 = HDCP authorization on (default)
X1# = HDCP status 0 = no source detected
2 = source detected but no HDCP is present
1 = source detected with HDCP
X1% = Input video format 0 = auto detect (default)
1 = RGB (full range)
2 = YUV
FOX T UWP 302 Wallplate Transmitter • SIS Configuration and Control 18
Command ASCII Command
(Host to Device)
Device name
NOTE: No blank or space characters are permitted. The first character must be a letter. The last character
cannot be a minus or hyphen.
Response
(Device to Host)
Additional Description
Set unit name
Set unit name to factory default
View unit name
Information requests
General information
Query part number
Query firmware version
Query firmware build
Query all firmware version
Query updated FPGA version
Status request
View fiber link 1 status
View fiber link 2 status
View input video status
View input audio status
Request all signal status
Request HDMI signal status
Request HDCP status
NOTE: X% = Enable or disable 0 = off or not detected
1 = on or detected
EX1^ CN} Ipn
E
CN} Ipn
•
ECN} X1^]
I
N
Q
*Q
0Q
35Q
1S
2S
3S
4S
5S
6S
7S
X1^]
•
X1&]
•
X%
1Lnk
60-1232-xx
]
x.xx
x.xx.xxxx
x.xx-x.xx
]
x.xx
X%]
X%]
X%X%]
X%]
X%X%
SigI
X%
SigI
2HdcpI
X^ = HDCP authorization 0 = HDCP authorization off
1 = HDCP authorization on (default)
X1) = SFP module type SM = singlemode
MM = multimode
X1# = HDCP status 0 = no source detected
1 = source detected with HDCP
2 = source detected but no HDCP is present
X1^ = Unit name Text string up to 24 characters (A-Z, 0-9, -)
X1& = Extron device name FOX-T-UWP-302
Set device name.
Set device to default.
View device name.
2LnkX%•VidX%•AudX%
•
]
]
]
View the updated loaded
FPGA version.
View the on or off status
of input 1 and 2.
SigO-•2HdcpIX%•HdcpO-]
•
SigO-]
•
X%
HdcpO-]
•
•
X1)
TX]
•
FOX T UWP 302 Wallplate Transmitter • SIS Configuration and Control 19
Command ASCII Command
Internal temperature
View internal temperature
Factory reset
System reset (factory default)
Reset audio gain and
attenuation
Upload firmware
Upload firmware
SFP module
View SFP module information
NOTE: X! = Internal temperature
(Host to Device)
20S
EZXXX} Zpx]
EZA} Zpa]
EUpload} SendHeader]
40S
X1* = Vendor or manufacturer name
X1( = Transmit (Tx) output power in dBm
X2) = Receive (Rx) optical power in dBm
X2! = Operation temperature of the SFP modules in degrees Celsius
Response
(Device to Host)
X!]
X1*•X1(•X2)•X2!]
Additional Description
Internal temperature in
degrees Fahrenheit and
Celsius.
Resets unit to factory
default (see System Reset
on page 12).
Reset audio gain and
attenuation to default levels.
FOX T UWP 302 Wallplate Transmitter • SIS Configuration and Control 20
FOX Extenders Control Program
The Extron FOX Extenders Control Program provides an alternate method to control
and configure the FOX T UWP 302. The application provides controls to adjust device
parameters that are specific to the basic and advanced setup of the transmitter. Users can
also manage firmware and check for updates to the application. The Extron FOX Extenders
Control Program communicates with the transmitter via the Remote RS-232 port on the rear
panel Remote RS-232 and Alarm connector or front panel USB Config port. The program
is compatible with Microsoft® Windows® 2000, Windows XP, or later Windows operating
systems. Updates to this program can be downloaded from the Extron website
(www.extron.com). Topics in this section include:
• Installing the Software
• Starting the Software
• Using the Software
Installing the Software
The program is contained on the Extron Software Products DVD or available for download
on the Extron website, www.extron.com.
To install the software from the DVD:
1. To install the software, insert the DVD into the DVD drive. The Extron software DVD
window should appear automatically. If it does not self-start, run Launch.exe from the
DVD.
2. Click the Software tab, scroll to the desired program, and click Install.
3. Follow the instructions that appear on the screen. By default, the installation creates a
folder in the Program Files directory for the FOX Extenders Control Program.
To download the software from the website:
1. On the Extron website, click the Download tab.
2. From the left sidebar, click the Software link.
3. Navigate to FOX Extenders.
4. Click the Download link to the right of the desired device.
5. Submit any required information to start the download. Note where the file is saved.
6. Open the executable (.exe) file from the save location.
7. Follow the instructions that appear on the screen. By default, the installation creates a
folder in the Program Files directory for the FOX Extenders Control Program.
21FOX T UWP 302 Wallplate Transmitter • FOX Extenders Control Program
Starting the Software
Start the Extron FOX Extenders Control Program as follows:
1. Open the FOX Extenders Control Program. The Communication Setup window
appears.
Figure 11. Communication Setup Window Connection Methods
2. Select the desired connection method.
• To connect the software to the device through the rear panel Remote RS-232
• To connect the software to the device through the front panel USB connector, click
3. Click the Connect button. The FOX Extenders Control Program window appears.
connector, click the RS232 tab and select the desired port from the Port
drop-down list.
the USB tab and select the Extron USB device from the Extron USB Device dropdown list.
Using the Software
NOTE: Some controls and displays are available only when connected to specific
devices.
For more configuration and control details, see to the FOX Extenders Control Program Help
File for configuration and control details. Open the file using one of the following methods:
• Once the FOX Extenders Control Program is open, press the <F1> key on the
keyboard.
• Once the FOX Extenders Control Program is open, select Contents from the Help
menu.
• From the Windows Start Menu, select FOX Extenders Help from the FOX Extenders
Control Program folder.
The main screen opens (see figure 12 on page 23).
FOX T UWP 302 Wallplate Transmitter • FOX Extenders Control Program 22
Figure 12. Main Screen
The main screen consists of a top menu, Status panel, Input Selection panel, and
Configuration panel.
Top Menu
The top menu consists of three menus for connection options, device information and
configuration, and additional resources.
File menu
The File menu contains options for connecting and disconnecting the device and exiting the
FOX Extenders Control Program.
Figure 13. File Menu
Options that appear gray are not available.
FOX T UWP 302 Wallplate Transmitter • FOX Extenders Control Program 23
Connect
The Connect option establishes communication with a device. This function re-establishes
communication with the device if it times out or enables a connection to a new device.
If a device is already connected, the Connect function is disabled until the device is
disconnected or the connection times out.
To re-establish the connection if communication is lost:
1. From the File menu, select Connect. Alternatively, click the icon. This displays the
Communication Setup dialog box, which is the communication module through which
connection to the device is established.
2. Select the communication port from the Port drop-down list.
3. Click Connect. The Communication Setup dialog box closes and the FOX Extenders
Control Program main screen remains open.
Disconnect
The Disconnect option stops communication with the current device, but leaves the FOX
Extenders Control Program open. Once disconnected, configuration can no longer be done
unless connection is re-established.
To disconnect from the device, select
The status bar at the bottom of the window indicates that the device is disconnected.
Disconnect from the File menu or click the icon.
Exit
The Exit option closes the FOX Extenders Control Program.
To exit the program, select Exit from the File menu.
Tools Menu
The Tools menu contains options for displaying device information or configuring the device.
Figure 14. Tools Menu
FOX T UWP 302 Wallplate Transmitter • FOX Extenders Control Program 24
Unit Info
The Unit Info option opens a dialog box with information about the connected device.
Figure 15. Unit Info Dialog Box
1. From the Tools menu, select Unit Info. This opens a dialog box displaying
information about the connected unit. The displayed information includes:
• Model number of the device
• Name of the device model
• Description of the model
• Firmware version currently found on the device
• Firmware build
• FPGA version
2. Click the OK button to close the dialog box and return to the main screen.
Reset Unit
There are three listed reset options:
• Master System Reset
• Audio Gain/Atten. Reset
• Presets Reset
Depending on the chosen reset option, different settings are cleared.
Figure 16. Reset Unit Menu
NOTE: Be careful to select the intended reset option. Selecting the incorrect reset can
result in unintended loss of settings.
FOX T UWP 302 Wallplate Transmitter • FOX Extenders Control Program 25
Master System Reset — Resets all unit settings and user settings to factory defaults.
From the Tools menu, locate the Reset submenu and select Master System Reset.
Figure 17. Unit System Dialog Box
Audio Gain/Atten. Reset — Resets the level of audio gain and attenuation to factory
defaults.
From the Tools menu, locate the Reset submenu and select Audio Gain/Atten. Reset.
Figure 18. Audio Gain and Attenuation Reset Dialog Box
Presets Reset — Is not available for the FOX T UWP 302.
Update Firmware
The Update Firmware option opens the Extron Firmware Loader application. This application
is used to upload new firmware to the connected device.
NOTE: In order for the Update Firmware option to work, install the Firmware Loader
application (see Firmware Loader on page 37). Otherwise, the Update Firmware
option is disabled.
To update firmware:
1. From the Tools menu, select Update Firmware. Alternatively, click the icon. This
opens Firmware Loader (if this application is already installed on the connected PC).
2. Find firmware to upload to the desired device by performing one of the following
actions:
• From the File menu of Firmware Loader, select New Firmware for Selected
Devices
• In the Devices section of the Firmware Loader main screen, double-click the New
Firmware File
.
field associated with the selected device.
The Choose Firmware File dialog box opens.
3. Browse to the device-specific firmware file that has been downloaded on your PC. Valid
firmware files have a .s19 file extension (see Downloading Firmware on page 38).
4. Click the Open button. The Choose Firmware File dialog box closes.
FOX T UWP 302 Wallplate Transmitter • FOX Extenders Control Program 26
5. Click the Begin button. This uploads the new firmware onto the connected device.
The Progress field for the selected device shows the progress of the upload. After the
upload is complete, this field is blue and shows 100%.
6. Exit Firmware Loader.
7. From the File menu of the FOX Extenders Control Program, select Connect to
re-establish communication with the device.
8. Re-enter the connection information in the Connect dialog box to re-establish
communication with the device.
See the Firmware Loader Help File and supporting documentation for further information
about using Firmware Loader.
Refresh
The Refresh option refreshes the main screen of the FOX Extenders Control Program
without restarting the application. This is useful if connection to a device is lost (such as if
the unit has been unplugged accidentally) or settings change on the device.
From the
Tools menu, select Refresh. Alternatively, click the icon.
Trace Window
The Trace Window option displays data sent to and received from the device in a separate
window for troubleshooting.
Figure 19. Trace Window Dialog Box
1. From the Tools menu, select Trace Window. The Trace Window dialog box opens.
2. To clear existing information, click the Clear button.
3. Click the Close button to close the Trace Window dialog box.
FOX T UWP 302 Wallplate Transmitter • FOX Extenders Control Program 27
Help Menu
The Help menu contains options for additional information and reference material, checking
for updates to the FOX Extenders Control Program, and software information.
Figure 20. Help Menu
Contents
The Contents option launches the FOX Extenders Control Program help file.
Open the help file in one of the following ways:
• From the Help menu, select Contents.
• Press <F1> on your keyboard.
• Click the
icon to launch the help file.
Extron Home Page
The Extron Home Page option displays the Extron website. The Extron website contains
supporting documentation for Extron products and downloadable firmware and software
updates (see Firmware Loader on page 37).
From the Help menu, select Extron Home Page. This opens a new Internet browser
window to the Extron website.
Check for Updates
The Check for Updates option verifies that the latest version of the FOX Extenders Control
Program is being used. If there is a new version available, the option to install it becomes
available.
From the Help menu, select Check for Updates.
FOX T UWP 302 Wallplate Transmitter • FOX Extenders Control Program 28
About...
This option opens a dialog box displaying information about the FOX Extenders Control
Program.
1. From the Help menu, select About. This opens a dialog box displaying information
about the FOX Extenders Control Program. The displayed information includes:
• Name of the application
• Currently installed software version
• Software part number
• Copyright
• Application description
Figure 21. About FOX Extenders Control Program Dialog Box
2. Click the OK button to close this dialog box and return to the main screen of the
application.
FOX T UWP 302 Wallplate Transmitter • FOX Extenders Control Program 29
Main Screen
The Main Screen contains status information, input selection, and configuration options.
Figure 22. Main Screen
NOTE: The main screen may appear different from the image above depending on what
is connected. Functions which are not applicable are disabled.
Status panel
Figure 23. Status Panel
The Status panel of the screen provides visual indications of the connection status and the
names of the connected units. The following information is displayed:
Link 1 Indicator — Displays green when the receiver detects light on Link 1 (connecting
the Tx port of the transmitter to the Rx port of the receiver).
Link 2 Indicator — Displays green when an HDMI transmitter detects light on Link 2
(connecting the Tx port of an HDMI receiver to the Rx port of an HDMI transmitter).
NOTE: For transmission of HDMI video with HDCP content, two fibers are required.
FOX T UWP 302 Wallplate Transmitter • FOX Extenders Control Program 30
Video Indicator — Displays green when the transmitter detects an active signal on the VGA
input.
Audio Indicator — Displays green when the device detects audio with the selected input.
If the selected input has an analog audio signal above -44 dBV, the indicator turns green
immediately, but turns gray after the audio signal level drops below the threshold continuously
for 10 seconds. If the selected input has digital embedded audio, the indicator displays green
and remains green as long as the digital audio signal is detected.
HDMI Indicator — Displays green when the unit receives an HDMI input signal.
HDCP Indicator — Displays green if the input signal is HDCP-encrypted.
EDID Minder — Displays the current EDID Minder settings.
Input Frequency — Displays the horizontal and vertical frequencies of the current input. This
field indicates No Input Signal if there is no input signal.
Model — Displays the model of the device that is connected via RS-232 or USB.
Connected to — Displays the communication port of the unit that is connected to the PC.
This can be either a communication port on the transmitter or a communication port on the
receiver.
Other side — Displays N/A whenever connected to a FOX T UWP 302.
Temperature — Displays the internal temperature of the device.
Input Selection panel
The Input Selection panel is used to select inputs manually or automatically.
Figure 24. Input Selection Panel
Select Input — Select the desired input. The currently selected input is green. The left button
represents Input 1 (VGA). The right button represents Input 2 (HDMI).
Auto Switch Mode — Allows the device to auto switch inputs based on the chosen
configuration. The options are Disabled, Priority to Highest Active, or Priority to Lowest Active.
NOTE: The default setting on the FOX T UWP 302 is Priority to Highest Active.
Control tab
The Control tab contains picture and audio adjustments. To access these options, click the
Control tab.
Figure 25. Control Tab
FOX T UWP 302 Wallplate Transmitter • FOX Extenders Control Program 31
VGA Video Adjustment panel
The VGA Video Adjustment panel of the Control tab adjusts the following video parameters
on the analog input: horizontal start, pixel phase, and total pixels.
Figure 26. VGA Video Adjustment Panel
Horizontal Start — Defines the number of pixels in the blanking area to the left of the
active area.
In the Horizontal Start panel of the VGA Video Adjustment panel, click the Left or Right
arrows, or click and drag the slider to adjust the setting to the desired value. The field to the
right of a slider shows the current value for the associated setting.
NOTE: The value for Horizontal Start can range between 0 and 255.
Default setting: 128.
Pixel Phase — Controls the pixel phase. Sampling at the optimum pixel phase results in a
bright, stable output.
In the Pixel Phase panel of the VGA Video Adjustment panel, click the Left or Right
arrows, or click and drag the slider to adjust the setting to the desired value. The field to the
right of a slider shows the current value for the associated setting.
NOTE: The value for Pixel Phase can range between 0 and 63. Default setting: 32.
The Total Pixels setting (see below) must be correctly set before adjusting Pixel Phase.
Total Pixels — Controls the total number of pixels in an active window.
In the Shift panel of the VGA Video Adjustment panel, click the
Left or Right arrows, or
click and drag the slider to adjust the setting to the desired value. The field to the right of a
slider shows the current value for the associated setting.
NOTE: The Total Pixels setting depends on the input rate. It is ±255 of the default value.
FOX T UWP 302 Wallplate Transmitter • FOX Extenders Control Program 32
Audio Adjustment panel
The Audio Adjustment panel of the Control tab adjusts the gain and attenuation of analog
input audio.
Audio Gain and Attenuation — Adjusts the analog input audio gain or attenuation value.
This ranges from -18.0 dB to +10.0 dB in 1.0 dB increments.
In the Audio Gain/Atten. panel, click and drag the slider to the desired level. The current
value is displayed in a field below the slider control.
Audio Output Level — Is not available for the FOX T UWP 302.
I/O Configuration Tab
The I/O Configuration tab contains options for input and output settings. To access these
options, click the I/O Configuration tab.
Figure 27. I/O Configuration Tab
HDCP panel
The HDCP Authorized setting allows a user to turn off HDCP communication on discrete
inputs. This setting is useful for devices such as Mac computers, iPhones, iPads, and some
Windows 7 sources that will always encrypt their output if the downstream sink is capable of
HDCP. By not allowing HDCP signals on an input, most content from these sources can be
passed as a non-encrypted signal to analog and digital video outputs. In a video system that
has requirements to not transmit HDCP encrypted data (such as non-HDMI FOX Extenders),
HDCP Authorized should be turned off at the input to keep the non-HDMI FOX Extender’s
output unencrypted.
In the HDCP panel, select the On radio button to enable the HDCP Authorized setting or
select Off to disable the HDCP Authorized setting.
NOTE: Default setting: HDCP Authorized is On.
FOX T UWP 302 Wallplate Transmitter • FOX Extenders Control Program 33
Plus Mode Transmission panel
Plus mode can support rates up to 1920x1200 @ 60Hz, with embedded audio, and is
HDCP compliant. Non-Plus mode supports rates up to 1600x1200 and 1080p, is HDCP
compliant, and does not contain embedded audio (analog audio is still supported).
In the Plus Mode Transmission panel, click the Enabled radio button to enable Plus mode.
To disable Plus mode, click the Disabled radio button.
NOTE: Default setting: Plus Mode is Enabled.
VGA Input Video Format panel
This setting selects RGB or YUV Input Video Format for the VGA input.
NOTE: Default setting: VGA Input Video Format is Auto.
Audio Input Selection panel
This panel sets the audio type for the VGA and HDMI inputs, or set them to Auto for
automatic selection.
For each input, select the desired audio input type from the Input drop-down list.
Figure 28. Audio Input 1 Options
NOTE: Default setting: Audio Input Selection is Auto for all inputs.
Advanced Tab
Figure 29. Advanced Tab
FOX T UWP 302 Wallplate Transmitter • FOX Extenders Control Program 34

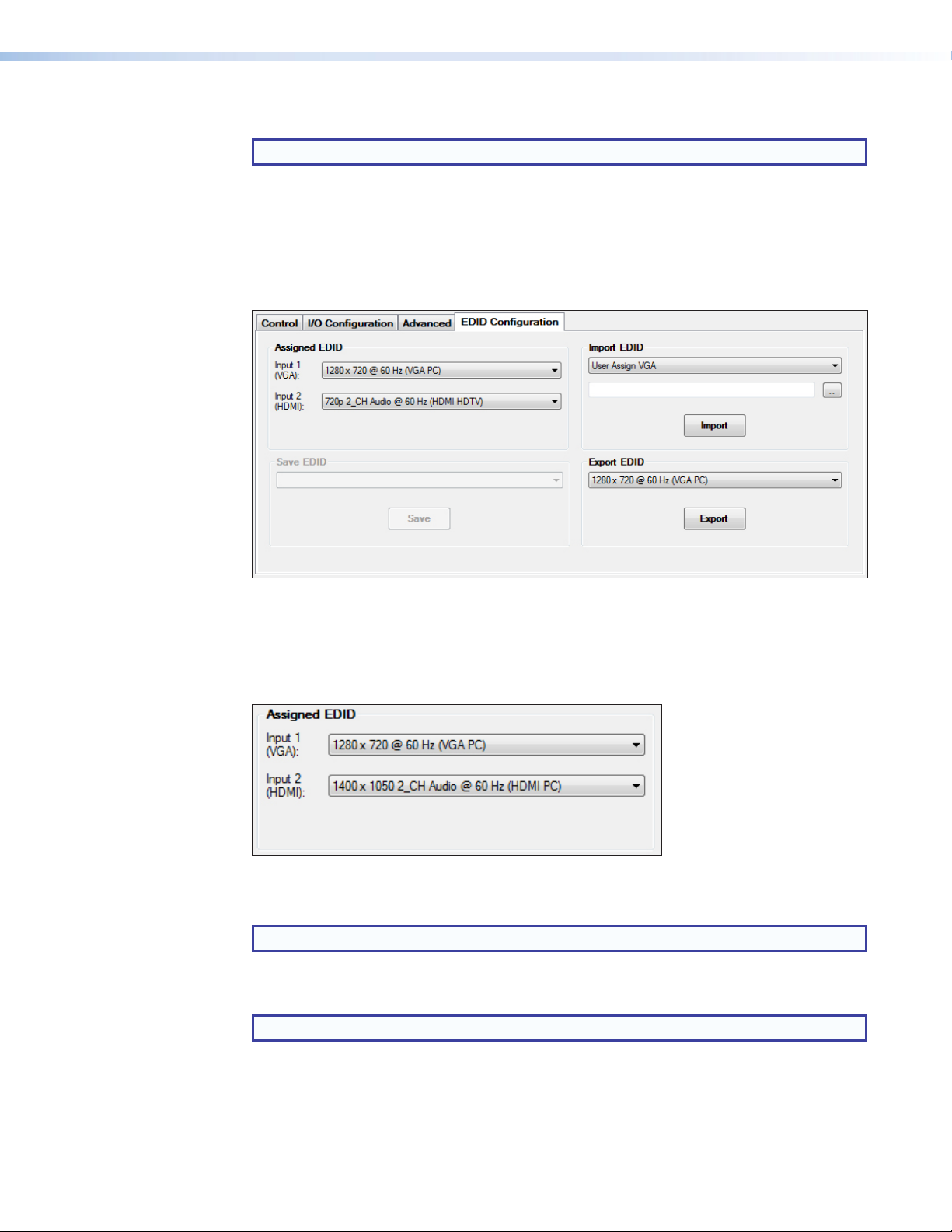

Advanced Configuration panel
NOTE: This setting is not available for the FOX T UWP 302.
EDID Configuration Tab
EDID is a data structure used to communicate video display information, including native
resolution and vertical refresh rate requirements, to a source device. The source device then
outputs the optimal video format for the display based on the provided EDID data, ensuring
proper video image quality.
To access EDID options, click the EDID Configuration tab.
Figure 30. EDID Configuration Tab
Assigned EDID panel
This shows the current EDID configuration for each input. You can assign unique EDID for
any input.
Figure 31. Assigned EDID Panel
Choose the desired EDID from the drop-down list of the desired input.
NOTE: The default EDID is 720p for the HDMI input and 1280x720 for the VGA input.
Save EDID panel
NOTE: This setting is not available for the FOX T UWP 302.
FOX T UWP 302 Wallplate Transmitter • FOX Extenders Control Program 35
Import EDID panel
EDID files can be imported to the FOX T UWP 302 and saved in a table on the device.
NOTE: When an EDID file is imported to a user assigned input location, the EDID is
automatically assigned to the selected user input.
Figure 32. Import EDID Panel
1. In the Import EDID panel, from the drop-down list, select the desired input.
Figure 33. Import EDID Options
2. Click on the Browse button to locate and select the desired EDID file on the connected
PC. The Open dialog box opens.
Figure 34. Browse Button for Importing EDID
3. Select the EDID file and click the Open button. The Open dialog box closes.
4. Click the Import button. The EDID is imported and assigned to the selected input.
FOX T UWP 302 Wallplate Transmitter • FOX Extenders Control Program 36
Export EDID panel
EDID files on the FOX T UWP 302 can be exported to the connected PC. To open and view
them, use the Extron EDID Manager software, available at www.extron.com.
The EDID Manager software aids in troubleshooting any EDID related issues that may occur
during configuration or operation of an AV system.
Figure 35. Export EDID Panel
1. In the Export EDID panel, select the desired EDID to export from the drop-down list.
2. Click the Export button. The Save As dialog box opens.
3. Select the export destination and file name for the EDID.
4. Click the Save button. The EDID setting is exported.
FOX T UWP 302 Wallplate Transmitter • FOX Extenders Control Program 37
Reference Information
This section describes basic installation information of the Extron Firmware Loader program
to upload firmware. Topics in this section include:
• Firmware Loader
• Firmware Updates
Firmware Loader
To upload and update firmware for the FOX T UWP 302, download the new firmware to a
connected computer and upload the firmware with the Firmware Loader utility or the FOX
Extenders Control Program (see to the FOX Extenders Control Program Help File).
Downloading Extron Firmware Loader
Figure 36. Firmware Loader on the Extron Website
1. On the Extron website, www.extron.com, click the Download tab.
2. From the left sidebar, click the Software link.
3. Navigate to Firmware Loader.
4. Click the Download link on the right that corresponds with the program.
5. Submit any required information to start the download.
38FOX T UWP 302 Wallplate Transmitter • Reference Information
Installing Firmware Loader
1. Once Firmware Loader has been downloaded, run the .exe file from the save location.
2. Click the Next button to continue through the installation process, filling out necessary
Firmware Updates
Downloading Firmware
The installation wizard window opens.
information and specifying custom settings on each prompt.
Figure 37. Downloading Firmware from the Extron Website
1. On the Extron website, www.extron.com, click the Download tab.
2. From the left sidebar, click the Firmware link.
3. Navigate to FOX T UWP 302.
4. Ensure the available firmware version is a later version than the current one on the
device.
NOTE: The firmware release notes are in a PDF file that provides details about the
changes between different firmware versions. The file can be downloaded from the
same page as the firmware on the Extron website, www.extron.com.
5. Click the Download link to the right of the desired device.
6. Submit any required information to start the download. Note where the file is saved.
7. Open the executable (.exe) file.
8. Follow the instructions on the Installation Wizard screens to install the new firmware on
the computer. A Release Notes file, giving information on what has changed in the new
firmware version, and a set of instructions for updating the firmware are also loaded.
FOX T UWP 302 Wallplate Transmitter • Reference Information 39
Installing Firmware with Firmware Loader
1. Open Firmware Loader and establish a connection between the computer and the
device. The Add Device... window opens.
Figure 38. Add Device... Window
2. Select FOX T UWP 302 from the Device Name drop-down list.
3. Select the method of connection from the Connection Method drop-down list.
4. Depending on the connection method, additional options appear. Make the appropriate
selections for the current connection method.
5. Click the Connect button.
6. Click the Browse button in the New File Firmware (Optional) section.
7. On the Open window, navigate to the new firmware file, which has an .S19 extension,
and click the Open button.
ATTENTION: Valid firmware files must have the file extension .S19. A file with
any other extension is not a firmware upgrade for this device and could cause the
device to stop functioning.
8. Click Add. The Add Device... window closes and the device and firmware are listed in
the Firmware Loader main window.
9. Click Begin to start the upload process.
10. Close Firmware Loader when the Remaining Time field shows 00.00.00, the
Progress column shows 100%, and the Status field shows completed.
NOTE: See Simple Instruction Set Control on page 13 for reset information.
FOX T UWP 302 Wallplate Transmitter • Reference Information 40
Extron Warranty
Extron Electronics warrants this product against defects in materials and workmanship for a period of three years
from the date of purchase. In the event of malfunction during the warranty period attributable directly to faulty
workmanship and/or materials, Extron Electronics will, at its option, repair or replace said products or components,
to whatever extent it shall deem necessary to restore said product to proper operating condition, provided that it is
returned within the warranty period, with proof of purchase and description of malfunction to:
USA, Canada, South America,
and Central America:
Extron Electronics
1230 South Lewis Street
Anaheim, CA 92805
U.S.A.
Europe and Africa:
Extron Europe
Hanzeboulevard 10
3825 PH Amersfoort
The Netherlands
Japan:
Extron Electronics, Japan
Kyodo Building, 16 Ichibancho
Chiyoda-ku, Tokyo 102-0082
Japan
China:
Extron China
686 Ronghua Road
Songjiang District
Shanghai 201611
China
Asia:
Extron Asia Pte Ltd
135 Joo Seng Road, #04-01
PM Industrial Bldg.
Singapore 368363
Middle East:
Extron Middle East
Dubai Airport Free Zone
F12, PO Box 293666
United Arab Emirates, Dubai
Singapore
This Limited Warranty does not apply if the fault has been caused by misuse, improper handling care, electrical
or mechanical abuse, abnormal operating conditions, or if modifications were made to the product that were not
authorized by Extron.
NOTE: If a product is defective, please call Extron and ask for an Application Engineer to receive an RA (Return
Authorization) number. This will begin the repair process.
USA: 714.491.1500 or 800.633.9876 Europe: 31.33.453.4040
Asia: 65.6383.4400 Japan: 81.3.3511.7655
Units must be returned insured, with shipping charges prepaid. If not insured, you assume the risk of loss or damage
during shipment. Returned units must include the serial number and a description of the problem, as well as the
name of the person to contact in case there are any questions.
Extron Electronics makes no further warranties either expressed or implied with respect to the product and its quality,
performance, merchantability, or fitness for any particular use. In no event will Extron Electronics be liable for direct,
indirect, or consequential damages resulting from any defect in this product even if Extron Electronics has been
advised of such damage.
Please note that laws vary from state to state and country to country, and that some provisions of this warranty may
not apply to you.
Extron Headquarters
+1.800.633.9876 (Inside USA/Canada Only)
Extron USA - West Extron USA - East
+1.714.491.1500 +1.919.850.1000
+1.714.491.1517 FAX +1.919.850.1001 FAX
Extron Europe
+800.3987.6673
(Inside Europe Only)
+31.33.453.4040
+31.33.453.4050 FAX
© 2013 Extron Electronics All rights reserved. www.extron.com
Extron Asia
+65.6383.4400
+65.6383.4664 FAX
Extron Japan
+81.3.3511.7655
+81.3.3511.7656 FAX
Extron China
+86.21.3760.1568
+86.21.3760.1566 FAX
Extron Middle East
+971.4.299.1800
+971.4.299.1880 FAX
Extron Korea
+82.2.3444.1571
+82.2.3444.1575 FAX
Extron India
1800.3070.3777
Inside India Only
+91.80.3055.3777
+91.80.3055.3737 FAX
Loading...
