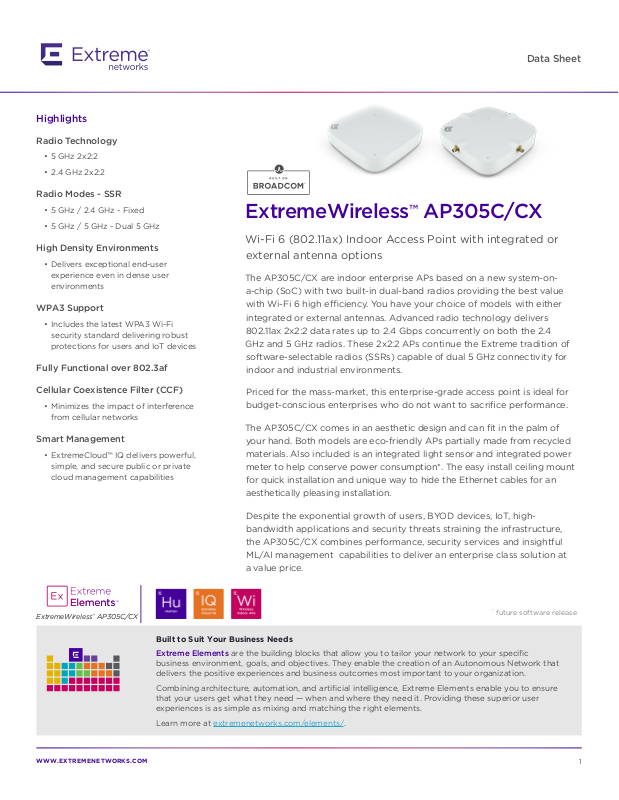

Page 1
Highlights
Radio Technology
• 5 GHz 2x2:2
• 2.4 GHz 2x2:2
Radio Modes - SSR
• 5 GHz / 2.4 GHz - Fixed
• 5 GHz / 5 GHz - Dual 5 GHz
High Density Environments
• Delivers exceptional end-user
experience even in dense user
environments
WPA3 Support
• Includes the latest WPA3 Wi-Fi
security standard delivering robust
protections for users and IoT devices
Fully Functional over 802.3af
Data Sheet
ExtremeWireless™ AP305C/CX
Wi-Fi 6 (802.11ax) Indoor Access Point with integrated or
external antenna options
The AP305C/CX are indoor enterprise APs based on a new system-ona-chip (SoC) with two built-in dual-band radios providing the best value
with Wi-Fi 6 high eciency. You have your choice of models with either
integrated or external antennas. Advanced radio technology delivers
802.11ax 2x2:2 data rates up to 2.4 Gbps concurrently on both the 2.4
GHz and 5 GHz radios. These 2x2:2 APs continue the Extreme tradition of
software-selectable radios (SSRs) capable of dual 5 GHz connectivity for
indoor and industrial environments.
Cellular Coexistence Filter (CCF)
• Minimizes the impact of interference
from cellular networks
Smart Management
• ExtremeCloud™ IQ delivers powerful,
simple, and secure public or private
cloud management capabilities
ExtremeWireless™ AP305C/CX
Built to Suit Your Business Needs
Extreme Elements are the building blocks that allow you to tailor your network to your specific
business environment, goals, and objectives. They enable the creation of an Autonomous Network that
delivers the positive experiences and business outcomes most important to your organization.
Combining architecture, automation, and artificial intelligence, Extreme Elements enable you to ensure
that your users get what they need — when and where they need it. Providing these superior user
experiences is as simple as mixing and matching the right elements.
Learn more at extremenetworks.com/elements/.
Priced for the mass-market, this enterprise-grade access point is ideal for
budget-conscious enterprises who do not want to sacrifice performance.
The AP305C/CX comes in an aesthetic design and can fit in the palm of
your hand. Both models are eco-friendly APs partially made from recycled
materials. Also included is an integrated light sensor and integrated power
meter to help conserve power consumption*. The easy install ceiling mount
for quick installation and unique way to hide the Ethernet cables for an
aesthetically pleasing installation.
Despite the exponential growth of users, BYOD devices, IoT, highbandwidth applications and security threats straining the infrastructure,
the AP305C/CX combines performance, security services and insightful
ML/AI management capabilities to deliver an enterprise class solution at
a value price.
*
future software release
WWW.EXTREMENETWORKS.COM
1
Page 2
Security
Management Analytics
The AP305C/CX delivers the highest level of security
services, beginning with support for the latest Wi-Fi
Alliance WPA3 security certifications. Additionally,
the AP305C/CX supports a stateful L2-L7 DPI firewall
for context-based access security, Private Pre-Shared
Key (PPSK) and much more.
Wi-Fi 6 Technology
Prior generations of 802.11n, 802.11ac wave 1 and 2,
can be considered generational improvements with
an emphasis on faster speed. 802.11ax technology
instead enhances Wi-Fi eciency as well as speed,
taking Wi-Fi networks to an entirely new level. To
learn more about 802.11ax, go to: https://www.
extremenetworks.com/are-you-ready-for-802-11ax
In conjunction with Extreme Management system,
cloud or on-premises, the AP305C/CX provides a very
rich set of data displayed via context driven widgets,
representing historical data or a combination of
historical and current data. This provides contextspecific granularity with perspective views for
locations, network, APs, individual client devices, as
well as policy roles. In each context, administrators
can adjust dashboards make a widget library.
RF Monitoring
Network managers will appreciate a powerful
choice of RF management for their Wi-Fi networks,
with Adaptive RF management with AI/ML-like
functionality. Adaptive RF algorithms provide
intelligent selection of the best channels and transmit
power for unimpaired dual 5 GHz operation. Load
balancing, band steering and many other attributes of
the RF can all be automated.
Programmable Radios
Extreme launched the industry's first software defined
802.11ax access point supporting not only a dual
5GHz capability but also two software programmable
modes to optimally manage radios to provide the
highest level of client performance. The AP305C/CX
intelligent monitoring of the software- configurable
radios enables network managers to configure
network RF technology based on user environment
and configure the access points in dierent modes as
required.
WWW.EXTREMENETWORKS.COM
Integrated BLE and Zigbee
To support both IoT and Guest Engagement services
the AP305C/CX integrates Bluetooth to connect with
IoT devices with Thread wireless to engage loyalty
customers with Apple iBeacon. Enterprises can use
API driven applications to send advertisements
directly to shoppers, guests, and conference
attendees. This makes it ideal for businesses to
advertise their app download pages, captive portals,
or site-specific information.
2
Page 3
Product Specifications
Radio Specifications
802.11a
• 5.150–5.850 GHz Operating Frequency
• Orthogonal Frequency Division Multiplexing (OFDM) Modulation
• Rates (Mbps): 54, 48, 36, 24, 18, 12, 9, 6 w/ auto fallback
802.11b
• 2.4–2.5 GHz Operating Frequency
• Direct-Sequence Spread-Spectrum (DSSS) Modulation
• Rates (Mbps): 11, 5.5, 2, 1 w/ auto fallback
802.11g
• 2.4–2.5 GHz Operating Frequency
• Orthogonal Frequency Division Multiplexing (OFDM) Modulation
• Rates (Mbps): 54, 48, 36, 24, 18, 12, 9, 6 w/ auto fallback
802.11n
• 2.4–2.5 GHz & 5.150–5.850 GHz Operating Frequency
• 802.11n Modulation
• Rates (Mbps): MCS0 - MCS15 (6.5MBps - 300Mbps)
• 2x2 Multiple-In, Multiple-Out (MIMO) Radio
• HT20 High-Throughput (HT) Support (for both 2.4 GHz and 5 GHz)
• HT40 High-Throughput (HT) Support for 5 GHz
• A-MPDU and A-MSDU Frame Aggregation
802.11ac
• 5.150–5.850 GHz Operating Frequency
• 802.11ac Modulation (256-QAM)
• Rates (Mbps): MCS0–MCS9 (6.5Mbps – 867Mbps), NSS = 1-2.
• 2x2:2 Stream Multiple-In, Multiple-Out (MIMO) Radio
• VHT20/VHT40/VHT80 support
• TxBF (Transmit Beamforming)
802.11ax
• 2.4–2.5 GHz & 5.150–5.850 GHz Operating Frequency
• 802.11ax Modulation (1024-QAM)
• Dual-band OFDMA
• Rates (Mbps):
• 5G: HE0-HE11 (8 Mbps – 1200 Mbps).
• 2.4G: HE0-HE11 (8 Mbps – 574 Mbps).
• 2x2:2 Stream Multiple-In, Multiple-Out (MIMO) Radio
• HE20/HE40/HE80 support for 5 GHz
• HE20/HE40 support for 2.4 GHz
• DL SU-MIMO and MU-MIMO
• TxBF (Transmit Beamforming)
BLE 5 Radio Bluetooth® Low Energy (BLE) and IEEE® 802.15.4 compliant
Interfaces
• (1) Autosensing 10/100/1000 BASE-T Ethernet PoE (Power over Ethernet
802.3af) Port
• USB2.0, Type A 5V, 0.9A
USB power <= 500 mA - 802.3af
USB power > 500 mA - 802.3at
Power Options
• Power Draw: Typical: 9.98 W; Max: 11.28 W (w/o USB)
Typical: 14.98 W; Max: 16.28 W (w/ USB)
• 802.3af Power over Ethernet (PoE) capable Gigabit Ethernet port (RJ-45
power input pins: Wires 4,5,7,8 or 1,2,3,6)
• Support 802.3af/802.3at Power over Ethernet injector
Power Specifications
• IEEE 802.3af PoE Power
Physical
• AP305C: 5.2" x 5.2" x 1.5" (133mm x 133mm x 37mm)
• AP305CX: 5.8" x 5.8" x 1.5" (147mm x 147mm x 39mm)
• AP305C and AP305CX: .9 lbs (.4kg)
• TPM Chip for added security (
Antennas
AP305C - Internal Antennas
• (2) Integrated single band, 2.4-2.5 GHz omnidirectional antennas
• (2) Integrated single band, 5.1-5.8 GHz omnidirectional antennas
AP305CX - External Antennas
• (4) RP SMAs connectors
Mounting
• AP support 15/16 flush ceiling tile and is integrated to AP
• Wall Mount sold as an accessory
• Ceiling Tile Recessed 15/16" sold as an accessory
• Built-in slot for Kensington type locks
Environmental
• Operating: 0 to 40 °C, Storage: -40 to 70 °C
• Humidity: 10% to 95% (non-condensing)
Environmental Discharge
• +/-8 kV (contact discharge)/ +/-15 kV (Air Discharge)
Environmental Compliance
• UL2043 - Plenum Rated
Regulatory Compliance
Product Safety Certifications
• IEC 62368/60950-1, EN 62368/60950-1, USA 62368/60950-1, AS/NZS
62368/60950.1, Intertek NTRL
• RoHS Directive 2011/65/EU
Radio Approvals
• FCC CFR 47 Part 15, Class B
• ICES-003, Class B
• FCC Subpart C 15.247
• FCC Subpart E 15.407
• RSS247
• AS/NZS4268 + CISPR32
• IEC/EN 60601-1-2,
• EN 62479
• EN 62311
• EN 50385
• EN 301 489-1
• EN 301 489-3
• EN 301 489-17
• EN 55032, (Class B)
Power Options
• EN 55011, (Group 1, Class B)
• EN 55024
• EN 60601-1-2
• EN 61000-3-2
• EN 61000-3-3
• EN 300 328
• EN 301 893
• EN 300 440
• EN 50581
WWW.EXTREMENETWORKS.COM
3
Page 4
Power and Sensitivity Tables
Power - 2.4 GHz
Channel Data Rate Power (dBm)
11b 1 - 11 Mbps 18
11g
11n HT20 MCS0, 7 18, 14
11n HT40 MCS0, 7 18, 14
11ac HT20 MCS0, 8 18, 13
11ac HT40 MCS0, 9 18, 12
11ax HE20 HE0, 11 18, 11
11ax HE40 HE0, 11 18, 11
6 Mbps 18
54 Mbps 17
Power - 5 GHz
Channel Data Rate Power (dBm)
11a
11n HT20 MCS0, 7 18, 15
11n HT40 MCS0, 7 18, 15
11ac VHT20 MCS0, 8 18, 14
11ac VHT40 MCS0, 9 18, 13
11ac VHT80 MCS0, 9 18, 13
11ax HE20 HE0, 11 18, 13
11ax HE40 HE0, 11 18, 13
11ax HE80 HE0, 11 18, 13
6 Mbps 18
54 Mbps 16
Receive Sensitivity – 2.4 GHz
Channel Data Rate Power (dBm)
11b 1 - 11 Mbps -95, -88
11g
11n HT20 MCS0, 7 -91, -71
11n HT40 MCS0, 7 -88, -69
11ac HT20 MCS0, 8 -90, -61
11ac HT40 MCS0, 9 -88, -58
11ax HE20 HE0, 11 -90, -61
11ax HE40 HE0, 11 -88, -58
6 Mbps -91
54 Mbps -74
Receive Sensitivity – 5 GHz
Channel Data Rate Power (dBm)
11a
11n HT20 MCS0, 7 -90, -72
11n HT40 MCS0, 7 -88, -69
11ac VHT20 MCS0, 8 -90, -68
11ac VHT40 MCS0, 9 -88, -63
11ac VHT80 MCS0, 9 -85, -58
11ax HE20 HE0, 11 -88, -59
11ax HE40 HE0, 11 -87, -57
11ax HE80 HE0, 11 -85, -54
6 Mbps -92
54 Mbps -74
WWW.EXTREMENETWORKS.COM
4
Page 5
Radiation Patterns – Azimuth and Elevation
Azimuth – 2.4 GHz
Azimuth – 5 GHz
Elevation – 2.4 GHz
Elevation – 5 GHz
WWW.EXTREMENETWORKS.COM
5
Page 6
Ordering Information
AP305C and AP305CX
MKT Product SKU Description
AP305C-FCC
AP305C-CAN
AP305C-WR
AP305CX-FCC
AP305CX-CAN
AP305CX-WR
Accessories
Note: Two clips designed into the underside of the AP unit that will accommodate a 15/16 type ceiling tile rail system.
Other mounting accessories see below. Mounting descriptions are detail in the Hardware User's Guide
MKT Product SKU Descriptions
AH-ACC-BKT-AX-IL (x1 per) Mounting bracket for Interlude ceilings
AH-ACC-BKT-AX-SL (x1 per) Mounting bracket for Silhouette 1/8" and Silhouette 1/4" ceilings
AH-ACC-BKT-AX-TB (x1 per) Mounting bracket for Prelude 15/16" and Suprafine 9/16" ceilings
AH-ACC-BKT-AX-WL (x1 per) Mounting bracket for direct-to-wall installations
AH-ACC-ANT-AX-KT (x8 per pack) Articulated indoor antenna kit (8 x Dual Band 5dBi antennas)
PD-3501G-ENT Single port 802.3af compliant midspan
AH-ACC-PW-CBL-US 6ft 18 AWG universal power cord with US plug
AH-ACC-PW-CBL-UK 6ft universal power cord with UK plug
AH-ACC-PW-CBL-EU 6ft universal power cord with EU plug
AH-ACC-PW-CBL-AU 6ft universal power cord with AU plug
AH-ACC-PW-CBL-JP 6ft universal power cord with Japan plug
AH-ACC-PW-CBL-KR 6ft universal power cord with Korea plug
ExtremeCloud IQ : Indoor WiFi6 AP, 2x2 radios with Dual 5GHz and 1x1GbE port. Integrated light/power sensors
and BLE/ Zigbee. AI/ML green mode. Internal antennas. Built-in ceiling mounts. Includes Connect. Domain : US
ExtremeCloud IQ : Indoor WiFi6 AP, 2x2 radios with Dual 5GHz and 1x1GbE port. Integrated light/power sensors
and BLE/Zigbee. AI/ML green mode. Internal antennas. Built-in ceiling mounts. Includes Connect. Domain :
Canada
ExtremeCloud IQ : Indoor WiFi6 AP, 2x2 radios with Dual 5GHz and 1x1GbE port. Integrated light/power sensors
and BLE/Zigbee. AI/ML green mode. Internal antennas. Built-in ceiling mounts. Includes Connect. Domain :
EMEA, Rest of World
ExtremeCloud IQ : Indoor WiFi6 AP, 2x2 radios with Dual 5GHz and 1x1GbE port. Integrated light/power sensors
and BLE/ Zigbee. AI/ML green mode. External antennas. Built-in ceiling mounts. Includes Connect. Domain : US
ExtremeCloud IQ : Indoor WiFi6 AP, 2x2 radios with Dual 5GHz and 1x1GbE port. Integrated light/power sensors
and BLE/Zigbee. AI/ML green mode. External antennas. Built-in ceiling mounts. Includes Connect. Domain :
Canada
ExtremeCloud IQ : Indoor WiFi6 AP, 2x2 radios with Dual 5GHz and 1x1GbE port. Integrated light/power sensors
and BLE/Zigbee. AI/ML green mode. External antennas. Built-in ceiling mounts. Includes Connect. Domain :
EMEA, Rest of World
Mounting Accessories
Power Accessories
http://www.extremenetworks.com/contact
©2020 Extreme Networks, Inc. All rights reserved. Extreme Networks and the Extreme Networks logo are trademarks or registered trademarks of Extreme Networks, Inc.
in the United States and/or other countries. All other names are the property of their respective owners. For additional information on Extreme Networks Trademarks
please see http://www.extremenetworks.com/company/legal/trademarks. Specifications and product availability are subject to change without notice. 26238-0220-28
WWW.EXTREMENETWORKS.COM
6
Loading...
