OWNER’S MANUAL

25700172 5/07

Triumph

Advance

™

Child Restraint System

Para instrucciones en Español, llamar al: 1-800-233-5921

Child Requirements

Weight: 5 – 50 lbs (2.3 – 22.6 kg)

Height: 19 – 50 inches (48 – 127 cm)

To reduce the risk

of SERIOUS INJURY or

DEATH, read this owner’s

manual prior to installing

and using this child

restraint.

WARNING

This child restraint meets all the requirements of Federal Motor Vehicle Safety Standard 213. No restraint can guarantee absolute protection from injury in every crash. This child restraint is designed for use ONLY by children who weigh between 5 and 50 lbs (2.3 and

22.6 kg) and whose height is between 19 and 50 in. (48 and 127 cm).

• If your child weighs between 5 and 20 lbs (2.3 and 9 kg), AND is at least 19” (48 cm) tall AND the top of the child’s head is at least 1” (25 mm) below the top of the child restraint seat back AND is less than one year old, you MUST use this child restraint rear-facing.

• If your child weighs between 20 and 35 lbs (9 and

15.8 kg) AND is at least 1 year of age, you can use the child restraint either rear- OR forward-facing.

• If your child weighs between 35 and 50 lbs (15.8 and 22.6 kg), is less than 50 inches (127 cm) tall,

AND is at least 1 year of age, you MUST use this

child restraint forward-facing.

• IMPORTANT NOTICE •

• 5 – 20 lbs (2.3 – 9 kg)

AND

• At least 19” (48 cm)

AND

• Top of head is at least 1 inch (25 mm) below the top of the child restraint seat back

AND

• Less than one year of age

• 20 – 35 lbs (9 – 15.8 kg)

AND

• At least one year of age

• 35 – 50 lbs (15.8 – 22.6 kg)

AND

• Less than 50” (127 cm)

AND

• At least one year of age

Rear-facing ONLY

Rear- OR Forward-facing

Forward-facing ONLY

More children are killed every year as passengers in car crashes than by any other type of injury. To

reduce the risk of SERIOUS INJURY or DEATH, read this owner’s manual and your vehicle owner’s manual before installing and using this child restraint. Using a child restraint makes a big difference. By properly using this child restraint and following these instructions (and the instructions that accompany your vehicle), you will greatly reduce the risk of serious injury or death to your child from a crash. Do not be misled by the commonly used term “safety seat;” no restraint system can prevent all injuries in all crashes. Many properly restrained adults and children are injured in motor vehicle crashes, including relatively minor crashes. A properly used child restraint is the best way to minimize injuries to your child and to increase the chances for your child’s survival in most crashes.

Table of Contents

Important Notice ......................................................1

Warnings ..................................................................2

Safe Practices ............................................................6

Recall Information .....................................................6

Airplane Usage ..........................................................7

Care and Cleaning ....................................................7

Storing Your Instructions ...........................................7

Know Your Vehicle ....................................................8

Know Your Child Restraint ........................................8

Using the Triumph Rear-facing ..................... 10

Using the Triumph Forward-facing ............... 12

Rear-facing Installation Using the Seat Belt ..............14

Rear-facing Installation Using LATCH.......................18

Forward-facing Installation Using the Seat Belt ........22

Forward-facing Installation Using LATCH ................27

Securing Your Child in the Child Restraint ...............32

Adjusting the Crotch Strap .....................................35

Removing Child from the Restraint .........................36

Removing the LATCH System ..................................37

Removing the Tether Strap .....................................38

Removing the Seat Pad ...........................................39

Installing the Accessories .........................................40

Replacement Parts ..................................................42

Limited Warranty ....................................................43

WARNING

Location Warnings

• According to statistics, children are safer when properly restrained in a rear seating position than in the front seating position. Generally, the center rear position is safest and should be used if available. Children under 13 should ride in the back seat of the vehicle.

• ONLY use this child restraint on forward-facing vehicle seats. DO NOT use this restraint with vehicle seats that face the rear or side.

• ONLY use this child restraint on vehicle seats with backs that lock into place.

• Some child restraints do not ﬁt all vehicles or all seating locations. There are many thousands of combinations of vehicle makes, models, child restraint conﬁgurations, seat belt designs and seat cushion shapes. The easiest way to determine whether your child restraint is suitable for a particular seating position is to check for a tight installation. If the child restraint can not be properly installed, DO NOT use the child restraint. Consult vehicle owner’s manual, try a different seating location or call Evenﬂo at 1-800-233-5921.

Air Bag Warning

• DO NOT use this restraint in the front seat of a vehicle equipped with an active air bag. Air bags may cause serious injury or death to children under 13 years of age. If your vehicle has an air bag, refer to your vehicle owner’s manual for child restraint installation.

• If the rear seat of your vehicle is equipped with side air bags:

Vehicles built prior to the 2002 model year:

DO NOT use this restraint in a vehicle seating position

equipped with a side air bag unless authorized by the vehicle manufacturer.

Model year 2002 and newer vehicles:

Refer to your vehicle owner’s manual before placing this restraint in a seating position equipped with a side air bag. DO NOT place any objects between the restraint and the side air bag, as an expanding air bag may cause the items to strike your child.

Premature Infants

• DO NOT use this or any child restraint with a premature infant until after consulting your doctor. Premature infants may have difﬁculty breathing when in a sitting position.

WARNING

Rear-facing Warnings

• DO NOT use this child restraint rear facing in a vehicle equipped with lap belts that only lock during a sudden stop or crash (emergency locking retractors). You must use a seating location with a locking seat belt. Check your vehicle owner’s manual to see if you have lap belts with emergency locking retractors.

• When using this restraint rear-facing, DO NOT loosen the vehicle seat belt to provide more leg room as this will prevent the child restraint from protecting your child.

• Fold-down armrests could pose a hazard to a rearfacing child in certain types of collisions. Consult your vehicle owner’s manual before installing any rearfacing child restraint in front of a fold-down armrest.

• NEVER turn a child restraint forward-facing with an infant weighing less than 20 lbs (9 kg) or less than one year of age, crash forces may cause serious injury or death.

• The headrest on the vehicle seat that the child faces when sitting in the rear facing mode should be placed in the lowest position. The vehicle seat back that the child faces must be fully padded and free of any hard objects.

Forward-facing Warnings

• If your child weighs more than 50 lbs (22.6 kg) or their shoulders are above the highest harness level, you MUST discontinue using this child restraint as it may no longer adequately protect your child.

Seat Belt Warnings

• DO NOT use this child restraint in a vehicle with doormounted seat belts.

• DO NOT use this child restraint in a vehicle with seat belts that automatically move along the vehicle frame when the door is opened. These seat belts will not hold a child restraint properly.

• Use only with vehicle seat belts that can be pulled tight and will stay locked.

• DO NOT use this child restraint if it moves more than 1 inch (25 mm) forward or side-to-side at the vehicle belt path. Serious injury or death may result from poor installation. If you can not tightly secure the child restraint, try again or move it to another location.

• If the vehicle seat belts are not routed and fastened correctly, the child restraint may not protect your child in a crash.

WARNING

• DO NOT allow the seat belt release button to touch the child restraint. Accidental contact may cause the seat belt to release. If necessary, turn the seat belt release button away from the child restraint or move the child restraint to a different location.

• Failure to adjust the harness or seat belts snugly around your child may result in your child striking the vehicle’s interior during a sudden stop or crash.

Serious injury or death may occur.

• Remove locking clip from vehicle seat belt when not used with a child restraint, or the vehicle seat belt will not properly restrain an adult or child. Serious injury could occur.

LATCH Warnings

• ONLY use for securing child restraint to lower LATCH anchor points.

• ALWAYS read and follow exactly the instructions that accompany your vehicle and child restraint.

• NEVER attach two hooks to one vehicle lower anchor point.

• DO NOT use the vehicle seat belts to install a child restraint when using the LATCH system.

• This LATCH system is intended to be used ONLY as described in these instructions. Serious injury or death may result from misuse.

• When not in use, the LATCH harness and hook should be securely clipped onto the base of the child restraint. Keep out of reach of children.

• ALWAYS be sure that the LATCH hook is fully en- gaged onto the LATCH anchor point by pulling hard on the LATCH harness. If it is not totally engaged, the LATCH system will not secure your child restraint. Serious injury or death may result.

• In addition to these instructions, read and follow your vehicle owner’s manual regarding installation of the child restraint and LATCH. If there is a discrepancy, follow your vehicle owner’s manual.

Top Tether Warnings

• When not in use, the Tether Strap and hook should be securely stored on the back of the child restraint. Keep out of reach of children.

• To avoid a strangulation hazard, you MUST tightly roll or fold excess tether strap and secure with the rubber band. Attach the tether hook to the storage clip when not in use. This will keep an unused tether from hitting someone during a crash.

•

The top tether strap MUST be used if your vehicle has a plain lap belt that only locks during a sudden stop or crash (emergency locking retractors) AND/OR if your vehicle has seat belts whose buckles extend from a slot in the vehicle seat cushion in front of the crease where the seat and back cushions meet. Otherwise the child restraint cannot be installed tightly, increasing the risk of injury to your child. Check your vehicle owner’s manual to see if your vehicle has emergency locking retractors.

Additional Warnings

• DO NOT use child restraint if it is damaged, broken, or missing parts.

• DO NOT use this restraint if it has been involved in a crash. It must be replaced.

• NEVER leave child unattended.

• DO NOT remove back cover.

• In hot or sunny weather, ALWAYS check the seat, the buckle and LATCH hooks, and adjuster for hot areas before placing a child into the child restraint. Your child could be burned. Cover the child restraint with a light colored blanket when you leave the vehicle.

• This child restraint must be securely belted to the vehicle at all times. An unsecured child restraint may injure someone if a crash occurs.

•

DO NOT attach additional padding, toys, or other de-

vices not made by Evenﬂo to the child restraint. Items not tested with the child restraint could injure the child.

• Failure to follow installation instructions could result in serious injury or death. These instructions and the instructions in your vehicle owner’s manual must be followed carefully. If there is a conﬂict between the two, the vehicle owner’s manual regarding child restraint installation must be followed.

• In cold weather, DO NOT dress the child in bulky clothing like snowsuits if the child is riding in a child restraint. Bulky coats/snowsuits make it difﬁcult to properly tighten the harness to the child which may allow the child to be ejected from the restraint during a crash. If necessary, place a blanket over the harnessed child without interfering with the child restraint harness system.

• Child restraints could be recalled for safety reasons. You must register this restraint to be reached in a recall. Send your name, address, the restraint’s model number, and manufacturing date to Evenﬂo Company, Inc., 1801

Commerce Dr., Piqua, OH 45356 or call 1-800-233-

5921. You may also register on-line at:

https://plweb.evenﬂo.com/productreg.aspx

• For recall information call the U.S. Government’s Vehicle Safety Hotline at 1-888-327-4236 (TTY:1-800-424-9153), or go to:

http://www.NHTSA.gov

• Everyone rides buckled up or the vehicle does

not go.

Make no exceptions for adults or children. If someone unbuckles, stop the vehicle. Being ﬁrm and consistent from the start will mean fewer discipline problems as children get older. An unrestrained person can be thrown into and injure other passengers.

• Many safety advocates and healthcare professionals recommend that children ride rear facing for as long as possible. See limitations recommended on rear-facing use on page 1.

• NEVER try to tend to a crying baby’s needs while driving. NEVER take a baby out of a child restraint for comforting while the vehicle is moving.

• DO NOT allow a child in a vehicle to have objects such as lollipops or ice cream on a stick. The object can injure the child if the vehicle swerves or hits a bump.

• DO NOT feed an infant who is riding in a child restraint.

• Put sharp or heavy items in the trunk. Anything loose can be deadly in a crash.

• For child restraints equipped with leather seat pads, cover your seat with a blanket in warm weather. Leather can become very hot in direct sunlight.

Safe Practices

Recall Information

After thoroughly reading and following these instructions,

STORE THE INSTRUCTIONS ON THE BACK OF THE SEAT.

Storing Your Instructions

This restraint meets FAA Inversion requirements for airplane use. Airplane installation is the same as vehicle installation. Turn the top of the airplane seat belt buckle away from the restraint for easy release and removal.

Airplane Usage

Check with

your airline before

departure to make sure

this restraint meets their requirements.

Tip!

Care and Cleaning

• To help protect the vehicle upholstery, place a towel

beneath and behind the child restraint.

• Plastic and metal parts may be wiped clean with mild soap and water and dried with a soft cloth. Do not use abrasive cleaners or solvents.

• Take care not to damage any labels.

• The harness can be wiped clean with mild soap and water. Allow harness to air dry. DO NOT immerse buckle in water or lubricate buckle.

• The seat pad can be machine washed separately in cold water, delicate cycle, tumble dry 10 – 15 minutes on low heat.

• NEVER use child restraint without the seat pad.

• Leather pads (not available on all models) may be cleaned. For best results spot clean with mild soap and water or with a mixture of 10 parts water to 1 part

mild

alcohol. Allow to air dry. DO NOT MACHINE WASH.

For future reference, record the model number of your child restraint AND the date of manufacture below.

Model Number:

Date of Manufacture:

120

A I R B A

Back View

Locking Clip

Air Bag

Do not place your child

restraint by any air bags.

Consult your vehicle

owner’s manual for

airbag locations.

Front Seat Lap

and Shoulder Belts

LATCH hook

and strap

Tether Strap

and Hook

Front Seat Retractor

Front

Headrests

Base

Consult your vehicle

owner’s manual to determine

proper placement of child restraint

in your vehicle and familiarize

yourself with your vehicle’s

components.

Important

Your vehicle components may be signiﬁcantly different than pictured. Consult your owner’s manual to help you identify your vehicle components.

Front View

Back Seat

Belt Buckles

ReclineRight™

Lever

Crotch Strap

Tension

Release Lever

Seat Pad

Harness Straps

Chest Clip

Center Lap

Belt

Tether Anchors

Forward-facing

ONLY

Back Seat

Retractor

Seat Crease

Lap/Shoulder

Belt

LATCH

Anchors

Fold-down Armrest

Consult your vehicle’s owners manual.

Rear

Headrests

TensionRight™

Tightening

Knob

Know Your Vehicle

Know Your Child Restraint

LATCH hook

and strap

Harness Tabs

1. Secure child restraint to the vehicle seat.

•

Child restraint is in Position #1 (page 14).

• Install with vehicle seat belt (page 14) or LATCH

system (page 18).

• Install locking clip, if necessary (page 16).

• Towel rolled up and placed beneath the base, if

necessary (page 14).

2. Set the child in the child restraint.

Top of head is at least 1 inch (25 mm) below the

top of the child restraint seat back.

3. Make necessary adjustments.

•

Red harness tabs MUST be at shoulder level (page 32).

• Crotch strap should be snug against the child

(page 35).

4. Fasten the buckle. Refer to page 33.

5. Position and connect chest clip.

Chest clip MUST be at armpit level (page 33).

6. Check your work.

•

Child restraint is in Position #1 (page 14).

• The child restraint DOES NOT move more than

1 in. (25 mm) forward or side-to-side (pages 17 and 21).

• The child’s back and bottom are ﬂat against the

back and bottom surfaces of the child restraint.

• Red harness tabs are AT shoulder level (page 32).

• Buckle tongues are fully engaged.

• The level arrow is level with ground (page 14).

Using the Triumph™

Rear-facing

Child Requirements for Rear-facing:

• Weight: 5 to 35 lbs (2.3 to 15.8 kg)

• Maximum Height: Top of head must be 1 inch (25 mm) below top of the child restraint seat back.

WARNING

When using this restraint rear-facing, DO NOT loosen the vehicle seat belt to provide more leg room as this will prevent the child restraint from protecting your child.

1. Secure child restraint to the vehicle seat.

•

Child restraint is in Position #2 or #3 (page 22).

• Install with vehicle seat belt (page 22) or LATCH

system (page 27).

• Install tether strap (pages 26 or 31).

• Install locking clip, if necessary (page 24).

2. Set the child in the child restraint.

The top of the child’s ears MUST be below the top

of the child restraint seat back.

3. Make necessary adjustments.

•

Red harness tabs MUST be at shoulder level (page 32).

• Crotch strap should be snug against the child

(page 35).

4. Fasten the buckle. Refer to page 33.

5. Position and connect chest clip.

Chest clip MUST be at armpit level (page 33).

6. Check your work.

•

Child restraint is in Position #2 or #3 (page 22).

• The child restraint DOES NOT move more than

1 in. (25 mm) forward or side-to-side (pages 23 and 30).

• The child’s back and bottom are ﬂat against the

back and bottom surfaces of the child restraint.

• Red harness tabs are AT shoulder level (page 32).

• Buckle tongues are fully engaged.

• Tether strap is securely attached and tightened (pages 26 or 31).

Using the Triumph™

Forward-facing

Child Requirements for Forward-facing:

• Weight: 20 to 50 lbs (9 to 22.6 kg)

• Maximum Height:

Not greater than 50 in. (127 cm

) AND the top of the child’s ears are at or below the child restraint seat back.

•

Age: At least one year of age.

If your child weighs more than 50 lbs (22.6 kg) or

their shoulders are above the highest harness level,

you MUST discontinue use or the child restraint

will not protect your child.

WARNING

Infants MUST always ride facing the rear of the vehicle; the back of the child restraint supports and protects the baby and absorbs crash forces.

NEVER turn a child restraint

forward-facing with an infant

weighing less than 20 lbs (9 kg) or

less than one year of age. Crash forces

may cause serious injury or death.

WARNING

Rear-facing Installation

Using the Seat Belt

Lap Belt Only

Route the vehicle seat belt through the rear-facing belt path C, continue through the opposite opening of the child restraint. Fasten the vehicle seat belt as shown depending on your type of seat belt. NOTE: Remove bottom half of seat pad for easier belt routing.

If the vehicle seat belts are not routed and

fastened correctly, the child restraint may not

protect your child in a crash.

WARNING

Lap and Shoulder Belt Combination

➚

This child restraint has three recline positions. The most reclined position (Position #1) is ONLY for rear-facing. Make sure that the seat is positioned so that the level arrow is level with the ground. NOTE: In some vehicles, it may be necessary to place a tightly rolled towel or small blanket A beneath the front edge of the child restraint to provide enough recline for an infant’s head to lie back comfortably.

Position #1

Adjust the recline to Position #1 by lifting the back of the seat slightly while pulling the red Recline Right lever B.

➚

You MUST place child restraint in Full

Recline (Position #1) for rear-facing use.

Installation:

Rear-facing

➚

Remove locking clip from vehicle seat belt when not used

with a child restraint, or the vehicle seat belt will not properly

restrain an adult or child. Serious injury could occur.

Using your full weight press down on the child restraint (as shown in step 4) as you tighten the seat belt. Then, hold the lap and shoulder belts together just behind the free sliding buckle tongue F. Unfasten the seat belt.

Thread the locking clip onto the seat belt, and slide it into place. Re-buckle the seat belt. Locking clip must be placed within 1/2” (13 mm) of seat belt buckle.

Locking clip must be placed within 1/2” (13 mm) of seat belt buckle.

➚

Check your work. Make certain the belts are tight. If you can move the child restraint more than 1 inch (25 mm) forward or side-to-side at the belt path C, the belts are not tight enough. If you have not tightly secured the child restraint, try again or move it to another location.

DO NOT

use this child restraint if it moves more than

1 inch (25 mm) forward or side-to-side at the vehicle

belt path. Serious injury or death may result from poor

installation. If you can not tightly secure the child

restraint, try again or move it to another location.

WARNING

➚

WARNING

Installation:

Rear-facing

The seat belt must be as tight as possible. Put

your full weight into the child restraint as you tighten the seat belt D. If you can move the child restraint more than 1 inch (25 mm) forward or side-to-side at the belt path C, the seat belt is not tight enough, and you need to try again. After your vehicle seat belts are fastened, hook the seat pad back into place.

DO NOT use this child restraint if it moves more

than 1 inch (25 mm) forward or side-to-side at the vehicle belt path. Serious injury or death may result

from poor installation. If you can not tightly secure

the child restraint, try again or move

it to another location.

WARNING

Use a locking clip E with lap/shoulder seat belt combinations that have a buckle tongue that slides freely along the belt without locking into place.

If your car does not have this type of lap/shoulder belt, proceed to step 6.

You may need to use a locking clip with some

shoulder/lap belt combinations.

SecureRight™ Quick Connector™

LATCH is a system for attaching the child restraint to

your vehicle seat. It is to be used in place of your vehicle’s seat belts, and can be used in vehicles with LATCH anchors. Your vehicle owner’s manual may refer to this system as ISOFIX.

•

ONLY use for securing child restraint to lower LATCH

anchor points.

• ALWAYS read and follow exactly the instructions that

accompany your vehicle and child restraint.

• NEVER attach two hooks to one vehicle lower anchor

point.

• DO NOT use the vehicle seat belts to install a child

restraint when using the LATCH system.

• This LATCH system is intended to be used ONLY as

described in these instructions. Serious injury or death may result from misuse.

• When not in use, the LATCH harness and hook should be securely clipped onto the base of the child restraint. Keep out of reach of children.

• ALWAYS be sure that the LATCH hook is fully engaged onto the LATCH anchor point by pulling hard on the LATCH harness. If it is not totally engaged, the LATCH system will not secure your child restraint. Serious injury or death may result.

• In addition to these instructions, read and follow your vehicle owner’s manual regarding installation of child restraints and LATCH. If there is a discrepancy, follow your vehicle owner’s manual.

WARNING

Rear-facing Installation

Using LATCH

Installation:

Rear-facing

Remove both LATCH hooks A or clips B from the storage clips on the base C.

Know Your LATCH

Hook

Adjuster

Harness

SecureRight™ Quick Connector™

Adjuster

Clip

Harness

Remove the LATCH harness E from the forward- facing position (back openings).

Remove the seat pad from the seat shell (page 39). Loosen harness straps D (page 36) and place them out of the way, as shown.

➚

Crossing your arms, insert the ends of the LATCH harness E in the rear-facing belt path openings, as shown (front openings). NOTE: Make sure the adjustment buckle F enters the opening on the correct side of the child restraint, as shown.

➚

The LATCH harness that comes with your child

restraint will be one of the two types below.

After the LATCH harness E has been correctly inserted, it will appear as shown above. NOTE: Make sure the adjustment buckle F is on the correct side of the child restraint, as shown.

Refer to your vehicle owner’s manual to locate the lower anchors on your vehicle seat.

Attach the left hook A, or clip B, to the left anchor G, and the right hook to the right anchor. DOUBLE

CHECK that each LATCH hook or clip is fully engaged

by pulling hard on the LATCH harness.

Using your full weight, push the child restraint ﬁrmly into the vehicle seat while pulling up on the LATCH harness to tighten. The LATCH harness must be as tight as possible. If you can move the child restraint more than 1 inch (25 mm) forward or side-to-side at the belt path H, the LATCH harness is not tight enough. You will need to try again, or ﬁnd another location for your child restraint. To remove the LATCH harness, go to page 37.

➚

Make sure that when you connect a

Quick Connector™

clip to an anchor, the word “SafeGuard™” is always facing out and in the upright position, as shown above.

Correct Incorrect

Installation:

Rear-facing

Adjust the child restraint to either the Intermediate

Recline or the Full Upright Position.

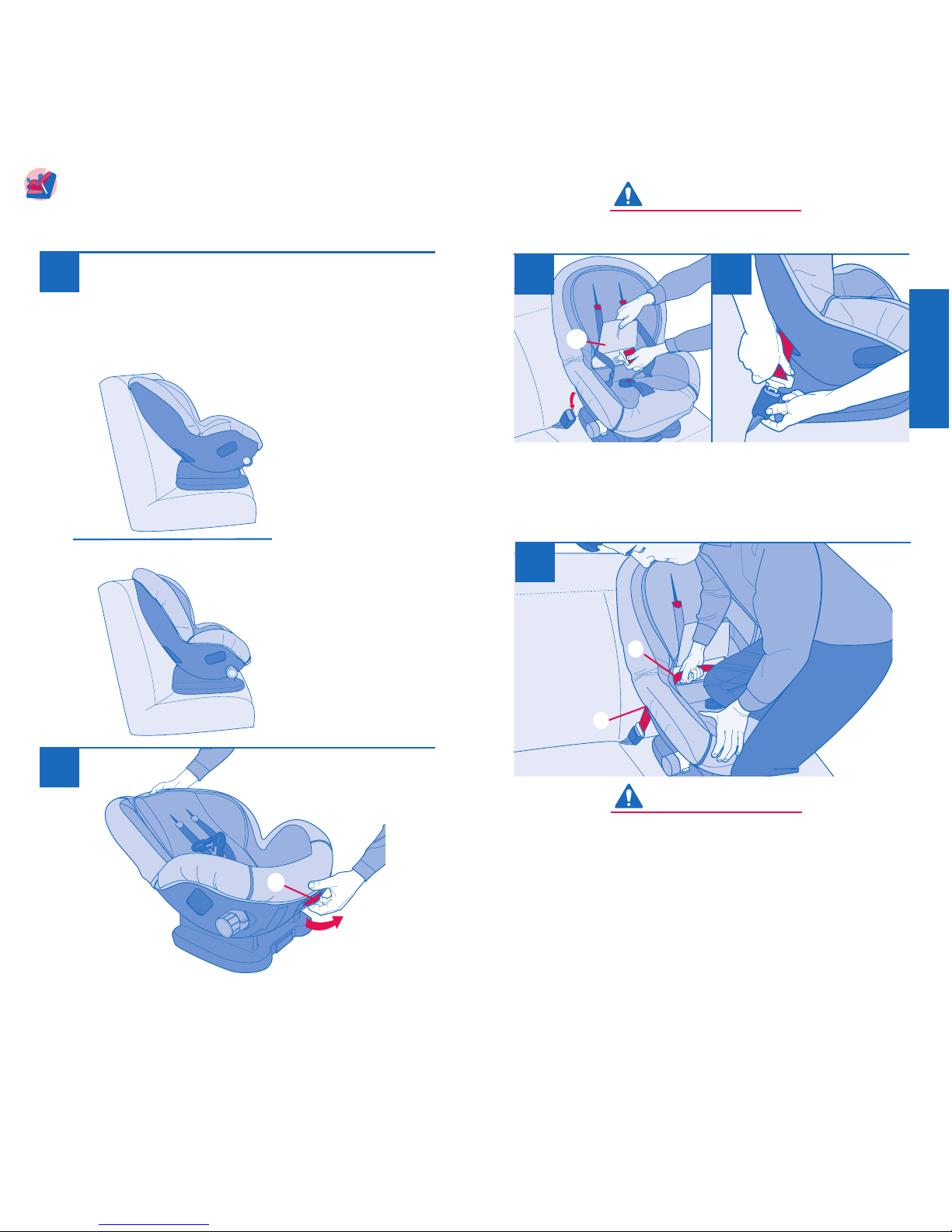

Forward-facing Installation

Using the Seat Belt

Adjust the recline to Positions #2 or #3 by lifting the back of the seat slightly while pulling the red Recline Right lever A.

Intermediate Recline Position (Position #2)

Full Upright Position (Position #3)

The Intermediate Recline Position (Position #2) and Full Upright Position (Position #3) are ONLY for forward-facing use AND the child must weigh 20 – 50 lbs (9 – 22.6 kg).

➚

If the vehicle seat belts are not routed correctly,

the child restraint may not protect your child in a crash.

Thread the vehicle seat belt through the child restraint. Use the BeltTrac access ﬂap B for easier seat belt routing.

Buckle the vehicle seat belt.

WARNING

Installation:

Forward-facing

The seat belt must be as tight as possible.

Using your knee, put your full weight into the child restraint as you tighten the seat belt C. If you can move the child restraint more than 1 in. (25 mm) forward or side-to-side at the vehicle seat belt path D, the seat belt is not tight enough, and you will need to try again.

DO NOT

use this child restraint if it moves more than

1 inch (25 mm) forward or side-to-side at the vehicle

belt path. Serious injury or death may result from poor

installation. If you can not tightly secure the child

restraint, try again or move it to another location.

WARNING

Using your full weight press down on the child restraint (as shown in step 5) as you tighten the seat belt. Then, hold the lap and shoulder belts together just behind the free sliding buckle tongue F. Unfasten the seat belt.

Thread the locking clip onto the seat belt, and slide it into place. Re-buckle the seat belt. Locking clip must be placed within 1/2” (13 mm) of seat belt buckle.

Locking clip must be placed within 1/2” (13 mm) of seat belt buckle.

Route the vehicle seat belt as shown depending on your type of seat belt.

Lap & Shoulder

Belt Combination

Lap Belt Only

Use a locking clip E with lap/shoulder seat belt combinations that have a buckle tongue that slides freely along the belt without locking into place.

If your car does not have this type of lap/shoulder belt, skip to step 8.

Remove locking clip from vehicle seat belt when not used

with a child restraint or the vehicle seat belt will not properly

restrain an adult or child. Serious injury could occur.

You may need to use a locking clip with

some shoulder/lap belt combinations.

WARNING

Installation:

Forward-facing

➚

DO NOT allow the vehicle seat belt release button to

touch the child restraint. Accidental contact may cause

the seat belt to release. If necessary, turn the vehicle seat

belt button away from the child restraint or move the

child restraint to a different location.

WARNING

Check your work. Make certain the belts are tight. If

you can move the child restraint more than 1 in. (25 mm) forward or side-to-side at the belt path D, the belts are not tight enough. If you have not tightly secured the child restraint, try again or move it to another location.

DO NOT use this child restraint if it moves more

than 1 inch (25 mm) forward or side-to-side at the vehicle belt path. Serious injury or death may result

from poor installation. If you can not tightly secure

the child restraint, try again or move it to

another location.

WARNING

SecureRight™ Quick Connector™

LATCH is a system for attaching the child restraint to

your vehicle seat. It is to be used in place of your vehicle’s seat belts, and can be used in vehicles with LATCH anchors. Your vehicle owner’s manual may refer to this system as ISOFIX.

• ONLY use for securing child restraint to lower LATCH

anchor points.

• ALWAYS read and follow exactly the instructions that

accompany your vehicle and child restraint.

• NEVER attach two hooks to one vehicle lower

anchor point.

•

DO NOT

use the vehicle seat belts to install a child

restraint when using the LATCH system.

• This LATCH system is intended to be used ONLY as

described in these instructions. Serious injury or death may result from misuse.

• When not in use, the LATCH harness and hook should be securely clipped onto the base of the child restraint. Keep out of reach of children.

WARNING

Forward-facing

Installation Using LATCH

Installation:

Forward-facing

Know Your LATCH

Hook

Adjuster

Harness

Adjuster

Clip

Harness

The LATCH harness that comes with your child

restraint will be one of the two types below.

NOTE:

Refer to your

vehicle owner’s manual

for the location of the tether anchor bracket in your vehicle. Older vehicles may not come equipped with anchor bracket hardware. Check with your vehicle dealer. If you have questions regarding tether anchors which are not addressed by the vehicle owner’s manual, or answered by an authorized dealer/vehicle manufacturer call Evenﬂo’s ParentLink at 1-800-233-5921.

Attach tether hook G to the tether anchor bracket H in your automobile. Pull the end of the strap I to tighten. Remove all slack in the strap.

• To avoid a strangulation hazard, you MUST tightly roll

or fold excess tether strap and secure with the strap/ rubber band.

• Attach the tether hook to the storage clip when not in use. This will keep an unused tether from hitting someone during a crash.

WARNING

After adjusting the top tether strap, you may have excess strap; DO NOT cut it off. If you do, it may not be long enough to use in another vehicle. Instead,

tightly roll up the excess tether strap and place the rubber band around the bundle.

SecureRight™ Quick Connector™

Remove two LATCH hooks A, or clips B,from the the base C.

Remove the LATCH harness E from the rearfacing position (front openings).

Remove the seat pad from the seat shell (page 39). Loosen harness straps D (page 36) and place them out of the way, as shown.

• If your LATCH harness E is already in the forward-

facing position (back openings), proceed to step 6.

• If your LATCH harness E is in the rear-facing

position (front openings), continue to step 3.

➚

Crossing your arms, insert the ends of the LATCH harness E in the forward-facing belt path openings, as shown (back openings). NOTE: Make sure the adjustment buckle F enters the opening on the correct side of the child restraint, as shown.

After the LATCH harness E has been correctly inserted, it will appear as shown above. NOTE: Make sure the adjustment buckle F is on the correct side of the child restraint, as shown.

LATCH Harness in

Forward-facing Position

LATCH Harness in

Rear-facing Position

➚

Installation:

Forward-facing

Using your full weight push the child restraint ﬁrmly into the vehicle seat, while pulling up on the LATCH harness to tighten.

The LATCH harness must be as tight as possible.

If you can move the child restraint more than 1 inch (25 mm) forward or side-toside at the belt path H, the LATCH harness is not tight

enough. You will need to try again, or ﬁnd another

location for your child restraint.

Refer to your vehicle owner’s manual to locate the lower anchors on your vehicle seat.

Attach the left hook A, or clip B, to the left anchor G, and the right hook to the right anchor. DOUBLE

CHECK that each LATCH hook or clip is fully engaged

by pulling hard on the LATCH harness.

Make sure that when you connect a Quick Connector™ clip to an anchor, the word “SafeGuard™” is always facing out and in the upright position, as shown above.

Correct Incorrect

Attach tether hook I to the tether anchor bracket J in your automobile. Pull the end of the strap K to tighten. Remove all slack in the strap.

• To avoid a strangulation hazard, you MUST tightly roll

or fold excess tether strap and secure with the strap/ rubber band.

• Attach the tether hook to the storage clip when not in use. This will keep an unused tether from hitting someone during a crash.

WARNING

After adjusting the top tether strap, you may have excess strap; DO NOT cut it off. If you do, it may not be long enough to use in another vehicle. Instead, tightly roll up the excess tether strap and place the rubber band around the bundle.

Installation:

Forward-facing

WARNING

• Failure to follow these instructions could result in serious injury to your child or other vehicle occupants.

• The tether strap is for forward-facing use only.

NOTE:

Refer to your

vehicle owner’s manual

Securing Your

Child

➚

Insert both buckle tongues A into the buckle C. Pull up on the harness strap to check that the buckle tongues are fastened.

Place baby in the child restraint. The baby’s back

and bottom should be ﬂat against the restraint.

If there is a gap, the baby will not be comfortable.

Bring each harness strap over the child’s shoulders. Slide the buckle tongues A down towards the buckle to snug the harness.

Securing Your Child

in the Child Restraint

Fasten the chest clip E by snapping the two halves together, as shown. Slide chest clip to armpit level.

Grasp both red harness tabs B and slide downward until the harness straps are at the child’s shoulders.

Tighten the harness straps by turning either one of TensionRight knobS D. To loosen the harness straps, refer to page 36.

To adjust the crotch strap, grasp the bottom of the strap A and twist it to align with the length wise slot B. Move to the desired position. Twist the strap back into position. Be sure that the crotch strap is securely in place.

Adjusting the Crotch Strap

As your child grows, you will need to change the crotch strap position so that it is in the slot closest to your child. The crotch strap should ALWAYS be as close as possible to, but NEVER under, the child’s bottom.

Adjustments

The harness straps must be snug against the child. A snug strap should not allow any slack. It lies in a relatively straight line without sagging. It does not press on the child’s ﬂesh or push the child’s body into an unnatural position. Check the harness straps near the shoulders for slack and adjust as needed.

Rear Position

Front Position

SecureRight™ Quick Connector™

➚

Removing Child

& Seat

To unfasten the chest clip, squeeze the tabs A together and pull apart.

Removing Child from the Restraint

Press the red buckle release B, and remove the buckle tongues.

Removing the LATCH System

Press the adjuster release button A to loosen harness strap.

When the LATCH system is not in use you MUST attach each hook A, or clip B, onto the base G. Be sure the LATCH harness straps are tucked completely inside the seat shell. A loose LATCH harness strap and hook may injure your child.

Loosen the harness strap by pressing and holding down either one of the red tension release levers C located on the TensionRight knob. While holding the lever C, pull up on the harness straps D near the child’s lap.

To remove the hook B, press the tab C and twist, then remove from anchor D.

To remove the clip E, press the release button F and remove clip from anchor D.

You will need to remove your seat pad

for cleaning.

Removing the Seat Pad

Open the access ﬂap and remove the seat pad B from the seat shell.

Unbuckle harness straps and disconnect chest clip.

Starting at the bottom of the seat, unfasten all seven seat pad hooks A.

➚

NOTE: When installing the seat pad, begin at the top and work your way down.

➚

Removing Child

& Seat

Removing the Tether Strap

Press the adjuster release button A to loosen tether strap.

• To avoid a strangulation hazard, you MUST tightly roll

or fold excess tether strap and secure with the strap/ rubber band.

• Attach the tether hook to the storage clip when not in use. This will keep an unused tether from hitting someone during a crash.

WARNING

Press the tab B and twist, then remove the hook from the anchor C.

When the tether strap is not in use you MUST attach the hook D to the back of the child restraint, and tightly roll and secure the strap with the strap/ rubber band. A loose tether strap and hook may injure your child.

The optional Infant Head Support E should lie ﬂat against the seat back, as shown. Be sure to cut off the plastic attachment between the head support and the seat pad. Small parts may be a choking hazard. NOTE: Support the child’s head. For about the ﬁrst three months, a baby’s head needs extra support. Use a small rolled towel on each side of the baby’s head or the optional Head Support.

The optional Body Pillow D is used to help support your child by placing it in the restraint, as shown.

Use the Body Pillow and Infant Head Support with the

child restraint in the rear-facing position ONLY.

WARNING

Not available on all models.

Installing the Accessories

• Use the fold-down cup holder with the child restraint

in the forward-facing position ONLY.

• DO NOT use the accessories to store cans or hard

cups. Only for use with soft cups (such as styrofoam or paper).

• DO NOT place any cups that contain hot liquids

(such as coffee or tea) in the accessories.

• DO NOT snap any other items to this child restraint

unless it has been certiﬁed for use with this speciﬁc child restraint.

WARNING

To install the fold-down cup holder A, move seat pad B out of the way and install the clip C onto the side of the restraint. Attach the cup holder to the clip.

➚

Accessories

For a period of 90 days from the original purchase of this Product, Evenﬂo warrants to the original end user (“Purchaser”) this Product (including any accessories) against defects in material or workmanship. Evenﬂo’s sole obligation under this express limited warranty shall be, at Evenﬂo’s option, to repair or replace any Product that is determined to be defective by Evenﬂo and determined to be covered by this warranty.

Repair or replacement as provided under this warranty is the exclusive remedy of the Purchaser. Proof of purchase in the form of a receipted invoice or bill of sale evidencing that the Product is within the warranty period must be presented to obtain warranty service. This express limited warranty is extended by Evenﬂo ONLY to the original Purchaser of the Product and is not assignable or transferable to subsequent purchasers or end users of the Product. For warranty service, contact Evenﬂo’s ParentLink Consumer Resource Center at (800) 233-5921 or

www.evenﬂo.com.

EXCEPT TO THE EXTENT PROHIBITED BY APPLICABLE LAW, ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE ON THIS PRODUCT IS HEREBY DISCLAIMED. EVENFLO SHALL NOT BE LIABLE FOR ANY INCIDENTAL, CONSEQUENTIAL, SPECIAL OR PUNITIVE DAMAGES OF ANY KIND FOR BREACH OF THE EXPRESS LIMITED WARRANTY ON THIS PRODUCT, OR ANY WARRANTY IMPLIED BY OPERATION OF LAW. OTHER THAN THE EXPRESS LIMITED WARRANTY SET FORTH ABOVE, THERE ARE NO OTHER WARRANTIES THAT ACCOMPANY THIS PRODUCT AND ANY ORAL, WRITTEN OR ANY OTHER EXPRESS REPRESENTATION OF ANY KIND IS HEREBY DISCLAIMED.

• www.evenﬂo.com

• USA: 1-800-233-5921 8 AM – 5 PM EST

• México: 01-800-706-12-00

Answers. Advice. Affirmation.

™

Limited Warranty

To order replacement parts you can order on-line at www. evenﬂo.com or contact Evenﬂo at 1-800-233-5921. When

you contact us, please have the product model number and date of manufacture (found on the back of the child restraint).

Replacement parts

Locking Clip

Proper Disposal of this Child Restraint

At the end of this child restraint’s useful life, Evenﬂo encourages you to dispose of it properly. Most of the components in this child restraint are recyclable.

1. Remove all fabric and padding.

2. Remove all screws and disassemble the restraint.

3. Recycle all plastic/foam parts and discard the rest.

If your local recycling center won’t accept the padding, you may dispose of it in the landﬁll. NOTE: Evenﬂo uses recycled materials in the manufacturing process whenever possible but never for components that are critical for safety.

Infant Head

Support

Body Pillow

Tether

Cup Holder

Seat Pad

Seat Foam-Top

Seat Foam-Rgt

Seat Foam-Lft

• www.evenﬂo.com

• USA: 1-800-233-5921 8 AM – 5 PM EST

• México: 01-800-706-12-00

Answers. Advice. Affirmation.

™

Evenflo Triumph Advance Owner's Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
