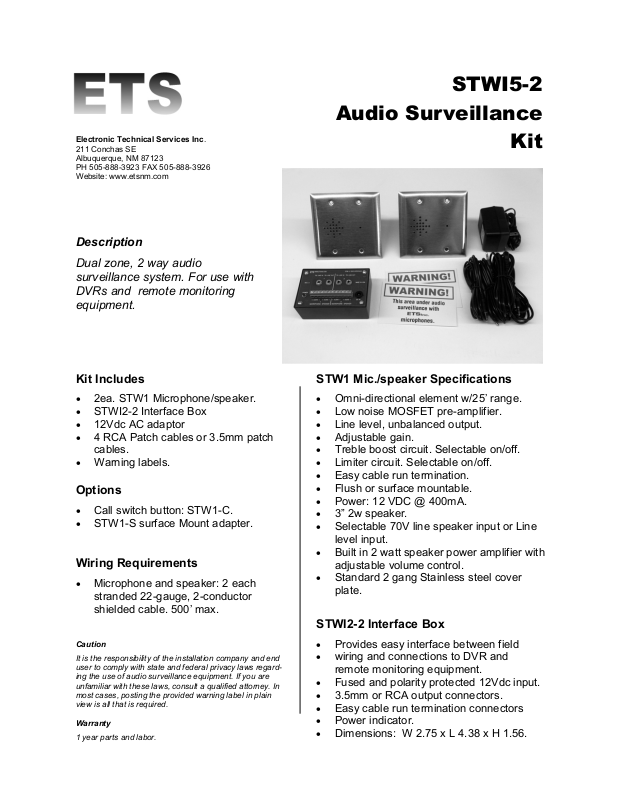

ETS STWI5-2 Specsheet

STWI5-2

Audio Surveillance

Electronic Technical Services Inc.
211 Conchas SE
Albuquerque, NM 87123
PH 505-888-3923 FAX [phone]
Website: www.etsnm.com

Description

Dual zone, 2 way audio
surveillance system. For use with
DVRs and remote monitoring
equipment.

Kit Includes

• 2ea. STW1 Microphone/speaker.

• STWI2-2 Interface Box

• 12Vdc AC adaptor

• 4 RCA Patch cables or 3.5mm patch

cables.

• Warning labels.

Options

• Call switch button: STW1-C.

• STW1-S surface Mount adapter.

Wiring Requirements

• Microphone and speaker: 2 each

stranded 22-gauge, 2-conductor
shielded cable. 500’ max.

Caution

It is the responsibility of the installation company and end
user to comply with state and federal privacy laws regard­ing the use of audio surveillance equipment. If you are
unfamiliar with these laws, consult a qualified attorney. In
most cases, posting the provided warning label in plain
view is all that is required.

Warranty

1 year parts and labor.

Kit

STW1 Mic./speaker Specifications

• Omni-directional element w/25’ range.

• Low noise MOSFET pre-amplifier.

• Line level, unbalanced output.

• Adjustable gain.

• Treble boost circuit. Selectable on/off.

• Limiter circuit. Selectable on/off.

• Easy cable run termination.

• Flush or surface mountable.

• Power: 12 VDC @ 400mA.

• 3” 2w speaker.

• Selectable 70V line speaker input or Line

level input.

• Built in 2 watt speaker power amplifier with

adjustable volume control.

• Standard 2 gang Stainless steel cover

plate.

STWI2-2 Interface Box

• Provides easy interface between field

• wiring and connections to DVR and

remote monitoring equipment.

• Fused and polarity protected 12Vdc input.

• 3.5mm or RCA output connectors.

• Easy cable run termination connectors

• Power indicator.

• Dimensions: W 2.75 x L 4.38 x H 1.56.
