Description
Single zone 2 way audio
surveillance system. For use with
DVRs, IP cameras, and remote
monitoring equipment. Modern
appearance surface mount
microphone / speaker for
residential and office applications
where decor considerations are
important.

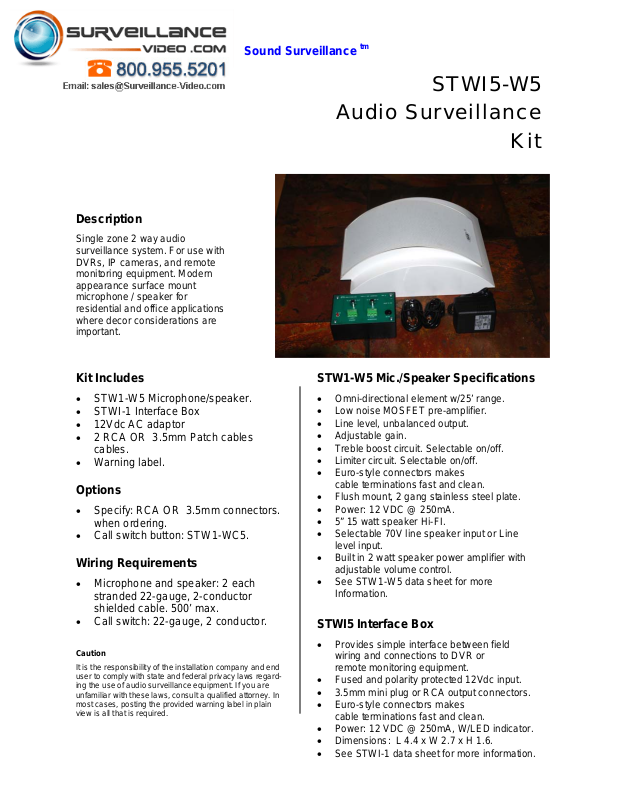

Sound Surveillance tm
STWI5-W5
Audio Surveillance
Kit
Kit Includes
• STW1-W5 Microphone/speaker.
• STWI-1 Interface Box
• 12Vdc AC adaptor
• 2 RCA OR 3.5mm Patch cables
cables.
• Warning label.
Options
• Specify: RCA OR 3.5mm connectors.
when ordering.
• Call switch button: STW1-WC5.
Wiring Requirements
• Microphone and speaker: 2 each
stranded 22-gauge, 2-conductor
shielded cable. 500’ max.
• Call switch: 22-gauge, 2 conductor.
Caution
It is the responsibility of the installation company and end
user to comply with state and federal privacy laws regarding the use of audio surveillance equipment. If you are
unfamiliar with these laws, consult a qualified attorney. In
most cases, posting the provided warning label in plain
view is all that is required.
STW1-W5 Mic./Speaker Specifications
• Omni-directional element w/25’ range.
• Low noise MOSFET pre-amplifier.
• Line level, unbalanced output.
• Adjustable gain.
• Treble boost circuit. Selectable on/off.
• Limiter circuit. Selectable on/off.
• Euro-style connectors makes
cable terminations fast and clean.
• Flush mount, 2 gang stainless steel plate.
• Power: 12 VDC @ 250mA.
• 5” 15 watt speaker Hi-FI.
• Selectable 70V line speaker input or Line
level input.
• Built in 2 watt speaker power amplifier with
adjustable volume control.
• See STW1-W5 data sheet for more
Information.
STWI5 Interface Box
• Provides simple interface between field
wiring and connections to DVR or
remote monitoring equipment.
• Fused and polarity protected 12Vdc input.
• 3.5mm mini plug or RCA output connectors.
• Euro-style connectors makes
cable terminations fast and clean.
• Power: 12 VDC @ 250mA, W/LED indicator.
• Dimensions: L 4.4 x W 2.7 x H 1.6.
• See STWI-1 data sheet for more information.
