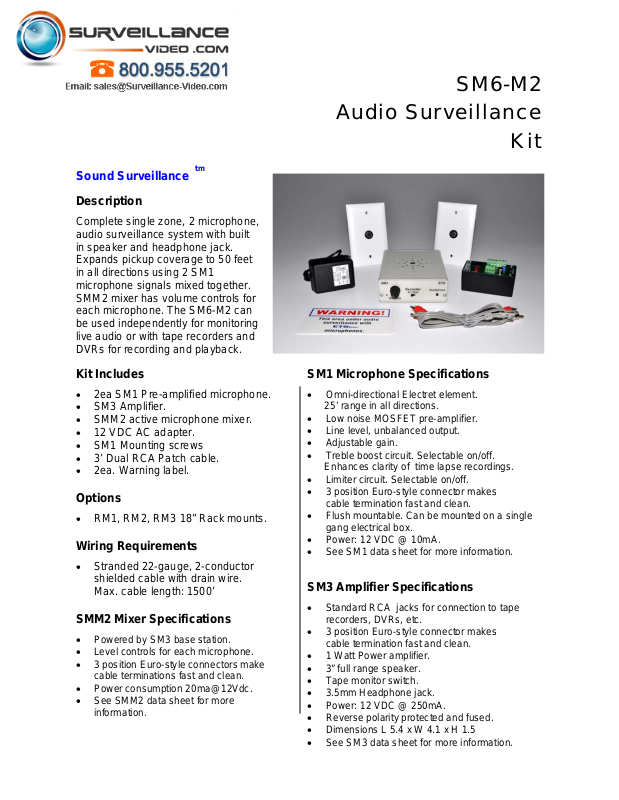

Sound Surveillance tm
Description
Complete single zone, 2 microphone,
audio surveillance system with built
in speaker and headphone jack.
Expands pickup coverage to 50 feet
in all directions using 2 SM1
microphone signals mixed together.
SMM2 mixer has volume controls for
each microphone. The SM6-M2 can
be used independently for monitoring
live audio or with tape recorders and
DVRs for recording and playback.
SM6-M2
Audio Surveillance
Kit
Kit Includes
• 2ea SM1 Pre-amplified microphone.
• SM3 Amplifier.
• SMM2 active microphone mixer.
• 12 VDC AC adapter.
• SM1 Mounting screws
• 3’ Dual RCA Patch cable.
• 2ea. Warning label.
Options
• RM1, RM2, RM3 18” Rack mounts.
Wiring Requirements
• Stranded 22-gauge, 2-conductor
shielded cable with drain wire.
Max. cable length: 1500’
SMM2 Mixer Specifications
• Powered by SM3 base station.
• Level controls for each microphone.
• 3 position Euro-style connectors make
cable terminations fast and clean.
• Power consumption 20ma@12Vdc.
• See SMM2 data sheet for more
information.
SM1 Microphone Specifications
• Omni-directional Electret element.
25’ range in all directions.
• Low noise MOSFET pre-amplifier.
• Line level, unbalanced output.
• Adjustable gain.
• Treble boost circuit. Selectable on/off.
Enhances clarity of time lapse recordings.
• Limiter circuit. Selectable on/off.
• 3 position Euro-style connector makes
cable termination fast and clean.
• Flush mountable. Can be mounted on a single
gang electrical box.
• Power: 12 VDC @ 10mA.
• See SM1 data sheet for more information.
SM3 Amplifier Specifications
• Standard RCA jacks for connection to tape
recorders, DVRs, etc.
• 3 position Euro-style connector makes
cable termination fast and clean.
• 1 Watt Power amplifier.
• 3” full range speaker.
• Tape monitor switch.
• 3.5mm Headphone jack.
• Power: 12 VDC @ 250mA.
• Reverse polarity protected and fused.
• Dimensions L 5.4 x W 4.1 x H 1.5
• See SM3 data sheet for more information.
