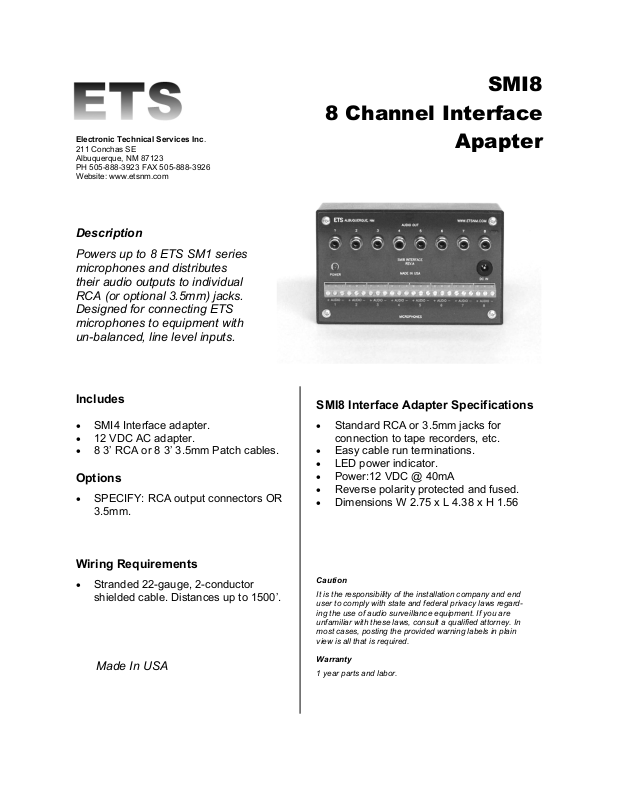

SMI8
8 Channel Interface
Electronic Technical Services Inc.
211 Conchas SE
Albuquerque, NM 87123
PH 505-888-3923 FAX 505-888-3926
Website: www.etsnm.com
Description
Powers up to 8 ETS SM1 series
microphones and distributes
their audio outputs to individual
RCA (or optional 3.5mm) jacks.
Designed for connecting ETS
microphones to equipment with
un-balanced, line level inputs.
Includes
• SMI4 Interface adapter.
• 12 VDC AC adapter.
• 8 3’ RCA or 8 3’ 3.5mm Patch cables.
Options
• SPECIFY: RCA output connectors OR
3.5mm.
Wiring Requirements
• Stranded 22-gauge, 2-conductor
shielded cable. Distances up to 1500’.
Made In USA
Apapter
SMI8 Interface Adapter Specifications
• Standard RCA or 3.5mm jacks for
connection to tape recorders, etc.
• Easy cable run terminations.
• LED power indicator.
• Power:12 VDC @ 40mA
• Reverse polarity protected and fused.
• Dimensions W 2.75 x L 4.38 x H 1.56
Caution
It is the responsibility of the installation company and end
user to comply with state and federal privacy laws regarding the use of audio surveillance equipment. If you are
unfamiliar with these laws, consult a qualified attorney. In
most cases, posting the provided warning labels in plain
view is all that is required.
Warranty
1 year parts and labor.
