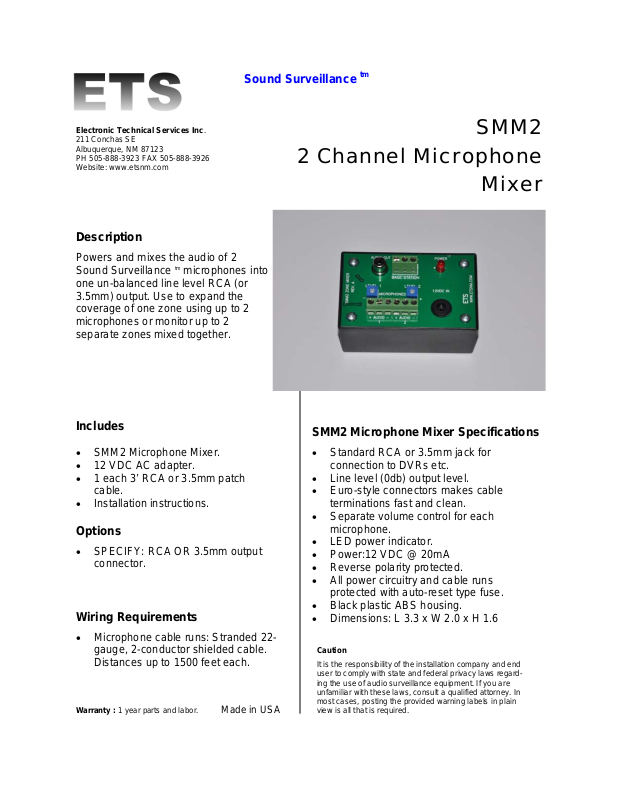

ETS SMM2-2 Specsheet

Sound Surveillance tm

Electronic Technical Services Inc.
211 Conchas SE
Albuquerque, NM 87123
PH 505-888-3923 FAX [phone]
Website: www.etsnm.com

Description

Powers and mixes the audio of 2

tm

Sound Surveillance

microphones into

one un-balanced line level RCA (or

3.5mm) output. Use to expand the
coverage of one zone using up to 2
microphones or monitor up to 2
separate zones

mixed together.

Includes

• SMM2 Microphone Mixer.

• 12 VDC AC adapter.

• 1 each 3’ RCA or 3.5mm patch

cable.

• Installation instructions.

Options

• SPECIFY: RCA OR 3.5mm output

connector.

Wiring Requirements

• Microphone cable runs: Stranded 22-

gauge, 2-conductor shielded cable.
Distances up to 1500 feet each.

Warranty : 1 year parts and labor. Made in USA

SMM2

2 Channel Microphone

Mixer

SMM2 Microphone Mixer Specifications

• Standard RCA or 3.5mm jack for

connection to DVRs etc.

• Line level (0db) output level.

• Euro-style connectors makes cable

terminations fast and clean.

• Separate volume control for each

microphone.

• LED power indicator.

• Power:12 VDC @ 20mA

• Reverse polarity protected.

• All power circuitry and cable runs

protected with auto-reset type fuse.

• Black plastic ABS housing.

• Dimensions: L 3.3 x W 2.0 x H 1.6

Caution

It is the responsibility of the installation company and end
user to comply with state and federal privacy laws regard­ing the use of audio surveillance equipment. If you are
unfamiliar with these laws, consult a qualified attorney. In
most cases, posting the provided warning labels in plain
view is all that is required.
