ETC VM-10 Installation Manual

VM-10

USB Desktop Audio Device

Installation Guide

THE POSSIBILITIES ARE

9 Austin Drive, Marlborough, CT 06447 (860) 295--

9 Austin Drive, Marlborough, CT 06447 (860) 295

THE POSSIBILITIES ARE

ENDLESS.

ENDLESS.

8100 www.essentialtel.com [e-mail]

8100 www.essentialtel.com [e-mail]

Table of Contents

Introduction……………………………………………………………………………………………………………………….3

Parts List…………………………………………………………………………………………………………………………...4

Physical Description……………………………………………………………………………………………………..5

Device Configuration…………………………………………………………………………………………………...7

Specifications…………………………………………………………………………………………………………………..9

Quick Setup Examples……………………………………………………………………………………………...10

Warranty Info…………………………………………………………………………………………………………………..11

Publication Revision Date: October 18, 2016

Page 2 of 11

Introduction

ETC’s VM-10 programmable microphone is designed to integrate with virtually any 3rd party
desktop VoIP (Voice Over Internet Protocol) applications. The VM-10 is ideal for situations where a
multi-channel, plug-n-play, desktop audio interface is needed. With virtually any USB (Universal
Serial Bus) compliant PC and VoIP desktop application software, the VM-10 enables “mouse free”
interaction on up to 10 channels of audio without the need to ‘point-and-click’ on the software appli­cation itself. This allows the user to speak on the channels while performing other tasks on
the PC. The VM-10 has the ability to utilize your computer’s internal speakers, or use an
external set from the 3/8” jack on the back.

• Speaker Out Jack

• Foot Switch Input Jack

• USB 2.0 compliant port

• Gooseneck Microphone

• Volume Control Knob

• Audio Activity Indicator LED

• 10 “Hotkeys” PTT buttons

Page 3 of 11

Parts List

The VM-10 has numerous features & functions and to compliment these features & functions are several
standard and optional components shown below.

Standard Accessories:

USB Cable
P/N—UO23-006

Optional Accessories:

Foot Switch
P/N: FP115

Speakers
P/N: A150

Page 4 of 11

Physical Descriptions

Back View

FOOT PEDAL

PTT button to the PTT button on the device. Pressing the foot switch will send the same ‘hot key’
sequence as the device’s normal PTT button once a channel is latched.

SPEAKER

USB

connecting the VM-10 to your PC, it will automatically install using native Windows/Linux drivers.
Please note, it can take several minutes for the OS to recognize new hardware and install drivers.
Do not disconnect the VM-10 during this time. The message “New Hardware Installed” will be dis­played when the installation is complete.

: A USB cable is plugged into this jack to connect the VM-10 to a computer. Upon properly

: This port allow connection of a foot switch. The foot switch acts as an alternate

: This port allows connection of powered, stereo PC style speakers

Page 5 of 11

Top View

Speaker Volume

: The VM-10 is only capable of processing mono audio streams. This controls

both the left and right speaker audio level.

Speaker Activity

Push to Talk

: LED is provided as a visual indication to the user of audio activity.

: When this button is pressed the VM-10 sends a hotkey sequence to the operating
system. Which channel the PTT button activates is configured via the software application. The hot
key sequence scheme:

1 — Ctrl+Alt+Shift+A
2 — Ctrl+Alt+Shift+B
3 — Ctrl+Alt+Shift+C
4 — Ctrl+Alt+Shift+D
5 — Ctrl+Alt+Shift+E
6 — Ctrl+Alt+Shift+F
7 — Ctrl+Alt+Shift+G
8 — Ctrl+Alt+Shift+H
9 — Ctrl+Alt+Shift+I
10 — Ctrl+Alt+Shift+X

Page 6 of 11

Windows 7 Audio Device Hardware Configuration

Click on the

Sounds icon located in the

Sounds

Control Panel (Figure 1) or right click the speaker icon in

Control Panel

your system tray then click Playback Devices.

Figure 1

In the

Sound window, choose the

Sound

2) and click the
tab. Adjust the

Playback tab, select

Playback

Properties button. In the

Properties

Speakers level to 75, the

Speakers

Speakers ETC VM--

Speakers ETC VM

Speakers Properties window (Figure 3) , choose the

Speakers Properties

Microphone level to 0 (zero), and

Microphone

10 Default Device (Figure

10 Default Device

MUTE the Microphone.

MUTE the Microphone.

Levels

Levels

Figure 2

Figure 3

Page 7 of 11

Click the OKOK button to return to the
(Figure 4) , select

Microphone ETC VM--

Microphone ETC VM

Sound window . In the

Sound

10 and click the

10

Sound window, choose the

Sound

Properties button (Figure 5). Adjust Micro-

Properties

Recording tab

Recording

phone level to 75, then click OK to return to Sound window. Click Ok to close the sound window.

Figure 4 Figure 5

Page 8 of 11

Specifications

• Frequency Response: 200Hz– 19kHz

• Distortion: .05% At Max Output

• Analog output range: -40 dB to +8 dB

• 75 mA Nom, 375 mA Max current

• 1.5 BTU’s/Hr

• USB ‘B’ style connector

• USB powered

• 3.5 mm jacks for PC speaker & foot pedal

connectivity

• Size: 4.00” W x 2.00” H x 7.00” D

• Weight: 1.75 lbs

• 1.5 BTUs Per Hour Output

Page 9 of 11

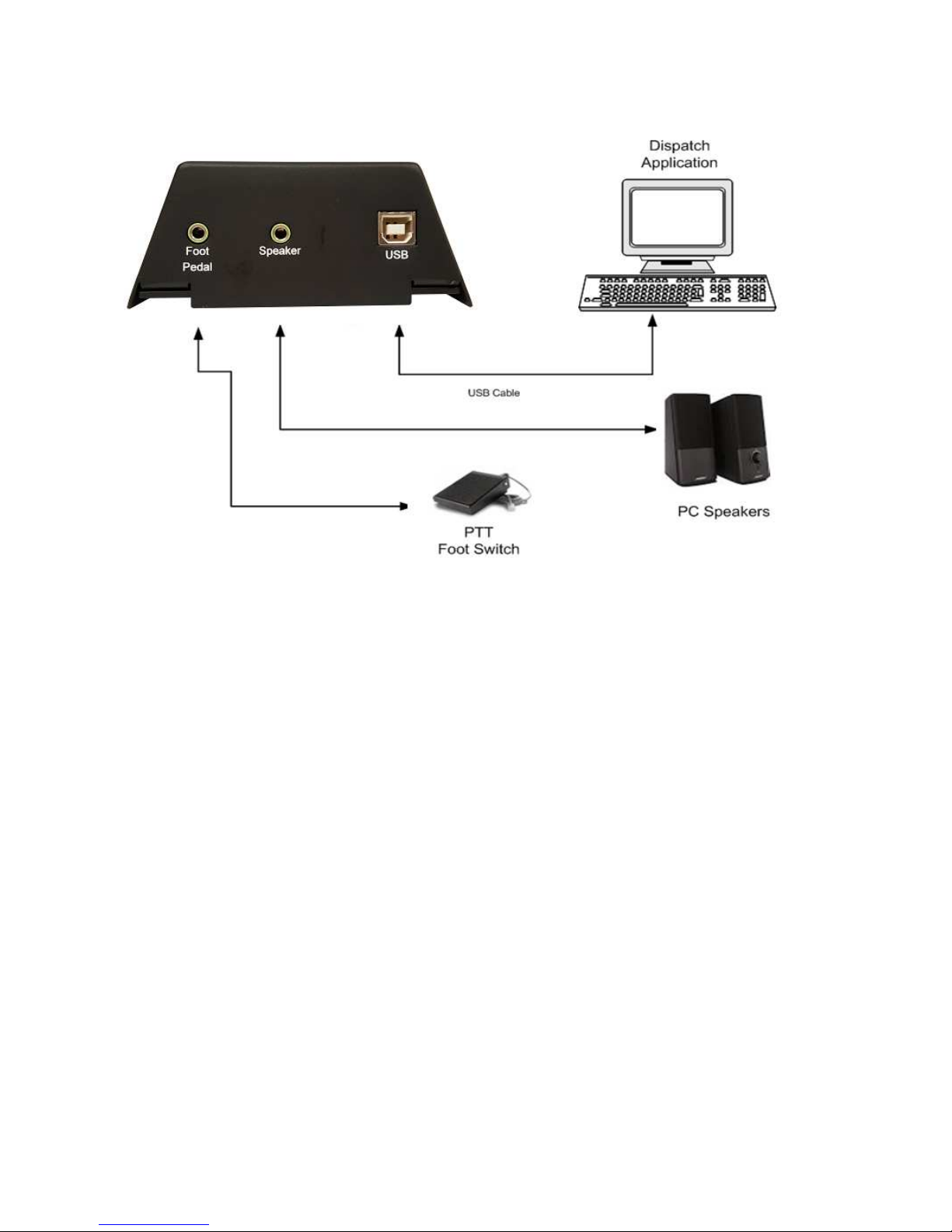

Quick Setup Examples

Page 10 of 11

VM-10 Hardware Product Limited Warranty

ETC warrants that your ETC hardware product shall be free from defects in material and workmanship for the
length of time specified in the Warranty Periods below, beginning from the date of purchase. Except where
prohibited by applicable law, this warranty is nontransferable and is limited to the original purchaser. This
warranty gives you specific legal rights, you may also have other rights that vary under local laws

Remedies

ETC’s entire liability and your exclusive remedy for any breach of warranty shall be, at ETC’s option, (1) to
repair or replace the hardware, or (2) to refund the price paid, provided that the hardware is returned to the
point of purchase or such other place as ETC may direct with a copy of the sales receipt or dated itemized re­ceipt. Shipping and handling charges may apply except where prohibited by applicable law. ETC may, at its
option, use new or refurbished or used parts in good working condition to repair or replace any hardware
product. Any replacement hardware product will be warranted for the remainder of the original warranty peri­od or thirty (30) days, whichever is longer or for any additional period of time that may be applicable in your
jurisdiction. This warranty does not cover problems or damage resulting from (1) accident, abuse, misapplica­tion, or any unauthorized repair, modification or disassembly; (2) improper operation or maintenance, usage
not in accordance with product instructions or connection to improper voltage supply; or (3) use of consuma­bles, such as replacement batteries, not supplied by ETC except where such restriction is prohibited by appli­cable law.

How to Obtain Warranty Support

Before submitting a warranty claim, we recommend you contact ETC support at [e-mail] for
technical assistance. Valid warranty claims are generally processed through the point of purchase during the
first thirty (30) days after purchase; however, this period of time may vary depending on where you purchased
your product – please check with ETC for details. Warranty claims or other product related questions should
be addressed directly to ETC. at [e-mail] or call [phone] option 3 between the hours
of 8:30 AM and 5:00 PM.

Limitation of Liability

ETC SHALL NOT BE LIABLE FOR ANY SPECIAL, INDIRECT, INCIDENTAL OR CONSEQUENTIAL DAM­AGES WHATSOEVER, INCLUDING BUT NOT LIMITED TO LOSS OF PROFITS, REVENUE OR DATA
(WHETHER DIRECT OR INDIRECT) OR COMMERCIAL LOSS FOR BREACH OF ANY EXPRESS OR IM­PLIED WARRANTY ON YOUR PRODUCT EVEN IF ETC HAS BEEN ADVISED OF THE POSSIBILITY OF
SUCH DAMAGES. Some jurisdictions do not allow the exclusion or limitation of special, indirect, incidental or
consequential damages, so the above limitation or exclusion may not apply to you.

©

Essential Trading Systems Corps. All intellectual property rights in this publication are owned by Essential
Trading Systems Corps. and are protected by United States copyright laws, other applicable copyright laws
and international treaty provisions. Essential Trading Systems Corps. Retains all rights not expressly granted.
No part of this publication may be reproduced in any form whatsoever or used to make any derivative work
without prior written approval by Essential Trading Systems Corps. No representation of warranties for fitness
for any purpose other than what is specifically mentioned in this guide is made either by Essential Trading
Systems Corps. or its agents. Essential Trading Systems Corp. reserves the right to revise this publication
and make changes without obligation to notify any person of such revisions or changes. Essential Trading
Systems Corps. may make improvements or changes in the product(s) and/or the program(s) described in this
documentation at any time. All rights reserved.

Page 11 of 11
