ETC ERC-G2, EDRC-G2 Data Sheet

®

Unison Echo® Architectural Control ProcessorETC

Echo Control Series

GENERAL INFORMATION

A member of ETC’s Echo family of lighting control and power control
products, the Echo Architectural Control Processor brings Echo
control to the Unison
Processor works with any Unison DRd to provide the flexibility of
a modular power-control rack to any installation. With support for
control stations, DMX input and Ethernet, the Echo Control Processor
can be easily adapted to your needs.

APPLICATIONS

• Houses of worship

• Education

• Hospitality

• Healthcare facilities

• Office buildings

• Conference rooms

• Meeting rooms

• Retail

FEATURES

• Designed for use with any EchoConnect-enabled station,
sensor or power controller

• Snapshot: connect a DMX input, or set levels locally and then
save to the preset with the touch of a button

• Plug and Play: ready to go out of the box, no software or
external programming required

• Secure-It User Access: multiple levels of secure user access
at the interface

• EchoConnect
freedom to put stations where you need them

• NetConnect: low-cost, easy-to-install Ethernet for data input
from Net3

• USBConnect: support for USB flash drives for configuration
upload and download

• QuickLoad: SD media support for upload and backup of
processor and DRd rack configuration data

• Support for up to 64 presets and 16 rooms

GENERAL

• UL and cUL LISTED

• CE marked

®

DRd power control family. The Echo Control

®

: Two-wire topology-free system provides the

™

and sACN products

ORDERING INFORMATION

Unison Echo Architectural Control Processor

MODEL DESCRIPTION

E-ACP Echo Architectural Control Processor

Note: Requires a compatible power-control enclosure from the Unison DRd family

Related DRd Power Control Enclosures

MODEL DESCRIPTION

DRd6 Six-Module (12-Circuit) Power Enclosure

DRd12 12-Module (24-Circuit) Power Enclosure

Echo Power Requirements

EchoConnect: One unit of output power

Auxiliary Power: Not required

Echo Presets

Supports 64 Echo Presets

1 of 6

Unison Echo Architectural Control ProcessorETC

Echo Control Series

SPECIFICATIONS

MECHANICAL

• Designed for use in Unison DRd Power Enclosures

• Microprocessor-based, solid-state technology to provide multi-scene lighting

• Fully-contained plug-in assembly with no discrete wire connections

• Front-panel user interface with backlit LCD

• Support for Secure Digital (SD) and Universal Serial Bus (USB) media on the front panel

FUNCTIONAL

• Capacity

- Supports 512 zones of control

- Supports one physical DMX port for data input and one DMX thru port for DMX data through to other devices

- Supports sACN data input for level control, up to four universes and six simultaneous sources (requires option card)

• Configuration Data

- Stored in non-volatile flash memory

- Ability to load to and from removable media (SD media and USB)

• Local user interface

- Access to dimming enclosure setup and status

- Control for channels, presets, and sequence

• Stations

- Connect to an Echo Architectural Control Processor via topology-free EchoConnect control network

- Supports up to 16 Echo Control and Preset Stations

• Operation

- Support for 16-bit DMX attributes

- Supports ETC Dimmer Doubling

- Activate/Deactivate presets

- Preset up, down and hold times up to 60 minutes and 59 seconds

- Synchronized control of up to sixteen Unison Echo Power Controllers or panels

ELECTRICAL

• No discrete wiring connections required

• One ESTA DMX512A input and thru port

• Supports ANSI E1.31 (streaming ACN)

• EchoConnect communication bus

- Topology-free station wiring, utilizing Belden 8471 or equivalent, and one #14 ESD drain wire

• System configuration and programming information
stored in non-volitile flash memory

• UL and cUL LISTED, CE marked

THERMAL

• Ambient room temperature: 0-40°C / 32-104°F

• Ambient humidity: 10-90% non-condensing

2 of 6

Unison Echo Architectural Control ProcessorETC

ECHO FAMILY OF PRODUCTS

Echo Control Series

EchoConnect Power Supplies

MODEL DESCRIPTION

E-SPS 6U Room Station Power Supply, Knockout Mount

E-SPS-DIN 16U DIN rail Station Power Supply with 24V Aux

E-SPM 16U DRd Station Power Module

E-SPM-A 16U DRd Station Power Module with 24V Aux

E-SPM-RM 16U Rack-Mount Station Power Module Aux

E-SPM-RM-A 16U Rack-Mount Station Power Module 24V Aux

E-SPM-WM 16U Wall-Mount Station Power Module

E-SPM-WM-A 16U Wall-Mount Station Power Module 24V Aux

E-APS 24V Aux Power Supply, Knockout Mount

Echo Stations

MODEL DESCRIPTION

E1001 Inspire One Button Station

E1002 Inspire Two Button Station

E1004 Inspire Four Button Station

E1006 Inspire Six Button Station

E1008 Inspire Eight Button Station

E1104 Inspire Four Button with Fader Station

EPS05 Echo Preset Station - 5 Button

EPS10 Echo Preset Station - 10 Button

EPSLO Echo Lockout Station

E-ATC Echo TimeClock

Echo Responsive Controls

MODEL DESCRIPTION

ELS Light Sensor

EOCC Ceiling-Mount PIR Occupancy Sensor

EVAC Ceiling-Mount PIR Vacancy Sensor

E-DOC-C Ceiling-Mount Dual Tech Occupancy Sensor

E-DVAC-C Ceiling-Mount Dual Tech Vacancy Sensor

E-DOC-W Wall-Mount Dual Tech Occupancy Sensor

E-DVAC-W Wall-Mount Dual Tech Vacancy Sensor

E-DOC-SM1 Switch-Mount Dual Tech Sensor - One Button

E-DOC-SM2 Switch-Mount Dual Tech Sensor - Two Button

Echo Interfaces

MODEL DESCRIPTION

EACC EchoAccess™ Interface

EEB Echo Expansion Bridge

EDMXC Echo DMX Scene Controller

EEI Echo-Echofl ex Interface

ECII Echo Contact Input Interface

ECOI Echo Contact Output Interface

Zone Controllers

MODEL DESCRIPTION

ERC One Zone Relay Controller

EDRC Two Zone Relay Controller

ELD One Zone 0-10V Dimming Controller

EDLD Two Zone 0-10V Dimming Controller

ESSC One Zone SmartSpace Controller

EDSSC Two Zone SmartSpace Controller

ELVD 600-Watt Phase Adaptive Dimmer

ELVD-277 600-Watt Phase Adaptive Dimmer- 277V

Room Controllers

MODEL DESCRIPTION

ERMC4 Four Zone Room Controller

ERMCT4 Four Zone Room Controller with TimeClock

ERMC8 Eight Zone Room Controller

ERMCT8 Eight Zone Room Controller with TimeClock

Panel Products

MODEL DESCRIPTION

ERP Echo Relay Panel Mains Feed

ERP-FT Echo Relay Panel Feed Through

SensorIQ Sensor IQ Intelligent Breaker System

SR3 Sensor3 Power Control System

DRd Unison DRd with Echo Control

3 of 6

Unison Echo Architectural Control ProcessorETC

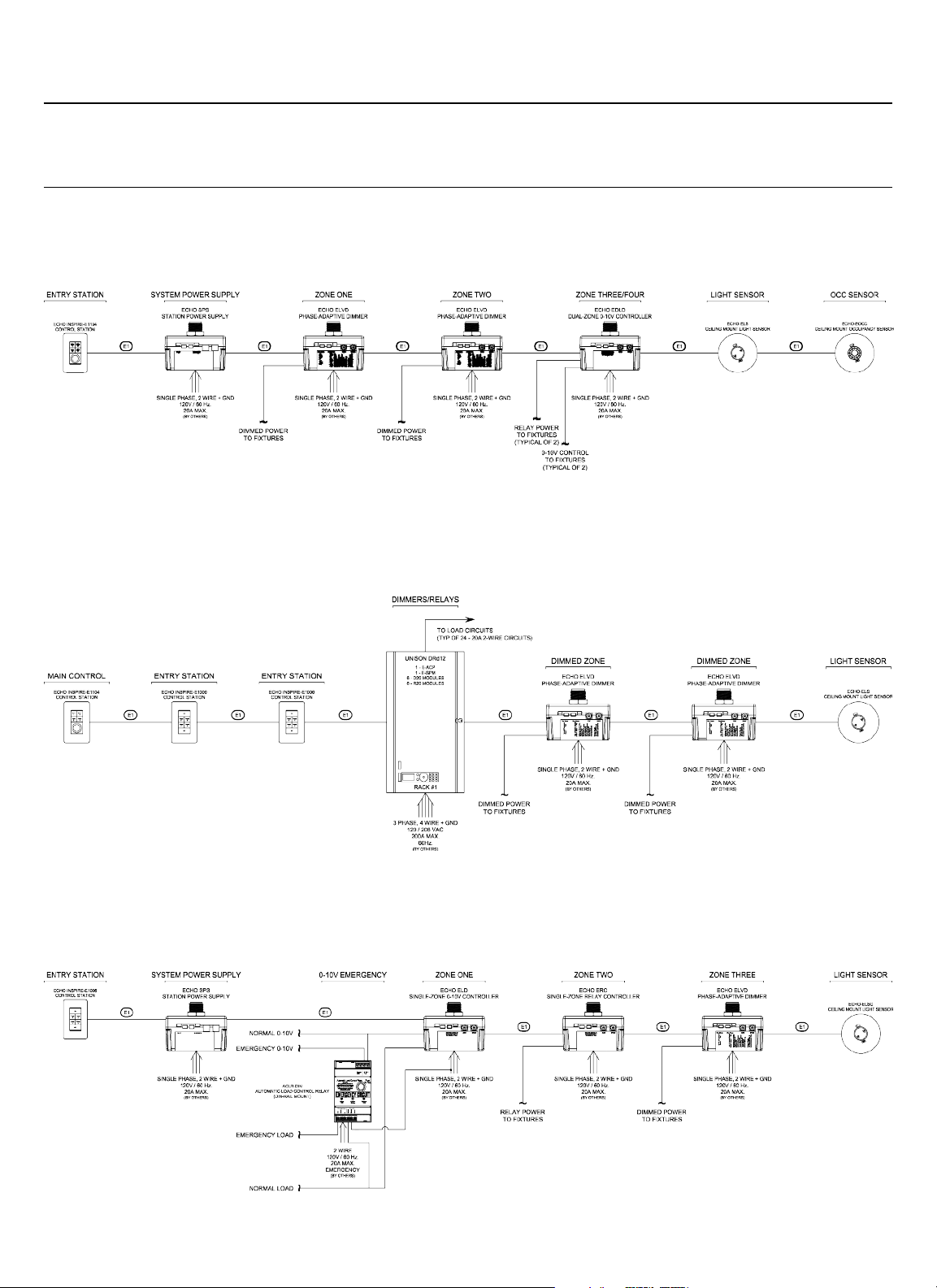

SAMPLE ECHO SYSTEMS

Echo Control Series

SMALL SYSTEM

MEDIUM SYSTEM

CONFERENCE ROOM

4 of 6

Unison Echo Architectural Control ProcessorETC

SAMPLE ECHO SYSTEMS

Echo Control Series

MEDIUM BALLROOM

5 of 6

PHYSICAL

310mm

m

Unison Echo Architectural Control ProcessorETC

Echo Control Series

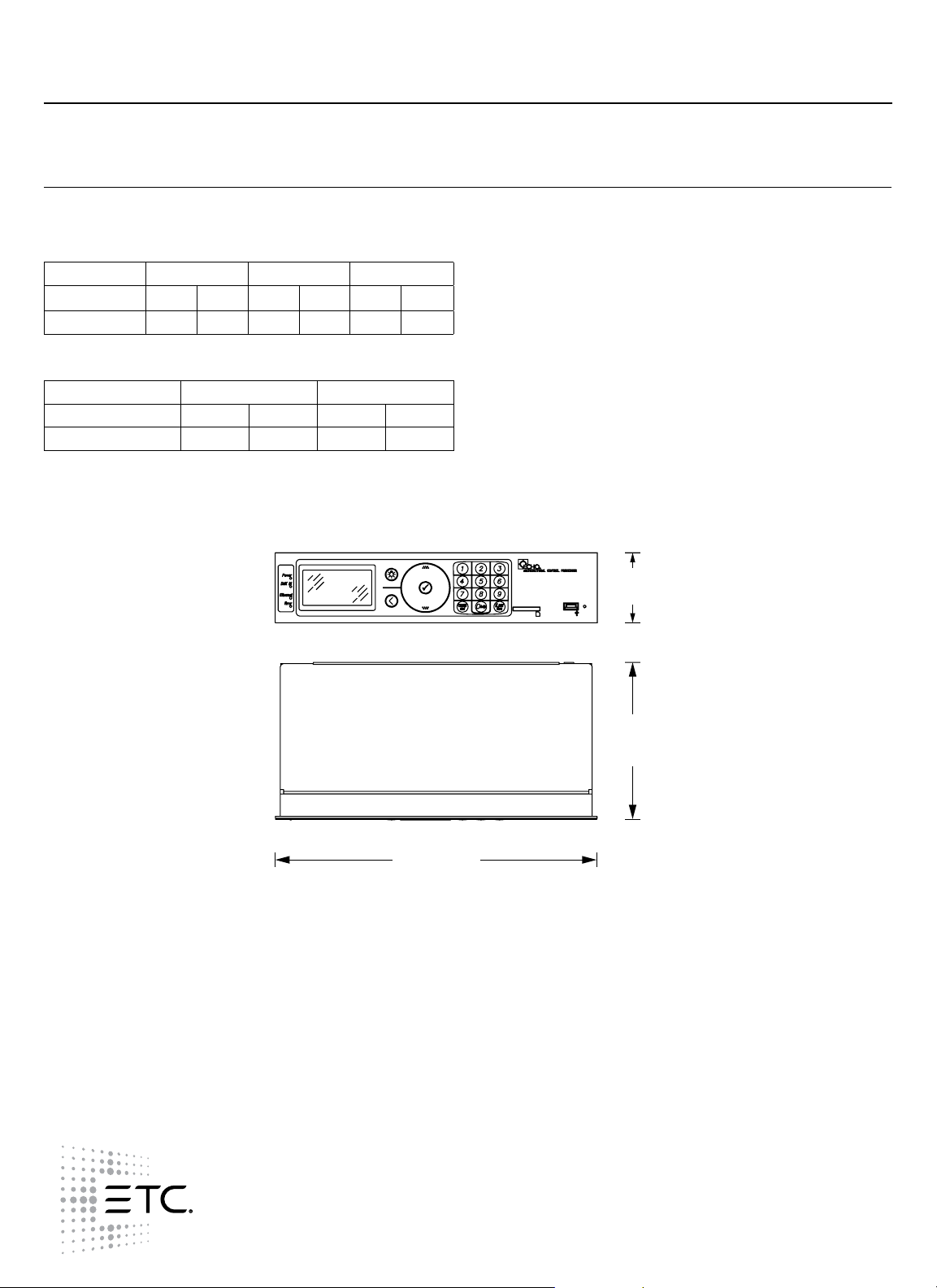

Processor Dimensions

MODEL HEIGHT WIDTH DEPTH

inches mm inches mm inches mm

E-ACP 2.6 66 12.2 310 5.9 150

Processor Weights

MODEL WEIGHT SHIPPING WEIGHT

E-ACP 2.6 1.2 5.0 2.3

*Weights and dimensions typical

*

*

lbs kgs lbs kgs

2.60in

65mm

5.90in

150m

12.20in

Corporate Headquarters n 3031 Pleasant View Rd, PO Box 620979, Middleton WI 53562 0979 USA n [phone]
London, UK n Unit 26-28, Victoria Industrial Estate, Victoria Road, London W3 6UU, UK n [phone]
Rome, IT n Via Pieve Torina, 48, 00156 Rome, Italy n [phone]
Holzkirchen, DE n Ohmstrasse 3, 83607 Holzkirchen, Germany n [phone]
Hong Kong n Room 1801, 18/F, Tower 1 Phase 1, Enterprise Square, 9 Sheung Yuet Road, Kowloon Bay, Kowloon, Hong Kong n [phone]
Web n etcconnect.com n Copyright©2017 ETC. All Rights Reserved. All product information and specifications subject to change. 7186L1006 Rev G 08/17
