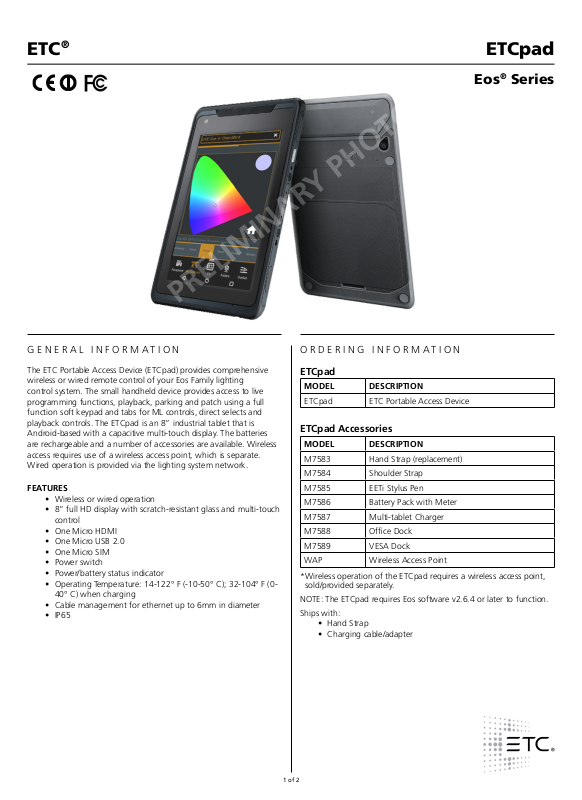

ETC ETCpad Datasheet

®

PRELIMINARY PHOTO

ETCpadETC

Eos® Series

GENERAL INFORMATION

The ETC Portable Access Device (ETCpad) provides comprehensive
wireless or wired remote control of your Eos Family lighting
control system. The small handheld device provides access to live
programming functions, playback, parking and patch using a full
function soft keypad and tabs for ML controls, direct selects and
playback controls. The ETCpad is an 8” industrial tablet that is
Android-based with a capacitive multi-touch display. The batteries
are rechargeable and a number of accessories are available. Wireless
access requires use of a wireless access point, which is separate.
Wired operation is provided via the lighting system network.

FEATURES

• Wireless or wired operation

• 8” full HD display with scratch-resistant glass and multi-touch
control

• One Micro HDMI

• One Micro USB 2.0

• One Micro SIM

• Power switch

• Power/battery status indicator

• Operating Temperature: 14-122° F (-10-50° C); 32-104° F (0­40° C) when charging

• Cable management for ethernet up to 6mm in diameter

• IP65

ORDERING INFORMATION

ETCpad

MODEL DESCRIPTION

ETCpad ETC Portable Access Device

ETCpad Accessories

MODEL DESCRIPTION

M7583 Hand Strap (replacement)

M7584 Shoulder Strap

M7585 EETi Stylus Pen

M7586 Battery Pack with Meter

M7587 Multi-tablet Charger

M7588 Office Dock

M7589 VESA Dock

WAP Wireless Access Point

* Wireless operation of the ETCpad requires a wireless access point,

sold/provided separately.

NOTE: The ETCpad requires Eos software v2.6.4 or later to function.

Ships with:

• Hand Strap

• Charging cable/adapter

1 of 2

®

ETCpadETC

Eos® Series

SPECIFICATIONS

COMPATIBILITY

• Eos Ti

• Eos

• Gio

• Gio @5

• Ion Xe/Ion Xe 20

• Ion

• Element

• Eos RPU

• Eos RPU3

• Ion Xe RPU

• Ion RPU

• ETCnomad

• ETCnomad Puck

• Net3 RVI

• Net3 RVI3

PHYSICAL

ETCpad Dimensions

MODEL HEIGHT WIDTH DEPTH

inches mm inches mm inches mm

ETCpad 5.59 142 9.44 240 0.57 14.5

ETCpad Weights

MODEL WEIGHT SHIPPING WEIGHT

lbs kgs lbs kgs

ETCpad 1.32 0.6 N/A N/A

Corporate Headquarters n 3031 Pleasant View Rd, PO Box 620979, Middleton WI 53562 0979 USA n [phone]
London, UK n Unit 26-28, Victoria Industrial Estate, Victoria Road, London W3 6UU, UK n [phone]
Rome, IT n Via Pieve Torina, 48, 00156 Rome, Italy n [phone]
Holzkirchen, DE n Ohmstrasse 3, 83607 Holzkirchen, Germany n [phone]
Hong Kong n Room 1801, 18/F, Tower 1 Phase 1, Enterprise Square, 9 Sheung Yuet Road, Kowloon Bay, Kowloon, Hong Kong n [phone]
Web n etcconnect.com n Copyright©2018 ETC. All Rights Reserved. All product information and specifications subject to change. 4250L1122 Rev A 02/18

2 of 2
