ETC EPS10-RST-01 Data Sheet

®

Unison Echo® Inspire® Control StationsETC

Echo Control Series

GENERAL INFORMATION

The control you need – right at your fingertips. These EchoConnect®­powered stations are designed to initiate preset, zone, and space
controls for your entire system. They communicate efficiently with
dimmers, relays and power control panels to provide necessary
control for any installation. You can choose your level of control with
a variety of button and fader stations created with your solutions in
mind.

APPLICATIONS

• Education

• Hospitality

• Healthcare facilities

• Office buildings

• Conference rooms

• Meeting rooms

• Retail

FEATURES

• EchoConnect: two-wire topology-free system gives you the
freedom to easily place stations wherever they are needed

• Fastener-Free Faceplate System: no visible means of
attachment

• Decorator style face plates available in one-, two-, three- and
four-gang options

• Color condition: rear-illuminated buttons that indicate system
status using blue for active and amber or off for inactive

• Simple user-legend system supports use of a variety of
standard nomenclature, or user-supplied inserts

• Multi Space Preset functionality

GENERAL

• UL and cUL LISTED

• CE marked

ORDERING INFORMATION

Product

MODEL DESCRIPTION

E1001-_ Inspire 1-Button Control Station

E1002-_ Inspire 2-Button Control Station

E1004-_ Inspire 4-Button Control Station

E1006-_ Inspire 6-Button Control Station

E1008-_ Inspire 8-Button Control Station

E1104-_ Inspire 4-Button with Fader Control Station

Enter station color code in __ space provided:

1 = Cream (RAL 9001), 3 = Gray (RAL 7001), 4 = Black (RAL 9004),
5 = Signal White (RAL 9003)

Stations flush-mount (F) in industry-standard gang boxes. (By others)

Echo Power Requirements

EchoConnect: One unit of control power

Auxiliary Power: Not required

1 of 7

Unison Echo Inspire Control Stations ETC

Echo Control Series

SPECIFICATIONS

FUNCTIONAL

• Button and fader functions include: preset activation/ deactivation, record, raise, lower, zone on/off control and room combine

• Blue button illumination for active status

• Amber or no button illumination for inactive status

• Fader halo-illumination displays actual output level

• Zone or preset control from any station with real-time user toggle

MECHANICAL

• Standard configurations with 1, 2, 4, 6 and 8 buttons or 4 buttons and rotary fader

• Gangable for custom applications

• Enclosed electronics assembly and faceplate included

• Cantilevered switch arrays with removable button caps

• No visible means of attachment

• Flush-mount in industry standard backbox, RACO 690 or equivalent

• Surface-mount backboxes available from ETC upon request

• Constructed of injection-molded, ABS plastic in three RAL standard colors Cream (RAL 9001), Black (RAL 9004), and White (RAL 9003)

• User configurable legends on each button, or use standard legends that come with each station. Field configurable without the use of
tools

• Integral LED response indicator for each button with indication of active(blue) and inactive(amber or off) state

ELECTRICAL

• Connect via the EchoConnect control network via low-voltage Class 2 wiring

• Topology-free wiring over Belden 8471 or equivalent and one #14 ESD drain wire

• Supports optional use of Belden 1583A or equivalent Ethernet control wire when used with Cat5 termination accessories

• Wiring may be bus, loop, homerun or any combination of
these

• Supports up to 500 meters (1640 feet) of control wiring

- Up to 1000’ using CAT5

• All station terminations utilize removable connectors

• UL and cUL LISTED, CE marked

THERMAL

• Ambient room temperature: 0-50°C / 32-122°F

• Ambient humidity: 5-95% non-condensing

2 of 7

Unison Echo Inspire Control Stations ETC

Echo Control Series

FUNCTIONALITY

BASIC MODE FUNCTIONALITY

• Preset Mode:

- Button 1-8 Push: Toggle Preset 1-8 (Default) or Off

- Button 1-8 Hold: Space Raise

- Button 1-8 Double Tap: Quick Toggle Preset 1-8 (Default)

• Zone Mode

- One Button: Zone 1 Toggle

- Two Button: Zone 1 Raise, Zone 1 Lower

- Four Button: Select Zone 1 / 2, Selection Raise/Lower

- Six Button: Select Zone 1 / 2 / 3 / 4, Selection Raise/Lower

- Eight Button: Select Zone 1 / 2 / 3 / 4 / 5 / 6,
Selection Raise/Lower

- Four Button-Fader: Select Zone 1 / 2 / 3 / 4,
Selection Raise/Lower

FUNCTIONALITY

CUSTOM MODE FUNCTIONALITY

(Requires Programing With EchoAccess
additional connection hardware)

• Button Push

- Preset Toggle*, Preset Activate*

- Zone Toggle, Zone Lower, Zone Raise, Zone Set to Level,

Zone Set to Color, Zone Set to Color Temp

- Space Off*, Space Toggle, Space Lower, Space Raise,

Space Set to Level

- Space Combine Toggle, Space Combine, Space Uncombine,

- Space Set to Color, Space Set to Color Temp

- Sequence Toggle

- Timeclock Hold Toggle, Timeclock Hold Enable

Timeclock Hold Disable

• Button Hold

- Zone Lower

- Zone Raise

- Space Lower

- Space Raise

• Button Double Tap

- Preset Toggle*, Preset Activate*

- Zone Toggle, Zone Set to Level, Zone Set to Color, Zone Set

to Color Temp

- Space Off, Space Toggle, Space Set to Level, Space Set to

Color, Space Set to Color Temp

- Timeclock Hold Toggle, Timeclock Hold Enable, Timeclock

Hold Disable

• Fader Push

- Preset Toggle*, Preset Activate*

- Zone Toggle, Zone Set to Level, Zone Set to Color,

Zone Set to Color Temp

- Space Off,* Space Toggle, Space Set to Level

Space to Color

- Selection to Level, Selection Toggle

- HSI Color Mode, Color Temp Mode, Studio Mode

• Fader Double Tap

- Preset Toggle*, Preset Activate*

- Zone Toggle, Zone Set to Level, Zone Set to Color

Zone Set to Color Temp

- Space Off*, Space Toggle, Space Set to Level,

Space to Color

- Selection to Level, Selection Toggle

• Fader Rotate

- Zone Raise / Lower,

- Space Raise / Lower

- Selection Raise / Lower

- Color Zone Hue Raise / Lower,

- Color Zone Sat. Raise / Lower

- Zone Color Temp Raise / Lower

- Zone Tint Raise / Lower

- Selection Hue Raise / Lower

- Selection Sat. Raise / Lower

- Selection Tint Raise / Lower

- Selection Color Temp Raise / Lower

®

Mobile App and

*Multi Space capable - allowing for presets to be recalled in multiple
spaces from a single control

3 of 7

ECHO FAMILY OF PRODUCTS

Unison Echo Inspire Control Stations ETC

Echo Control Series

EchoConnect Power Supplies

MODEL DESCRIPTION

E-SPS 6U Room Station Power Supply, Knockout Mount

E-SPS-DIN 16U DIN rail Station Power Supply with 24V Aux

E-SPM 16U DRd Station Power Module

E-SPM-A 16U DRd Station Power Module with 24V Aux

E-SPM-RM 16U Rack-Mount Station Power Module Aux

E-SPM-RM-A 16U Rack-Mount Station Power Module 24V Aux

E-SPM-WM 16U Wall-Mount Station Power Module

E-SPM-WM-A 16U Wall-Mount Station Power Module 24V Aux

E-APS 24V Aux Power Supply, Knockout Mount

EchoTouch

MODEL DESCRIPTION

ETS EchoTouch Controller

Echo Stations

MODEL DESCRIPTION

E1001 Inspire One Button Station

E1002 Inspire Two Button Station

E1004 Inspire Four Button Station

E1006 Inspire Six Button Station

E1008 Inspire Eight Button Station

E1104 Inspire Four Button with Fader Station

EPS05 Echo Preset Station - 5 Button

EPS10 Echo Preset Station - 10 Button

EPSLO Echo Lockout Station

E-ATC Echo TimeClock

Echo Interfaces

MODEL DESCRIPTION

EACC EchoAccess Interface

EEB Echo Expansion Bridge

EDMXC Echo DMX Scene Controller

EEI Echo-Echofl ex Interface

ECII Echo Contact Input Interface

ECOI Echo Contact Output Interface

EDRI Echo Demand Response Interface

EBI Echo BACnet Interface

Zone Controllers

MODEL DESCRIPTION

ERC-G2 One Zone Relay Controller

EDRC-G2 Two Zone Relay Controller

ELD-G2 One Zone 0-10V Controller

EDLD-G2 Two Zone 0-10V Controller

ESSC-G2 One Zone SmartSpace Controller

EDSSC-G2 Two Zone SmartSpace Controller

ELVD-G2 600-Watt Phase Adaptive Dimmer

ELVD-277-G2 600-Watt Phase Adaptive Dimmer- 277V

Room Controllers

MODEL DESCRIPTION

ERMC4-G2 Four Zone Room Controller

ERMCT4-G2 Four Zone Room Controller with TimeClock

ERMC8-G2 Eight Zone Room Controller

ERMCT8-G2 Eight Zone Room Controller with TimeClock

Echo Responsive Controls

MODEL DESCRIPTION

ELS Light Sensor

EOCC Ceiling-Mount PIR Occupancy Sensor

EVAC Ceiling-Mount PIR Vacancy Sensor

E-DOC-C Ceiling-Mount Dual Tech Occupancy Sensor

E-DVAC-C Ceiling-Mount Dual Tech Vacancy Sensor

E-DOC-W Wall-Mount Dual Tech Occupancy Sensor

E-DVAC-W Wall-Mount Dual Tech Vacancy Sensor

E-DOC-SM1 Switch-Mount Dual Tech Sensor - One Button

E-DOC-SM2 Switch-Mount Dual Tech Sensor - Two Button

Panel Products

MODEL DESCRIPTION

ERP Echo Relay Panel Mains Feed

ERP-FT Echo Relay Panel Feed Through

SensorIQ Sensor IQ Intelligent Breaker System

SR3 Sensor3 Power Control System

DRd Unison DRd with Echo Control

4 of 7

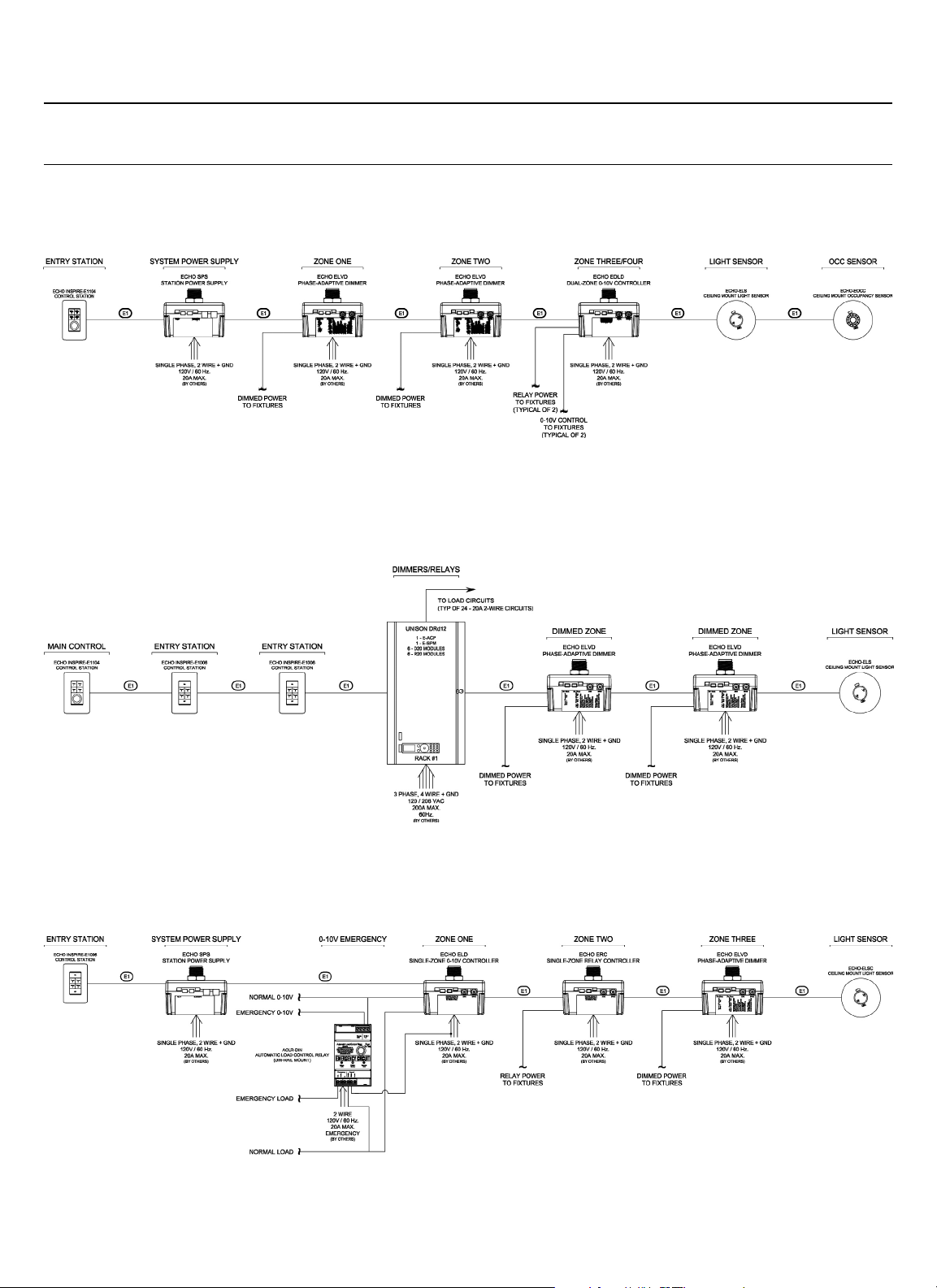

SAMPLE ECHO SYSTEMS

Unison Echo Inspire Control Stations ETC

Echo Control Series

SMALL SYSTEM

MEDIUM SYSTEM

CONFERENCE ROOM

5 of 7

SAMPLE ECHO SYSTEMS

Unison Echo Inspire Control Stations ETC

Echo Control Series

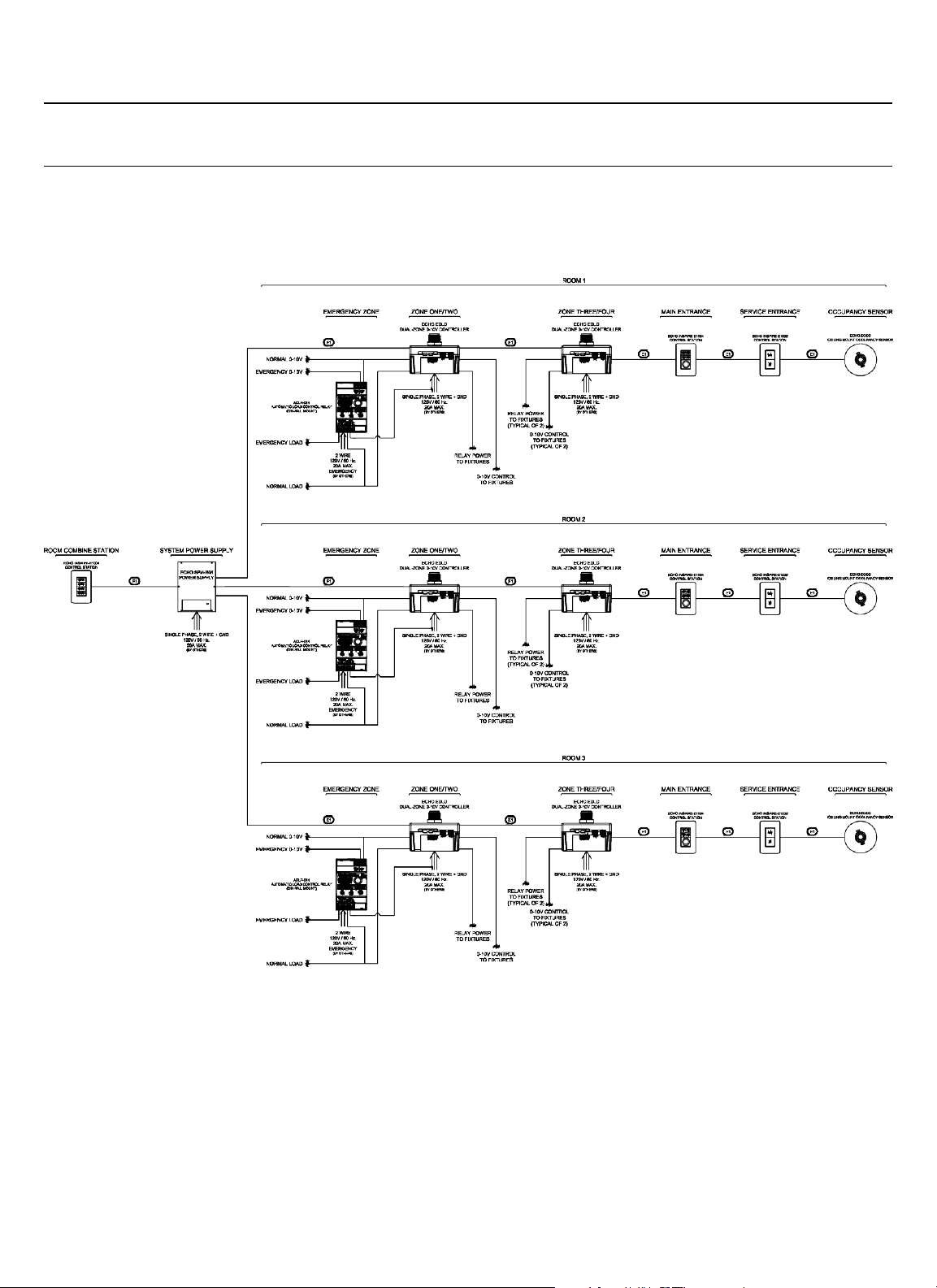

MEDIUM BALLROOM

6 of 7

Unison Echo Inspire Control Stations ETC

2.76”

70.1mm

2.63”

66.8mm

2.50”

63.5mm

3.75”

95.3mm

4.52”

114.9mm

1.32”

33.6mm

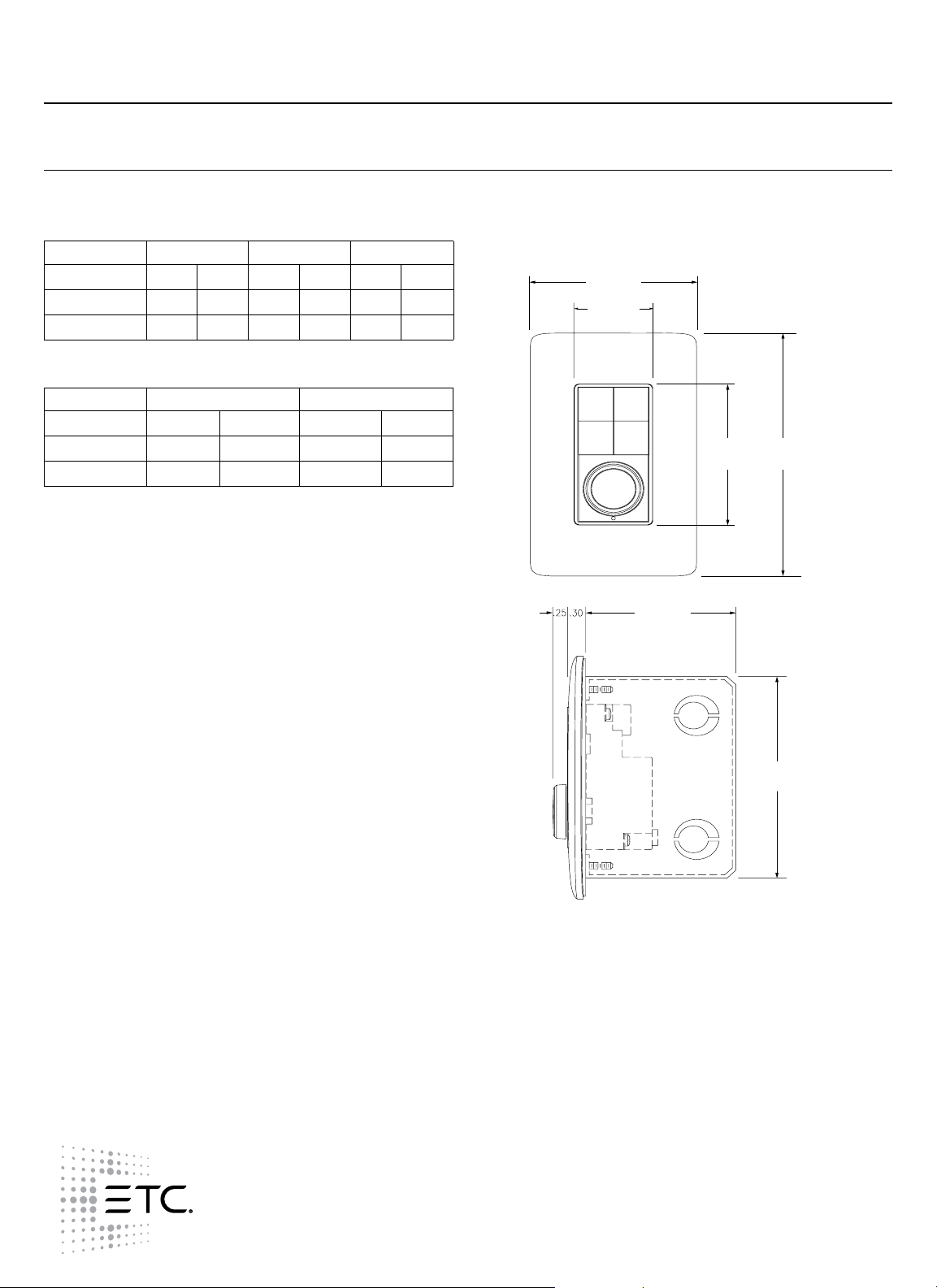

PHYSICAL

Product Dimensions

MODEL HEIGHT WIDTH DEPTH

in mm in mm in mm

E100X 4.52 115 2.76 71 0.30 8

E1104 4.52 115 2.76 71 0.55 14

Product Weights

MODEL WEIGHT SHIPPING WEIGHT

oz g oz g

E100X 3.68 105 7.49 213

E1104 3.75 107 7.54 214

Echo Control Series

Corporate Headquarters n 3031 Pleasant View Rd, PO Box 620979, Middleton WI 53562 0979 USA n [phone]
London, UK n Unit 26-28, Victoria Industrial Estate, Victoria Road, London W3 6UU, UK n [phone]
Rome, IT n Via Bruno Pontecorvo 10, 00012 Guidonia Montecelio, Roma, Italy n [phone]
Holzkirchen, DE n Ohmstrasse 3, 83607 Holzkirchen, Germany n [phone]
Hong Kong n Room 1801, 18/F, Tower 1 Phase 1, Enterprise Square, 9 Sheung Yuet Road, Kowloon Bay, Kowloon, Hong Kong n [phone]
Web n etcconnect.com n Copyright©2018 ETC. All Rights Reserved. All product information and specifications subject to change. Rev L 09/18

7 of 7
