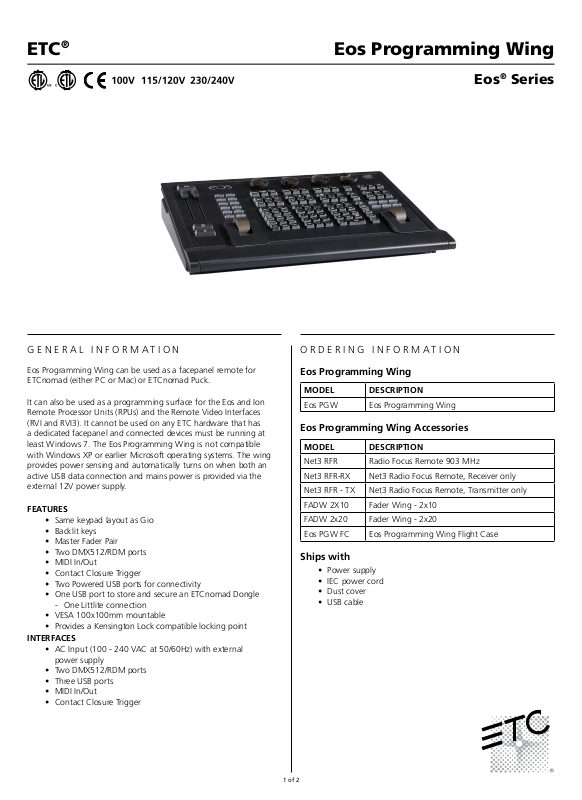

ETC EOS PGW Datasheet

®

Eos Programming WingETC

Eos® Series

GENERAL INFORMATION

Eos Programming Wing can be used as a facepanel remote for
ETCnomad (either PC or Mac) or ETCnomad Puck.

It can also be used as a programming surface for the Eos and Ion
Remote Processor Units (RPUs) and the Remote Video Interfaces
(RVI and RVI3). It cannot be used on any ETC hardware that has
a dedicated facepanel and connected devices must be running at
least Windows 7. The Eos Programming Wing is not compatible
with Windows XP or earlier Microsoft operating systems. The wing
provides power sensing and automatically turns on when both an
active USB data connection and mains power is provided via the
external 12V power supply.

FEATURES

• Same keypad layout as Gio

• Backlit keys

• Master Fader Pair

• Two DMX512/RDM ports

• MIDI In/Out

• Contact Closure Trigger

• Two Powered USB ports for connectivity

• One USB port to store and secure an ETCnomad Dongle

- One Littlite connection

• VESA 100x100mm mountable

• Provides a Kensington Lock compatible locking point

INTERFACES

• AC Input (100 - 240 VAC at 50/60Hz) with external
power supply

• Two DMX512/RDM ports

• Three USB ports

• MIDI In/Out

• Contact Closure Trigger

ORDERING INFORMATION

Eos Programming Wing

MODEL DESCRIPTION

Eos PGW Eos Programming Wing

Eos Programming Wing Accessories

MODEL DESCRIPTION

Net3 RFR Radio Focus Remote 903 MHz

Net3 RFR-RX Net3 Radio Focus Remote, Receiver only

Net3 RFR - TX Net3 Radio Focus Remote, Transmitter only

FADW 2X10 Fader Wing - 2x10

FADW 2x20 Fader Wing - 2x20

Eos PGW FC Eos Programming Wing Flight Case

Ships with

• Power supply

• IEC power cord

• Dust cover

• USB cable

1 of 2

®

PHYSICAL

Eos Programming WingETC

Eos® Series

Eos Programming Wing Dimensions

*

MODEL HEIGHT WIDTH DEPTH

inches mm inches mm inches mm

Eos PGW 4.04 103 19.55 497 14.24 362

Eos PGW with

12.45 32 31.59 81 20.47 52

Flight Case

19.55”

497mm

Eos Programming Wing Weights

*

MODEL WEIGHT SHIPPING WEIGHT

lbs kgs lbs kgs

Eos PGW 10 4.5 16 7.3

*Weights and dimensions typical

14.24”

362mm

3.66”

93mm

0.38”

9.6mm
